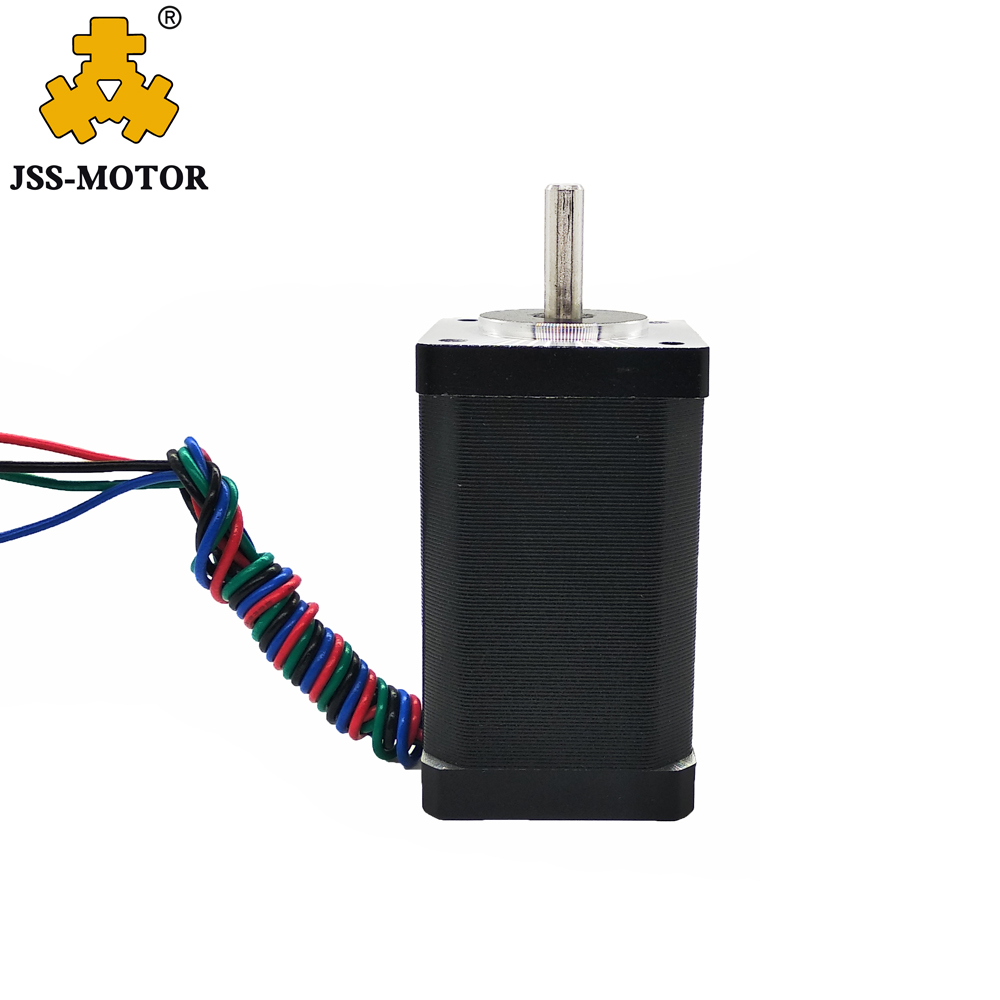

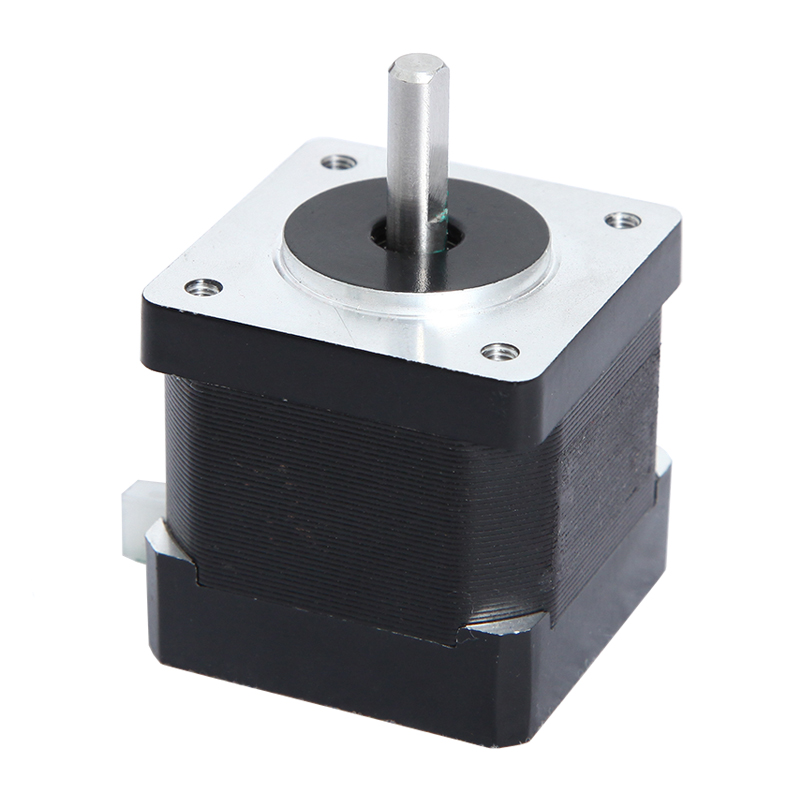

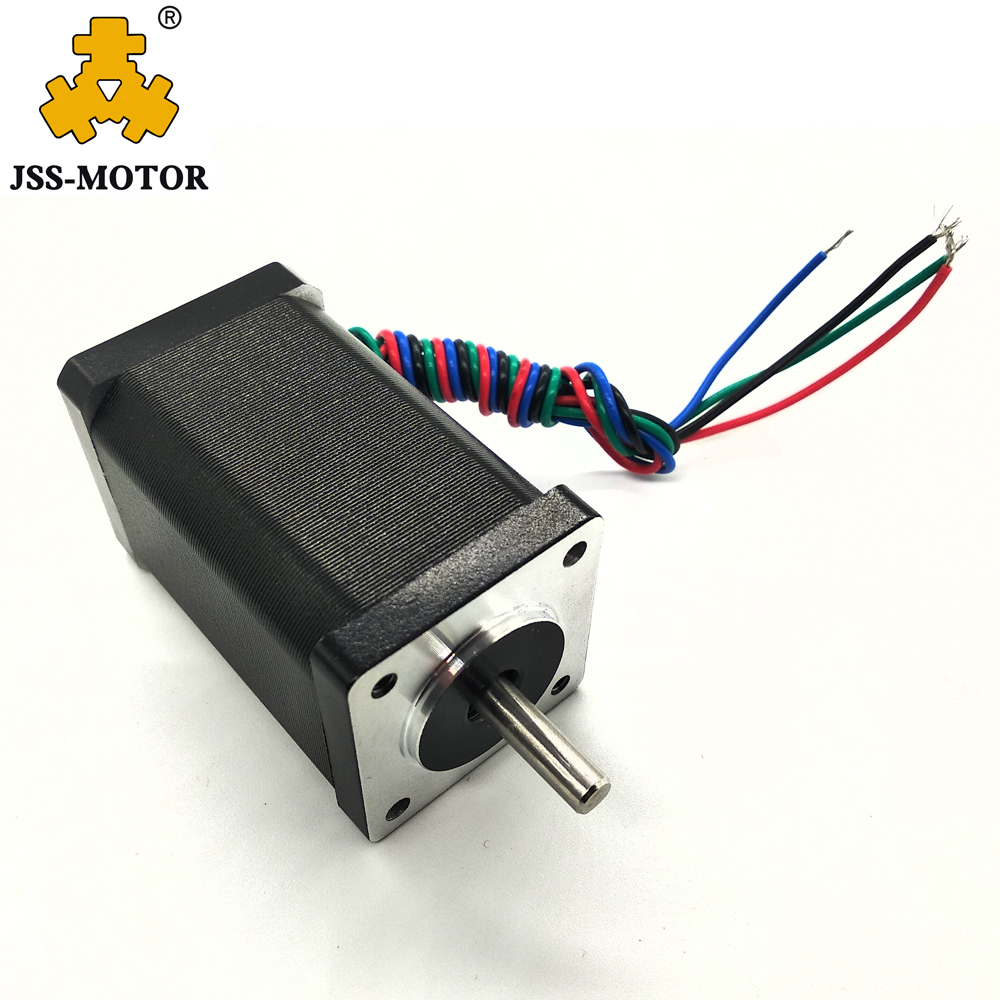

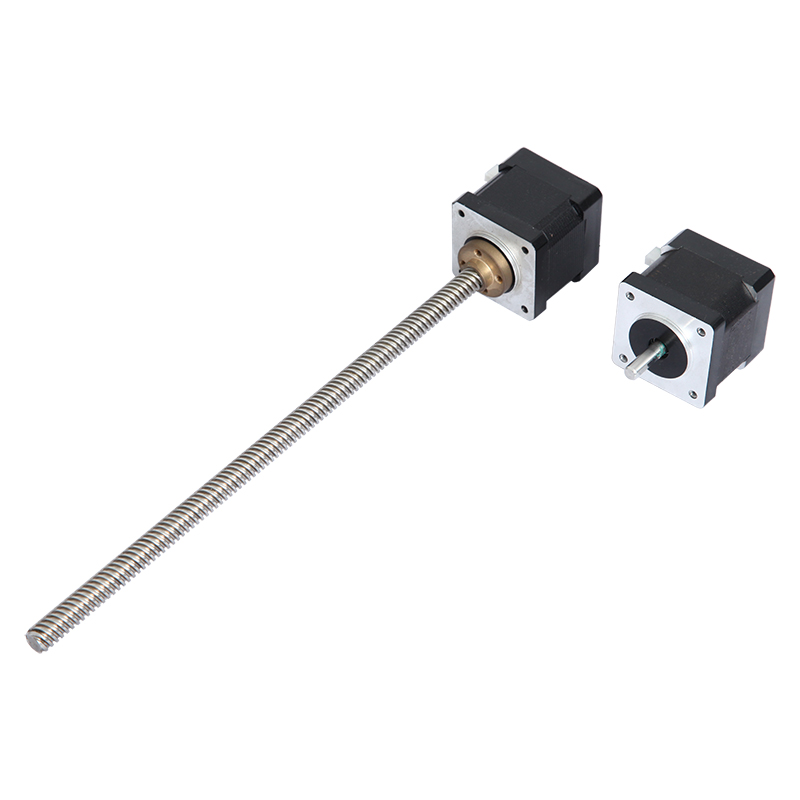

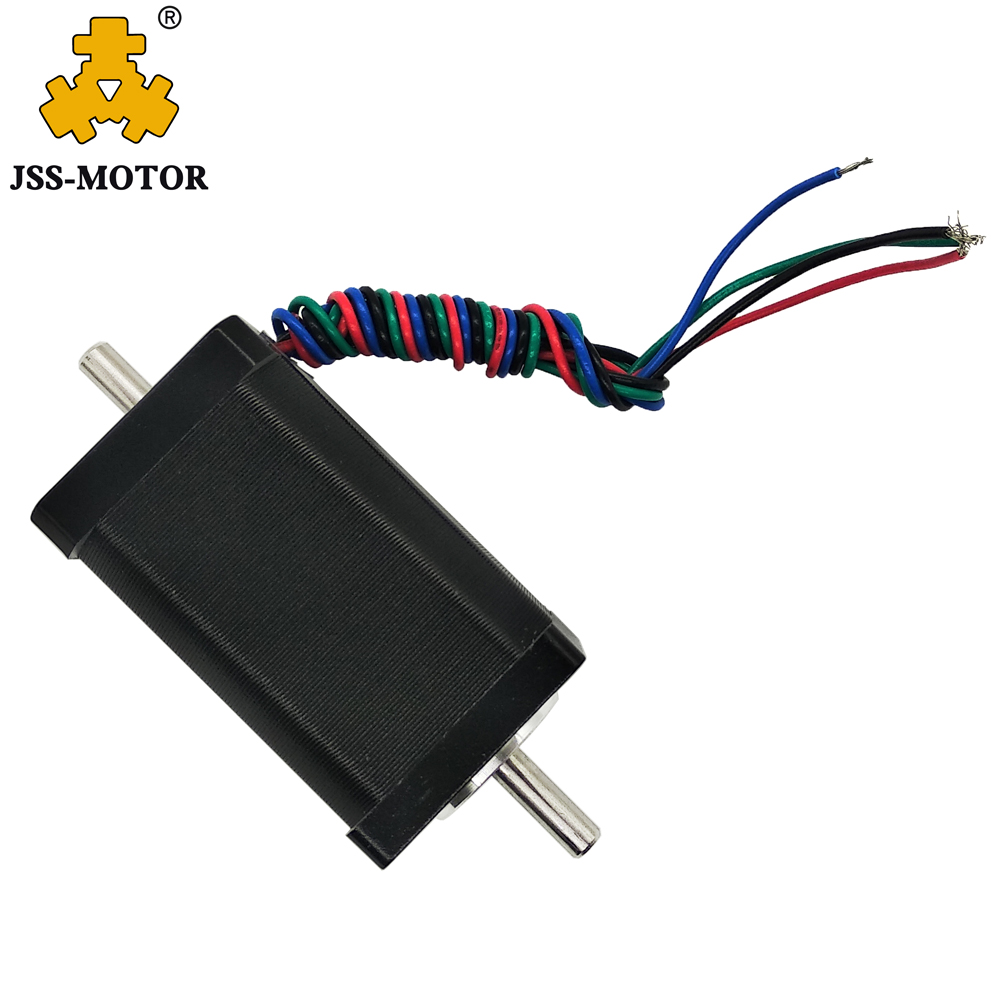

Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
1 / 5
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor
Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor

Small Oem Factory 0.9deg 1.8 Degree 35mm Nema14 Dual Hollow Shaft Linear Stepper Motor

Send Inquiry

Product Description

Small OEM Factory 0.9deg 1.8 degree 35mm nema14 dual hollow shaft linear stepper motor

Target Markets

  • Device, machine and plant manufacturing
  • Tufting machines
  • Labelling technology
  • Post and package handling
  • Assembly automation
Model No. Step Angle (degree) Current (A) Holding Torque (g.cm) Motor Length(mm) Lead Wires No. Weight(g)
35HS34-1204 1.8 1.2 1500g.cm 34 4 170
35HS38-1684 1.8 1.68 2500g.cm 38 4 200
35HS45-2004 1.8 2.0 4500g.cm 45 4 250

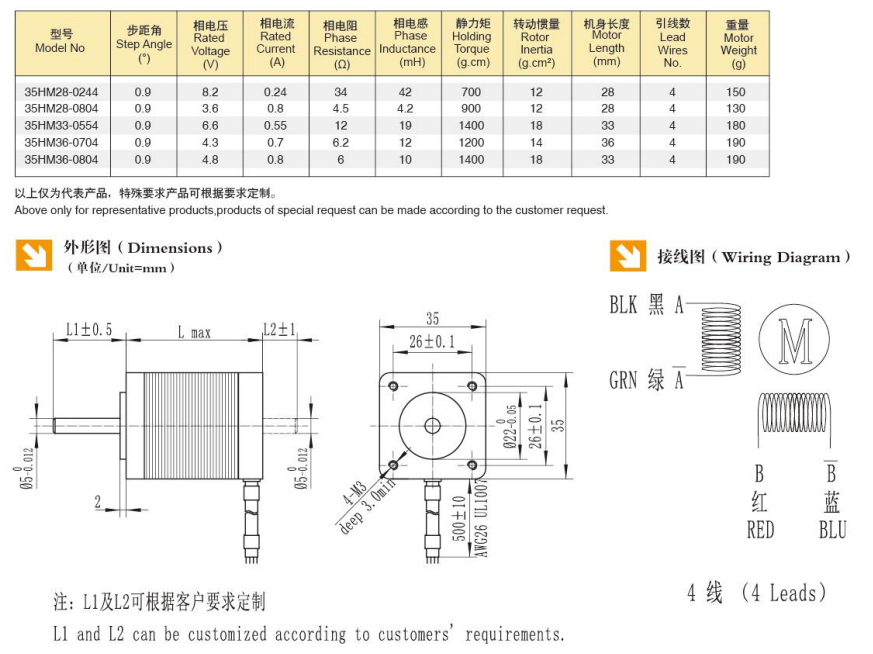

Linear Stepper Motor Diagram

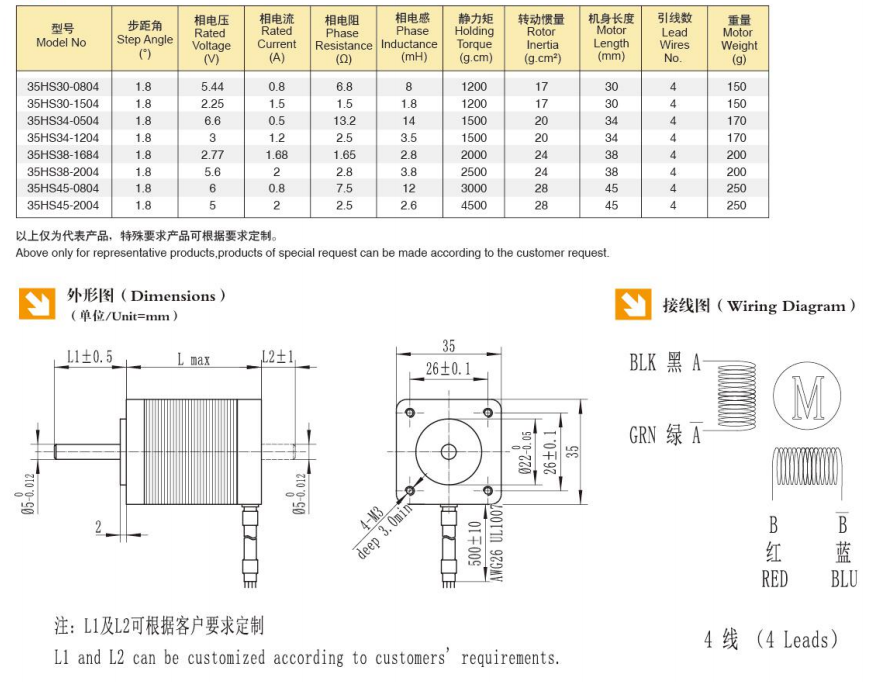

Linear Stepper Motor Technical Drawing
Motor Component 1
Motor Component 2

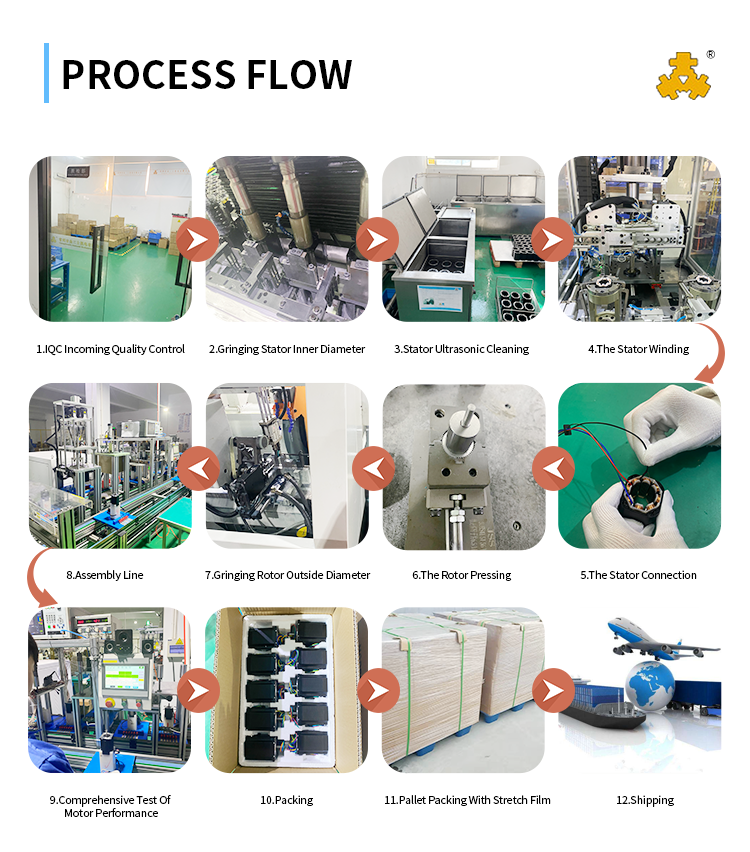

Motor Component 3
Motor Component 4
Motor Component 5
Frequently Asked Questions
Can I get some samples first?
Sure, we are honored to offer you samples for your quality check and verification.
Do you have the products in stock?
Our products are manufactured according to your specific order requirements, except for normal standard products.
What's the estimated delivery time?
It usually takes about 7 working days, but the exact delivery time might vary based on different order specifications or production timing.
How is quality control handled during manufacturing?
Quality is our priority. We attach great importance to quality control from the beginning to the end of production. Every product is fully assembled and carefully tested before packing.
What are your warranty terms?
We offer different warranty terms for different products. Please reach out to our team for detailed warranty information.
Are dual hollow shaft options customizable?
Yes, as an OEM factory, we specialize in providing tailored solutions including 0.9 and 1.8-degree stepper motors with specific shaft requirements.
