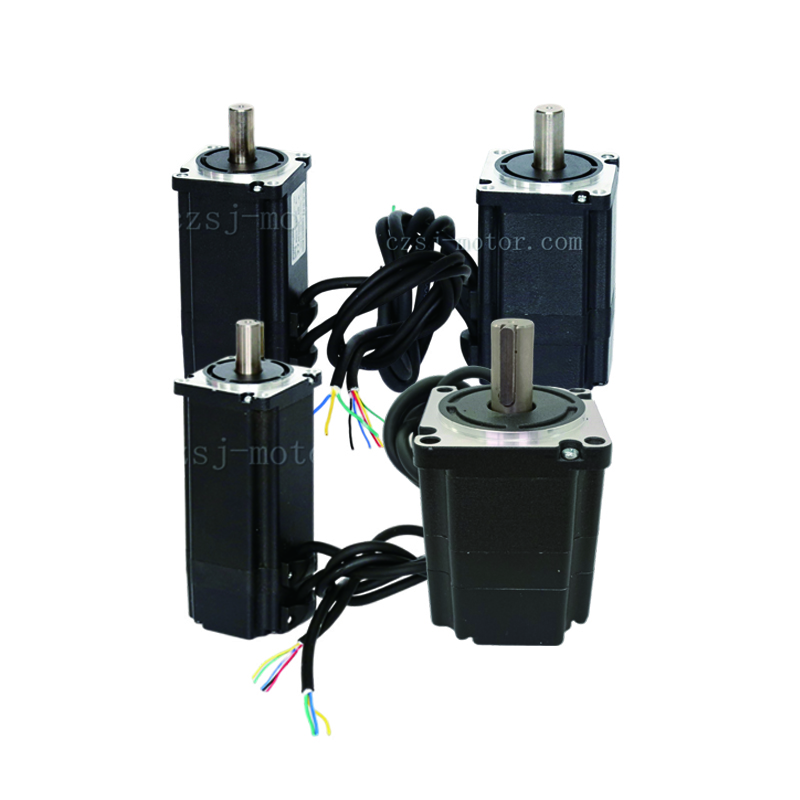

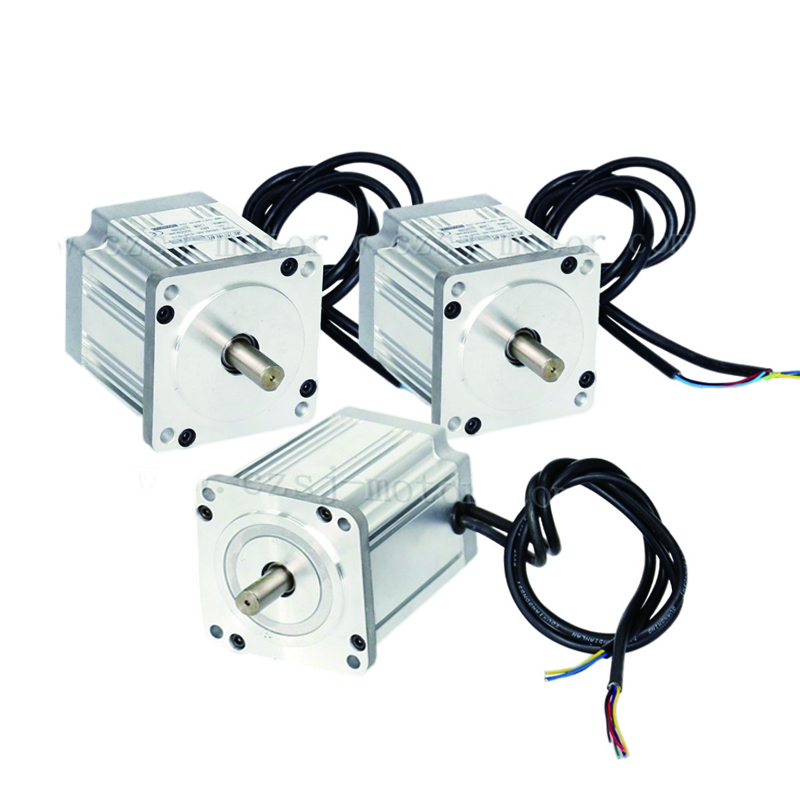

92v 1800w 2500w 4000rpm Treadmill Turbine Suction Motor Circuit Brushless Dc Motor for Scooter Drill Wheelchair With Encoder

Send Inquiry

Product Description

📦 Product Description

Brushless DC Motor - Detailed Instructions
Winding Type	Star
Hall Effect Angle	120°
Insulation Class	B
Ambient Temperature Range	-20°C ~ +50°C
Insulation Resistance	100MΩ Min 500V DC
Dielectric Strength	700V AC 1 minute

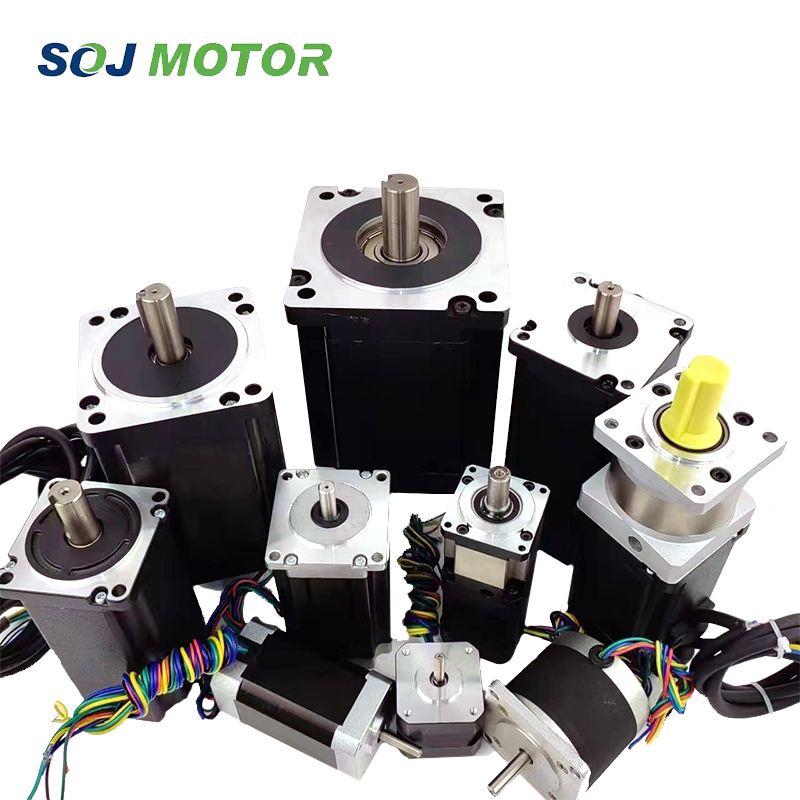

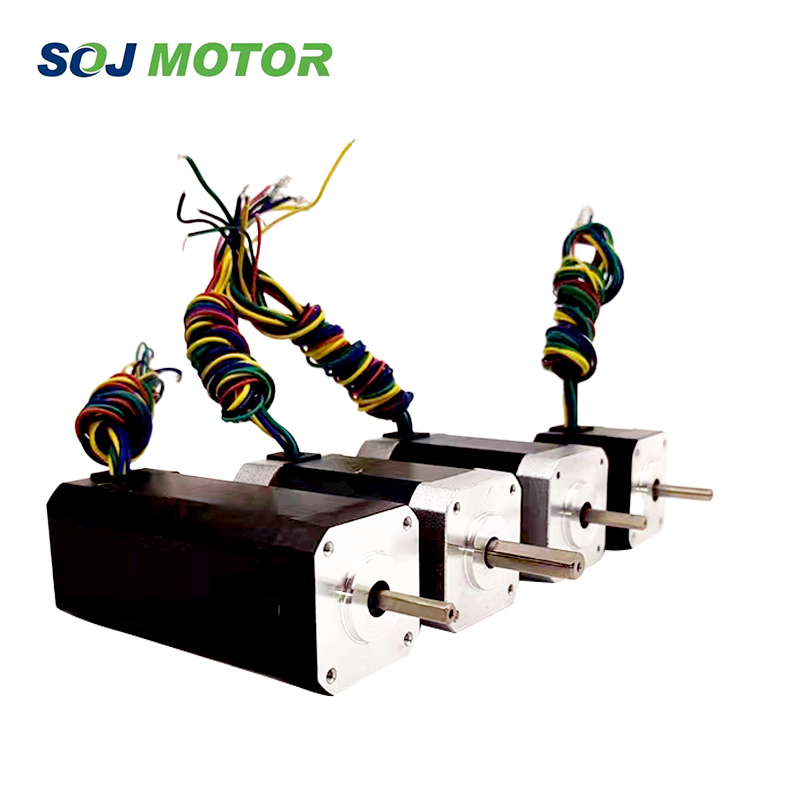

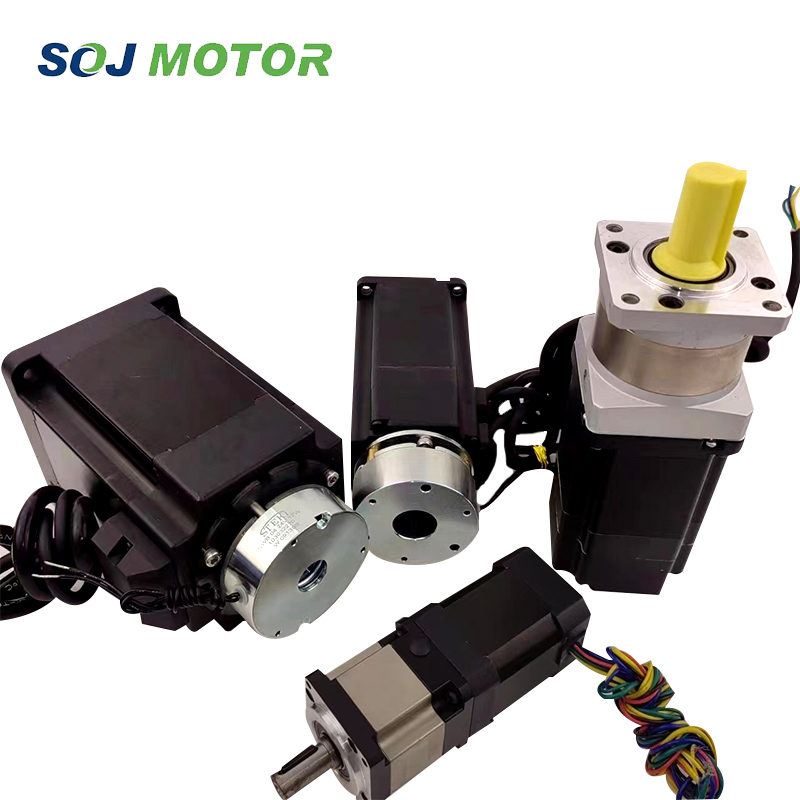

Product Series	Rated Power	Motor Length	Torsion (N.m)	Rated Speed (RPM)	Rated Voltage (V)
42mm BLDC Motor	25~105w	60~101mm	0.0625~115	4000	24
57mm BLDC Motor	17~140w	45~115mm	0.055~0.45	3000	24
60mm BLDC Motor	100~400w	77~141mm	0.32~1.28	3000	48
70mm BLDC Motor	157~439w	86~146mm	0.53~1.4	3000	24~48
80mm BLDC Motor	126~376w	86~126mm	0.4~1.2	3000	48
86mm BLDC Motor	200~789w	70~130mm	0.7~2.5	3000	24~48
90mm BLDC Motor	315~785w	85~135mm	1~2.5	3000	48
110mm BLDC Motor	1000~3000w	110~230mm	3.2~9.6	1500~3000	48

Above only for representative products, products of special request can be made according to the customer request.

⚙ Customized Design

📐 Composition Of Brushless Motor

📊 Products Drawing & Performance

Technical Drawing

🏭 Our Services & Facilities

🚚 Packaging & Shipping

❓ Frequently Asked Questions (FAQ)

Can these brushless DC motors be customized for specific applications?

Yes, we provide customized designs for motor power, length, torque, and voltage to meet specific customer requirements.

What is the standard insulation class for your BLDC motors?

Our standard brushless DC motors come with Class B insulation, ensuring reliability and safety during operation.

Are the motors suitable for extreme temperature environments?

Our motors are designed to operate efficiently within an ambient temperature range of -20°C to +50°C.

What types of feedback sensors are integrated into these motors?

Most models are equipped with Hall Effect sensors at a 120° angle, and certain models support encoders for precise control.

What is the typical lead time and shipping method?

Lead times vary based on customization needs. We use professional packaging to ensure safe transit via sea, air, or express couriers.

What applications are these motors commonly used for?

They are ideal for scooters, electric wheelchairs, treadmills, drills, and various industrial automation equipment.
