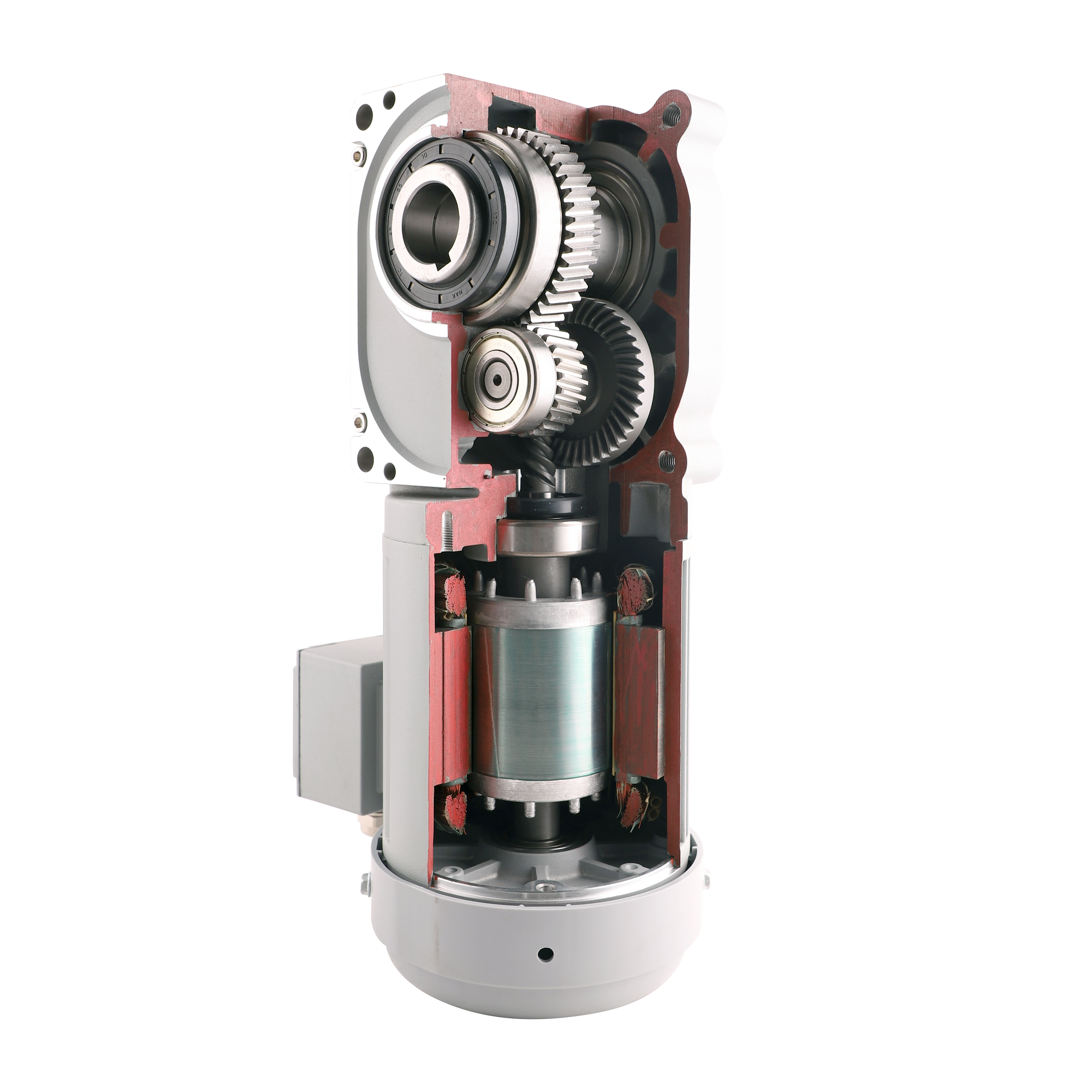

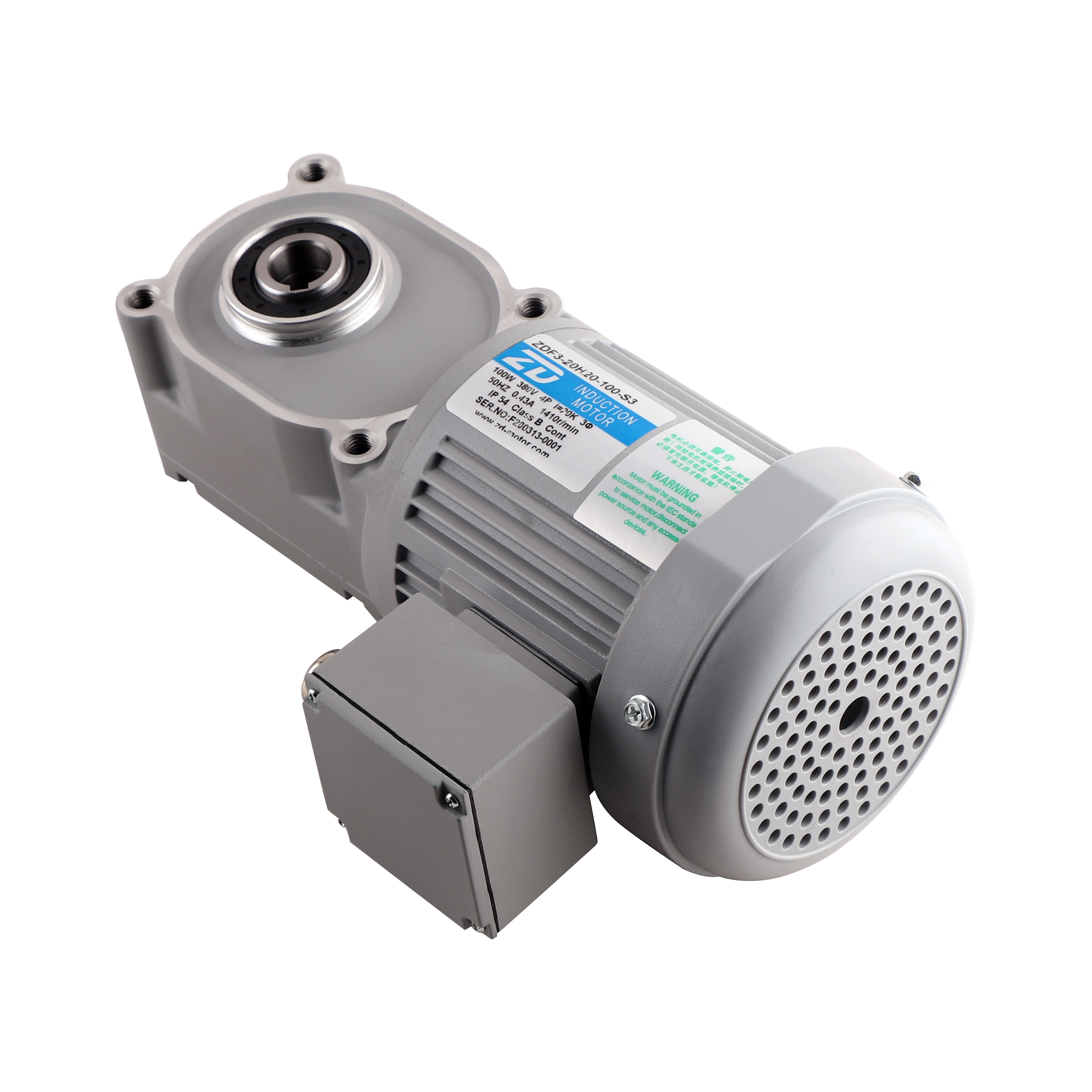

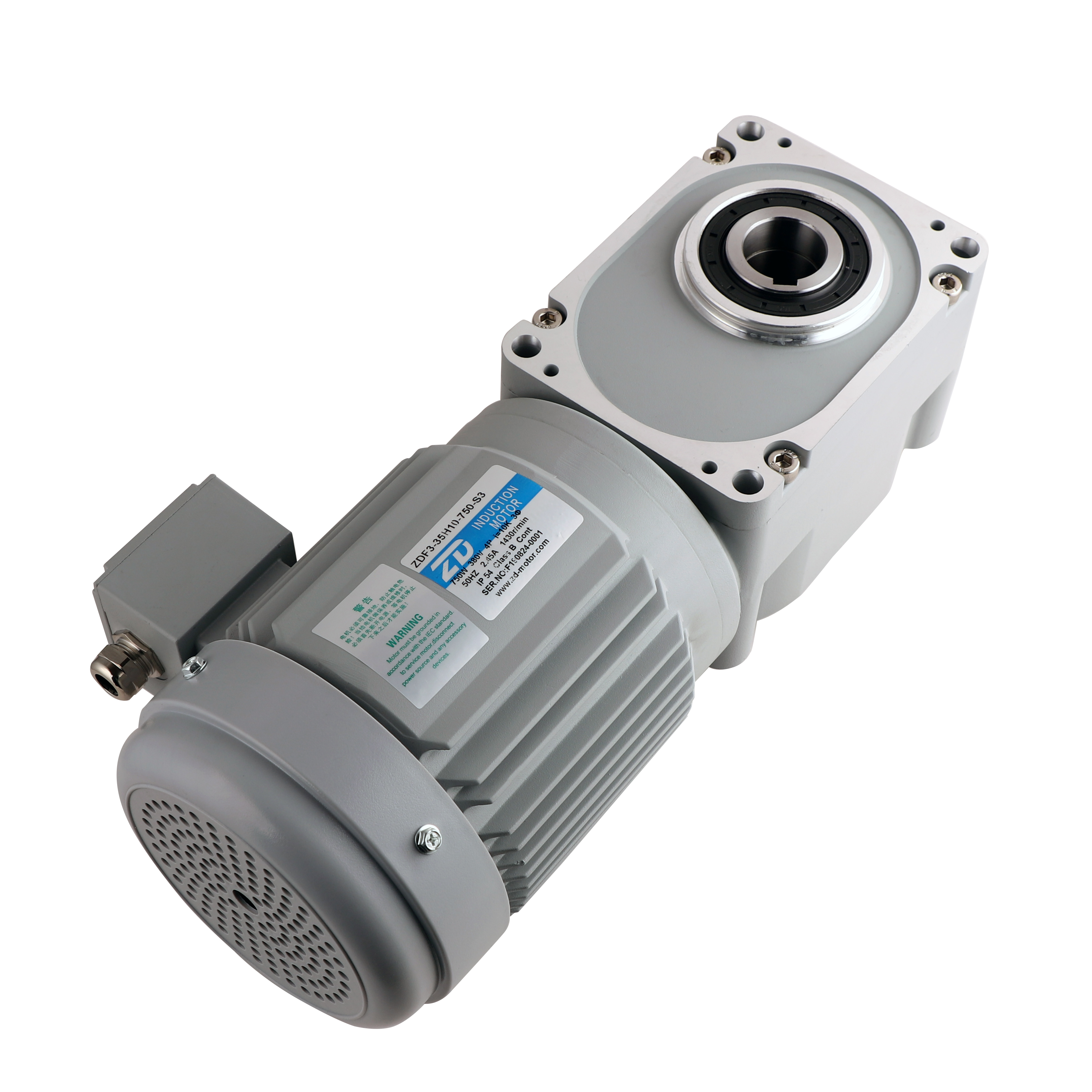

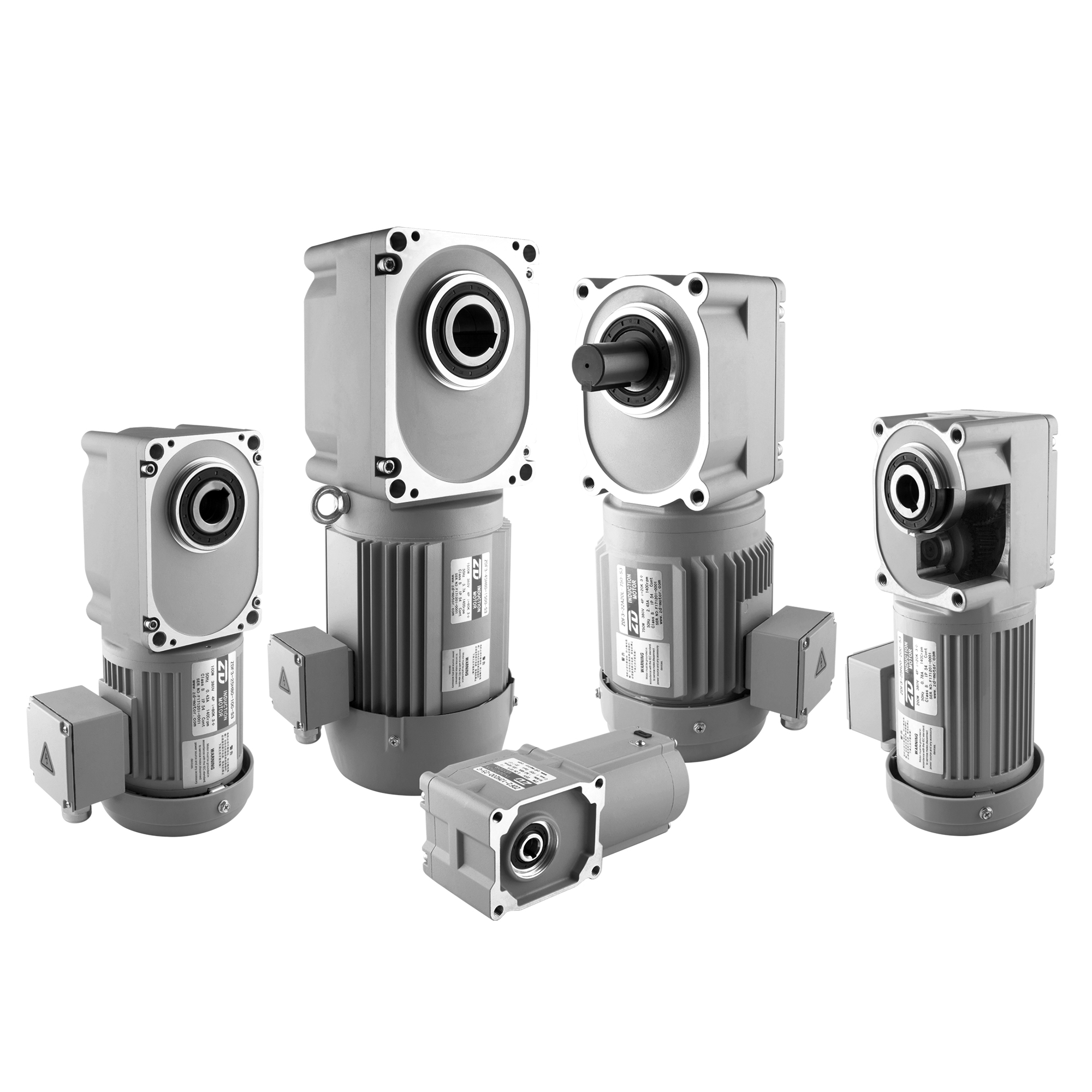

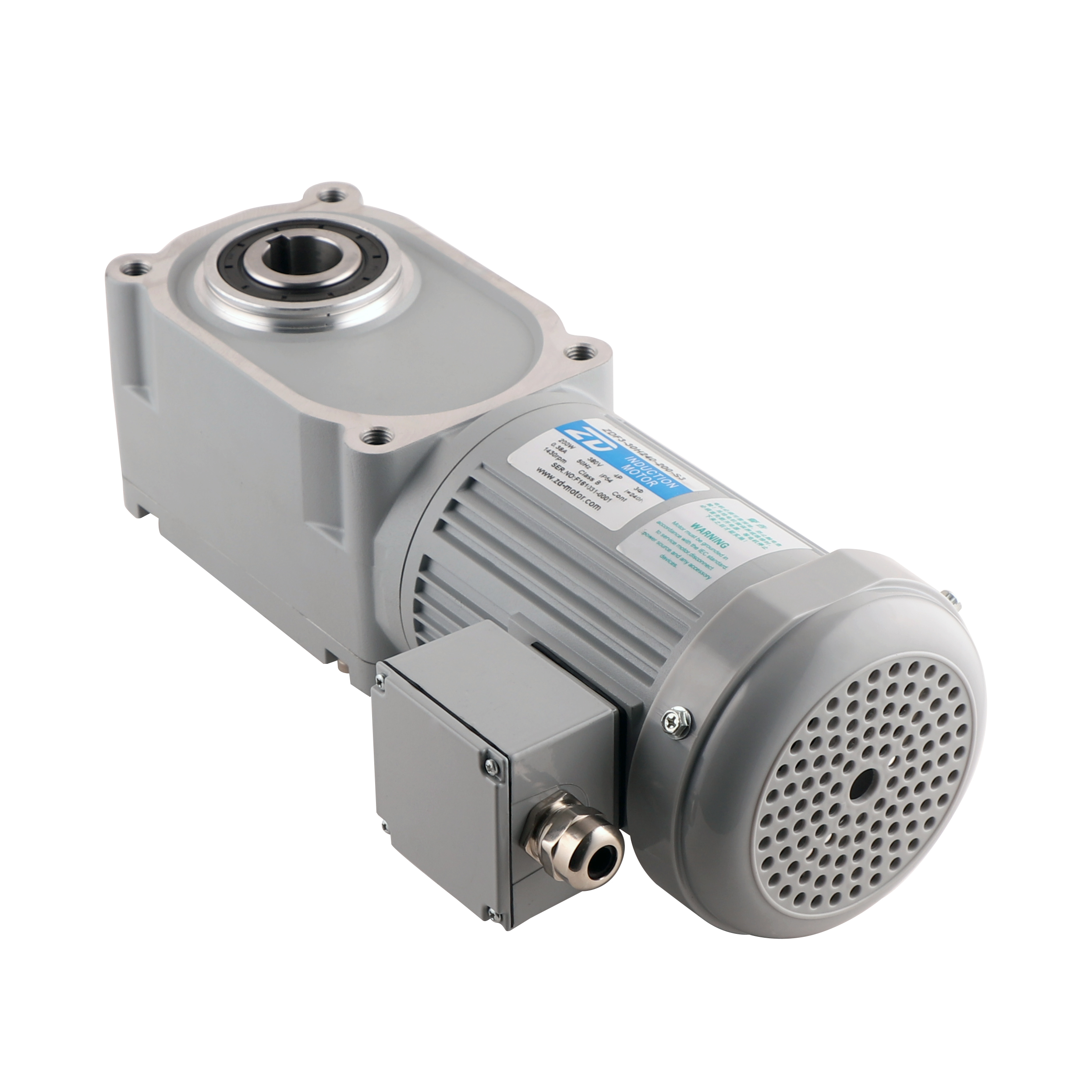

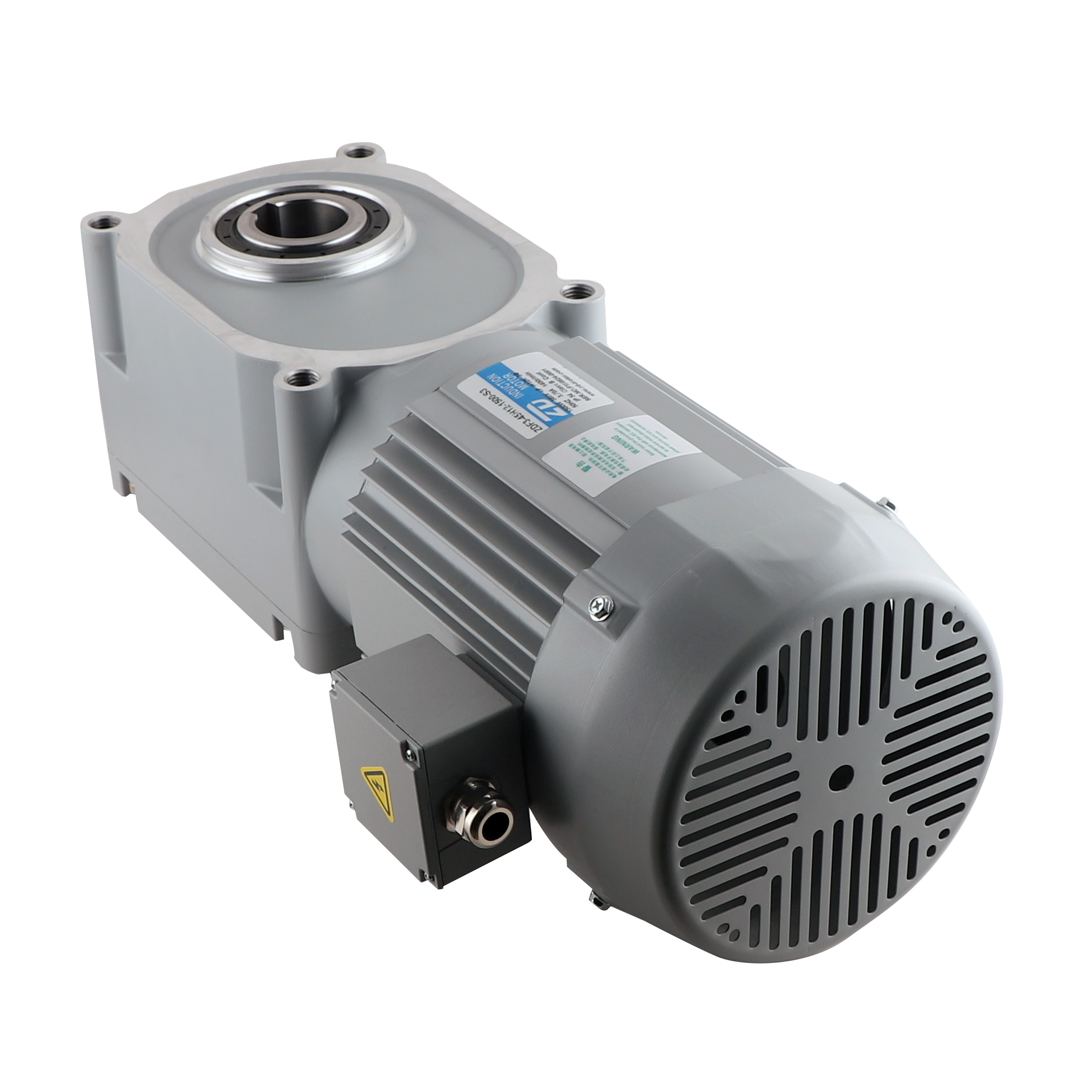

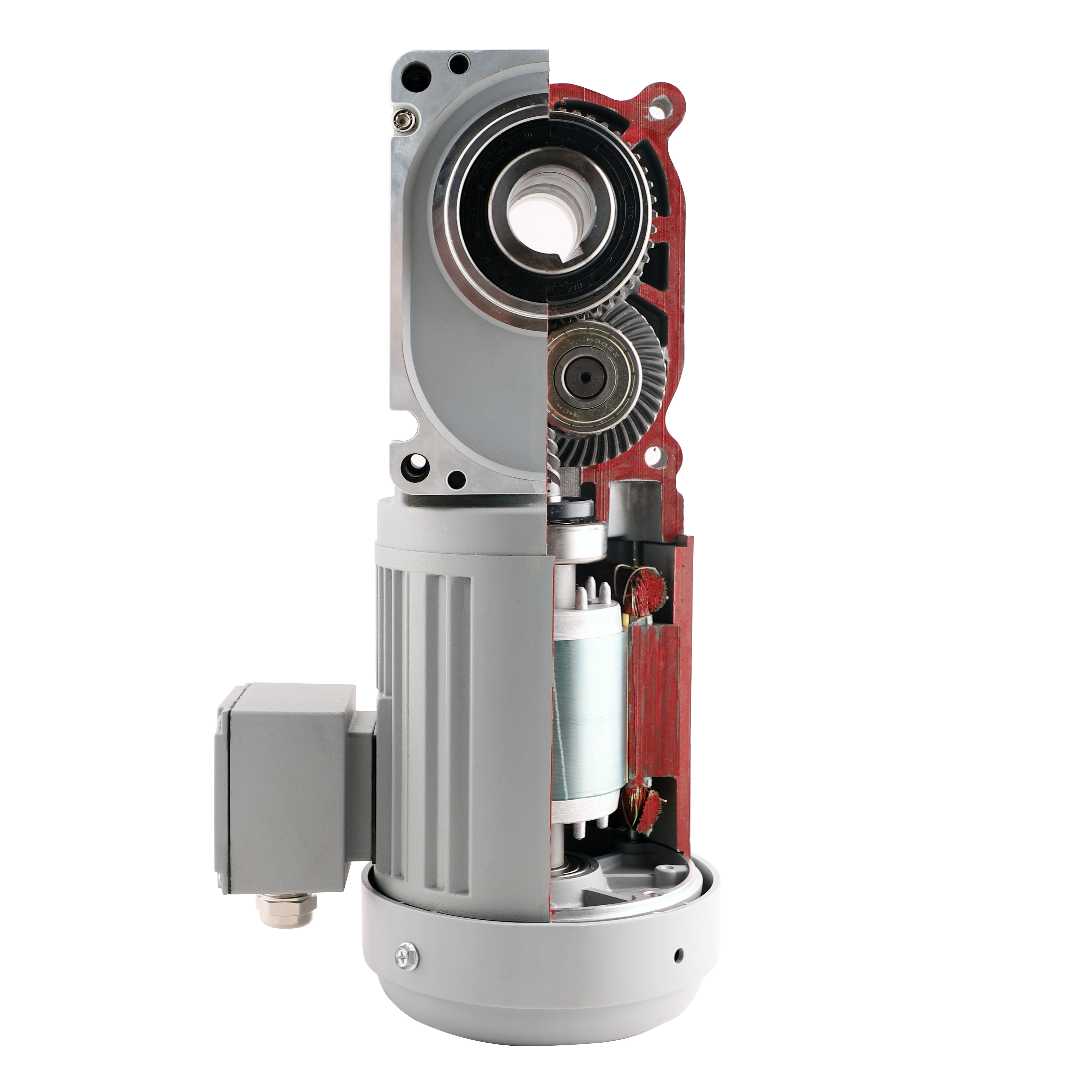

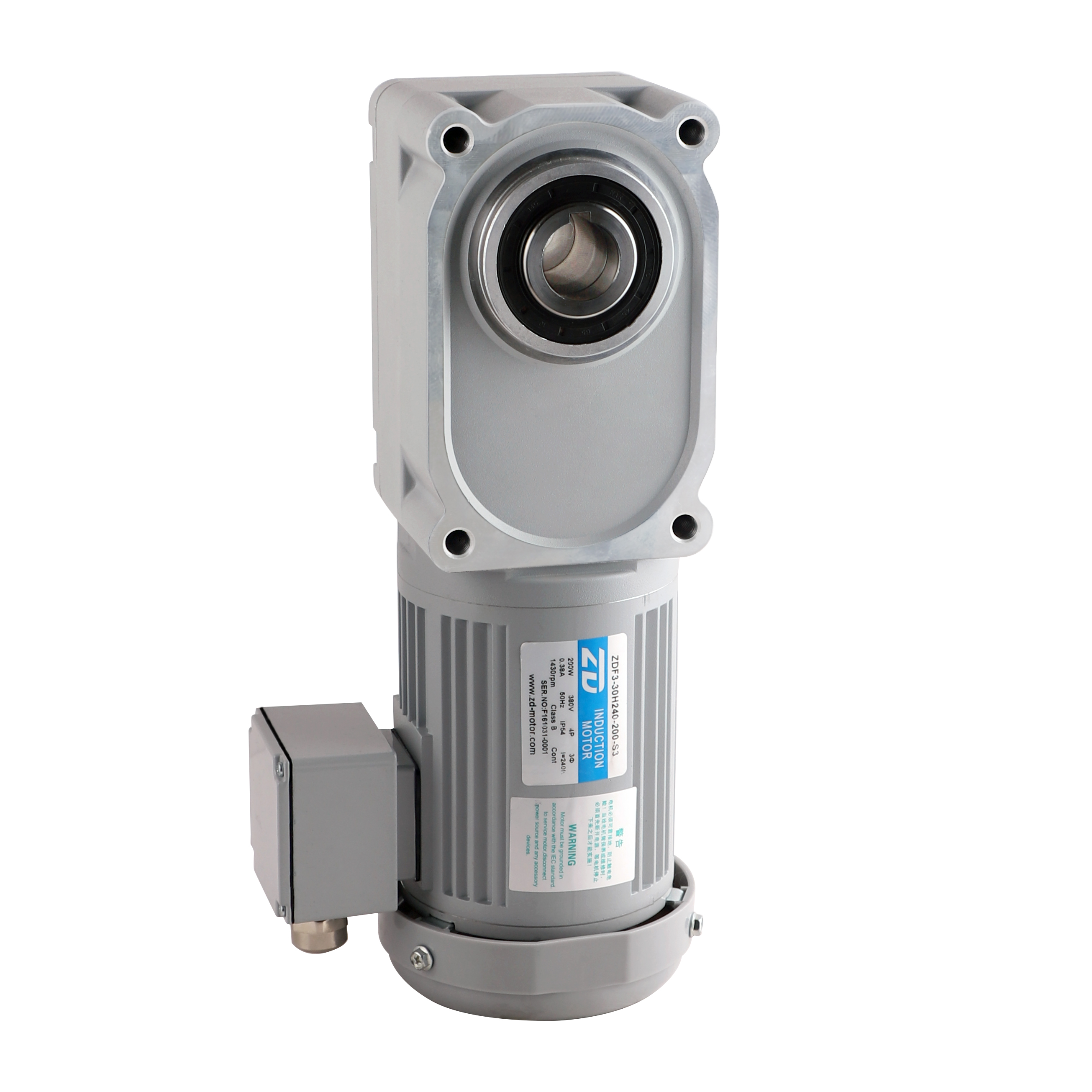

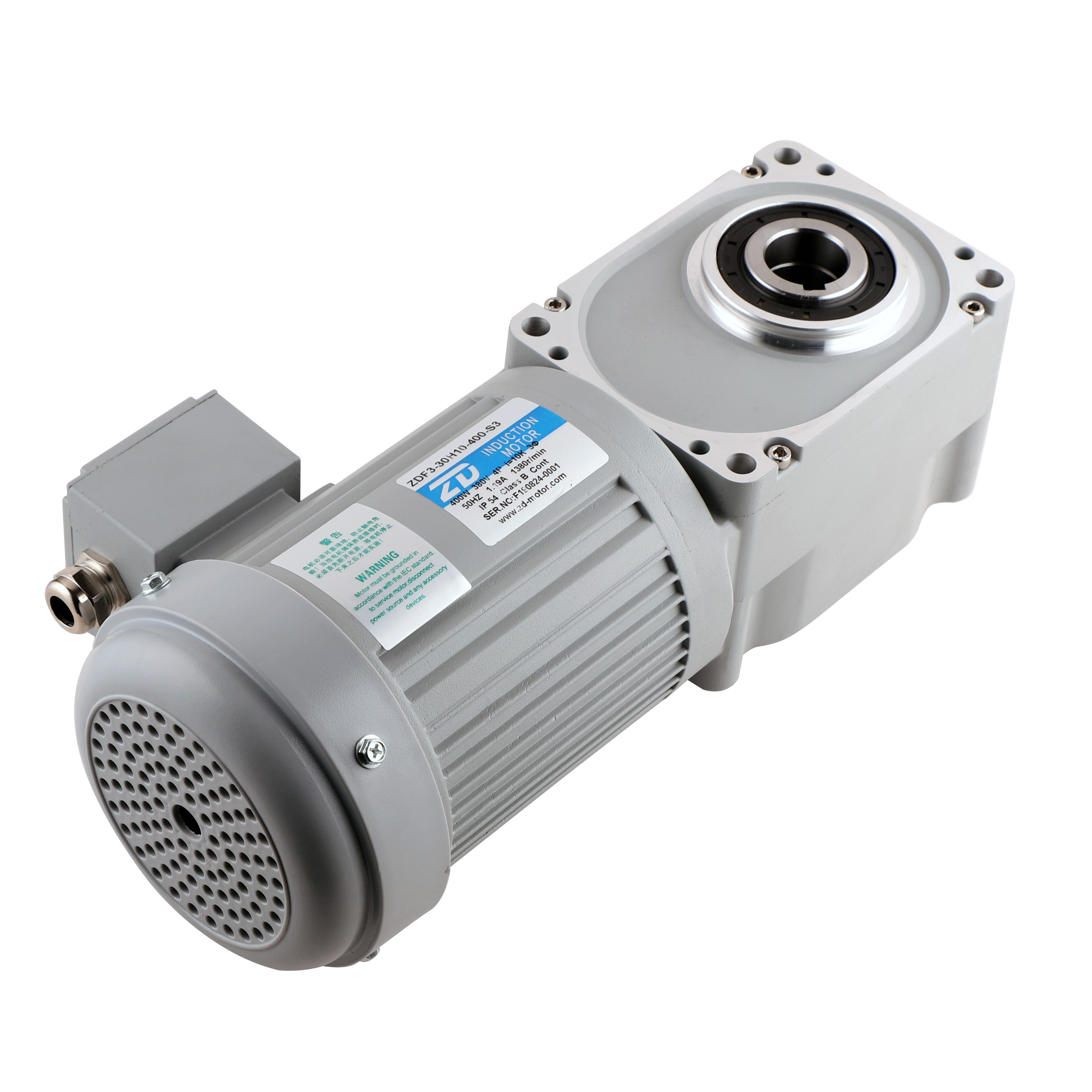

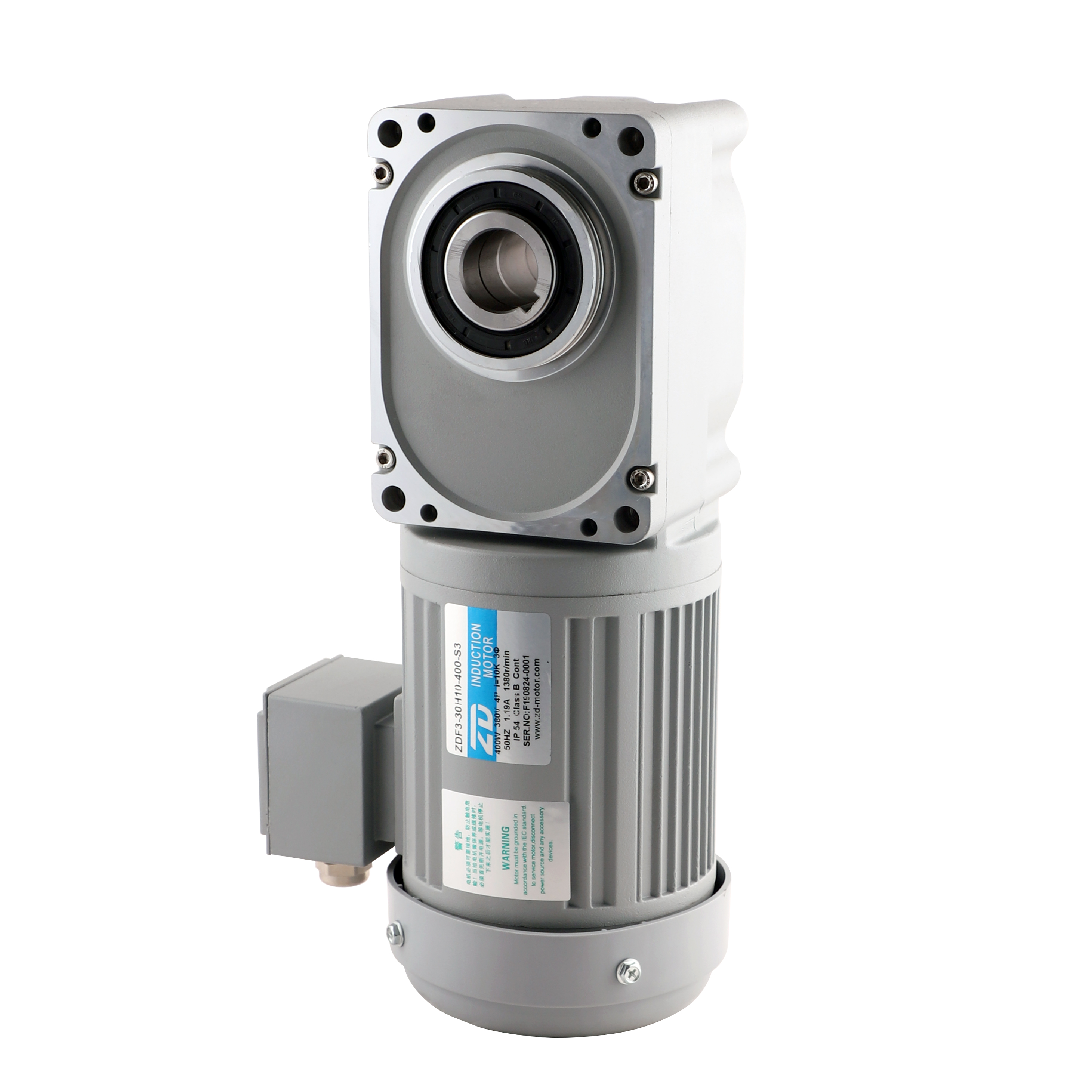

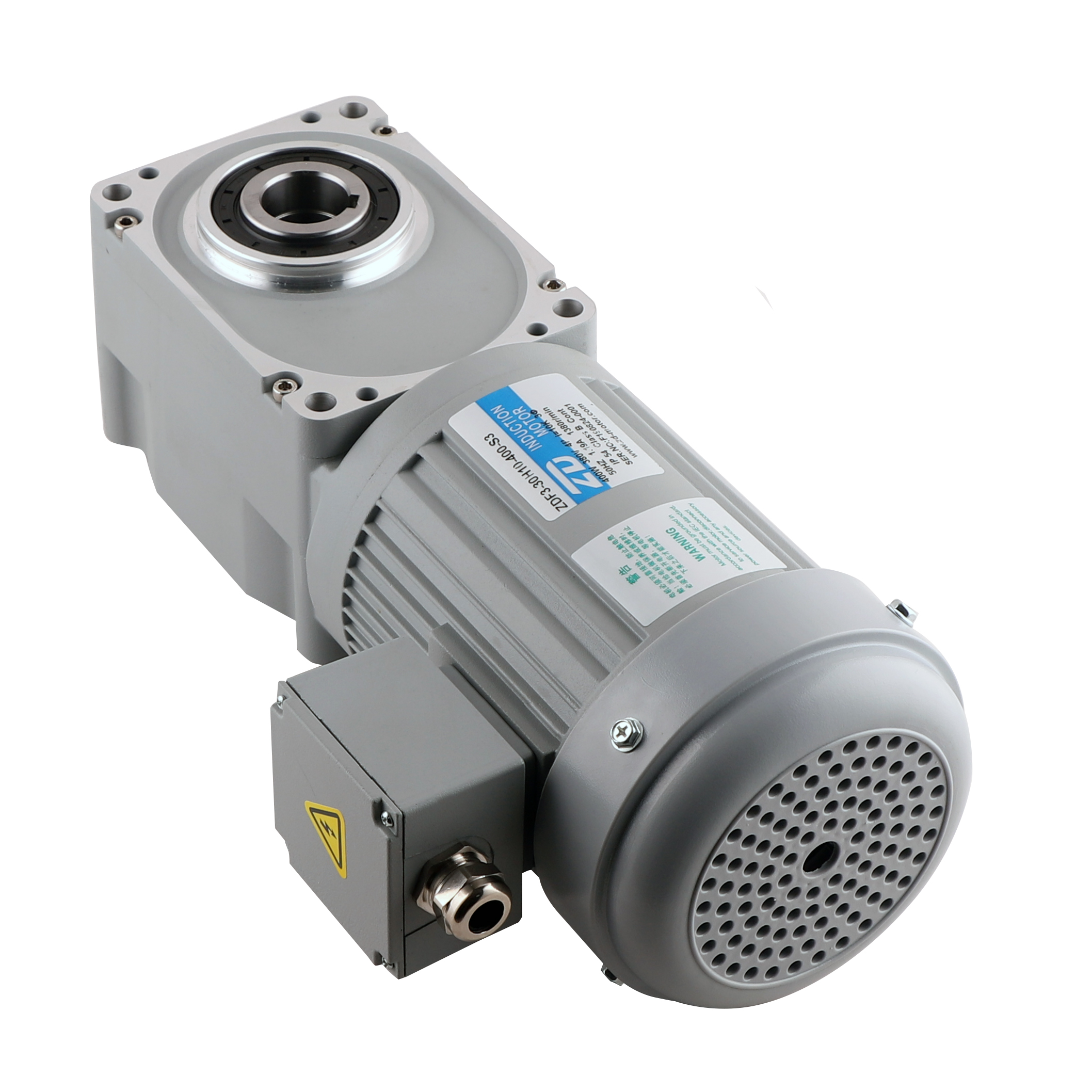

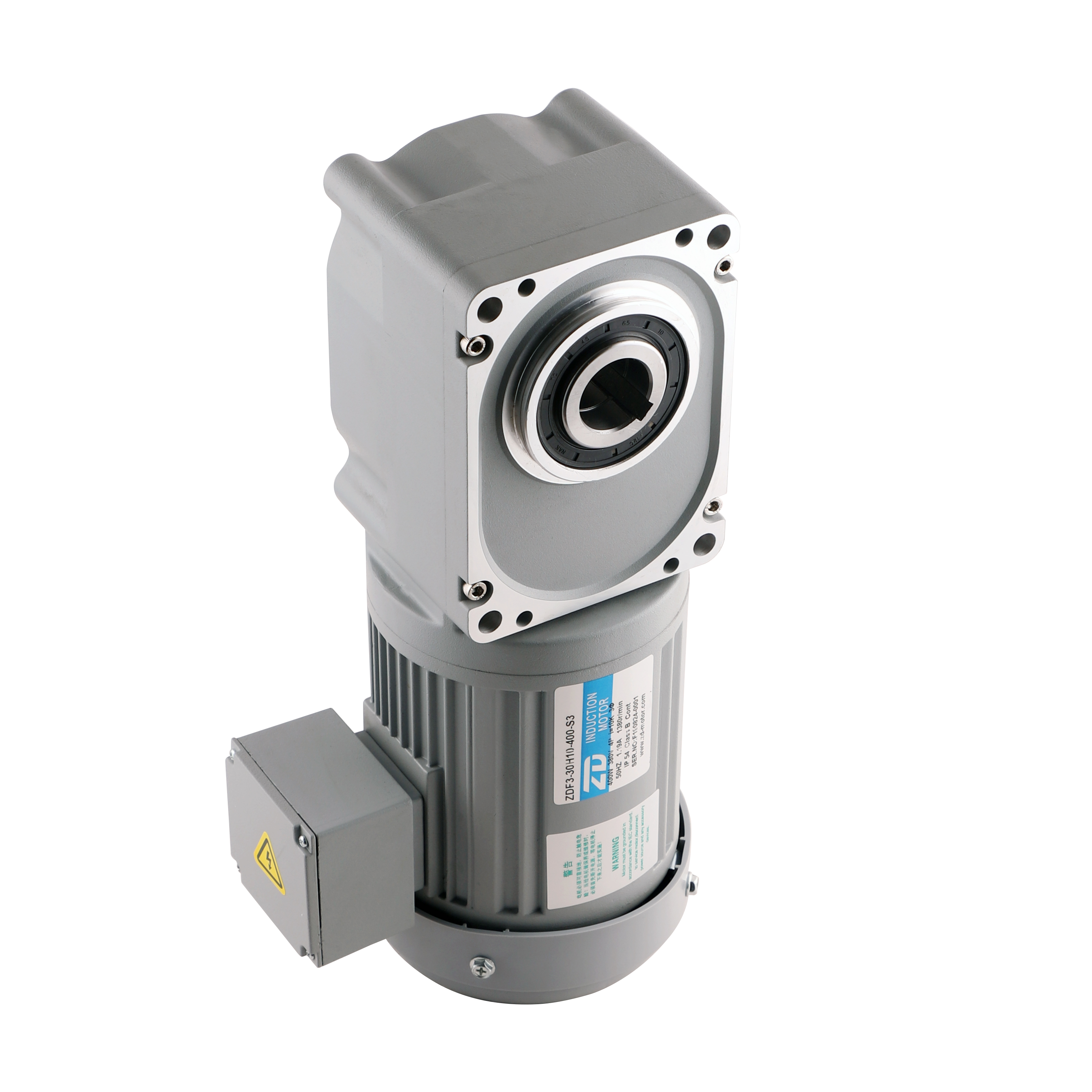

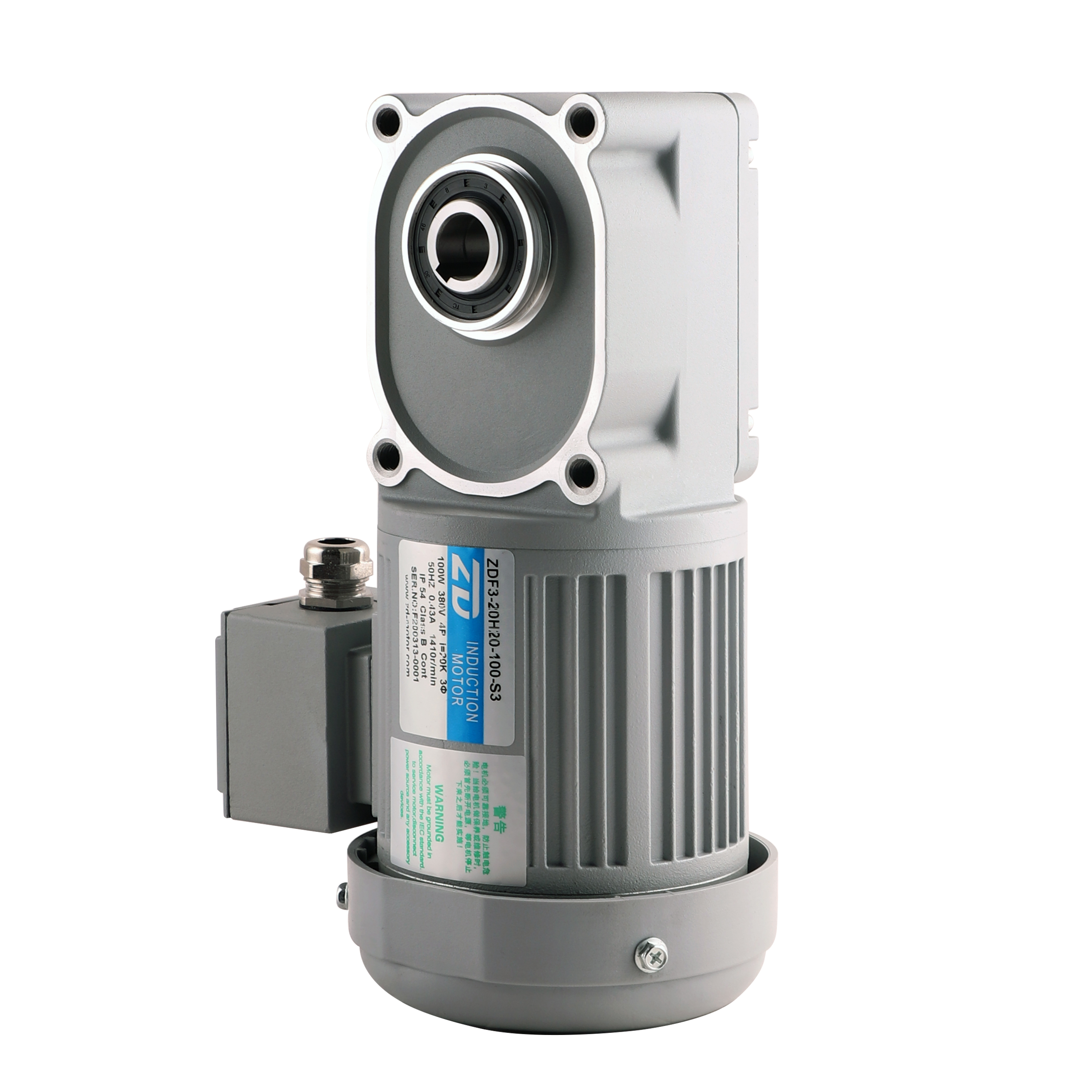

ZDF3 Hypoid gear motor uses three-phase AC power as the input power, which is a combination of a high-power motor and a high-strength off-axis bevel gear motor. It has advantages of small size, low noise, high efficiency, long life, diversified output shafts and installation space-saving, widely used in food packaging machine, CNC Machine tool, large security inspection machines, meat grinders, chip conveyors, assembly lines, etc.
| Motor Part (Engine Part) | |
|---|---|
| Phase | Three-Phase |
| Rated Power | 0.1kw, 0.2kw, 0.4kw, 0.75kw, 1.5kw, 2.2kw |
| Supply Voltage | 3 phase 220V(50/60HZ), 3 phase 380V(50/60HZ) |
| Insulation Grade | F stage |
| Start Mode | Direct start |
| Cooling Method | Out fan full close |
| Number of Poles | 4 |
| Rated | Cont |
| Protection Grade | IP 54 |
| Reducer Part | |
|---|---|

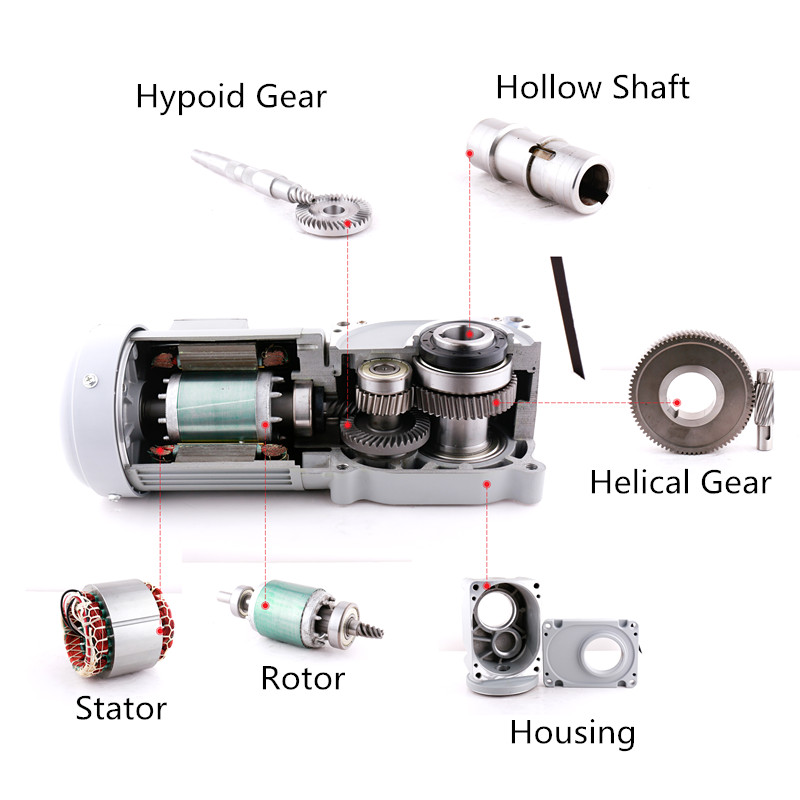

| Reduction Mode | Straight shaft: hypoid gear, helical gear |
| Lubrication Mode | Lubricating grease (Maintenance-free) |
| Output Shaft | Key-way shaft |
| Output Shaft Materials | 40 Cr |
| Housing Materials | Aluminum die casting |
| Ambient Conditions & Installation | |
|---|---|
| Tolerance Temp | -10℃ - 40℃ |
| Tolerance Humidity | 80% below |
| Altitude | Below 1000m |
| Environmental | No corrosive/explosive gas, No dust, Draughty |
| Installation | Indoor: Horizontal, Vertical, Slant, Opposite angel |
