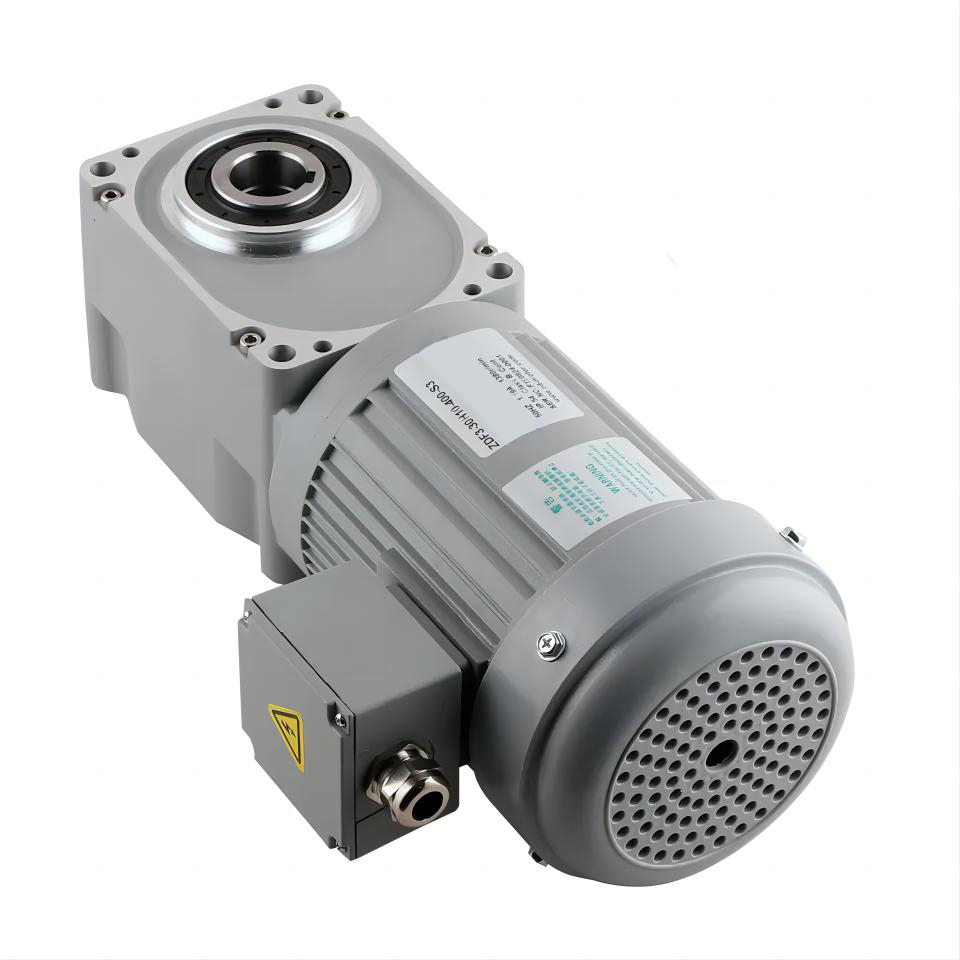

The motors are our normal AC motors, and the primary difference lies in the reducer specifications.
Motor Specifications
Motor Frame Size:
107*159mm / 107*140mm / 116*180mm / 136*222mm / 174*272mm
Motor Type:
Induction Motor / Reversible Motor / Speed Adjustable Motor / Brake Motor
Output Power:
100w, 200w, 400w, 750w, 1500w, 2200w
Motor Shaft Type:
GU Type Pinion Shaft, 20mm, 25mm, 35mm, 45mm
Power Supply Options
C: Single phase 220V, 50/60Hz
H: Single phase 220V, 60Hz
A: Single phase 110V, 50/60Hz
E: Single phase 110V, 60Hz
S: Three phases 220V, 50/60Hz
S3: Three phases 380V, 50/60Hz
U: Three phases 220/380V, 50/60Hz
Reducer Details
Gear Type:
GU Type Gear
Gear Ratio:
5, 7.5, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 160, 200, 240
Output Shaft Type:
Hollow Worm Shaft (RH) / Worm Output Shaft (RA)
Application & Usage
Our AC gear motors are engineered for versatility and can be widely used in various industries:
Medical Appliance
Packing Mechanism
Printing Mechanism
Cup Making Machine
Textile Machinery
⚠️ Important Notes:
- Please review the detailed technical data before placing your order.
- If you encounter any technical issues, our team is ready to assist you immediately.
- Pricing is negotiable as different configurations result in different costs.

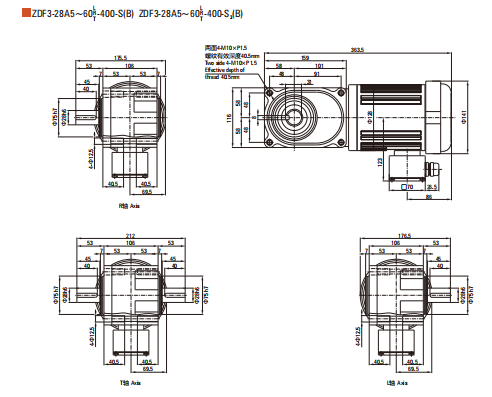

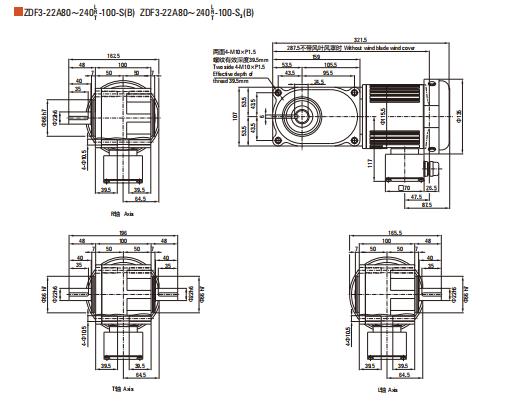

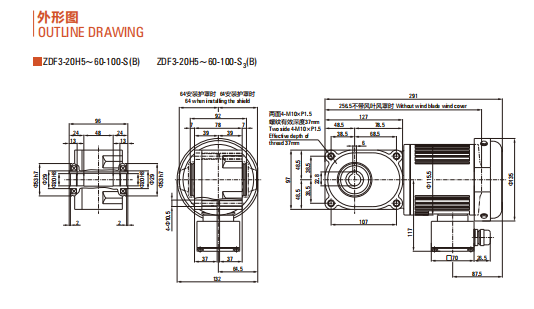

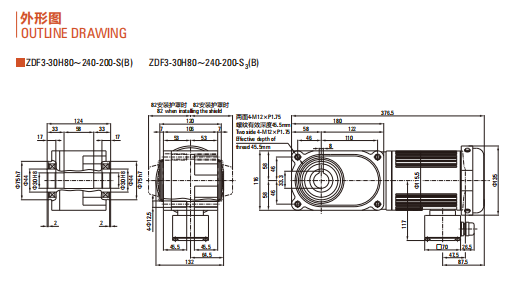

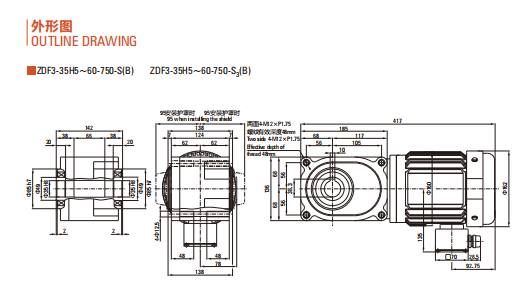

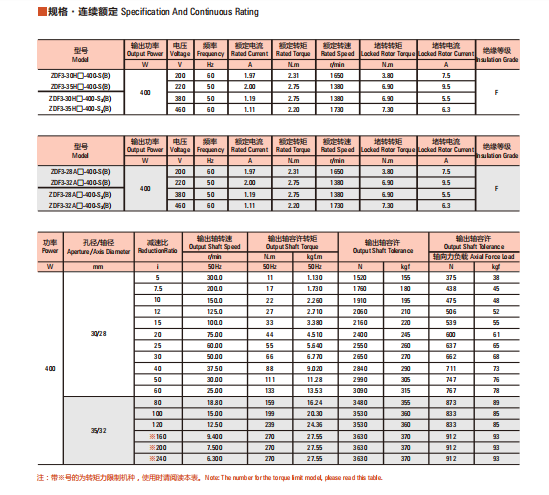

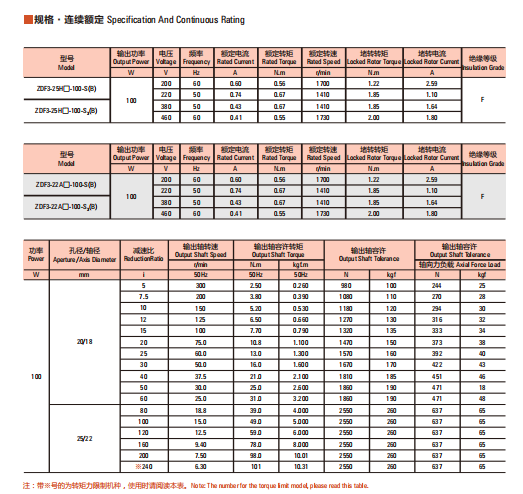

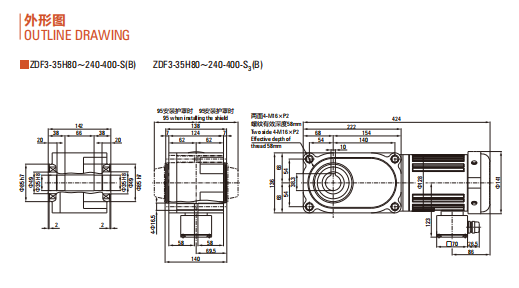

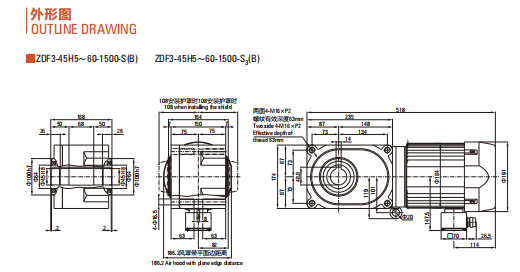

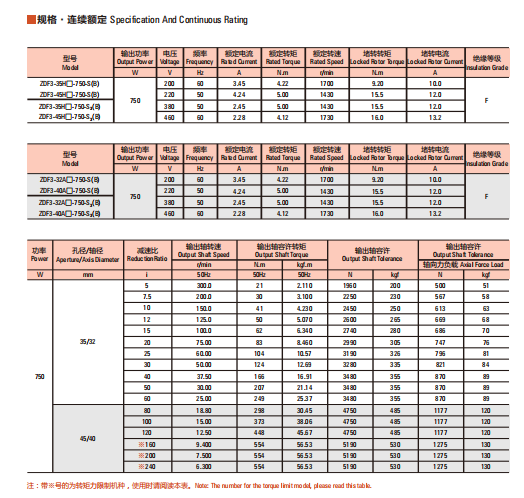

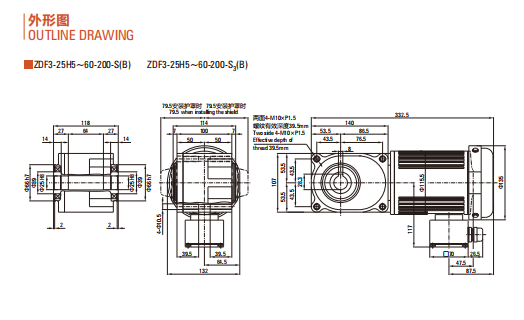

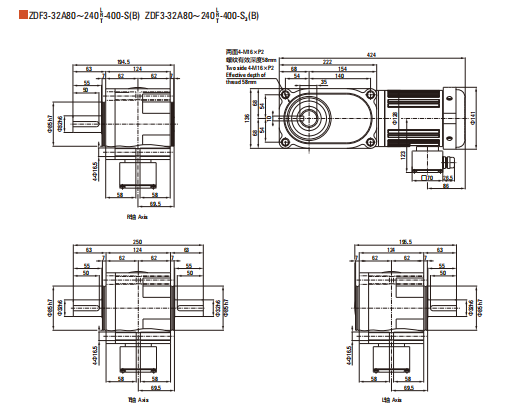

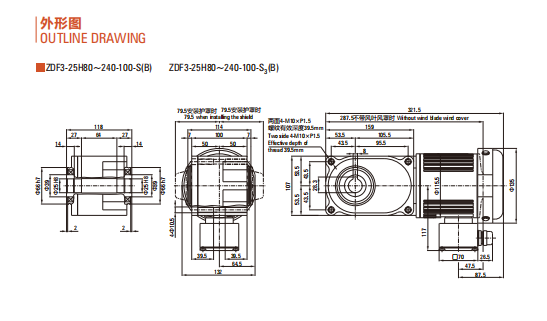

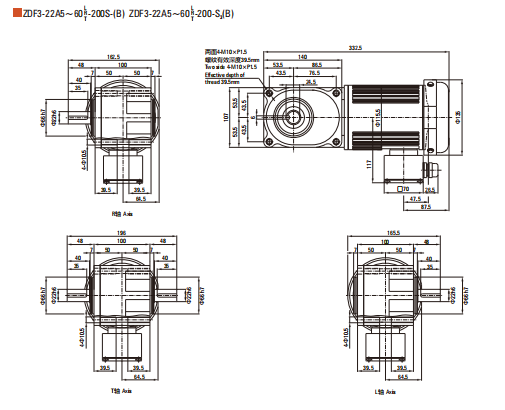

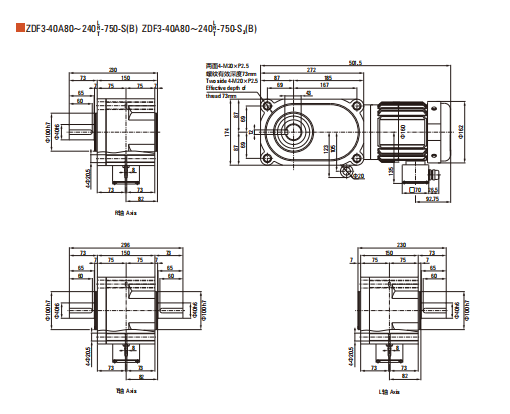

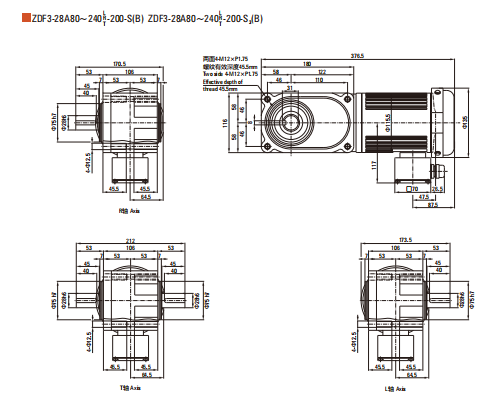

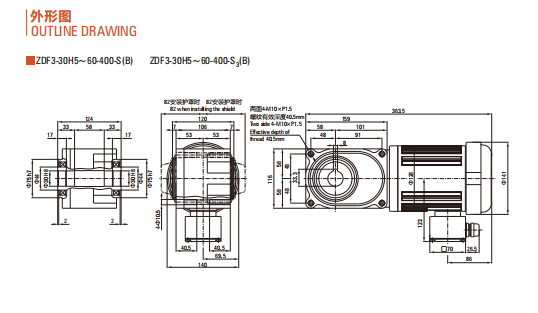

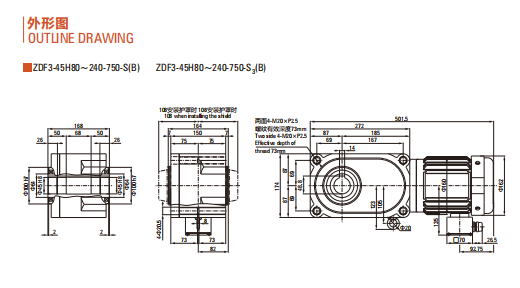

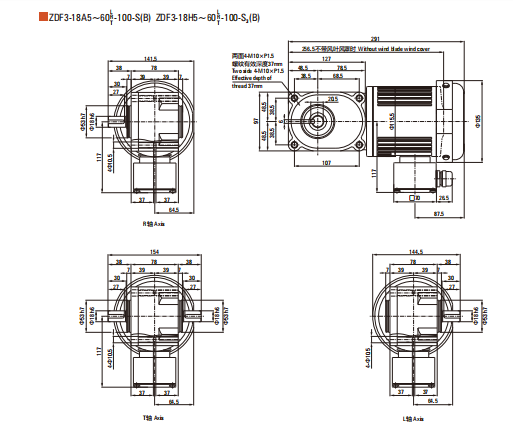

Technical Specifications & Drawings
Frequently Asked Questions
1. What is the difference between the Induction and Reversible motor types?
Induction motors are ideal for continuous one-way operation, while reversible motors are designed for frequent directional changes with simplified control.
2. Can I adjust the speed of these AC motors?
Yes, we offer Speed Adjustable Motor types which can be paired with a speed controller to manage the output RPM.
3. What gear ratios are available for the reducers?
We provide a wide range of gear ratios starting from 5 up to 240 to meet various torque and speed requirements.
4. Are these motors compatible with international power standards?
Yes, we support multiple power supply options including 110V and 220V single phase, as well as 220V and 380V three-phase systems at both 50Hz and 60Hz.
5. What is the advantage of the Hollow Worm Shaft (RH)?
The hollow worm shaft allows for space-saving designs and easy integration with your machine's driven shaft, reducing the need for additional couplings.
6. Can I get a customized shaft size?
Our standard GU Type Pinion Shafts come in 20mm, 25mm, 35mm, and 45mm. Please contact us for specific customization requests.
