Frequently Asked Questions
Q1: What is the rated speed for these brushless DC motors?
A: The standard rated speed for the S60BL series is 3000 RPM at a nominal voltage of 24VDC.
Q2: What are the insulation specifications for this motor series?
A: These motors are built with Class B insulation, featuring a resistance of at least 100MΩ (500VDC) and a dielectric strength of 700VAC per minute.
Q3: Can these motors operate in extreme temperatures?
A: Yes, the ambient temperature range for operation is between -20℃ and +50℃.

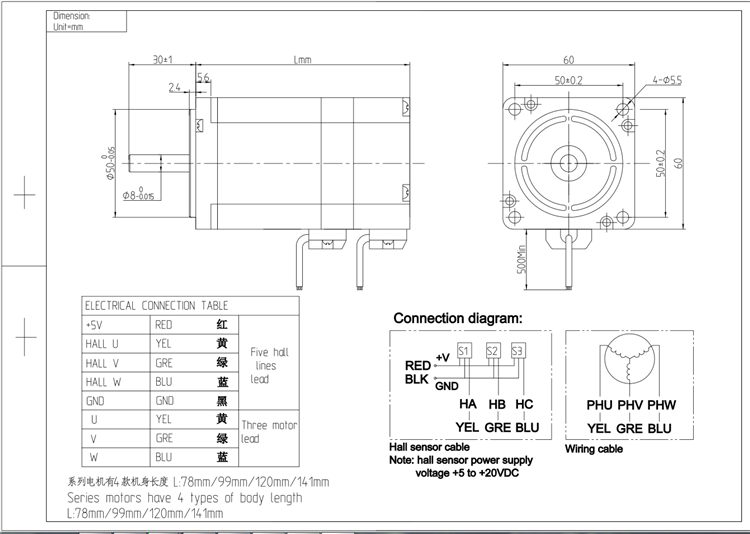

Q4: What are the winding and Hall effect configurations?
A: These motors use a Star winding type and come with a 120° Hall effect angle for precise feedback.
Q5: What power output ranges are available in the S60BL series?
A: The series offers four models with output power ranging from 100 Watts to 400 Watts.
Q6: What are the torque capabilities of the S60BL141-430 model?
A: The S60BL141-430 model provides a rated torque of 1.28 N-m and can reach a peak torque of 3.84 N-m.
