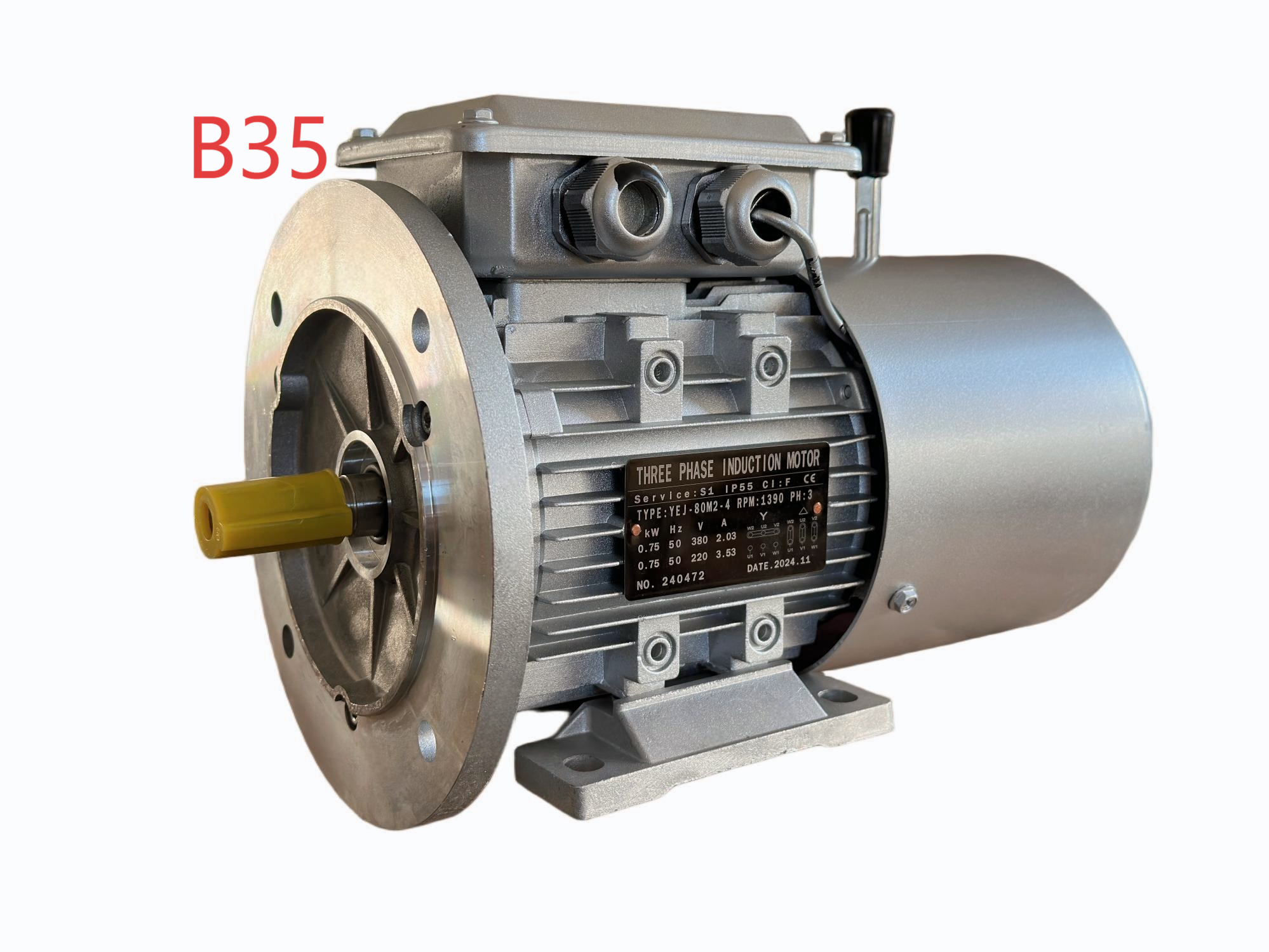

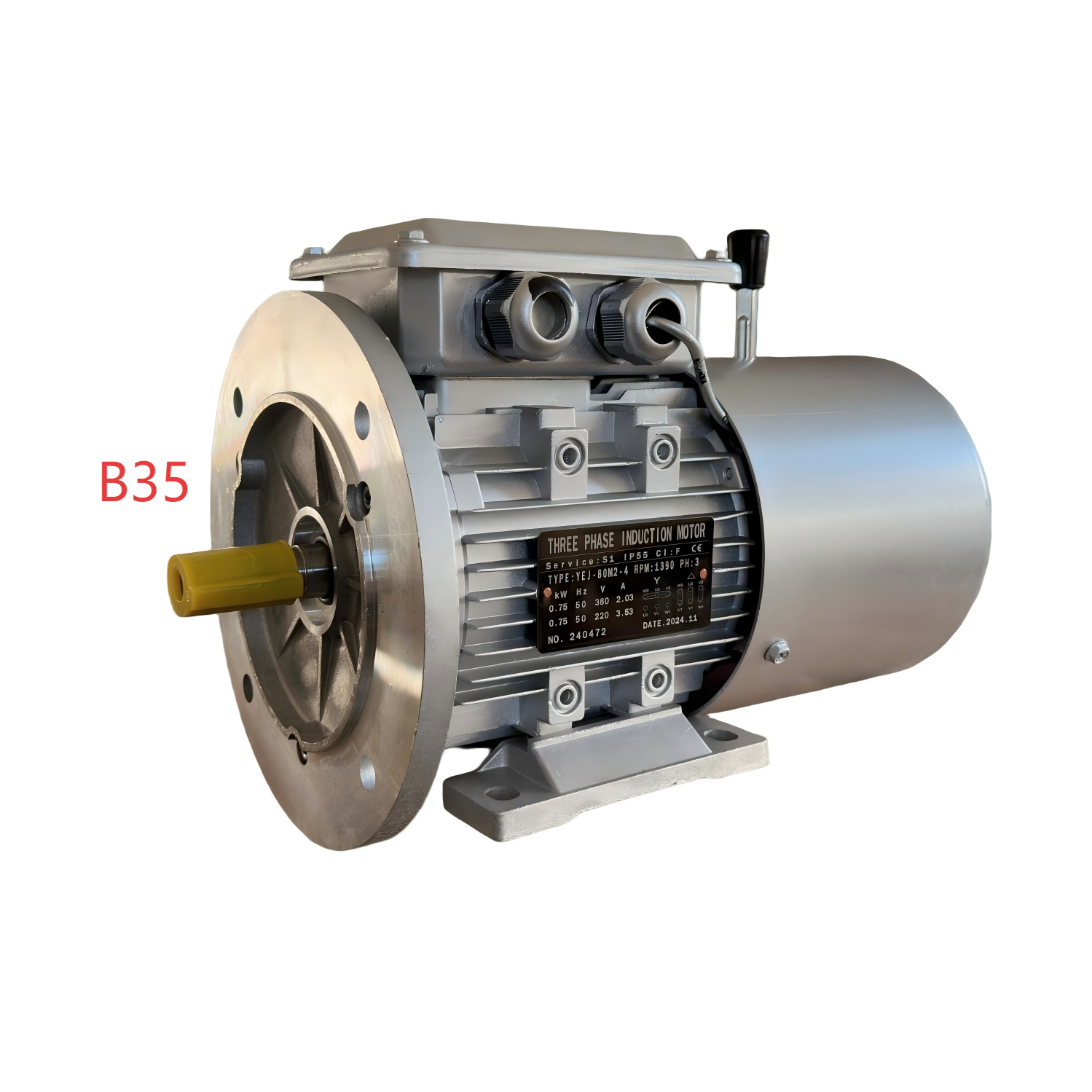

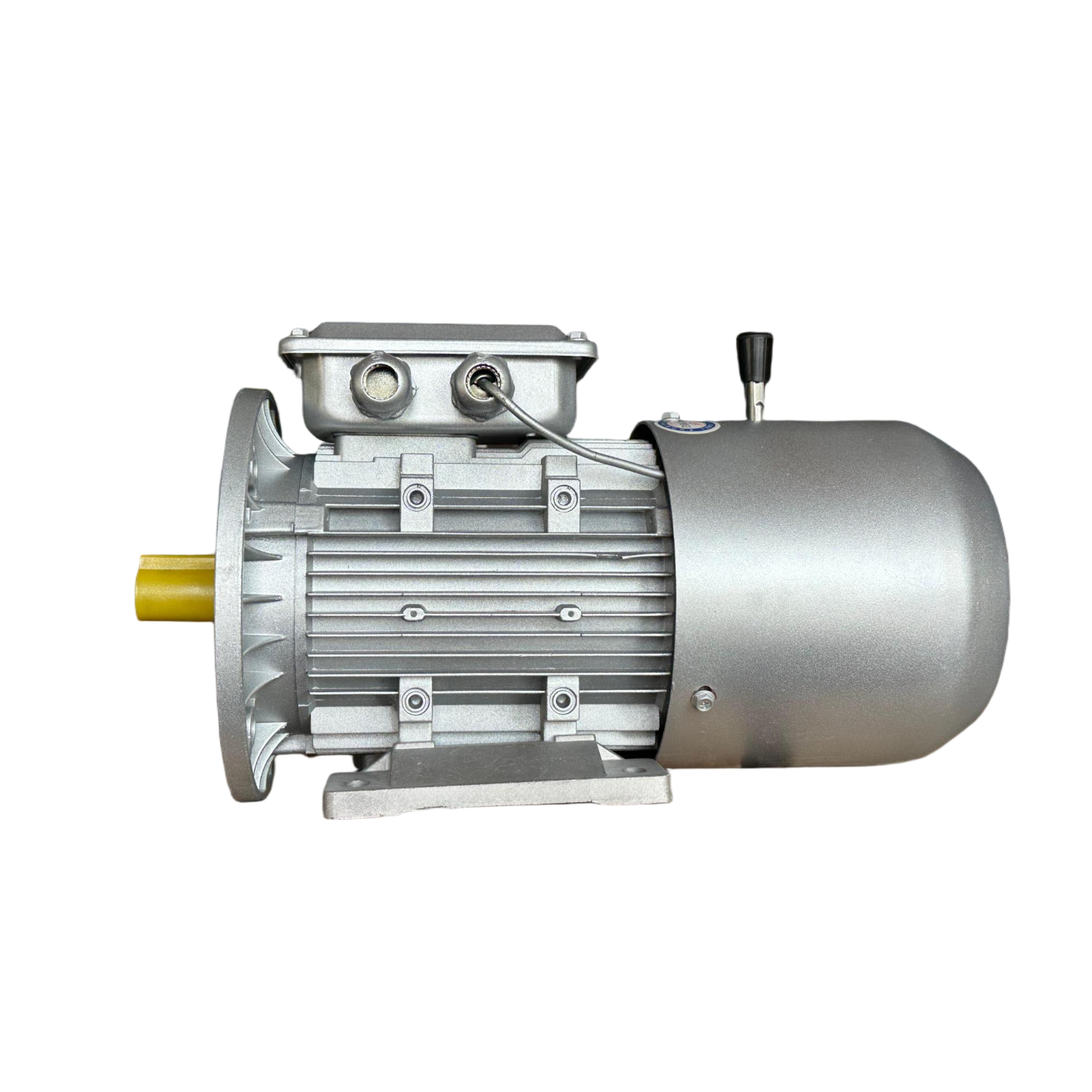

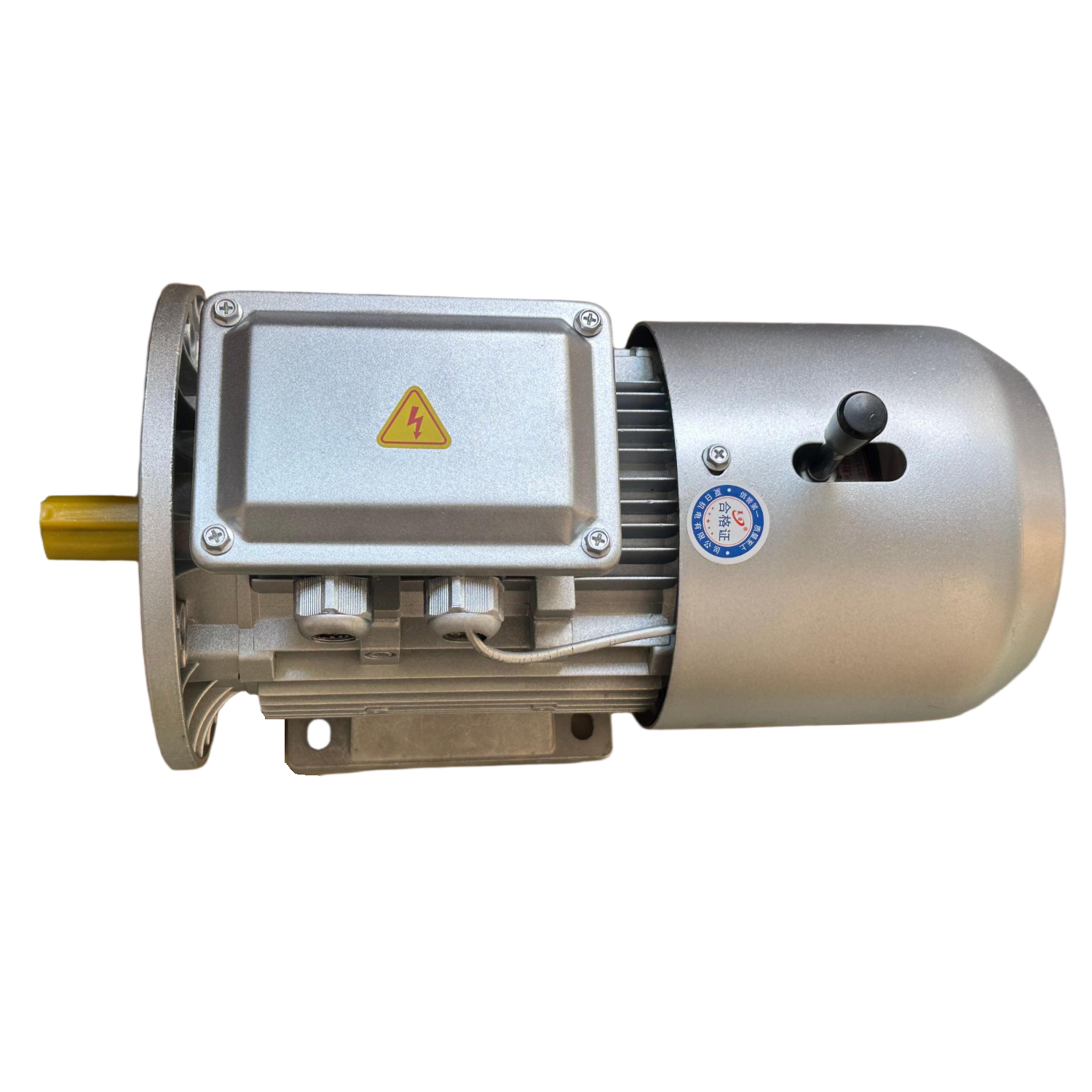

Fast Braking Three Phase 4 Pole Asynchronous Brake Motor 380V IE3 Efficiency IP54 Protection Aluminum Housing 1400 RPM Hoist

1 / 5

Fast Braking Three Phase 4 Pole Asynchronous Brake Motor 380V IE3 Efficiency IP54 Protection Aluminum Housing 1400 RPM Hoist

Send Inquiry

Product Description

Advanced Brake Motor Technology

High-performance YEJ series electromagnetic brake motors designed for precision stops and reliable industrial operations.

Technical Specifications

Type	Rated Output (KW)	Rated Current (A)	Eff. (%)	Rated Torque N·m	Full Load Braking Moment	Max Braking Time No Load (s)
YEJ6314	0.12	0.48	58.1	0.87	1400	2800
YEJ6324	0.18	0.65	58.5	1.23	1400	2800
YEJ7114	0.25	0.83	62.4	1.71	1400	2800
YEJ7124	0.37	1.12	65.3	2.52	1400	2800
YEJ8014	0.55	1.56	69.2	3.75	1400	2800
YEJ8024	0.75	2.01	71.7	5.12	1400	2800
YEJ90S4	1.1	2.75	73.1	7.27	1400	2800
YEJ90L4	1.5	3.65	76.1	9.91	1400	2800
YEJ100L1-4	2.2	5.16	78.0	14.5	1400	2800
YEJ100L2-4	3.0	6.78	79.9	19.8	1400	2800
YEJ112M-4	4.0	8.80	81.9	26.3	1400	2800
YEJ132S4	5.5	11.7	82.8	36.0	1400	2800
YEJ132M4	7.5	15.6	84.8	49.1	1400	2800

Frequently Asked Questions

Q1: What is a YEJ series electromagnetic brake motor? A: The YEJ series is a fully enclosed, fan-cooled, three-phase squirrel cage motor equipped with an additional DC electromagnetic brake, designed for quick stopping and accurate positioning.

Q2: How does the braking system work? A: The brake operates via a DC power supply. When the motor loses power, the electromagnetic brake is engaged by spring pressure to stop the shaft immediately. When powered, the magnetic field releases the brake.

Q3: Can these motors be used for high-frequency starting? A: Yes, YEJ motors are specifically engineered for applications requiring frequent starting, braking, and positive/reverse rotation.

Q4: What are the primary applications for these motors? A: They are widely used in lifting machinery, transport equipment, packaging machinery, printing machines, and food processing equipment where rapid and precise stopping is essential.

Q5: Is manual release possible in case of power failure? A: Yes, most models come with a manual release device that allows the motor shaft to be rotated manually when the power is off.

Q6: What is the protection rating of these motors? A: These motors typically feature IP44 or IP54 protection levels, ensuring durability against dust and water splashes in industrial environments.
