High Performance Power Transmission
Optimized design for maximum mechanical efficiency and power delivery.
| Motor Power | Model | Speed Ratio | Output Speed | Output Torque |
|---|---|---|---|---|
| 0.25kw 1400rpm | RV075 | 60 / 80 / 100 | 24 / 18 / 14 rpm | 68.0 - 94.0 N.M |
| 0.37kw 1400rpm | RV075 | 40 / 50 / 60 / 80 / 100 | 35 / 28 / 24 / 18 / 14 rpm | 74.0 - 139.0 N.M |
| 0.55kw 1400rpm | RV075 | 25 / 30 / 40 / 50 / 60 / 80 / 100 | 56 - 14 rpm | 76.0 - 206.0 N.M |
| 0.75kw 1400rpm | RV075 | 15 / 20 / 25 / 30 / 40 / 50 / 60 / 80 | 94 - 18 rpm | 66.0 - 250.0 N.M |
| 1.1kw 1400rpm | RV075 | 10 / 15 / 20 / 25 / 30 / 40 / 50 / 60 | 140 - 24 rpm | 66.0 - 297.0 N.M |
| 1.5kw 1400rpm | RV075 | 7.5 / 10 / 15 / 20 / 25 / 30 / 40 | 186 - 35 rpm | 68.0 - 299.0 N.M |
| 2.2kw 1400rpm | RV075 | 7.5 / 10 / 15 / 20 / 25 / 30 | 186 - 47 rpm | 99.0 - 247.0 N.M |
| 3.0kw 1400rpm | RV075 | 7.5 / 10 / 15 | 186 / 140 / 94 rpm | 135.0 - 258.0 N.M |
| 4.0kw 1400rpm | RV075 | 7.5 / 10 | 186 / 140 rpm | 180.0 - 237.0 N.M |

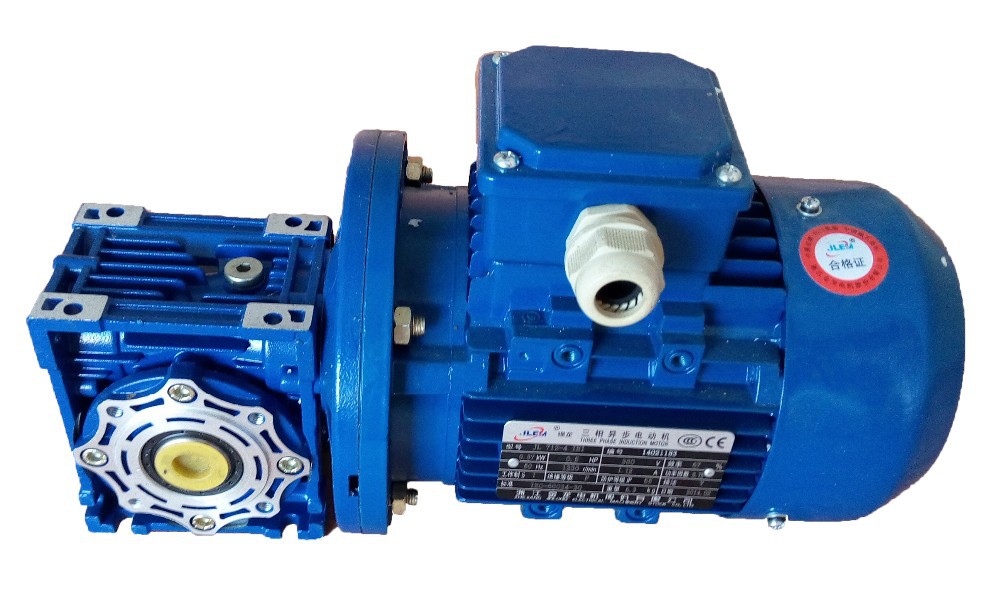

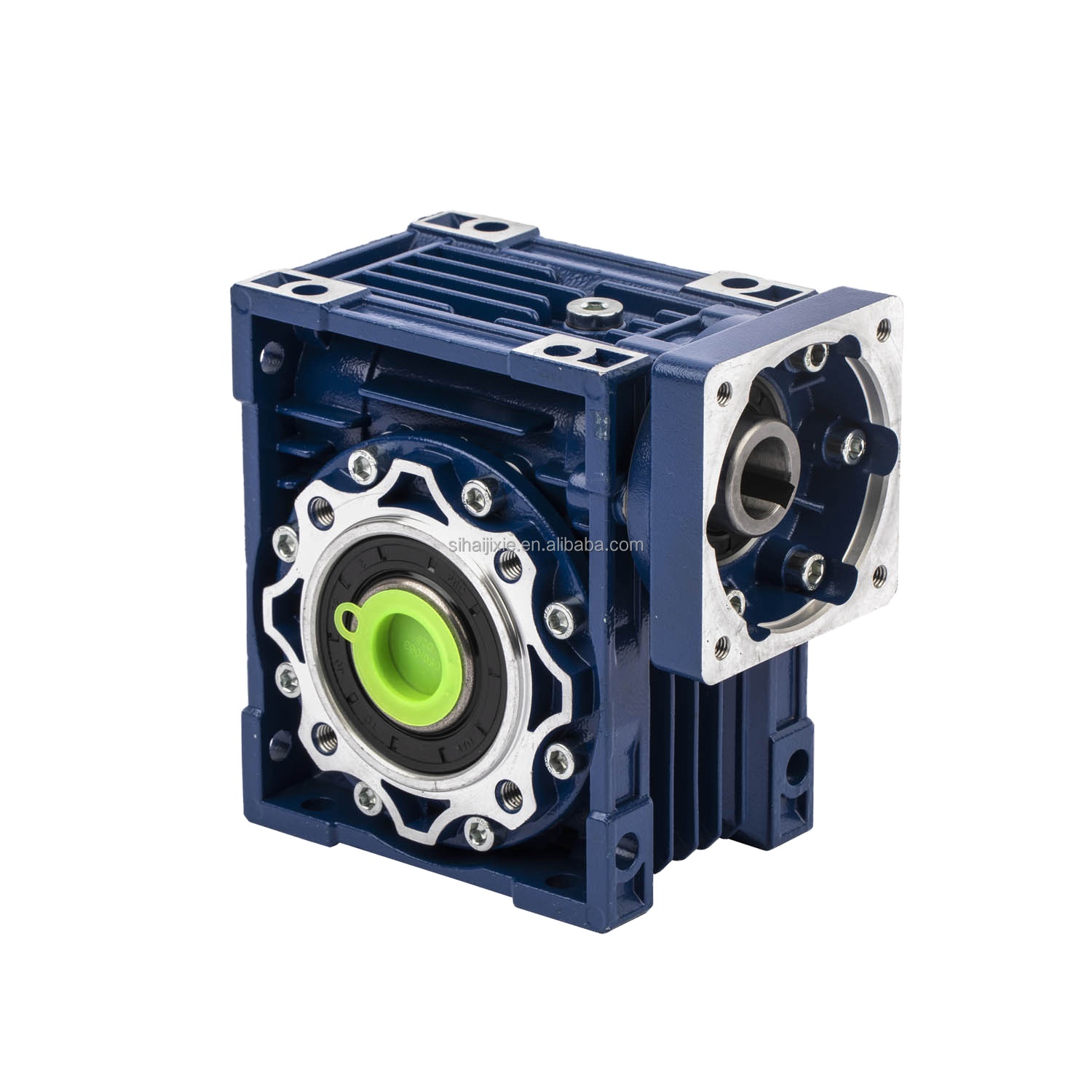

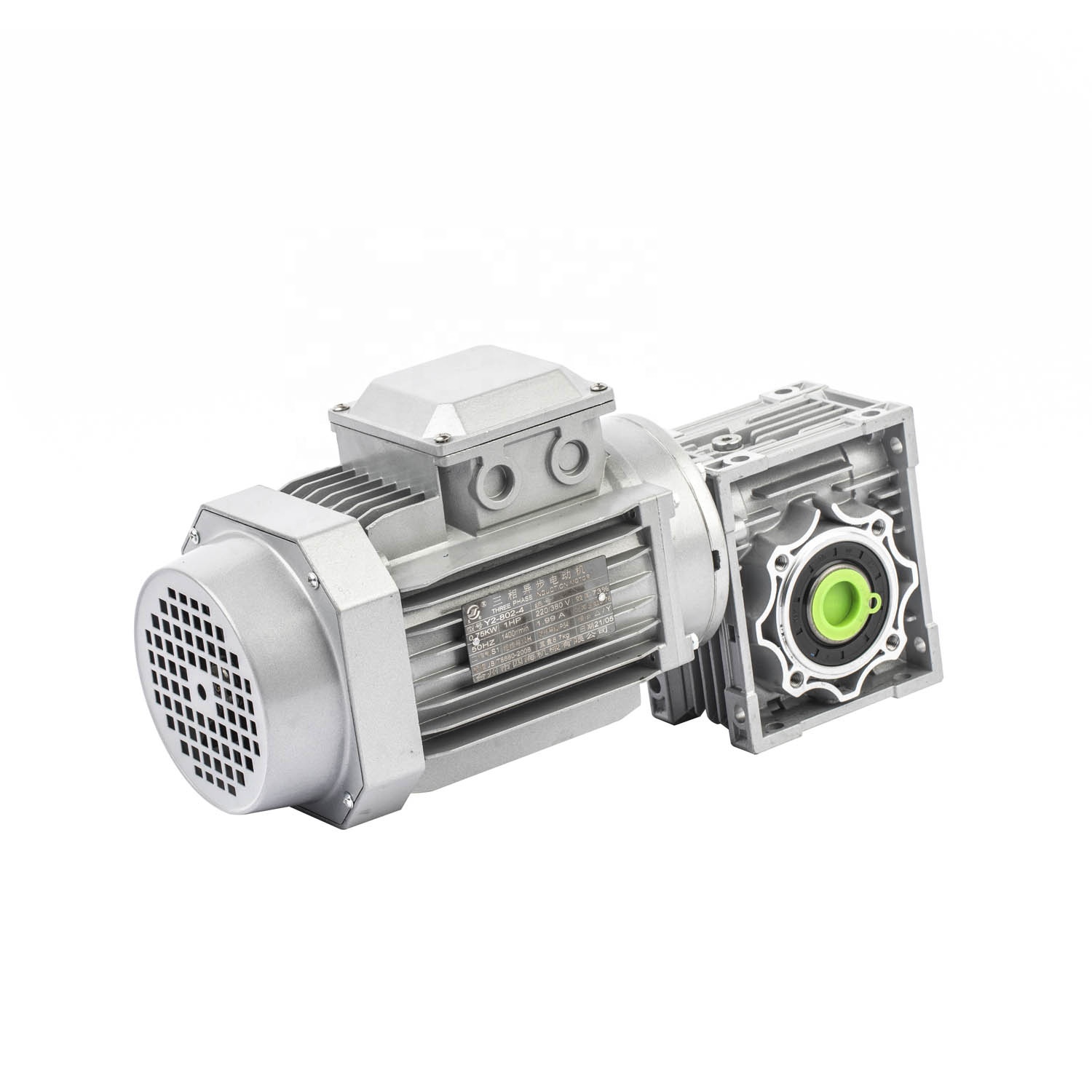

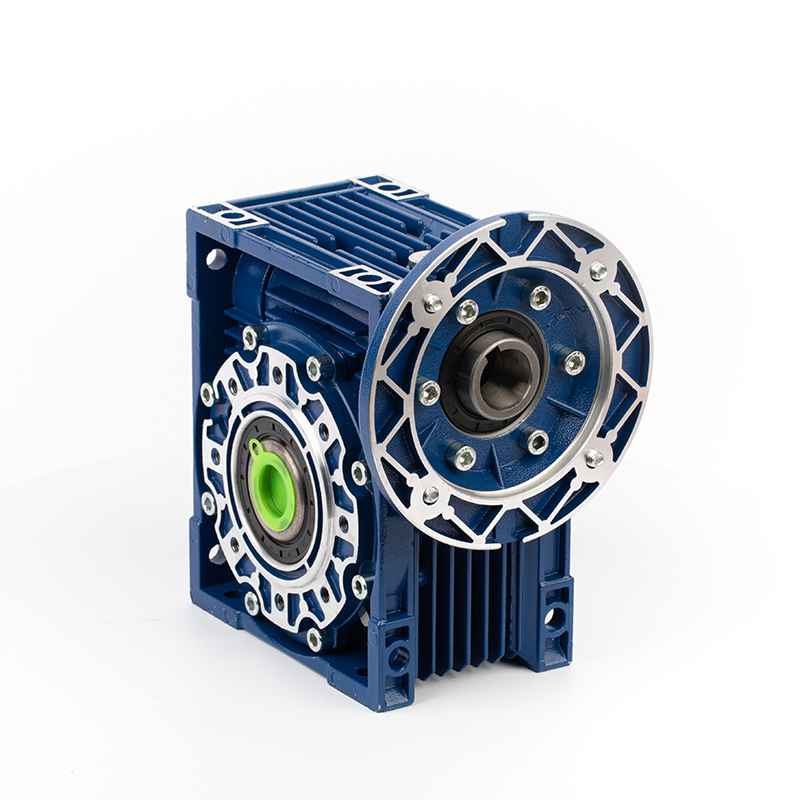

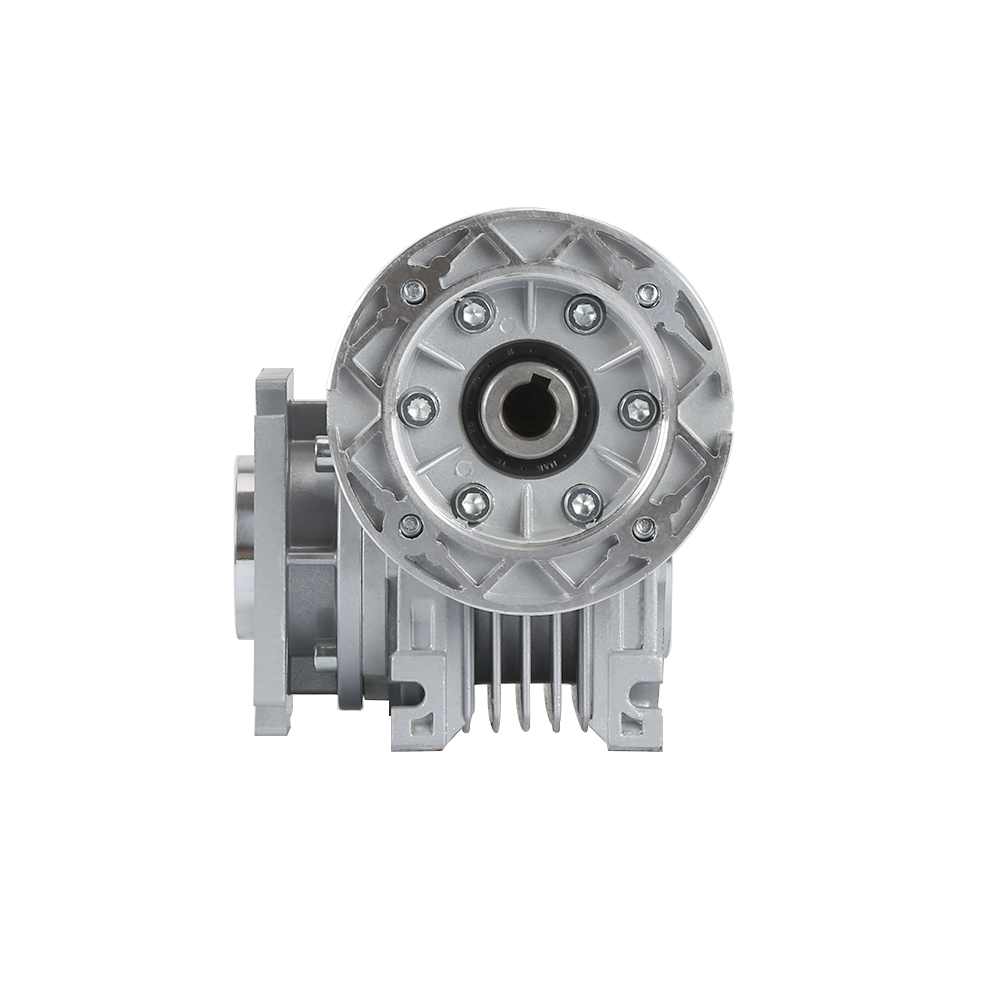

| Product Name | SNRV worm gear reducer |
| Available Ratios | 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Input Power Range | 0.25 ~ 4.0 KW |

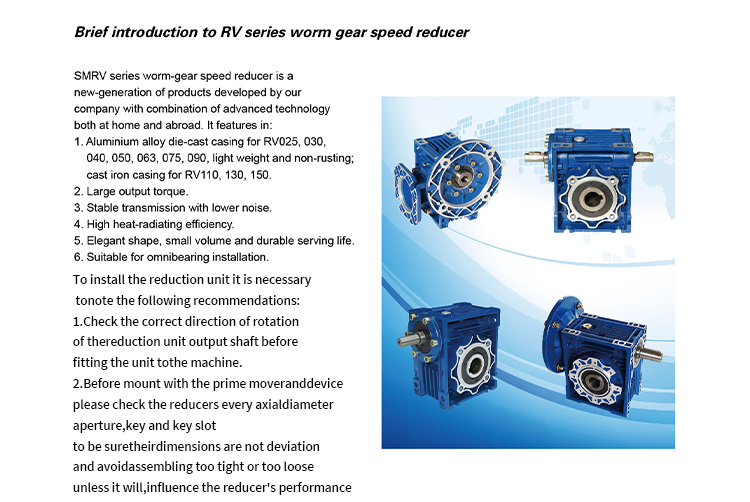

| Materials | 025-105 Aluminum Alloy; 110-150 Cast Iron. Worm: 20Cr (58-62 HRC). Gear: Bronze ZQSN10-1. |
| Oil Seals | Premium NAK Seals |

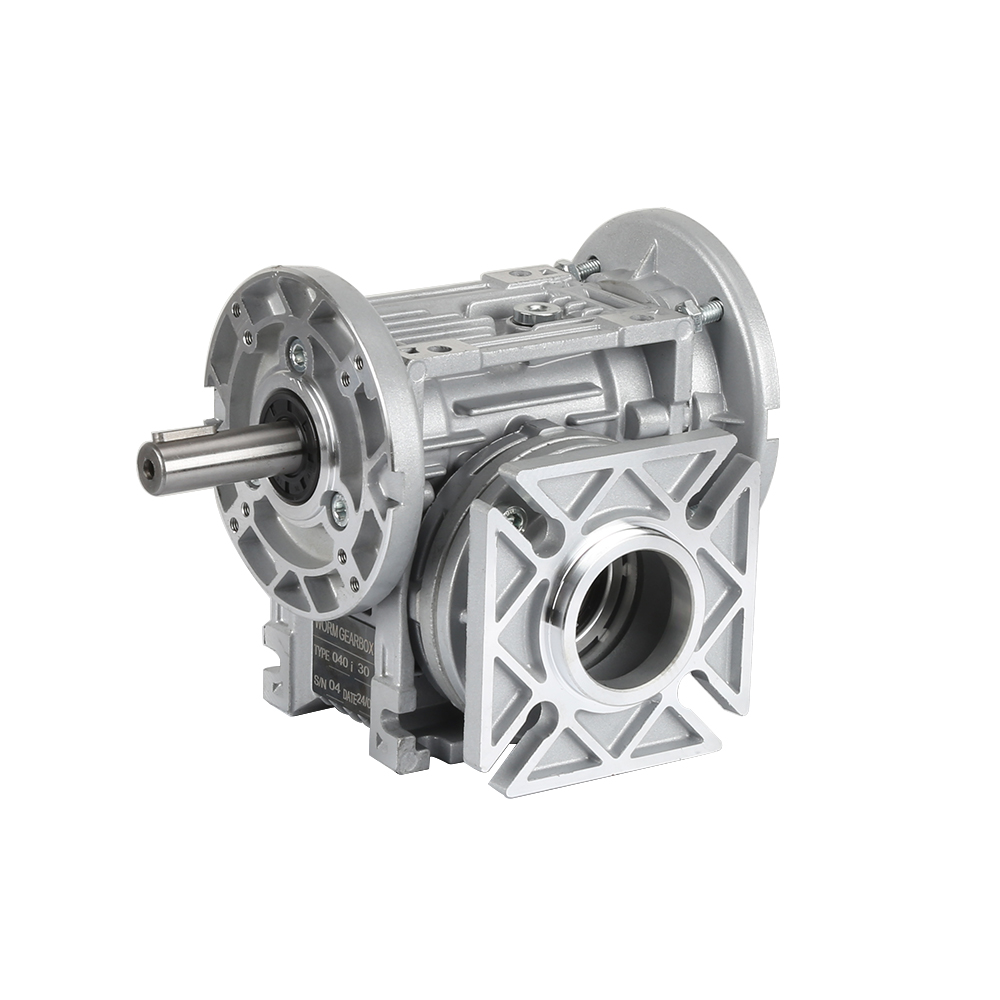

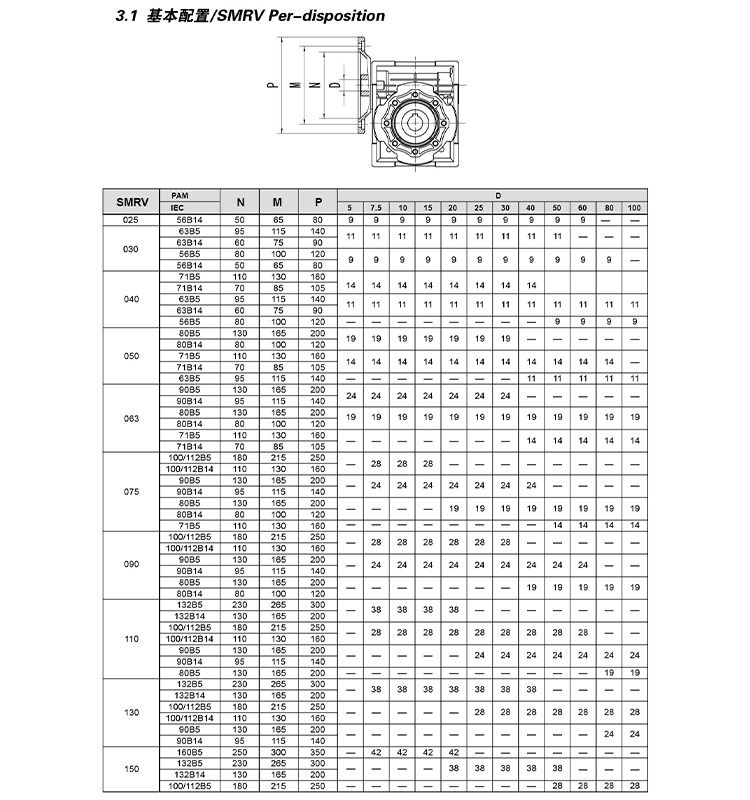

| Input Options | SMRV (Motor flange), SRV (Input shaft), SRV-E (Bidirectional shaft) |
| Quality Standards | ISO9001, SKF/Shell/NSK accessory components compatibility |
Particle blasting followed by anti-corrosion treatment and RAL5010 blue or white plastic powder coating.
Speed reducers are produced in strict accordance with ISO9001 standards to provide high-quality gearboxes. Equipped with international famous brand accessories, such as oil seals from SKF, lubricants from Shell, and bearings from NSK. All housings and gears are produced under stringent quality control.
