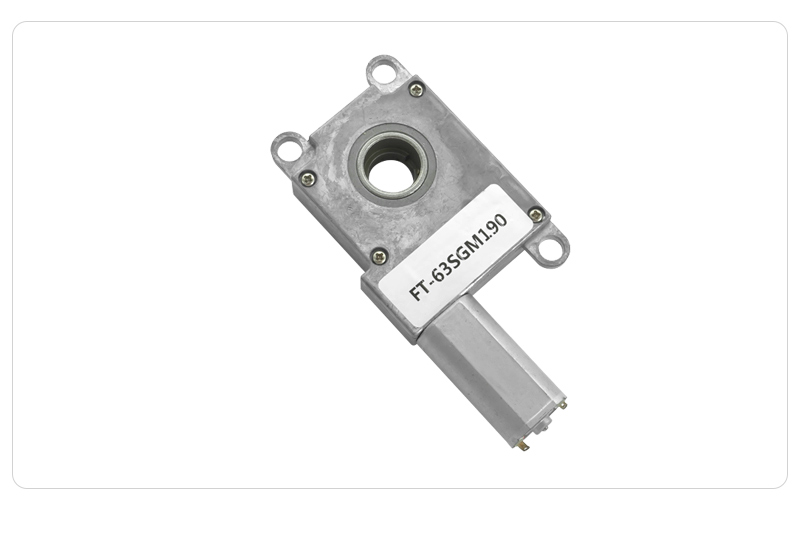

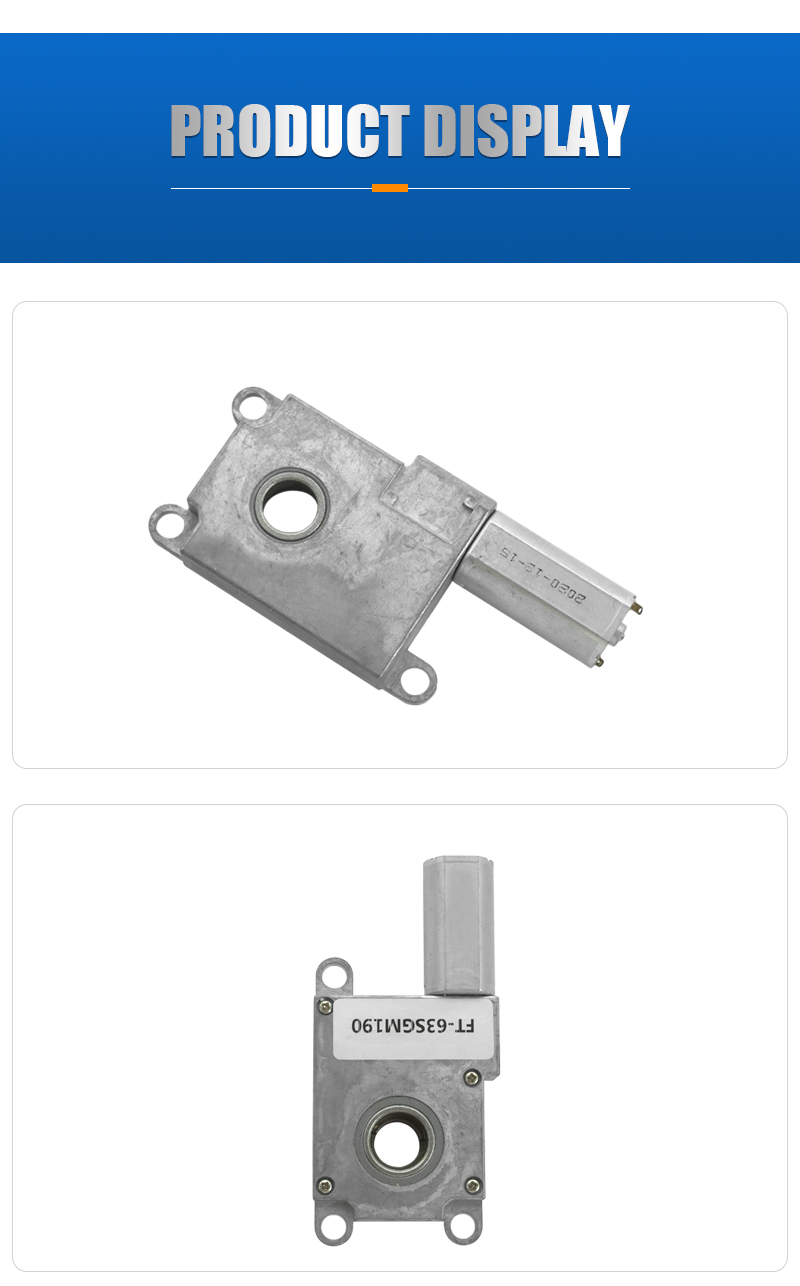

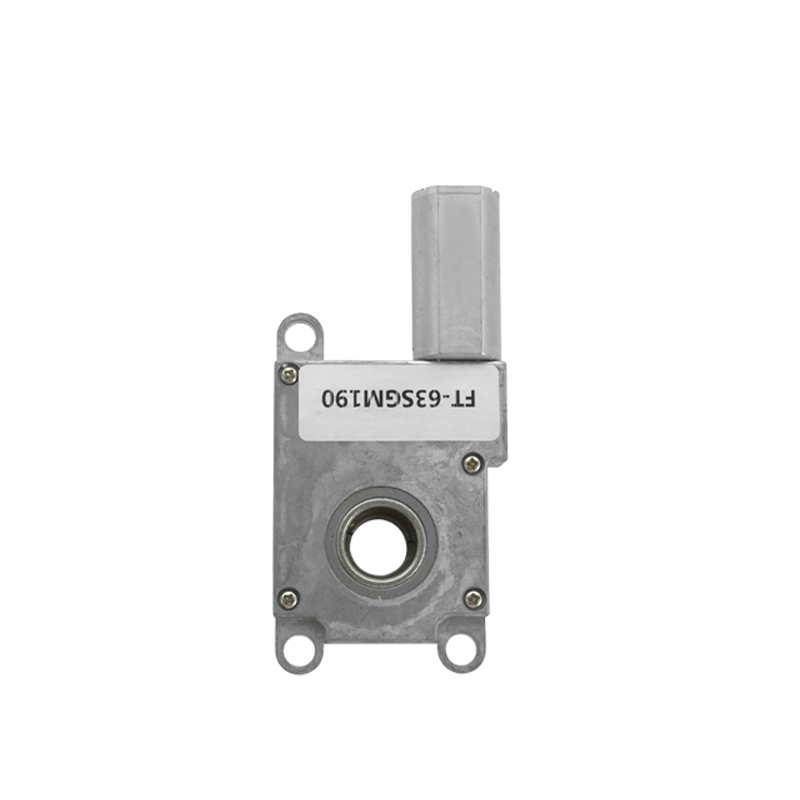

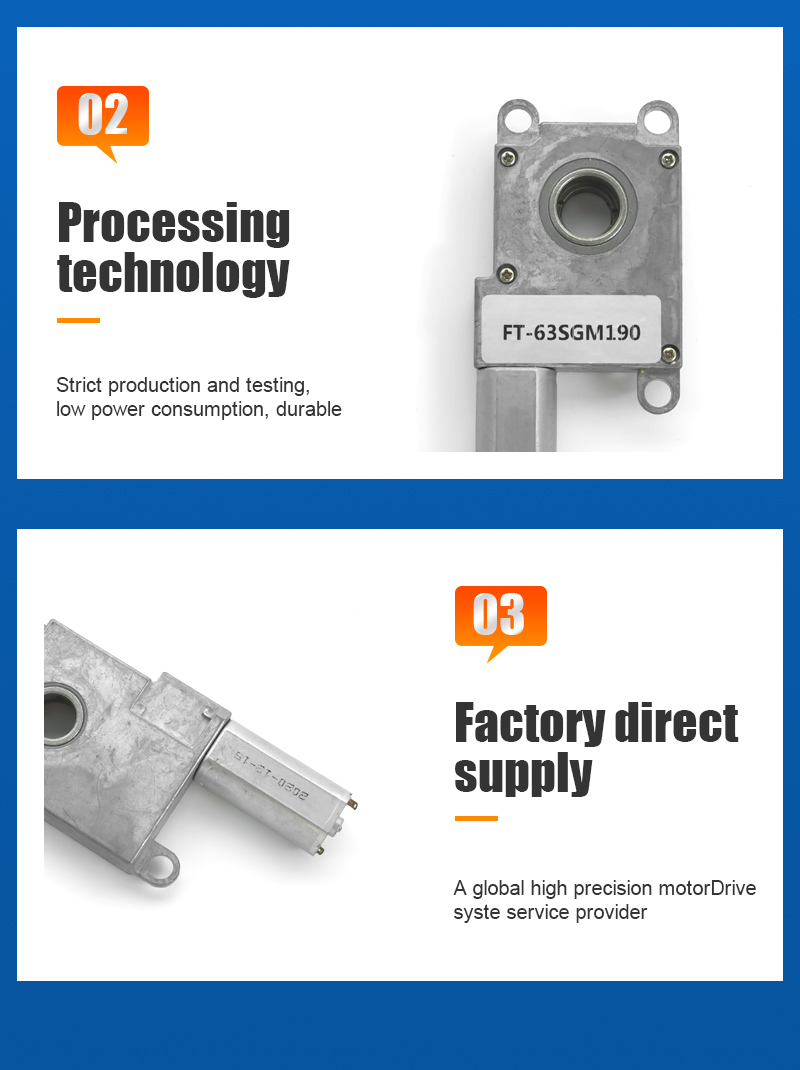

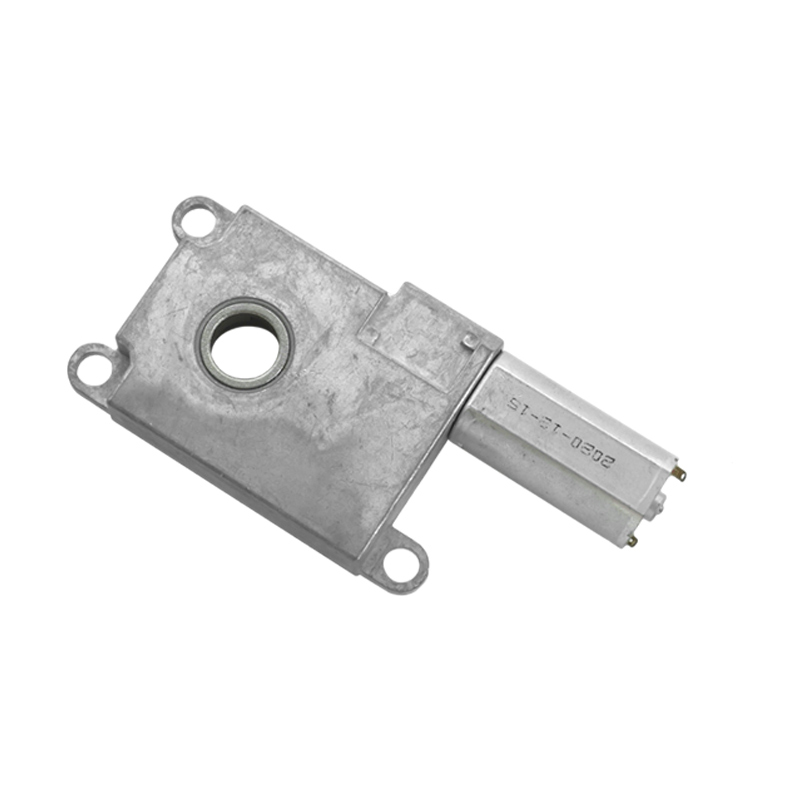

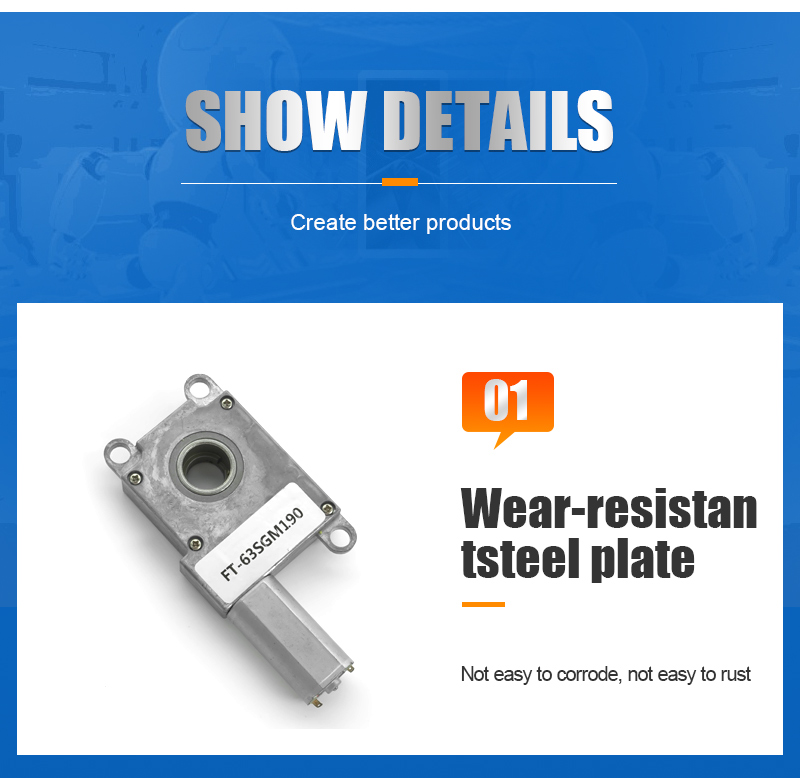

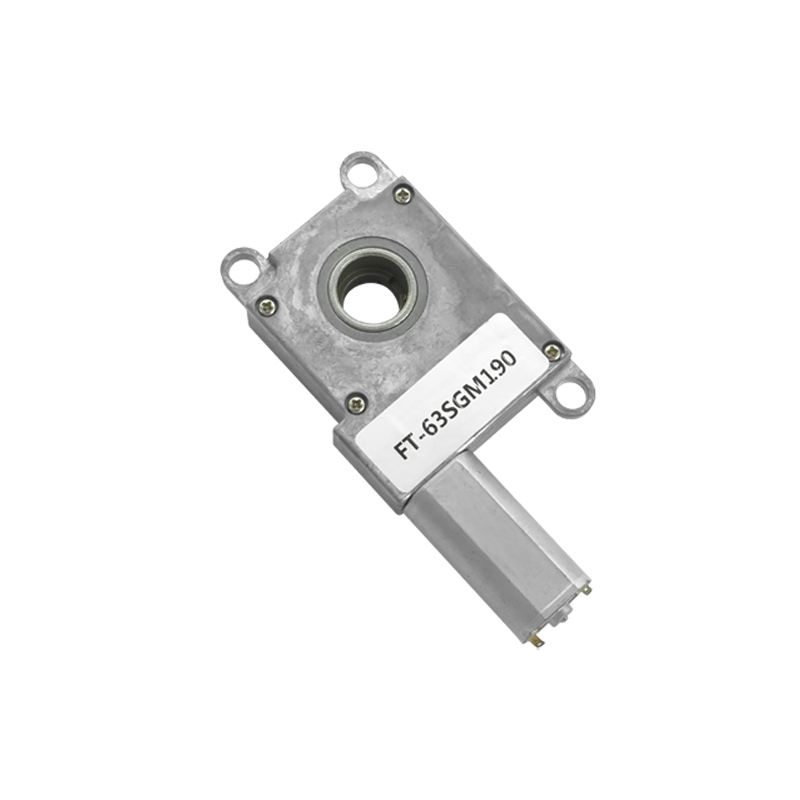

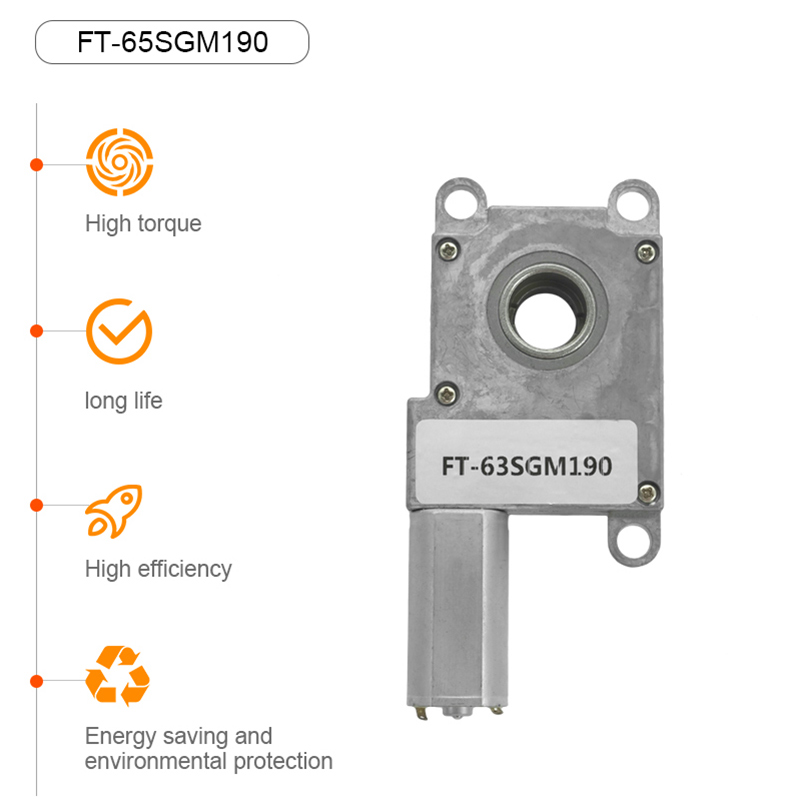

Model: FT-63SGM190
Gearbox Diameter: Ø63*38mm
Voltage Range: 1-24V
Speed Range: 1rpm-2000rpm
Our DC gear motors are engineered for versatility and high performance across various industries.
This model is widely utilized in: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, and more.

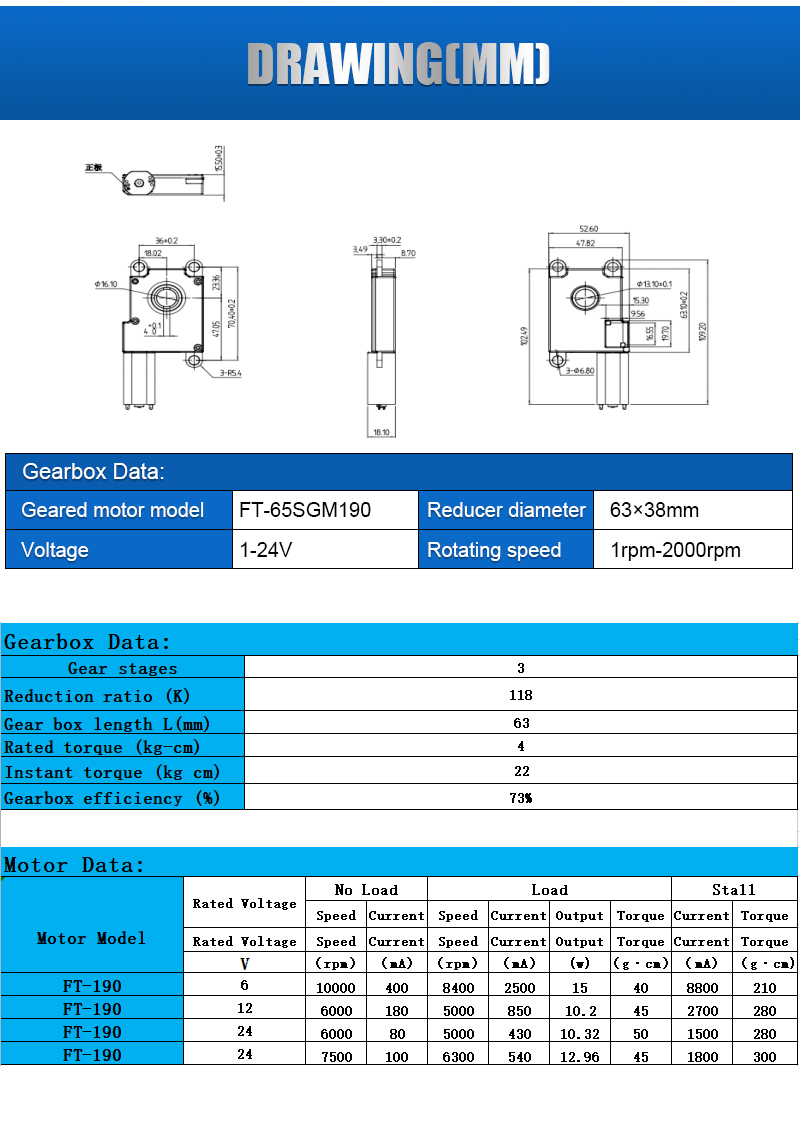

| Parameter | Specification Details |
|---|---|
| Gear Stages | 3 |
| Reduction Ratio (K) | 118 |
| Gear Box Length L (mm) | 63 |
| Rated Torque (kg·cm) | 4 |
| Instant Torque (kg·cm) | 22 |
| Gearbox Efficiency (%) | 73% |
| Motor Model | Rated Voltage (V) | No Load | Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (rpm) | Current (mA) | Speed (rpm) | Current (mA) | Output (W) | Torque (g·cm) | Current (mA) | Torque (g·cm) | ||
| FT-190 | 6 | 10000 | 400 | 8400 | 2500 | 15 | 40 | 8800 | 210 |
| FT-190 | 12 | 6000 | 180 | 5000 | 850 | 10.2 | 45 | 2700 | 280 |
| FT-190 | 24 | 6000 | 80 | 5000 | 430 | 10.32 | 50 | 1500 | 280 |
| FT-190 | 24 | 7500 | 100 | 6300 | 540 | 12.96 | 45 | 1800 | 300 |
