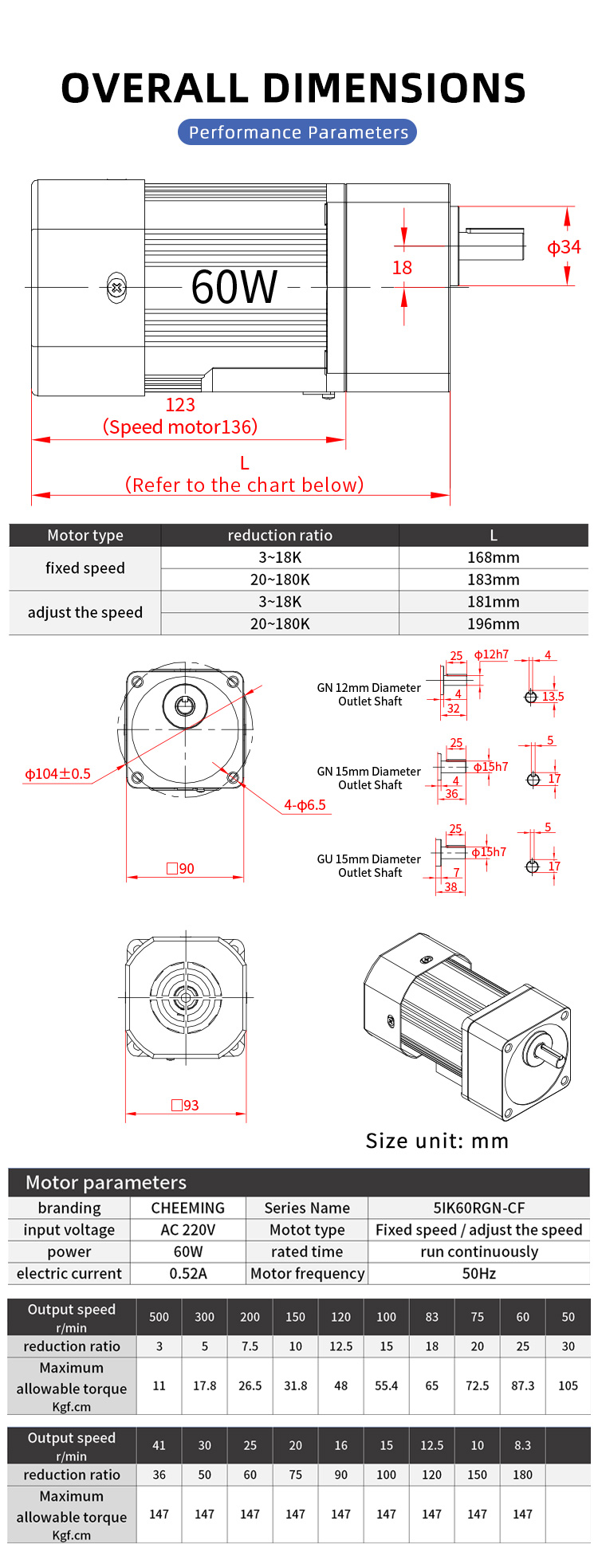

| Motor Type | Motor Model | Power (W) | Voltage (V) | Freq (Hz) | Poles | Speed (rpm) | Rated Torque (Kg cm) | Current (A) | Duty Time | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Shaft (Std) | Gear Shaft (High) | Round Shaft | |||||||||
| Induction | 5IK60GN-AF | 51K60GU-AF | 5IK60A-AF | 60 | 110V | 50/60 | 4 | 1250/1550 | 4.50 | 0.90 | 30min |
| Induction | 5IK60GN-CF | 5IK60GU-CF | 51K60A-CF | 60 | 220V | 50/60 | 4 | 1250/1550 | 4.50 | 0.52 | 30min |
| Three Phase | 5IK60GN-YF | 5IK60GU-YF | 51K60A-YF | 60 | 220/380V | 50/60 | 4 | 1250/1550 | 4.50 | 0.31/0.18 | Continuous |
| Speed Control | 5IK60RGN-CF | 5IK60RGU-CF | 5IK60RA-CF | 60 | 220V | 50/60 | 4 | 90~1550 | 1.40~5.00 | 0.52 | Continuous |
We are a dedicated transmission enterprise that integrates research and development, design, production, processing, and sales. Utilizing advanced production equipment and precision testing instruments, we continuously develop and perfect our products. Our commitment is to create premium transmission products and comprehensive solutions for globally leading applications.
