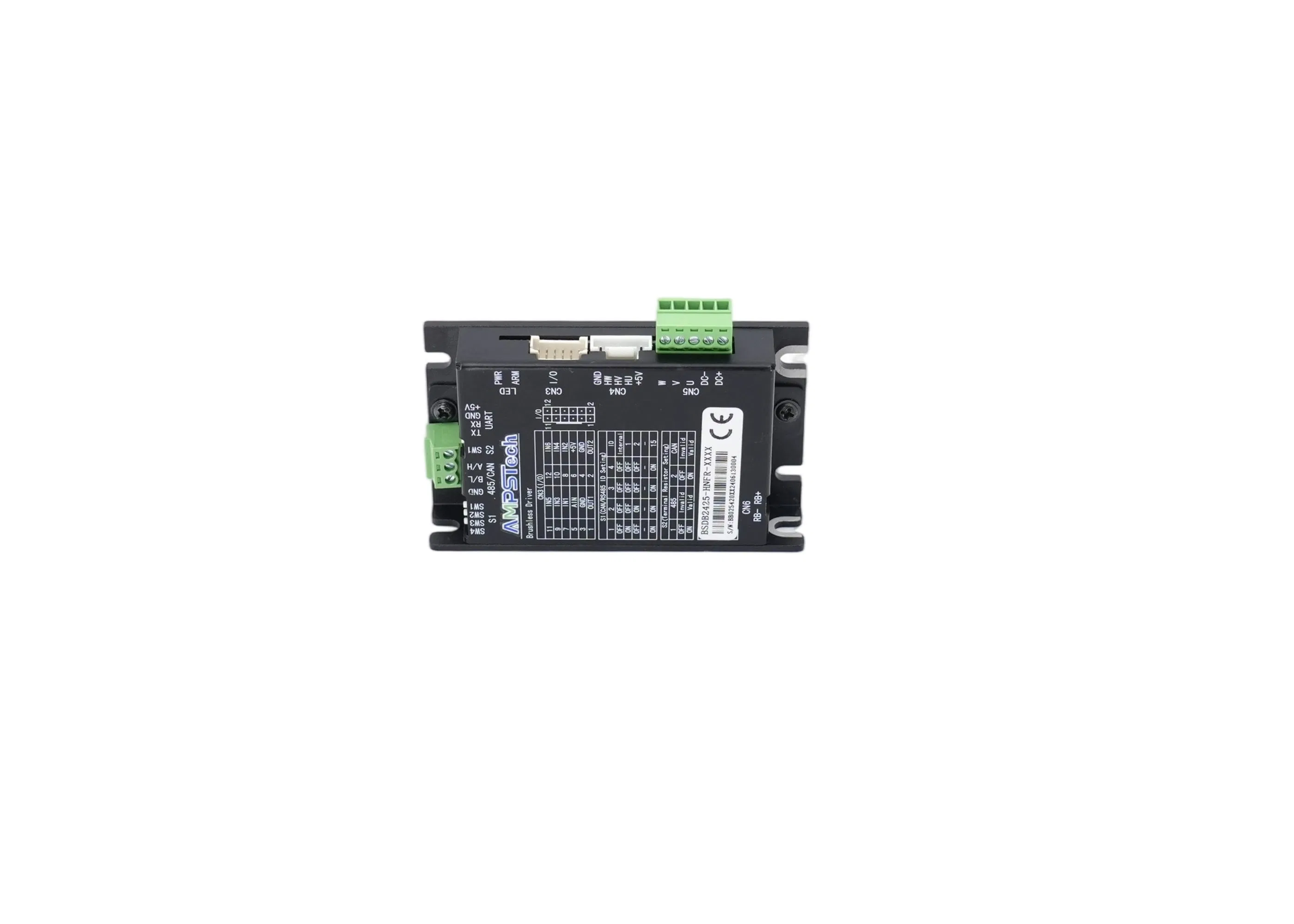

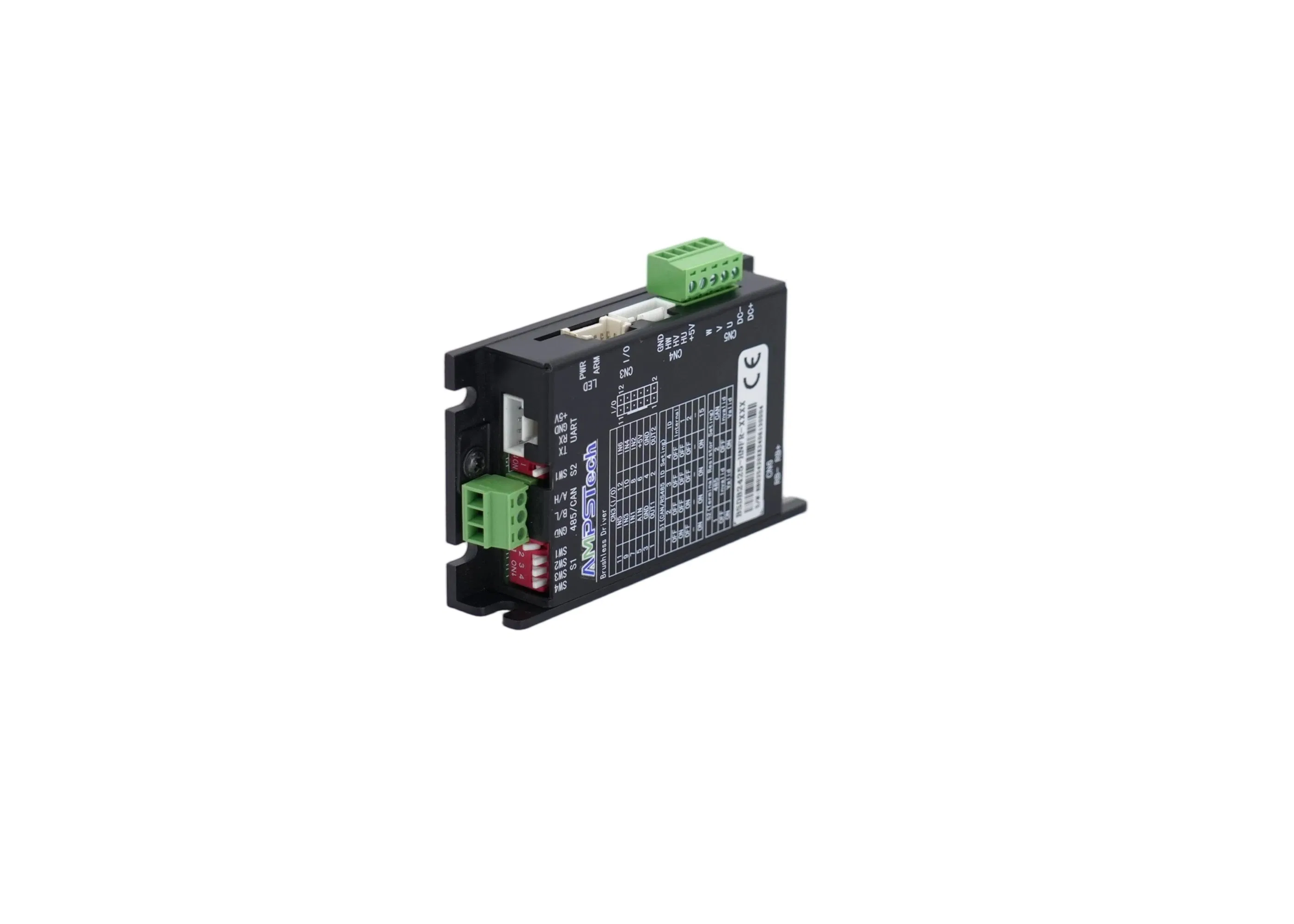

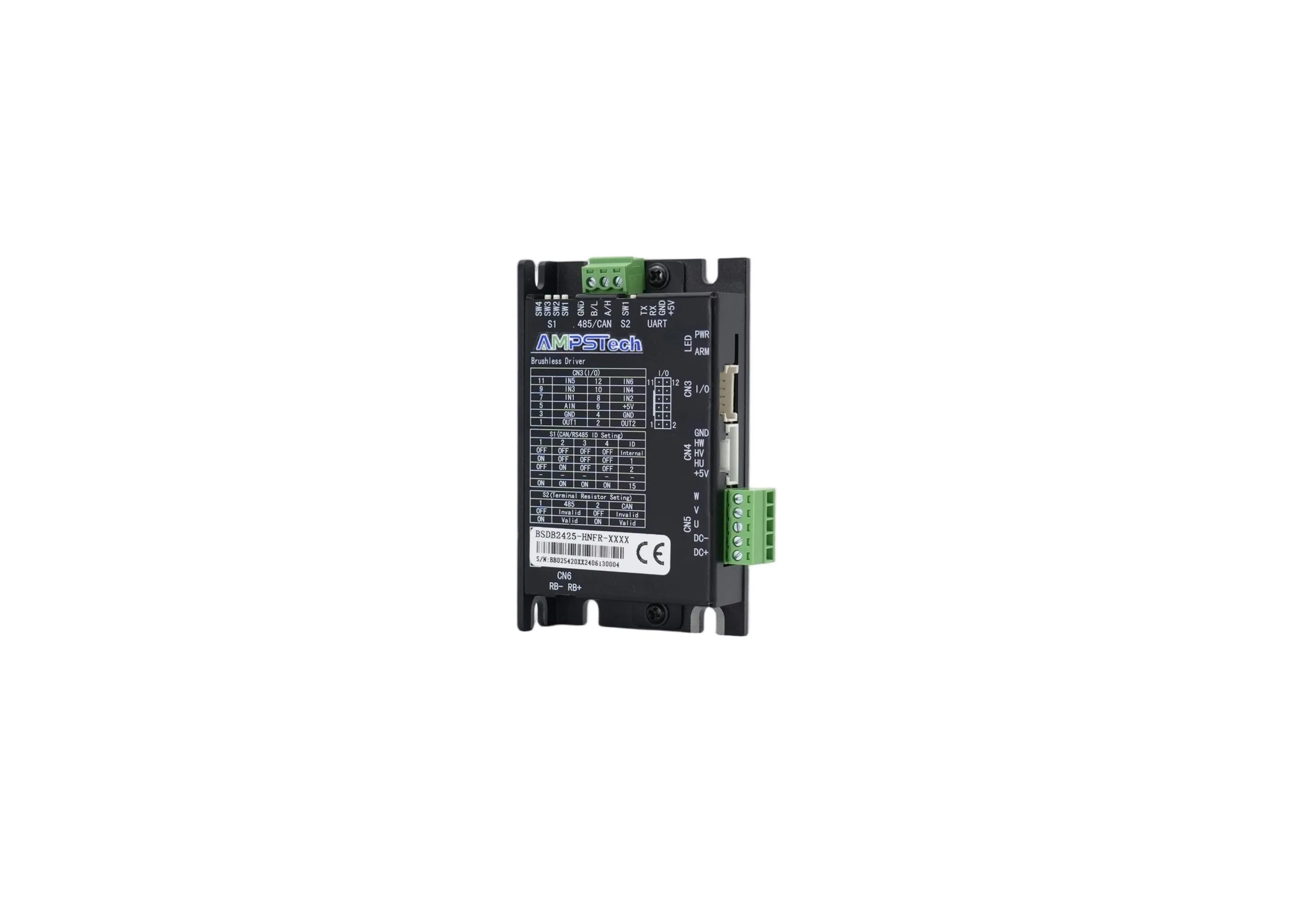

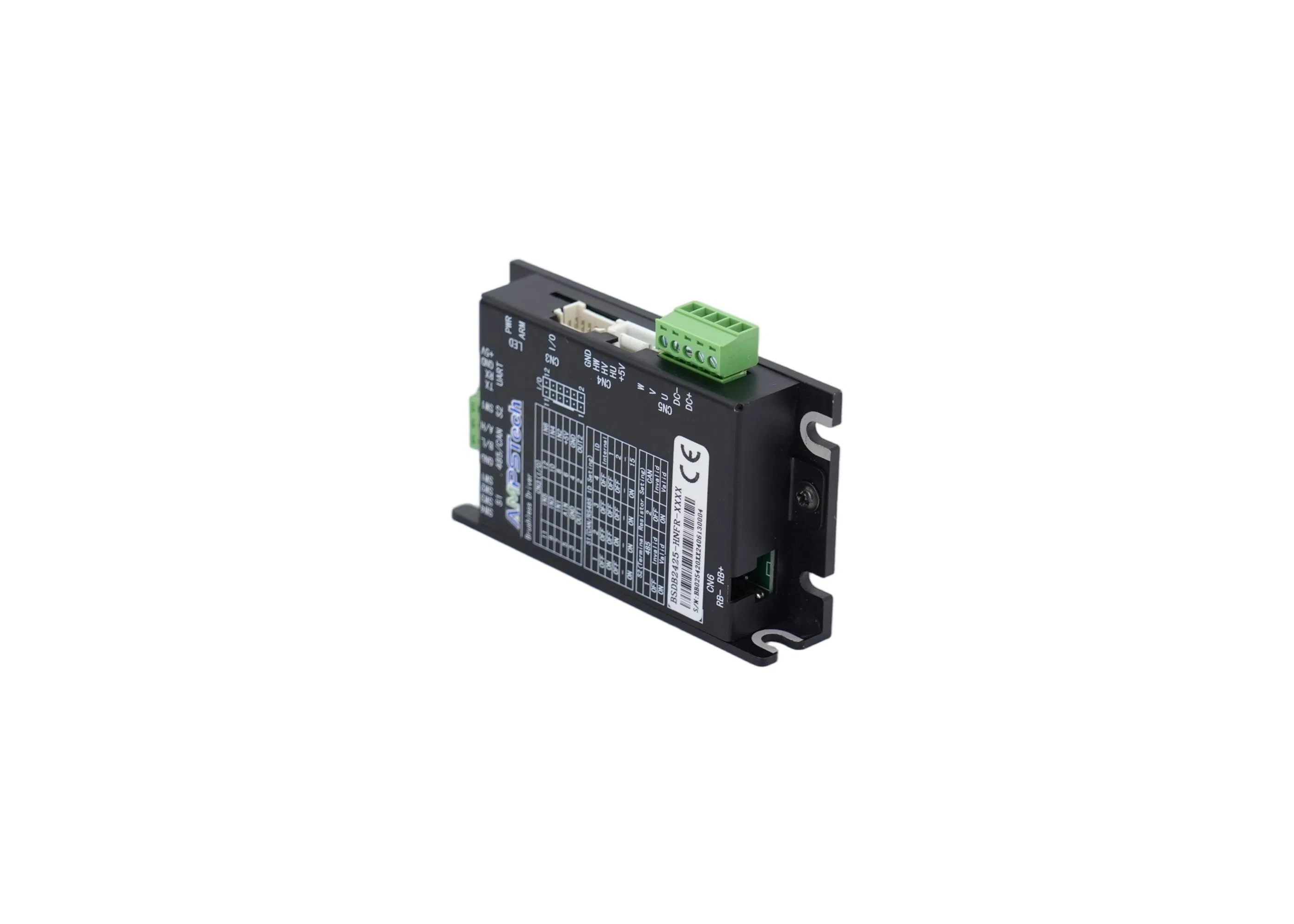

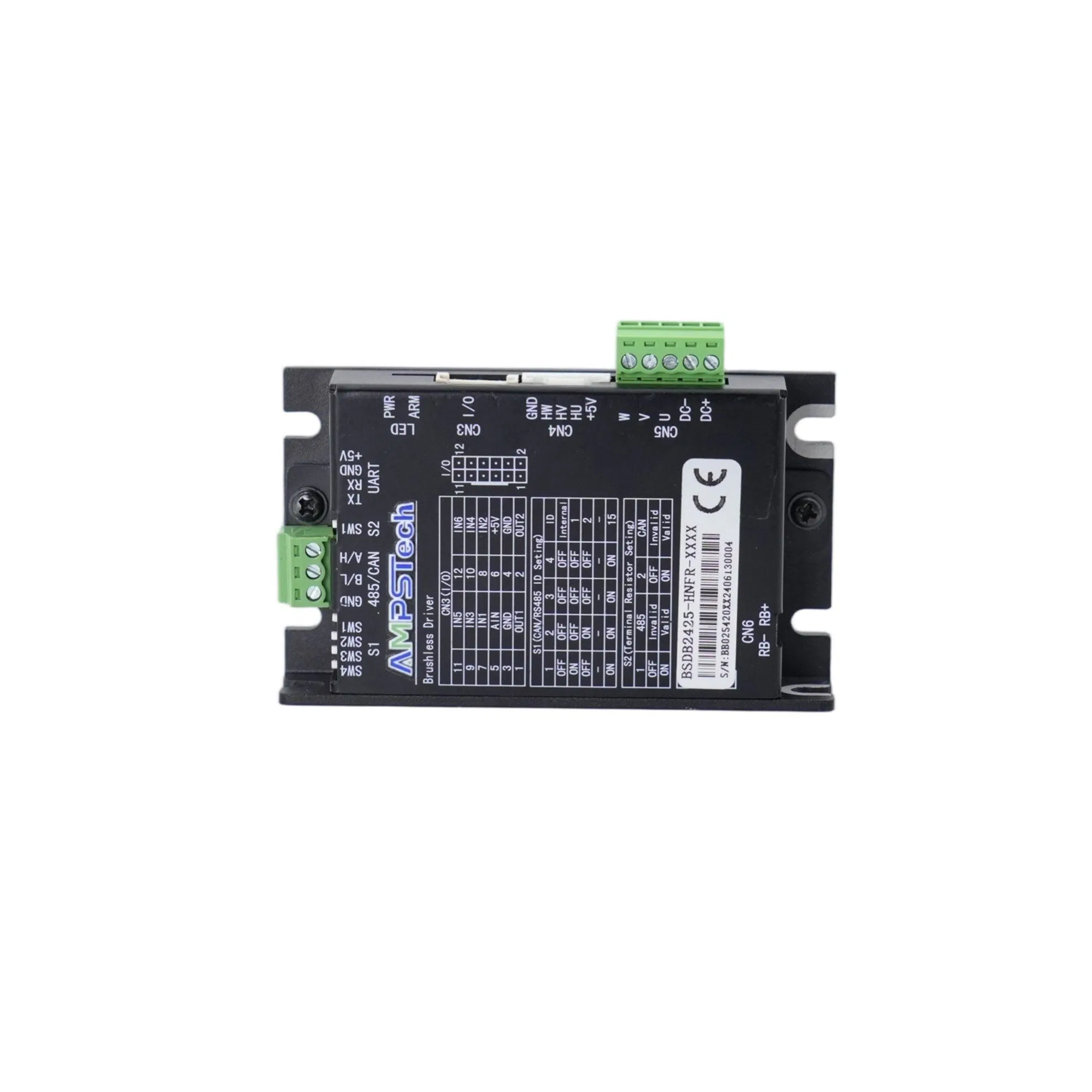

100W DC Brushless Driver 24V RS485 for BLDC Motor

1 / 5

100W DC Brushless Driver 24V RS485 for BLDC Motor

Customization:	Available
Task:	Adjust
Structure:	Closed-Loop

Send Inquiry

Product Description

Basic Information

Model NO.

BSDB2425-HNFR

Mathematical Model

Non-Linear

Signal

Discrete

Function

Automatic Control

Certification

RoHS, ISO: 9001, CE

Condition

New

Material

Aluminum Alloy

Power

100W

Rated Voltage

DC24V

Continuous Current

Peak Current

25Ap

Origin

China

Technical Profile

Our company is a well-known high-tech enterprise focusing on the development and production of servo systems and stepper systems. With a development concept where quality is always the top priority, our products have earned a strong reputation for high cost-performance in the market.

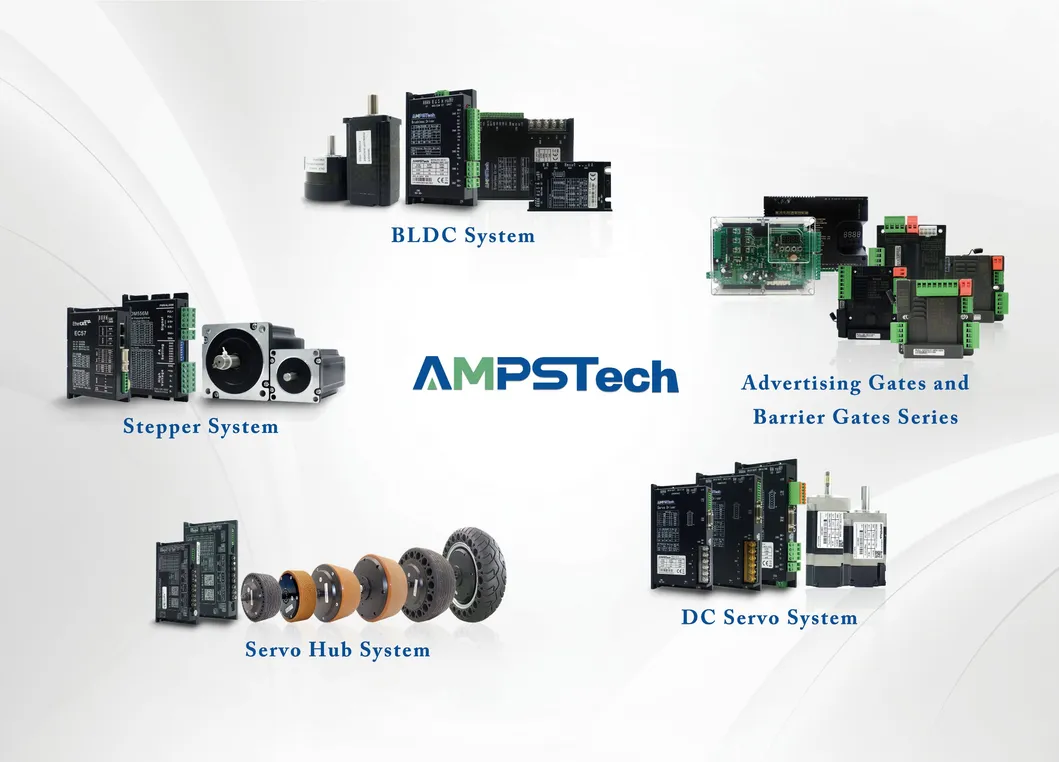

Our motion control solutions including hub servo motors, drivers, and automatic controllers have been widely applied to various markets such as service robots, transmission robots, disinfecting robots, floor-cleaning robots, advertising door controllers, barrier gate controllers, and automation machinery.

Core Features

Wide adaptability: Supports 10-60VDc, 22Arms (peak 80Ap), compatible with various brushless motors, high load performance, meets industrial needs.

Superior performance: Through sine wave control technology, the magnetic field is precisely regulated, reducing motor energy consumption, stabilizing torque, and minimizing noise.

High security: Built-in protection for overvoltage, undervoltage, overheating, and motor overload (I2T) ensures safety under high-load conditions.

Diverse modes: Integrates speed, position, homing, and open-loop modes for precise control of motor output across various industrial scenarios.

Abundant functions: Equipped with multiple digital inputs and outputs, supporting emergency stop, alarm reset, multi-speed, and multi-position control.

Diverse communication options: Supports UART, RS485, CAN, and other protocols with adjustable baud rates for seamless system integration.

Product Parameters

Parameters	BSDB2425-HNFR Specification
Rated Voltage	10-30VDC
Max. Continuous Current	5 Arms
Peak Current	25 Ap
Feedback	TTL Hall Sensor
Dynamic Braking	Support external braking resistor
Digital Input	6 Digital inputs
Digital Output	2 Digital outputs
Communication	RS485 + UART
Operating Temperature	-10~40 ºC
Operating Humidity	5-95%RH
Altitude	Up to 4000m (Derating above 1000m)

Applications

This driver is specifically designed for mobile robotics and automated systems, including:

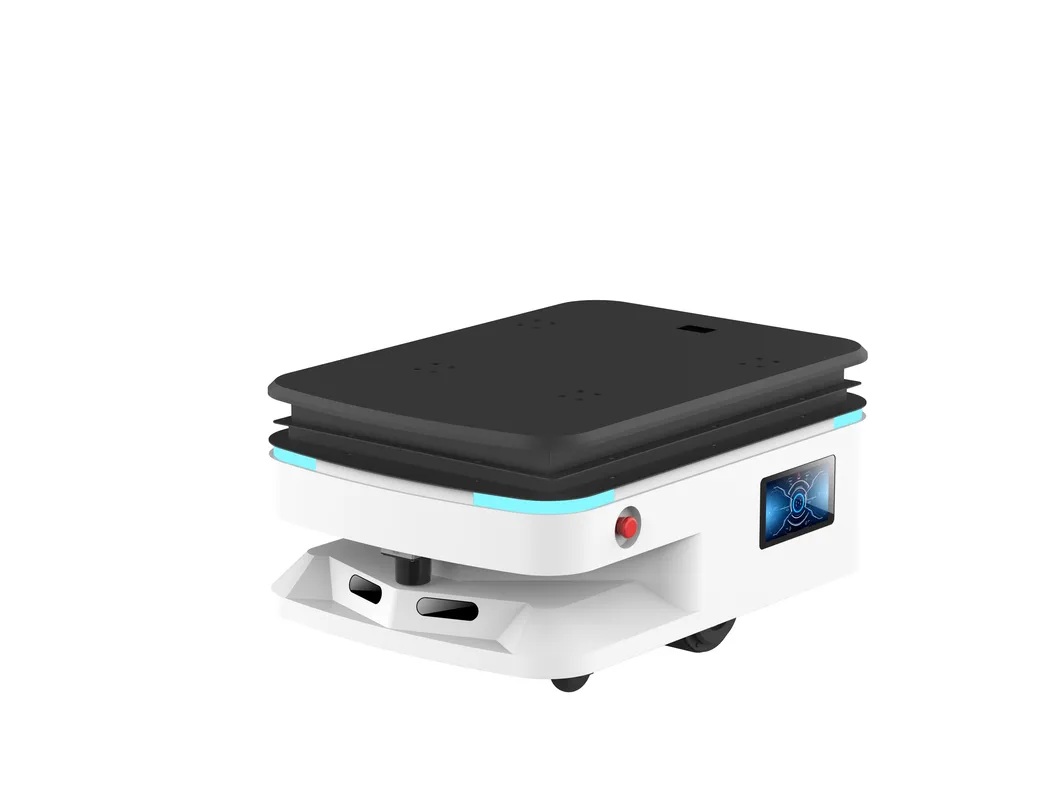

Automated Guided Vehicles (AGV)

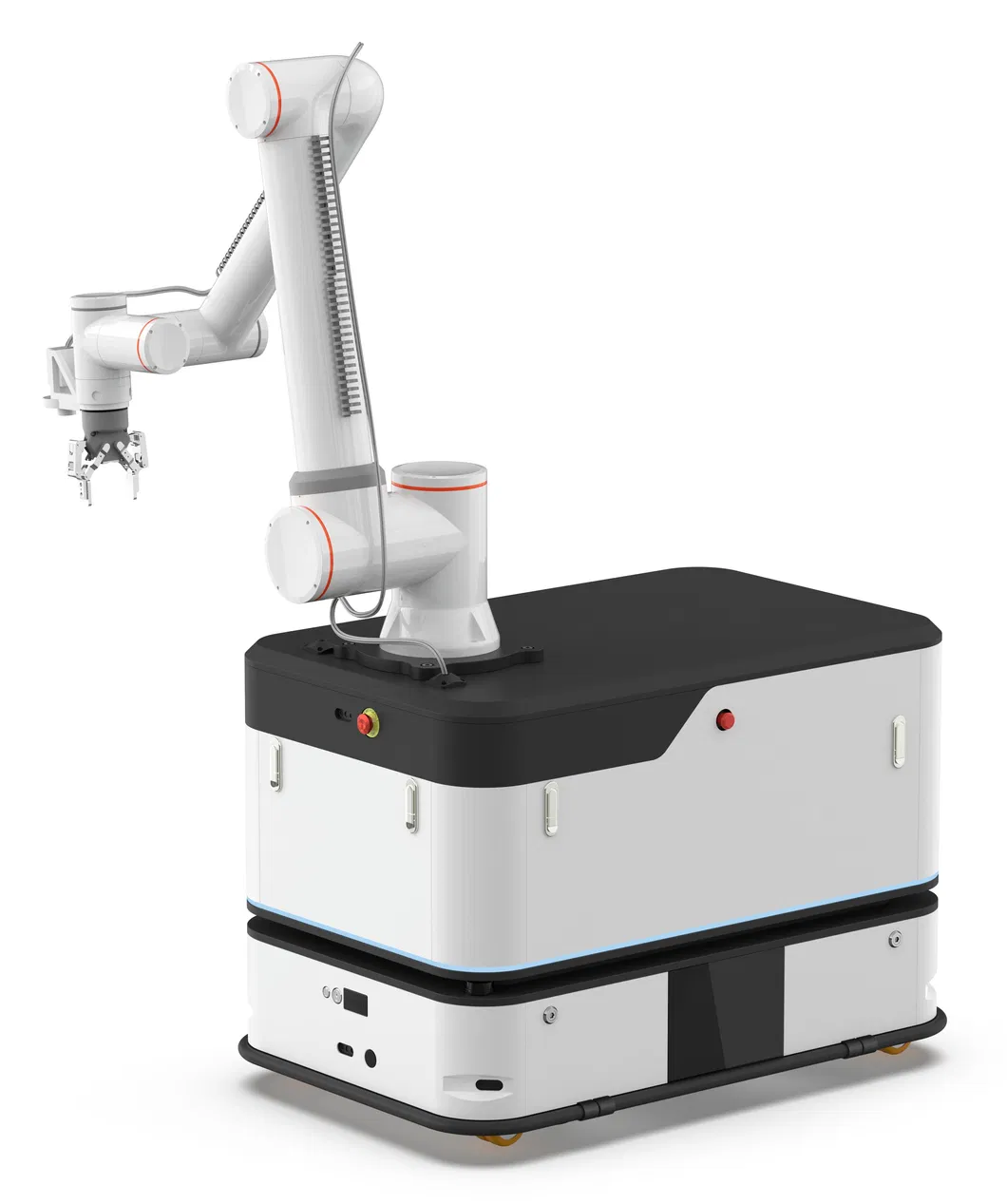

Autonomous Mobile Robots (AMR)

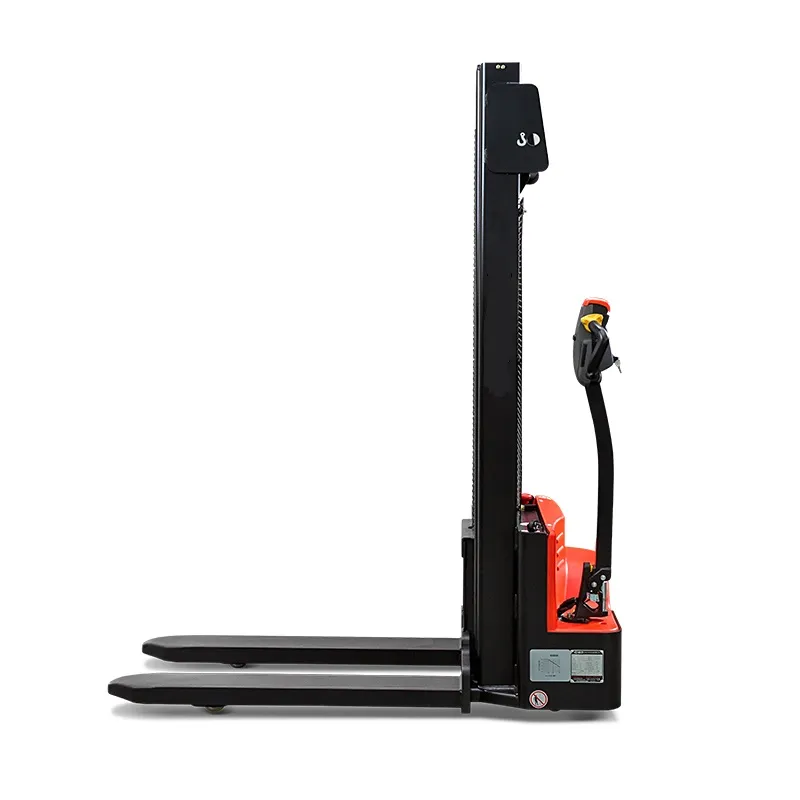

Auto-forklifts and Warehouse Automation

Frequently Asked Questions

What is the input voltage range for this driver?

The driver supports a rated voltage range of 10-30VDC, making it suitable for standard 24V industrial power systems.

Does this driver support RS485 communication?

Yes, it supports both RS485 and UART communication protocols for seamless integration with PLCs and other control systems.

What types of protection are built into the hardware?

It includes comprehensive protection features such as overvoltage protection, undervoltage protection, and motor overheat (I2T) protection.

Can I use an external braking resistor?

Yes, the BSDB2425-HNFR model supports external braking resistors for effective dynamic braking in high-inertia applications.

What is the peak current capacity of the driver?

The driver provides a maximum peak current of 25 Ap, allowing for high torque during startup or heavy-load phases.

Is it possible to operate this driver at high altitudes?

The driver can operate at altitudes up to 4000 meters. However, for altitudes above 1000m, a derating of 1.5% for every 100 meters increase is required.
