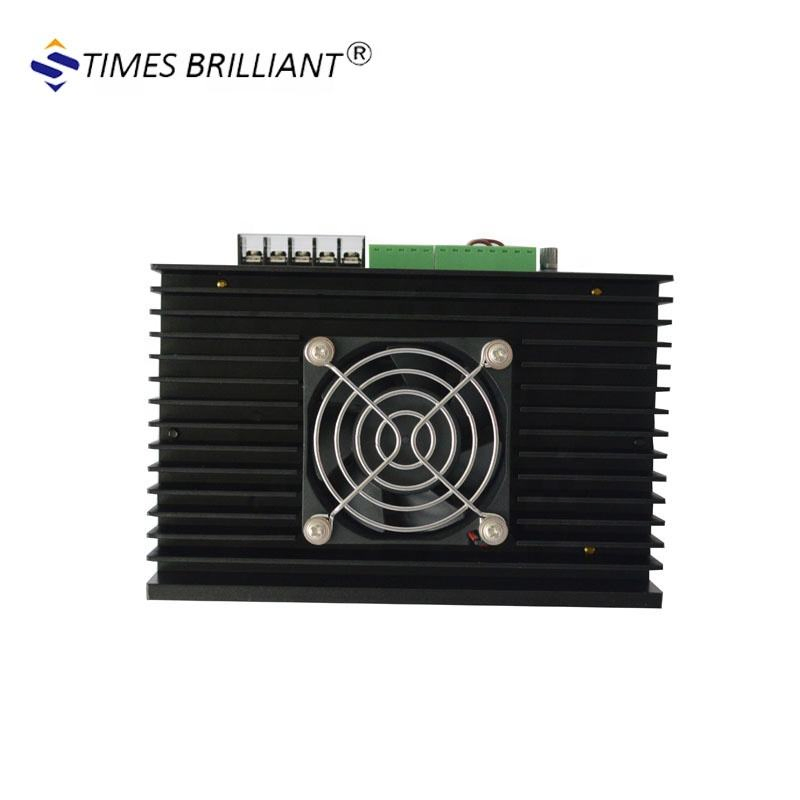

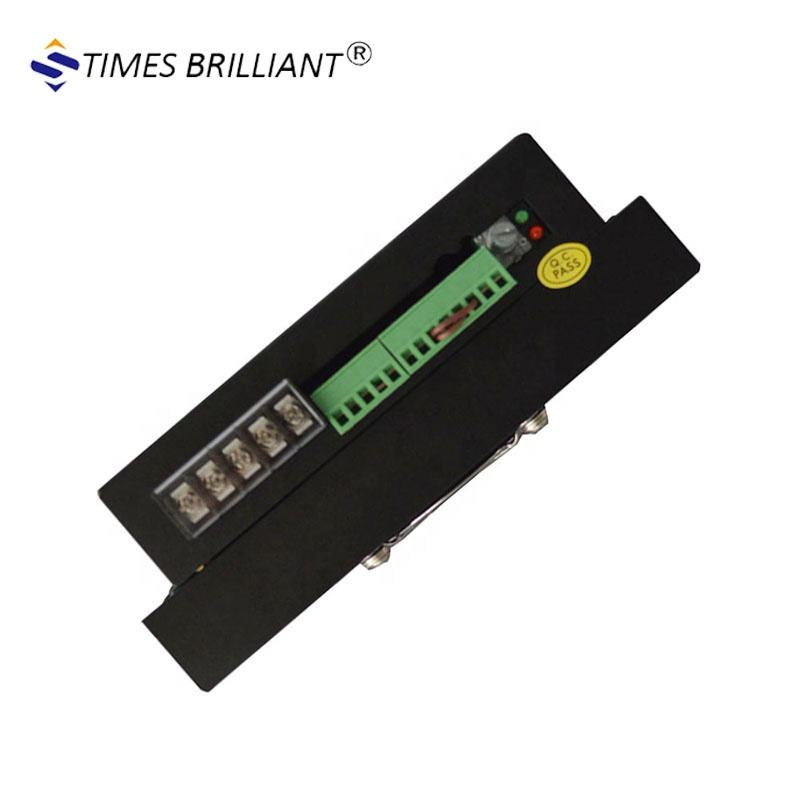

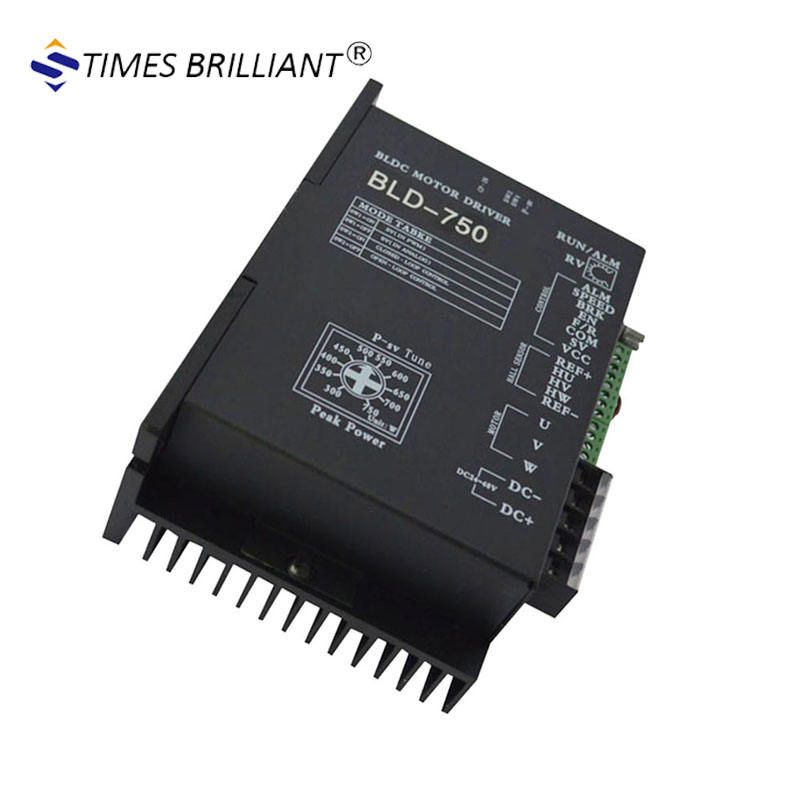

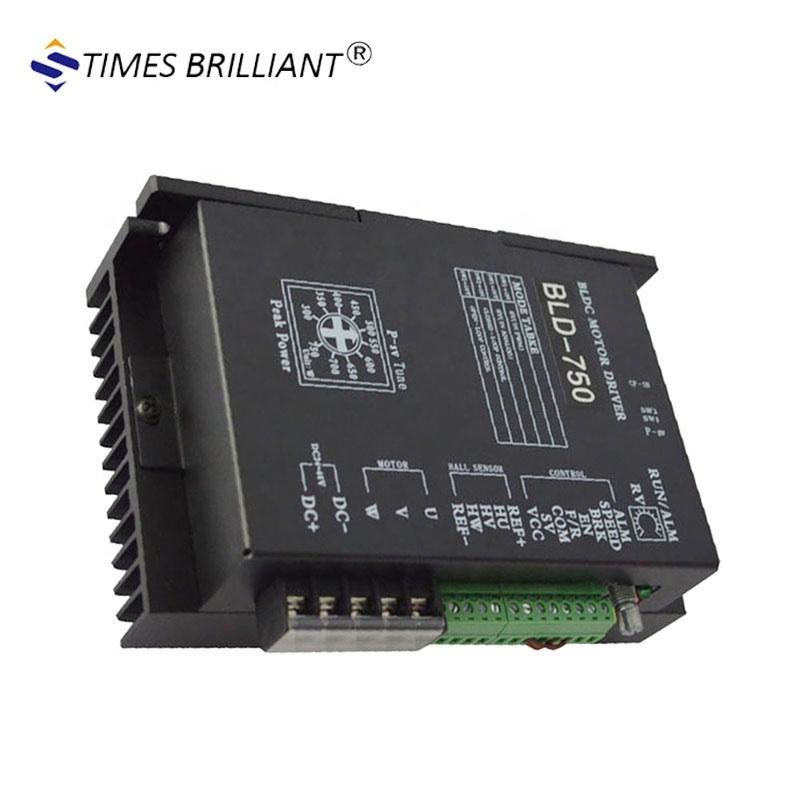

750W Brushless DC Motor Controller for 24V 36V 48V BLDC Motor Driver

1 / 5

750W Brushless DC Motor Controller for 24V 36V 48V BLDC Motor Driver

Customization:	Available
Task:	Program
Structure:	Combination

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

BLD-750

Mathematical Model

Linear

Signal

Continuous

Function

Monitoring

Certification

Condition

New

Material

Stainless Steel

Voltage

18V - 50V

Current

0-25A

Type

Brushless DC Motor Driver

Efficiency

86% Approx

Speed Range

0-20000rpm

Product Description

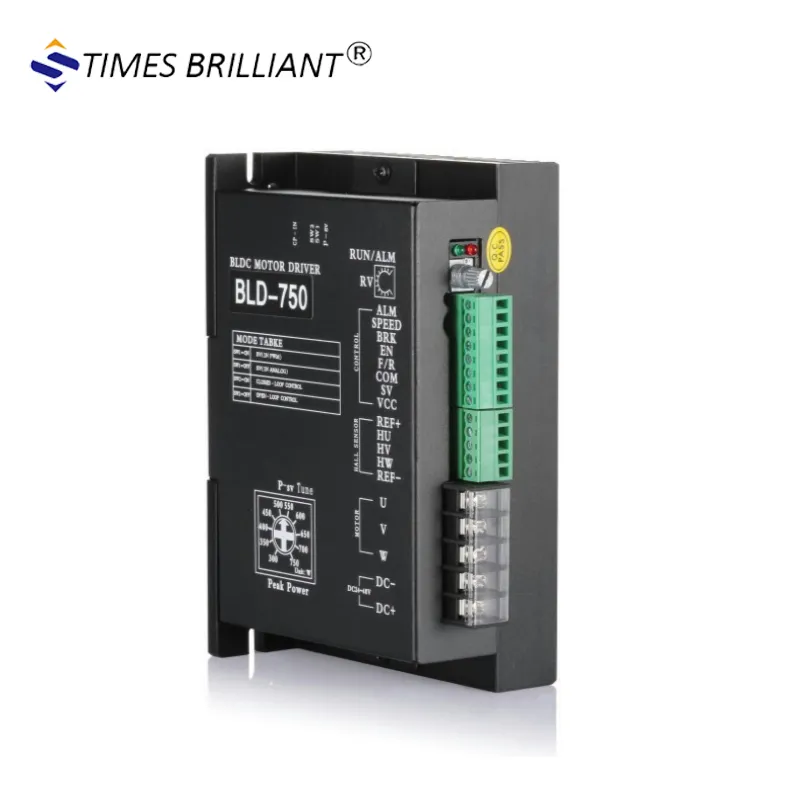

High Performance BLD-750 PWM Speed Control 750W Brushless DC Motor Controller

1. Product Features:

Five speed regulation modes
HALL angle: 180°
RS232 communication protocol
SPEED/ALARM signal output (O.C.)
High efficiency, low temperature rise
PID closed-loop control
Over-current, voltage & undervoltage protection
Wide speed range: 0~20000rpm

2. Main Function:

This brushless DC motor drive is suitable for motors with power up to 750W and three-phase brushless DC configurations. It utilizes advanced DSP control technology to provide high torque, low noise, low vibration, and rapid starting/stopping capabilities.

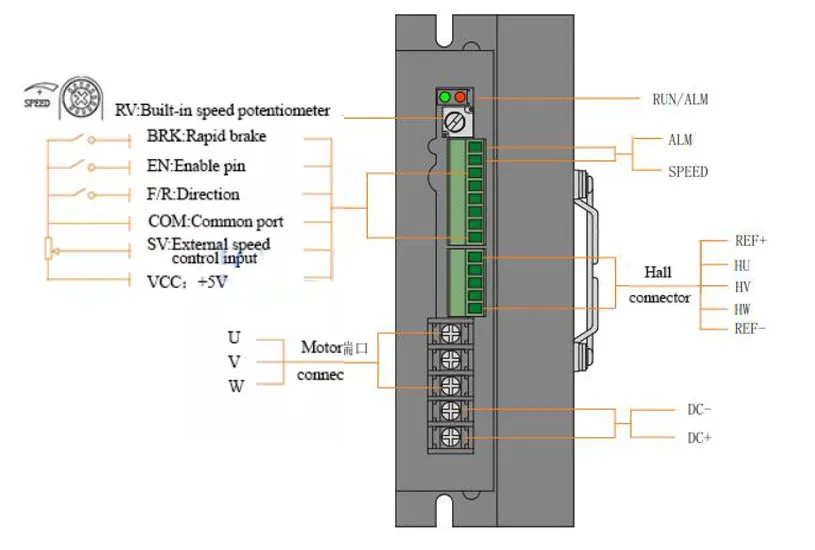

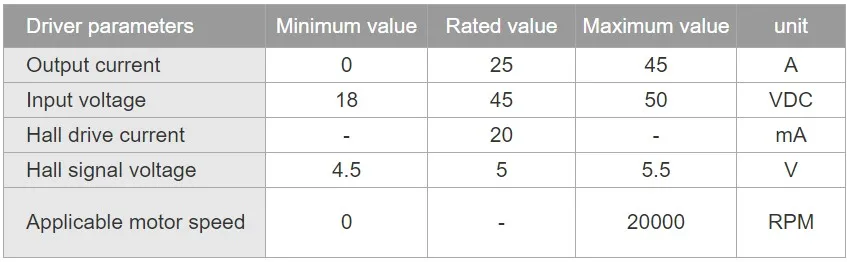

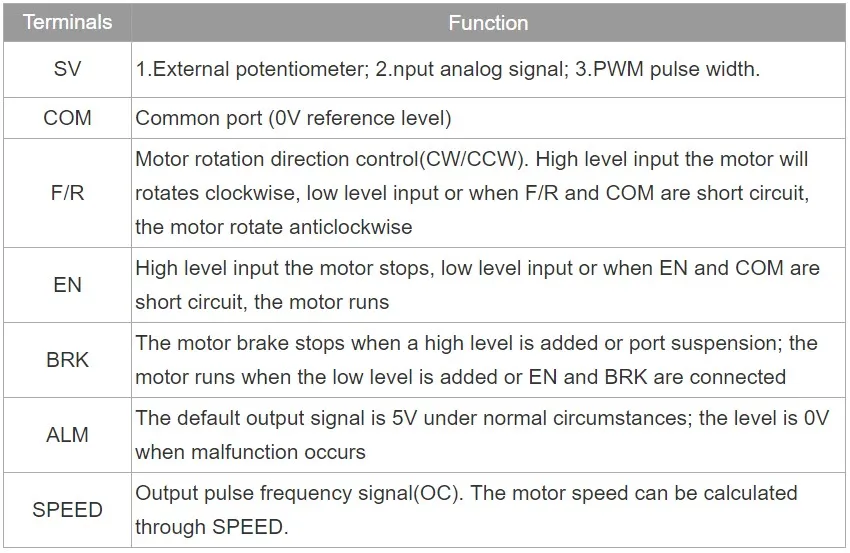

3. Working Conditions & Wiring:

4. Detailed Technical Specifications:

5. Dimensions:

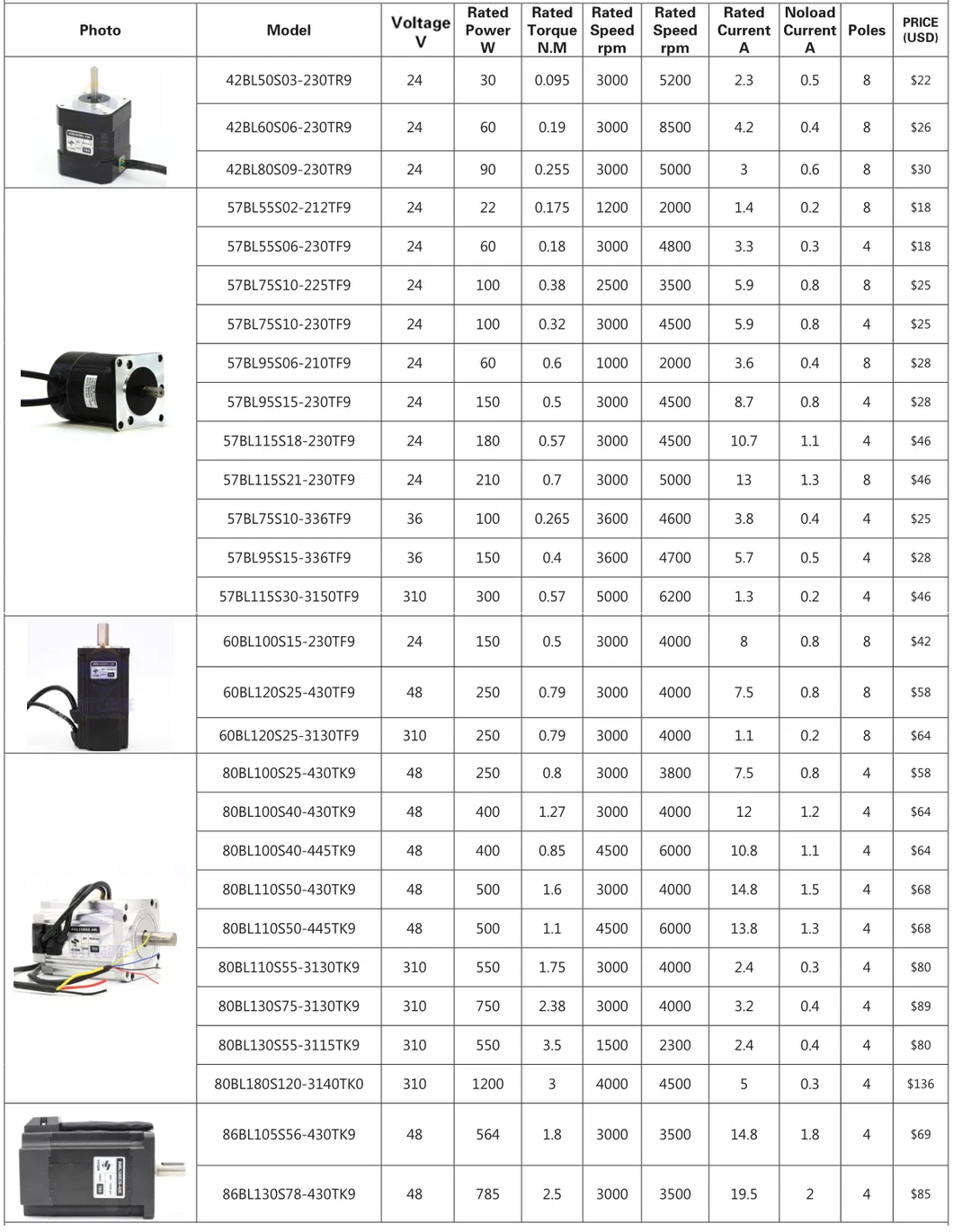

Product Assortment & Logistics

Package Size

80.00cm * 45.00cm * 120.00cm

Gross Weight

3.000kg

Packaging

Polyfoam, Cardboard Carton

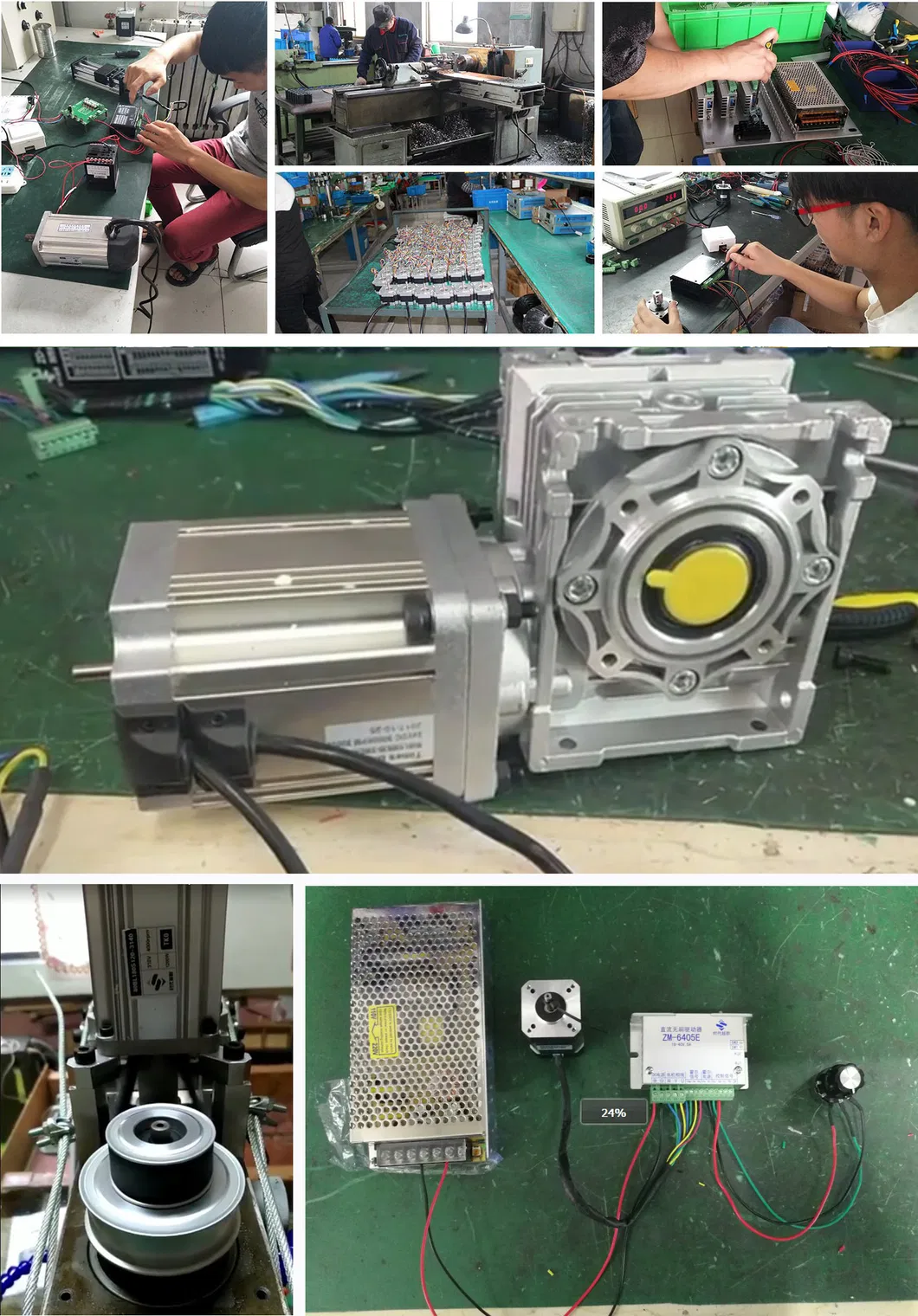

Service & Support

Frequently Asked Questions (FAQ)

Q1: What is the maximum power capacity of the BLD-750 driver? A1: The BLD-750 is designed to support brushless DC motors with a power rating up to 750W.

Q2: What voltage range does this motor controller operate on? A2: This driver supports a wide DC voltage input range from 18V to 50V, making it compatible with 24V, 36V, and 48V systems.

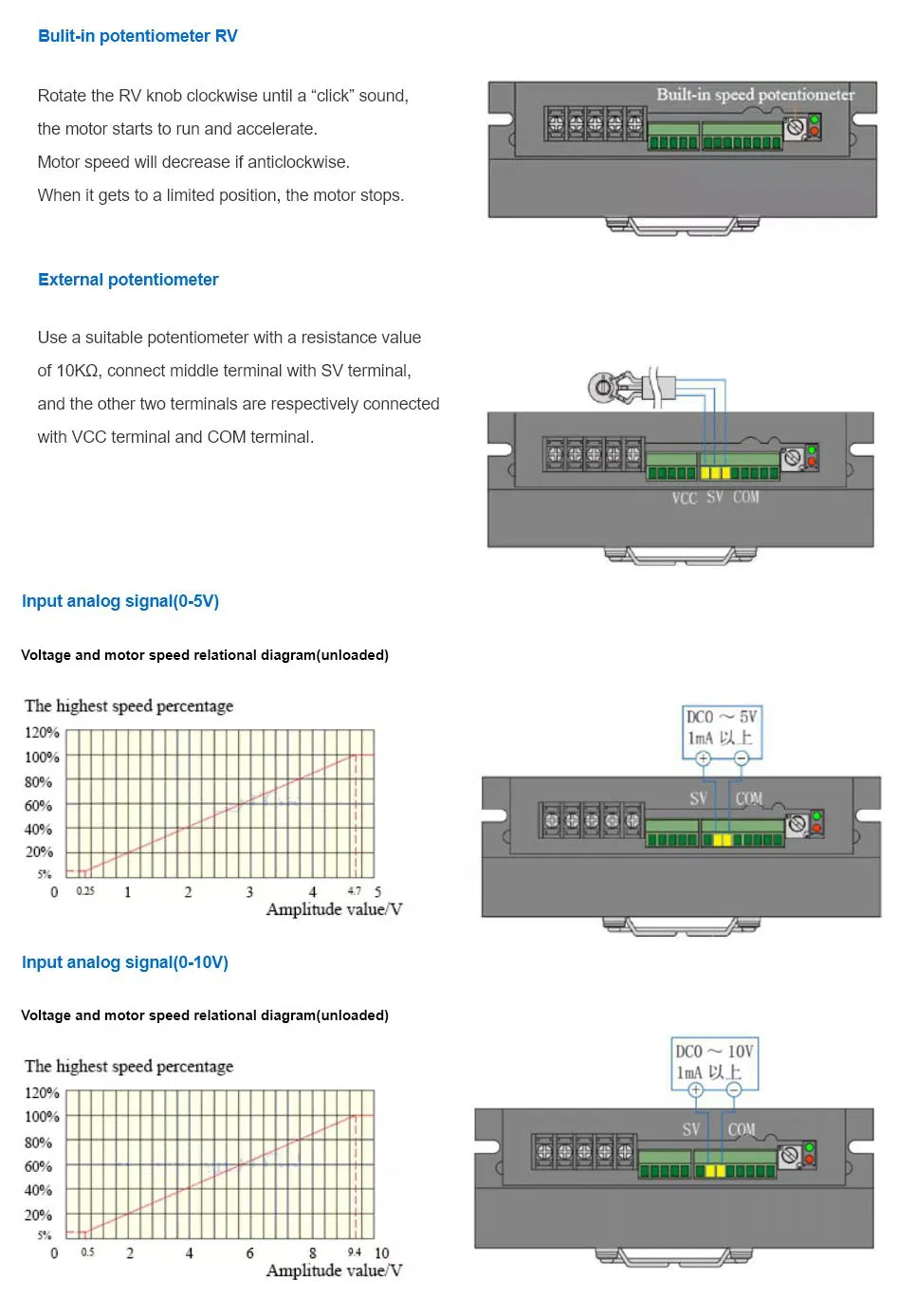

Q3: Does the BLD-750 support speed control via an external potentiometer? A3: Yes, it supports an external potentiometer with a resistance range of 10K to 100K for precise speed regulation.

Q4: What types of protection are built into the device? A4: The controller features PID closed-loop control and strong self-protection against over-current, over-voltage, and undervoltage.

Q5: What is the maximum speed supported by this controller? A5: The BLD-750 provides excellent velocity control across a wide range of 0 to 20,000 rpm.

Q6: Can this driver handle 180° HALL sensors? A6: Yes, the driver is specifically designed to work with a HALL angle of 180°.
