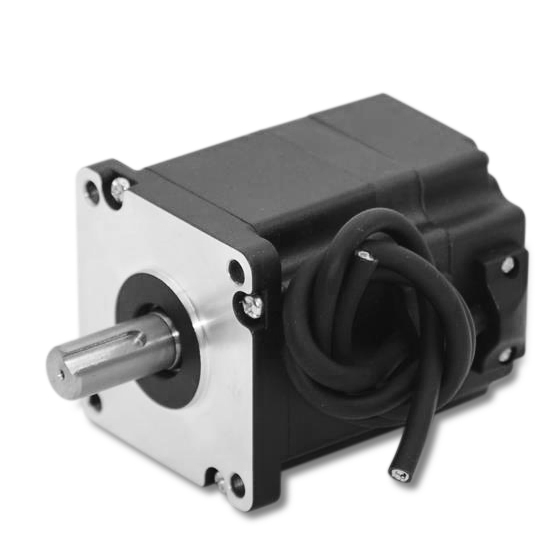

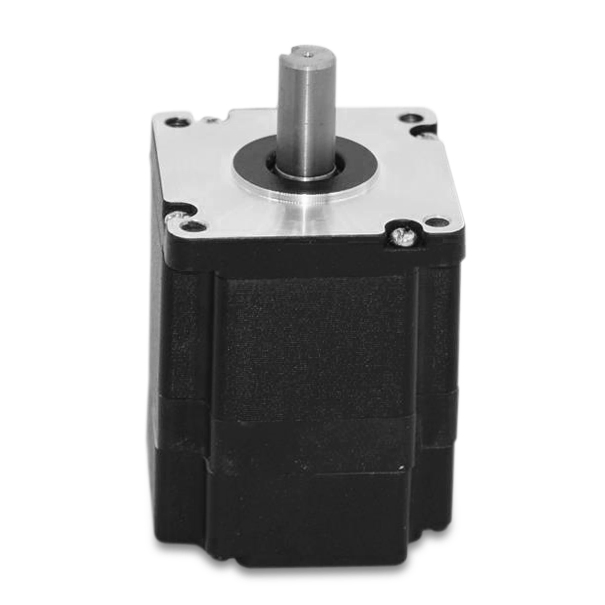

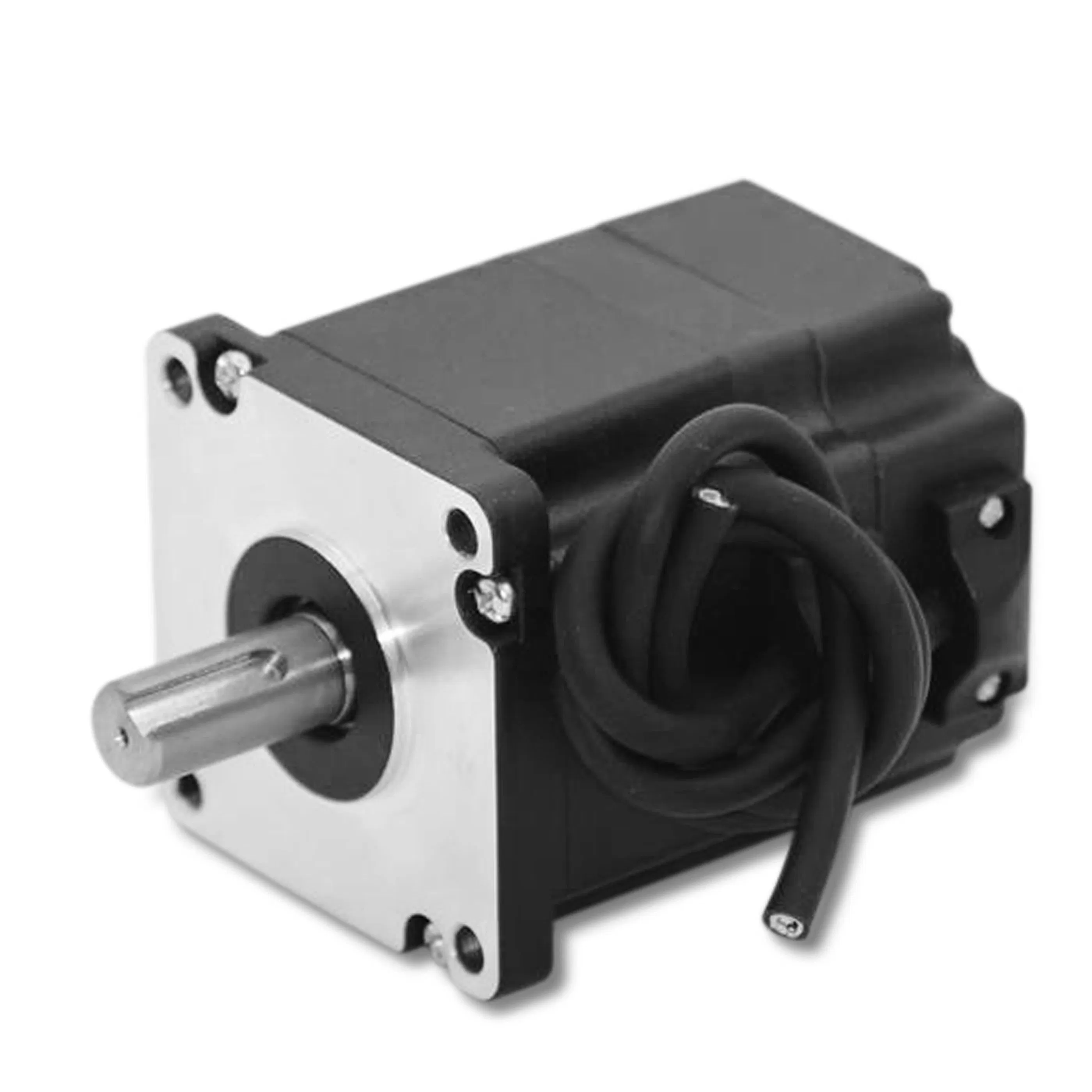

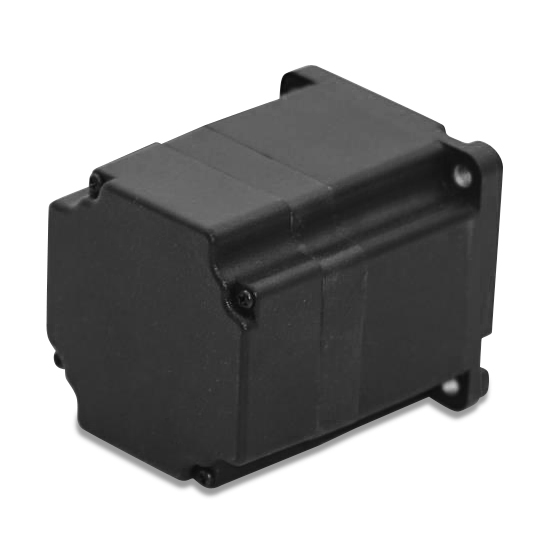

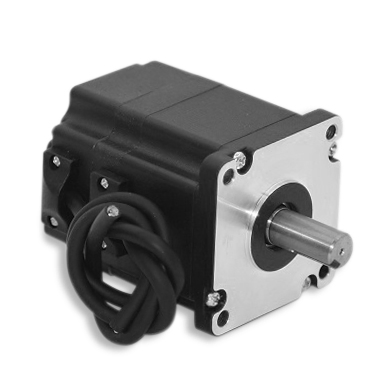

Bg 70mm 24V High Quality China Bg BLDC Mini Explosion-Proof 157W up to 800W High Torque 3000rpm Brushless

Still deciding? Get samples of $ !
Request Sample

Product Description

⚙️ Basic Specifications
Product Name
70mm Brushless DC Motor
Excitation Mode
DC
Function
Driving
Casing Protection
Closed Type
Structure
Brushless
Type
Z2
Certification
CCC, FCC
Rated Voltage
48V
Power
157W
Motor Diameter
70mm
Noise
65dB
Bearing
Ball
Efficiency
Ie2
Rotation Direction
Ccw and Cw
📄 Product Description
70mm Brushless DC Motor Overview
Environmental & Protection Standards
Environmental Conditions -20ºC ~ 50ºC
Insulation Class B
Protection Class IP44
Noise Level ≤65dB
Number of Poles/Phases 8 / 3
Lifespan >5000h
Electrical Specifications
Model RATED LOAD NO LOAD STALL
Voltage (V) Power (W) Speed (rpm) Torque (N.m) Current (A) Speed (rpm) Current (A) Torque (N.m) Current (A)
70BL01 24 157 3000 0.5 8.8 4000 2.2 1.5 26.4
70BL02 48 157 3000 0.5 4.4 4000 1.1 1.5 13.2
70BL03 24 314 3000 1 17.6 4000 4.4 3 52.8
💡 We can also customize products according to customer requirements.

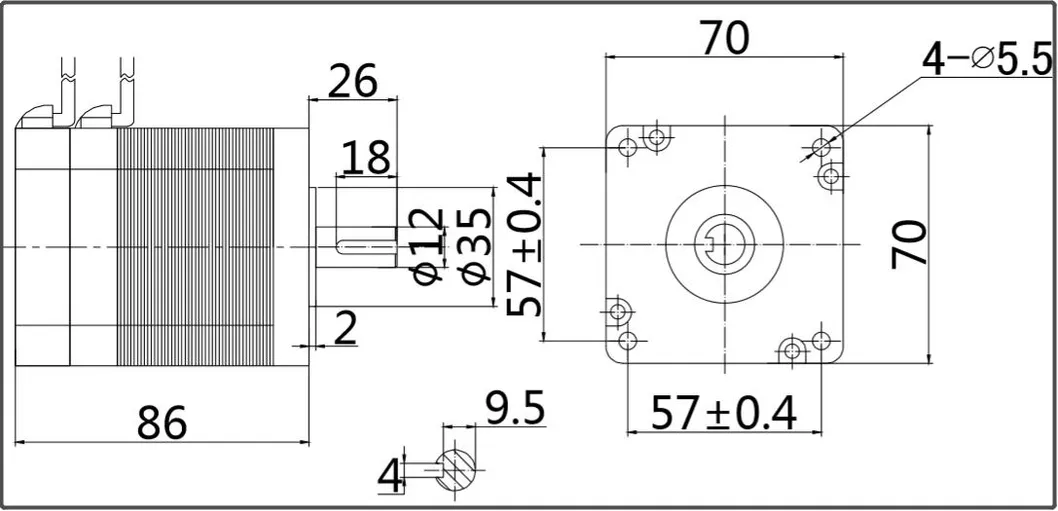

Motor Dimension Drawing
Motor Performance Curves
Motor Detail 1
Motor Detail 2
Motor Detail 3
Factory Detail 1
Factory Detail 2
Factory Detail 3
Application Cases
Technical Certificates
Frequently Asked Questions
1 What kind of motors can you provide?
At present, we mainly produce brushless DC motors, brush DC motors, AC motors, and Universal Motors. The power of the motor is typically less than 5000W, and the diameter is not more than 200mm.
2 Can you send me a price list?
Our motors are customized based on specific requirements like lifetime, noise, voltage, and shaft specifications. The price also varies according to annual quantity. Please share your detailed requirements and annual quantity for a specific offer.
3 Can I get some samples?
Yes, we provide samples for testing before official orders, provided our MOQ, price, and other terms are acceptable. Please note we generally do not stock custom-made motors for one-off personal use.
4 Can you provide OEM or ODM service?
Yes, both OEM and ODM services are available. We have a professional R&D department capable of providing specialized solutions for your needs.
5 What is the lead time for a regular order?
The standard lead time is 15-20 days. This can vary shorter or longer based on the specific model, production period, and order quantity.
6 Can I visit the facility before placing an order?
You are welcome to visit our facility. We are pleased to have the opportunity for mutual introduction and to demonstrate our manufacturing capabilities.
