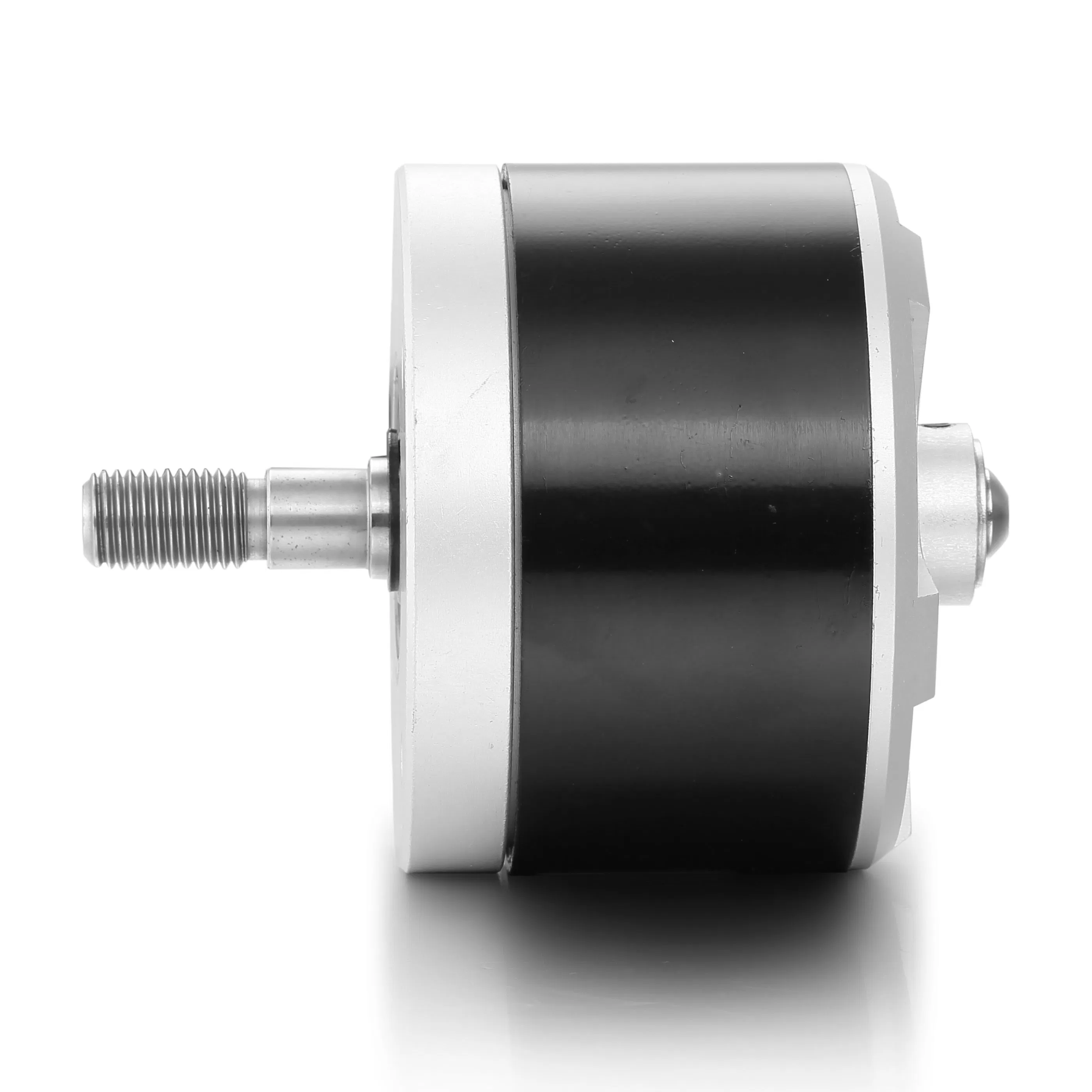

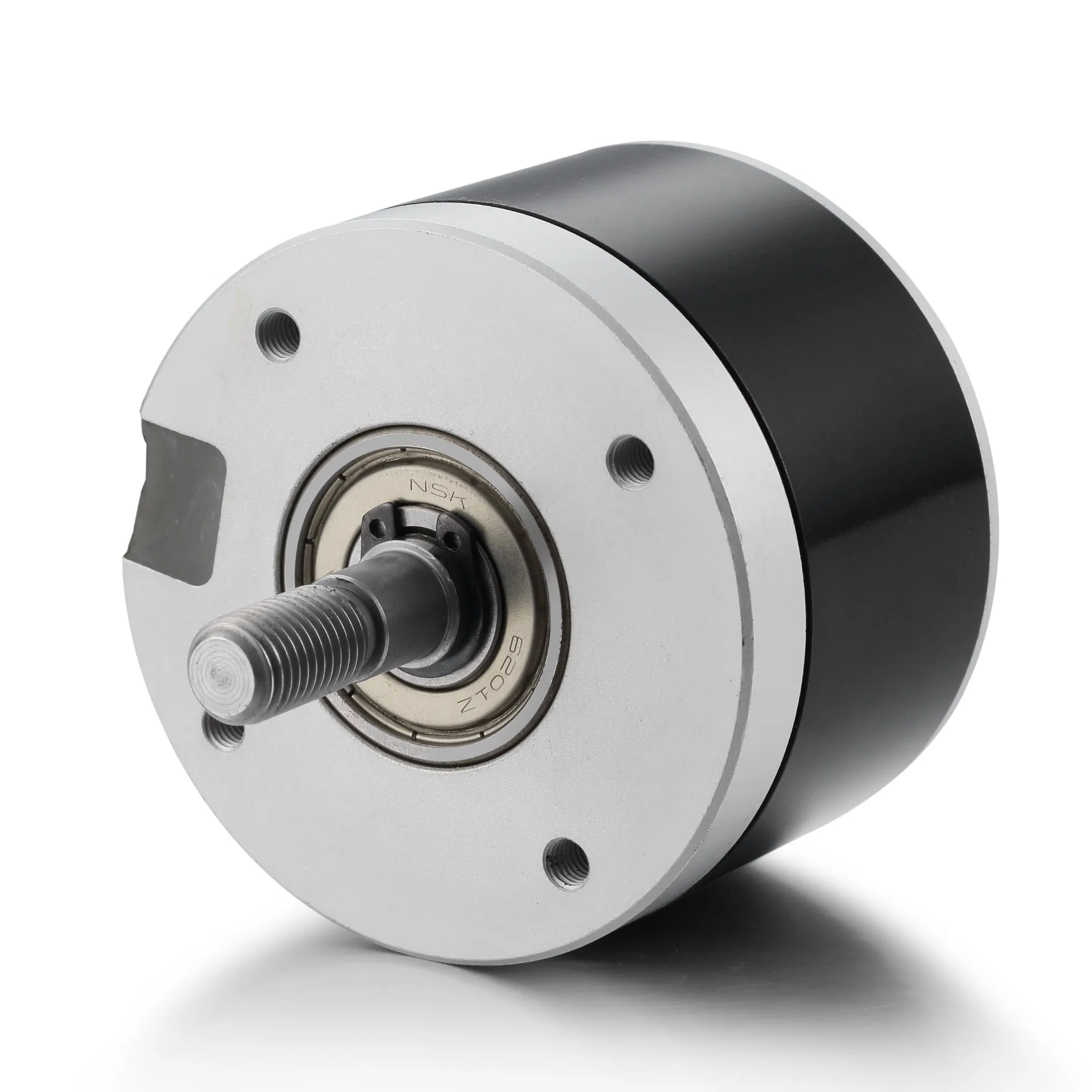

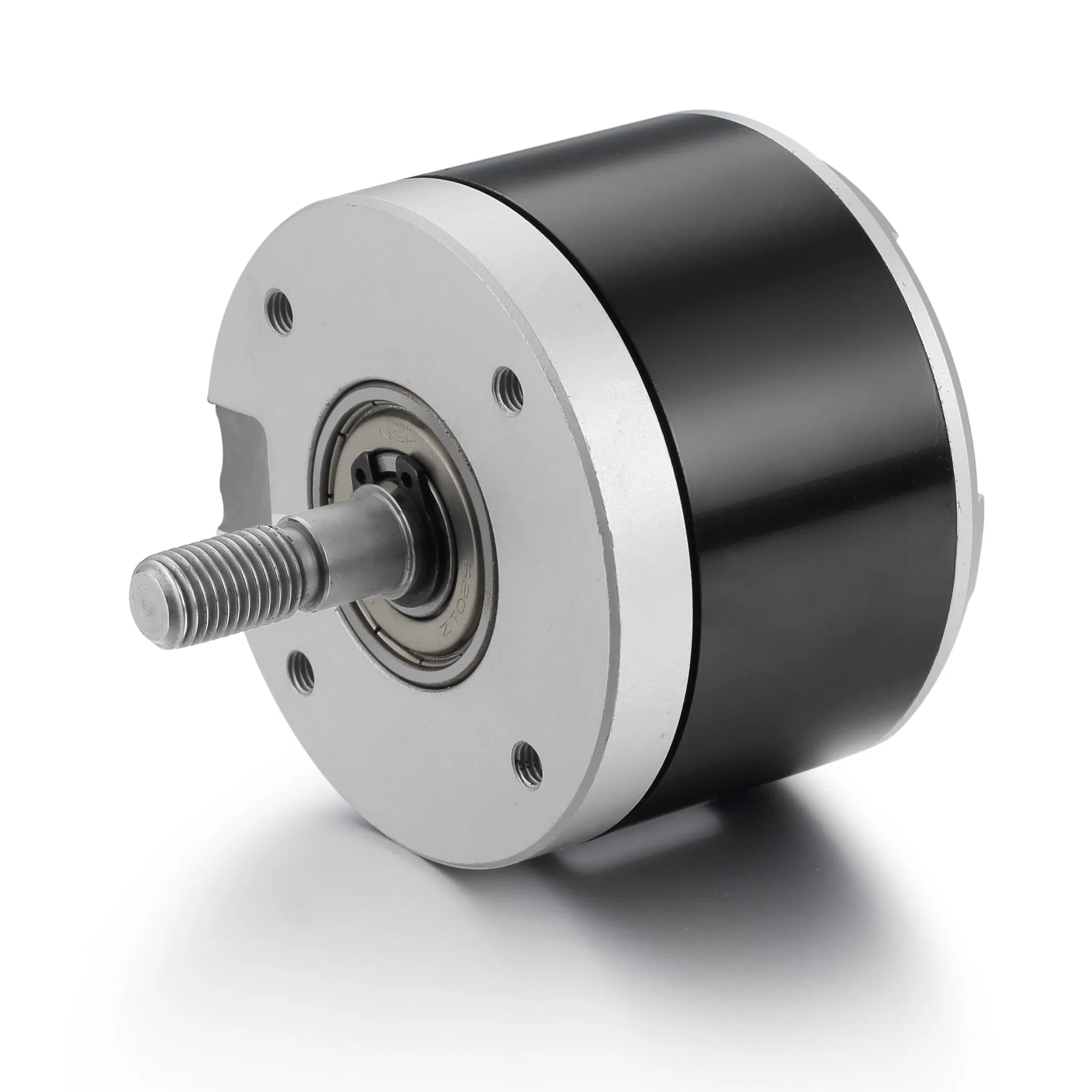

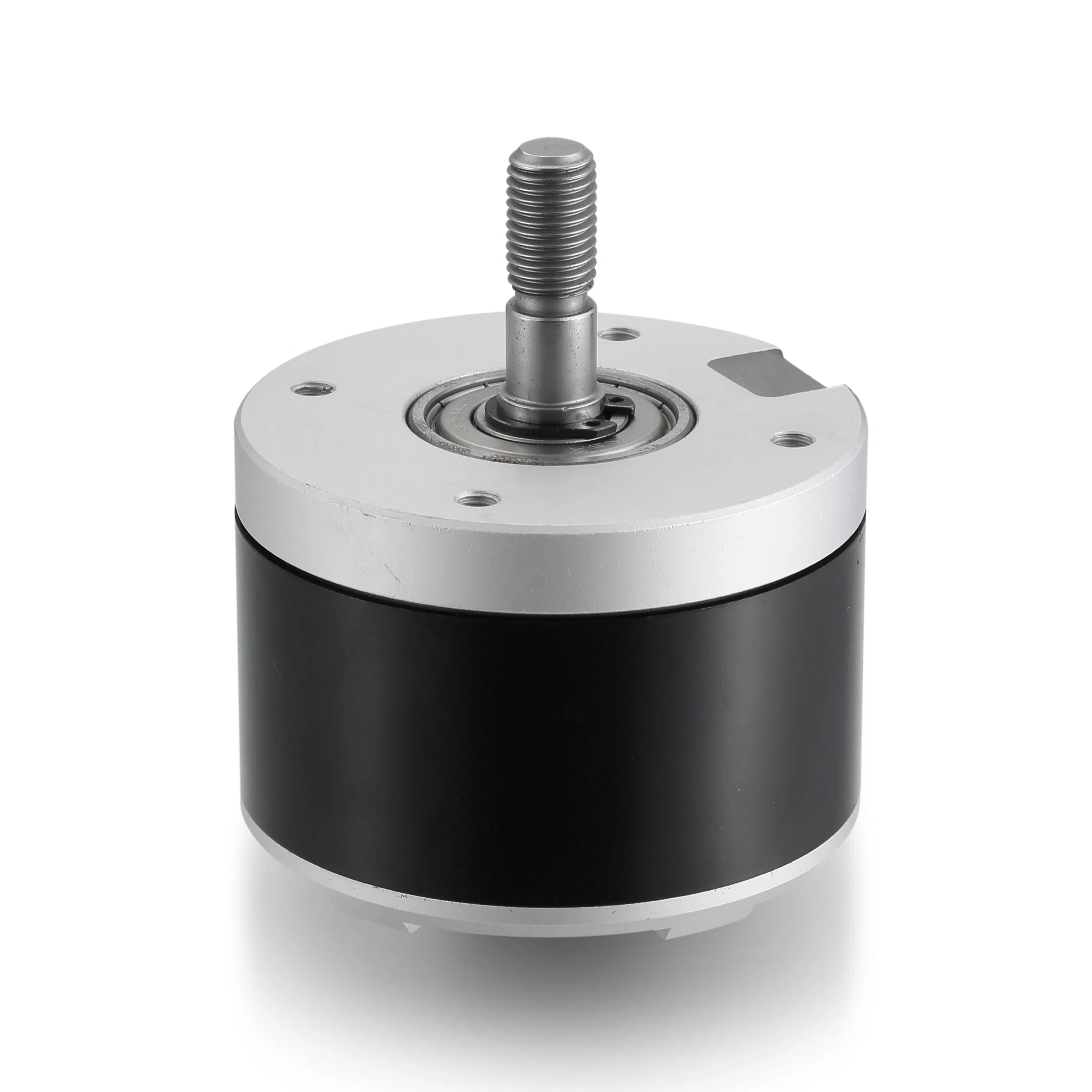

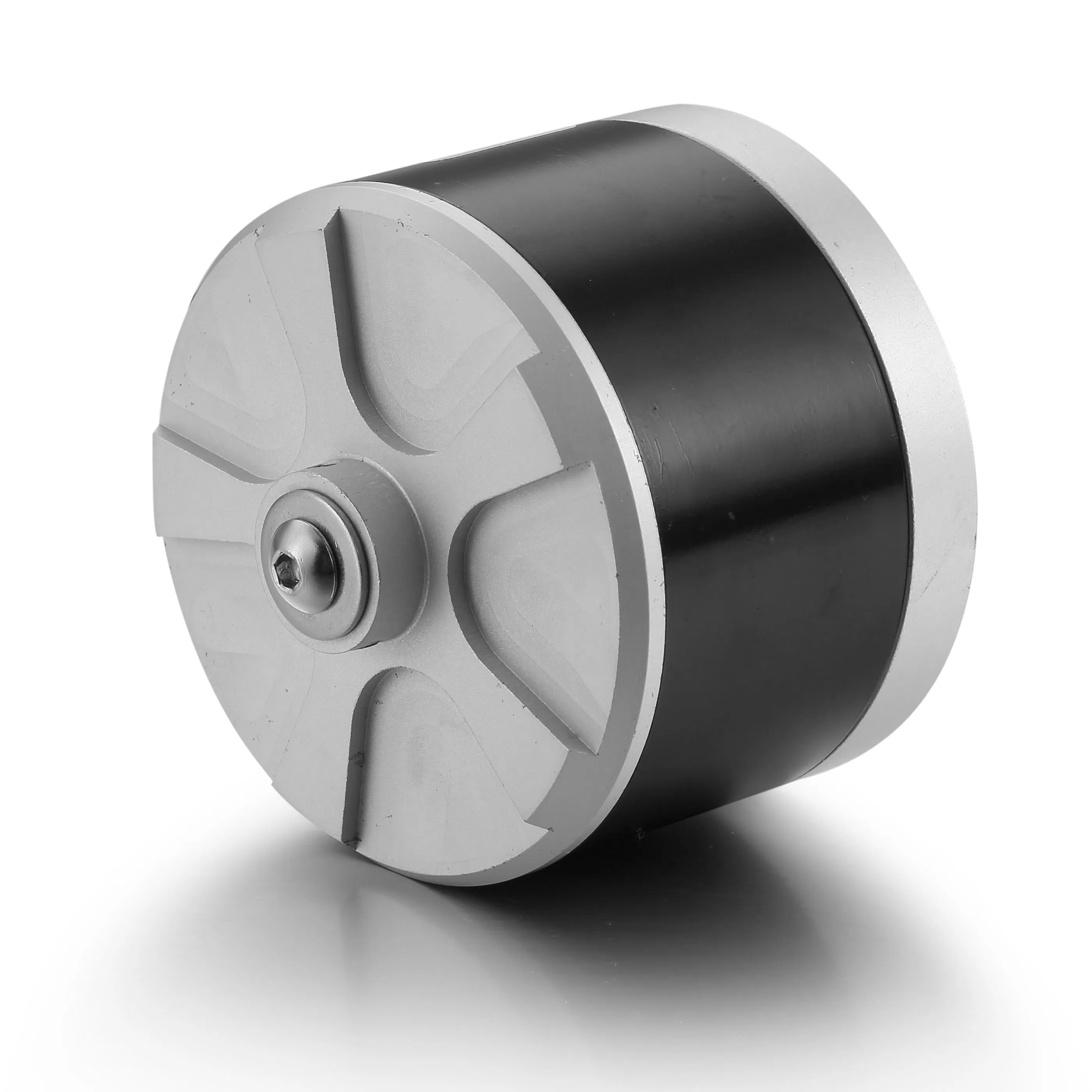

DC BLDC 7050 High Power for Water Pump and Washing Machine, with Square Flange

Product Description

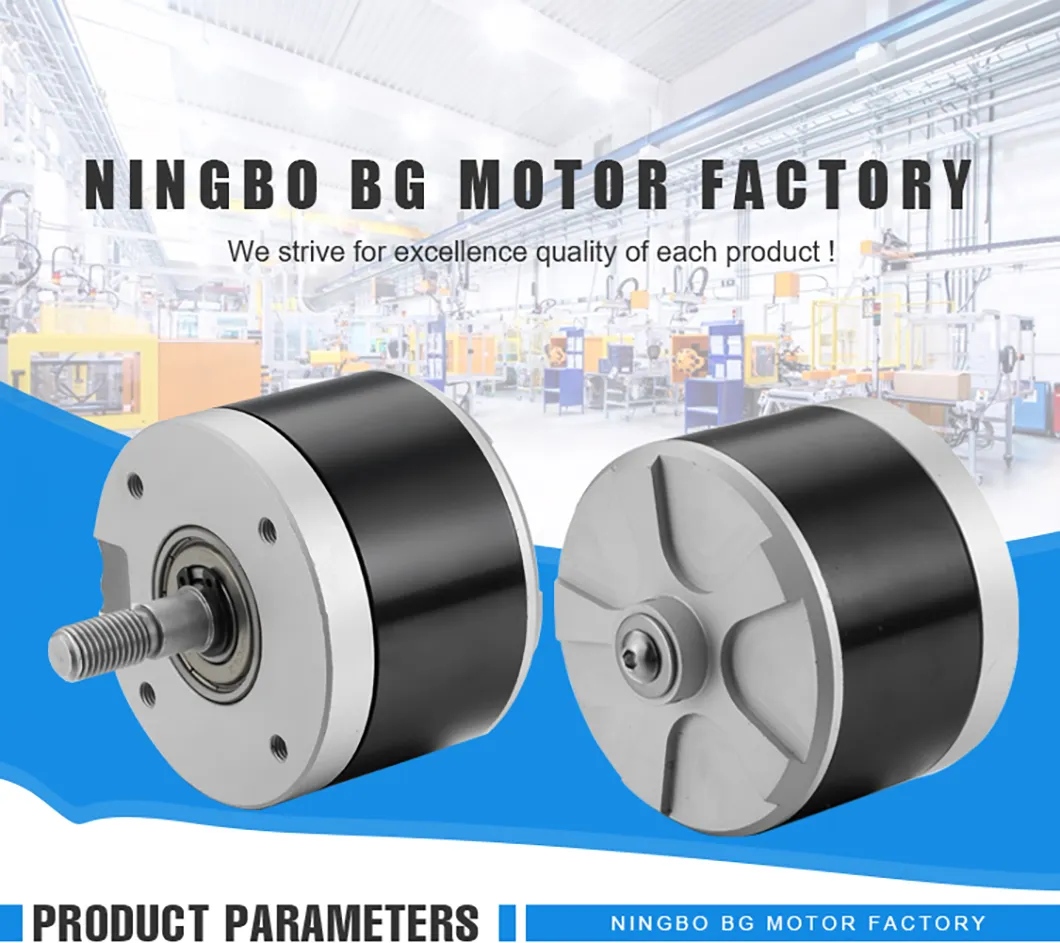

DC Brushless Motor Overview
Technical Specifications
BG 7050 DC Brushless Motor
Environmental Conditions -20ºC~50ºC
Insulation Class B
Protection Class IP44
Noise ≤65dB
Number of Poles / Phases 22/3
Lifespan >5000h
Electrical Performance Data
Model RATED LOAD NO LOAD STALL
Voltage Power Speed Torque Current Speed Current Torque Current
V W rpm N.m A rpm A N.m A
BG BL57050 36 1400 5200 2.5 78 7160 2.4 7.5 234
💡 Note: Customization available based on specific requirements.

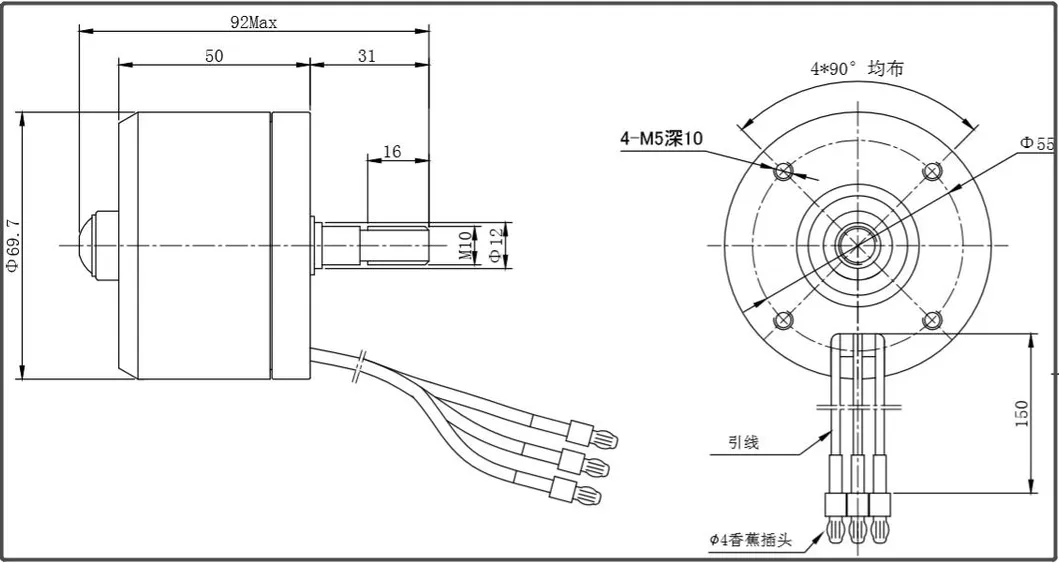

Motor Dimension Drawing Motor Technical Details
Product Gallery

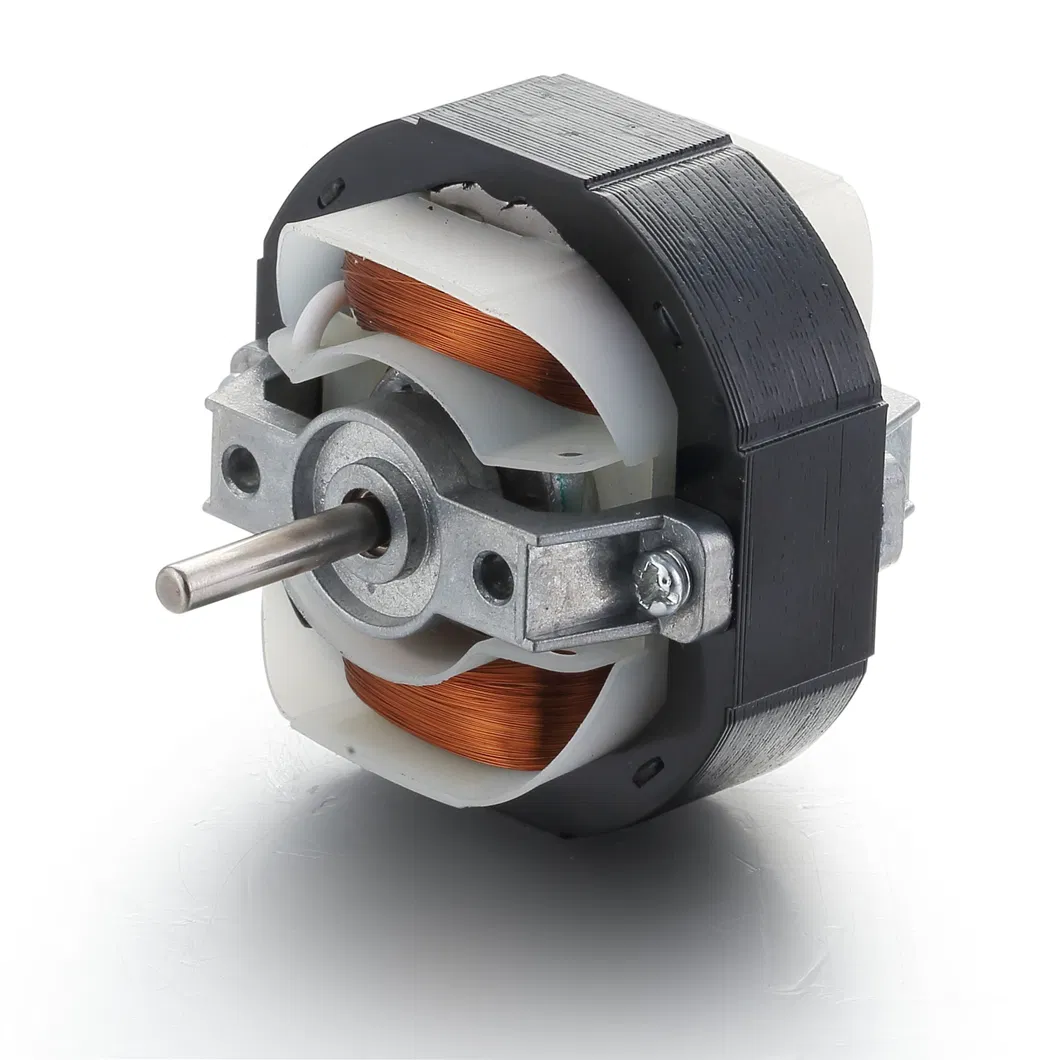

Motor Detail 1

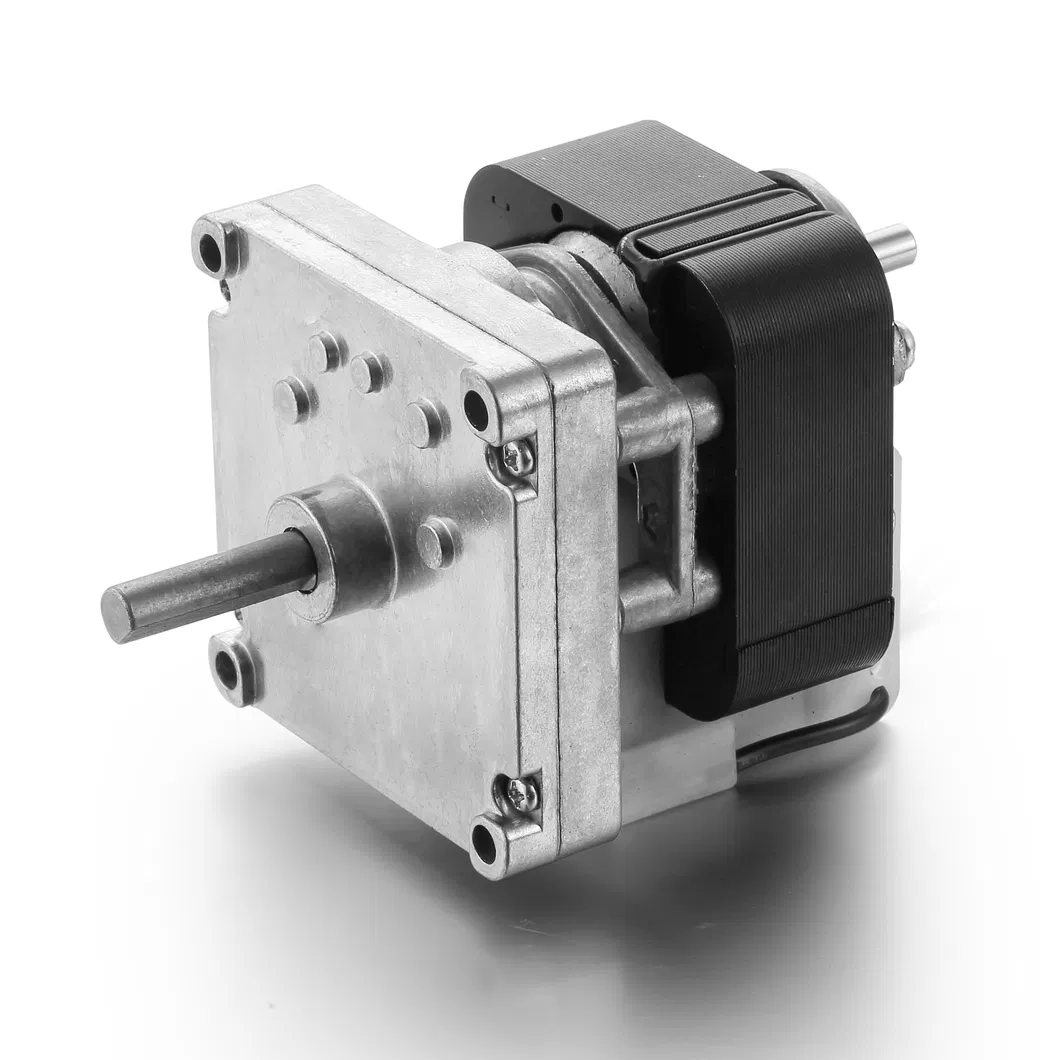

Motor Detail 2

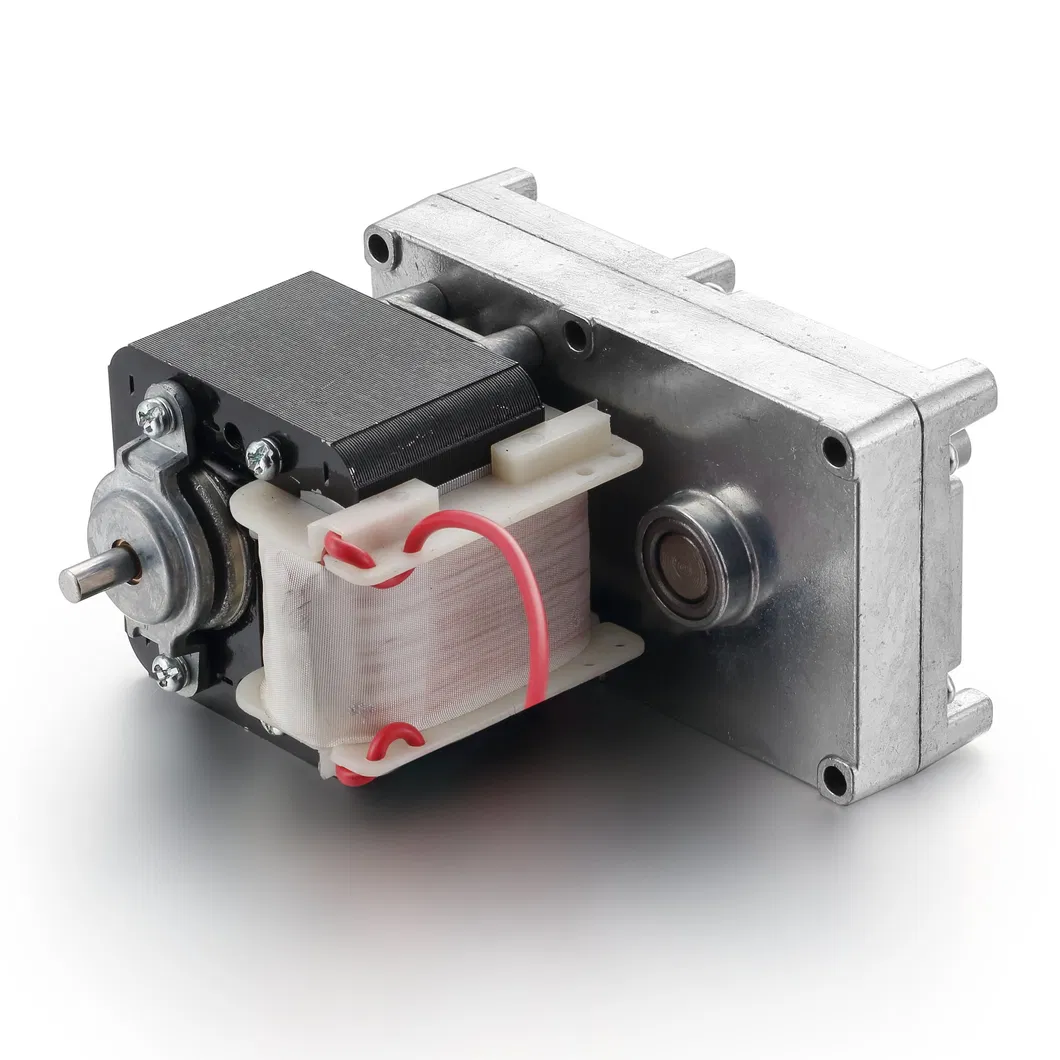

Motor Detail 3

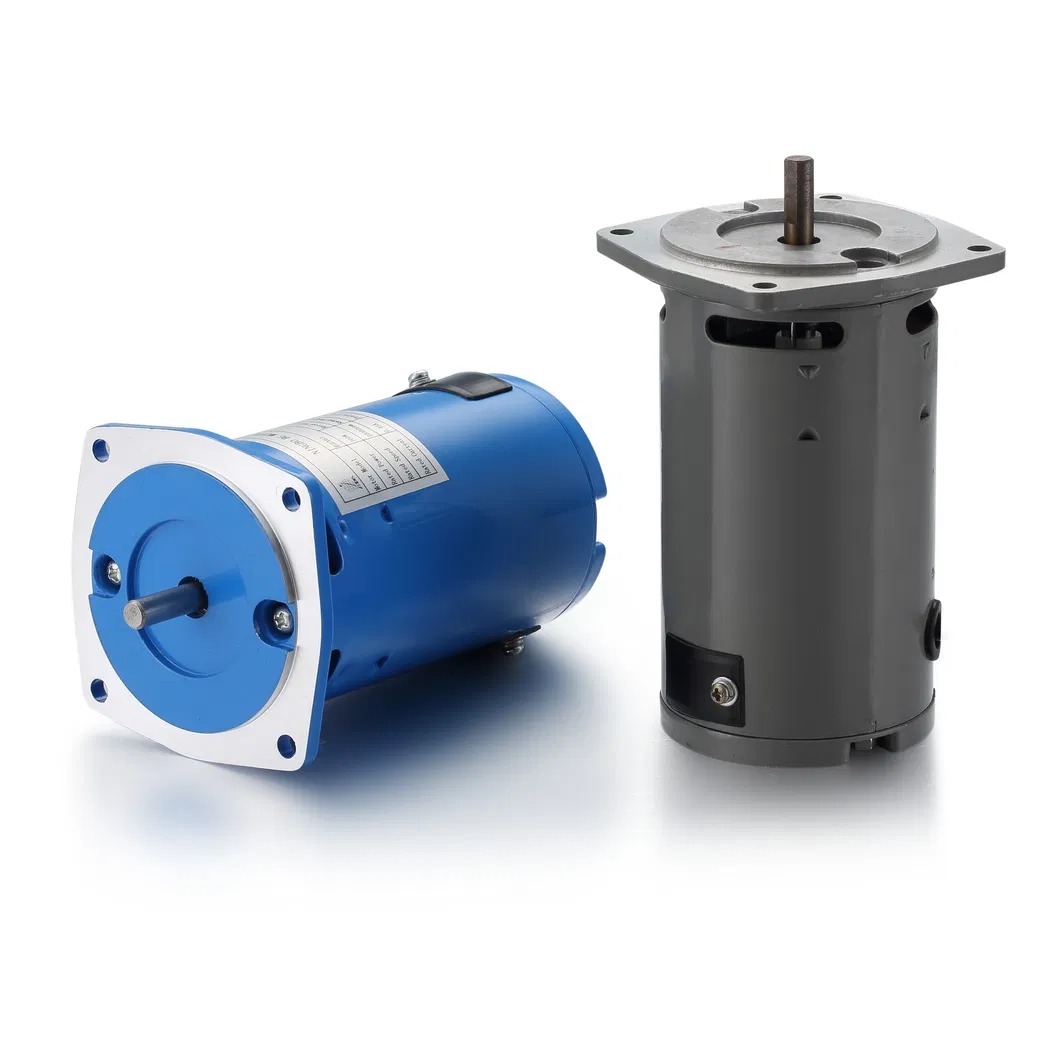

Motor Detail 4

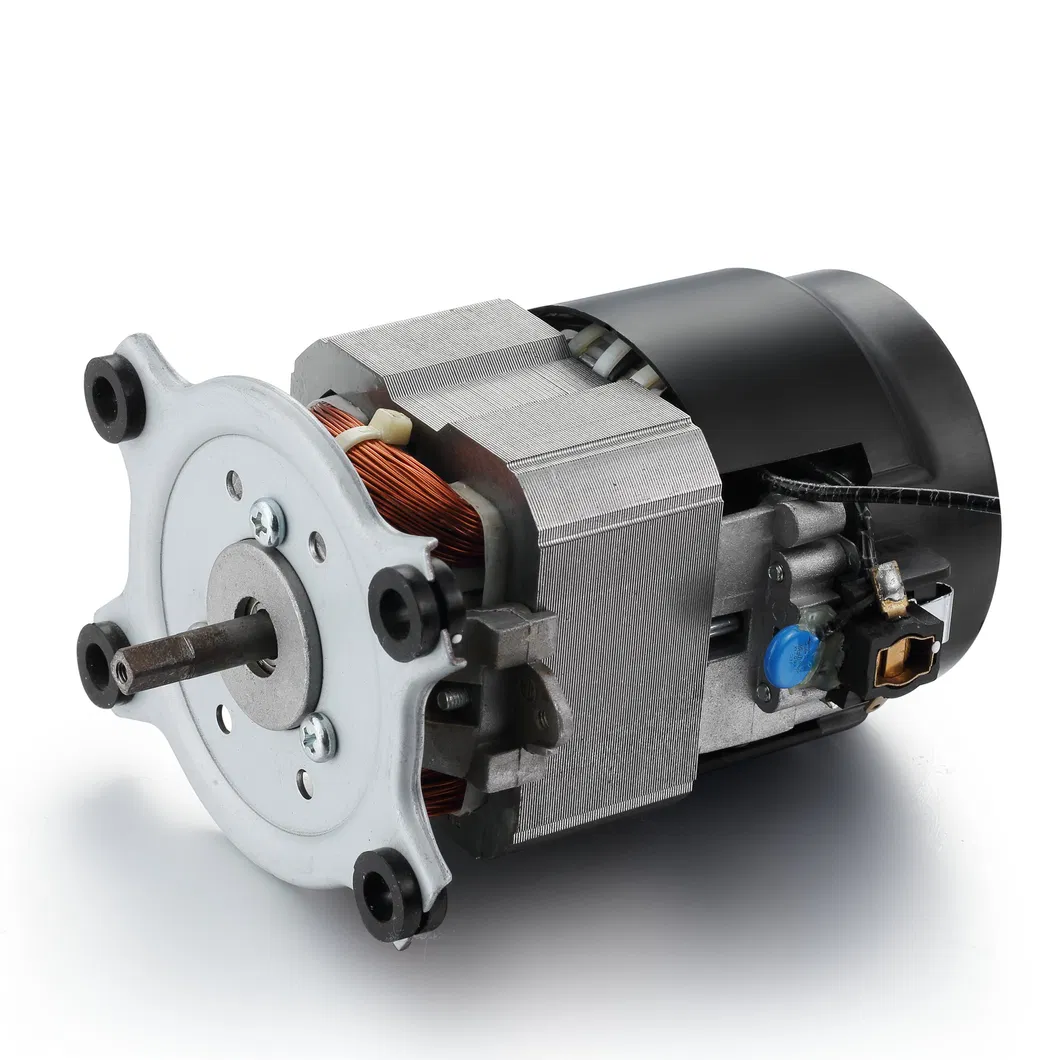

Motor Detail 5

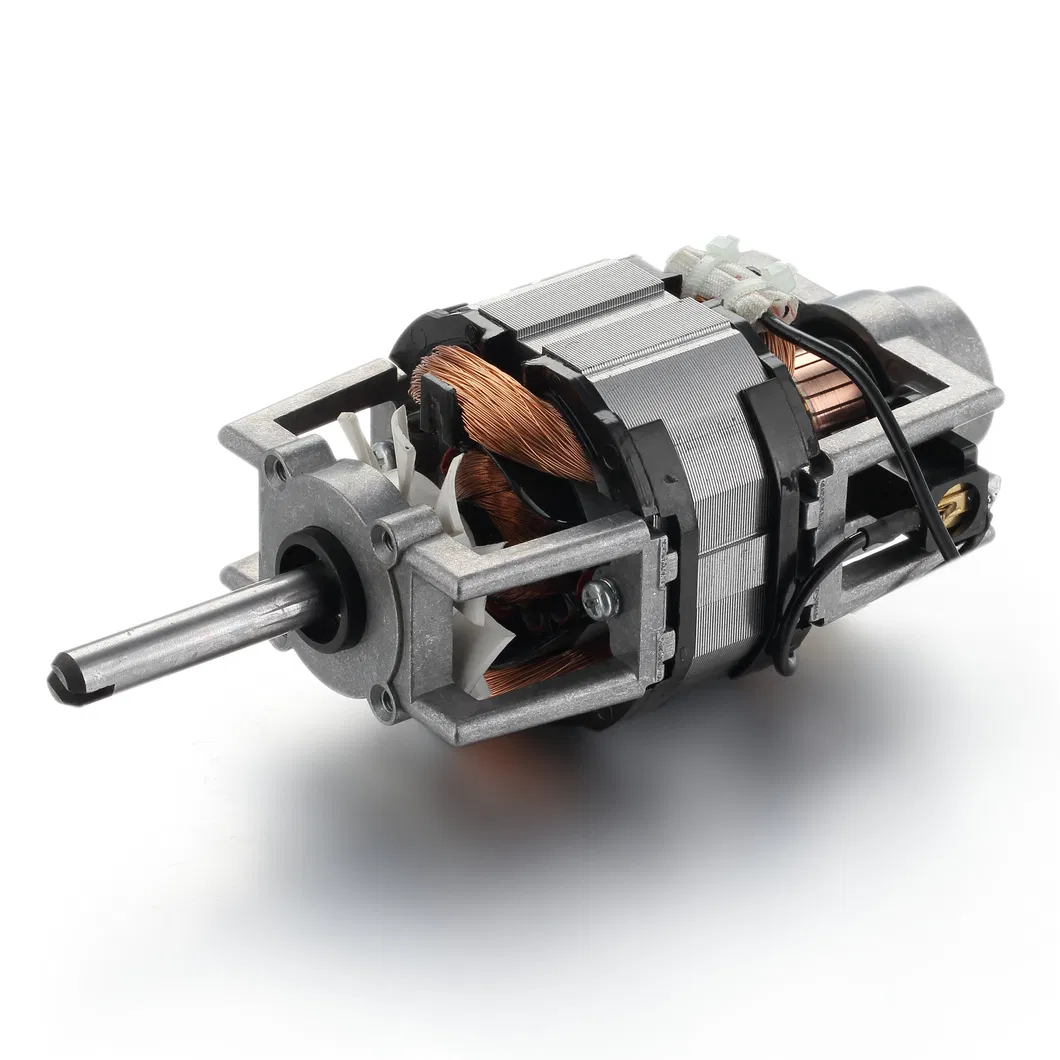

Motor Detail 6
Motor Application

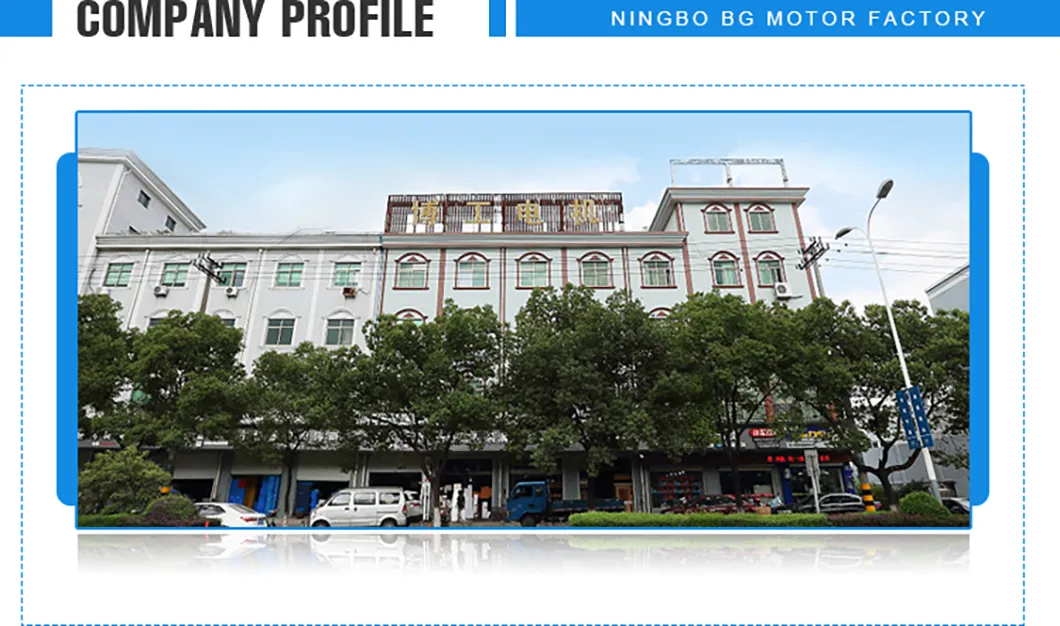

Manufacturer Overview
Established in 1994, our factory is a professional manufacturer of brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, Universal motors and AC motors. We have a plant area of 6000 square meters, multiple patent certificates, and we have independent design and development capabilities and strong technical force, with an annual output of more than 1 million units.
Since our establishment, we have focused on overall motor solutions. We manufacture and design motors, provide professional customized services, respond quickly to customer needs, and actively help customers solve problems. Our motor products are exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland, Slovenia, Switzerland, Sweden, Singapore, and South Korea.
Our founder has more than 40 years of experience in motor technology, and our engineering team brings over 15 years of individual experience. With 60% of our staff having more than 10 years in the industry, we ensure the quality of our motors is top-notch.
Products cover AGV, underwater robots, sewing machines, automobiles, medical equipment, automatic doors, lifting equipment, and various industrial applications. We strive for excellence as a specialized and sophisticated manufacturer.
Our vision: Drive the world forward and make life better!
Comprehensive Technical Specifications
Frequently Asked Questions
What kind of motors can you provide?
At present, we mainly produce brushless DC motors, brush DC motors, AC motors, and Universal Motors. The power is typically less than 5000W with a motor diameter not exceeding 200mm.
Can you send me a price list?
Our motors are customized based on specific requirements like lifetime, noise, voltage, and shaft configuration. Prices also vary by annual quantity. Please share your detailed requirements for a formal offer.
Can I get some samples?
It depends. For testing prior to official orders where our MOQ and terms are acceptable, we are happy to provide samples. However, we generally do not stock motors for individual personal replacement use as they are custom-made.
Can you provide OEM or ODM service?
Yes, both OEM and ODM services are available. We have a professional R&D department capable of providing specialized solutions for your needs.
Can I visit your factory before placing an order?
You are very welcome to visit our factory. We appreciate the opportunity to build a stronger professional relationship.
What's the lead time for a regular order?
Standard lead time is 15-20 days. This may vary based on the specific model, production period, and order quantity.
