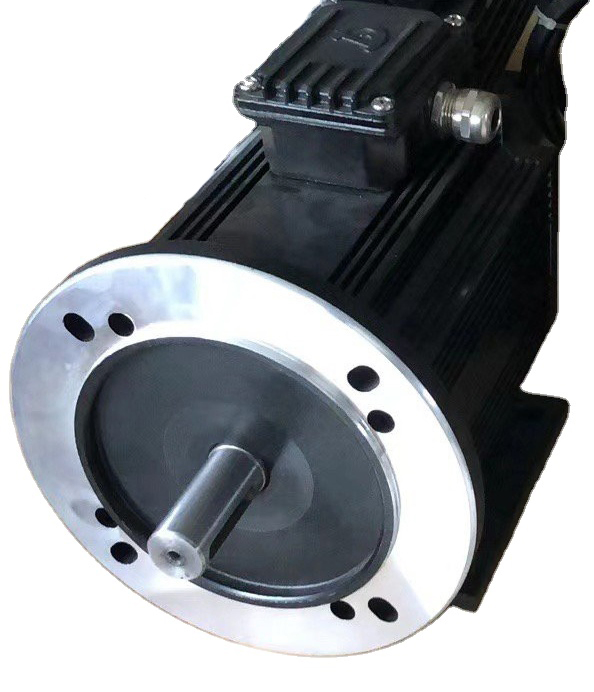

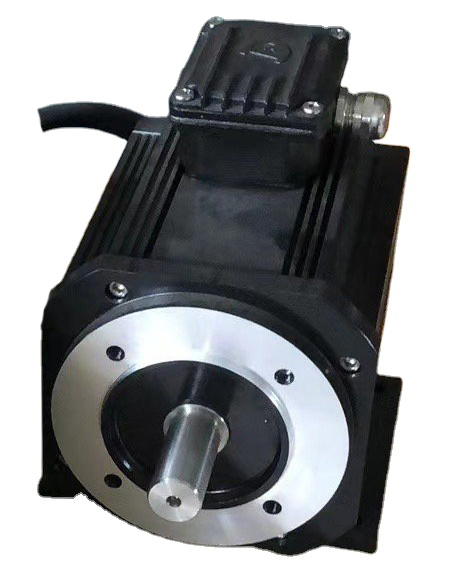

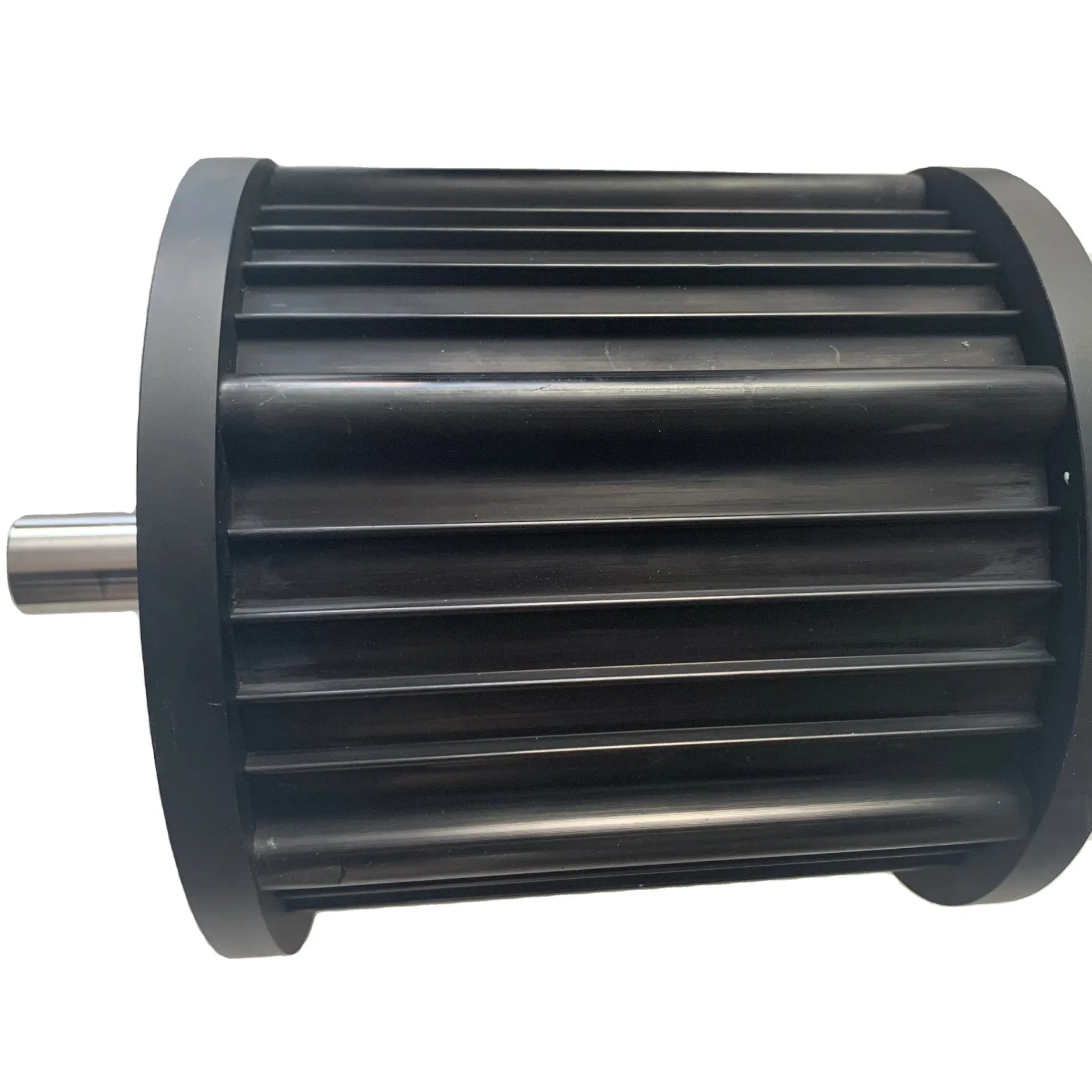

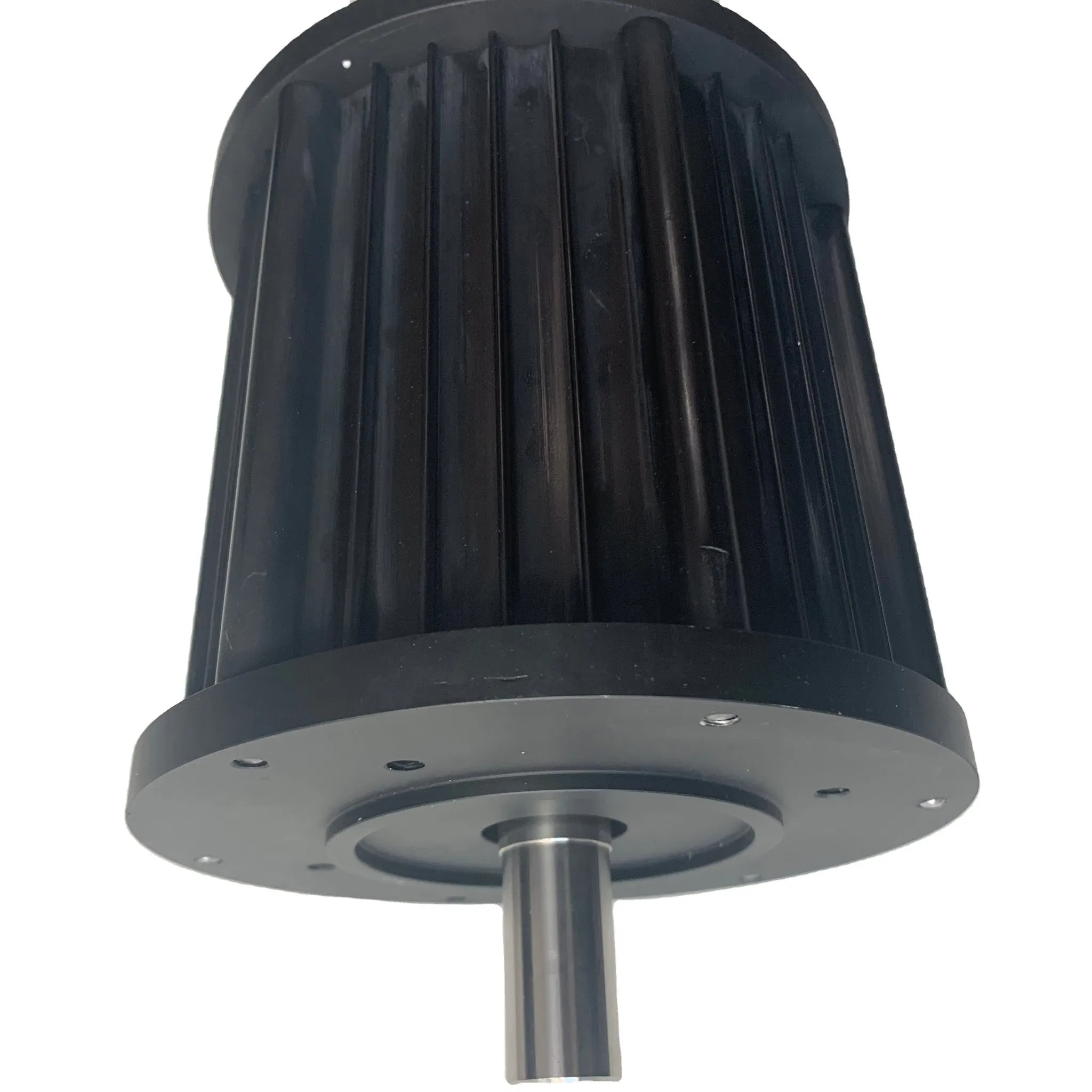

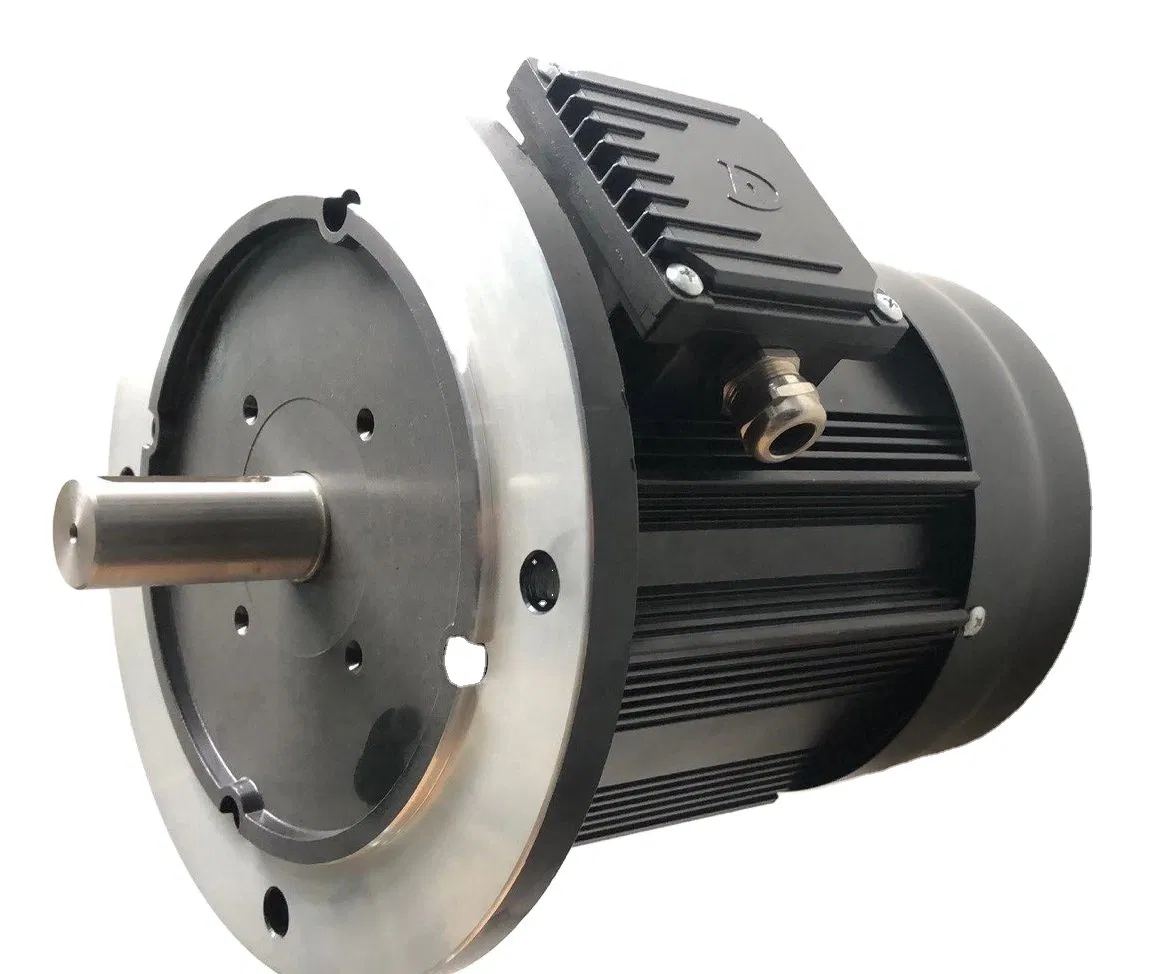

3000W Electric BLDC Brushless DC Motor 48V 1HP 1kw 2kw 3kw

Customization:	Available
Application:	Universal, Industrial, Boat
Operating Speed:	High Speed

⚙️ Basic Specifications

Model NO.

BL90

Excitation Mode

Excited

Function

Driving

Casing Protection

Open Type

Number of Poles

4

Structure

Brushless

Certification

RoHS, CE

Power

1200W

Voltage

24VDC

Speed

2800rpm

Current

150A Max

Waterproof

IP68

Noise

50dB

Life Time

5000 hours

📄 Product Description

This permanent magnet high-power brushless DC motor uses an advanced structure design. The current S1 working system can reach a maximum power of 12KW, with a range from 0.5KW to 12KW available for selection.

Versatile Operations: Supports voltages from 24VDC to 120VDC and load torque from 1N.M to 100N.M. The motor tail features standard fan cooling, with an option to upgrade to water cooling based on specific application requirements.

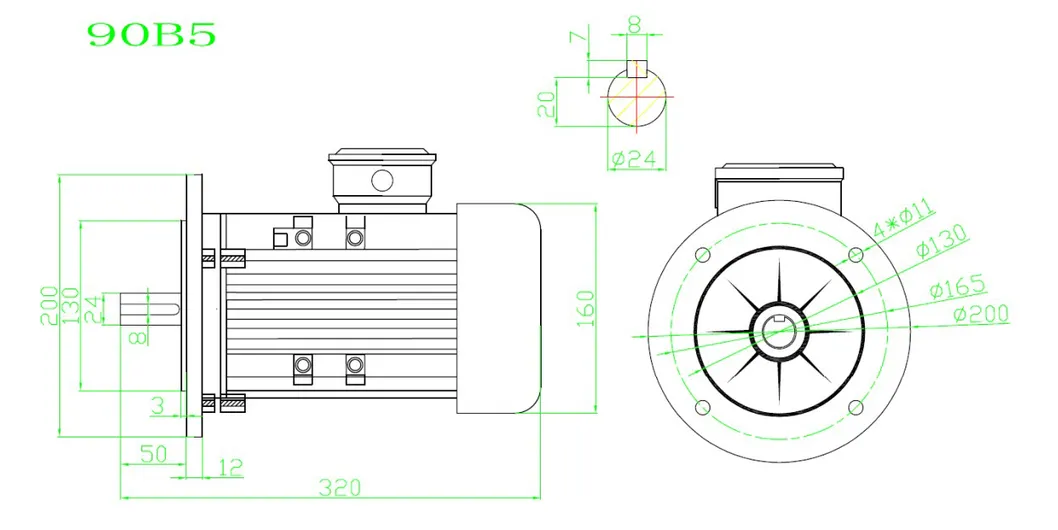

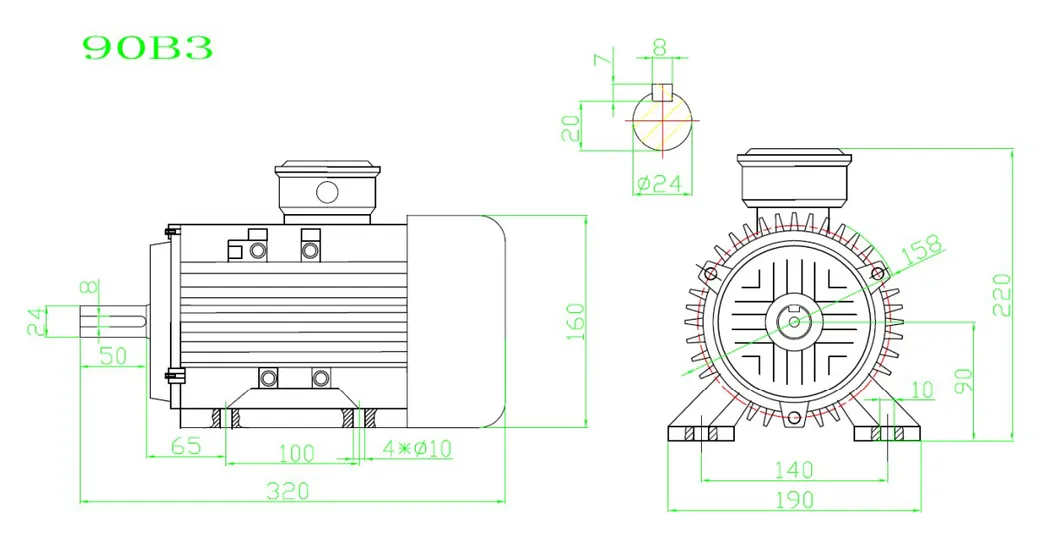

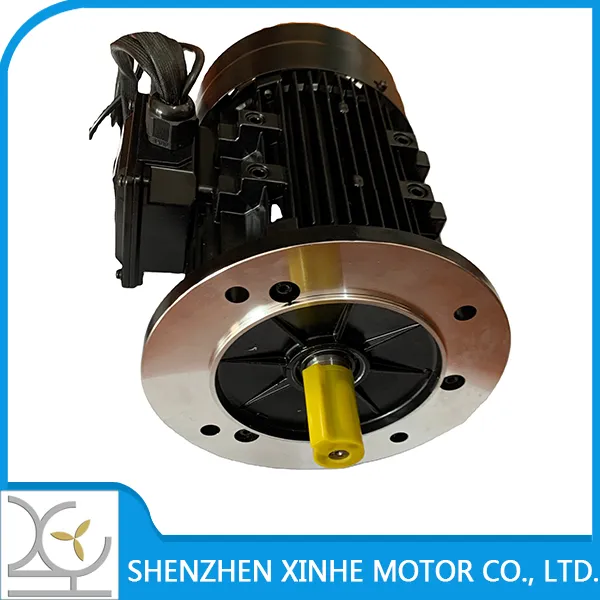

Control & Installation: Equipped with a multi-functional controller. CAN functional requirements are available via customization. Installation modes include horizontal (B3), vertical flange (B5), vertical-horizontal (B35), as well as B14 and B34 configurations.

🌟 Key Features

✔ Protection Grade: IP68; Insulation Grade: F

✔ Optimized winding overhang for compact volume and high efficiency

✔ High coercivity NdFe35 permanent magnetic materials

✔ Ultra-low noise and low vibration operation

✔ Fast dynamic response and strong overload capacity

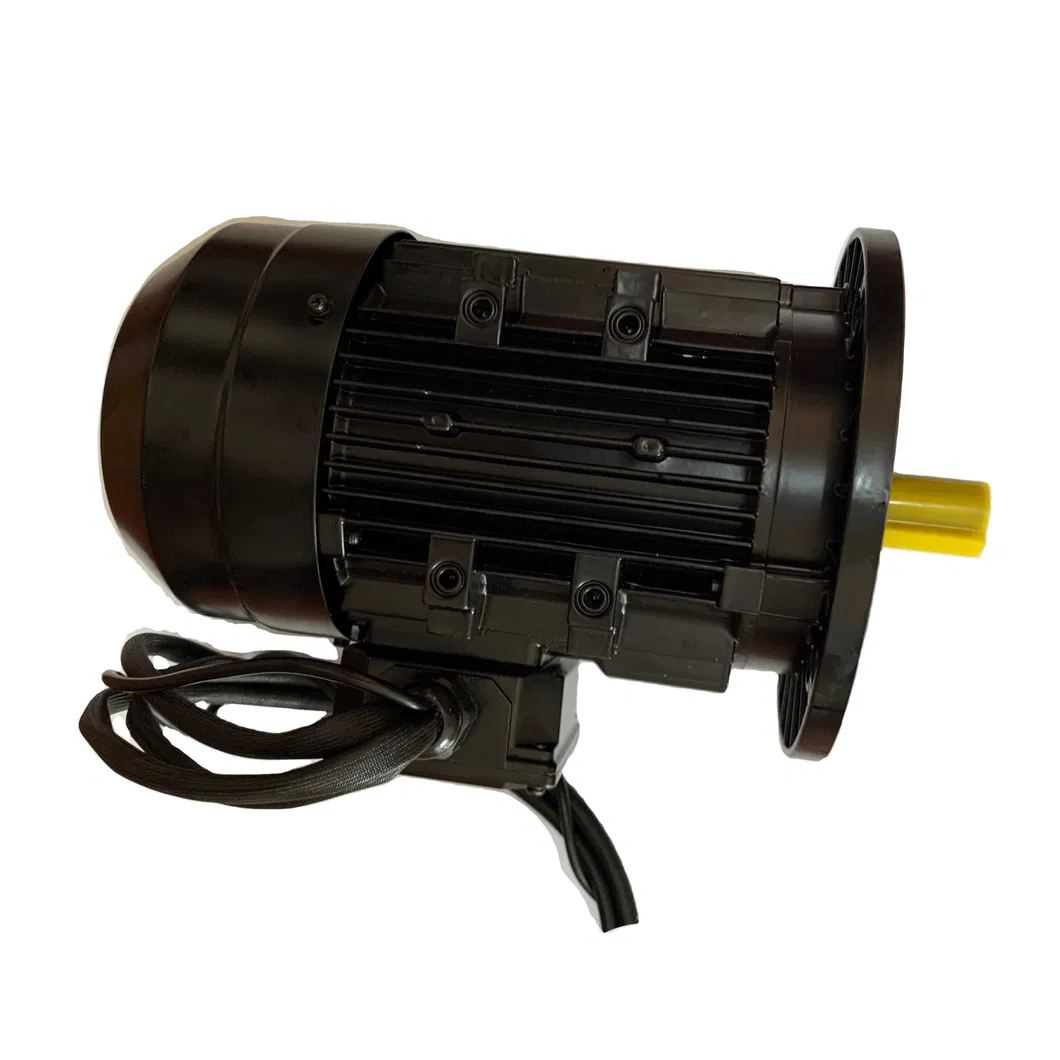

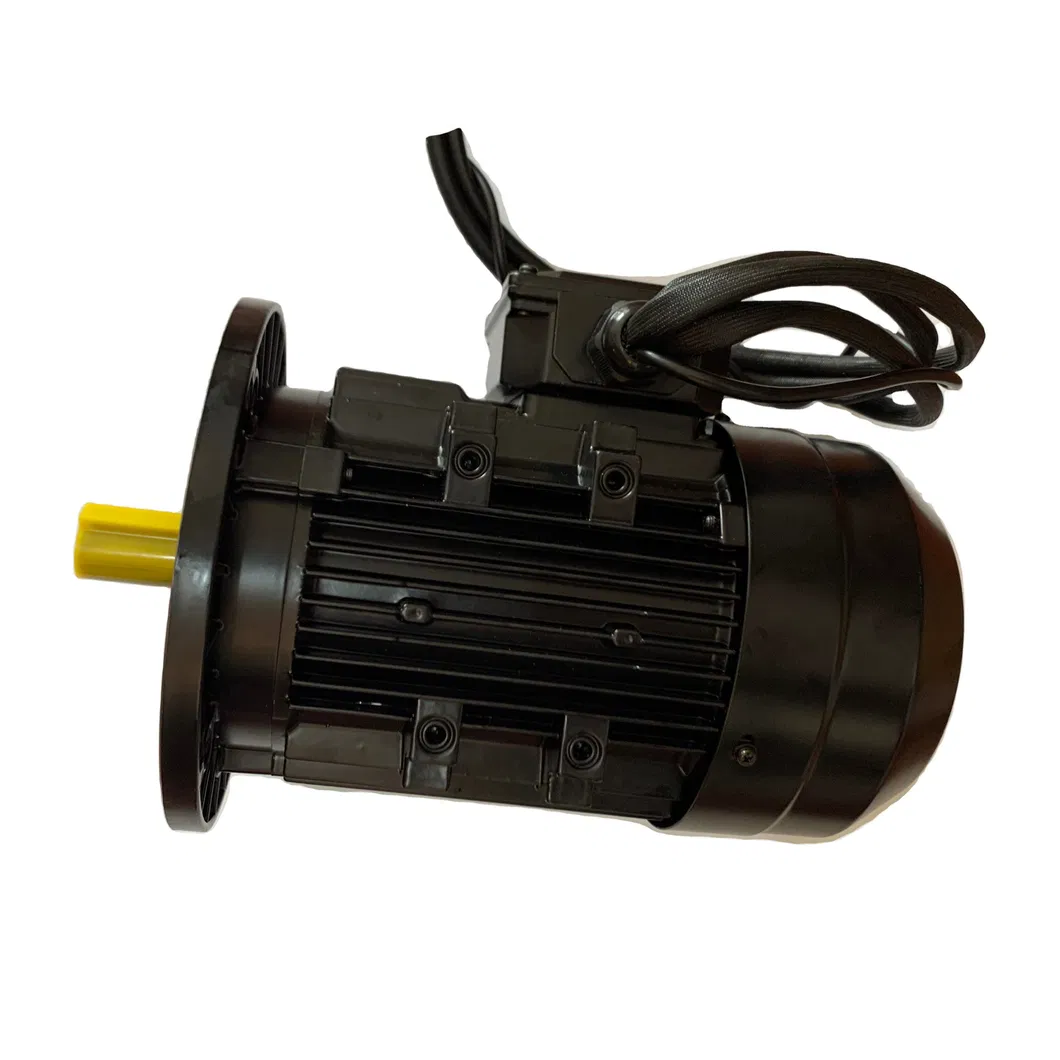

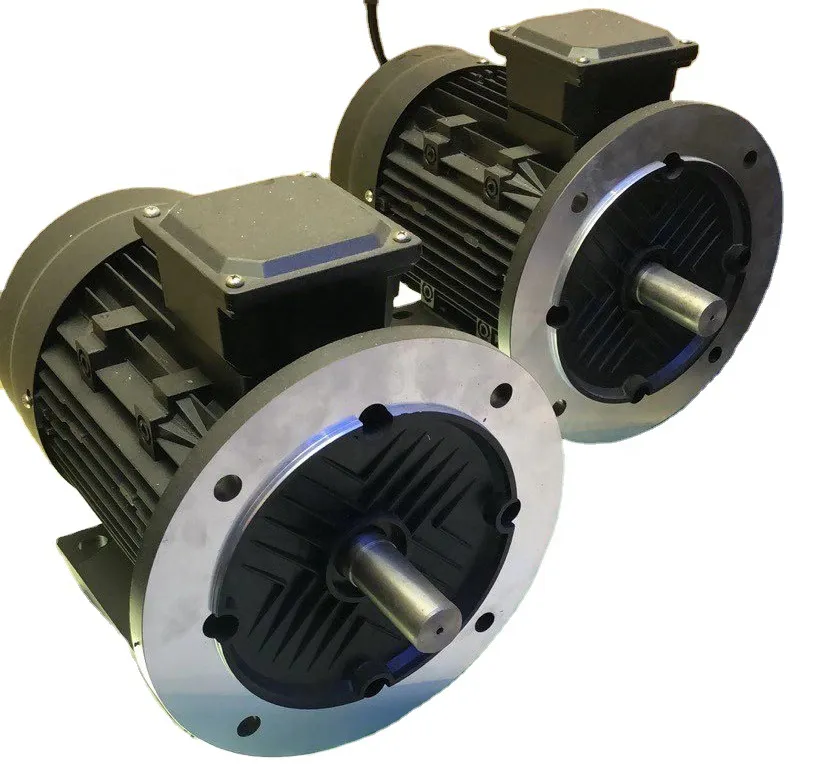

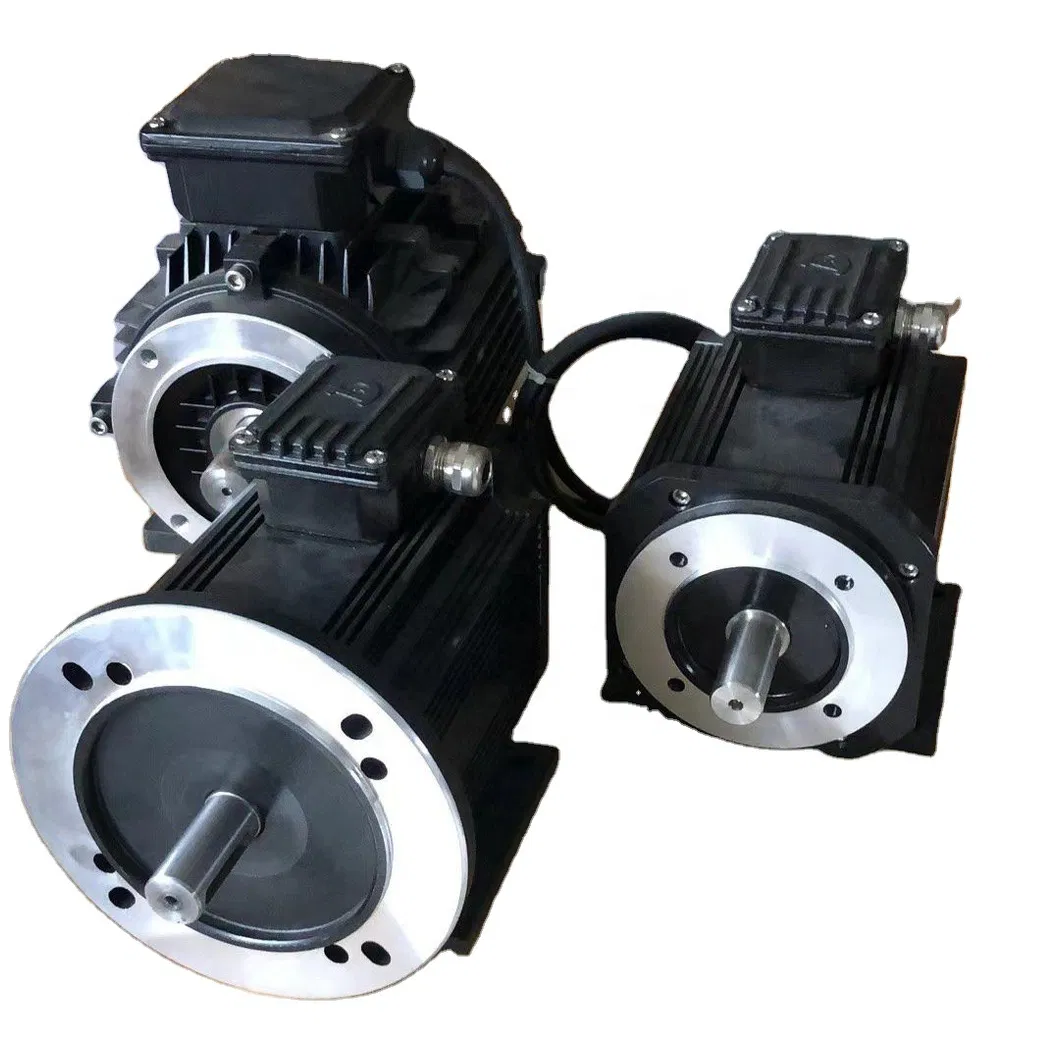

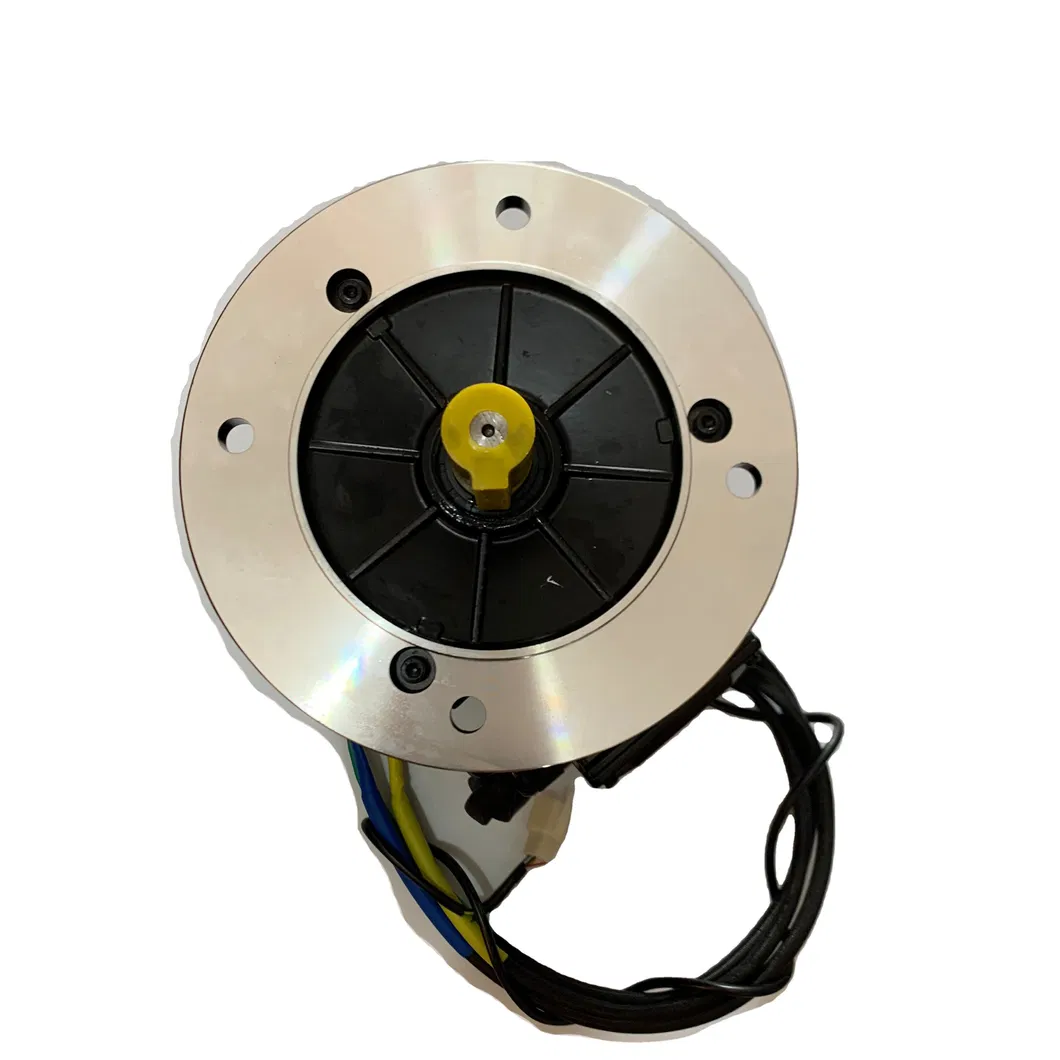

📸 Detailed Photos
