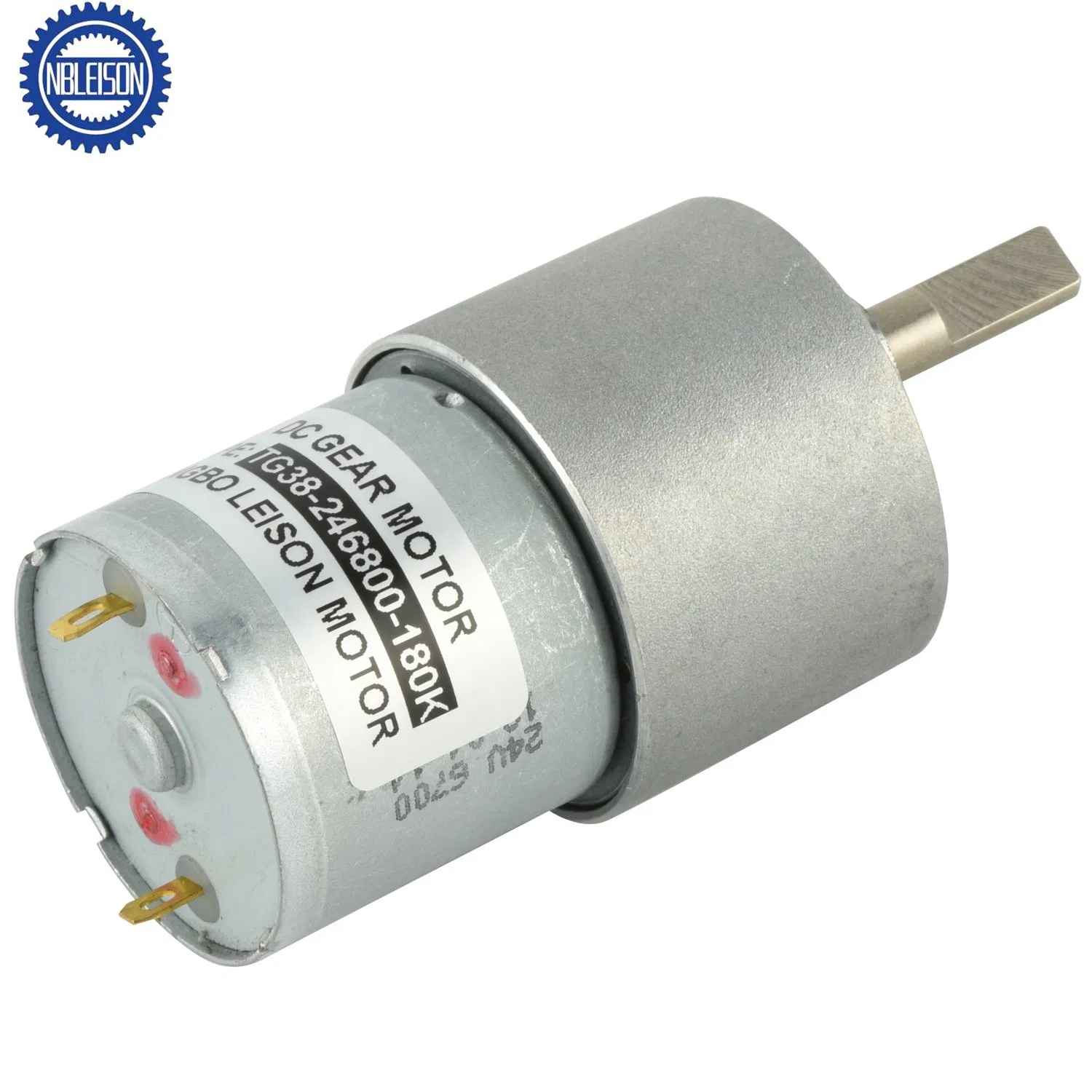

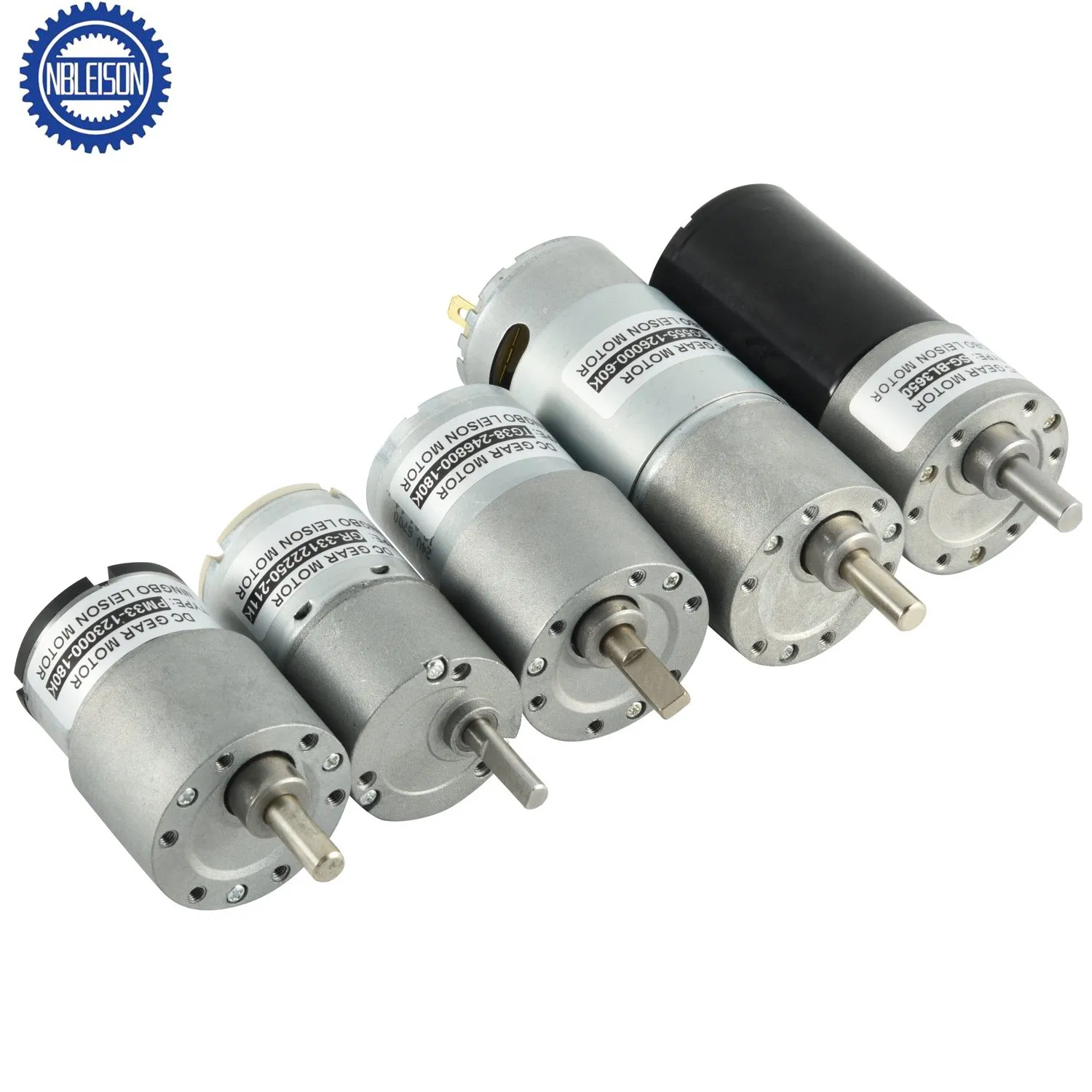

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
1 / 5
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
LS-TG38
Function
Driving
Casing Protection
Open Type
Structure
Brush
Certification
ISO9001
Gear
Metal Gear
Construction
Permanent Magnet
Rotation
Reversible
Gear Type
Spur Gear
Lubrication
Grease
Motor Type
Iron Core Permanent Magnet
HS Code
8501109990
★

Product Description

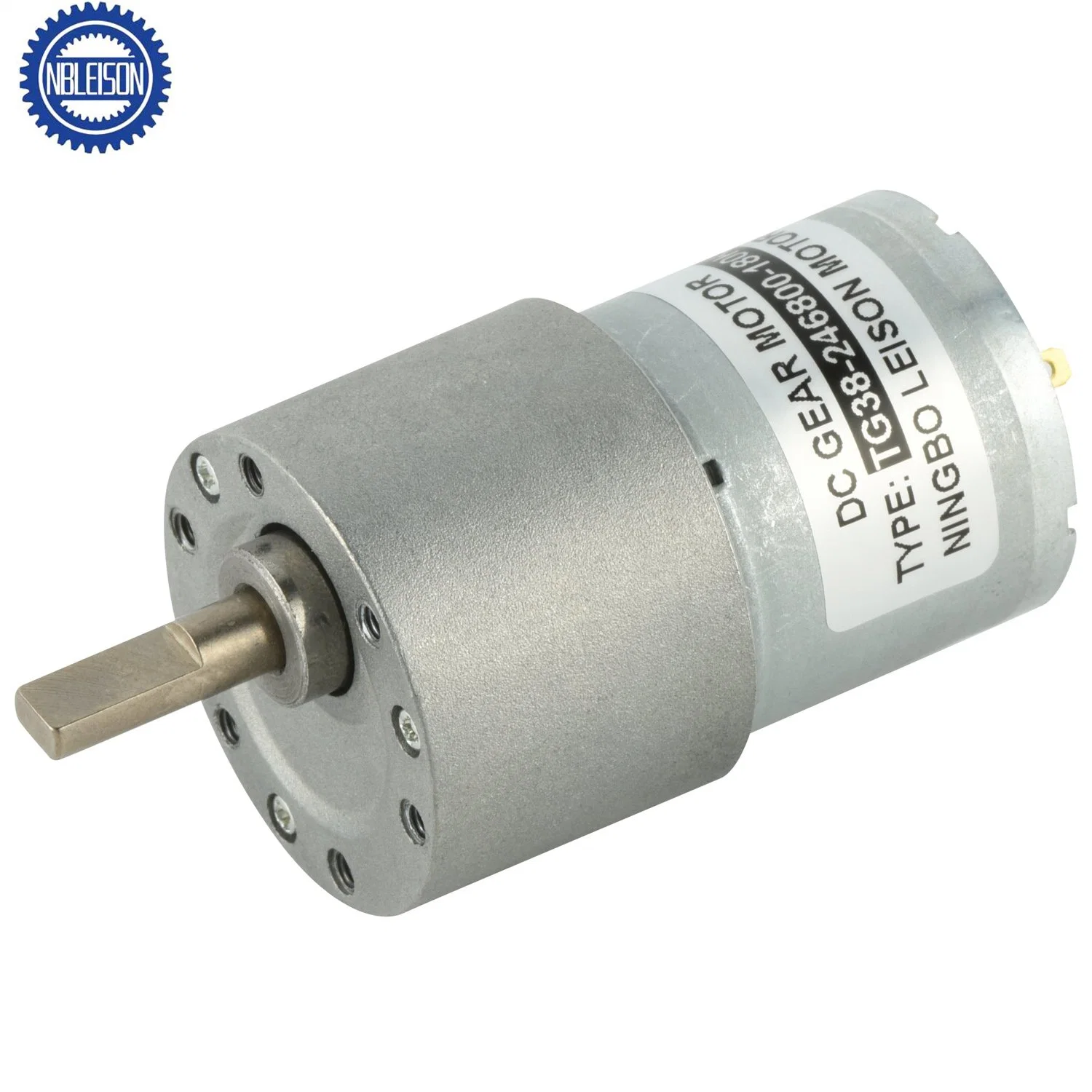

37mm 6V 12V 24V Low Rpm High Torque Micro DC Gearbox Electric Metal Gear Motor:

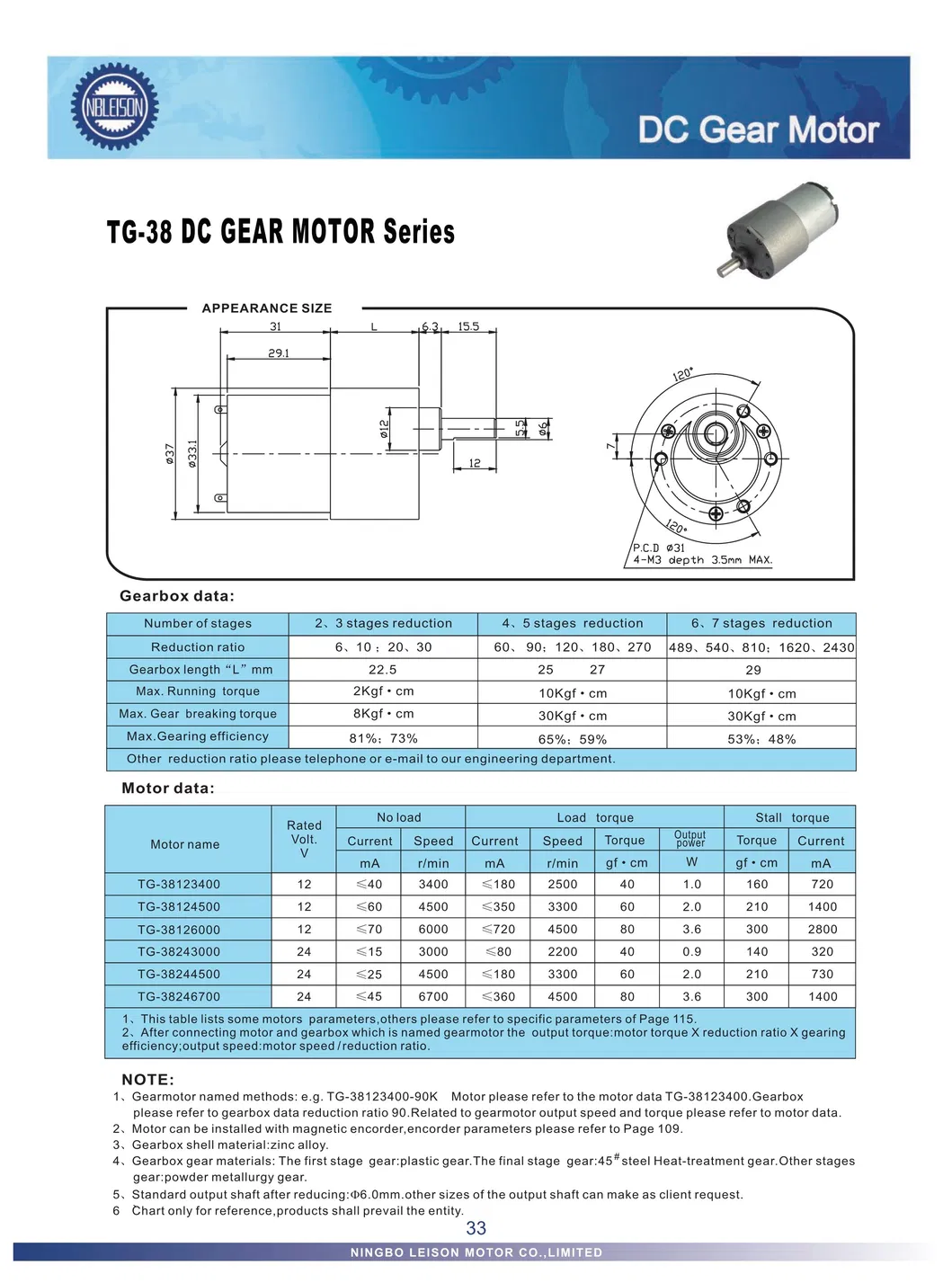

37mm DC Gear Motor
  • Voltage: 3V, 6V, 9V, 12V, 24V for selection
  • Reduction Ratio: Range from 1:6 to 1:2430
  • Motor Dimensions: 32 (dia.) x 30 (L) mm
  • Gearbox Dimensions: 37 (dia) x 22-29 (H) mm
  • Shaft: 6mm, D-cut type, customizable length or type
  • Applications: Vending Machines, Grills, Curtains, Robots, Automation, Printers, Office equipment
⚙

Production & Quality Control

Production Line & Equipment:

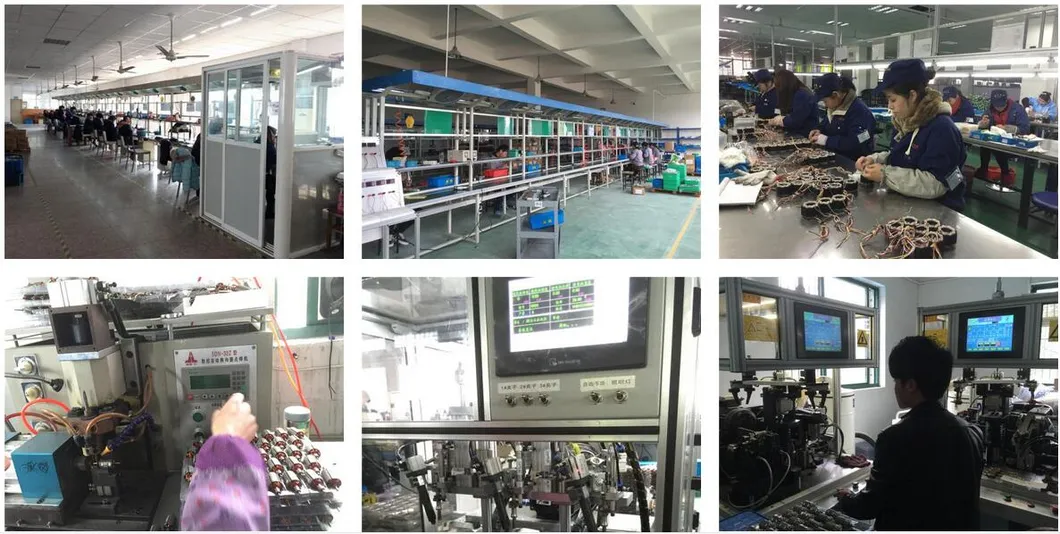

Production line

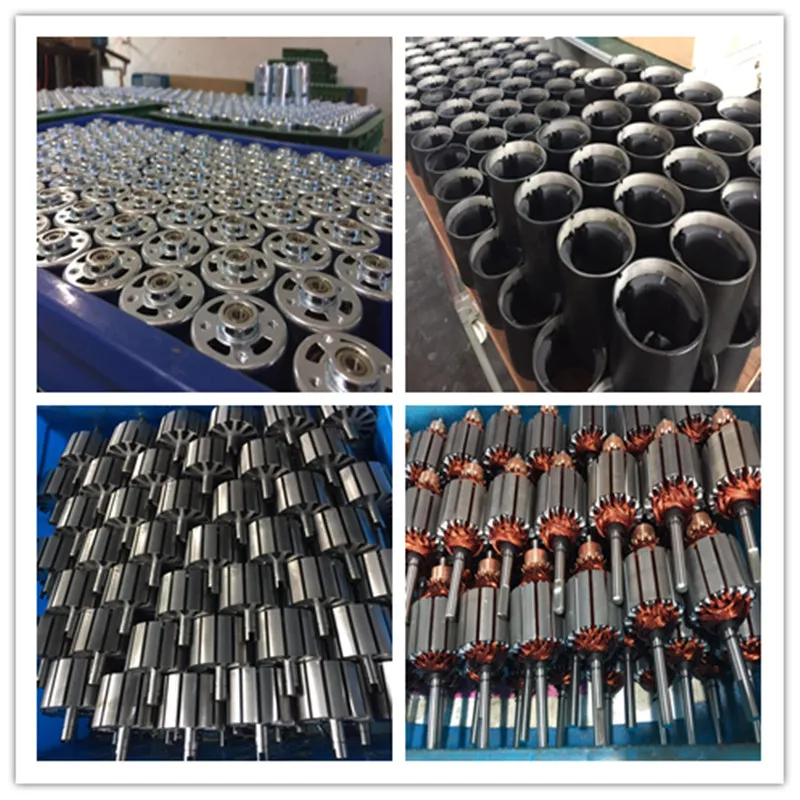

Motor testing

Testing & Certificates:

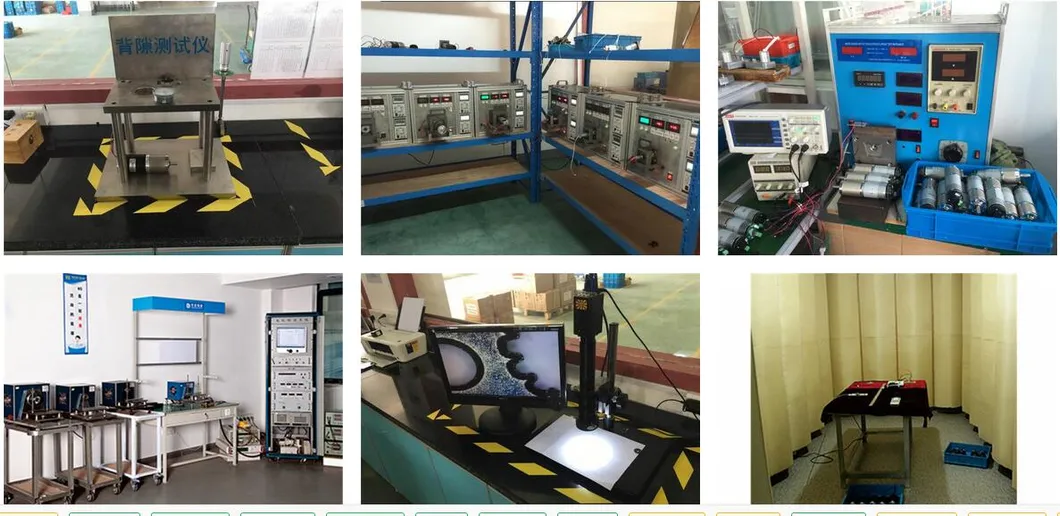

Test equipment
Certificates
✈

Exhibitions & Customer Visiting

Customer visiting
?

Frequently Asked Questions

How to select a suitable motor?
If you have motor pictures or drawings, or detailed specs like voltage, speed, torque, motor size, working mode, needed life time and noise level, we can recommend a suitable motor accordingly.
Do you have customized service for standard motors?
Yes, we can customize voltage, speed, torque and shaft size/shape. We can also add connectors, capacitors, EMC, or solder wires/cables on the terminals.
How do you make sure motor quality?
We have strict inspection procedures: incoming material inspection based on signed samples/drawings, in-process tour inspections, and final inspection before shipping.
What's your typical lead time?
Generally, standard products take 25-30 days. Customized products may take longer. We are flexible depending on the specific order requirements.
What certifications do you have?
We currently hold CE and ROHS certifications for our motor products.
What is your shipping method?
For samples and packages under 100kg, we suggest express shipping. For heavier loads, we suggest air or sea shipping depending on customer needs.
