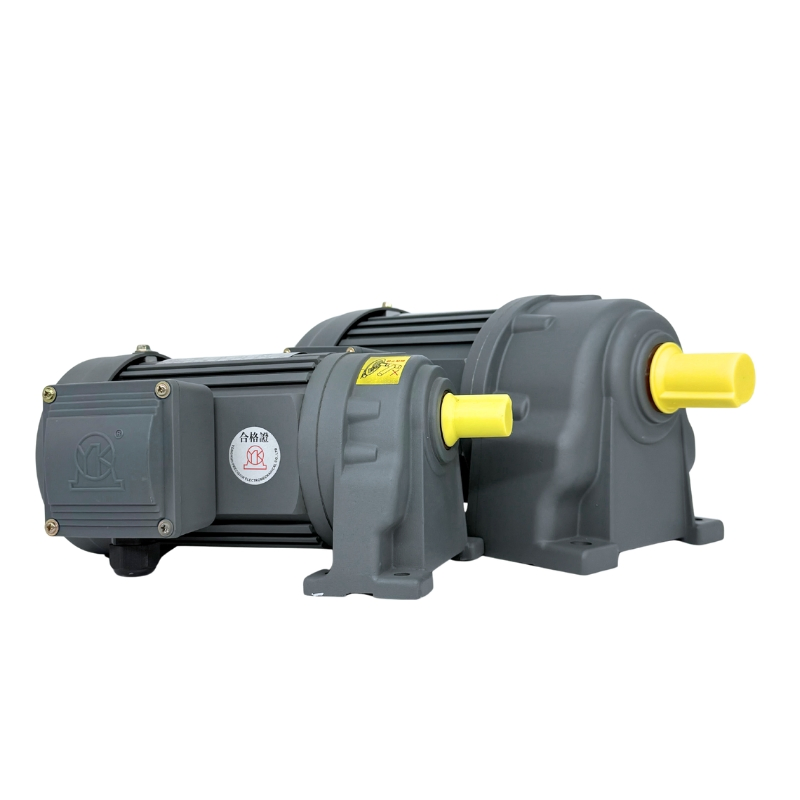

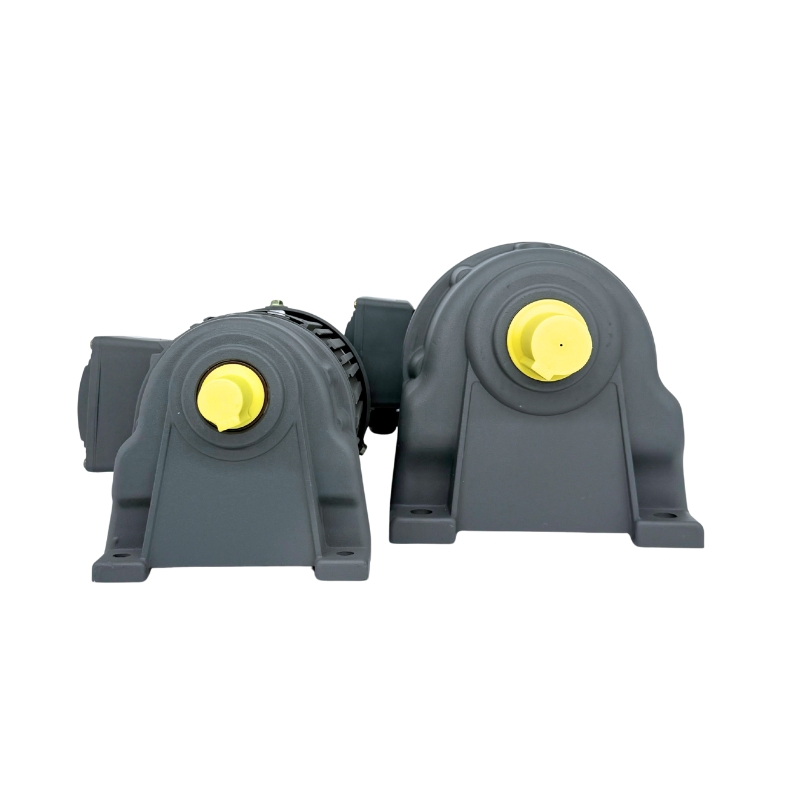

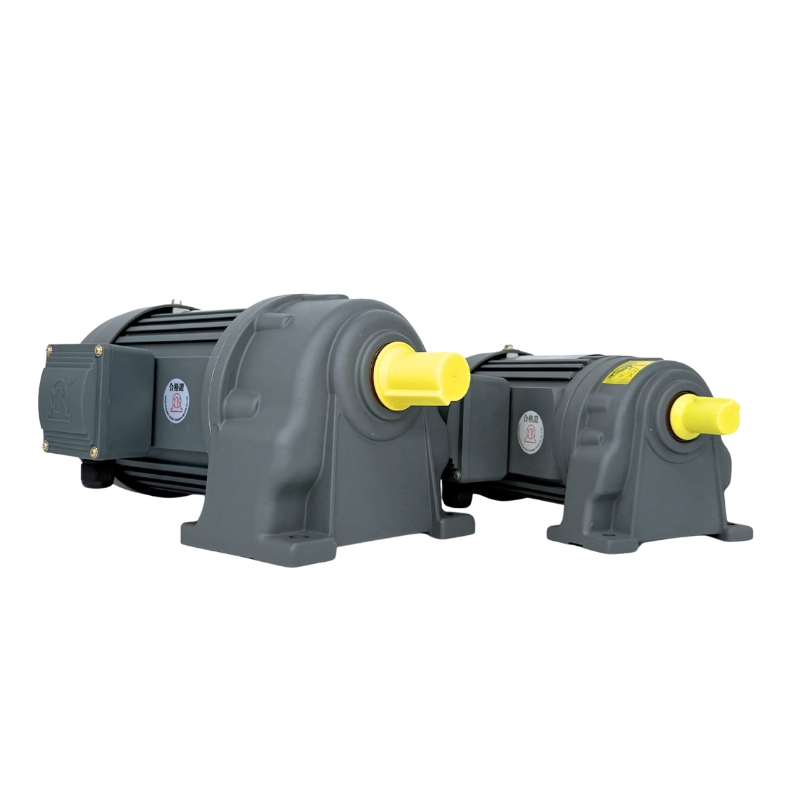

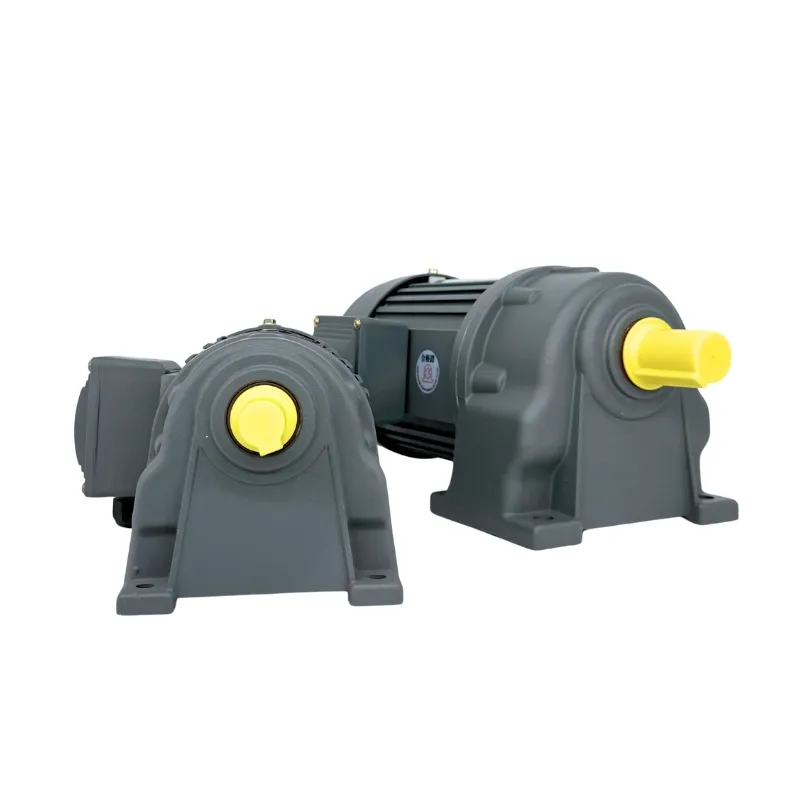

High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
1 / 5
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox
High Torque AC Gear Motor with Efficient Reduction Gearbox

High Torque AC Gear Motor with Efficient Reduction Gearbox

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
RISC
Number of Stator
Three-Phase
Function
Driving, Control
Number of Poles
4
Certification
ISO9001, CCC, CE
Material
Aluminium / Steel
Protection Class
IP54 / IP55
Feature
High Efficiency
Voltage
380V or Customized
With Brake
Yes
Product Description
High Torque AC Gear Motor
Reduction Gearbox
Efficient Motor System

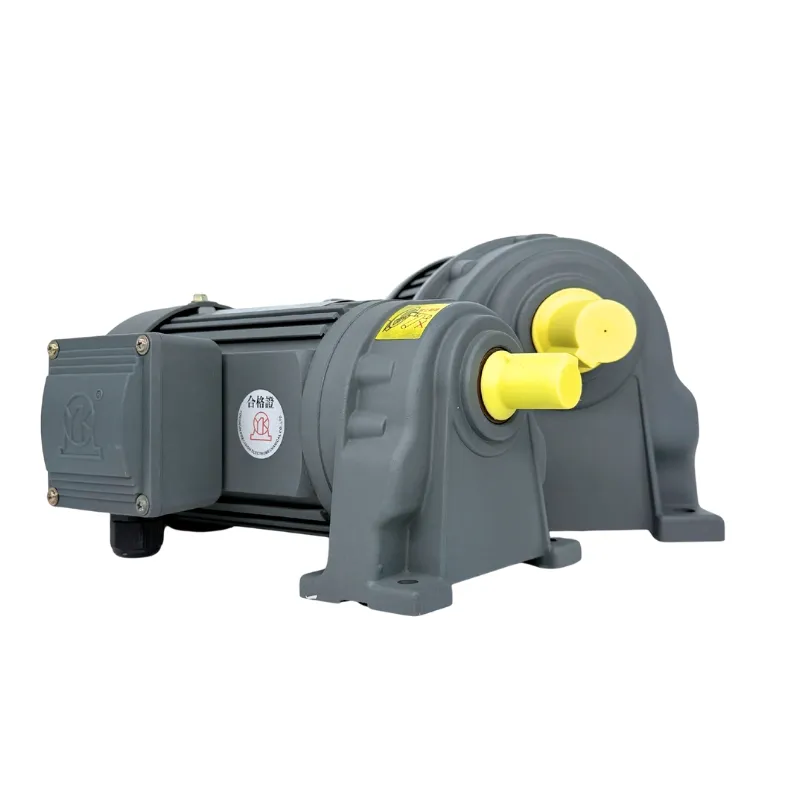

Industrial Gear Motor

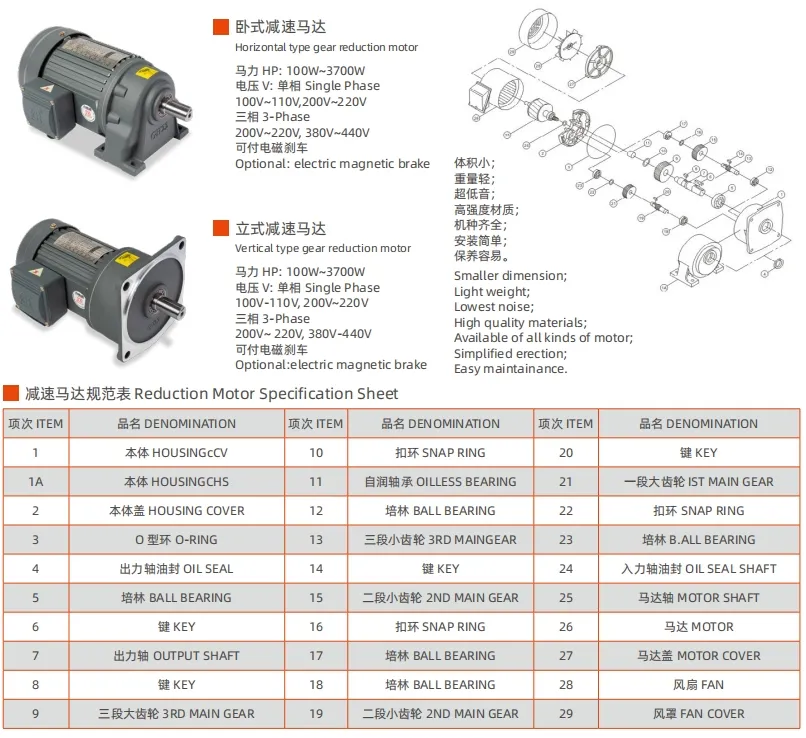

Technical Specifications Detail

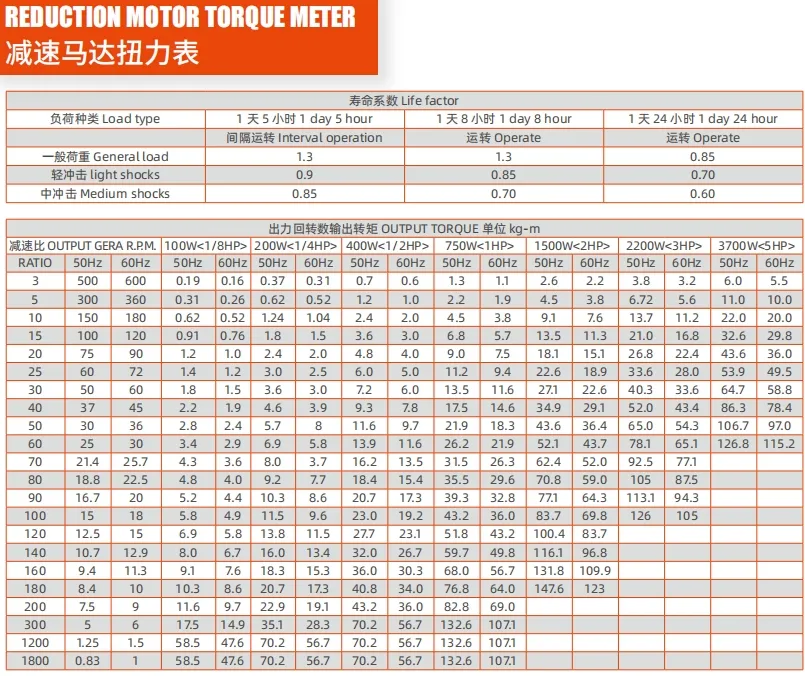

Dimension Parameters

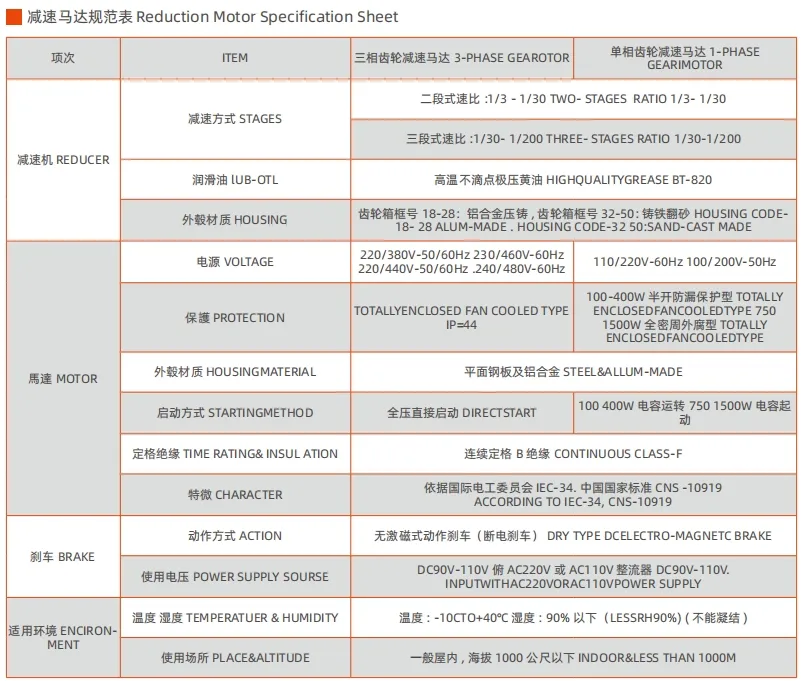

Performance Chart
Type Output Diameter Power Gear Ratio Motor Type With Brake
CH/CV A18 / A22 / A28 100W - 1100W 3, 5, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60, 75, 80, 90, 100, 120, 150, 180, 200, 250... up to 1800 A: 110V Single
C: 220V Single
S: 220/380V 3Phase		 "B" for brake
YB: Manual release
Installation A32 / A40 2200W - 5500W
Mounting A50 3700W - 5500W
About Our Technology
⚙️
Our Group implements a dual-brand strategy, focusing on high-end transmission and power system fields. We integrate creative engineering technology to serve the global equipment manufacturing industry.
🛡️
Specializing in precision transmission and key components, the company holds multiple independent patents and implements digital manufacturing. Our systems provide stable and reliable transmission solutions certified by CE and 3C.

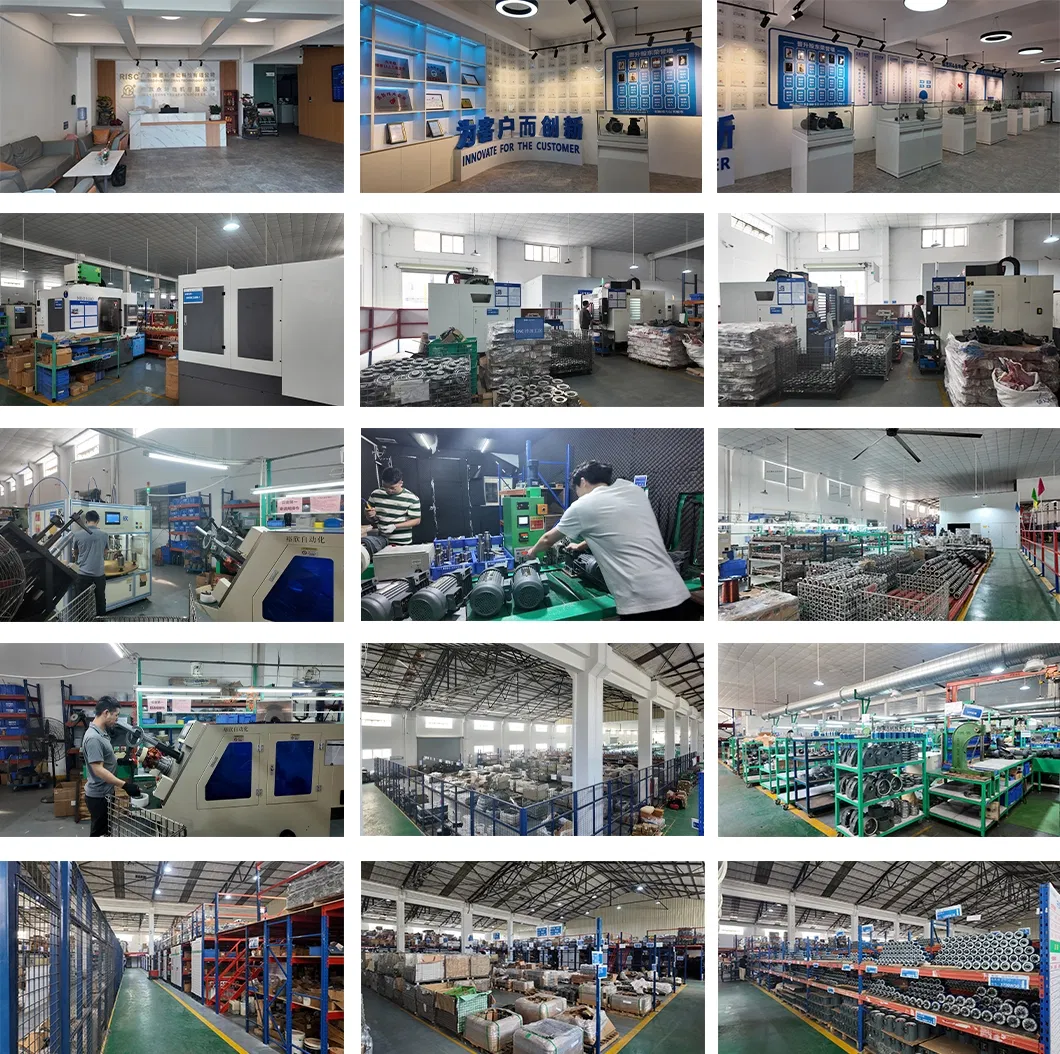

R&D Capacity
Product Quality Overview

Quality Policy: To enhance the overall level in the field of power transmission through continuous improvement and the pursuit of excellence. Quality Philosophy: Quality creates value.

Incoming Quality Control (IQC): Strict AQL levels for materials, including sampling and full inspection to ensure recurrence prevention.
Process Quality Control (PQC): Manufacturing site examinations and sampling to monitor quality trends and eliminate abnormalities.
Final Quality Control (FQC): Verification from the customer's perspective to ensure product needs are fully met.
Outgoing Quality Control (OQC): Final check before delivery to confirm product status and storage integrity.

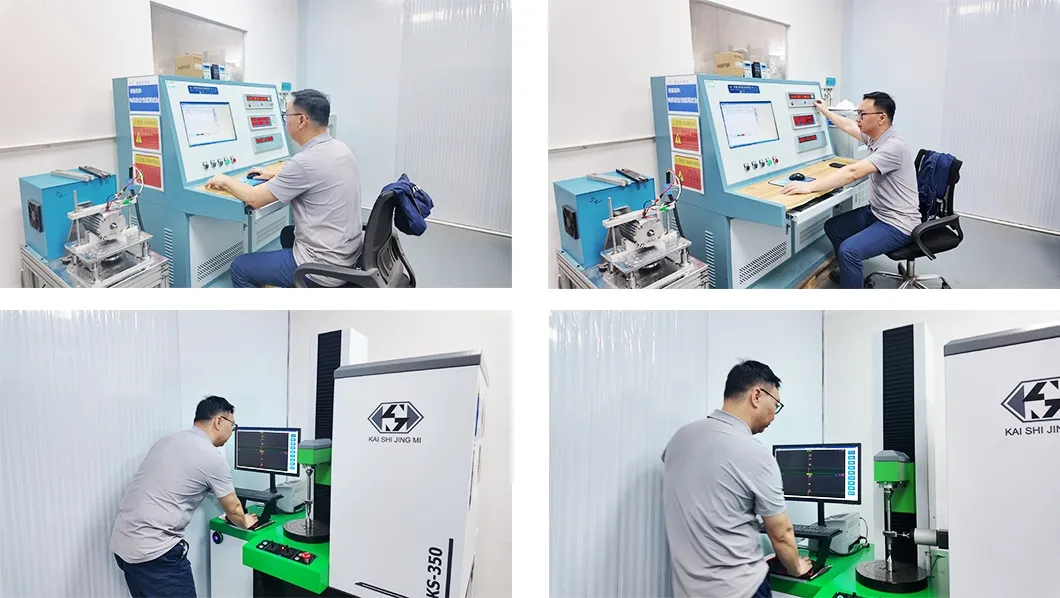

Testing Equipment
Quality Inspection 1
Quality Inspection 2
Certifications & Delivery
Product Certifications

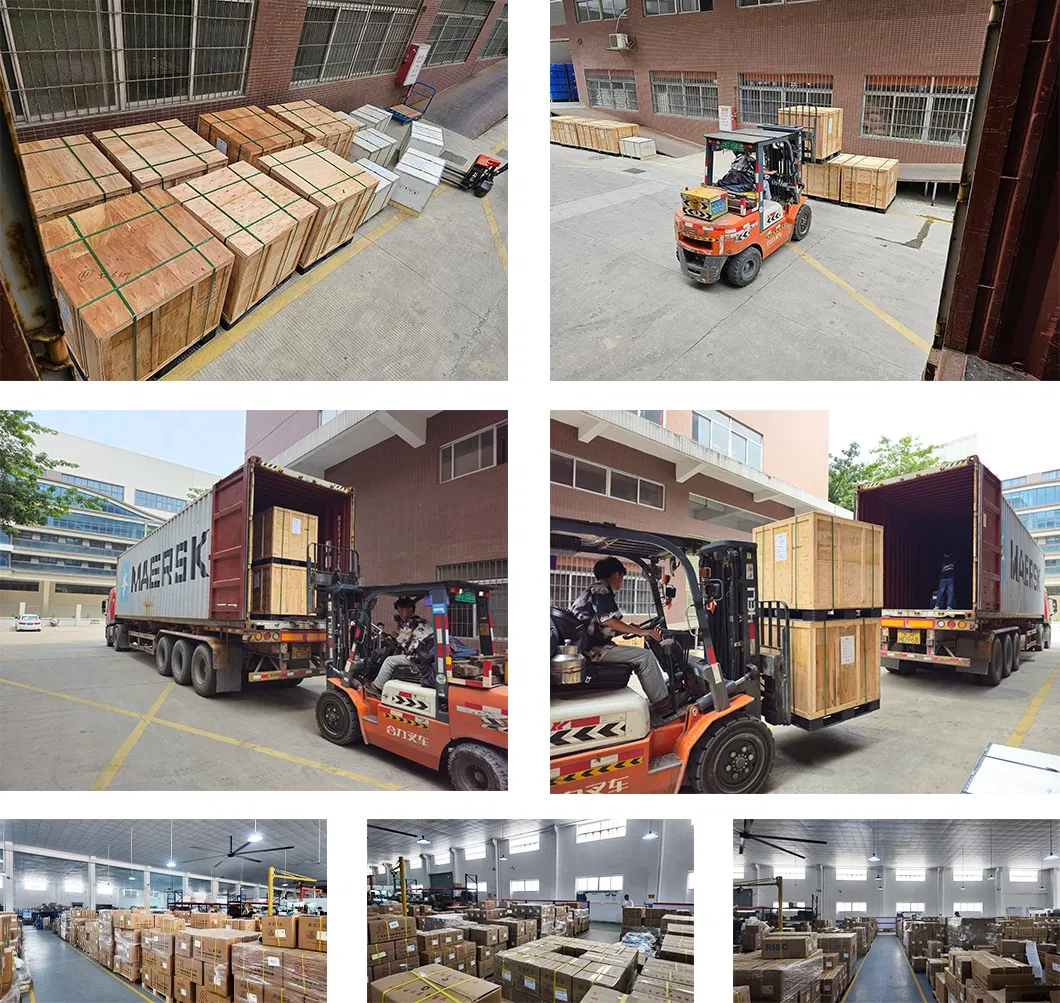

Packaging Standard

With over 10 years of export experience, we arrange cargo delivery by air or sea to your location based on your specific requirements.

Shipping and Logistics
Frequently Asked Questions
What is the standard lead time for orders?
The typical lead time for our gear motors is 10-15 days, depending on the order volume and customization requirements.
Which certifications do these motors comply with?
Our products are fully certified with ISO9001, CCC, and CE standards, ensuring international quality and safety compliance.
Can the motor be customized with a brake?
Yes, models marked with "B" include an integrated brake system. We also offer "YB" models which feature a manual release brake.
What are the available installation types?
We provide several mounting options, including Horizontal type (CH), Vertical type (CV), and Double Shaft versions (CHD/CVD).
What is the protection rating of these motors?
The motors are designed with IP54 or IP55 protection classes, making them suitable for various industrial environments.
Do you support OEM or ODM services?
Yes, we provide both OEM and ODM customization to meet the specific technical needs of your equipment.
