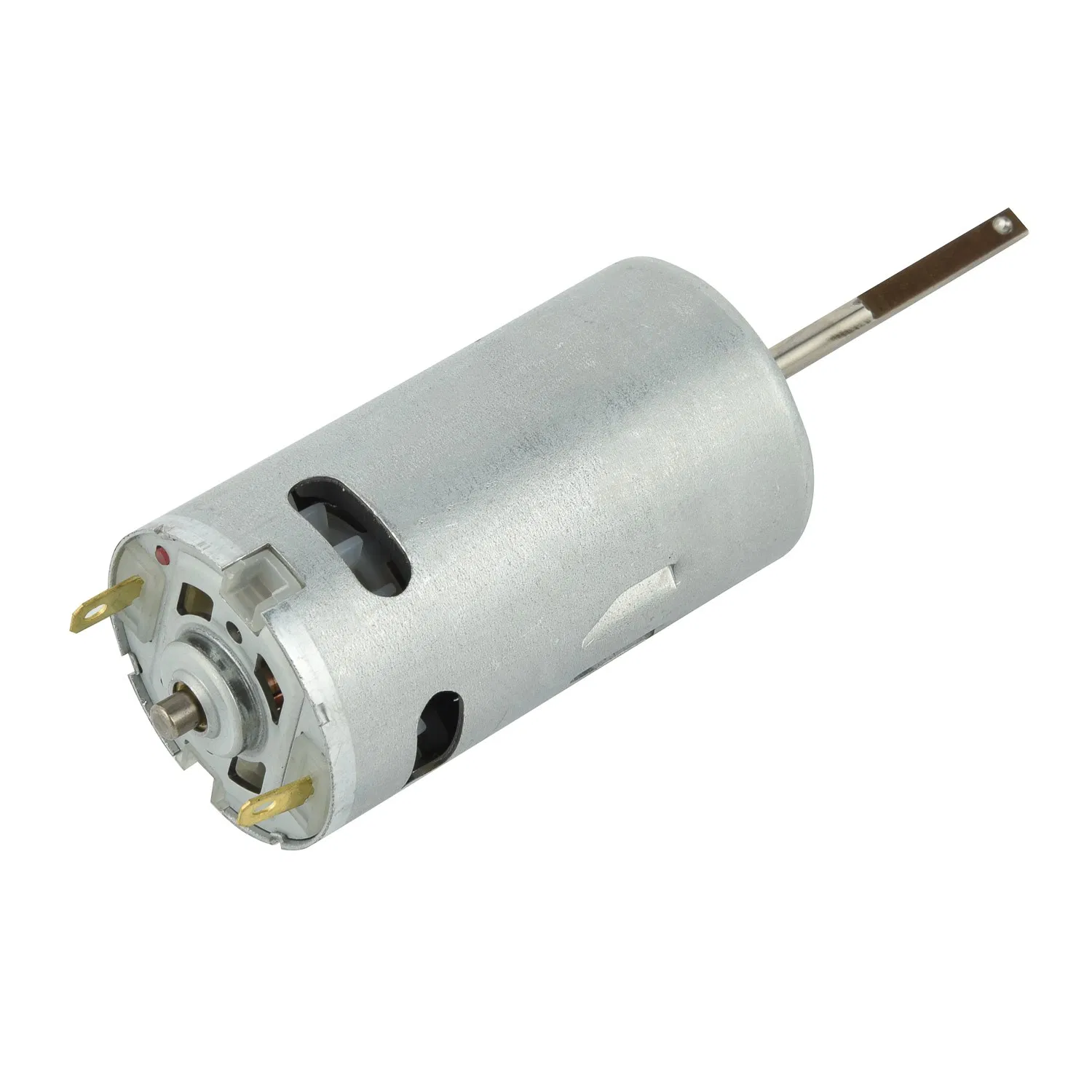

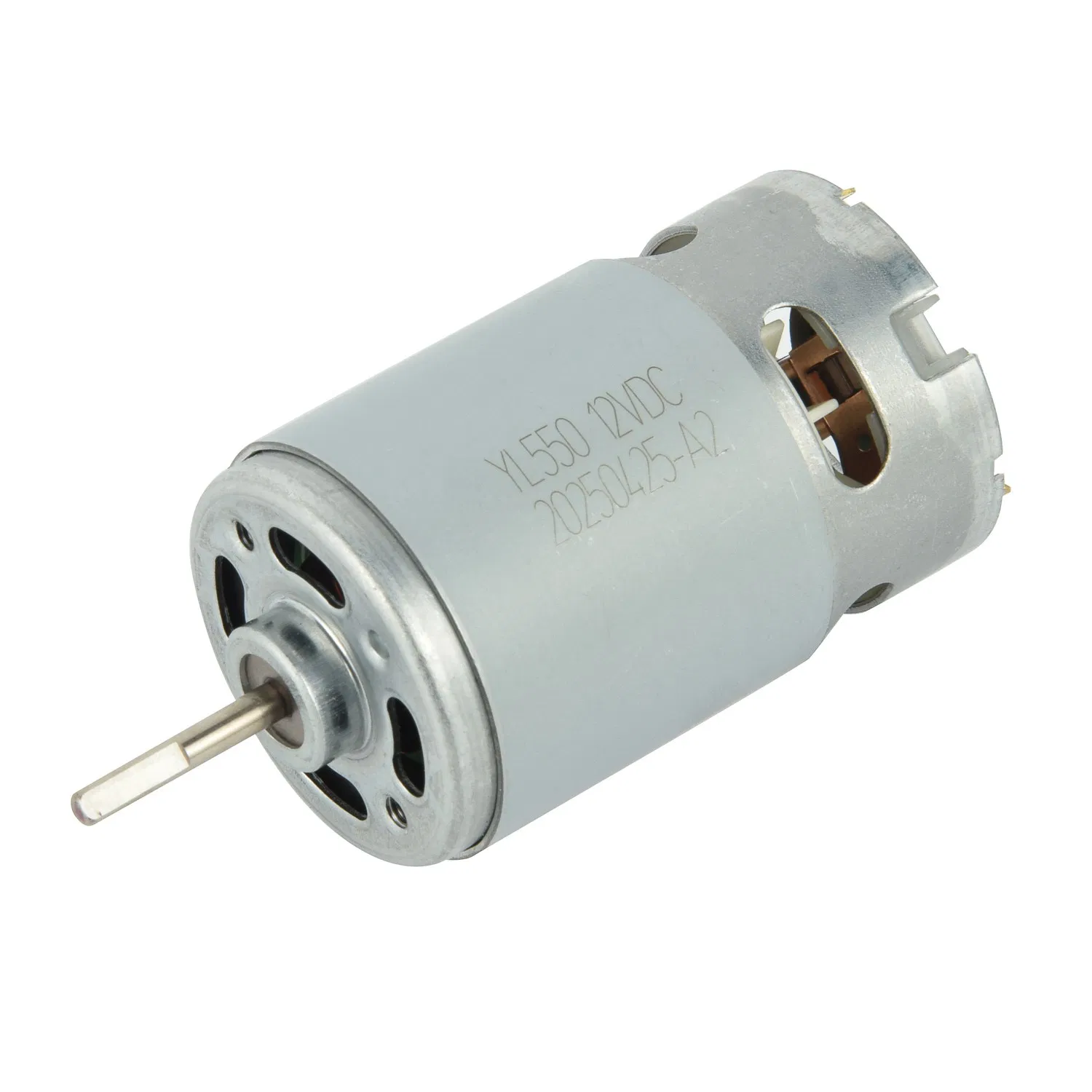

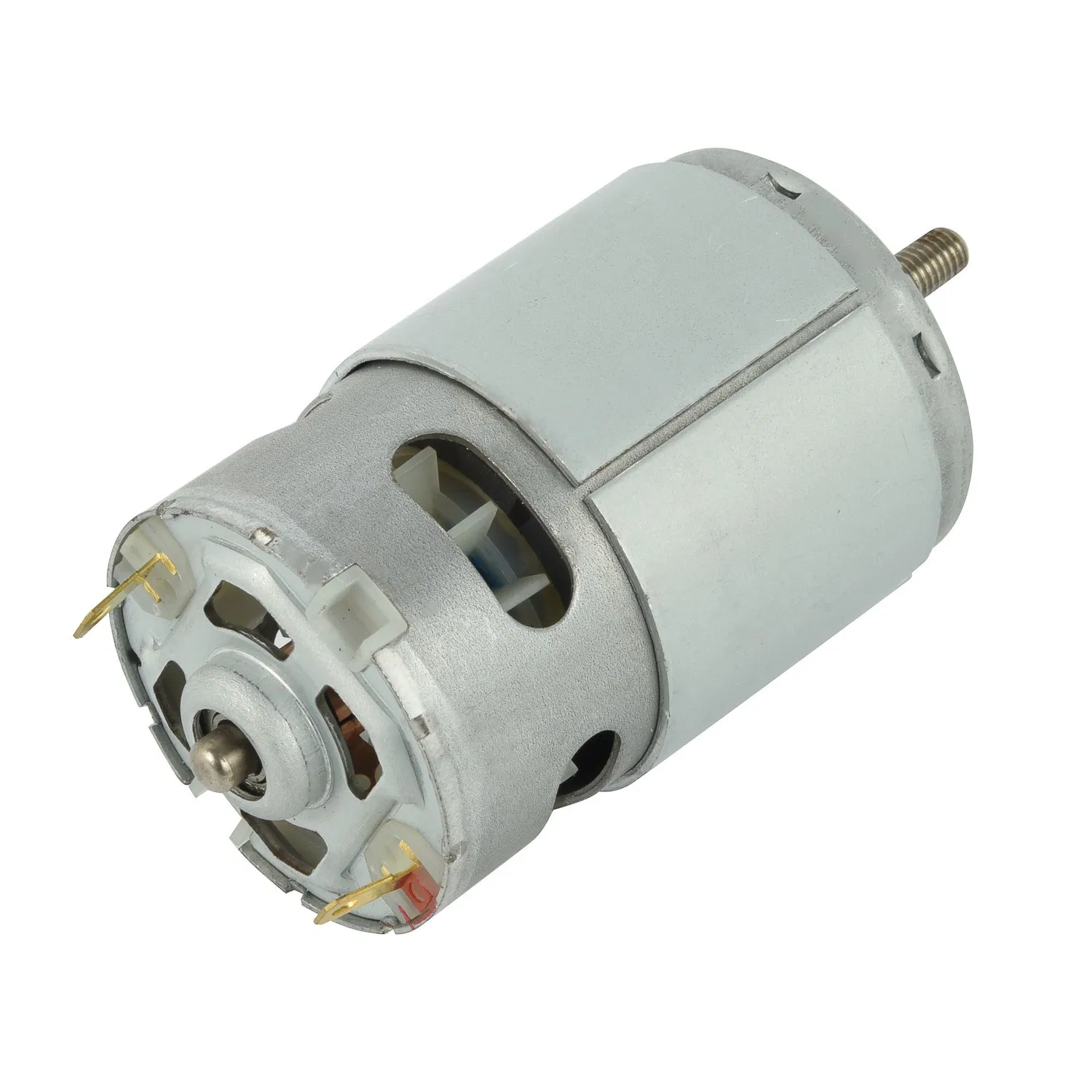

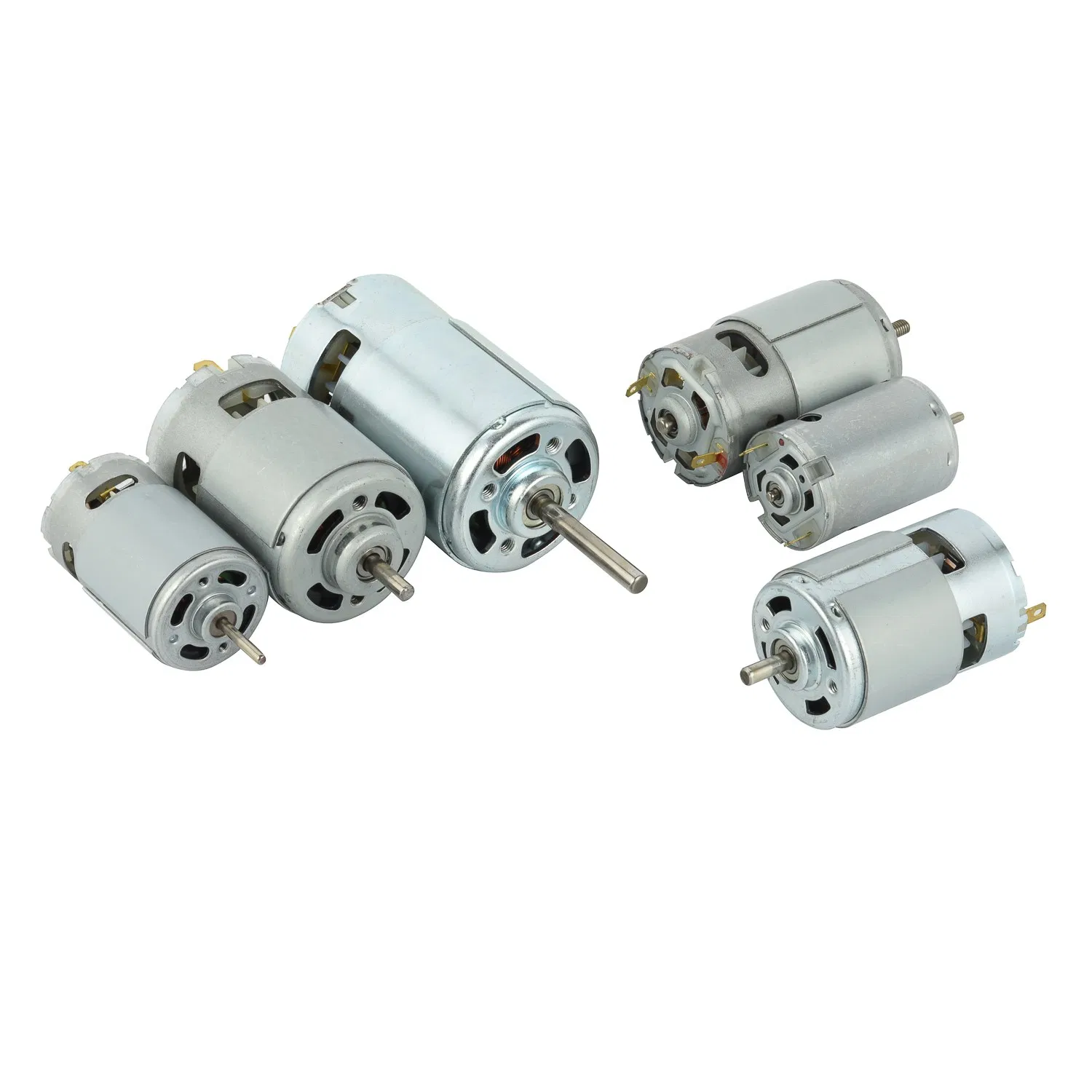

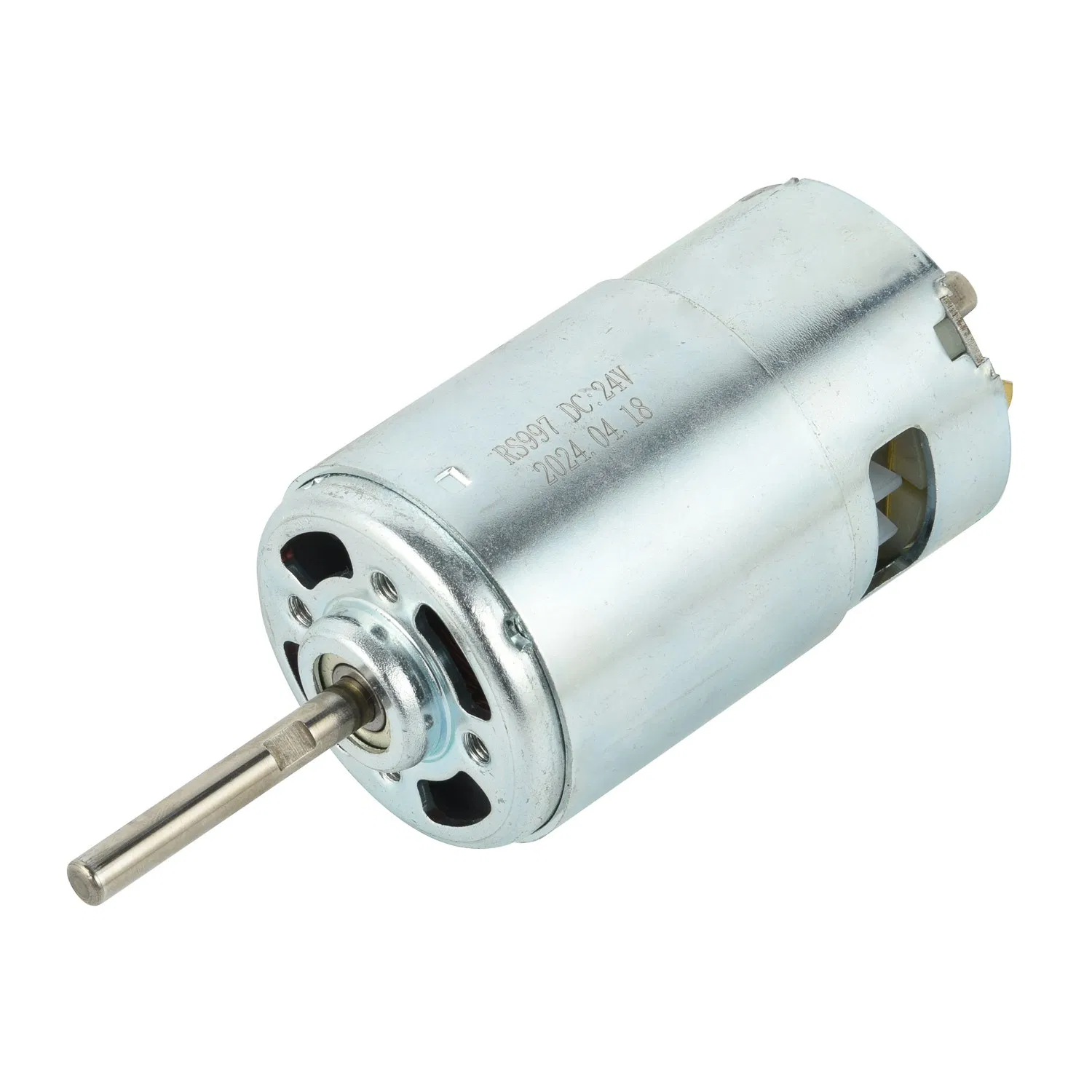

High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
1 / 5
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans
High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans

High Torque RS770 775 24V High Speed Motor 12V Brush DC Motor for Power Tools and DC Fans

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO. RS770/775 Type Brushed DC Motor
Voltage 12V / 24V DC Rotation Speed 2500-28000rpm
Rated Power 8-30W Rated Torque 1kgf.Cm
Stall Torque 10kgf.Cm Rated Current 0.5-20A
Structure Permanent Magnet Brush Certification ISO9001, CCC, VDE, RoHS
Weight 360g Dimensions Dia 42.2mm
Packaging & Delivery
Package Size 41.00cm * 23.00cm * 23.00cm
Gross Weight 17.000kg
Transport Package Standard Carton Box
Product Drawing

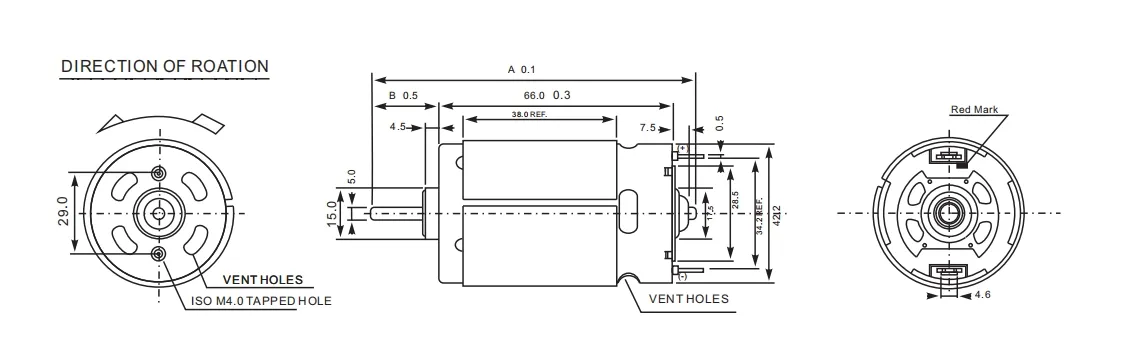

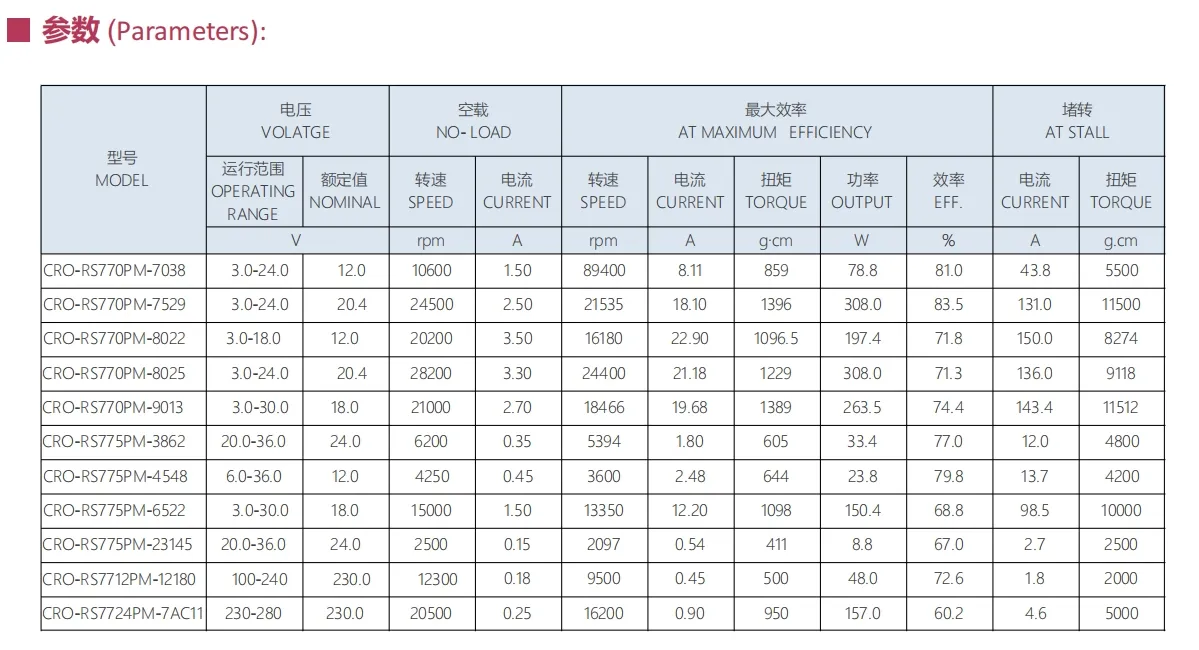

Product Drawing 1 Product Drawing 2

💡 Customization Available: We can customize various shafts, speed, torque, wire, and lead according to your specific requirements. Please specify your choice of voltage, rotation speed, and torque for a quick quotation.

Product Overview

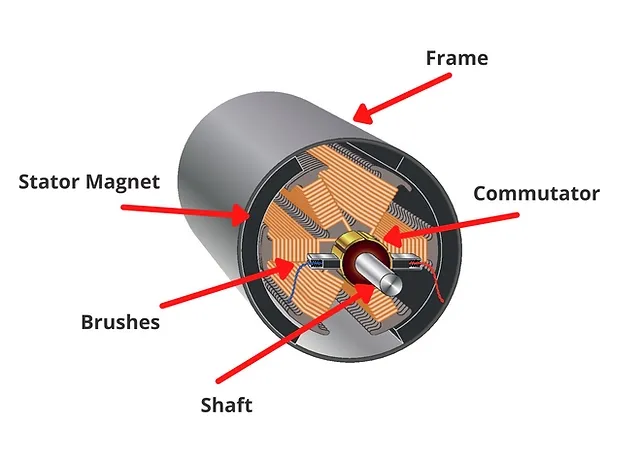

What is a PMDC motor?

PMDC motors are mainly composed of two parts: stator and rotor. Permanent magnets are installed on the stator to generate a fixed magnetic field. The armature winding on the rotor is connected to the external circuit through electric brushes. When current passes through, a rotating magnetic field is generated, interacting with the permanent magnet to drive rotation.

Advantages of PMDC Motors

  • Fast Response: Quick reaction to voltage changes due to permanent magnets.
  • Lower Cost: More economical manufacturing compared to brushless alternatives.
  • Convenient Control: Simple control mechanisms suitable for various fields.
Motor Overview 1
Technical Details & Components

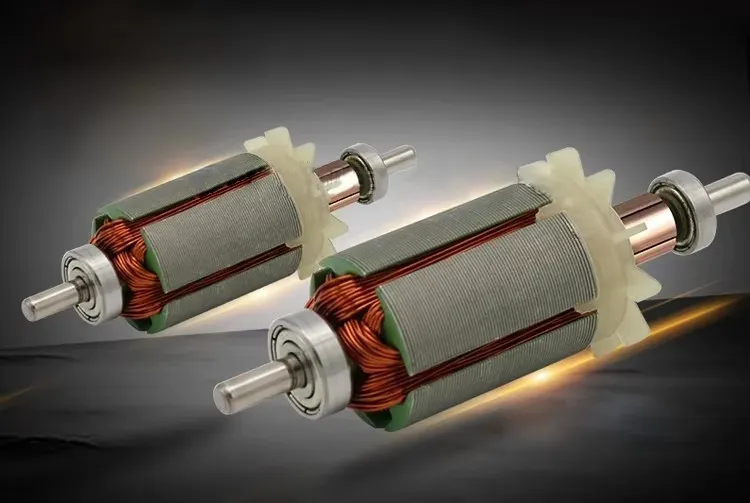

Pure Cu Coils

Pure Cu Coils
Stable Performance & Durable Torque

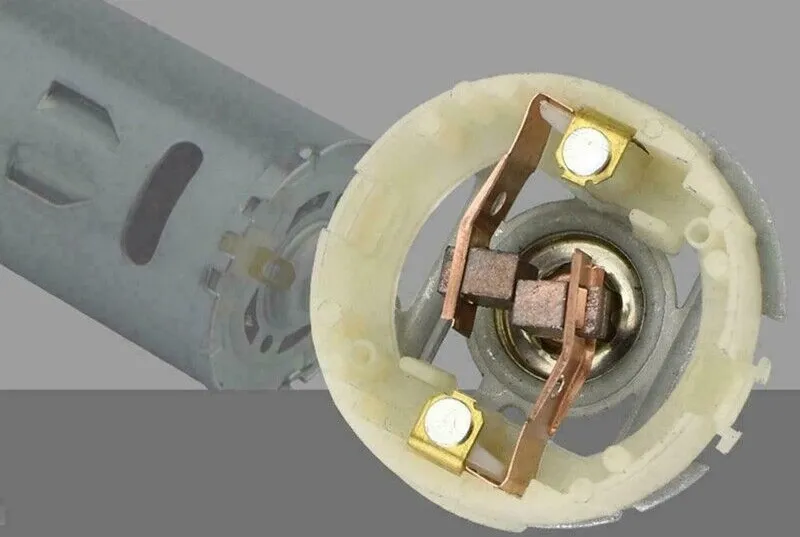

Carbon Brush

Quality Carbon Brush
Fast Response & High Durability

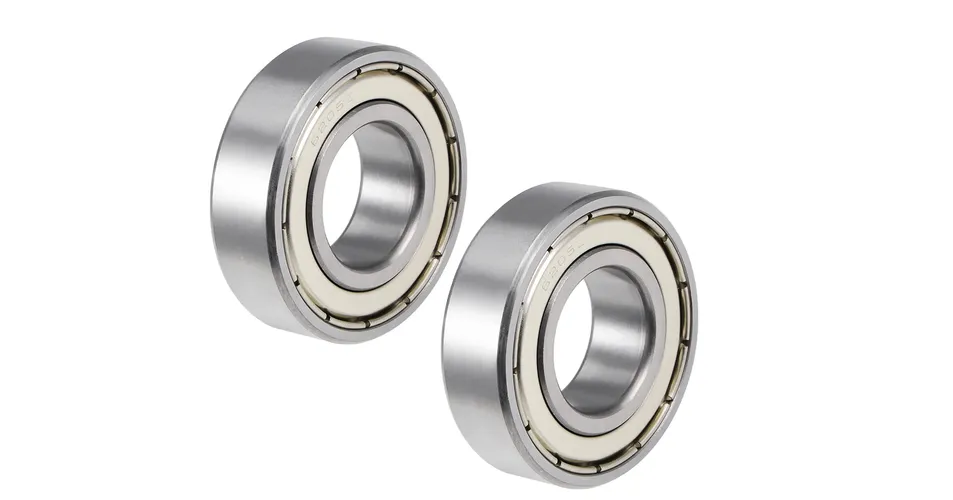

Ball Bearing

High Quality Ball Bearing
Low Noise & Long Service Life

Magnetic Arc

High Grade Magnetic Arc
High Efficiency & Low Loss

Product Applications Gallery
App 1
App 2
App 3

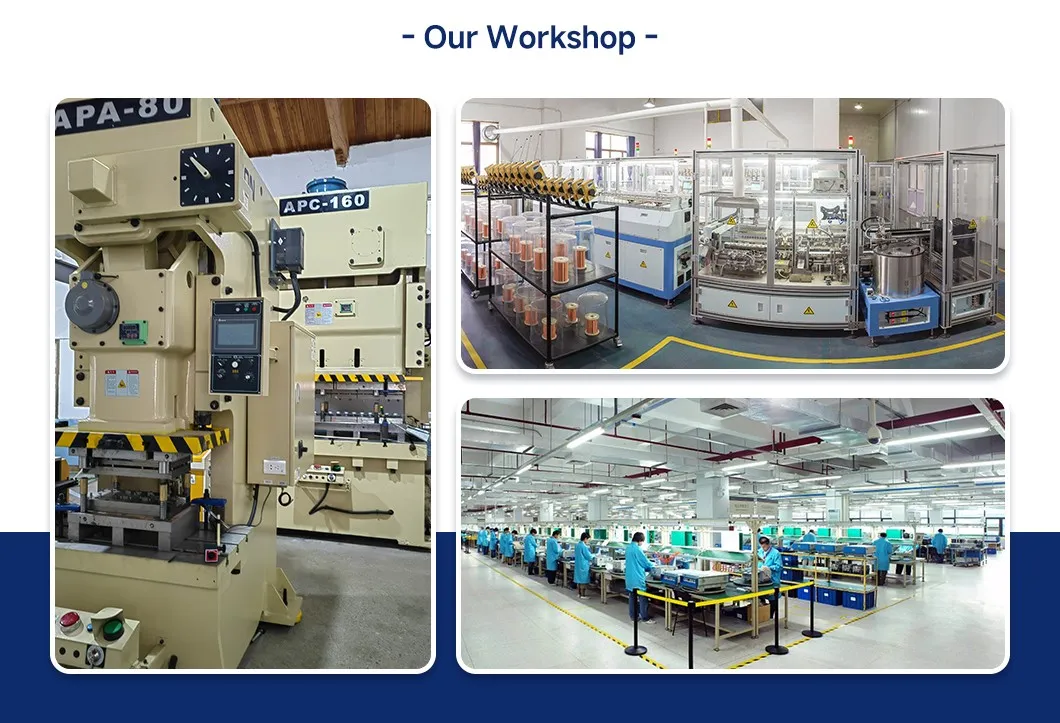

App 4
App 5
App 6
Manufacturing Summary
Main Products Synchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
Quality Standards CCC, VDE, CB, RoHS and ISO9001-2015
OEM/ODM Accepted and Welcomed
Production Capacity 1000 Units per Day
Frequently Asked Questions
Q1: Can the RS770/775 motor specifications be customized?
A: Yes, we provide full customization for the shaft, speed, torque, wiring, and lead to meet your specific application requirements.
Q2: What are the main applications for this high-torque motor?
A: These motors are ideal for power tools, DC fans, household appliances, and various industrial driving or control equipment.
Q3: What makes your DC motors more durable?
A: We use pure copper coils, high-quality carbon brushes, and precision ball bearings to ensure low noise and a long service life.
Q4: Does the motor work with both 12V and 24V systems?
A: Yes, the motor is designed to operate within the 12V to 24V DC range, supporting various power tool and automotive setups.
Q5: What is the typical response time of these brushed motors?
A: Due to the permanent magnet design, these motors offer a very fast response to voltage changes, making them excellent for precision control.
Q6: What certifications do these motors hold?
A: Our products are fully certified under ISO9001, CCC, VDE, CB, and RoHS, ensuring international safety and quality standards.
