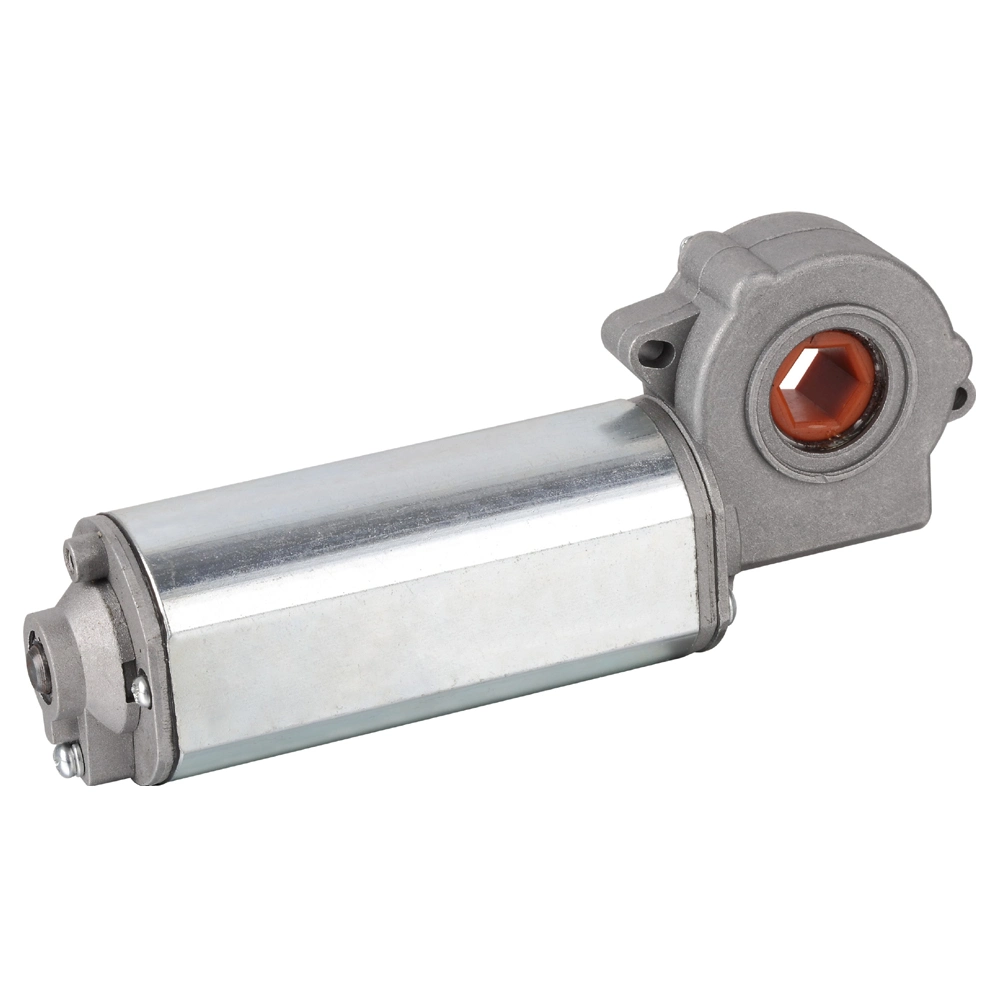

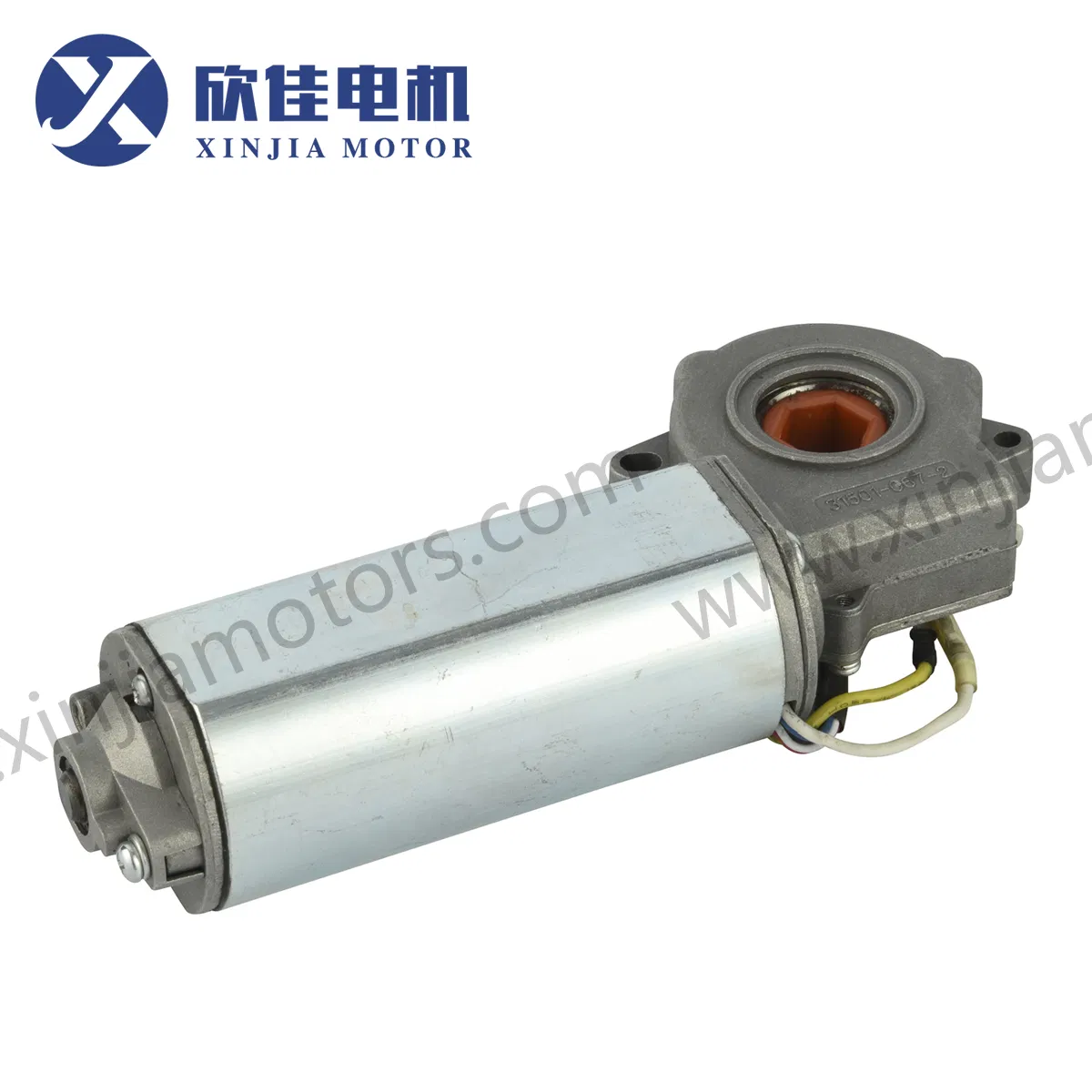

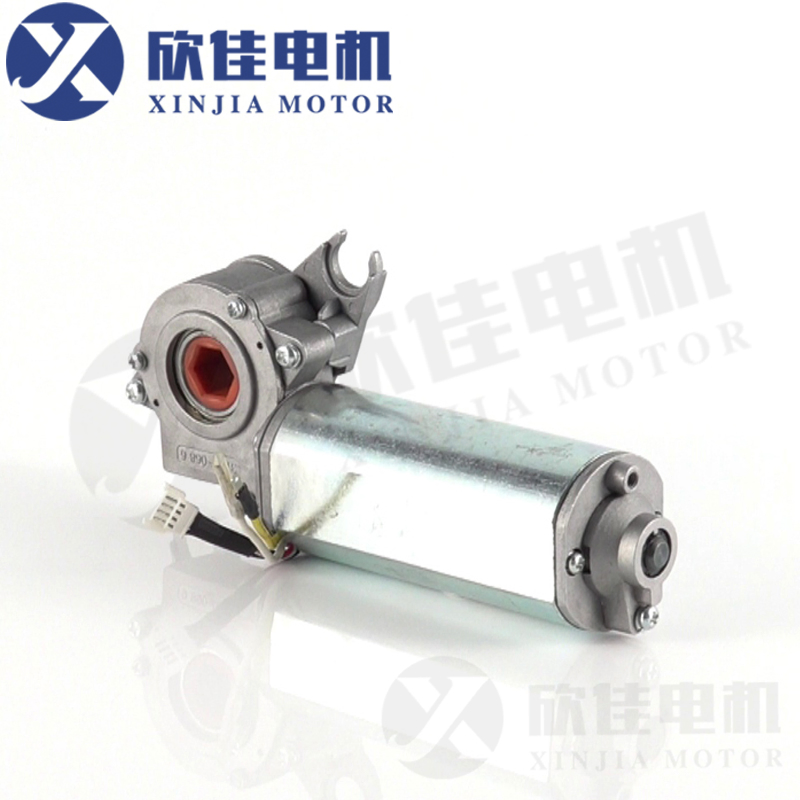

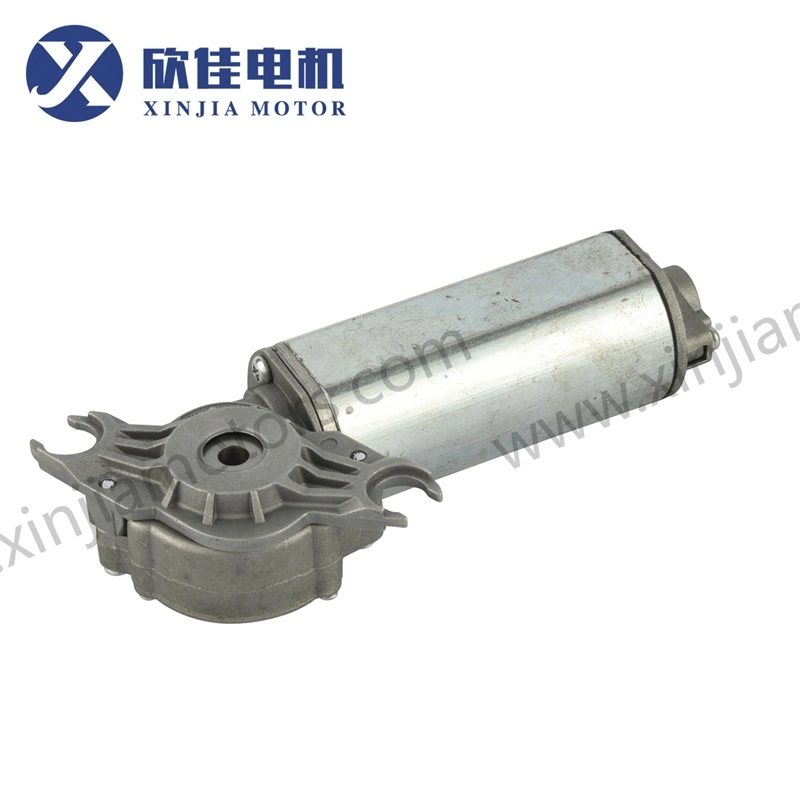

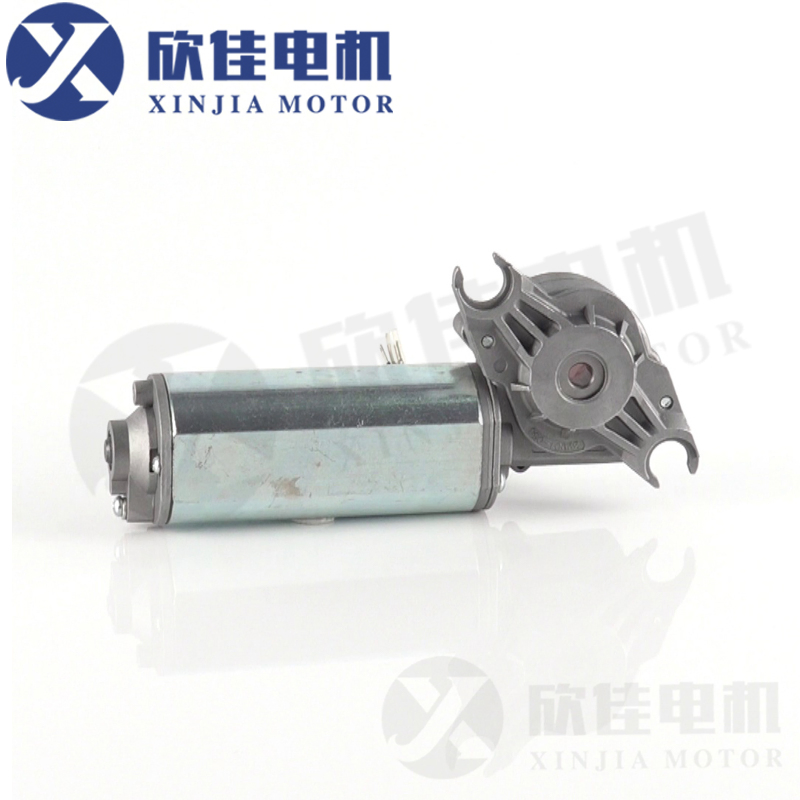

| Product Name | DC Gear Motor |
| Model No. | DCR45-50 |
| Application | for Standing desk/adjustable desk/Juicer/Door opener |
| Starting Mode | Direct on-line Starting |
| Rated Voltage | DC24V |
| Rated Power | 50W |
| No-load Power | 30W±10% |
| Rated Speed | 95rpm±10% |
| No-load Speed | 136rpm±10% |
| Gear Ratio | 39:1 |
| Rated Torque | 2.0N.m |
| No-load Current | 1.4A±10% |
| No-load Spark | Class≤2 |
| Withstand Voltage | 1800V/1sec/5mA |
| Output Bearing | Ball Bearing |

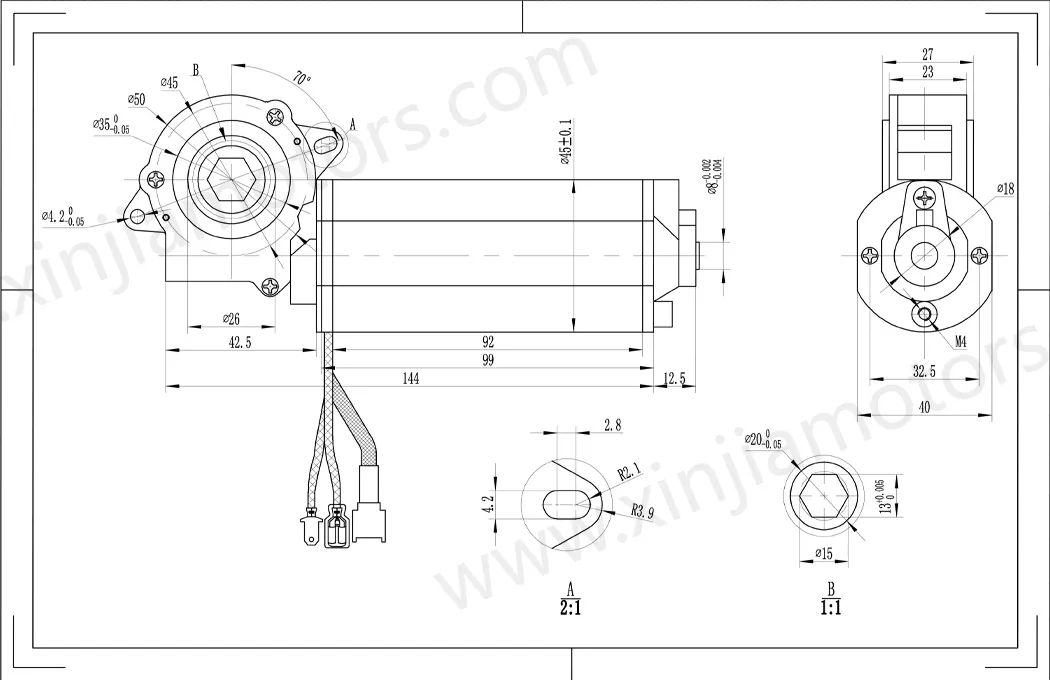

| Out-axis Diam | ø15 |
| Customized | Yes |
| Packing | Foam & carton, or according to specific requirements |
| MOQ | 500 pcs |
| Delivery Time | Depends on quantity from 2 weeks to 4 weeks |
| Payment Term | T/T, L/C, D/P |

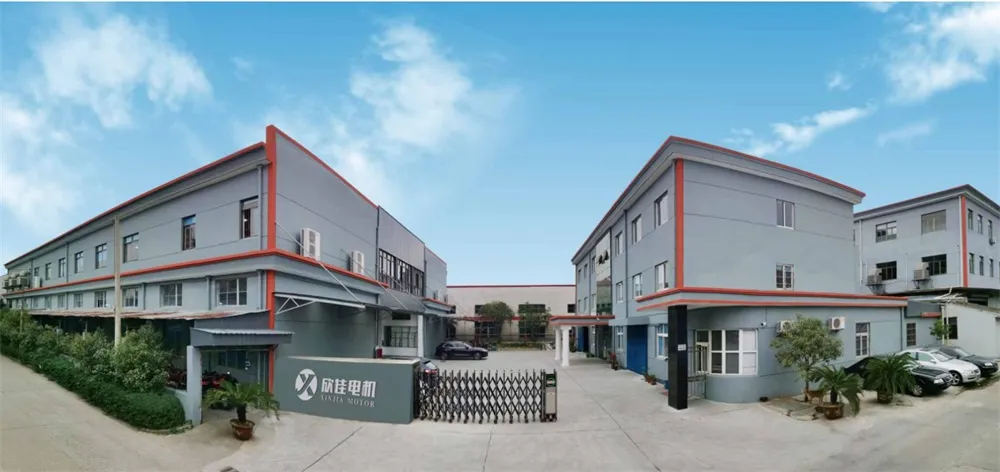

The factory was established in 1997. We have about 50,000 square meters of building space and nearly 300 employees. The transportation facilities around the factory are highly convenient, facilitating efficient logistics and distribution.
Through years of accumulation and development, our facility is now a professional manufacturer of single-phase series motors and gear reducer motors. The application of our products covers many fields, primarily used in home kitchen appliances or electric tools, such as juicers, ice crushers, meat grinders, coffee bean grinders, and lawn mowers.

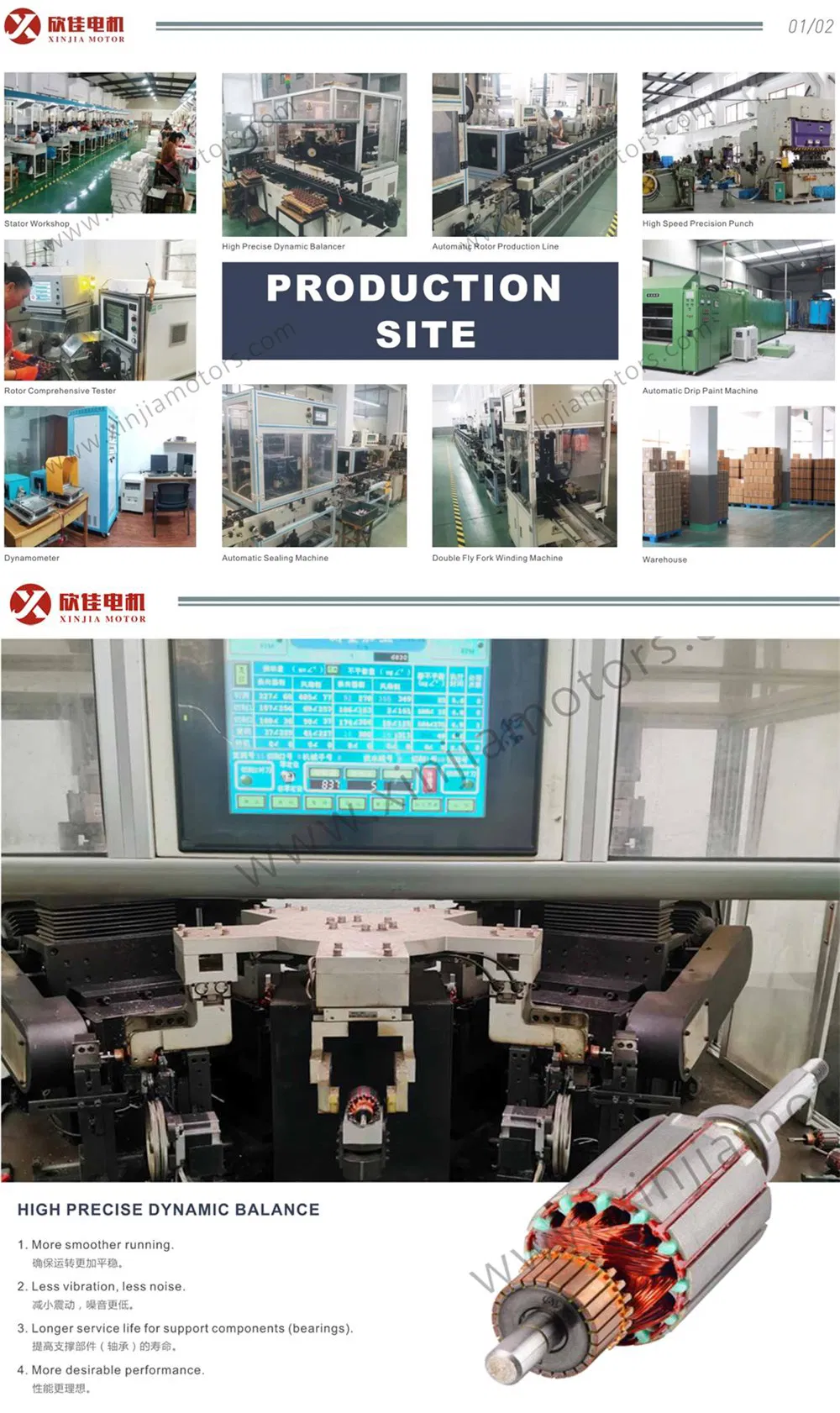

Our factory features advanced universal motor production lines, strong technical force, and perfect testing methods. Products are produced according to international and domestic standards, and we excel at meeting custom requirements based on samples or drawings. We stick to the principle of striving for excellence through fine quality, serving customers worldwide.
