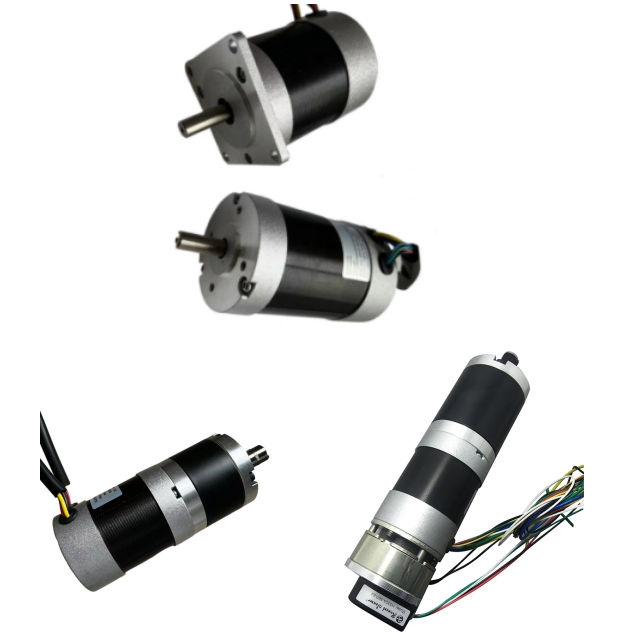

57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
1 / 5
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder

57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder

Send Inquiry

Product Description

57mm Brushless DC Motors / DC Gear Motor

Professional Customizable Solutions: We offer comprehensive customization for voltage, dimensions, performance, shafts, and mounting to meet your specific industrial requirements.

Integrated options available: Encoders, Gearboxes, Brakes, and Controllers.

⚙️
High Efficiency

Optimized 57mm design for maximum power density and reliable performance.

🛠️
Customizable

Tailored shaft, mounting, and performance parameters for your application.

🛡️
Protection

Available IP ratings from IP00 up to IP67 for harsh environment durability.

Technical Specifications

Diameter57mm
Rated Voltage12v, 18v, 24v, 36v, 48v up to 380vdc
Rated TorqueUp to 0.5Nm (Up to 60Nm with gearbox)
Rated Speed1000rpm, 1500rpm, 2000rpm, 3000rpm, 4000rpm (Customizable)
Rated Power50w, 100w, 150w, 200w, 300W
Protection ClassIP00, 40, 50, 54, 56, 66, 67
EMISuppression available
ThermalThermal protection available
GearboxOptional Planetary or Worm gearbox assembly
BrakeOptional Electric brake assembly
EncoderOptional Optical or Magnetic encoders
ControllerOptional Integrated controller for BLDC Motors

Please send an inquiry to receive the best and most cost-effective solution/proposal for your project.

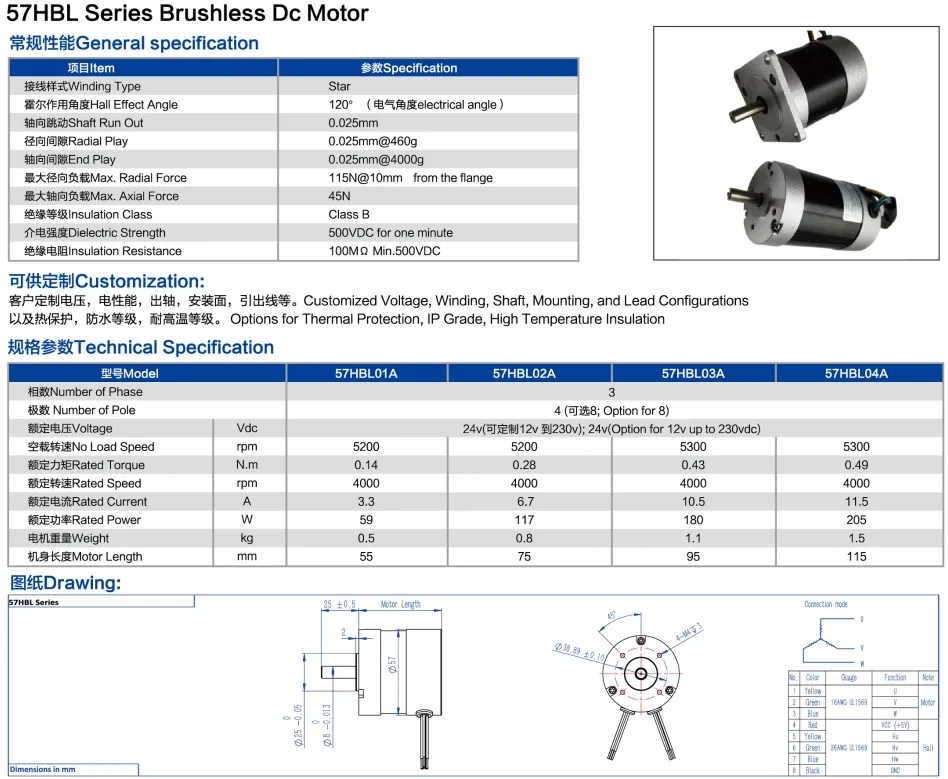

57mm High Torque BLDC Motor

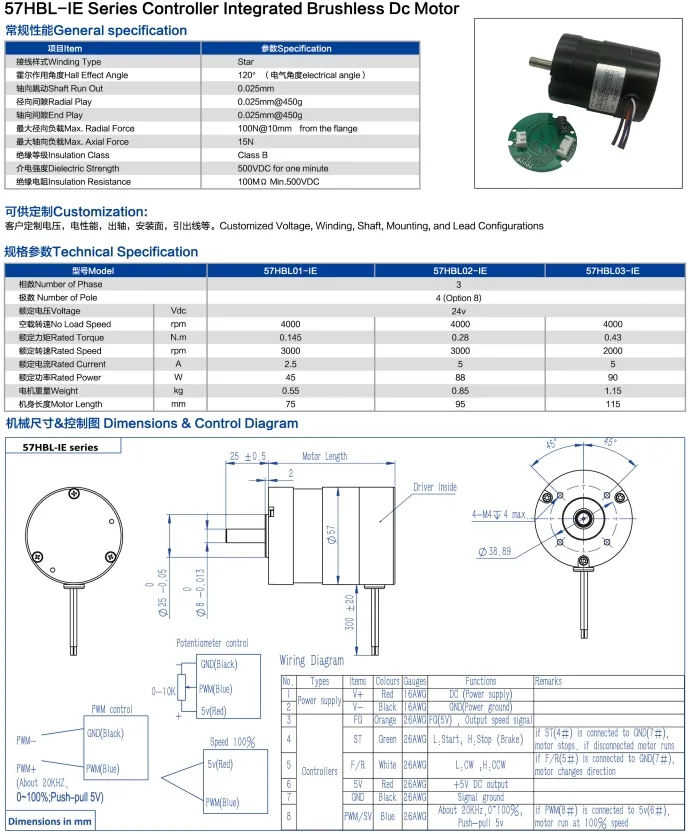

Customizable DC Gear Motor

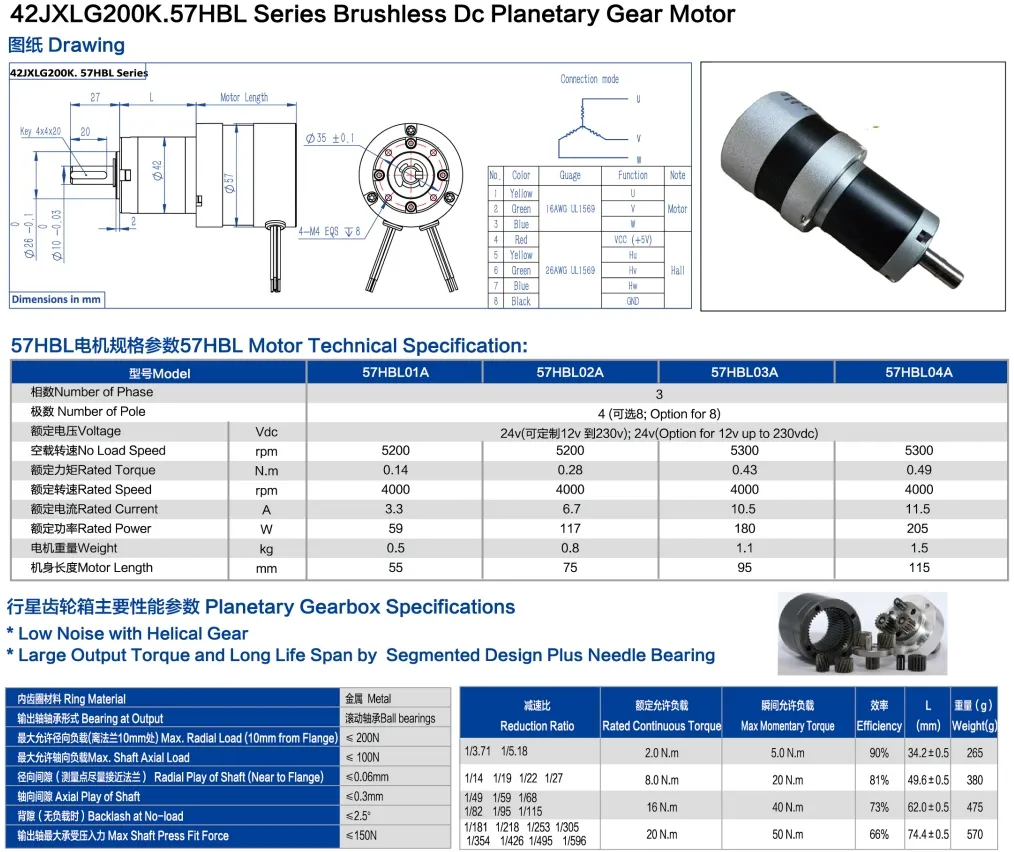

Brushless DC Motor Technical Drawing

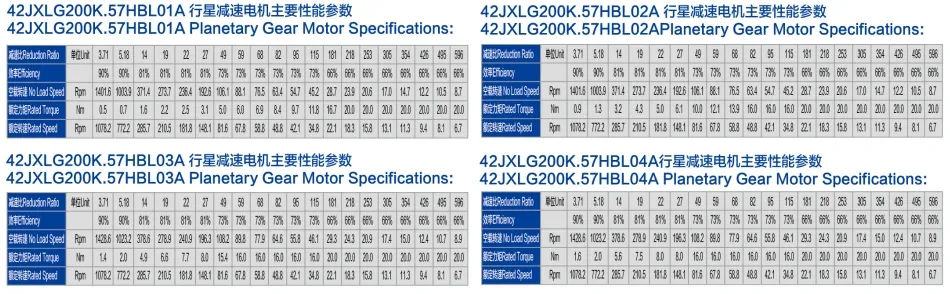

Motor Dimension Details

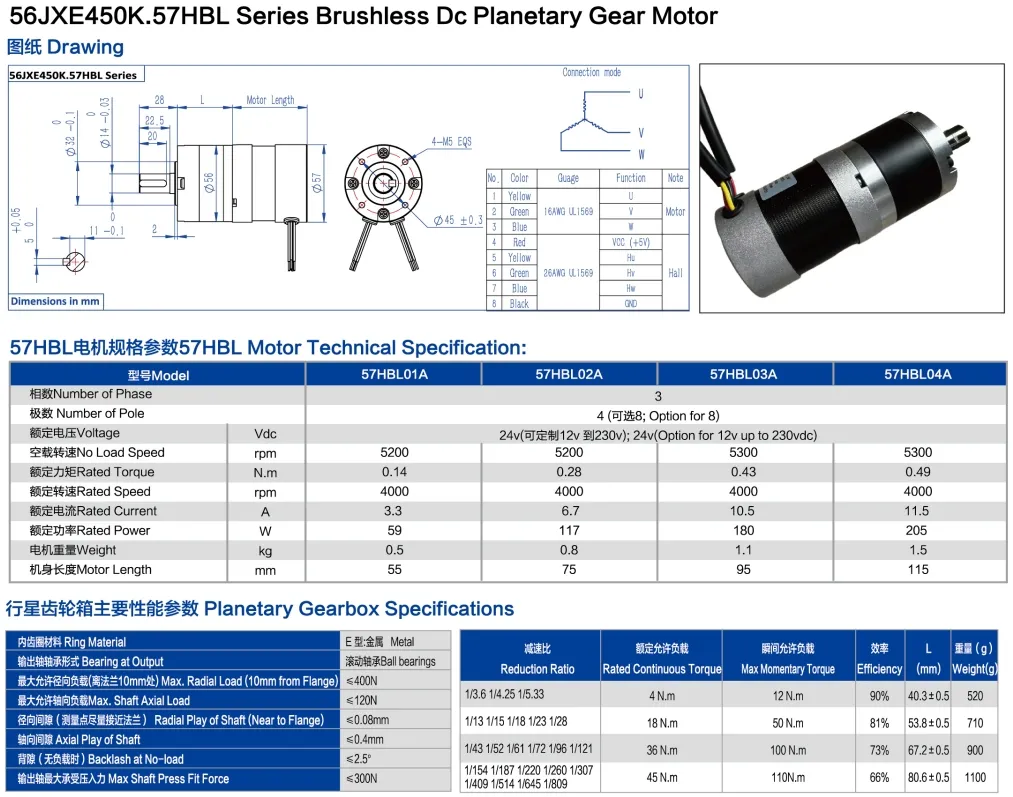

Planetary Gear BLDC Motor

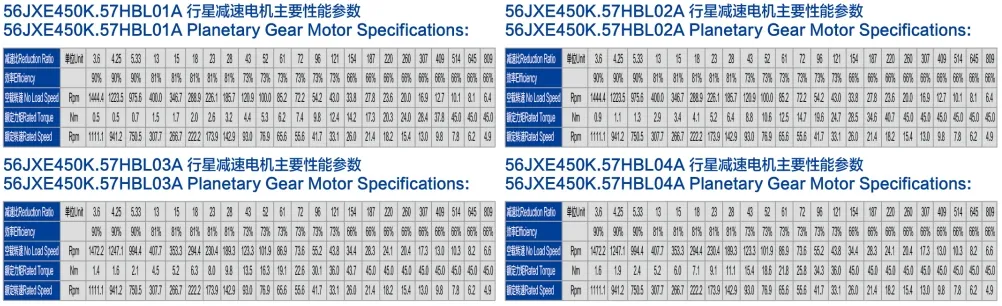

Encoder and Brake Options

Frequently Asked Questions

Q1: What is the input voltage range for the 57mm BLDC motor? A: Our motors support a wide range of DC voltages including 12V, 24V, 36V, 48V, and can go up to 380VDC depending on your requirements.
Q2: Can the motor be integrated with a gearbox? A: Yes, we offer optional assembly with both Planetary and Worm gearboxes to increase torque output up to 60Nm.
Q3: Do you provide customization for motor shafts? A: Absolutely. We provide customizable shaft dimensions, mounting configurations, and performance specs to fit your unique design.
Q4: What safety features are available? A: We offer options for EMI suppression, thermal protection, and various protection classes ranging from IP00 to IP67.
Q5: Is it possible to include an integrated controller or brake? A: Yes, the 57mm motor series can be equipped with integrated controllers, electric brakes, and optical or magnetic encoders.
Q6: What is the typical speed range for these motors? A: Standard rated speeds include 1000rpm, 2000rpm, and 4000rpm, but these can be customized based on your specific application needs.
