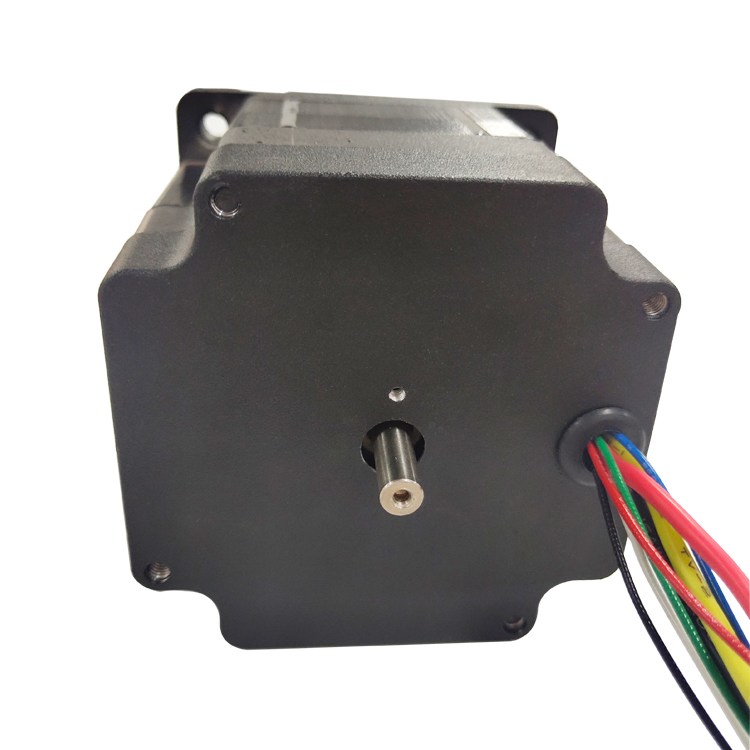

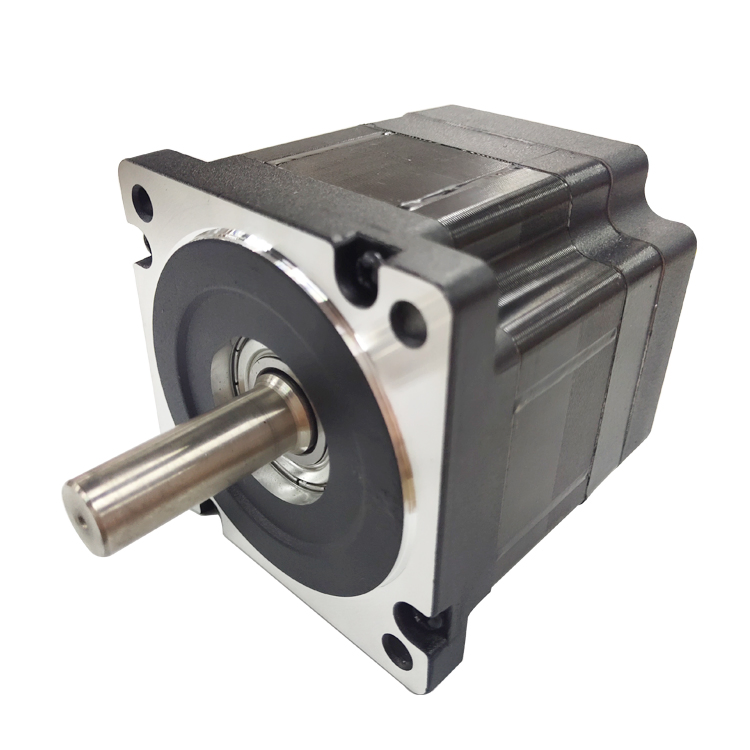

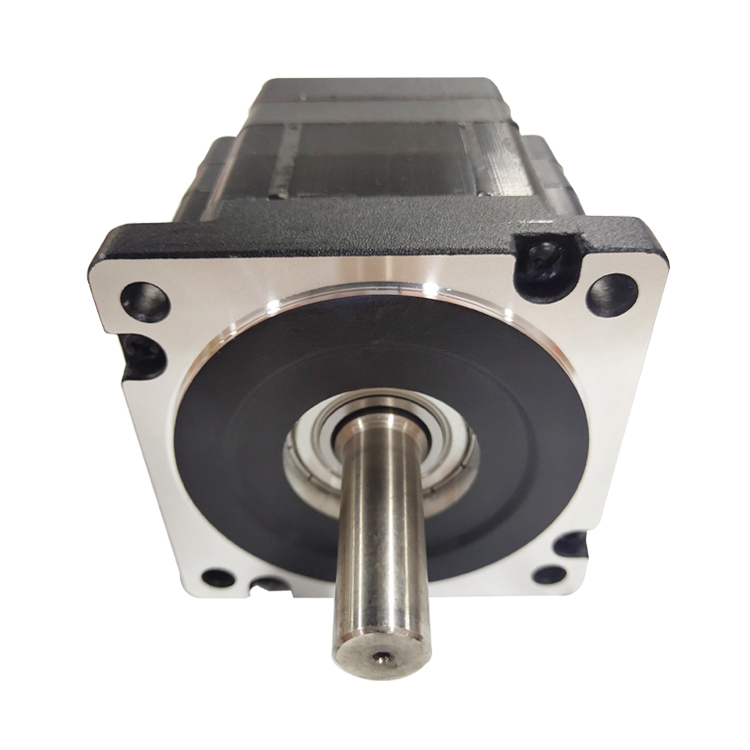

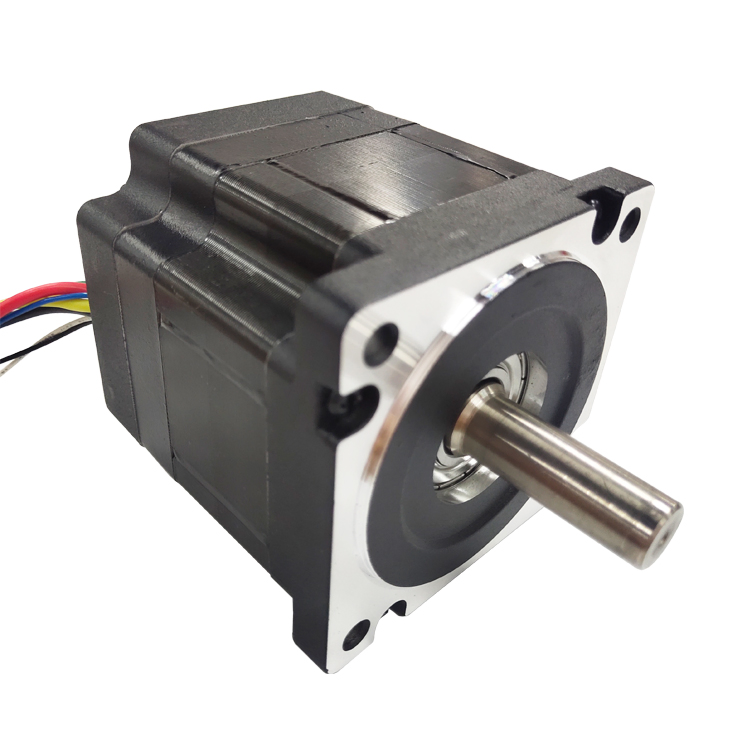

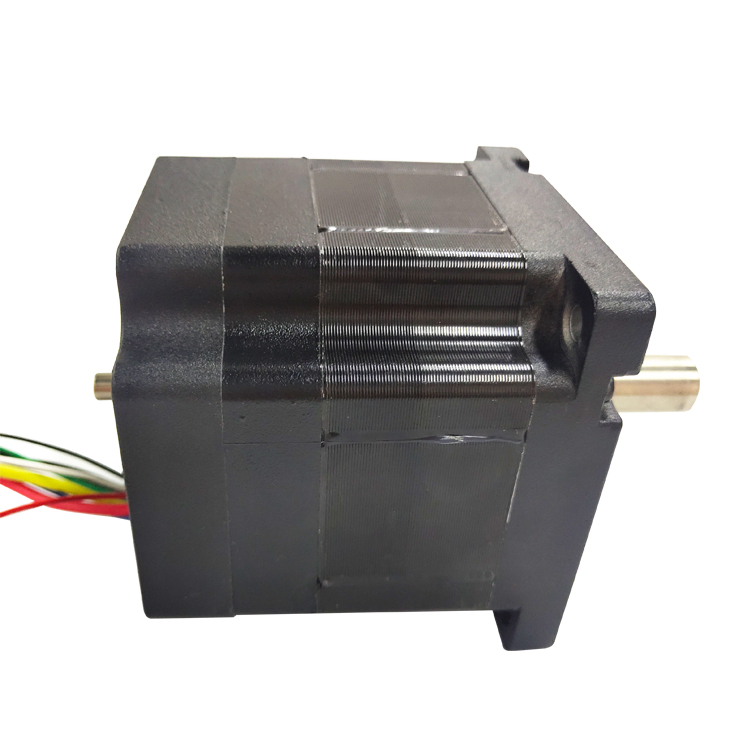

86mm 48V 3000rpm 220W Brushless DC Motor BLDC for Barbecue Machine Jk86bls71-X020

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed: High Speed

Product Description

📋 Basic Info
Model NO.
JK86BLS71-X020
Excitation Mode
Excited
Function
Control
Protection
Protection Type
Structure
Brushless
Certification
ISO9001, CE, RoHS
Model Number
Jk42bls
MOQ
1PCS~5PCS
Brushless Motor
24V DC
Transport
Export Carton
Origin
China
Production
100000PCS/Month
🚀 Product Description
Brushless DC Motor
Brand Name
JK
Price
US$10 ~ US$50
Delivery Time
Samples: 7-10 days; Batch: 15-25 days
Payment Terms
T/T, L/C, PAYPAL, Western Union
⚙️ General Specifications
Specification ItemDetails
Winding typeDelta
Hall effect angle120 degree electrical angle
Shaft run out0.05mm
Radial play0.02mm@450g
End play0.08mm@450g
Max. radial force220N @ 20mm from the flange
Max. axial force60N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩ Min., 500VDC
📊 Performance Parameters
Model JK86BLS58 JK86BLS71 JK86BLS98 JK86BLS125
Number of poles8
Number of phase3
Rated voltage (VDC)48
Rated speed (RPM)3000
Rated torque (N.m)0.350.71.42.1
Rated power (W)110220440660
Peak torque (N.m)1.052.14.26.3
Peak current (A)11193355
Body length (L) (mm)587198125
Mass (Kg)1.51.852.64
📏 Dimensions & Technical Drawings
Dimensions 1
Dimensions 2
Dimensions 3
Dimensions 4
Dimensions 5
❓ Frequently Asked Questions
What is the Minimum Order Quantity (MOQ) for these motors?
The MOQ is very flexible, ranging from 1PCS to 5PCS, making it suitable for both prototyping and small-batch production.
What is the standard delivery time?
For sample orders, it typically takes 7-10 days. For batch orders, the delivery time is between 15-25 days.
Which certifications do your brushless DC motors hold?
Our products are fully certified with ISO9001, CE, and RoHS standards to ensure high quality and safety.
What is the insulation class of the motor?
These motors are designed with Class B insulation, providing reliable thermal protection during operation.
Can these motors be used for control applications?
Yes, these brushless DC motors are specifically designed for control functions and high-precision applications like barbecue machines and industrial automation.
What payment methods do you accept?
We accept various payment terms including T/T, L/C, PayPal, and Western Union for your convenience.
