Y series (10KV) high-voltage squirrel cage motor allows direct start at full pressure. If the load torque is not large, the step-down starting method can also be adopted. The starting torque of the motor during the step-down starting is roughly proportional to the square of the voltage. If the load mechanical moment of inertia is within a certain range, the motor is allowed to be continuously started twice in a cold state, and once in a hot state.

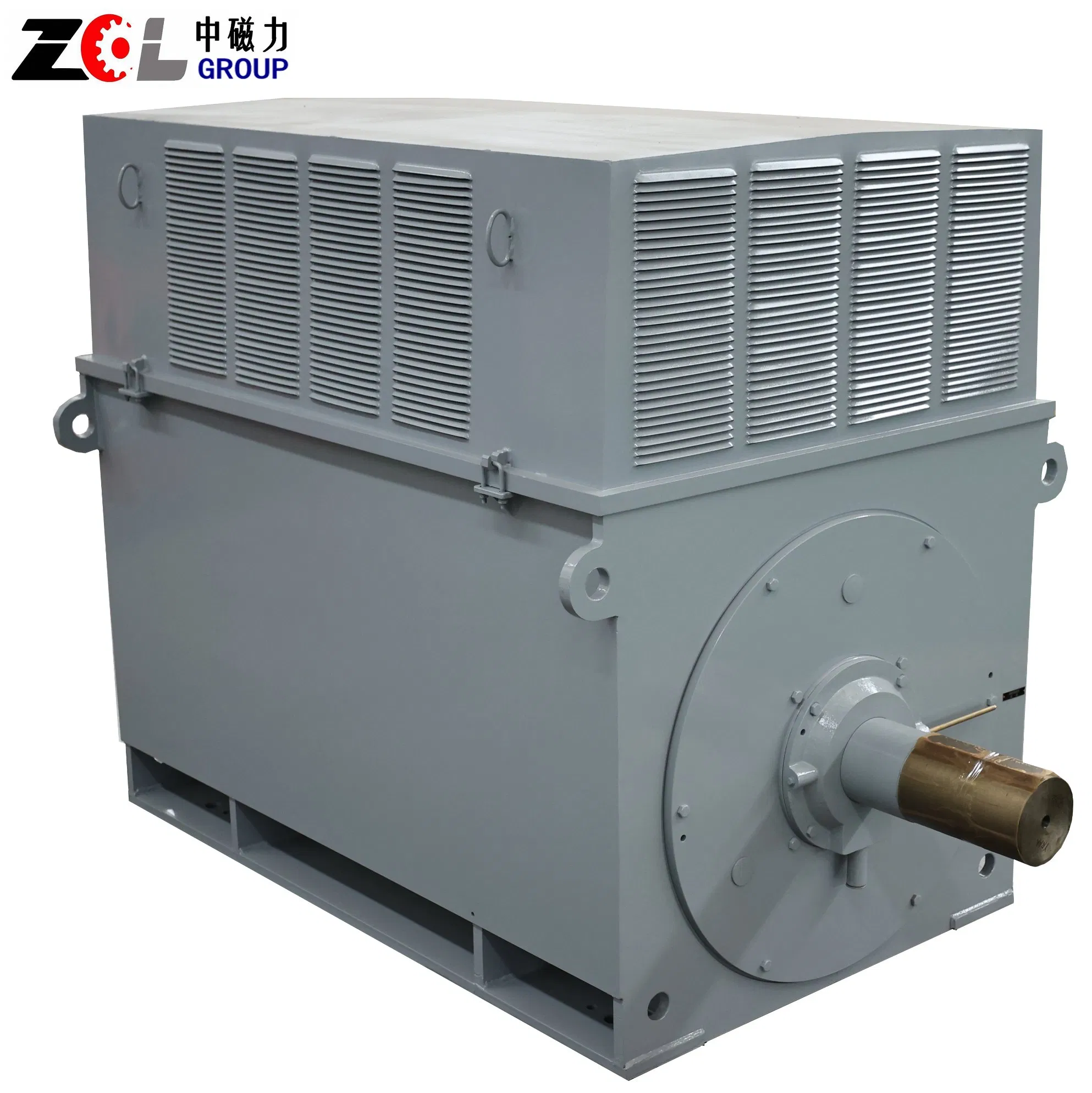

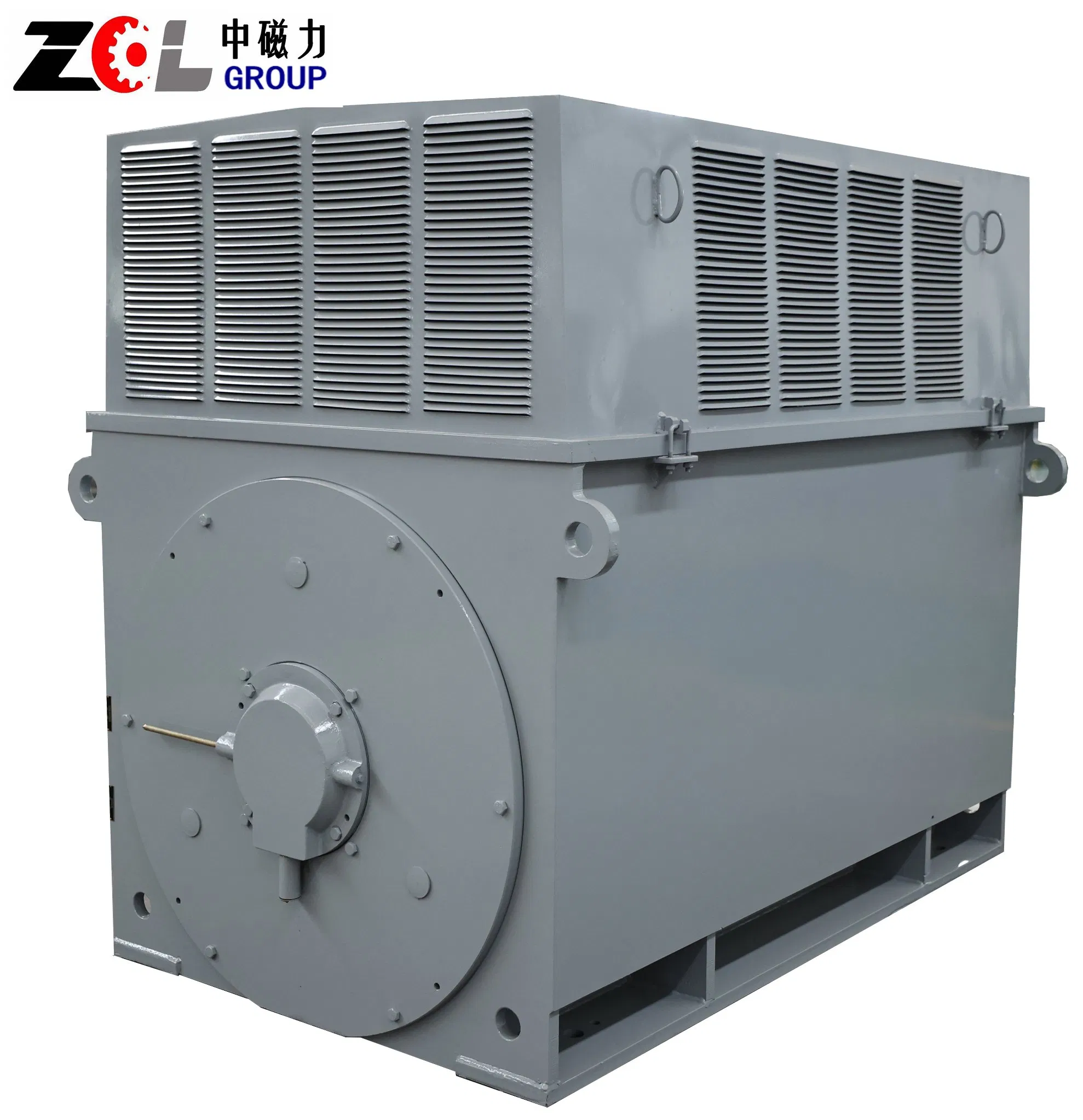

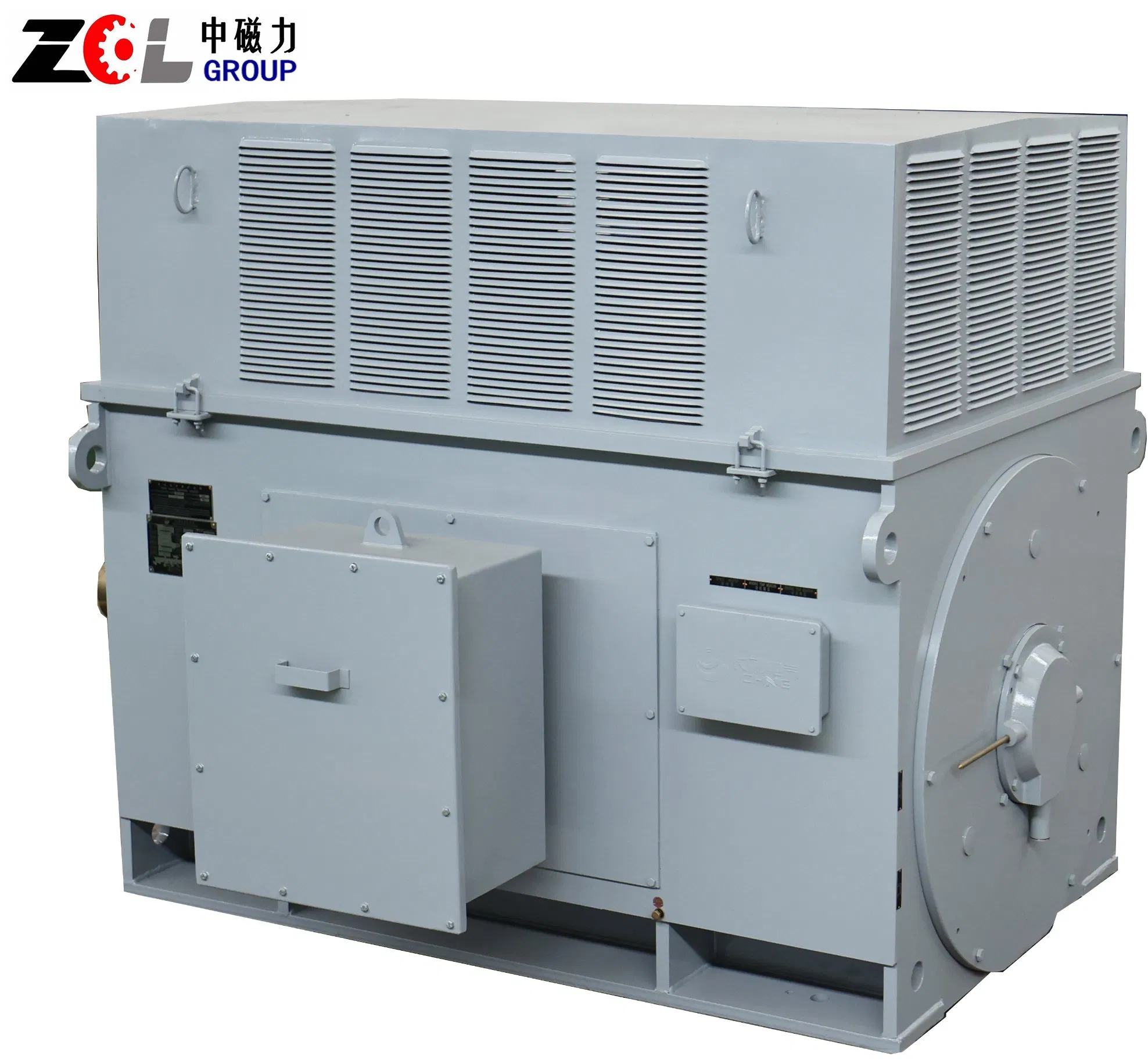

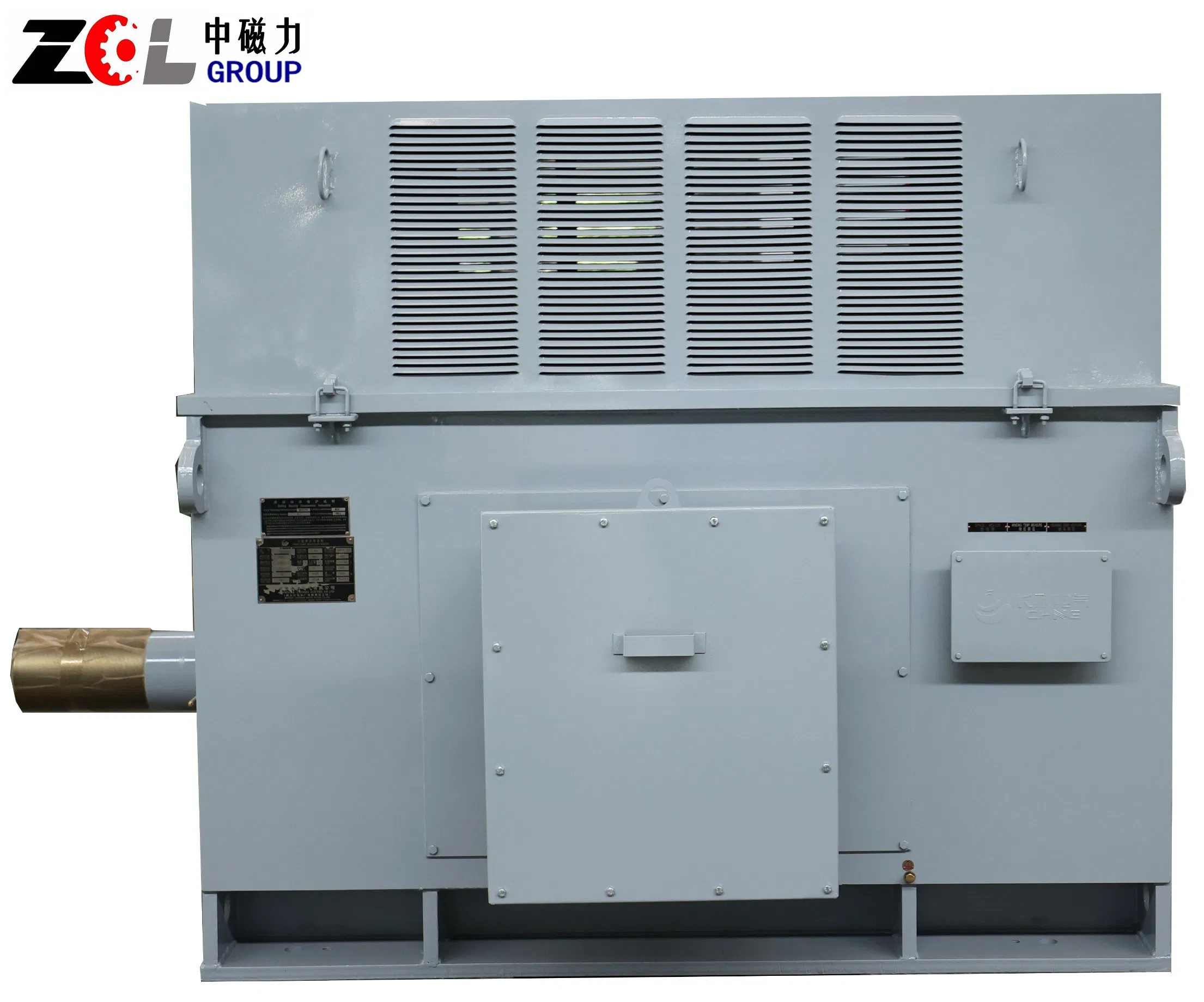

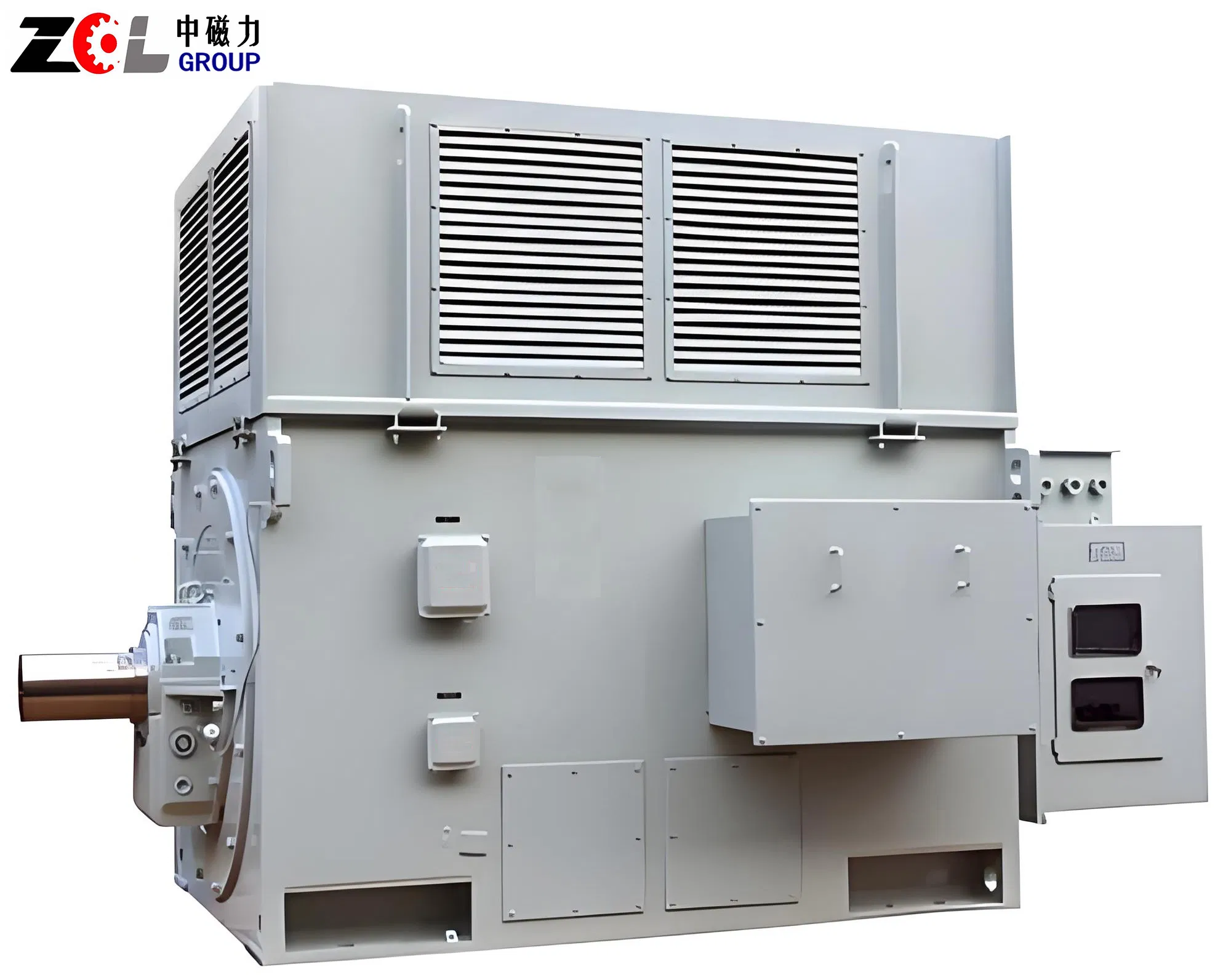

The Y series (10KV) high voltage asynchronous motor has a rated frequency of 50Hz and a rated voltage of 6KV and 10KV. Its characteristics are as follows:

• Fully compliant with IEC standards.
• The motor efficiency is increased by 2% on average compared with the old products.

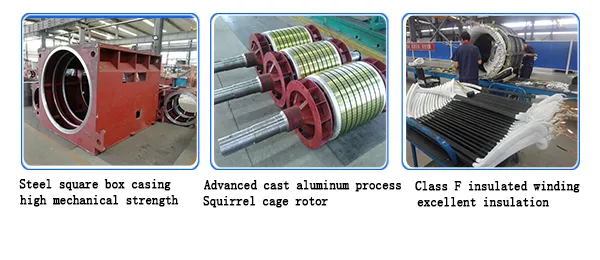

• Box-shaped structure: Easy to transport, install, and maintain. Save users' civil construction investment fees.
• Stator winding: Adopts "F" class solvent-free immersion insulation series.
• Bearing system: End-cap sliding bearing with "air seal" and floating labyrinth device to prevent oil leakage.
• Rotor construction: Uses cast aluminum or copper row rotor for reliable operation.

Ventilation and protection type: The motor ventilation adopts radial self-ventilation mode. The cooling air enters from the upper cover along the axial side, passes through the inside, and is discharged from both sides of the upper cover hole.

The basic protection type is IP23, and it can be replaced with top windshield-derived pipe ventilation type IP44. 4-12 pole motors can also be derived as air-to-air cooler with closed circulation ventilation type IP44 and climate protection type IPW24.

This type of motor is suitable for use in environments where the ambient temperature is -15~+40 degrees Celsius, the altitude is not more than 1000m, and no hazardous gas environment.

Y series high-voltage three-phase asynchronous motors realize the production of small frame size under equal motor power. It features good heat dissipation, compact structure, light weight, high efficiency, and convenient maintenance. It is widely used by enterprises across various working conditions.

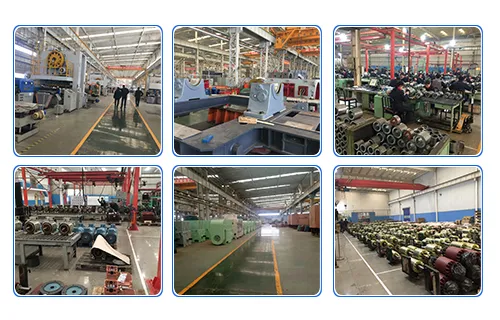

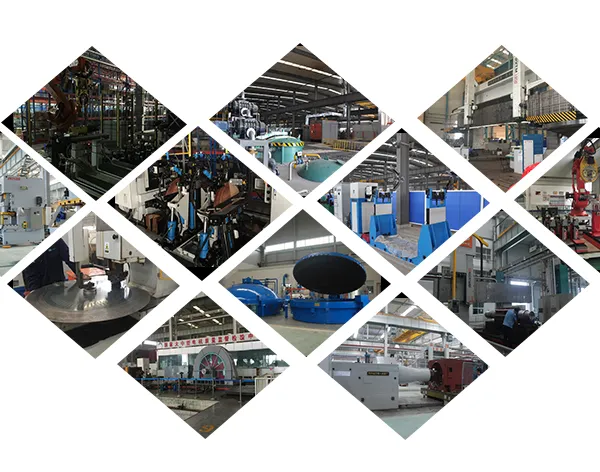

The manufacturing facility utilizes large-scale laboratories, intelligent CNC winding machines, CNC rising machines, automatic wrapping machines, VPI high pressure vacuum immersion systems, and double-feedback test systems with 6MW (12MW) motor detection. More than 500 sets of professional equipment ensure the high quality of motor products. The factory adheres to green, efficient, and energy-saving production, strictly implementing motor standard processes and selecting high-quality materials.
