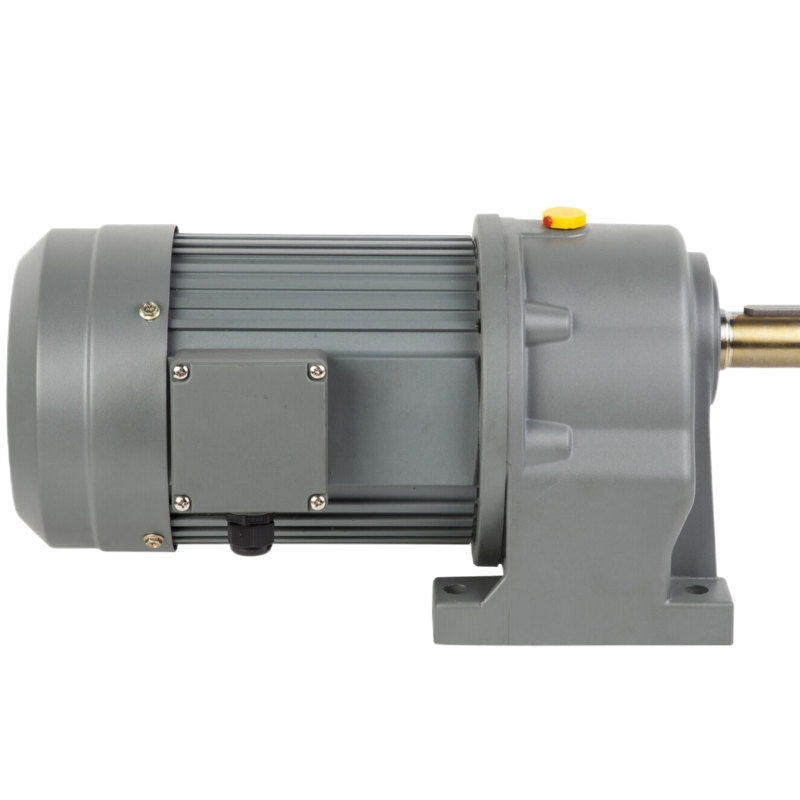

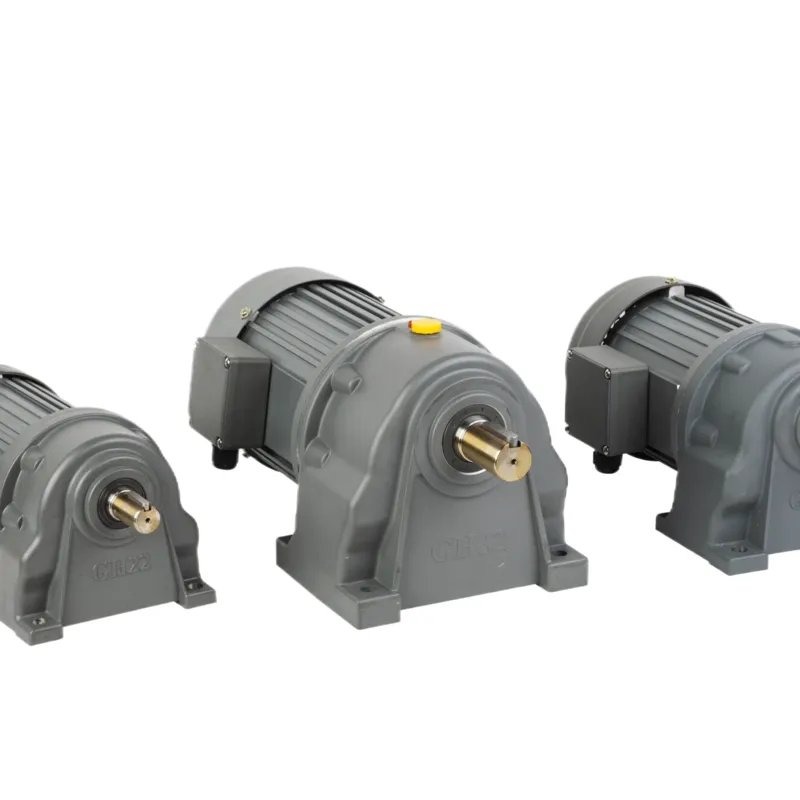

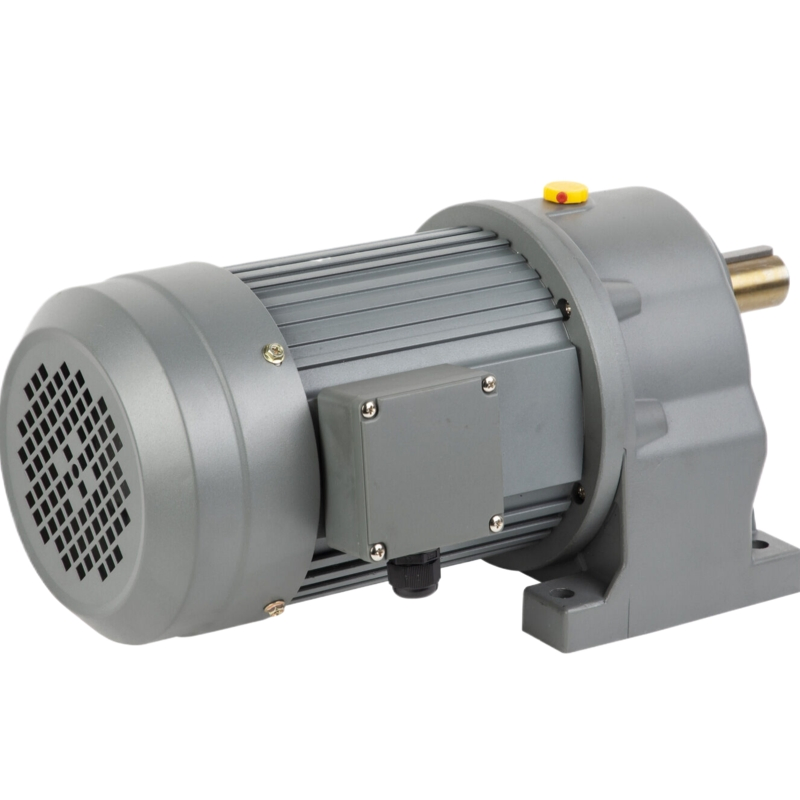

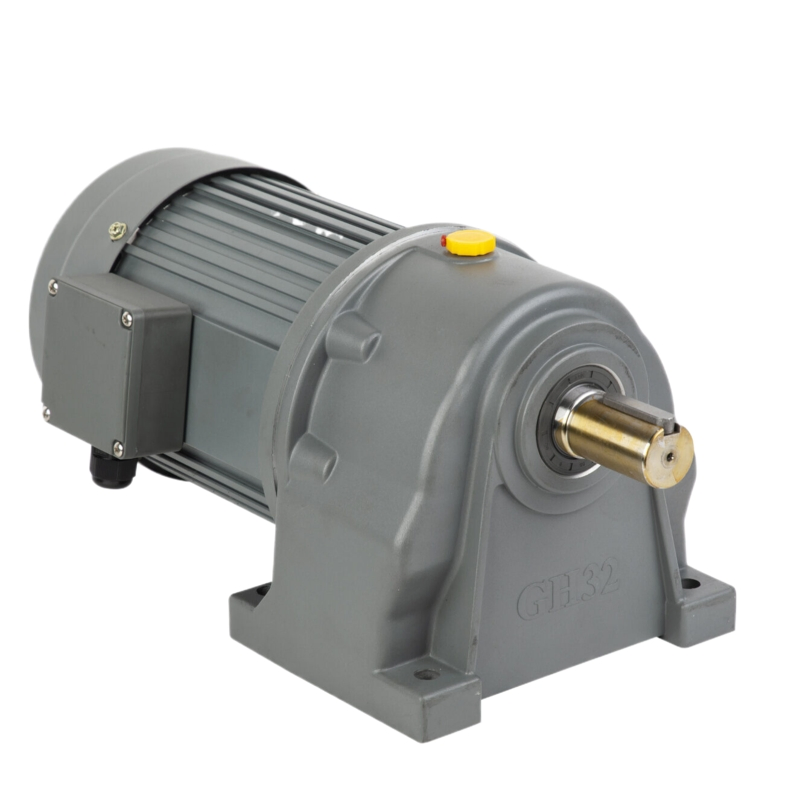

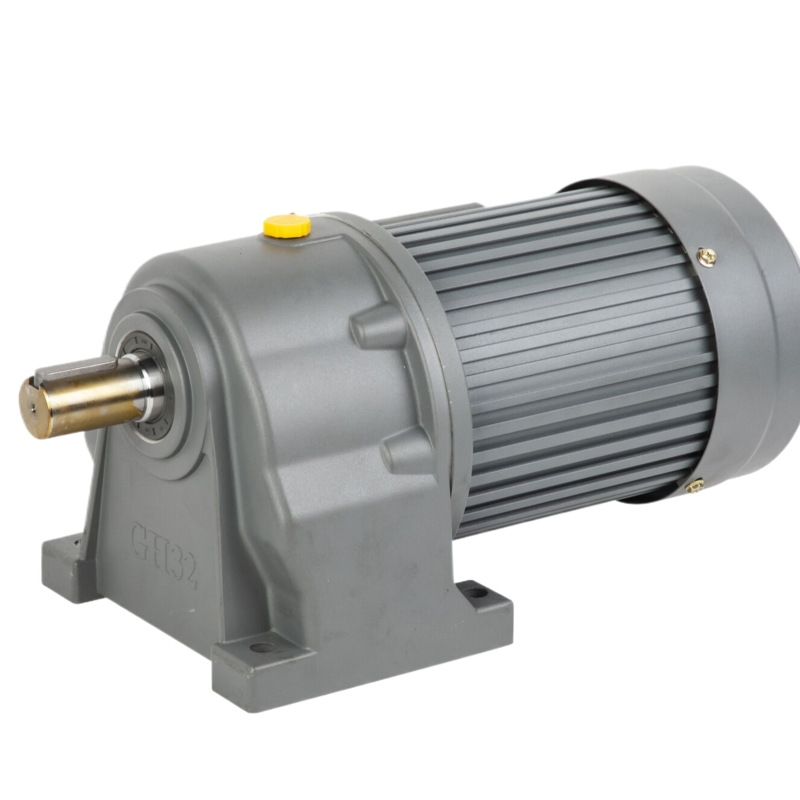

Extended Longevity & Performance: These Small AC Gear Motors promise extended longevity and consistent performance across a wide array of applications. With a variety of torque outputs available, they are meticulously engineered to cater to diverse load requirements, offering unparalleled performance.
| No. | Structure Style | Details |
|---|---|---|
| 1 | Structure style | GH:Horizontal | GV:Vertical |
| 2 | Output shaft diameter | 18:Φ18mm | 22:Φ22mm | 28:Φ28mm | X:ΦX |
| 3 | Rated power | 100W | 200W | 400W | 750W | XW |
| 4 | Reduction ratio | 90:1 | 5:1 | 10:1 | 20:1 | 30:1 | X:1 |
| 5 | Rated voltage | A:1phase 110v/220v | C:1phase 220v | S:3phase 220v/380v |
| 6 | Brake unit | DC90v brake working when power off |
| 7 | Terminal box position | G1:Left | G2:Right | G3:Top | G4:Down |

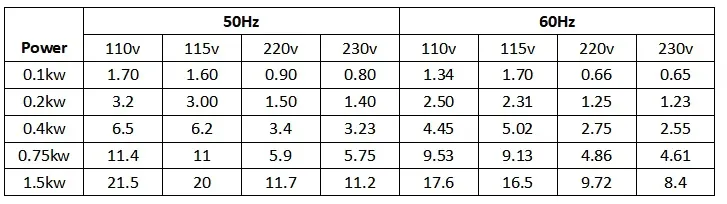

1-Phase Small AC Gear Motor (Current A)

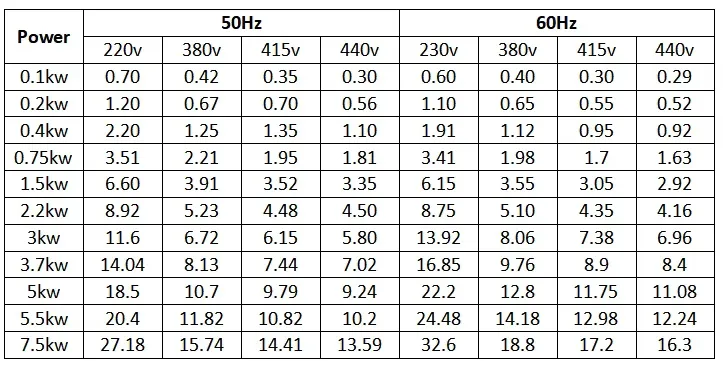

3-Phase Small AC Gear Motor (Current A)

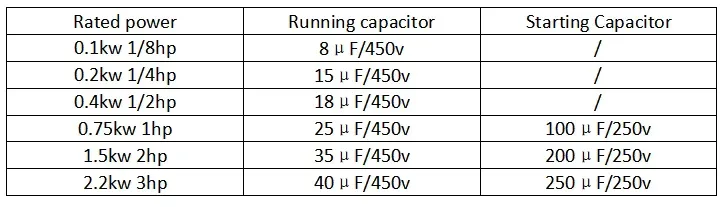

Output Shaft Diameters & Capacitors
