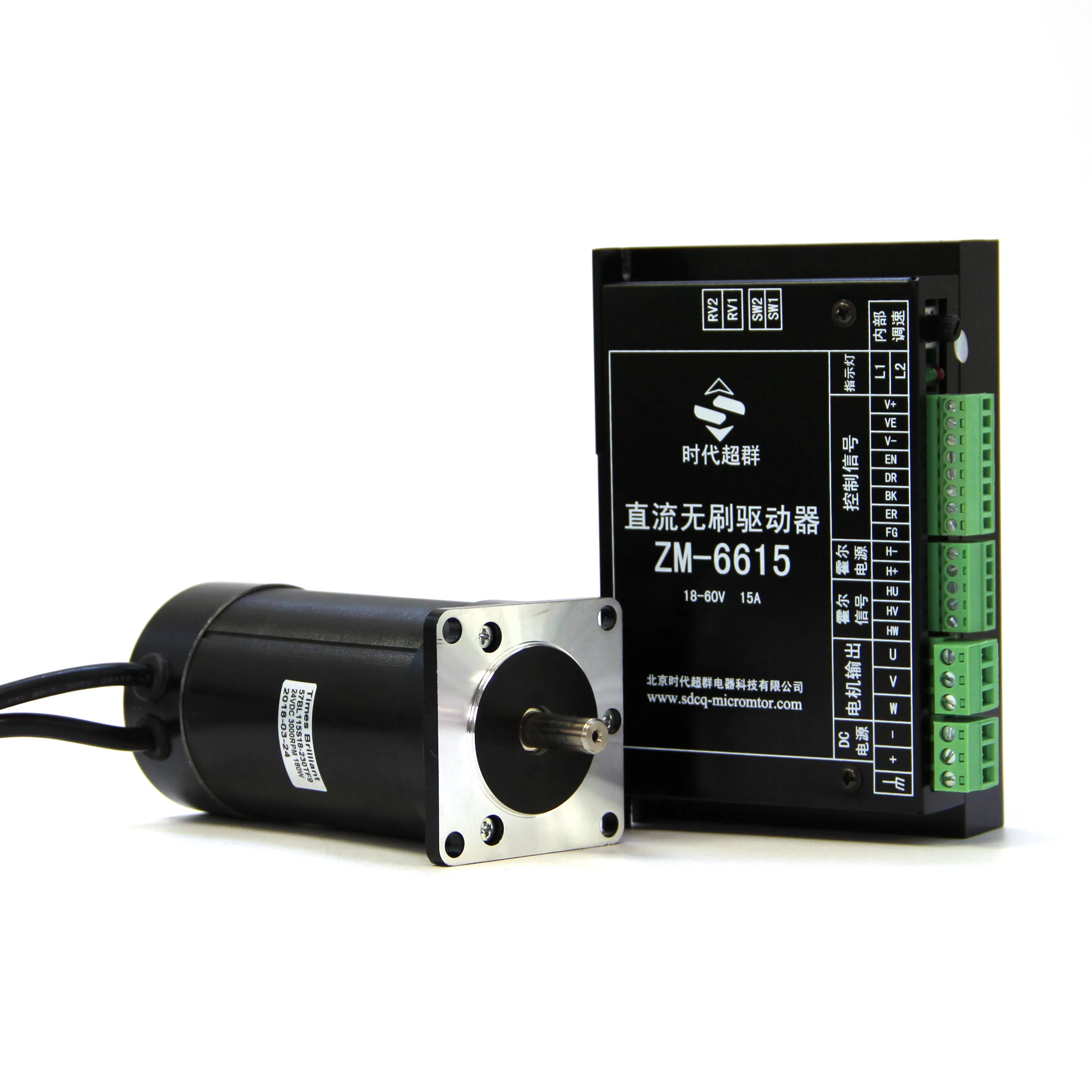

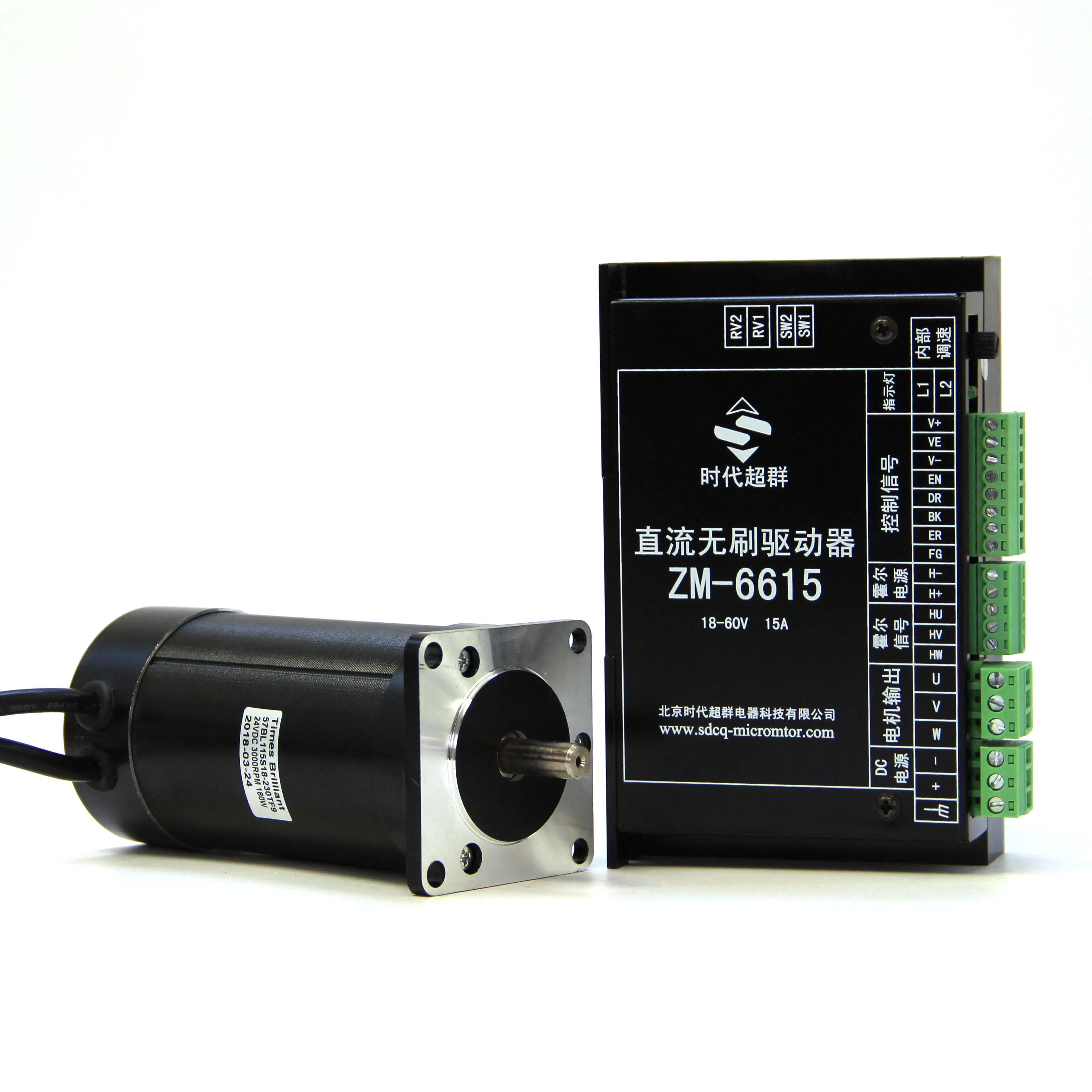

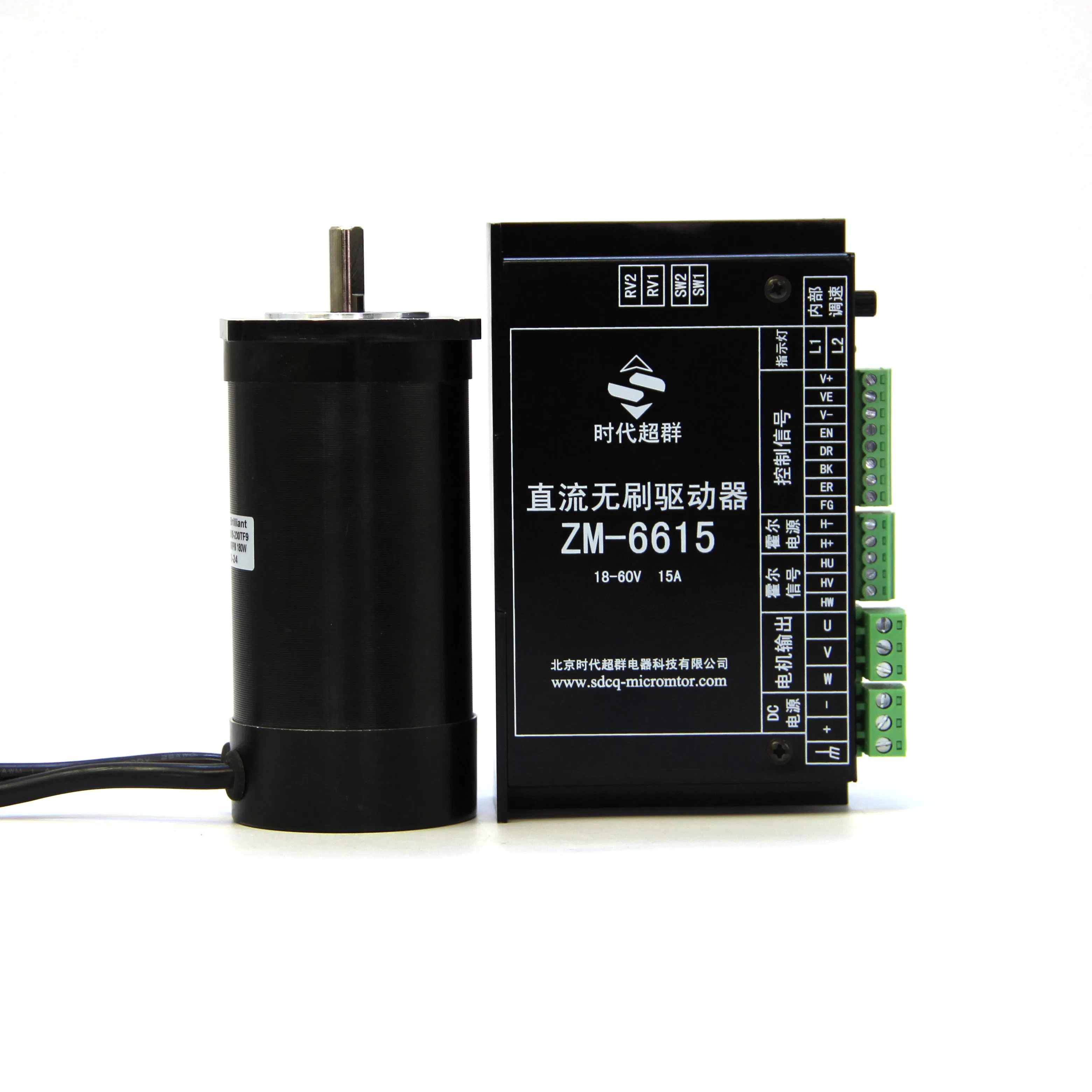

BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
1 / 5
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit
BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit

BLDC Motor 24V 180W Powerful DC Brushless Motor with Driver Controller Kit

Customization: Available
Application: Household Appliances
Operating Speed: Constant Speed
Send Inquiry

Product Description

📋 Technical Overview
Model NO.
57BL115S18-230TF9
Rated Voltage
24VDC
Power Output
180W
Rated Speed
3000rpm
Torque
0.6nm
Structure
Brushless DC (BLDC)
Number of Poles
4
Excitation Mode
Compound
Protection
Drip-Proof / IP Type
Certification
CE
Weight
1kg
Efficiency
IE 1
🚀 Key Applications

This high-performance BLDC motor is ideal for Boats, Cars, Electric Bicycles, Fans, and various Home Appliances requiring stable 24V power and high-speed operation.

🔍 Product Details

Low noise 3000rpm high speed BLDC motor 24V 180W powerful DC Brushless motor with driver controller kit

Product Banner

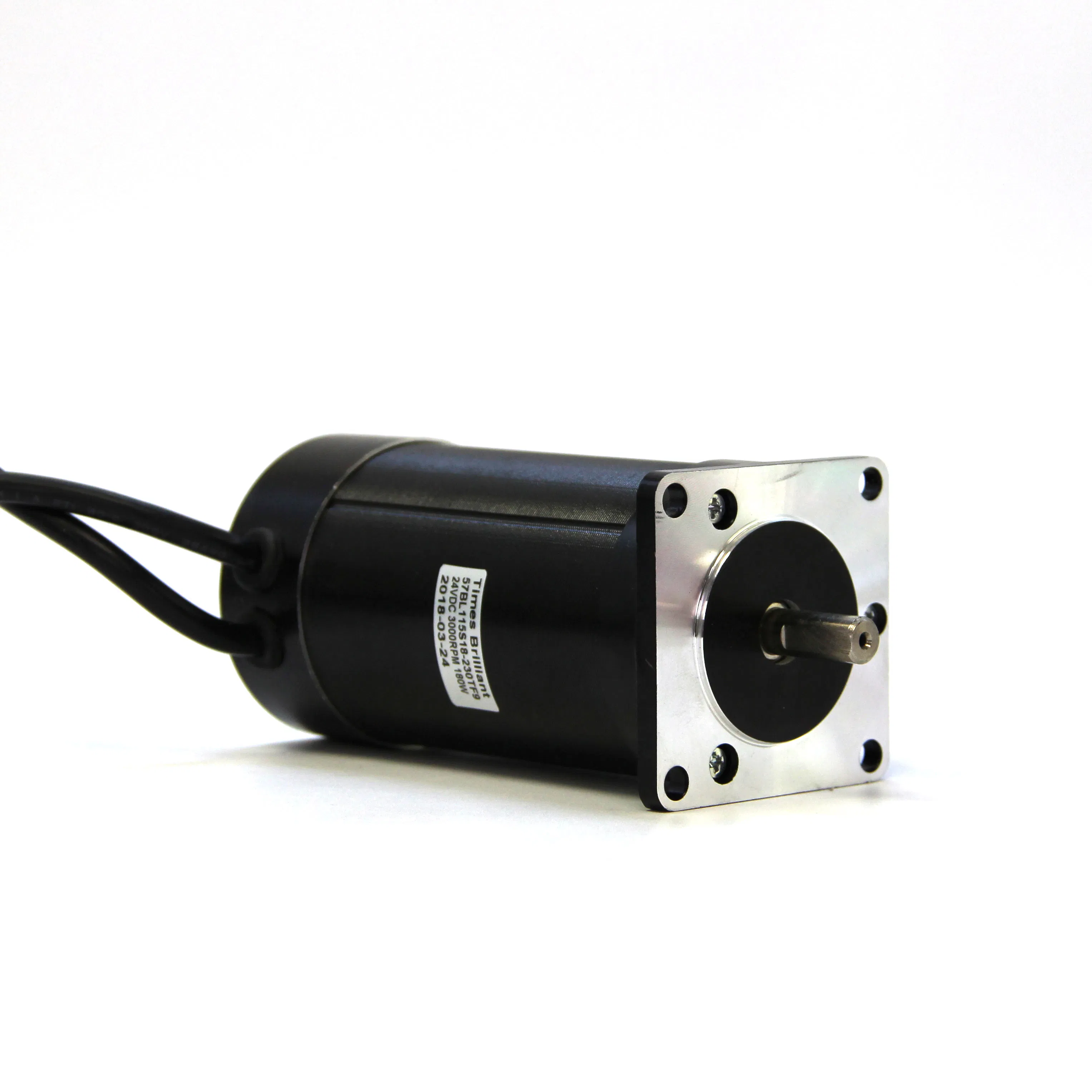

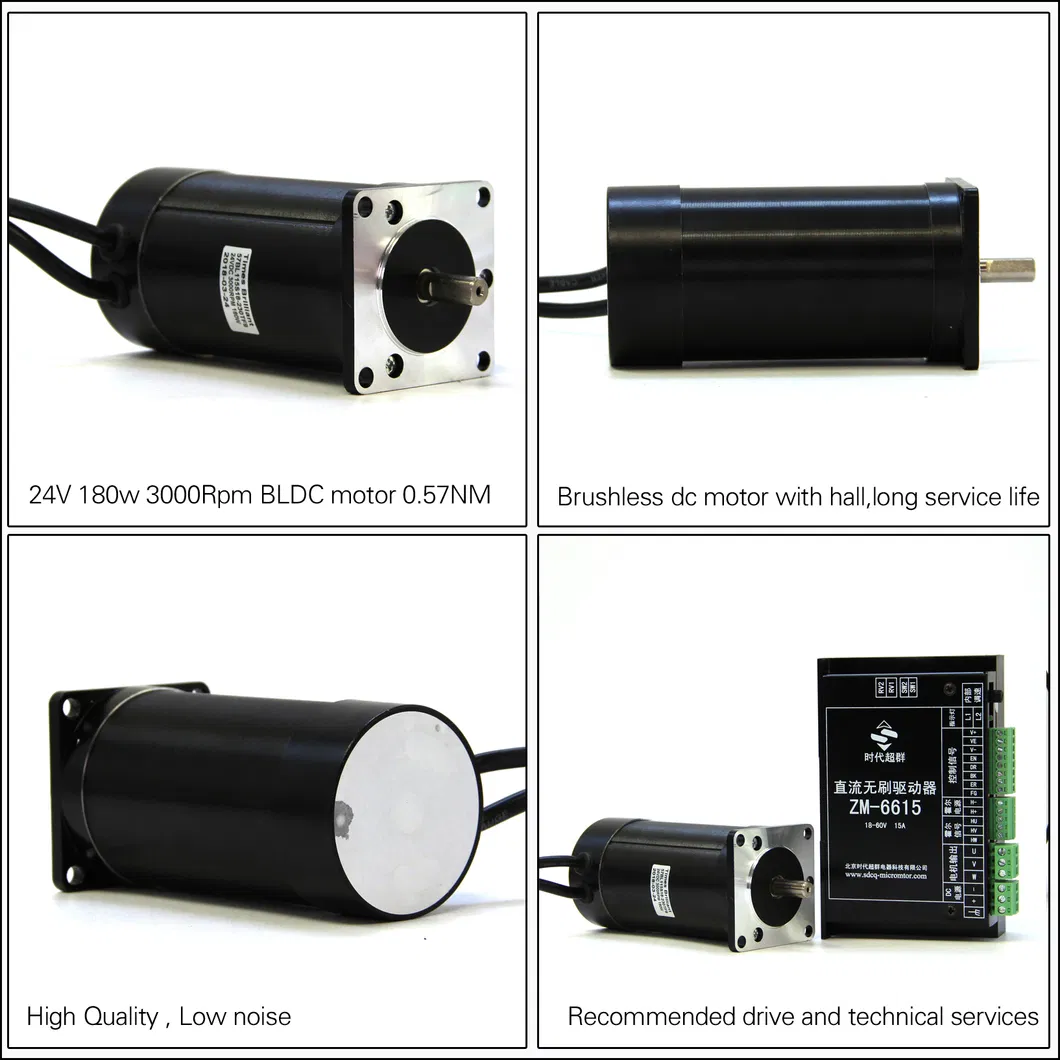

BLDC Motor View 1

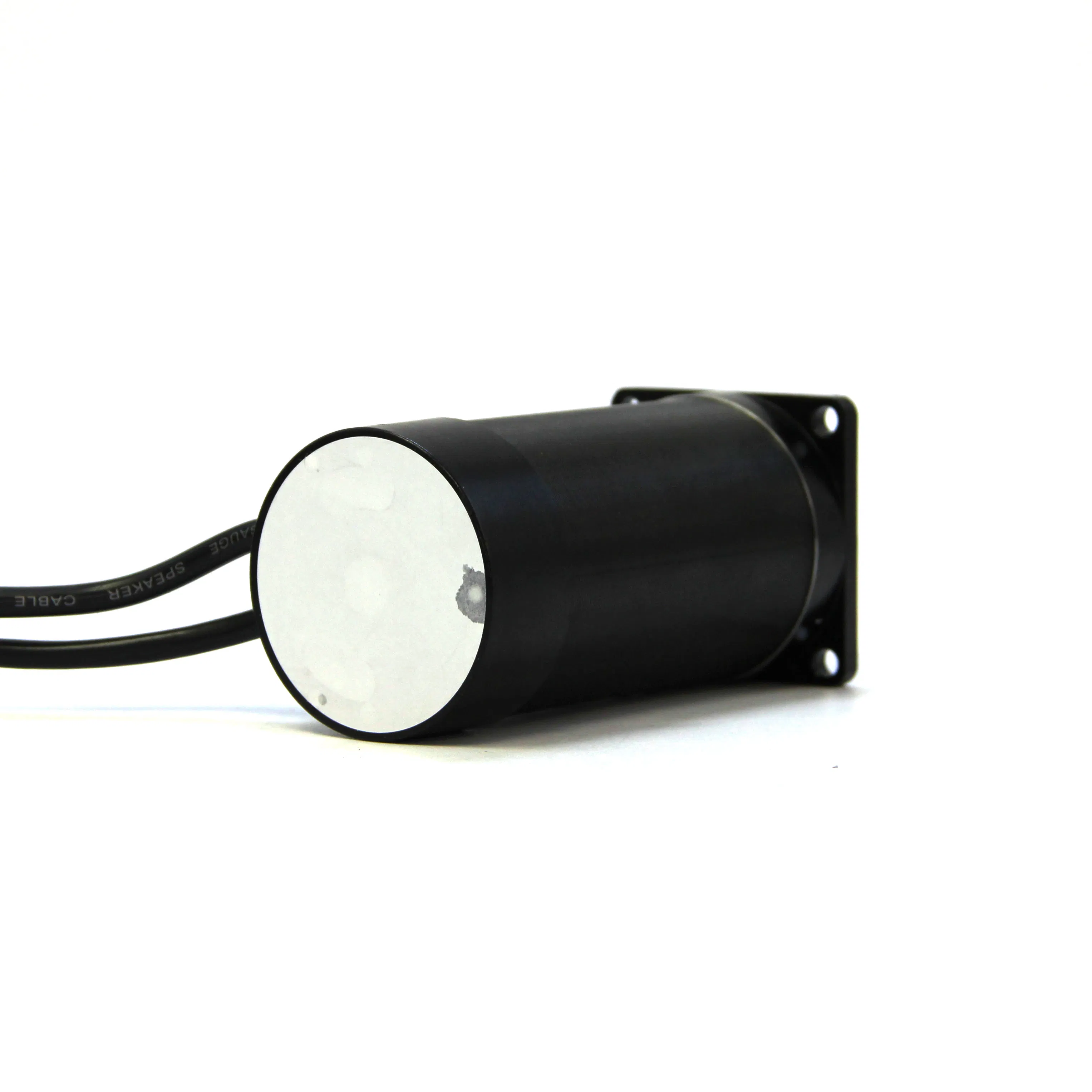

BLDC Motor View 2
Feature Header

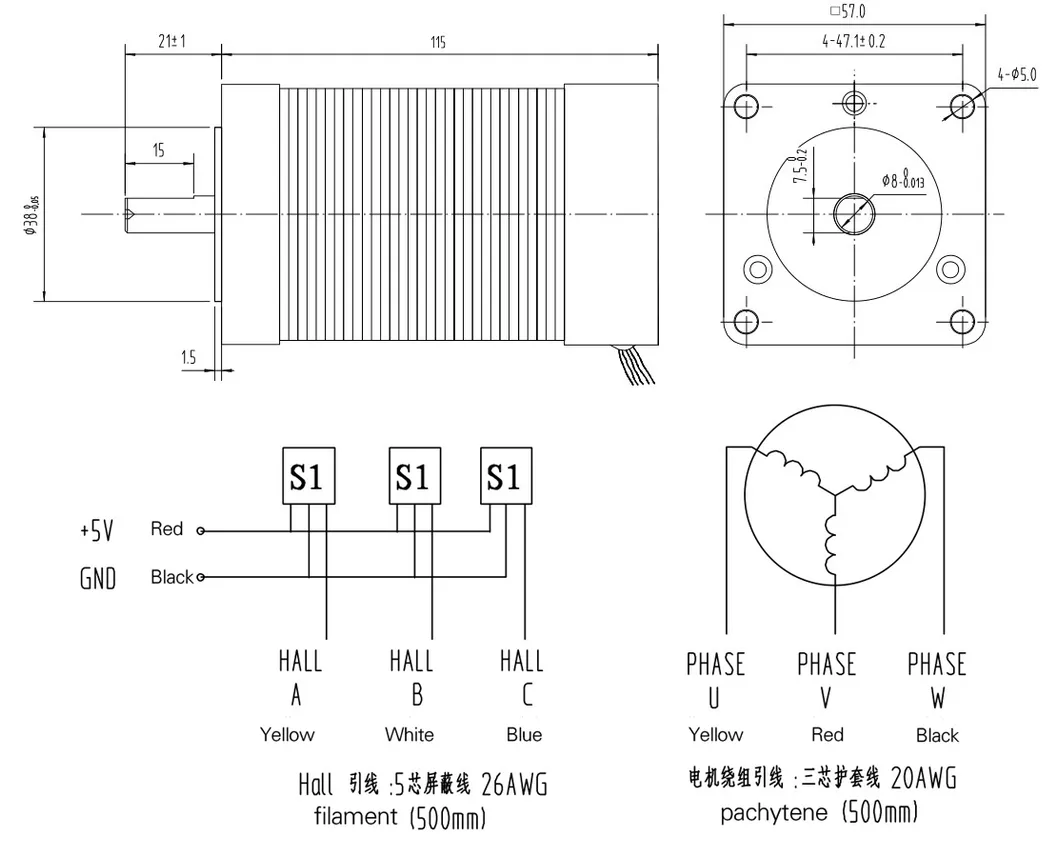

Dimensional Drawing

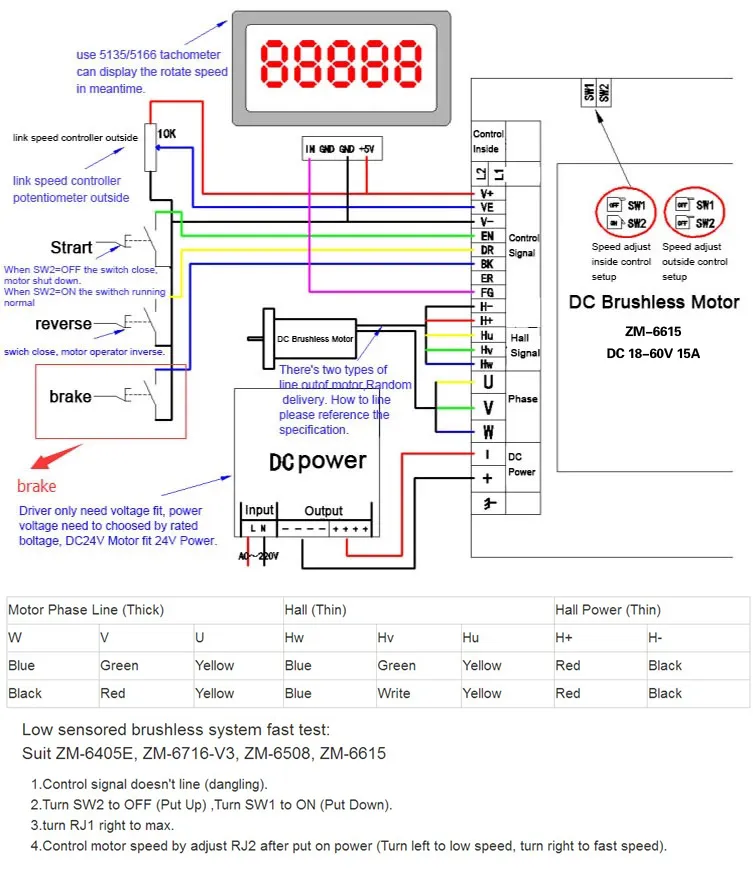

Technical Chart

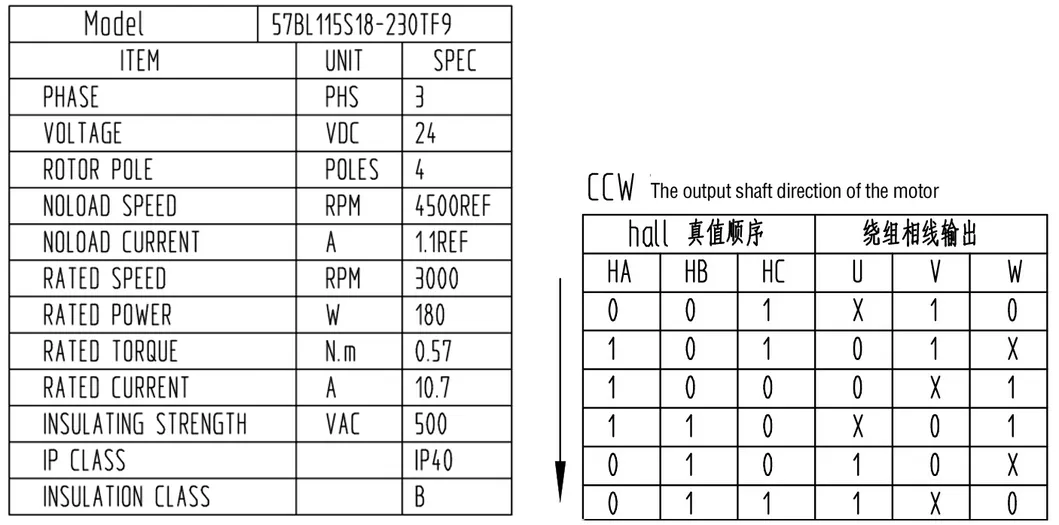

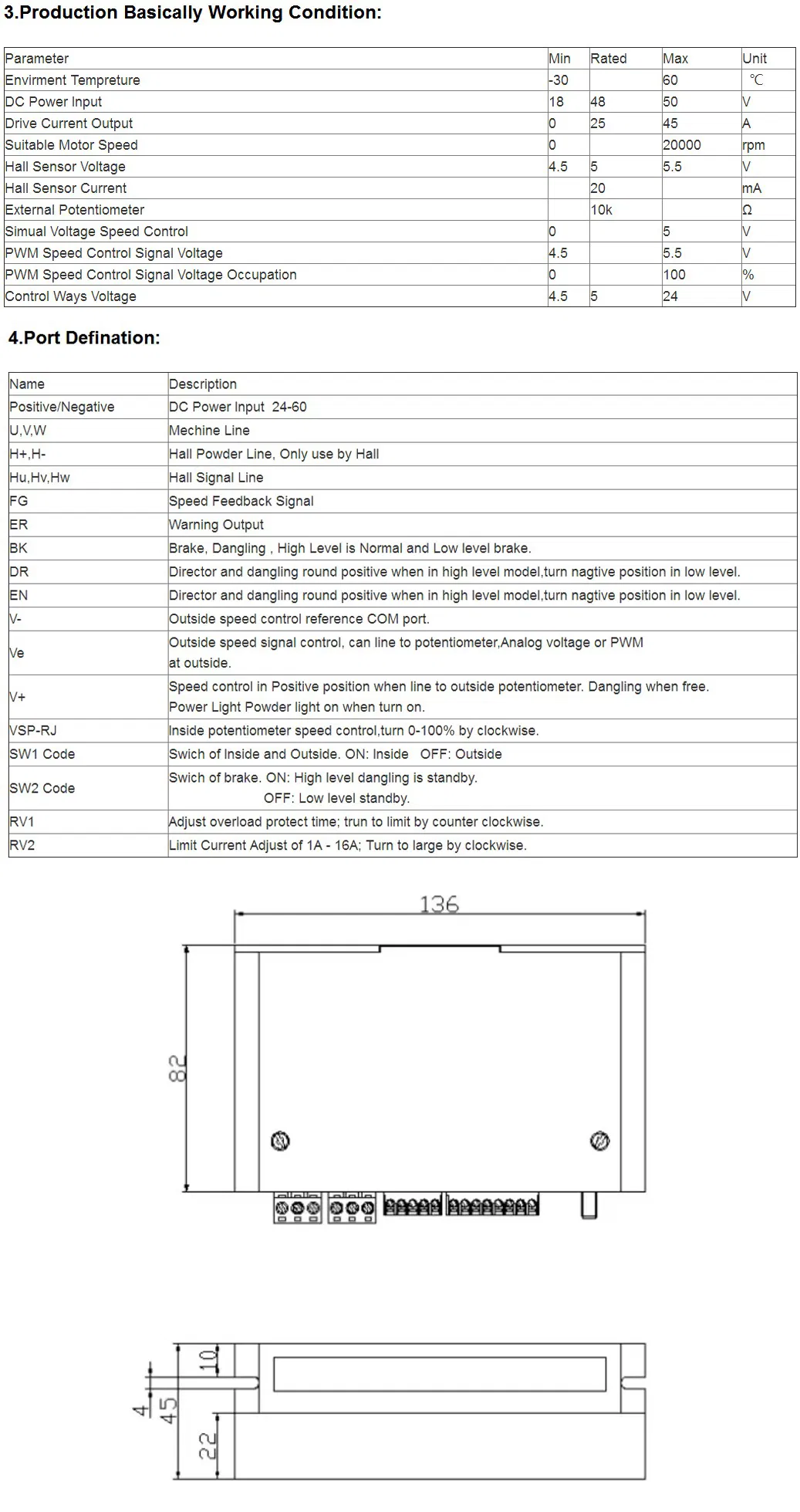

Performance Specifications
📦 Packaging & Delivery
Package Size
80.00cm * 80.00cm * 120.00cm
Gross Weight
3.000kg
Package Materials
Polyfoam, Cardboard Carton
⚙ Additional Information
Product Options

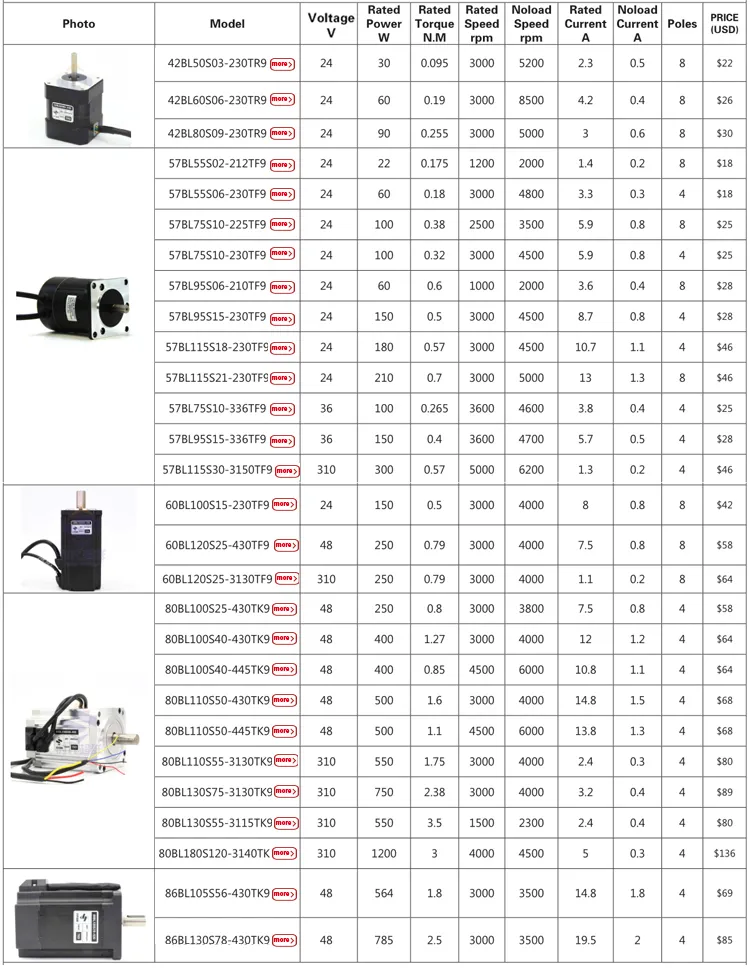

Related Series
🛐 Service & Certification
Our Services Product Certificates
❓ Frequently Asked Questions (FAQ)
1. What is the rated speed and voltage of this BLDC motor?
This brushless DC motor operates at a rated voltage of 24VDC and reaches a high speed of 3000rpm.
2. Does the package include a controller?
Yes, this is a powerful DC Brushless motor kit that comes with a compatible driver controller.
3. What are the main applications for this 180W motor?
It is widely used for electric bicycles, cars, boats, fans, and various home appliances that require a reliable driving motor.
4. What is the torque output of the 57BL115S18 model?
The motor provides a stable torque of 0.6Nm, suitable for high-speed driving functions.
5. Is the motor protected against water or dust?
The motor features a drip-proof protection design, making it suitable for environments where slight moisture exposure may occur.
6. What certifications does this product hold?
The product is CE certified, ensuring it meets the necessary safety and environmental standards for its category.
