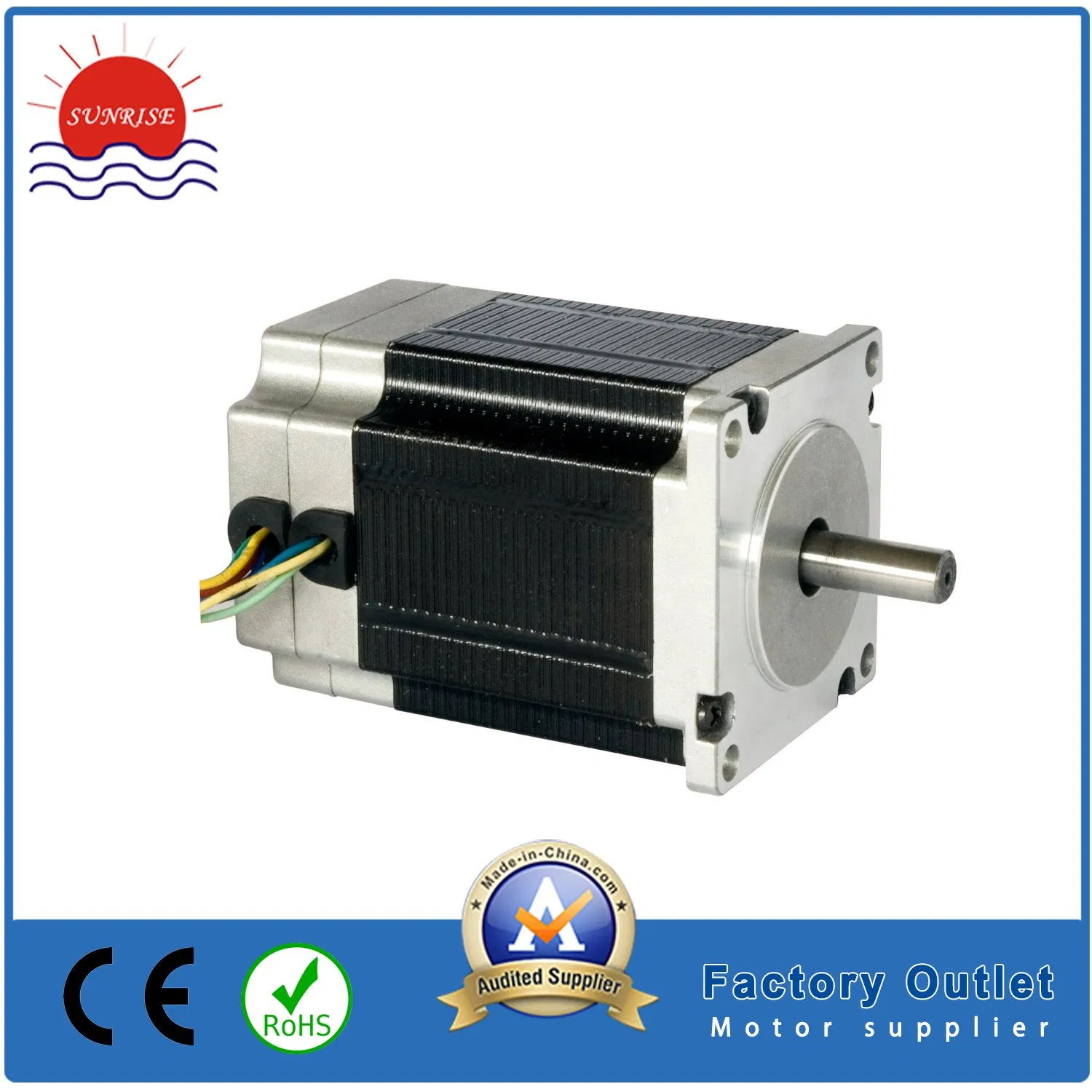

57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
1 / 5
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor

57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

👤 Customer First
🛠️ Service Foremost
🛡️ Quality Guarantee
BLDC Motor
Basic Info
Model NO.
57BL3A50
Function
Driving
Number of Poles
8
Structure
Brushless
Certification
ISO9001
Voltage
24VDC/36VDC
Power
62W
Speed
3000rpm
Transport Package
Carton/ Pallets
HS Code
85013100
Production Capacity
40000PCS/Year
Product Description
Specification Unit 57BL3A50 57BL3A70 57BL3A90
Rated voltage V +24+36 +36+48 +36+48
Rated out power W 6262 125125 185185
Rated speed rpm 3000
Rated current A 3.32.2 4.43.2 6.54.8
Rated torque N.m 0.20.2 0.40.4 0.60.6
Peak current A 10.56.5 13.49.8 2014.9
Peak torque N.m 0.580.6 1.291.31 1.92
Number of poles NP 88 88 88
Motor weight Kg 0.650.65 1.01.0 1.41.4
Remark:
1. Motors are available with different winding and mechanical modifications to meet specific applications.
2. Can match encoder.

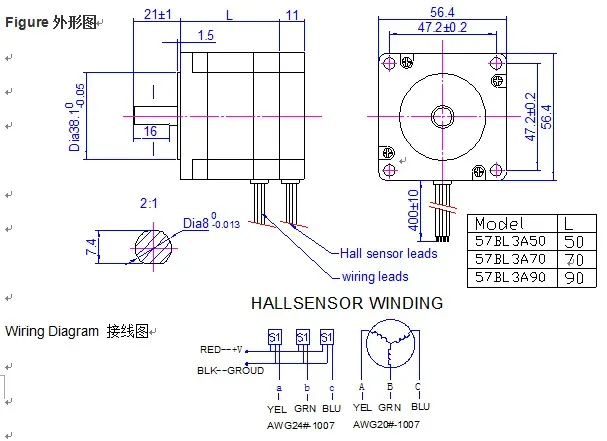

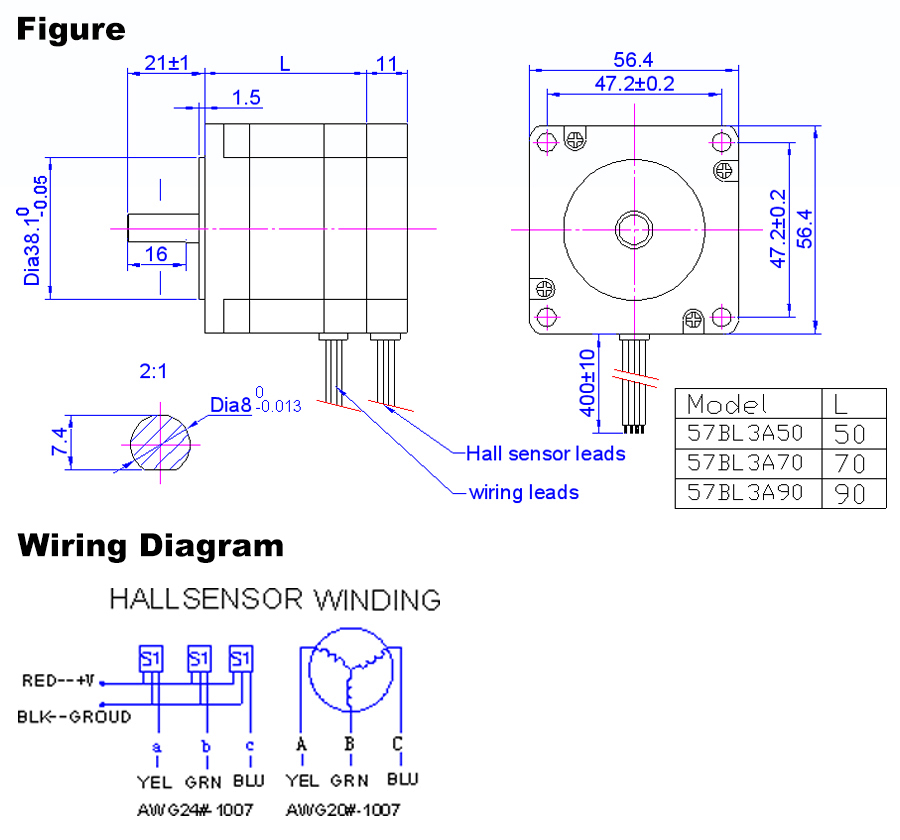

Technical Drawing
Product View 1 Product View 2 Product View 3
