| Environmental & Protection Standards | |
|---|---|
| Environmental Conditions | -20ºC~50ºC |
| Insulation Class | B |
| Protection Class | IP44 |
| Noise Level | ≤65dB |
| Number of Poles/Phases | 8 / 3 |
| Lifespan | >5000h |

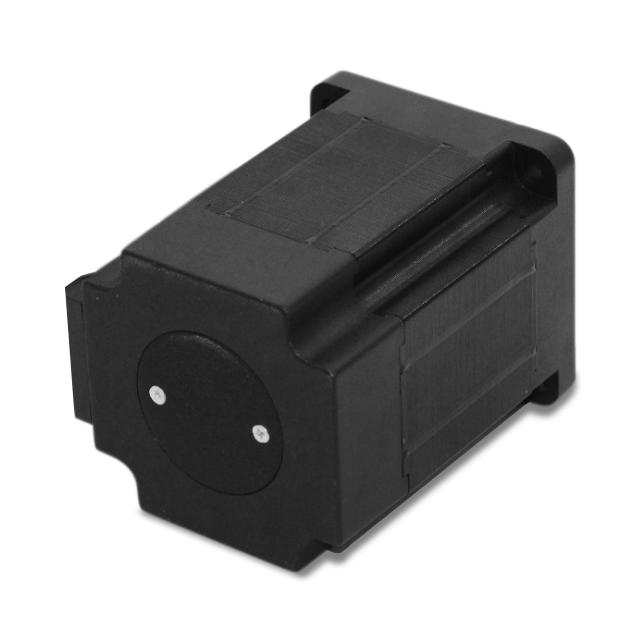

| Model | RATED LOAD | NO LOAD | STALL | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Voltage (V) | Power (W) | Speed (rpm) | Torque (N.m) | Current (A) | Speed (rpm) | Current (A) | Torque (N.m) | Current (A) | |
| 86BL01 | 48 | 314 | 3000 | 1 | 8.5 | 4000 | 2.1 | 3 | 25.5 |
| 86BL02 | 48 | 400 | 3000 | 1.27 | 10.8 | 4000 | 2.7 | 3.81 | 32.4 |
| 86BL03 | 48 | 565 | 3000 | 1.8 | 14.8 | 4000 | 3.7 | 5.4 | 44.4 |
With over 40 years of experience in motor technology, our technical team ensures top-notch quality across our product range. Our motors are widely utilized in various sectors including:
