Long Lifespan: Carefully engineered with an unwavering focus on durability, our motor is designed to stand the test of time. This strategic design choice significantly reduces the need for frequent replacements and lowers maintenance costs, ensuring substantial long-term savings.

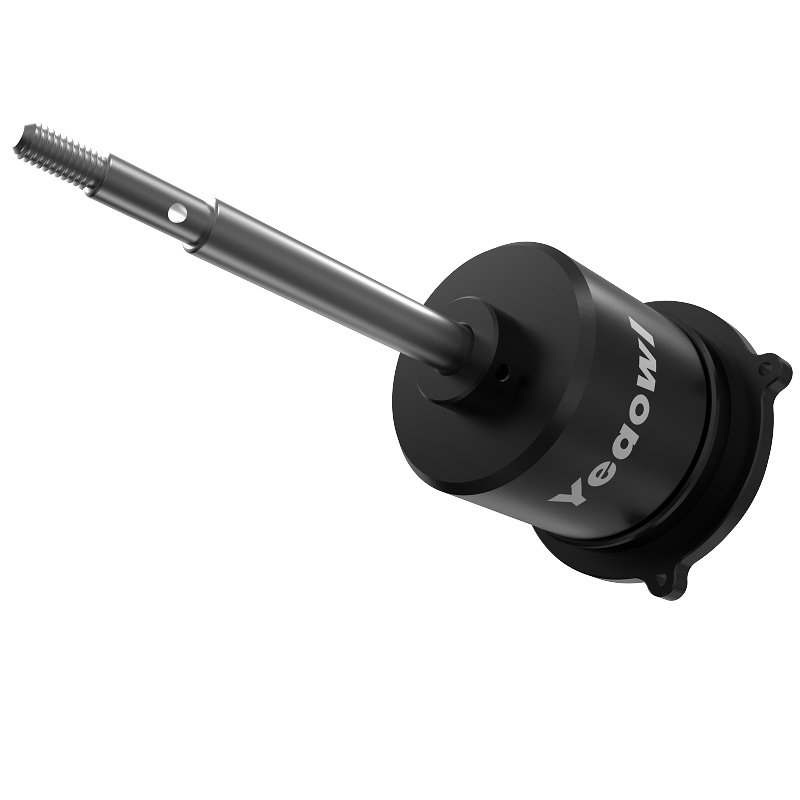

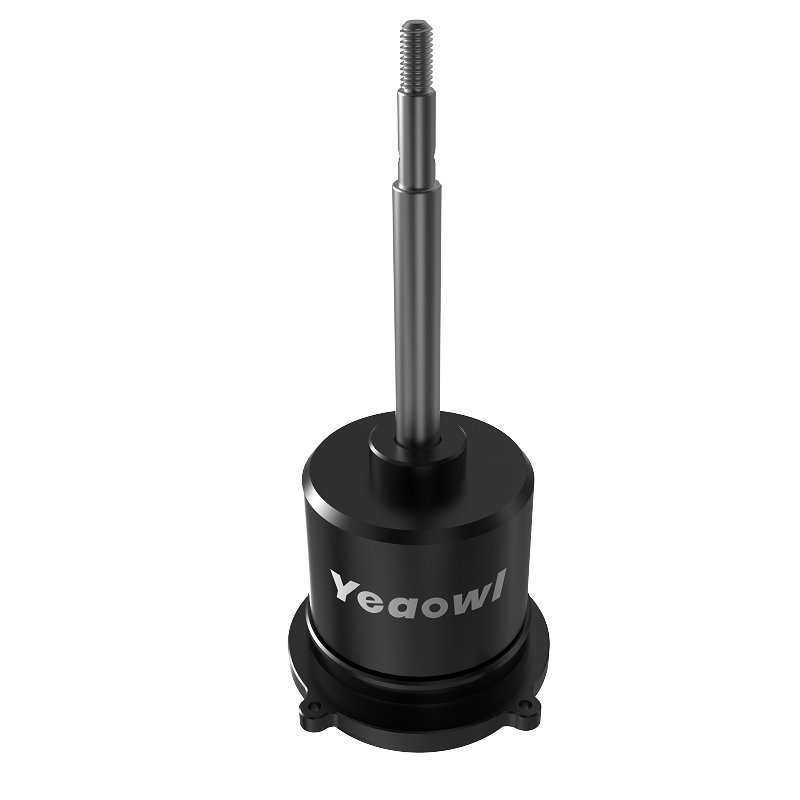

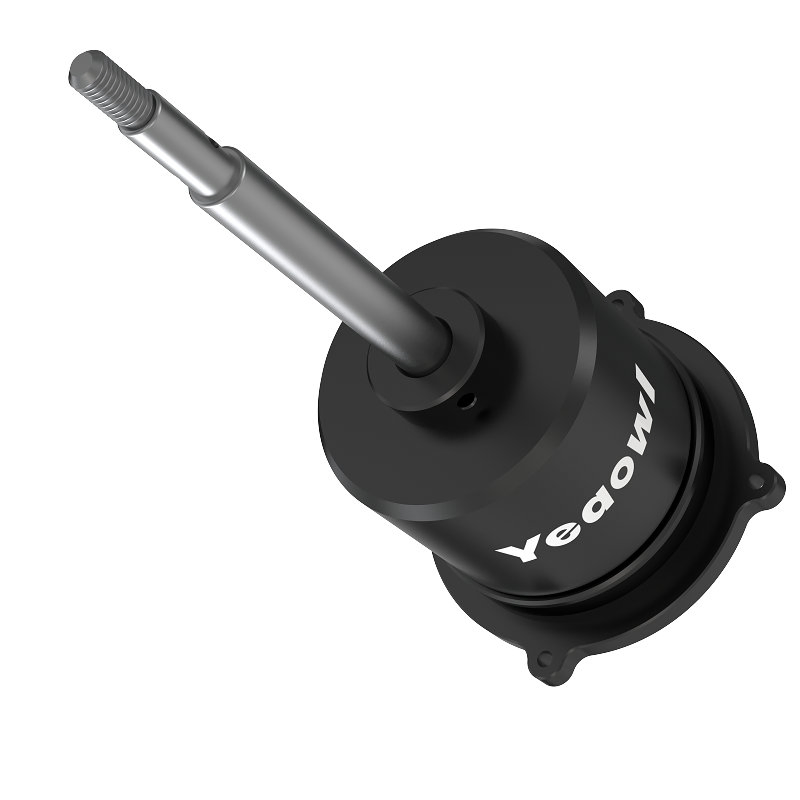

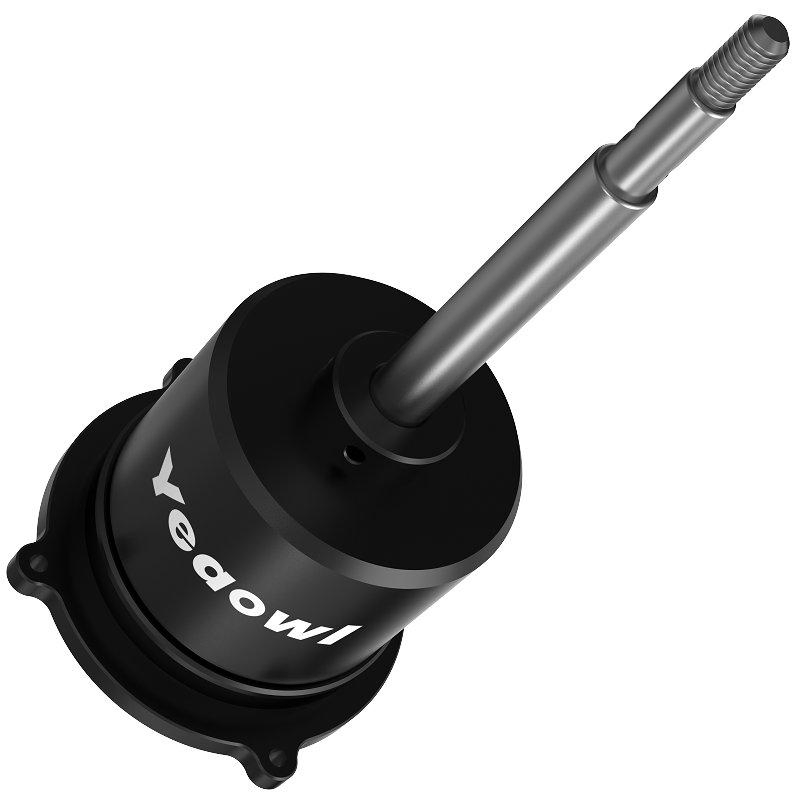

Experience the unmatched power and precision of the YO3623 motor, a masterpiece of modern engineering redefined for industry standards of efficiency and excellence.
| Rated Power | 240w | Stability | Strong stability for driver/controller |
| Production Time | Completion within 45 working days | Lifetime | Above continuous 10,000 hours |
| Adjustment | Easy speed & direction adjustment | Protection | IP68 protection rank available |
| Noise Level | Low noise (36mm to 23mm size range) | Efficiency | Above 92% energy efficiency available |
| Model | T | KV | Max Amps | Max Volt | Cont. (W) | Rated Torque | Max Power | Max RPM | Shaft Dia. | Weight | Poles |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3623 | 16T | 230 | 25A | 36V | 240 | 0.43 N.M | 600W | 8300 | Φ8mm | 320g | 14P |

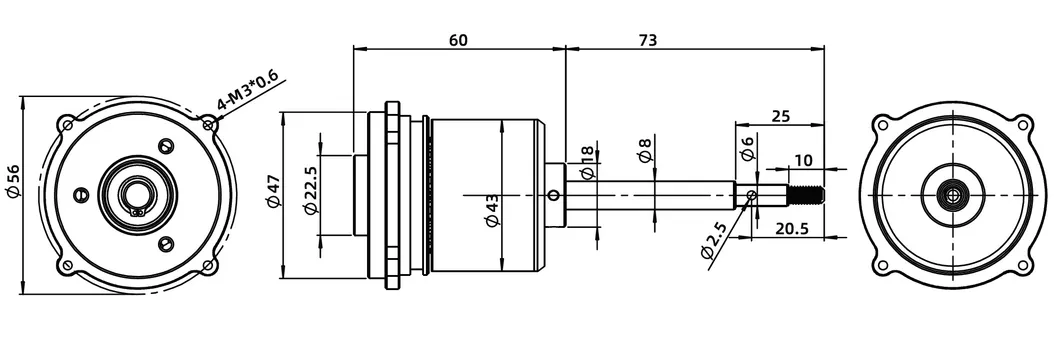

For more detailed insights into product specifications and parameters, please feel free to inquire. We are eager to provide you with the latest dimensional drawings.

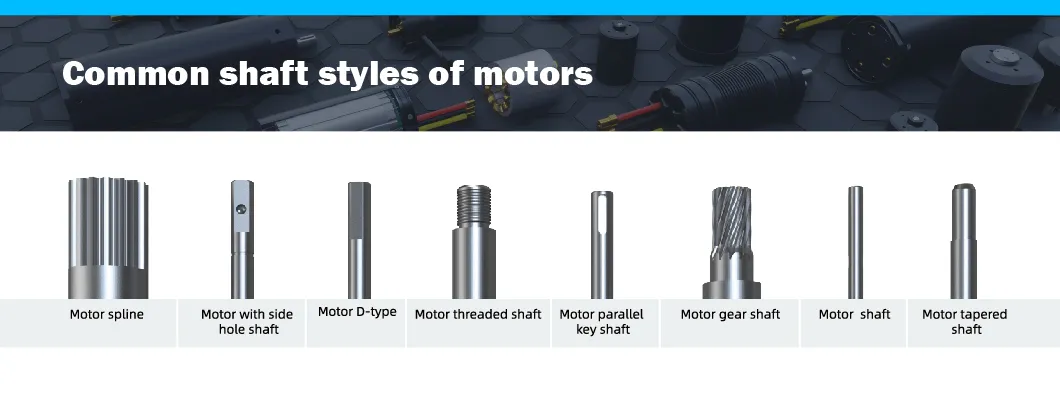

Our motors offer versatile customization in shape and technicality to mesh seamlessly with your unique specifications. We specialize in creating bespoke brushless motor solutions catering to diverse applications including waterproof and dustproof designs, custom housings, and variable shaft outputs.

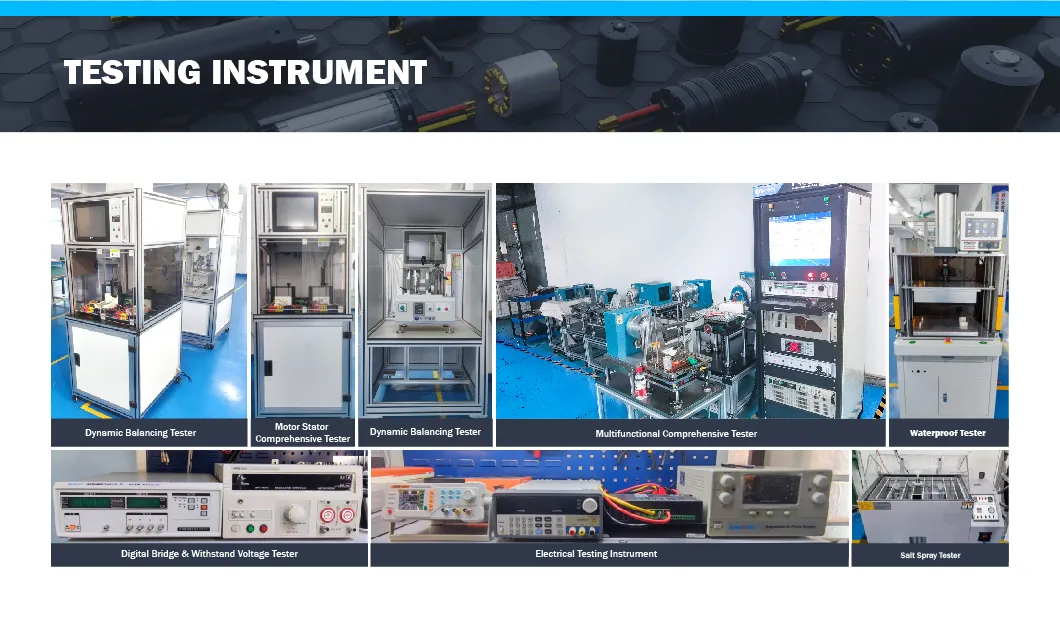

Equipped with state-of-the-art manufacturing and testing technologies, our team is committed to providing unparalleled quality. Our rigorous inspection processes cover raw material intake, through-production monitoring, and final product assessment using advanced instruments to guarantee the highest standards.
