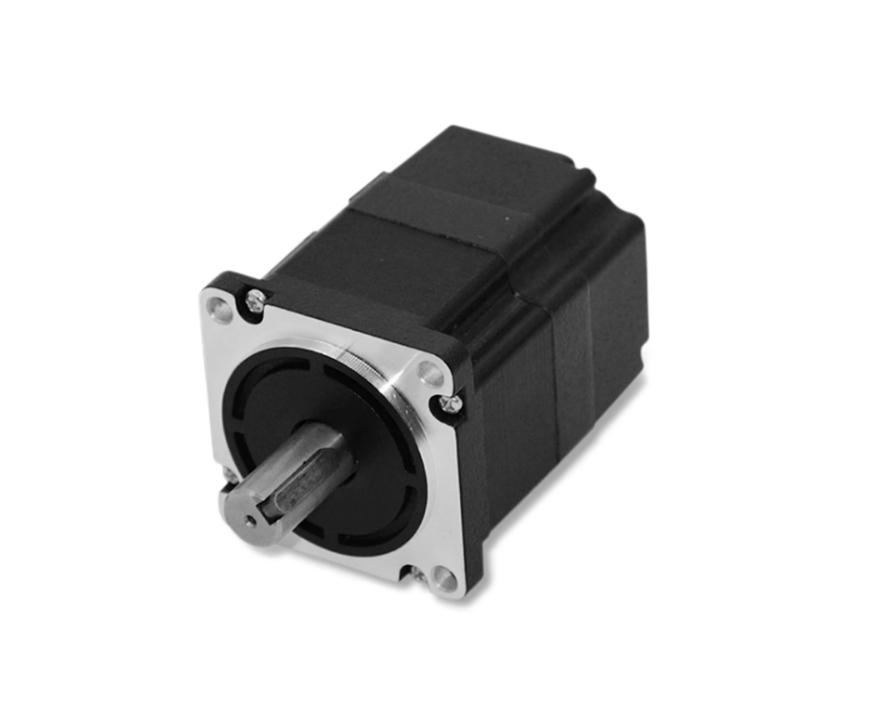

Durable Efficiency Customized 300W DC Brushless Motor BLDC Motor

📋

Basic Information

Model NO.:Brushless DC Motor

Excitation Mode:Excited

Function:Control, Driving

Casing Protection:Closed Type

Number of Poles:4

Working Principle:Brushless

Type:DC

Certification:ISO9001, CCC

Usage:Home; Industrial

Size:Customized

Transport Package:CTN

Origin:China

HS Code:850131000

Capacity:200000PCS/Year

⚙️

Product Description

A Brushless DC motor (BLDC) consists of a motor and a driver, representing a typical integration of mechanical and electrical systems. It is highly regarded in the market for its compact volume, low noise levels, high efficiency, wide range of speed control, and stable operation with high precision.

Product Photo Gallery

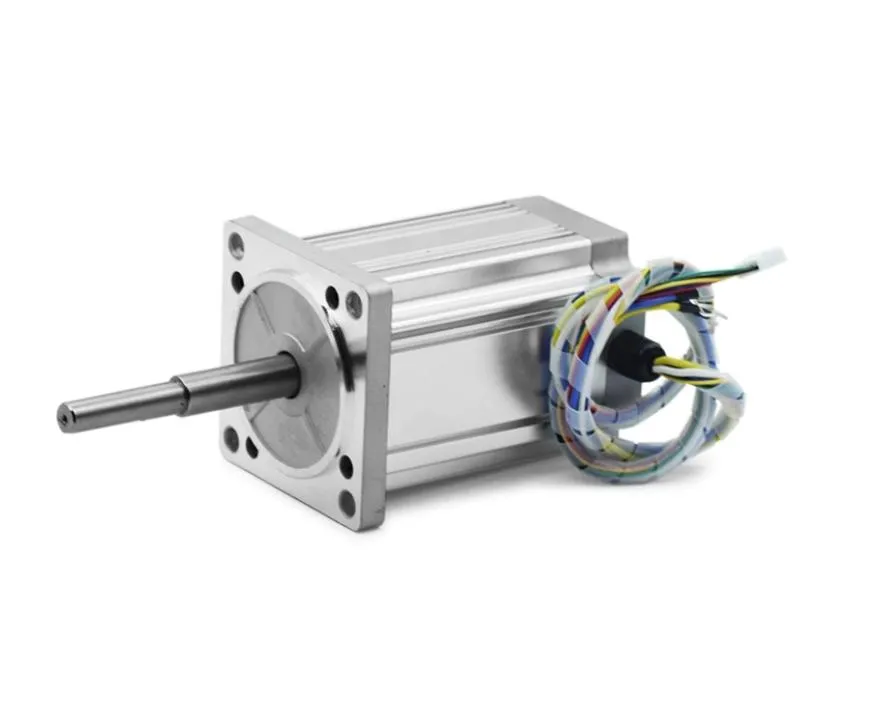

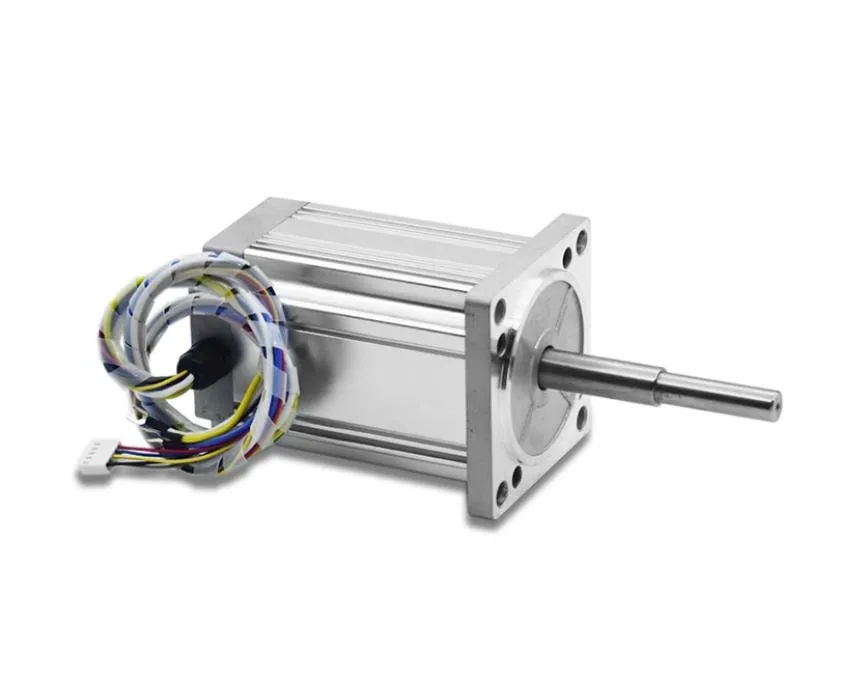

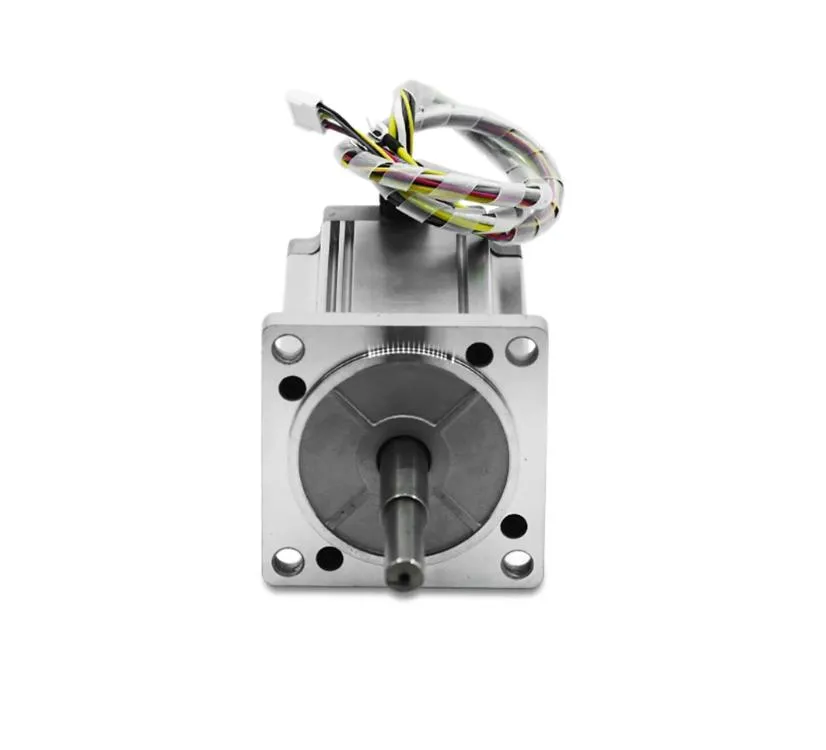

Type 1

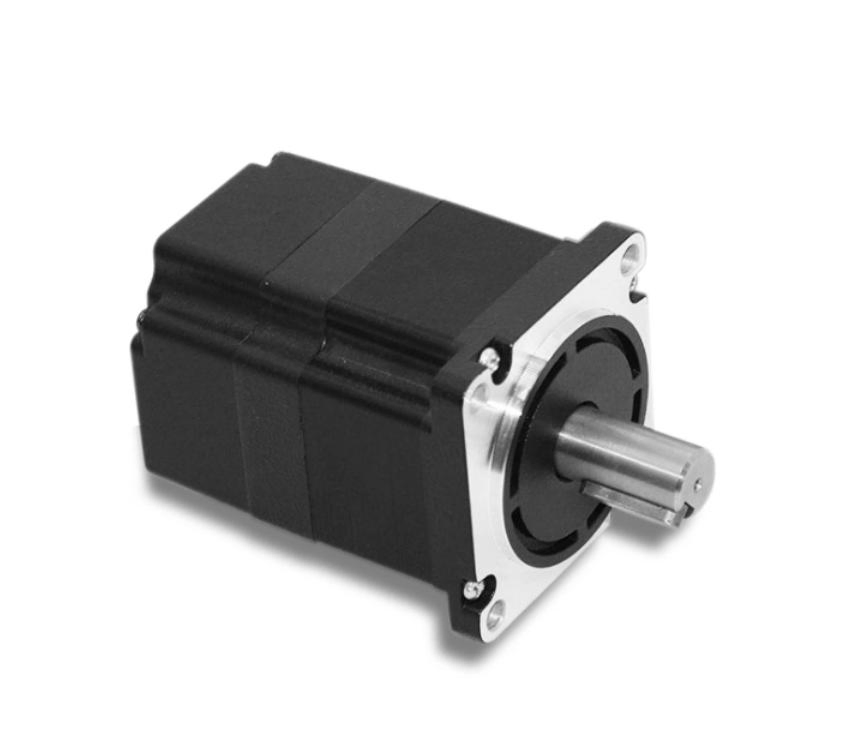

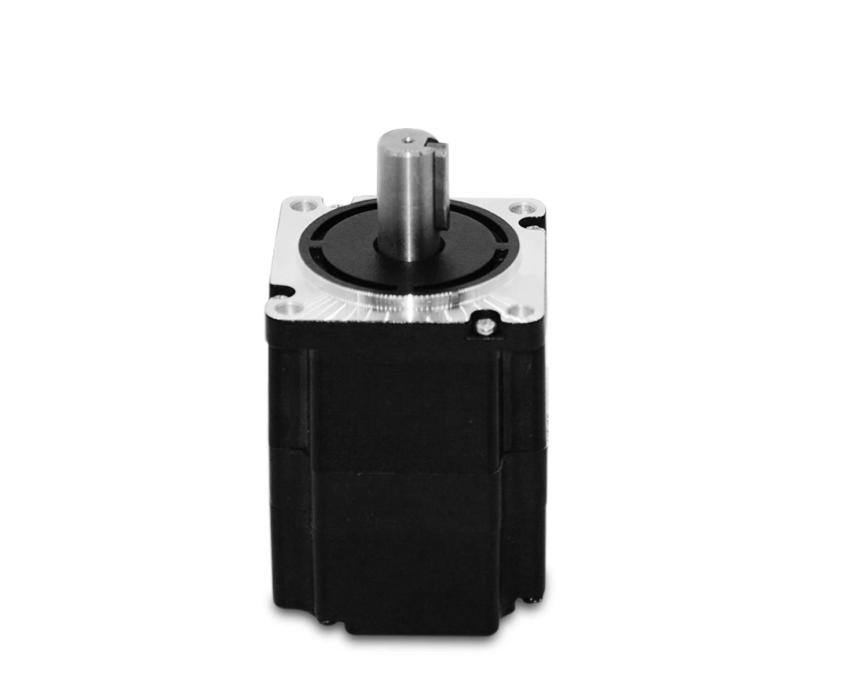

Type 2

📊

Technical Specifications

Motor Insulation Resistance: DC500(V) 1(SEC) 1(mA) MAX
Noise Level: <30dB
Operating Condition: Ambient -5~60ºC
Storage Condition: Temperature -10~125ºC, Humidity 10-95%
Max Coil Temperature: 105ºC
Max MCU Surface Temperature: 85ºC
Life Test: 15,000 hours (no load)
Working Life: 10,000 hours
Performance Data: Customizable per customer requirements
Wire Material: Copper (Aluminum available for cost-saving)
Bearing Options: Ball bearing or Oil/Sleeve bearing
Stator Material: Cold steel or Silicon steel
Thermal Protection: One-shot or recoverable thermal fuse options
Overall Features: High efficiency, superior quality, low energy consumption, and long lifespan

📐

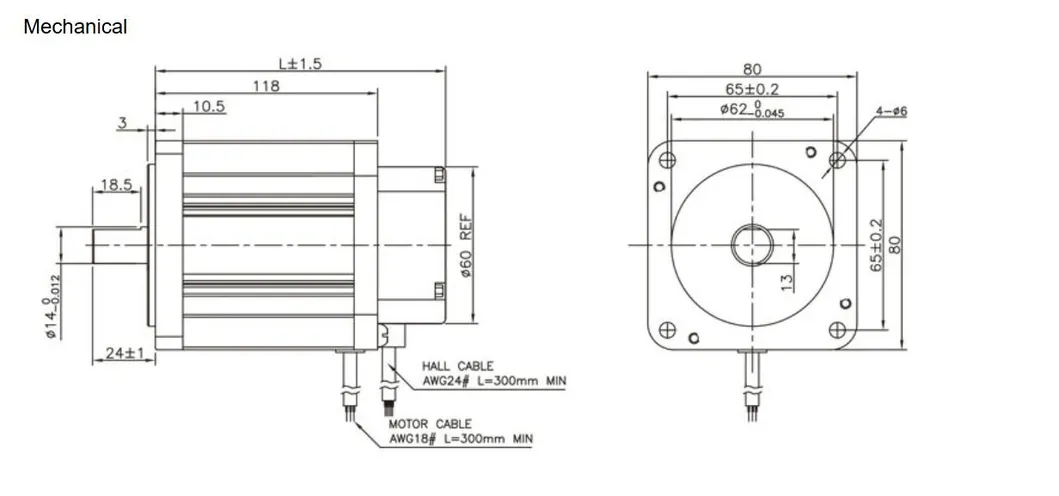

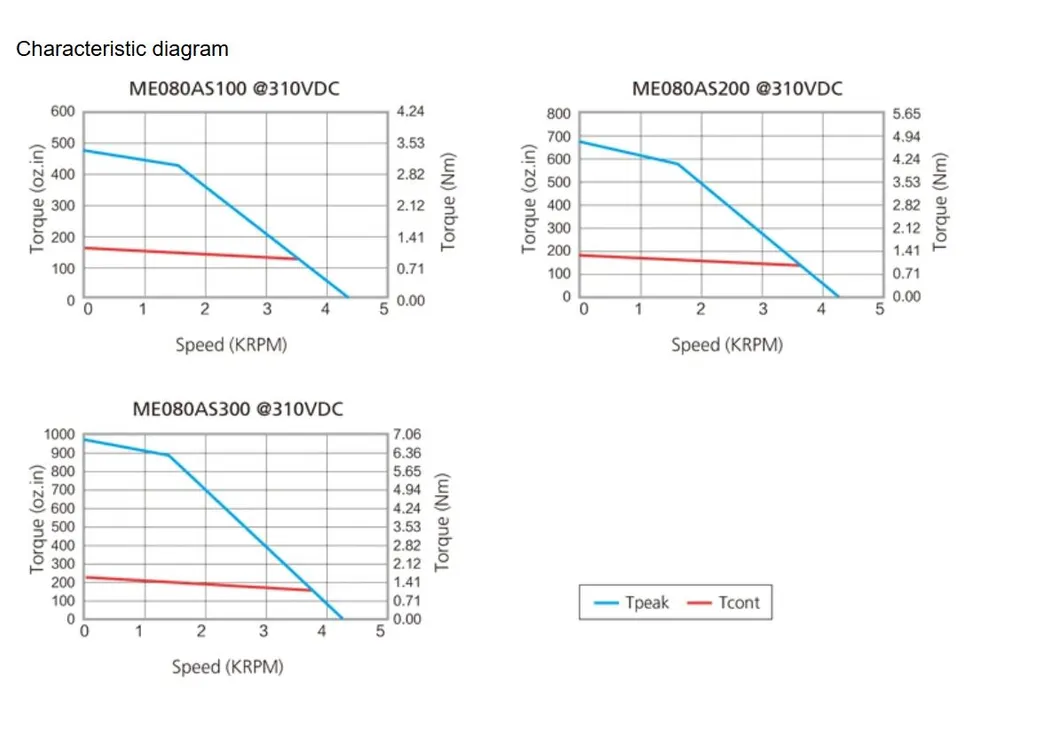

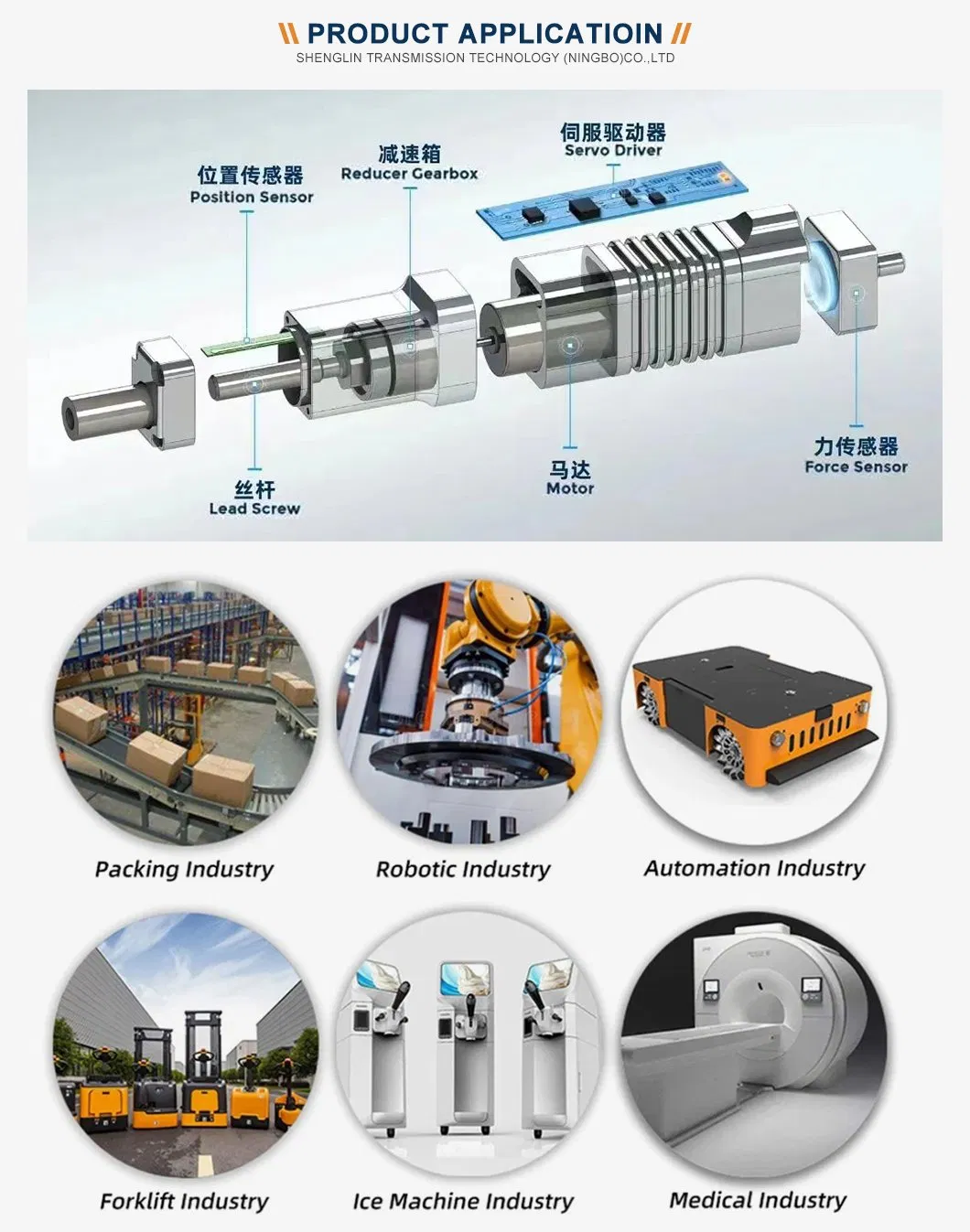

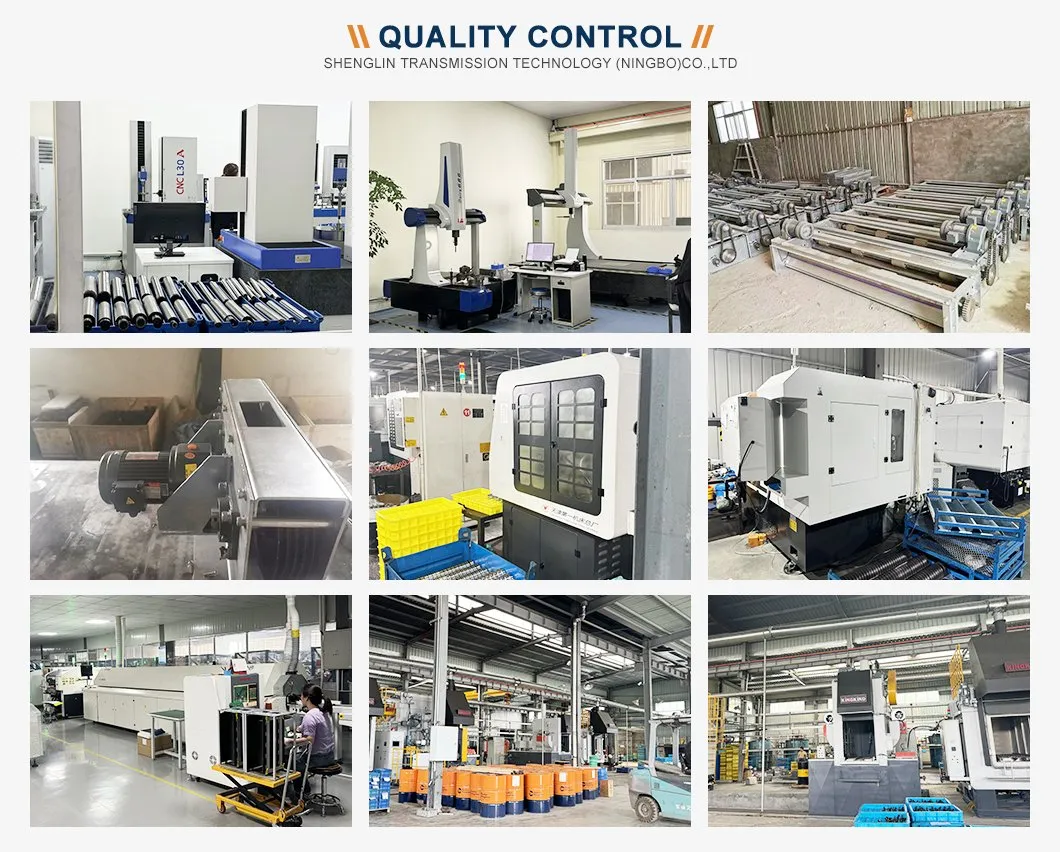

Technical Drafts

❓

Frequently Asked Questions

1. What are the primary advantages of this Brushless DC (BLDC) motor? Our BLDC motors offer high efficiency, low noise (under 30dB), a compact size, and a long working life of up to 15,000 hours under test conditions.

2. Can the motor specifications be customized? Yes, we provide customization for performance data, dimensions, wire materials (copper or aluminum), and bearing types (ball or sleeve) to meet your specific requirements.

3. What is the typical lifespan of these motors? The motor is rated for a working life of 10,000 hours, with no-load life tests reaching up to 15,000 hours.

4. Are these motors suitable for industrial environments? Absolutely. These motors are designed for both home and industrial usage, featuring closed-type casing protection and steady working states.

5. What safety protections are included in the motor design? The motors can be equipped with either one-shot thermal fuses or recoverable thermal fuses to ensure safety against overheating.

6. What certifications do these motors hold? Our Brushless DC motors are compliant with ISO9001 and CCC quality and safety standards.
