Taibang gear motor is an ideal drive solution for all kinds of industrial automation products, suitable for both industrial and commercial applications. We provide steady quality products and efficient performance engineering solutions.
Main Product Range: Induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV medium gear motors, Planetary gear motors, Worm gear motors, and Right angle solid/hollow shaft gear motors.

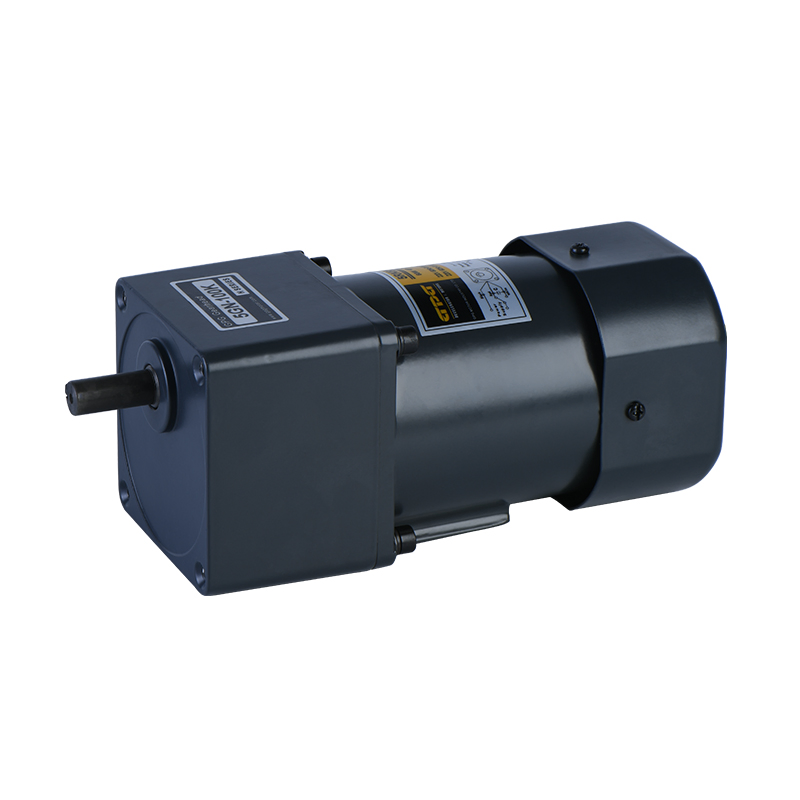

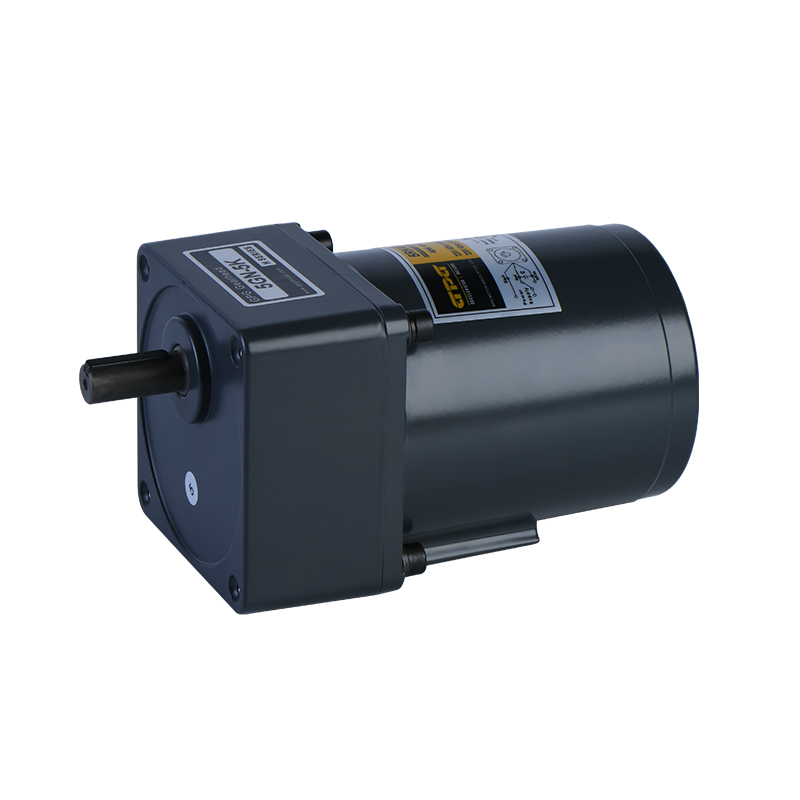

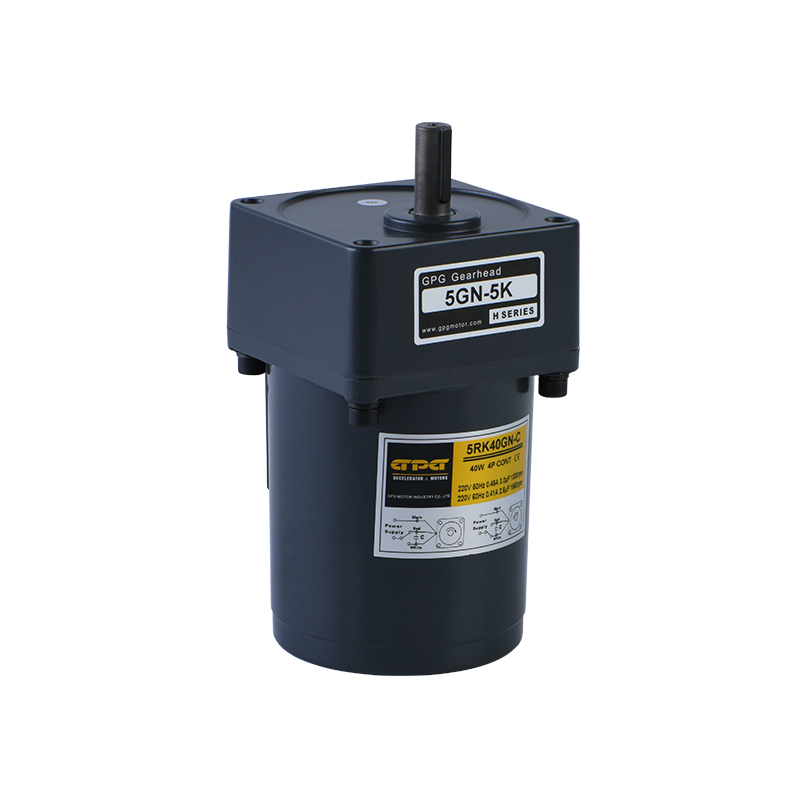

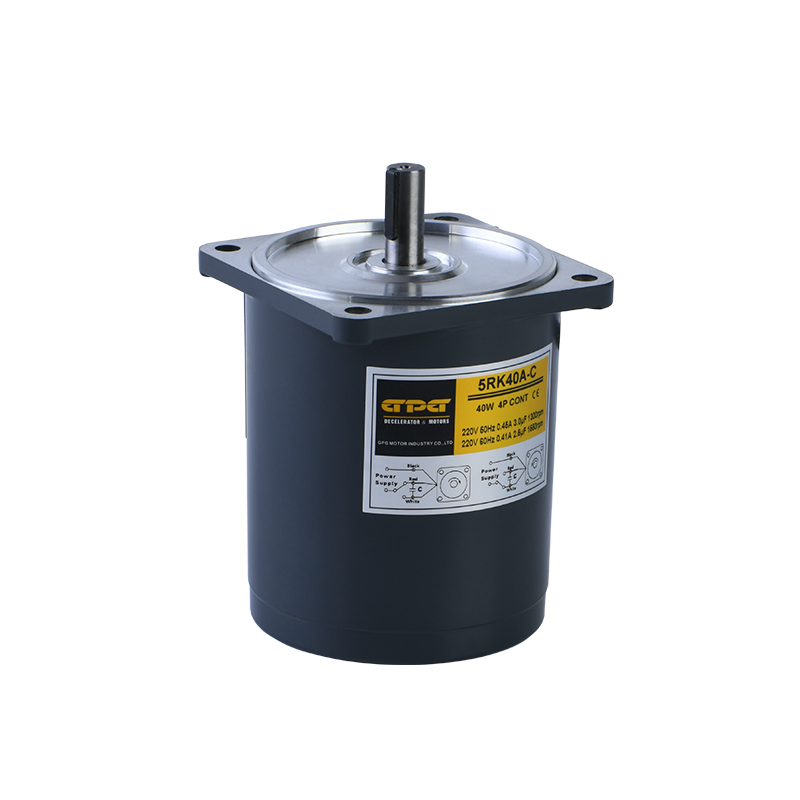

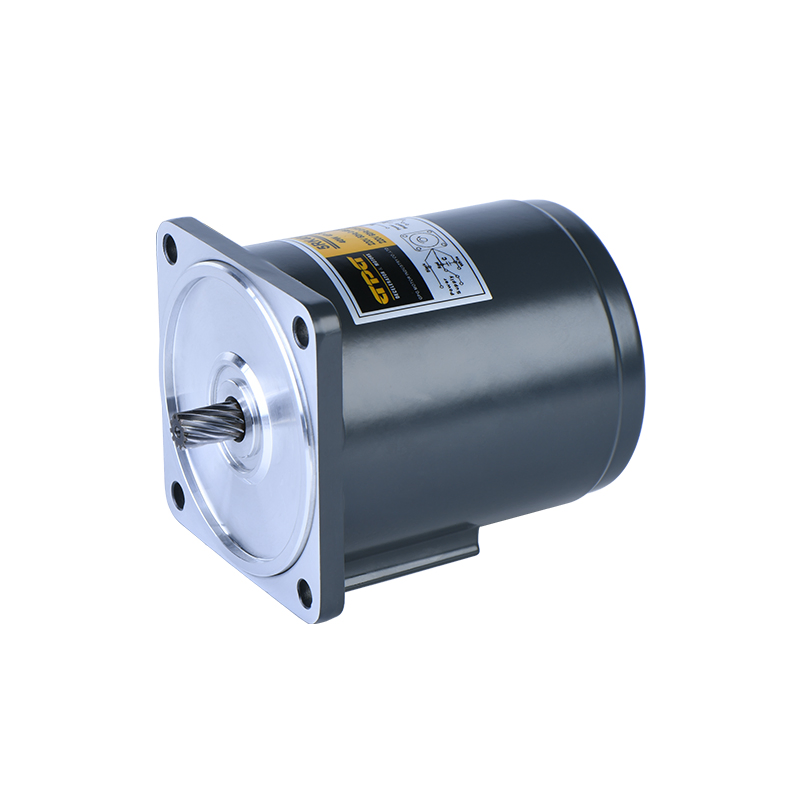

Example: 5RK40GN-CFM
| Frame Size | Type | Motor Series | Power | Speed Control | Shaft Type | Voltage | Accessory |
|---|---|---|---|---|---|---|---|
| 2: 60mm 3: 70mm 4: 80mm 5: 90mm 6: 104mm |
I: Induction R: Reversible T: Torque |
K Series | 6W - 200W | Speed Control Motor | A: Round GN: Bevel Gear (6-40W) GU: Bevel Gear (60-200W) |
A: 110V C: 220V S: 3Ph 220V S3: 3Ph 380V |
T/P: Protected F: Fan M: Brake |
| Output Speed (RPM) | 500 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 30 | 20 | 10 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed Ratio | 50Hz | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 50 | 75 | 150 | |
| 60Hz | 3.6 | 6 | 9 | - | 15 | 18 | - | 30 | 36 | 60 | 90 | 180 | ||
| Allowed Torque | 40W | 6.7 | 11 | 16 | 21.3 | 28 | 33 | 42 | 54 | 65 | 108 | 150 | 150 | |
Note: Actual output speed is about 10-20% less than synchronous speed under rated torque conditions.
