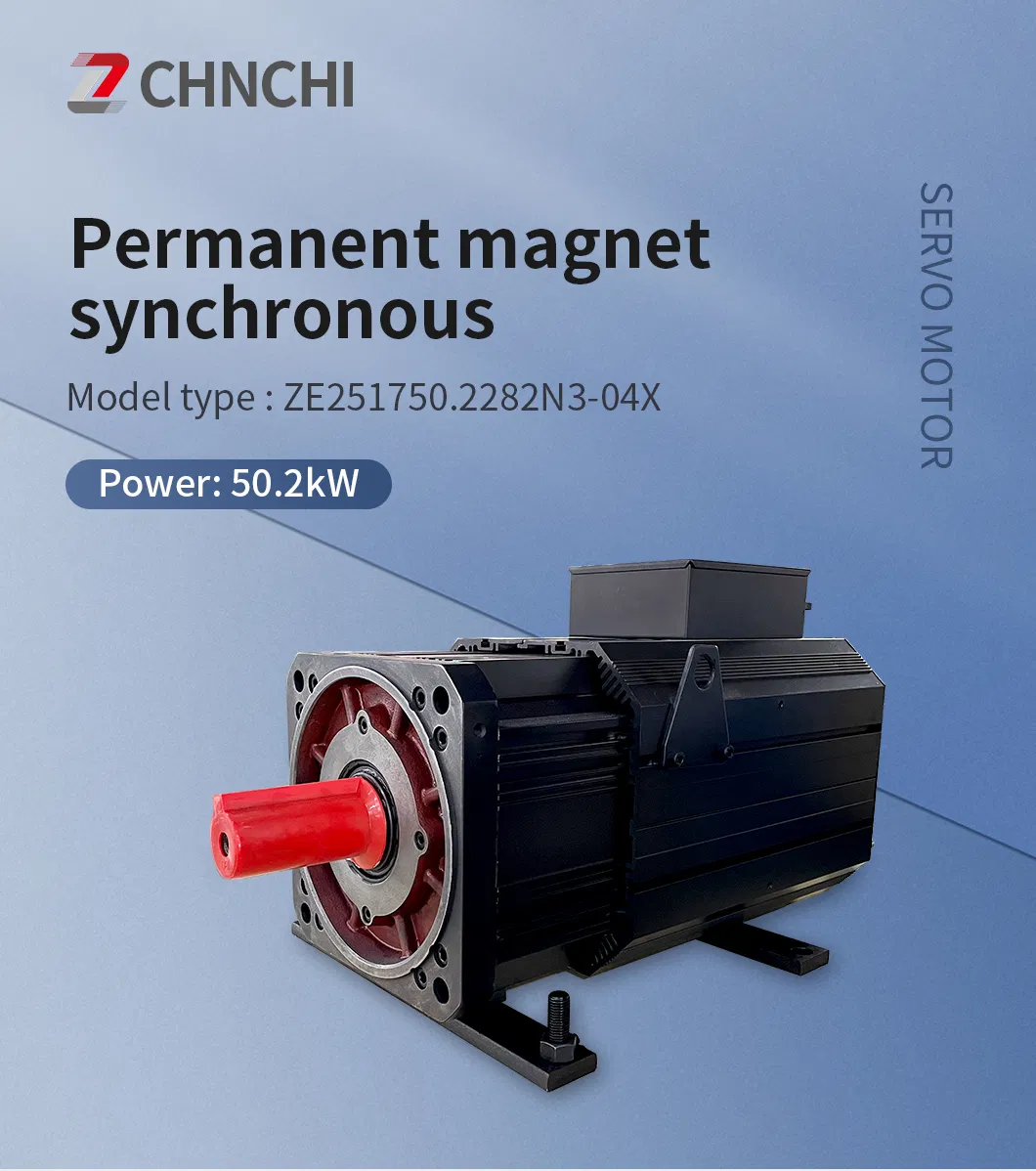

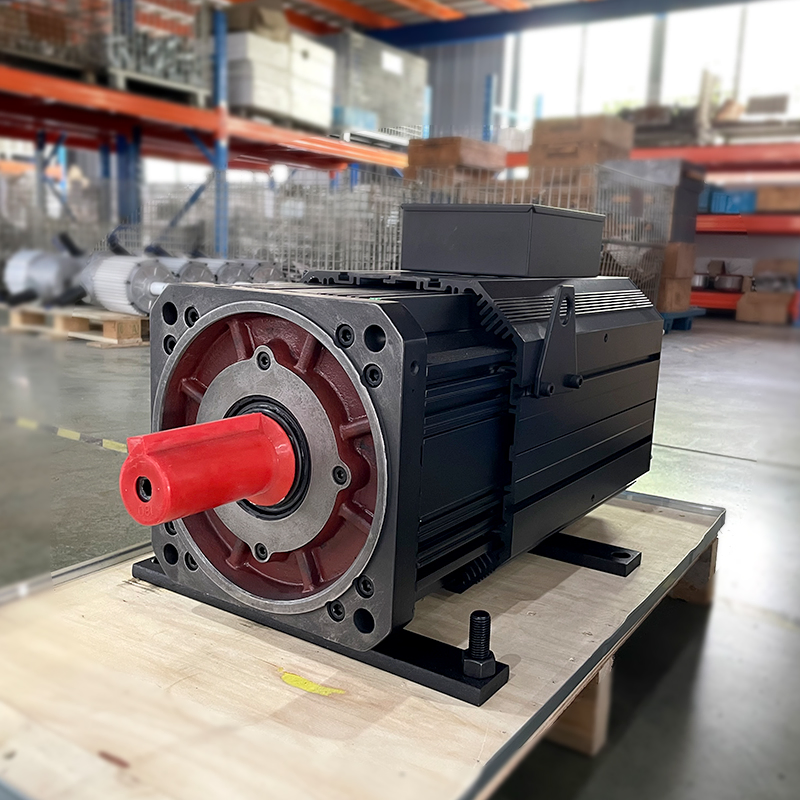

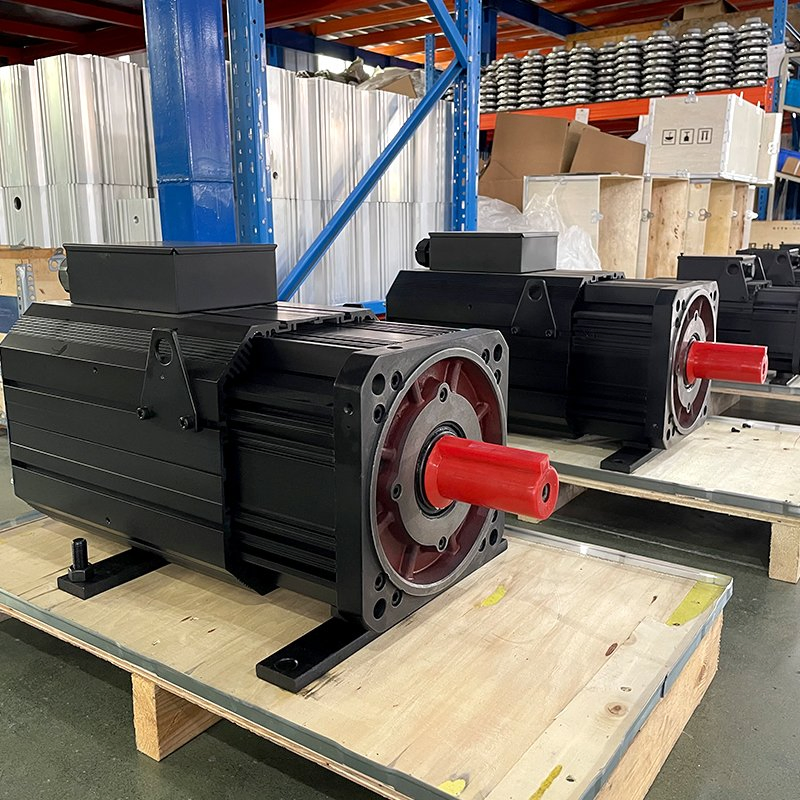

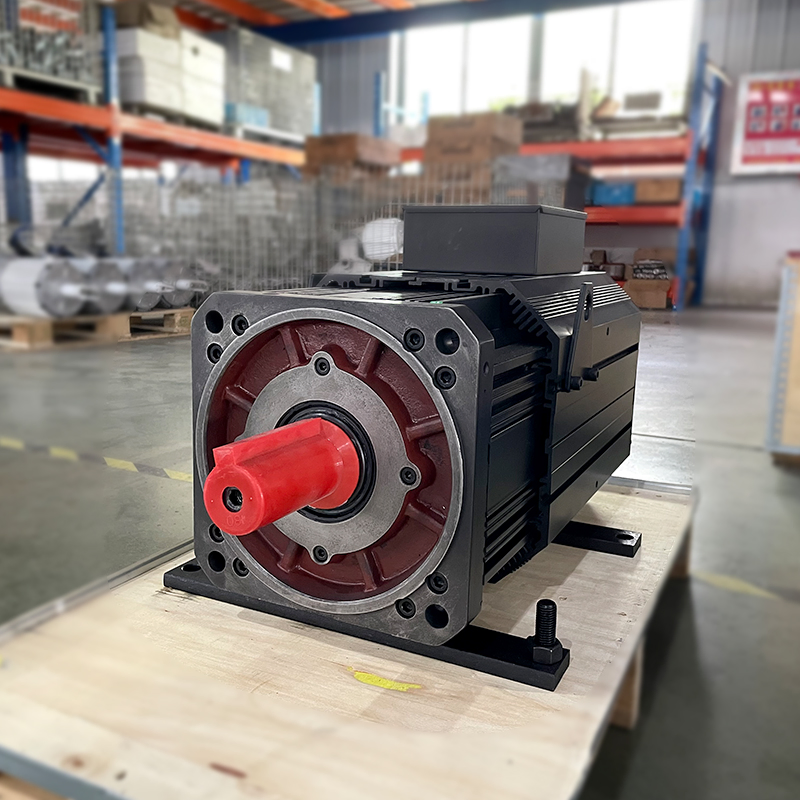

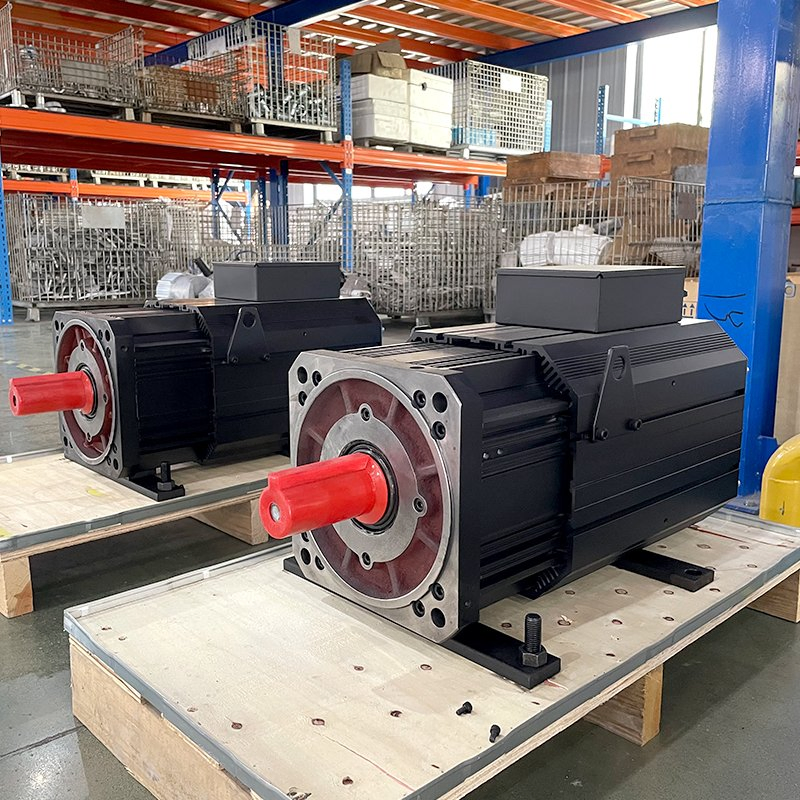

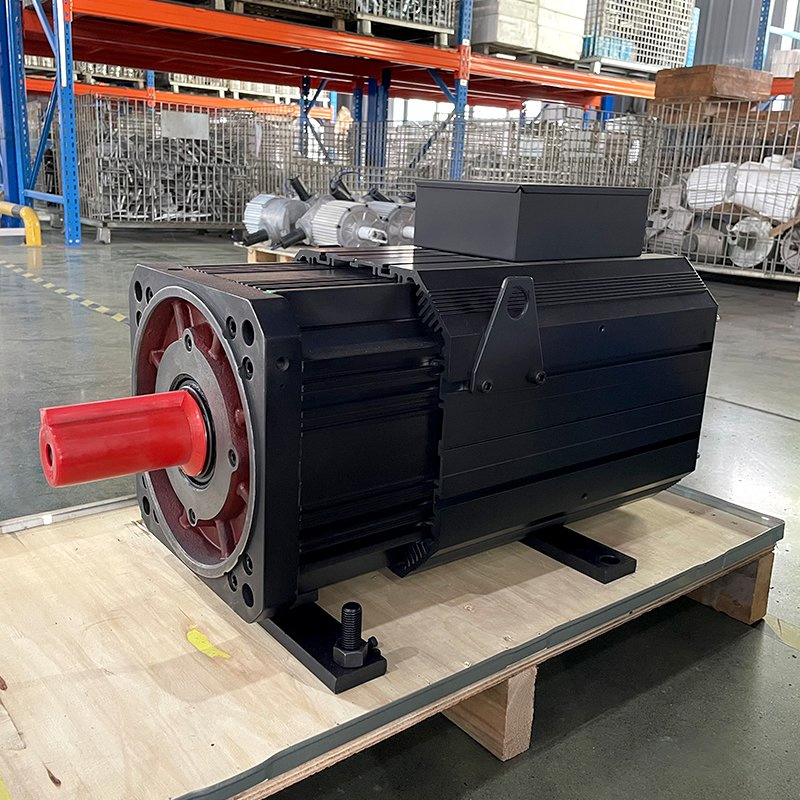

Experience Superior Motion Power - 50.2 kW Servo Motor with 282 N·m Torque and 1700 rpm Precision Control
⚙️
Product Description
1. Structure and Cooling
Compact, flange-mounted design that minimizes installation space requirements. Equipped with an efficient air-cooling system to ensure reliable heat dissipation and long-term stability.
2. Operational Performance
Delivers strong overload capability and high operating efficiency for demanding applications. Ensures smooth operation with minimal speed fluctuation. Features low temperature rise, low noise, and excellent adaptability to various environments.
3. Comprehensive Performance
Meets first-level energy-saving standards, ensuring optimal power utilization. Upgraded IP67 protection level for enhanced durability. Exceptional stability through high-performance rare-earth permanent magnet materials. Fast dynamic response reduces operational time and provides up to 15%-30% energy savings.
📊
Product Parameters
59.8kw 1700rpm 336N.m servo motor technical specifications:

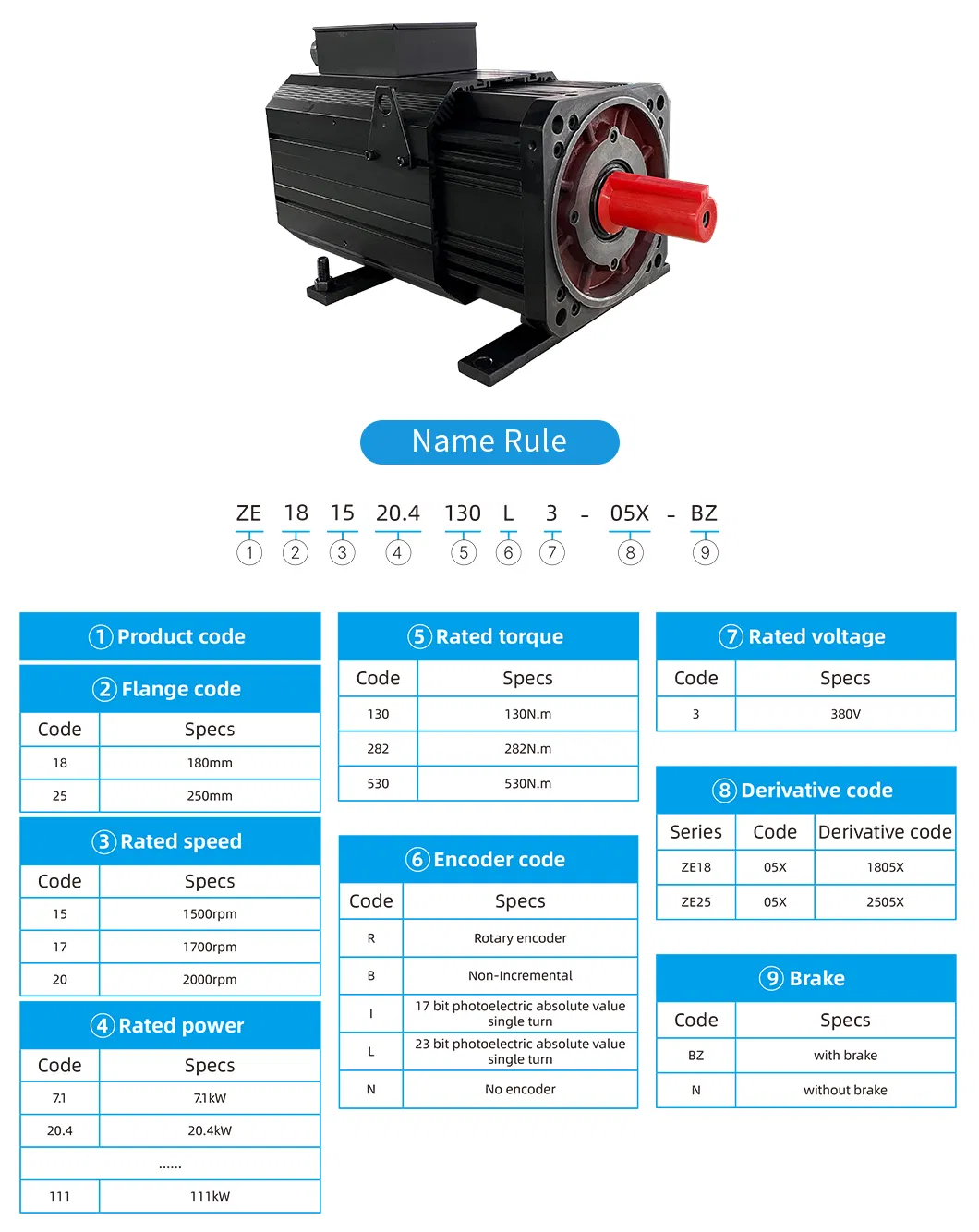

| Model: ZE181718D7105R3-04X |
| Product Code(mm) | ZE25 |
| Rated voltage (V) | 380 |
| Rated power (KW) | 50.2 |
| Rated torque (N.m) | 282 |
| Max torque (N.m) | 500 |
| Rated current (Arms) | 95 |
| Max current (Arms) | 187 |
| Rated speed (r/min) | 1700 |
| Max speed (r/min) | 2500 |
| Frequency(HZ) | 100 |
| Counter Electromotive Force(V) | 318 |
| Rotor Inertia(kg*cm²) | 500 |
| Line Resistance(Ω) | 0.0852 |
| Line Inductance Ld(mH) | 1.65 |
| Line Inductance Lq(mH) | 3.35 |
🏭

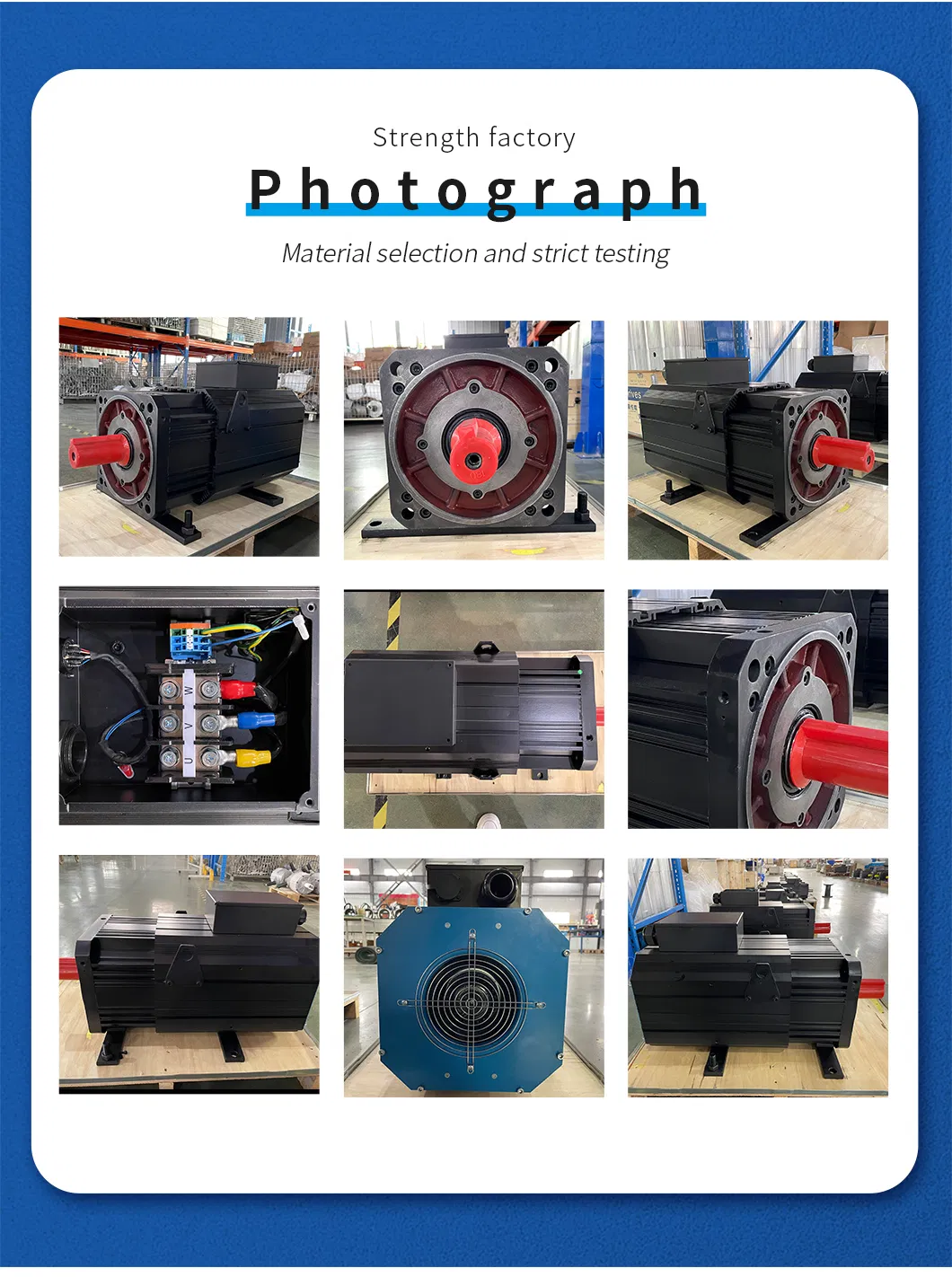

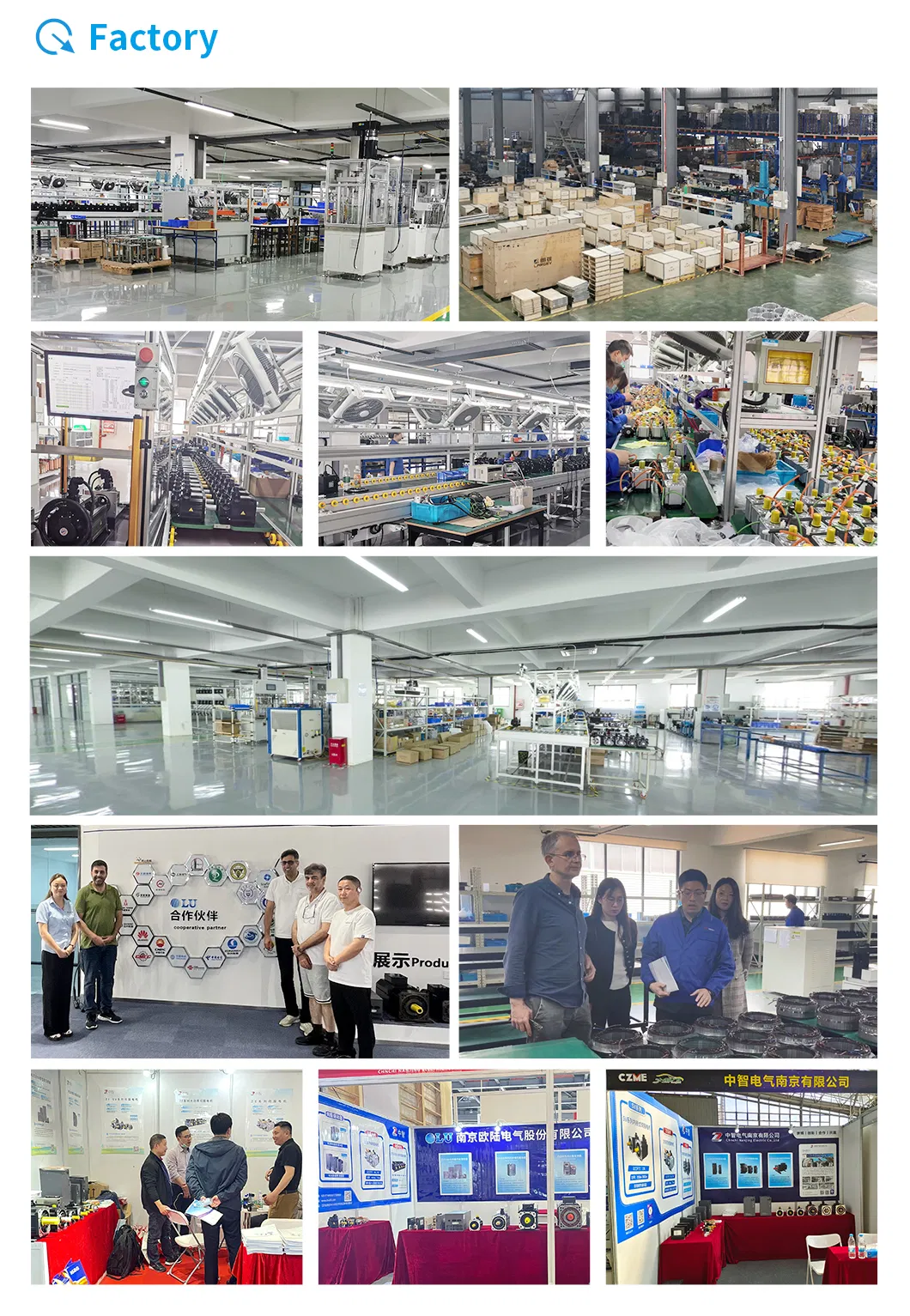

Manufacturing & Facilities
📜
Certifications & Logistics
Frequently Asked Questions
Q1: What is the primary advantage of the 50.2 kW Servo Motor?
It offers high torque density (282 N·m) and precision control at 1700 rpm, combined with first-level energy-saving efficiency for industrial applications.
Q2: Is this motor suitable for harsh environments?
Yes, it features an upgraded IP67 protection level, providing excellent dust and water resistance for demanding industrial conditions.
Q3: How much energy can be saved compared to traditional systems?
By providing on-demand hydraulic power through dual closed-loop control, this system can achieve 15% to 30% energy savings.
Q4: What cooling method does the motor use?
The motor is equipped with an integrated efficient air-cooling system to ensure stable operation and reliable heat dissipation.
Q5: What are the main applications for this series?
It is widely used in high-precision motion control, oil pump systems, and industrial automation requiring high dynamic response and repeatability accuracy.
Q6: What materials contribute to its exceptional stability?
The motor utilizes high-performance rare-earth permanent magnet materials, which provide superior heat resistance and consistent operational stability.
