Gear motor is an ideal drive for all kinds of industrial automation products for both industrial and commercial applications. We provide steady quality products with quiet and efficient performance engineering solutions.

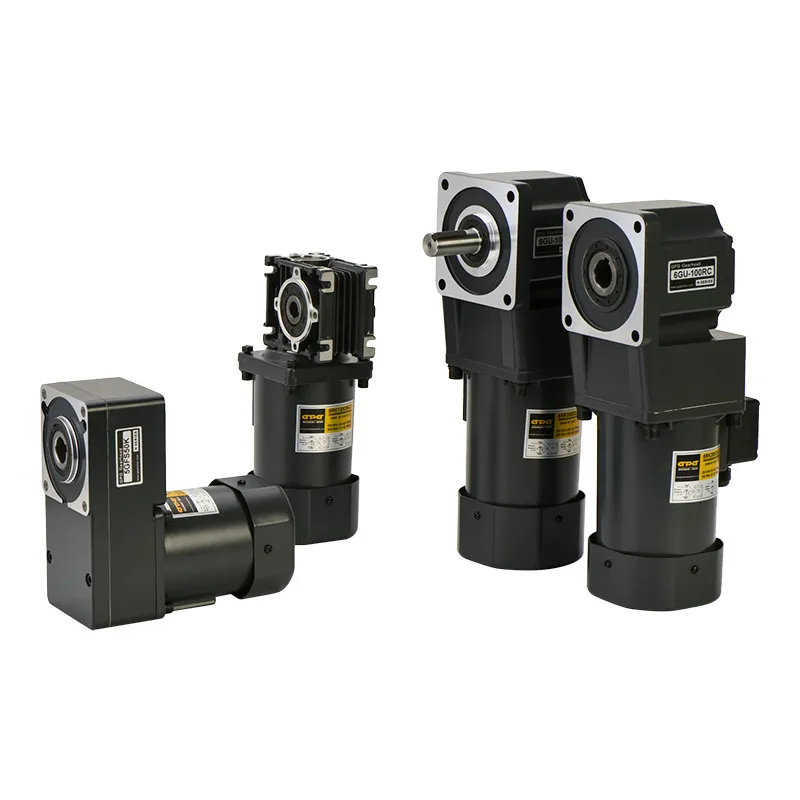

The main product range includes induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV medium gear motors, planetary gear motors, worm gear motors, and right angle solid and hollow shaft gear motors.
These are widely used in manufacturing pipelines, transportation, food, medicine, printing, fabric, packing, office apparatus, and entertainment equipment.

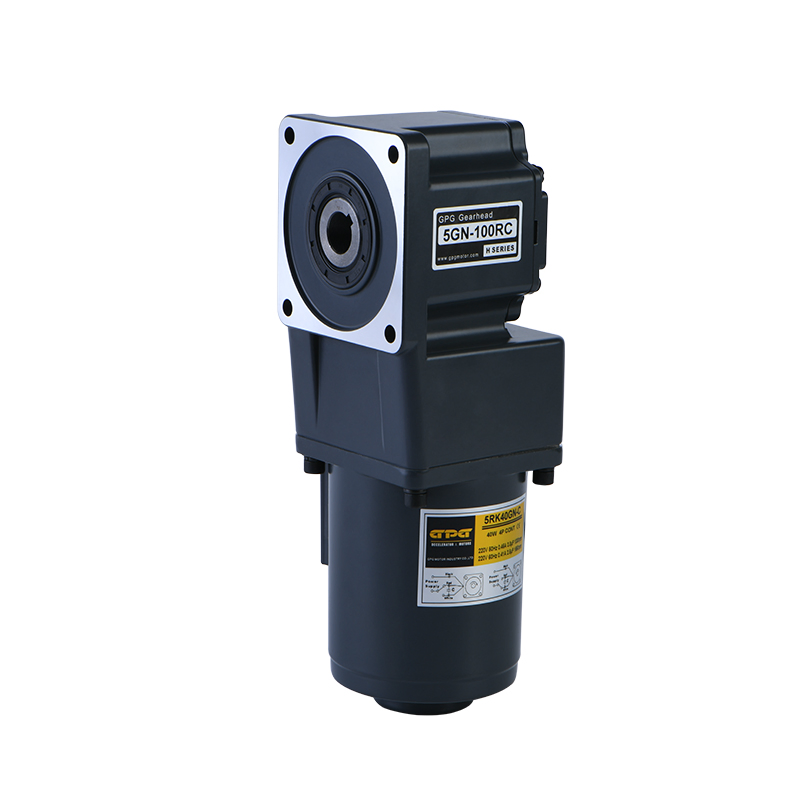

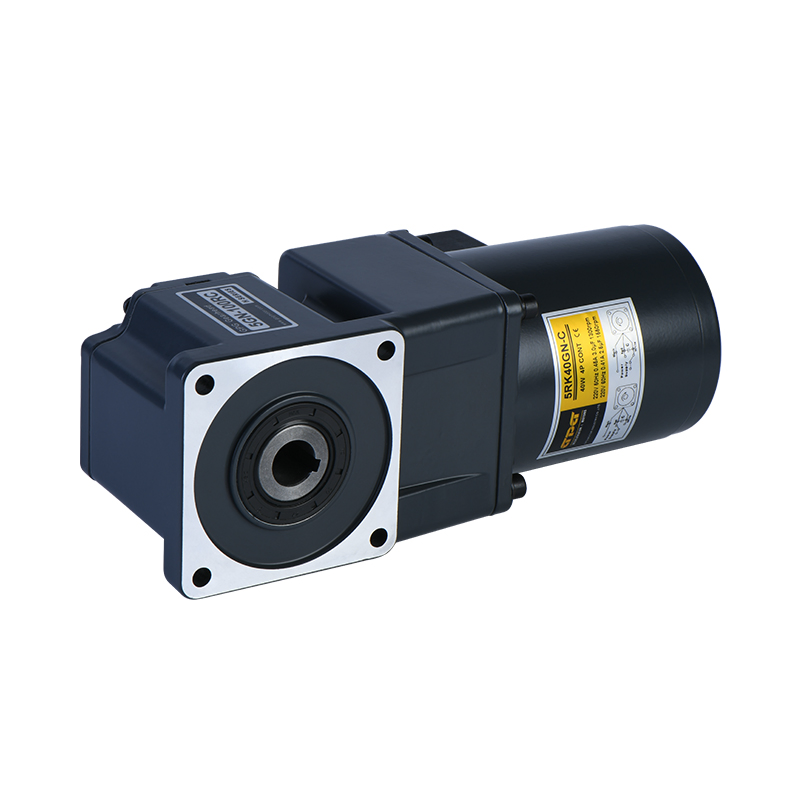

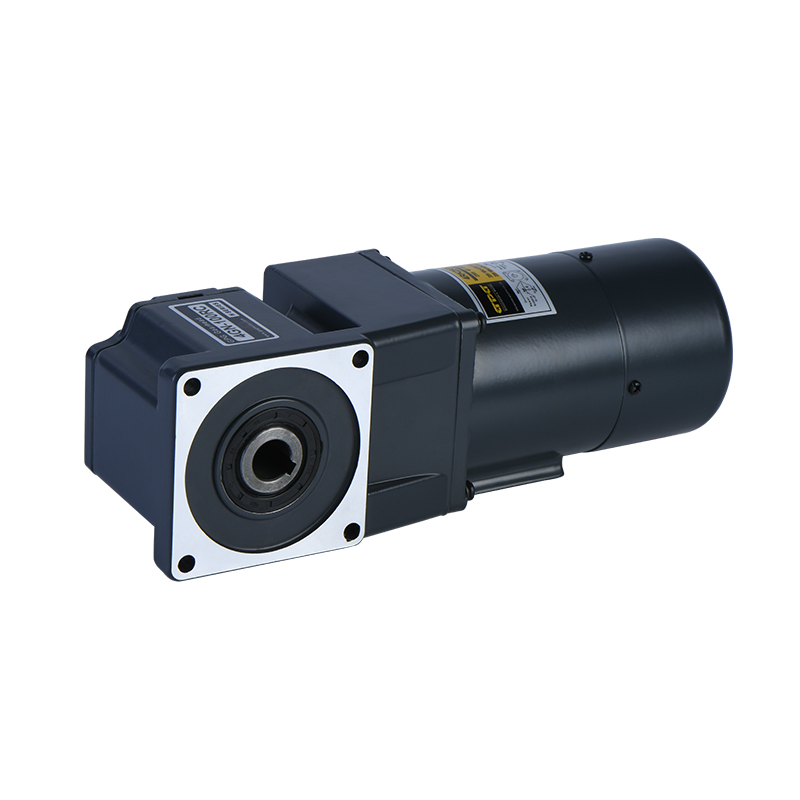

Example: 5RK40GN-CFM
| Frame Size | Type | Motor Series | Power | Speed Control | Shaft Type | Voltage | Accessory |
| 2: 60mm 3: 70mm 4: 80mm 5: 90mm 6: 104mm |
I: Induction R: Reversible T: Torque |
K series | 6W - 200W | R: Speed Control | A: Round GN/GU: Gear Shaft |
A: 110V C: 220V S: 3-Phase |
T/P: Protected F: Fan M: Brake |
| Output Speed (RPM) | 500 | 300 | 200 | 150 | 100 | 60 | 30 | 20 | 15 | 10 | ||
| Speed Ratio | 50Hz | 3 | 5 | 7.5 | 10 | 15 | 25 | 50 | 75 | 100 | 150 | |
| 60Hz | 3.6 | 6 | 9 | 12 | 18 | 30 | 60 | 90 | 120 | 180 | ||
| Allowed Torque | 40W | 6.7 | 11 | 16 | 21.3 | 33 | 54 | 108 | 150 | 150 | 150 | |
| 60W | 10 | 16 | 24 | 32 | 48 | 77 | 150 | 150 | 150 | 150 | ||

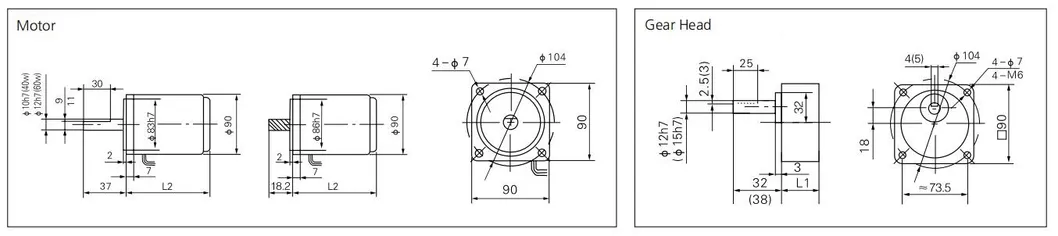

| Type | Reduction Ratio | L1 (mm) | L2 (mm) | L3 (mm) |
| 5RK60A(GN) | 1:3 ~ 1:20 | 43 | 105 | 148 |
| 5RK60A(GN) | 1:25 ~ 1:180 | 61 | 125 | 168 |
