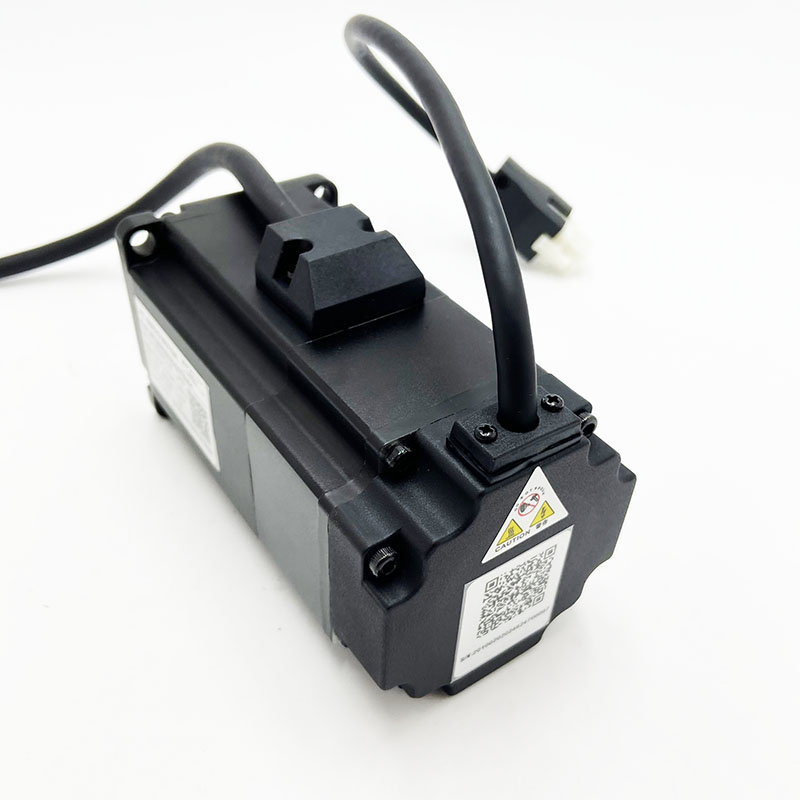

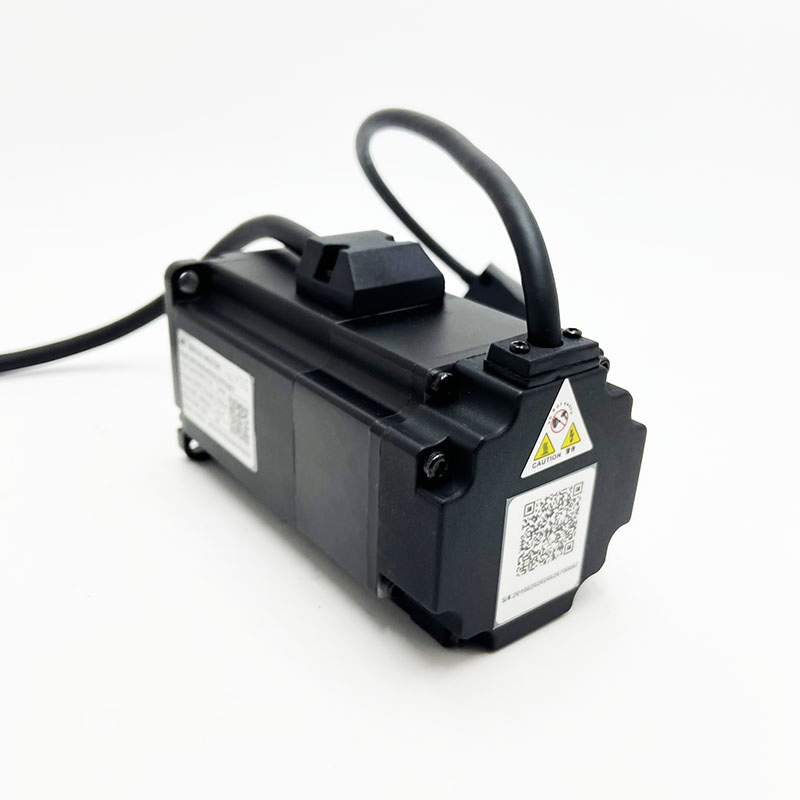

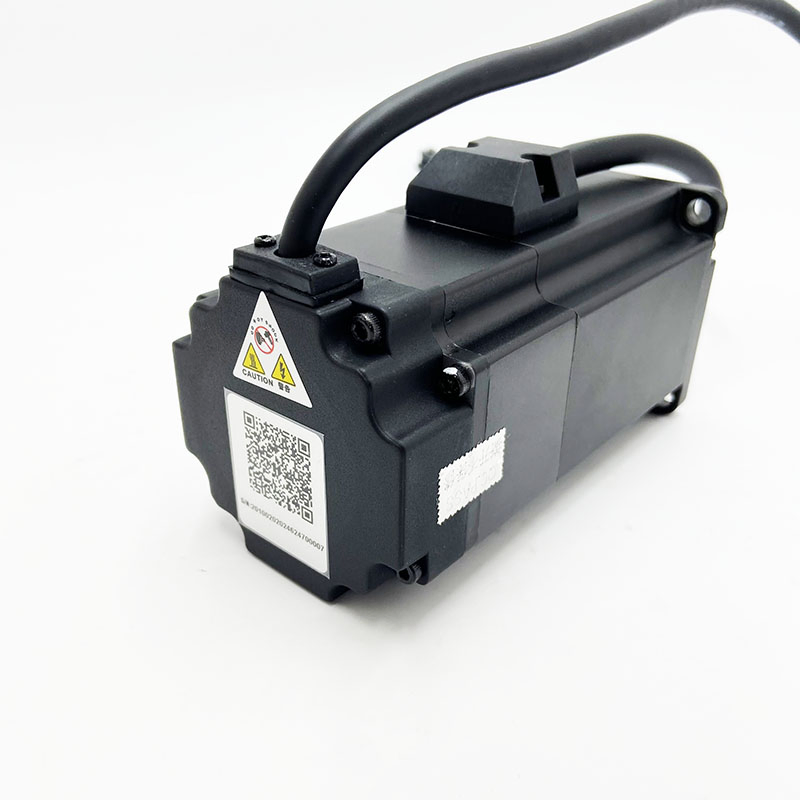

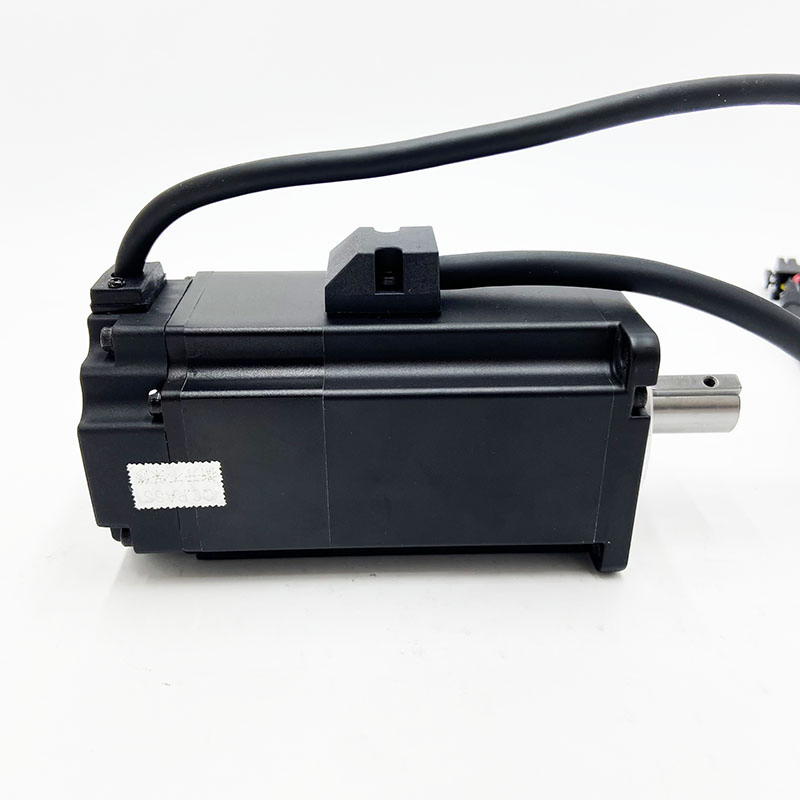

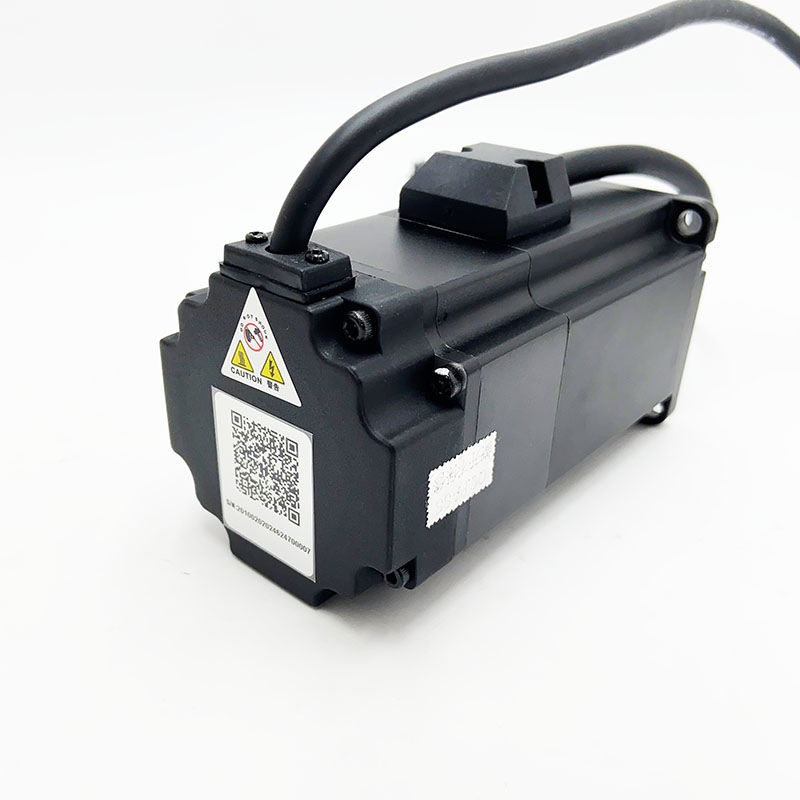

High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
1 / 5
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake
High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake

High Precision Servo Motor 220V 400W AC/DC Brushless Motor with Brake

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.:SM060R40G30J2HFBqEH
Excitation Mode:Permanent Magnet
Function:Control
Number of Poles:10
Structure:Brushless
Type:Servo Motor Three-Phase
Rated Torque:1.27n.M
Rated Power:400W
Rated Speed:3000r/Min
Rated Voltage:220V
Protection Rank:IP65
Flange:60mm
Product Overview

60# 220V 400W AC Permanent Magnet Synchronous Servo Motor with Brake

This high-precision motor is designed for sophisticated industrial applications. Encoders can be customized to meet specific requirements. Ideal for industrial robots, AGVs, intelligent factories, CNC machines, and the 3C industry.

  • OEM & ODM fully supported for tailored solutions.
  • Robust 5-pair pole configuration for stable performance.
  • Compact design offering significant space advantages.
  • Embedded magnetic steel to eliminate risk of detachment.
  • Compatible with multiple encoders including proprietary solutions.
  • Available in elegant silver and professional black finishes.
Our Advantages
Outstanding R&D team ensuring innovation and excellence.
Leading quality control management and reliability.
Quick turnaround: conventional products ready in about one week.
Cost-effective solutions with highly competitive pricing.
Full compliance with ISO9001, CE, and RoHS standards.
Comprehensive one-year warranty under normal use conditions.
Technical Indicators
Parameter Value Unit
Rated output power400W
Number of poles10P
Rated voltage220VAC
Rated speed3000r/min
Maximum speed6000r/min
Rated torque1.27N.m
Instantaneous max torque3.81N.m
Rated Current3.1A(rms)
Torque coefficient0.427N.m/A
Line resistance2.62ohm
Line inductance6.27mH
Brake rated voltage24VDC
Functional Features
Working hoursContinuous
Heat resistanceClass F
Cooling methodNatural cooling
Installation methodFlange installation
Protection methodFully enclosed, self-cooling IP65
Rotation methodCounterclockwise (CCW) from shaft end
Product Visuals & Dimensions

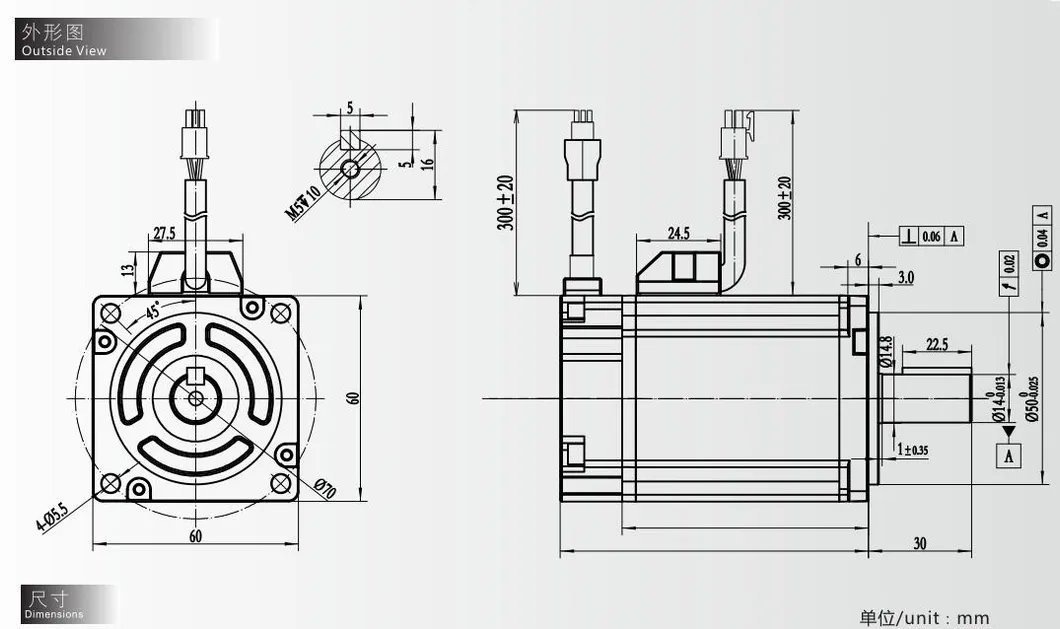

Servo Motor Outside View

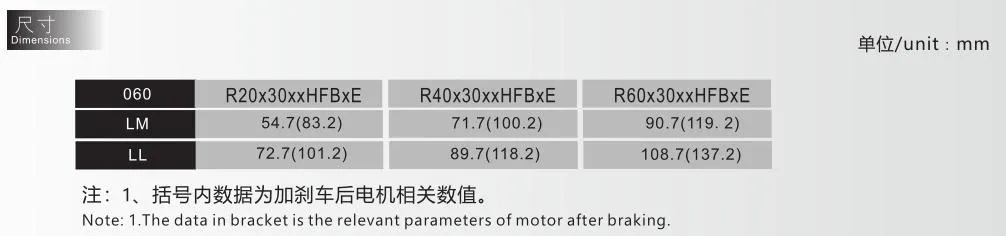

Servo Motor Dimensions

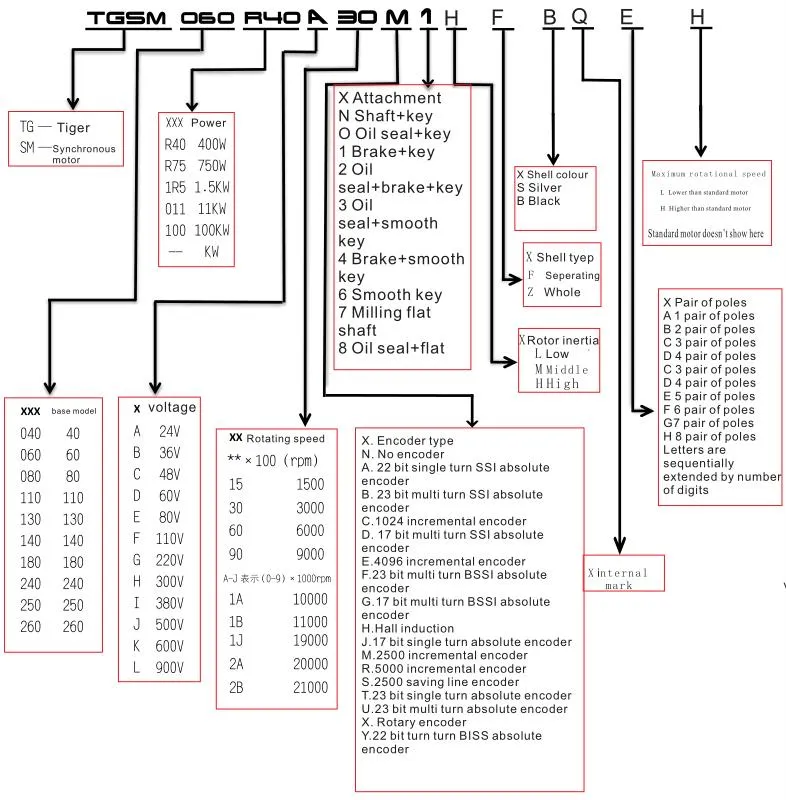

Model Explanation
Wiring Definition 1

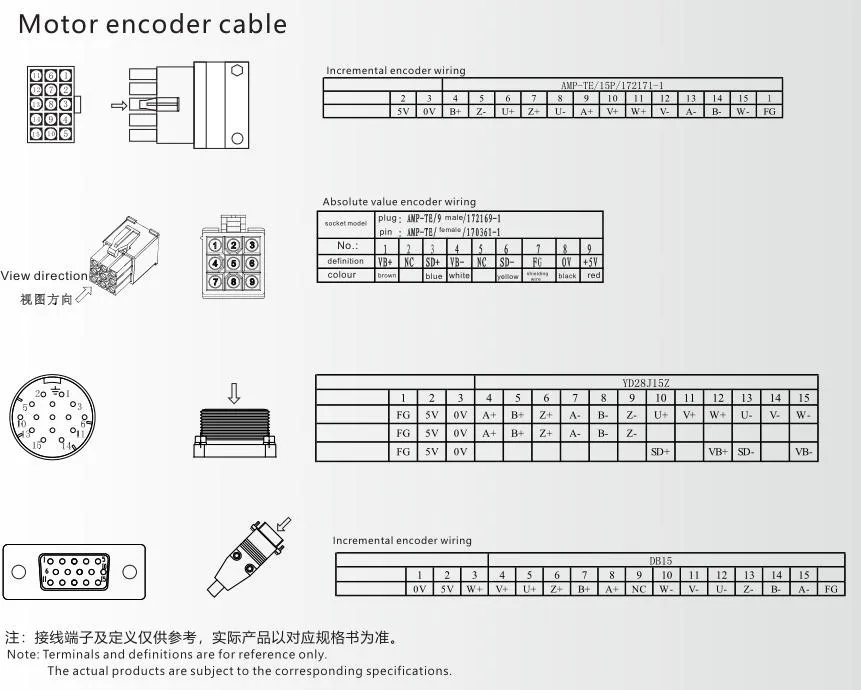

Wiring Definition 2
Manufacturing & Certification

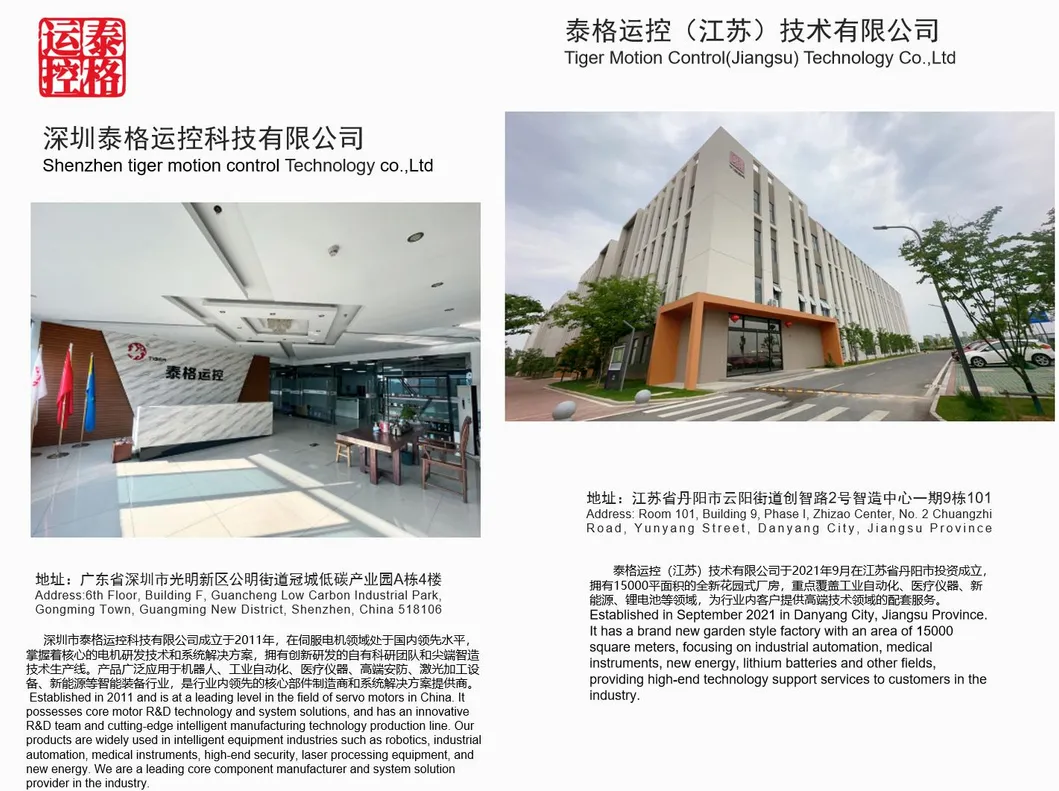

Production Facility
Development History 1
Development History 2
Certificate 1
Certificate 2
Certificate 3
Frequently Asked Questions
Q1: What types of motors do you provide? A1: Our main products include high-voltage and low-voltage servo motors, hollow frameless motors, servo electric cylinders, linear motors, DD motors, and reduction motors.
Q2: Is there a Minimum Order Quantity (MOQ)? A2: No. We accept single-unit samples for testing. Sample pricing may vary slightly from batch pricing depending on the customization required.
Q3: Are these servo motors reversible? A3: Yes, servo motors are fully reversible. They use controllers and encoders to accurately manage position and direction based on the input signal.
Q4: Can you develop new motors based on specific requirements? A4: Certainly. If you provide detailed performance, size, and target requirements, we can conduct an evaluation for custom development.
Q5: What is the standard delivery time? A5: Standard samples take 7-14 days, while batch orders take 15-20 days. For customized motors, production may take 30-45 days.
Q6: What are the warranty terms? A6: We provide a comprehensive one-year warranty on all our motor products.
