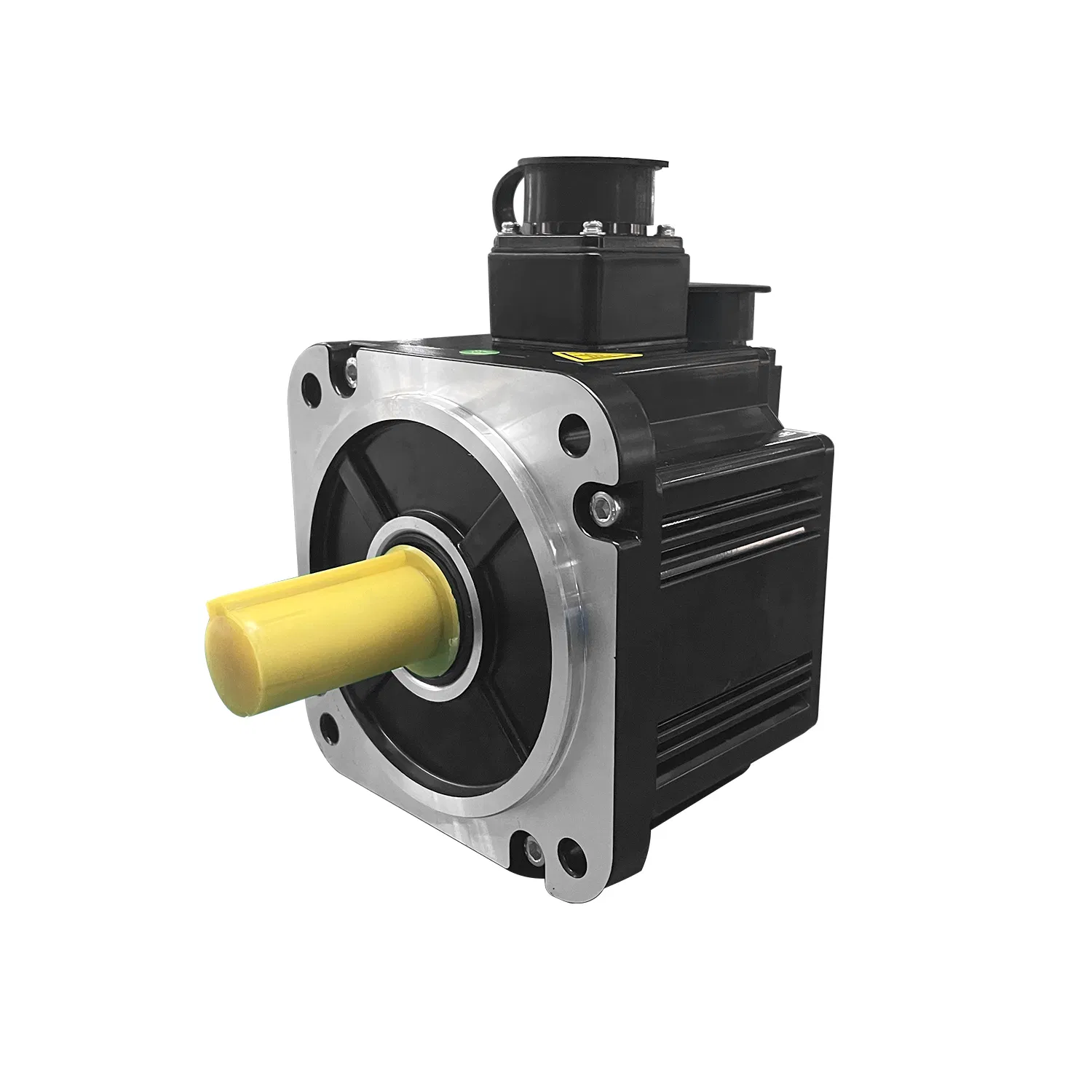

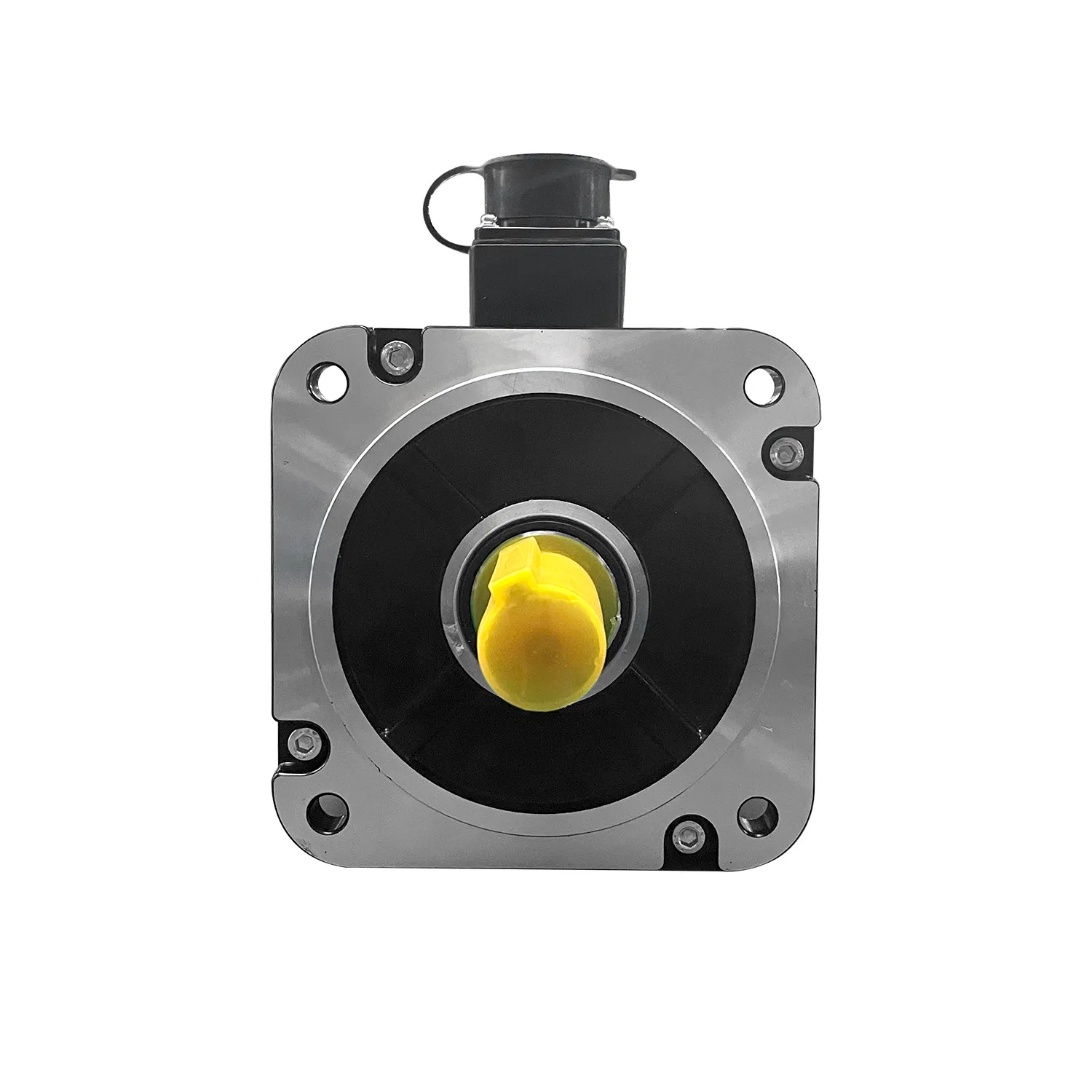

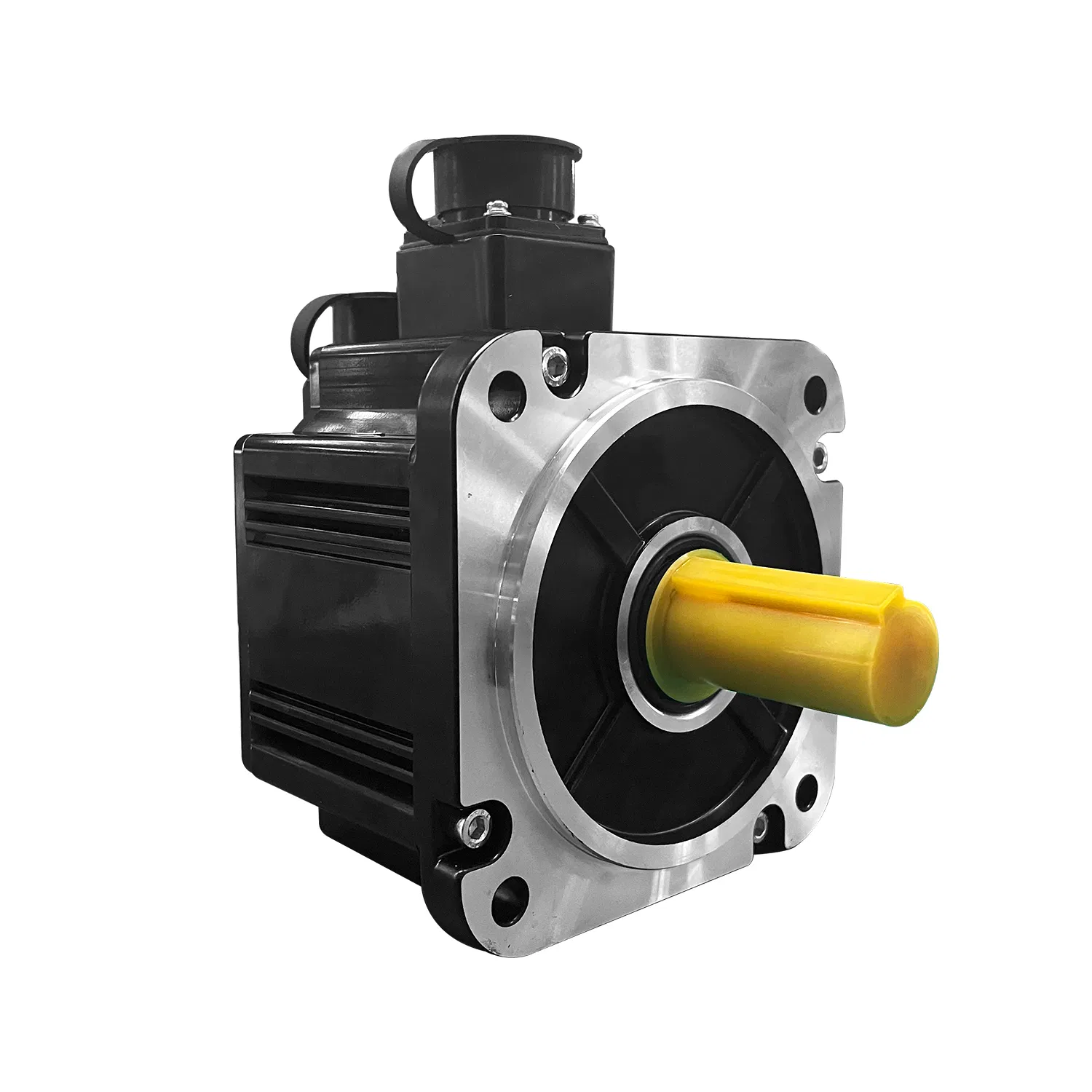

High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
1 / 5
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control
High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control

High-Precision 0.85 Kw Servo Motor Optimized for Industrial Motion Control

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
130ZFHA1-0D85B
Number of Stator
Three-Phase
Function
Driving, Control
Casing Protection
Protection Type
Number of Poles
8
Starting Mode
Variable Frequency Starting
Certification
CCC
Flange
130mm
Rated Speed
1500rpm
Rated Current
6.7A
Voltage
220V
Rated Torque
5.4n.M
Package Size
22.90cm * 6.10cm * 17.20cm
Gross Weight
4.500kg
⚙️ Product Description
High-Precision 0.85 kW Servo Motor Optimized for Industrial Motion Control
  • ✔ 1. Small size, saving installation space
  • ✔ 2. Strong overload capacity and high operating efficiency
  • ✔ 3. Small speed fluctuation and smooth operation
  • ✔ 4. Low temperature rise, low noise, high applicability
  • ✔ 5. The energy saving is raised to level 1
  • ✔ 6. The protection level is increased to IP67

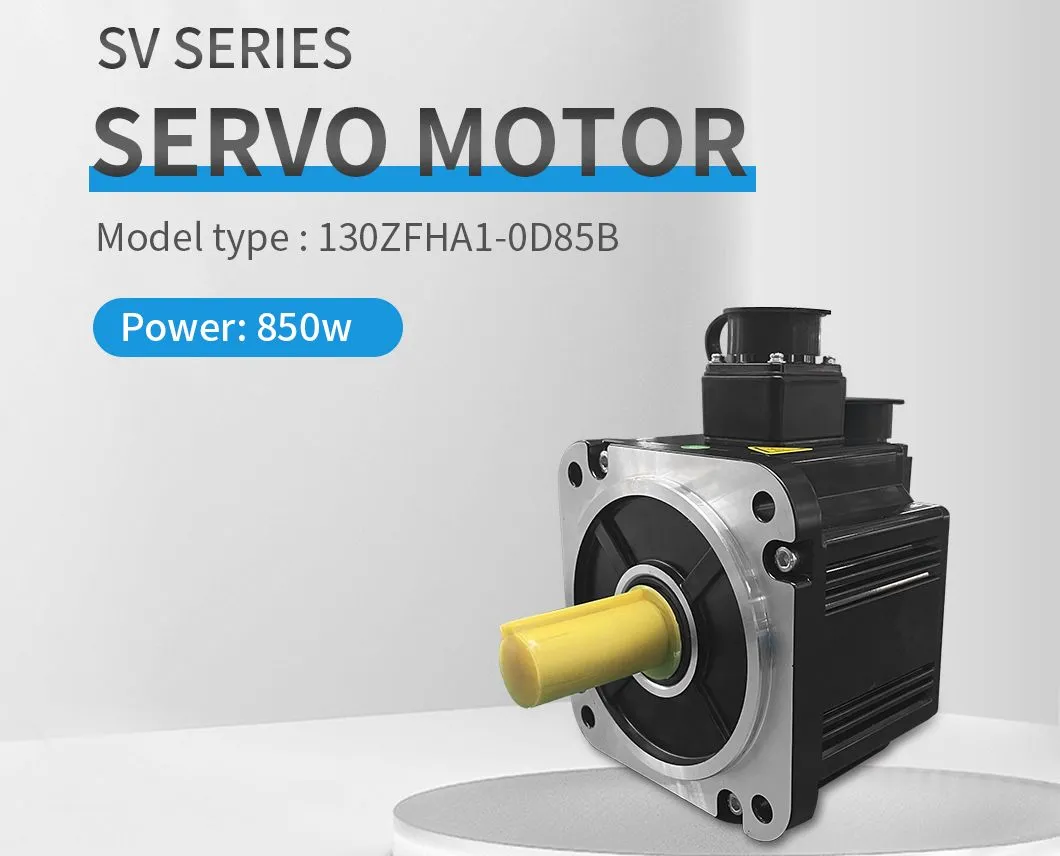

Servo Motor Features
📋 Product Specification

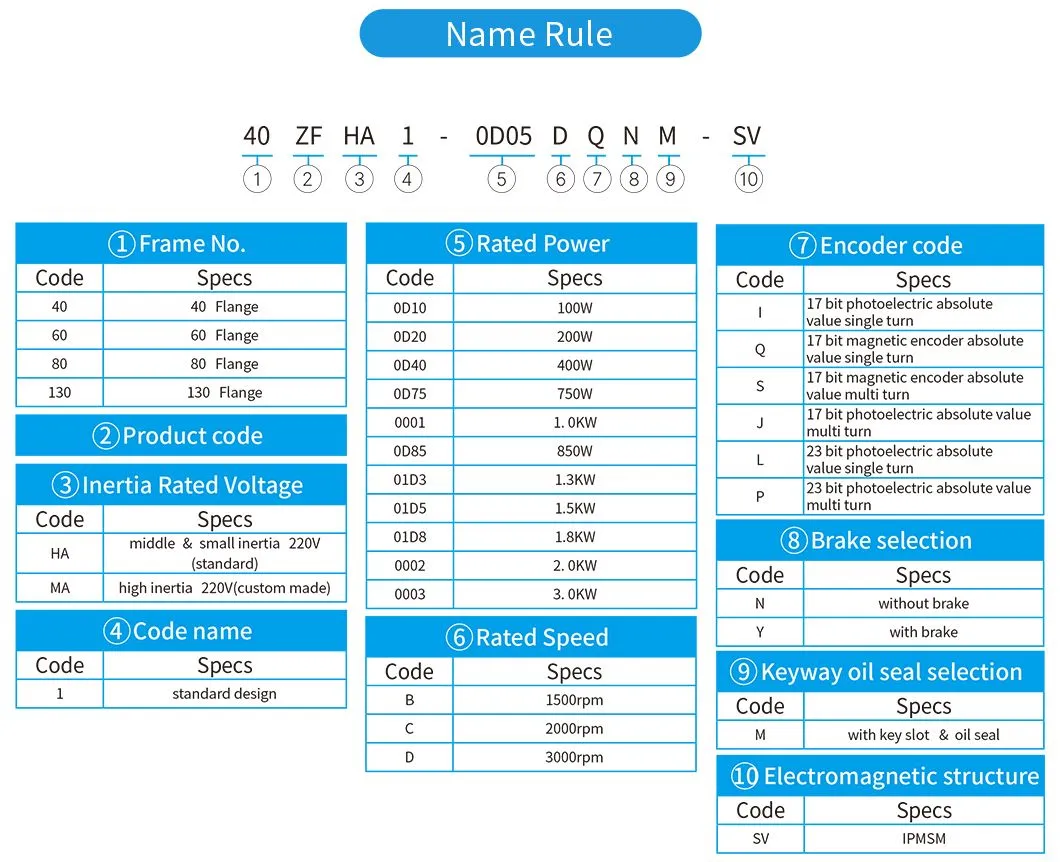

Specification Overview
🔍 Technical Parameters
Model type 130ZFHA1-0D85BQNM
Flange size(mm)130
Rated voltage(V)AC220
Rated power(W)850
Rated torque(N.m)5.4
Max torque(N.m)13.5
Rated current(Arms)6.7
Max current(Arms)16.75
Rated speed(r/min)1500
Max speed(r/min)3000
Torque coefficient(N.m/A)0.82
Protection gradeIP65/IP67(Optional)
Brake ParametersRated voltage(V)DC24±10%
Rated power(W)23
Statc friction torque(N.m)≥ 16
Running noise(dB)<65

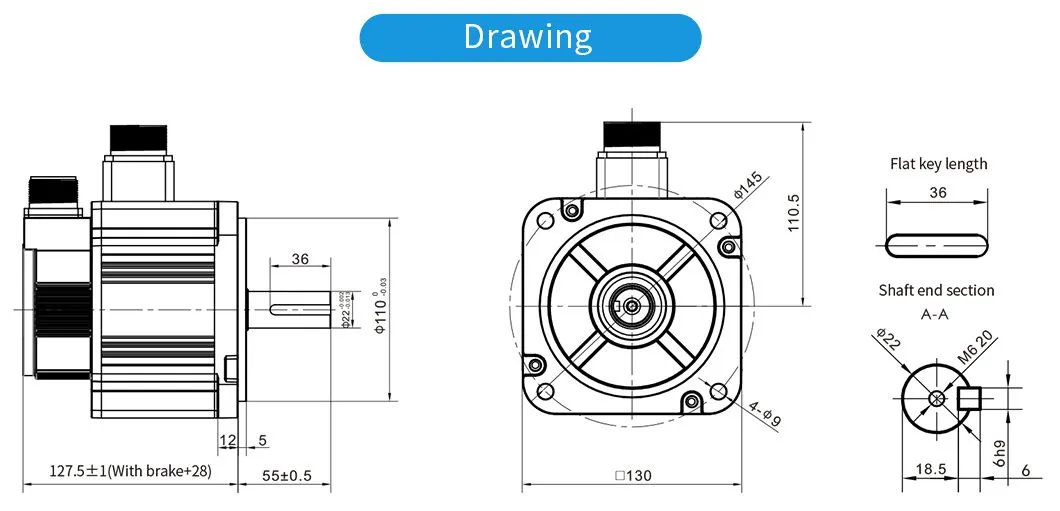

📐 Product Drawing
Technical Drawing

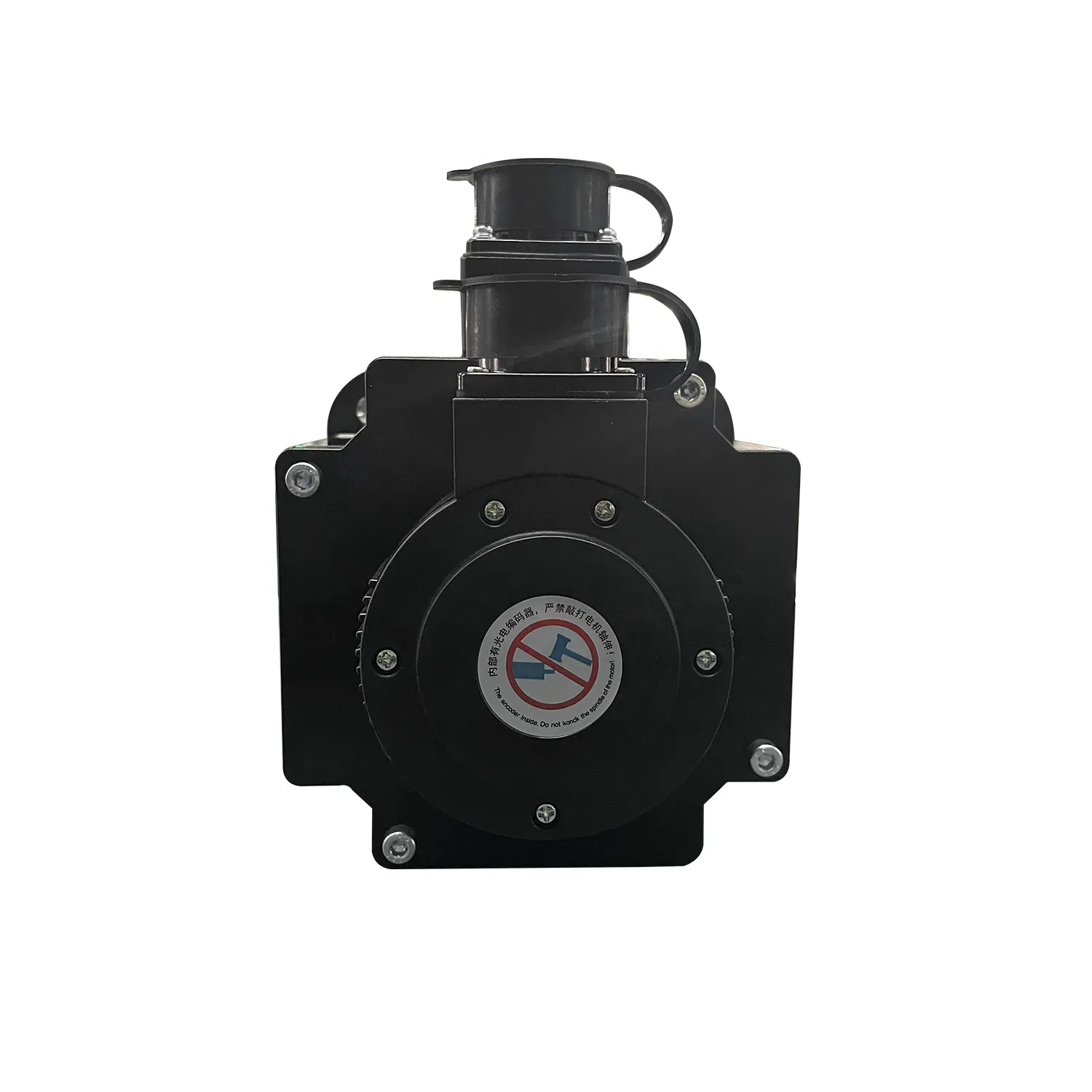

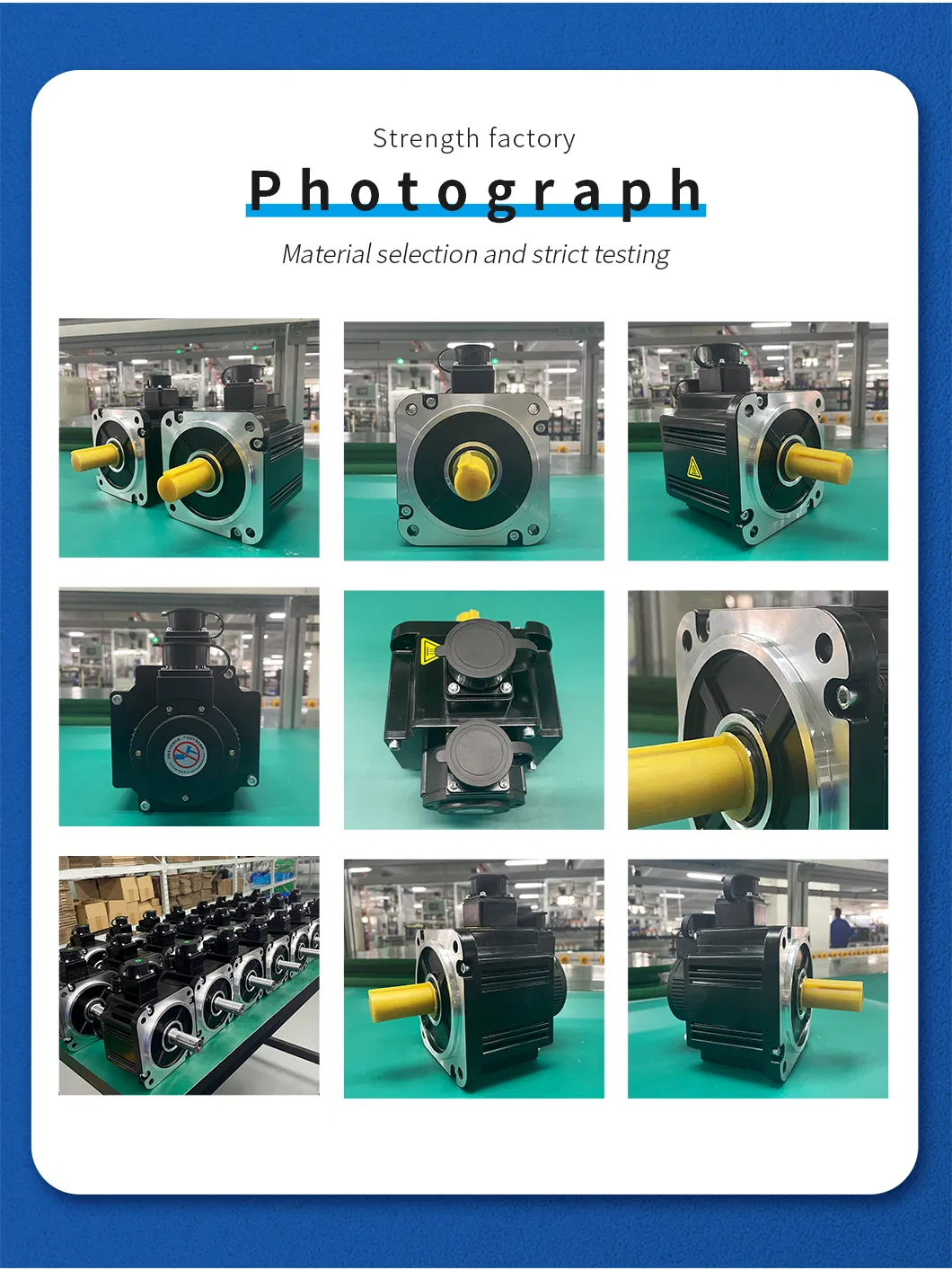

📸 Detailed Photos
Detailed Product View
📦 Packaging & Shipping
Packaging Methods
🏢 Company Profile
Established in 2007, the company covers an area of about 42,000 square meters. The enterprise focuses on industrial electrical equipment of transmission control and energy-saving technology, new energy generation equipment, and control technology. As a high-tech enterprise, business includes R&D, production, sales, and service. We possess industrial automation control technology with independent intellectual property rights, providing customers with personalized solutions quickly to achieve common growth of corporate and customer value.

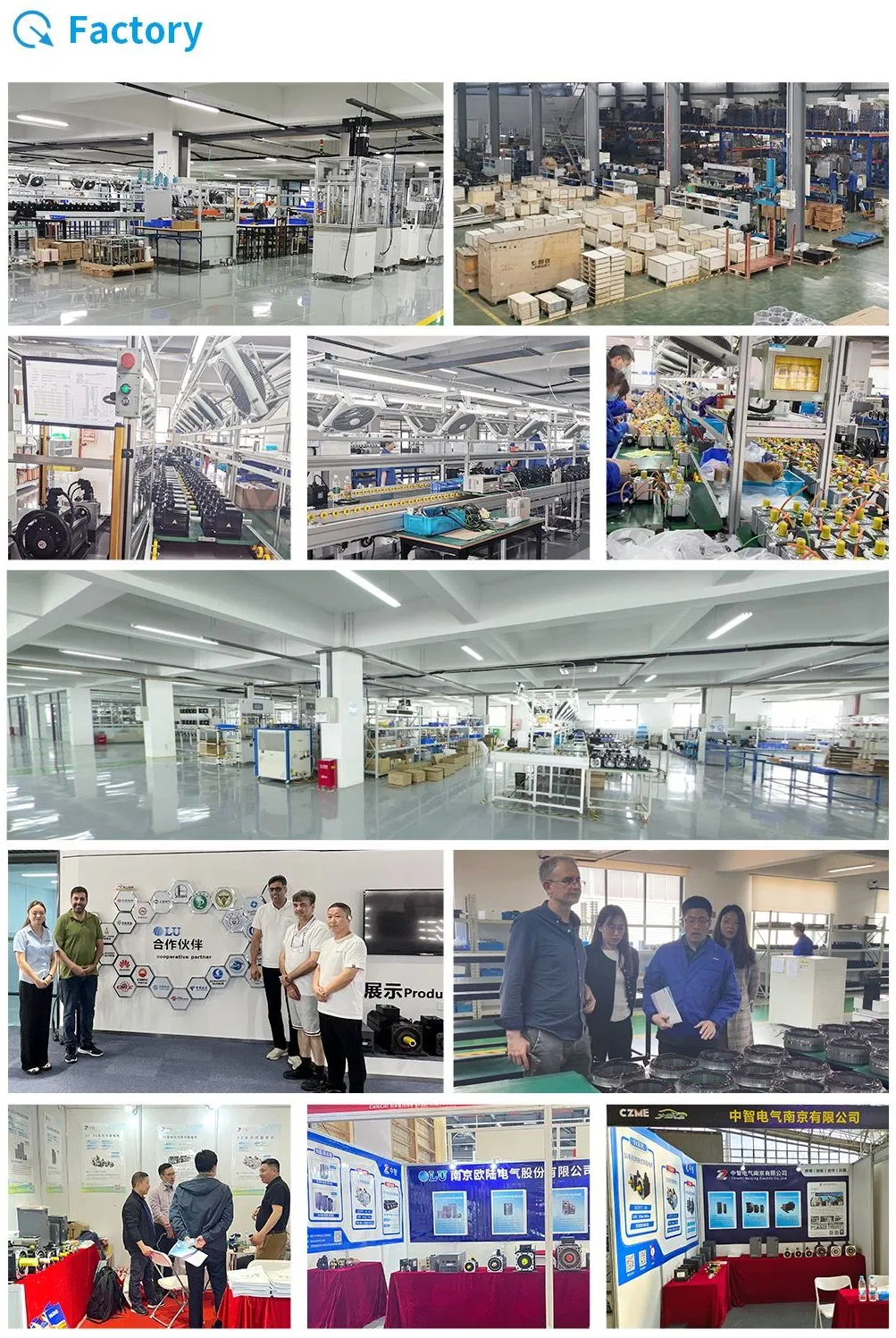

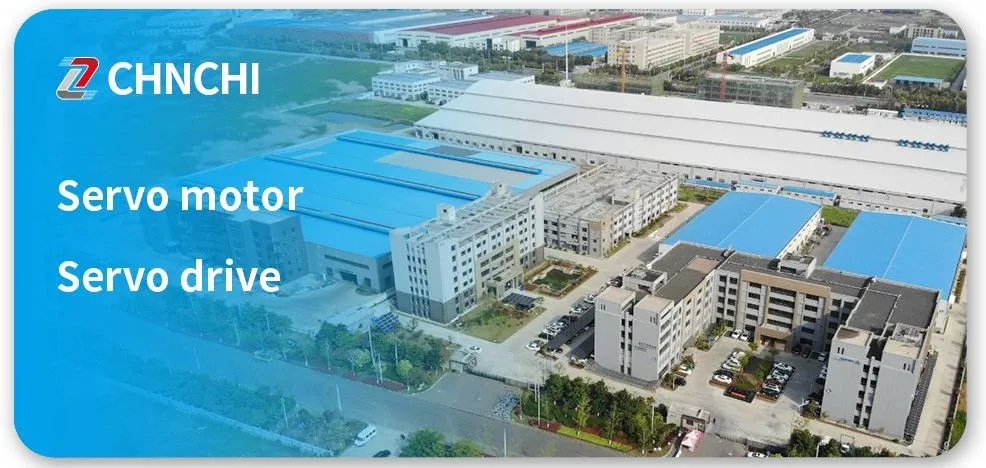

Company Facility
Production Line 1 Production Line 2
💳 Payment Methods
Secure Payment Methods
❓ Frequently Asked Questions
1. What is the rated power and torque of this servo motor?
The motor features a rated power of 850W (0.85 kW) and a rated torque of 5.4 N.m, with a maximum torque capacity of 13.5 N.m.
2. Does this motor support high-protection environments?
Yes, the motor offers a protection level up to IP67 (optional), making it highly resistant to dust and water ingress, suitable for demanding industrial conditions.
3. What are the main applications for the 130ZFHA1-0D85B model?
It is designed for industrial motion control, specifically for driving and control functions in automation machinery where high precision and overload capacity are required.
4. What is the rated speed and speed range?
The rated speed is 1500 r/min, and it can reach a maximum speed of up to 3000 r/min with smooth operation and minimal speed fluctuation.
5. Are there brake options available for this motor?
Yes, the motor comes with parameters for both "without brake" and "with brake" configurations, including specific inertia and mechanical time constants for each version.
6. What voltage does this servo motor operate on?
This model is designed for a rated voltage of AC 220V, suitable for most standard industrial power systems.
