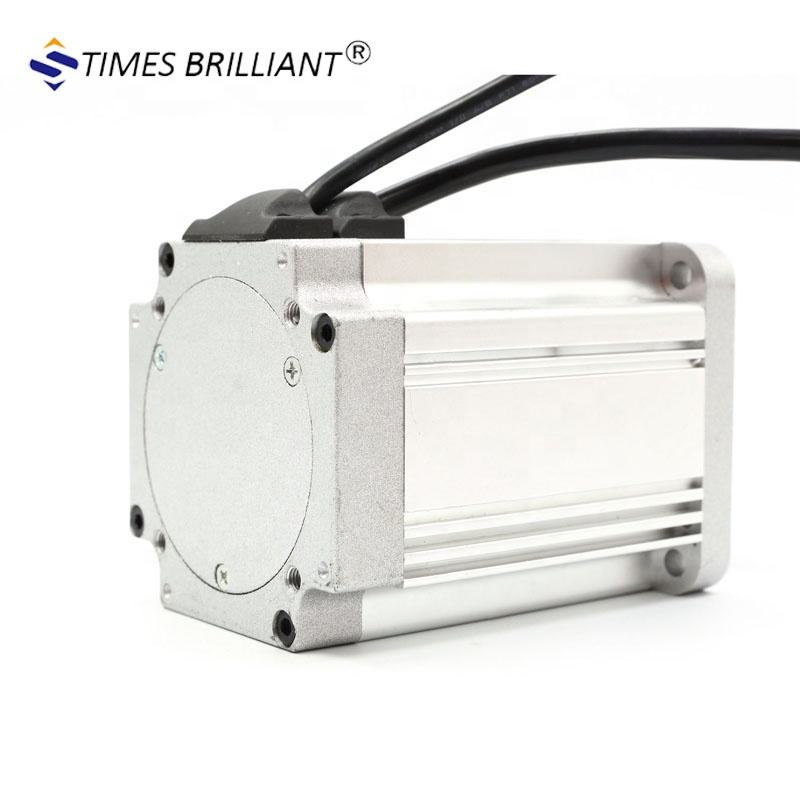

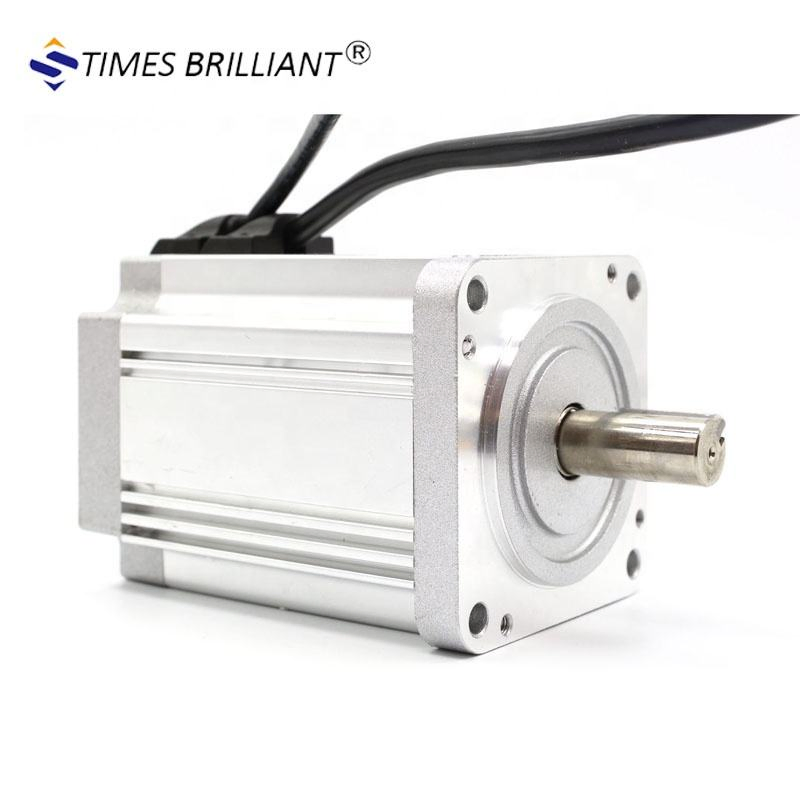

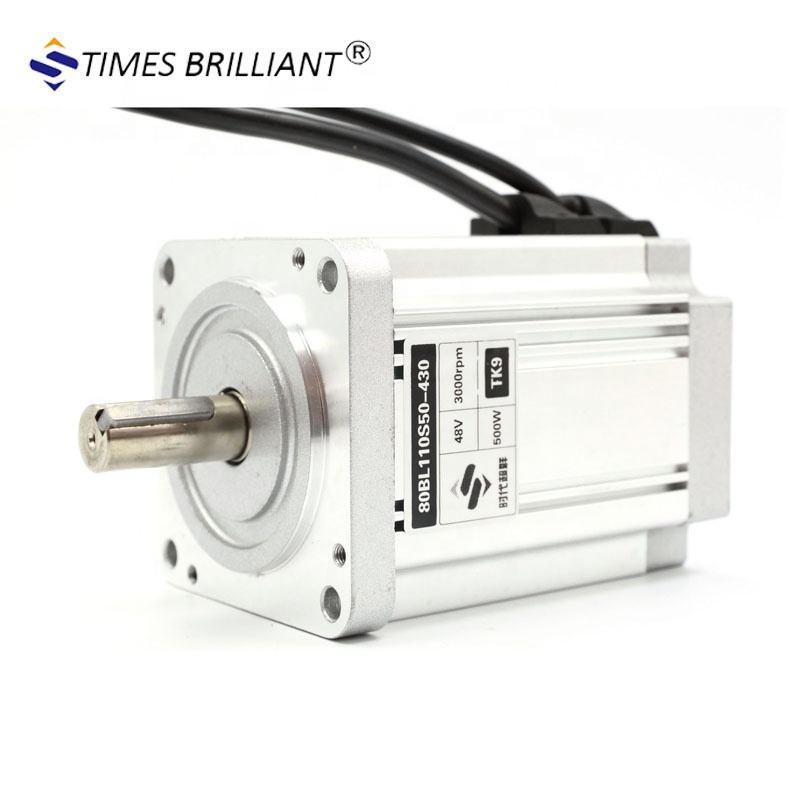

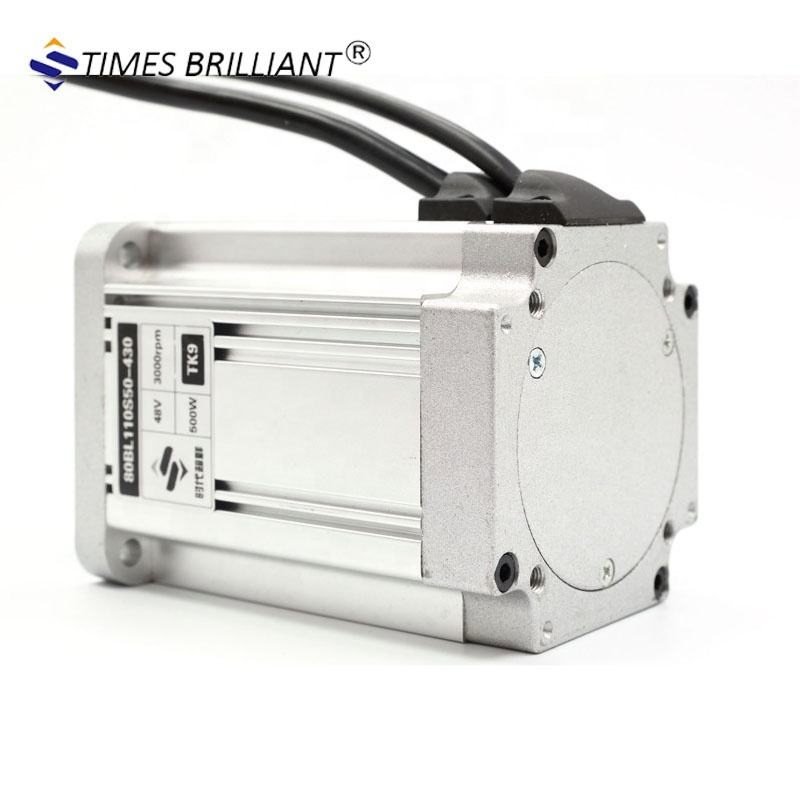

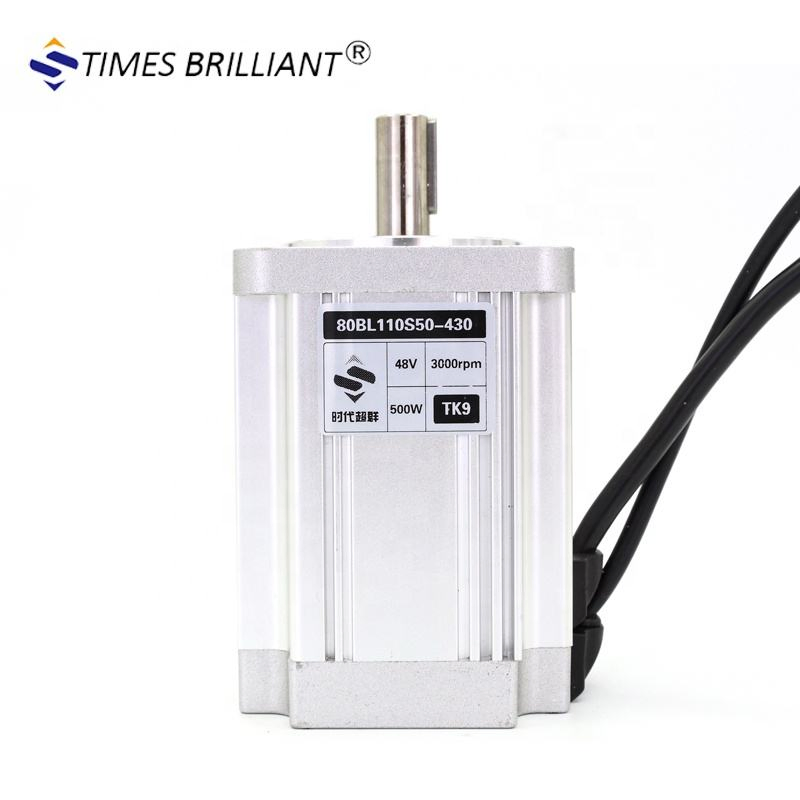

3000rpm High Speed 48V 500W BLDC Brushless DC Motor

1 / 5

3000rpm High Speed 48V 500W BLDC Brushless DC Motor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

80BL110S50-430TK9

Excitation Mode

Brushless

Function

Driving

Casing Protection

Closed Type

Number of Poles

Type

Micro Motor

Certification

CCC

Rated Voltage

48VDC

Weight

1.8kg

Rated Speed

3000rpm

Rated Power

500W

Rated Torque

1.6nm

Product Description

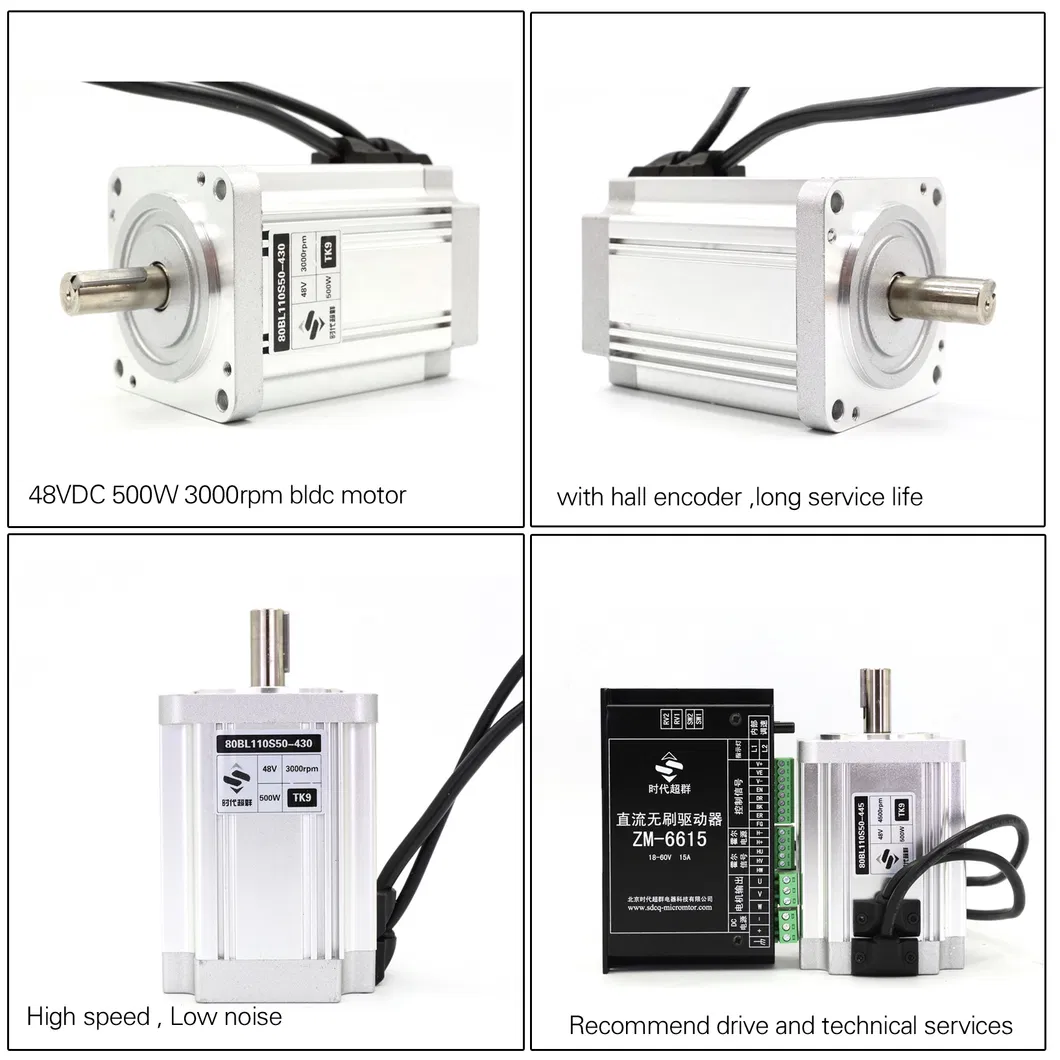

3000rmp High speed 500W 48V bldc brushless dc motor for CNC Milling and Drilling Machine

Note: The motor is magnetic, so magnetic inspection fee may be incurred during transportation. Large quantities may be exempt.

Keywords	Brushless DC Motor
Model	80BL110S50-430TK9
Phase	3
Rotor poles	4
Rated Voltage	48V
No load speed	4000±10%
No load current (Max)	1.5A
Rated Speed	3000±10%
Rated Torque	1.6NM
Rated power	500W
Rated Current (Max)	14.8A
Rotational inertia	1300gcm2
Insulation class	B
IP class	IP40
Quality guarantee	1 year
Mass	1.5Kg

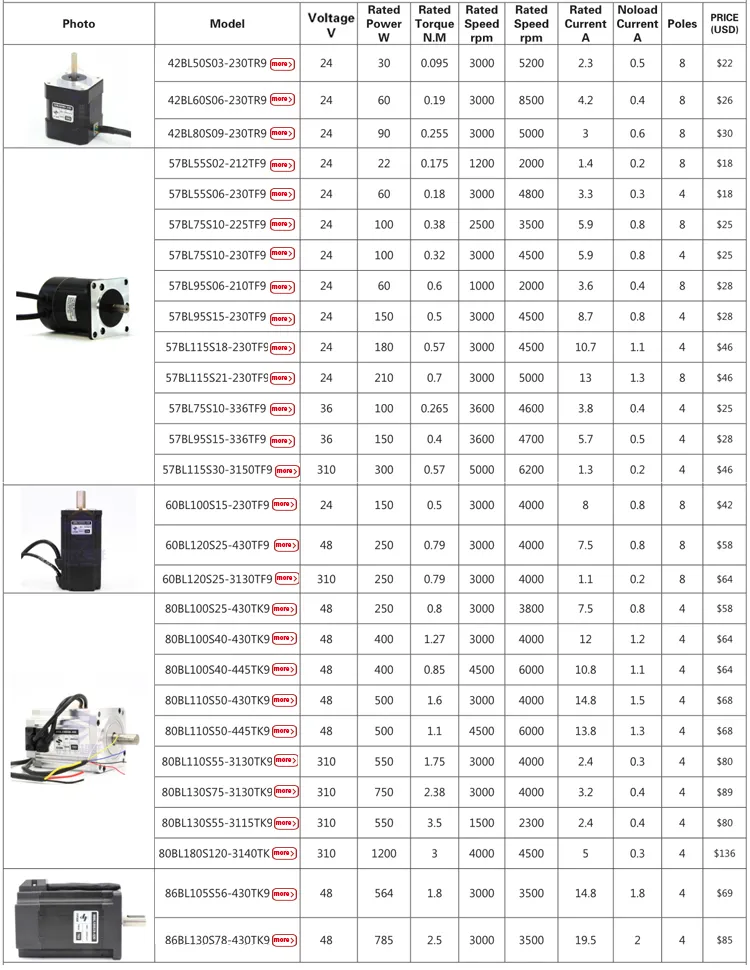

Product Assortment & Related

Professional Service

Customer Service

Our customer service personnel are experienced product specialists who can answer your questions 7 days a week from 9 am to 5 pm.

OEM / ODM

Professional staff capability to design and manufacture a wide range of new items according to requirements, including buyer labels and design services.

Technical Support

We guarantee products to be free from defects. We offer return & exchange services, parts replacement, and lifetime tech support.

Factory Tour

Frequently Asked Questions

Q1: What is the main application of this 500W BLDC motor? A: This high-speed brushless DC motor is primarily designed for CNC milling and drilling machines, but it is also suitable for boats, cars, electric bicycles, fans, and home appliances.

Q2: What are the key power specifications? A: The motor operates at a rated voltage of 48VDC with a rated power of 500W, a rated speed of 3000rpm, and a rated torque of 1.6Nm.

Q3: Does the motor come with a warranty? A: Yes, we provide a 1-year quality guarantee and lifetime technical support for this product.

Q4: What is the protection rating of this motor? A: The motor features an IP40 protection class and is a totally enclosed, brushless driving motor.

Q5: Can I request OEM or ODM services? A: Absolutely. We have the capability to design and manufacture items based on specific requirements, including custom labels and design services.

Q6: What are the packaging dimensions for shipping? A: The individual package size is 30.00cm * 15.00cm * 20.00cm with a gross weight of approximately 3.00kg.
