80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
1 / 5
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W

80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed: Adjust Speed
Send Inquiry

Product Description

📋 Basic Information
Model NO.
80BL Series
Function
Driving
Casing Protection
Closed Type
Number of Poles
8
Working Principle
Brushless
Certification
ISO9001, Ce RoHS
Specification
80mm
Trademark
OEM ODM
HS Code
85013100
Production Capacity
10000 PCS Per Month
📦 Packaging & Delivery
Package Size
10.00cm * 10.00cm * 20.00cm
Gross Weight
2.000kg
Transport Package
Standard Export Package
Origin
China
⚙️ Product Description

Customized 80mm Brushless Dc Motors / DC Gear Motor

Please Send Inquiry for the Best and Most Cost Effective Solution.

⚡ Customizable Power Voltage, dimension, performance, shaft, and mounting can all be tailored to your needs.
🛠️ Integrated Components Available with integrated encoders, gearboxes, brakes, and controllers.
Technical Options
Diameter80mm
Rated Voltage12v, 18v, 24v, 36v, 48v up to 380vdc
Rated TorqueUp to 3Nm (with gearbox up to 120Nm)
Rated Speed1000rpm, 1500rpm, 2000rpm, 3000rpm, 4000rpm or customized
Rated Power150w, 200w up to 800w
Protection ClassOptions: IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI SuppressionAvailable upon request
Thermal ProtectionAvailable upon request
Gearbox OptionsPlanetary or Worm gearbox assembled
Brake OptionsElectric brake assembled
Encoder OptionsOptical or Magnetic encoders assembled
Controller OptionsIntegrated controller for BLDC Motors available
🖼️ Product Visuals

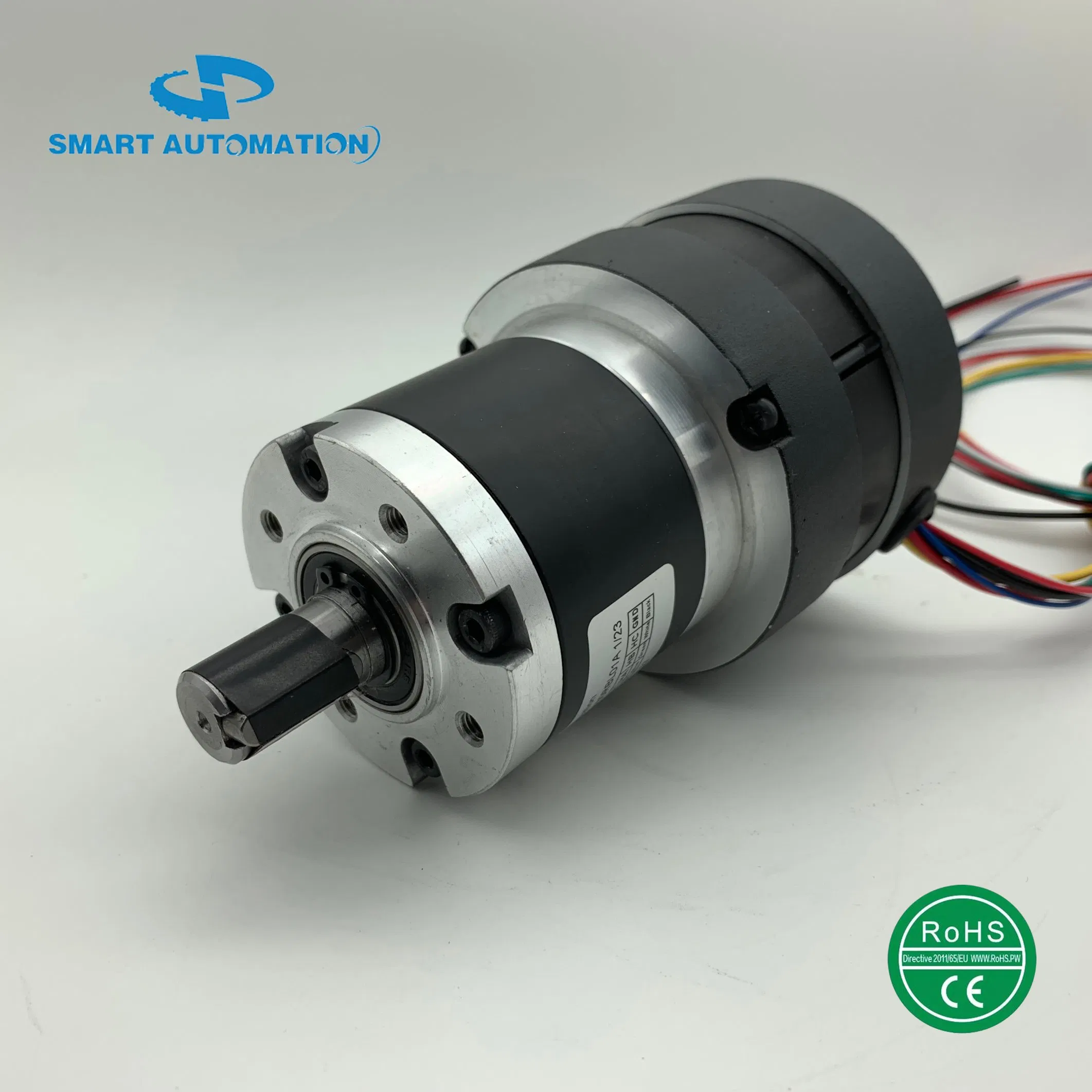

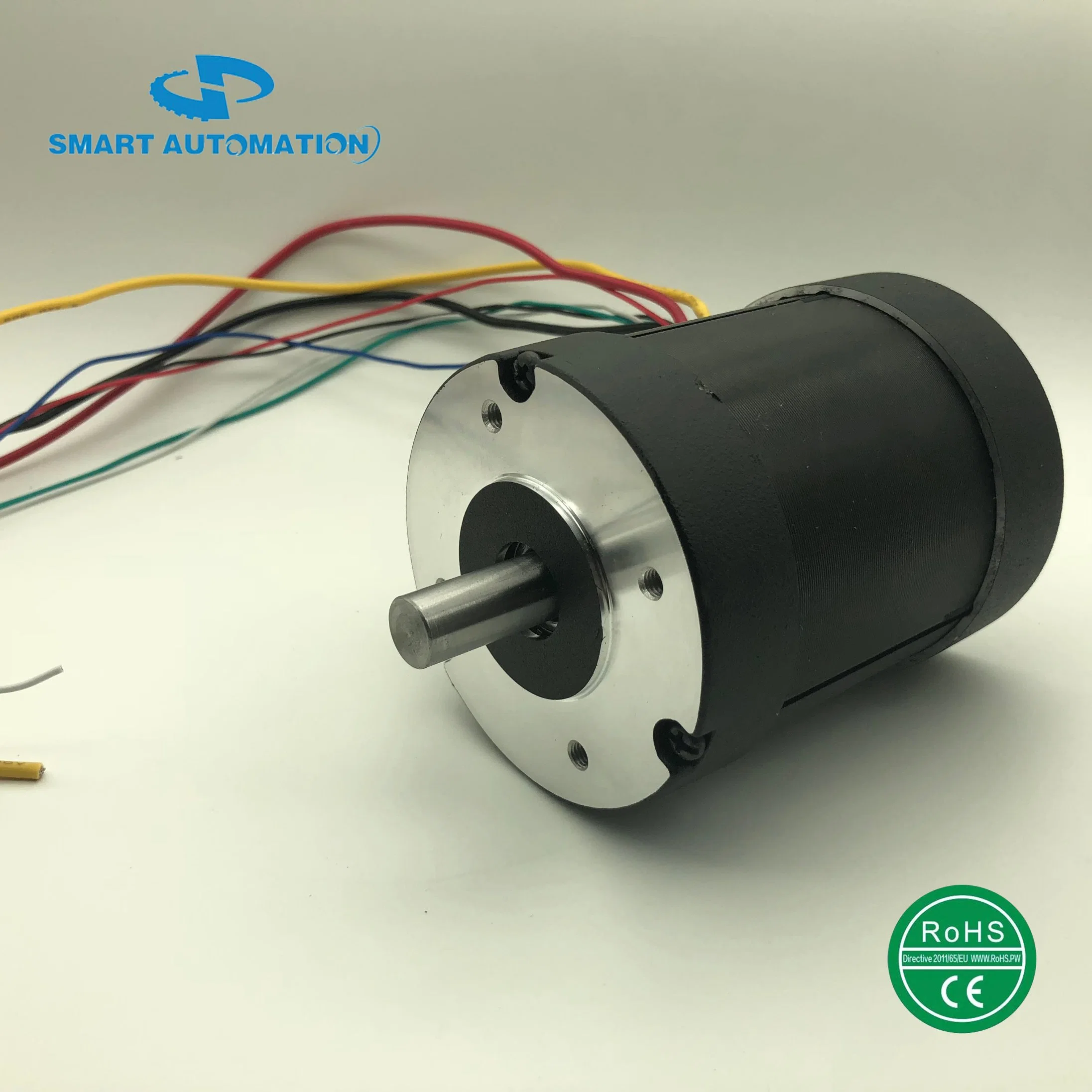

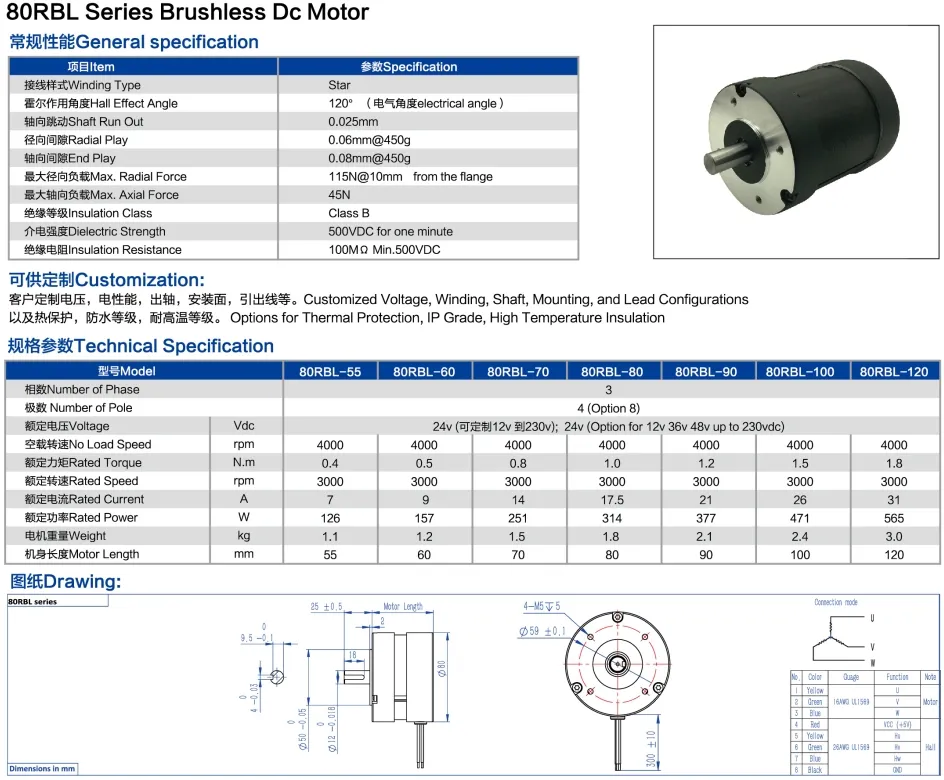

80mm Brushless DC Motor

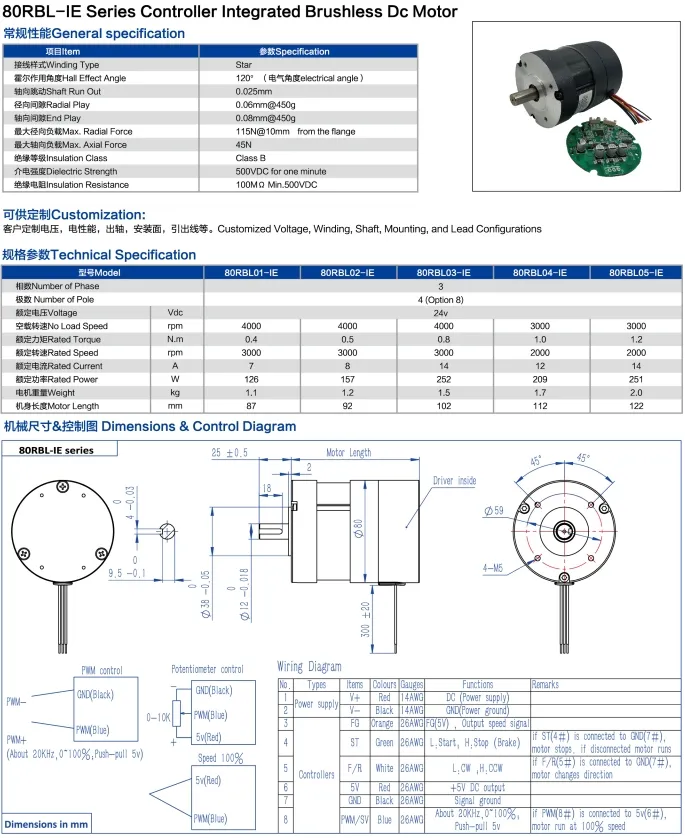

Motor Technical Drawing

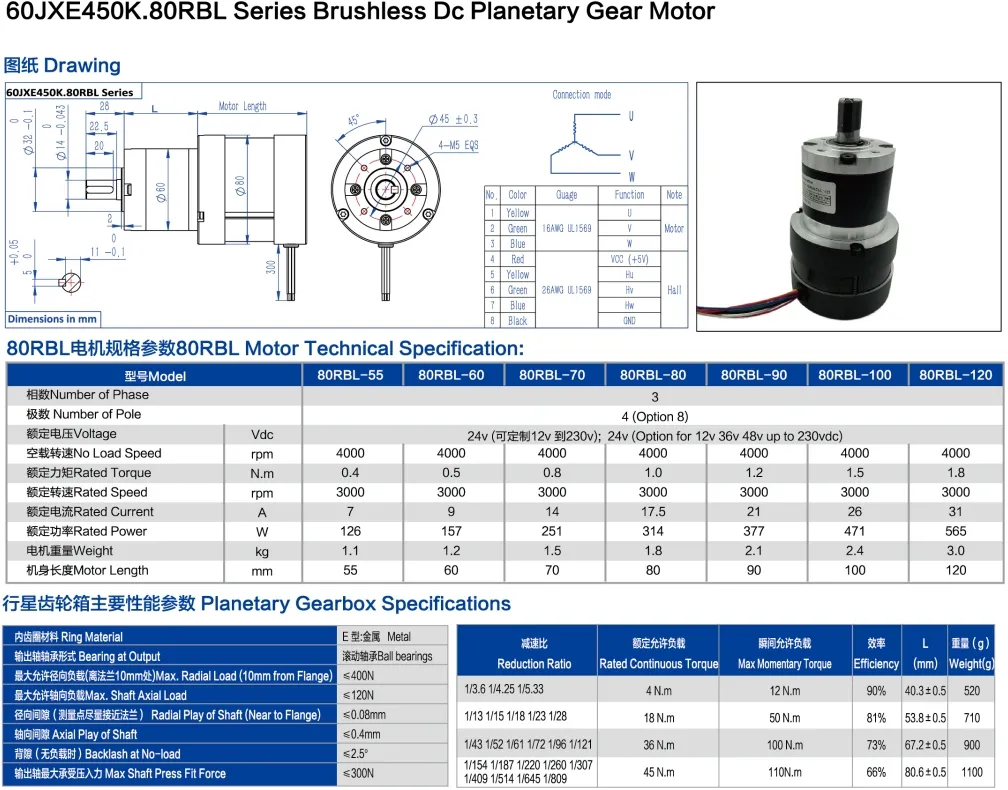

High Torque Motor Features

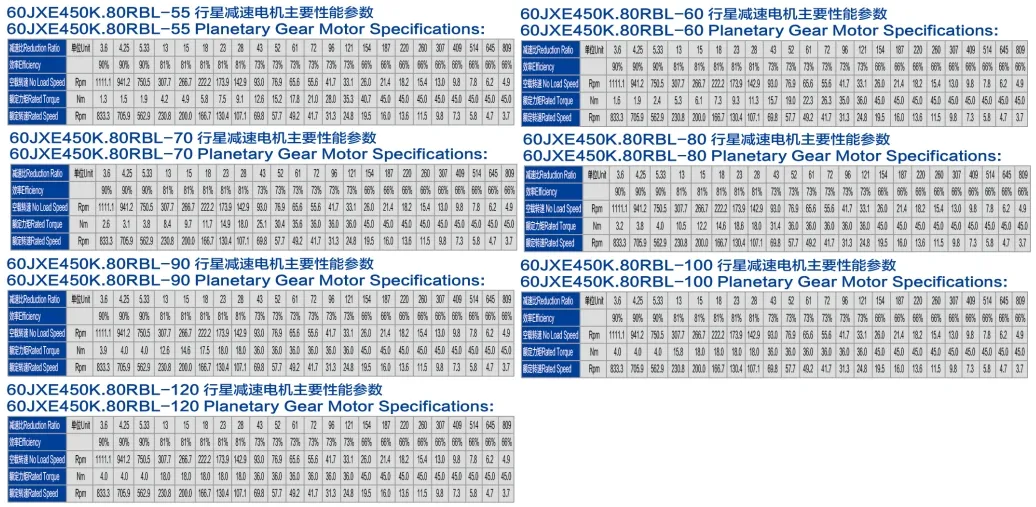

Integrated Controller View

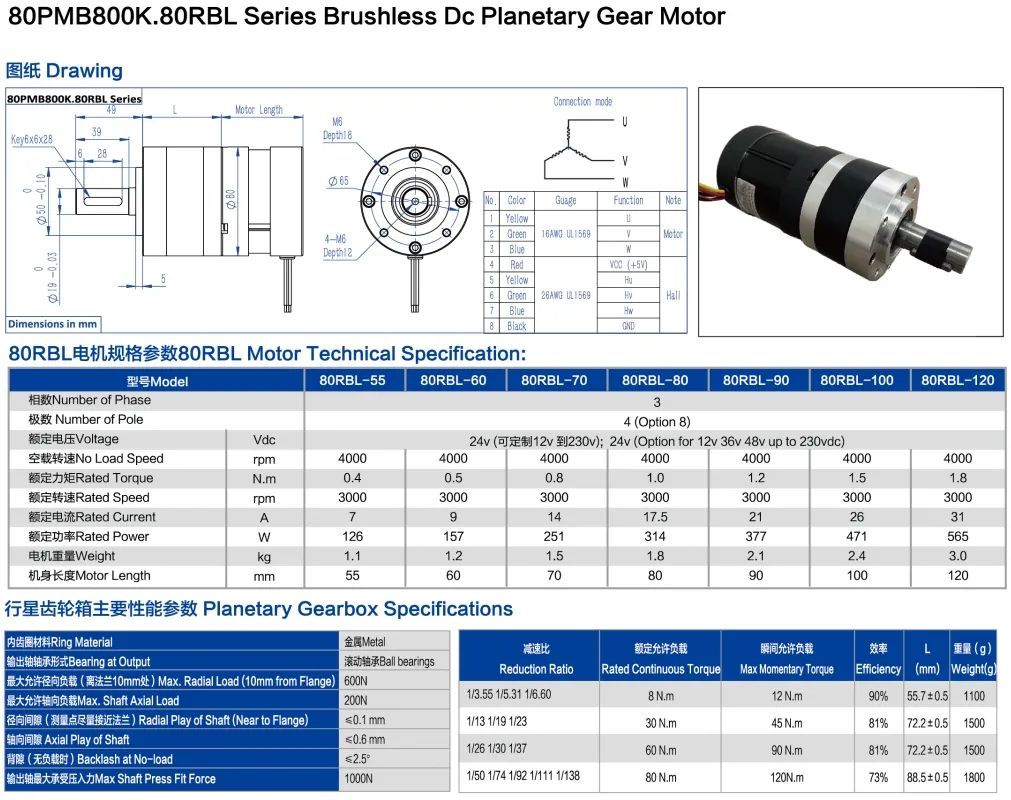

Planetary Gear Motor Option

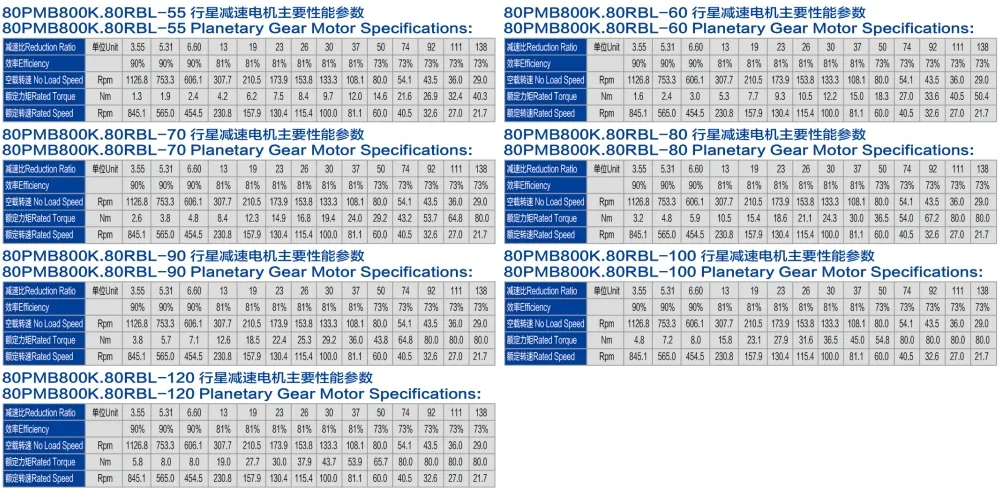

Brushless DC Motor Specs

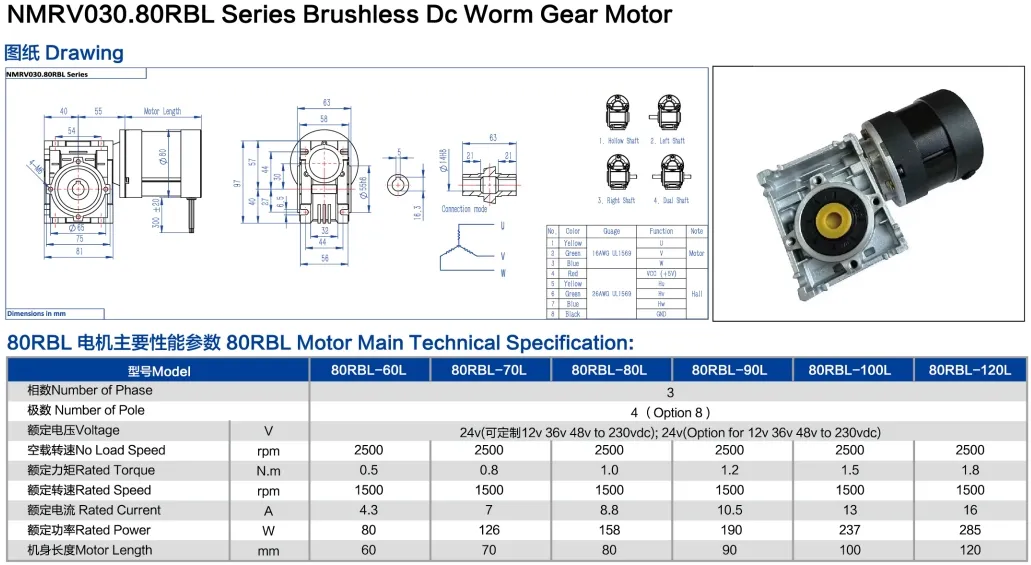

Motor Performance Chart

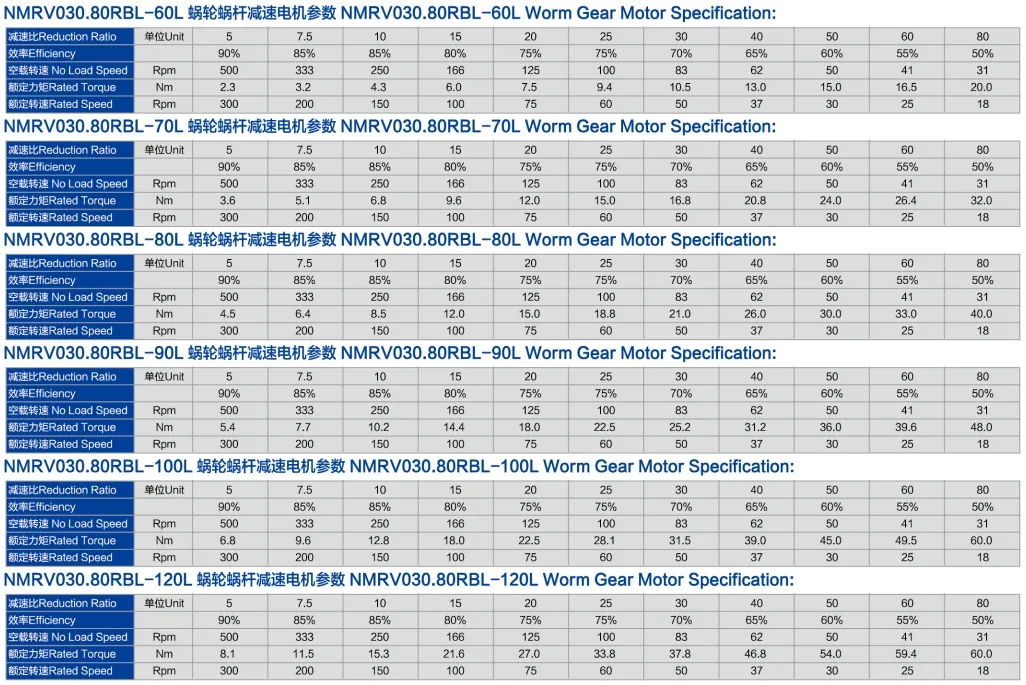

Custom Shaft Design

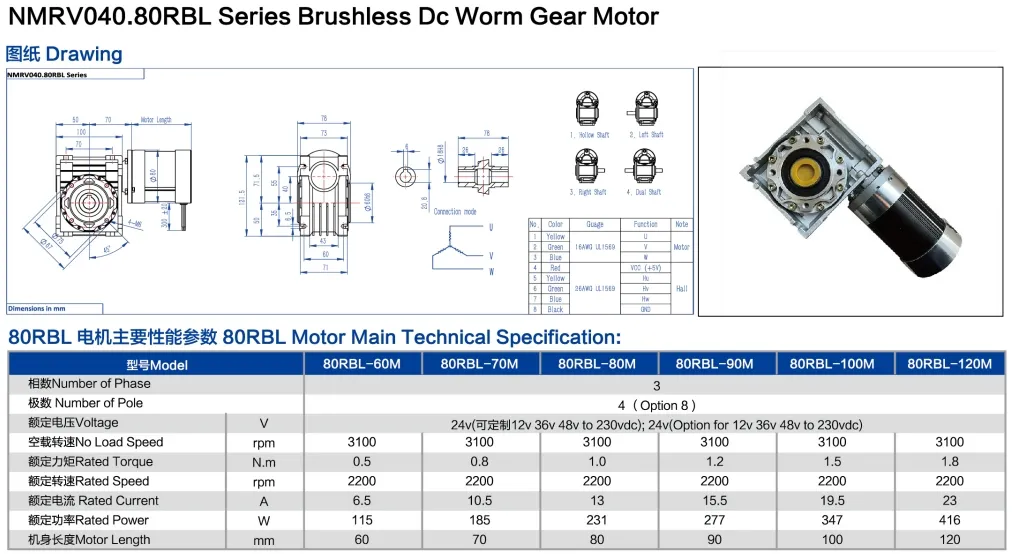

Brake Integrated Motor

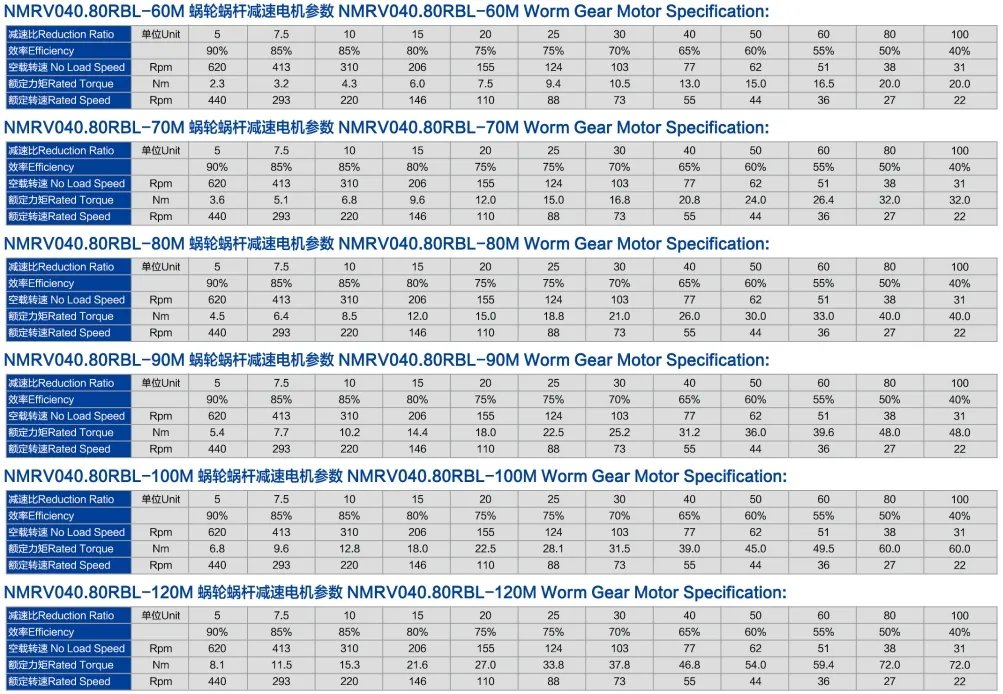

80mm BLDC Series Overview
❓ Frequently Asked Questions
What is the maximum power output for the 80mm BLDC series?
The 80mm series can deliver rated power ranging from 150W and 200W up to 800W, depending on the specific configuration and cooling.
Can these motors be customized for high-voltage applications?
Yes, we offer a wide range of rated voltages starting from 12VDC up to 380VDC to suit various industrial and driving requirements.
Do you provide integrated gearbox solutions?
Absolutely. We can assemble either planetary or worm gearboxes, allowing for rated torques up to 120Nm.
Is it possible to have an integrated controller and brake?
Yes, the 80mm series supports integrated designs that combine the motor with a controller, electric brake, and even optical/magnetic encoders for a compact solution.
What IP ratings are available for harsh environments?
We offer various protection classes ranging from IP40 for standard use up to IP67 for waterproof and dust-heavy environments.
Are these motors certified for international export?
Yes, our manufacturing processes are ISO9001 certified, and the products comply with Ce and RoHS standards.
