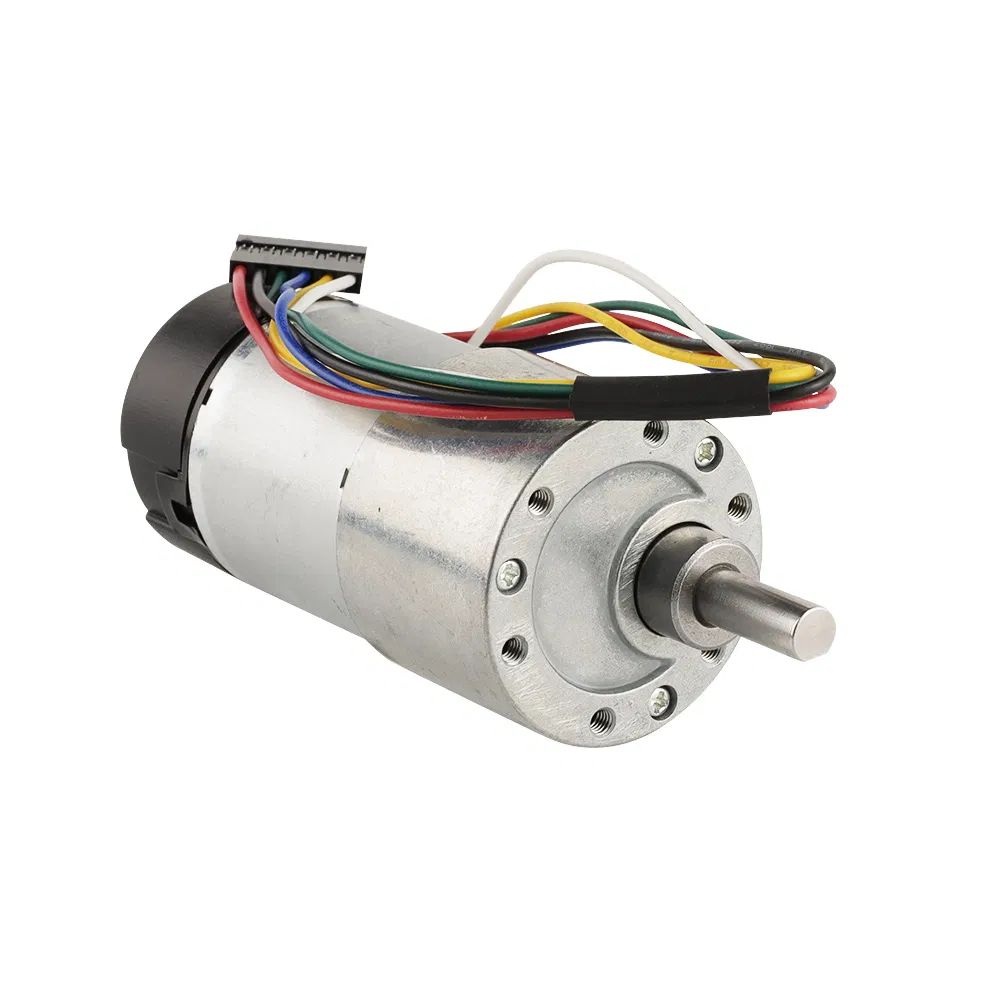

6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
1 / 5
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot

6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
37D
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Type
Z2 / Spur Gear Motor
Certification
RoHS, CE
Diameter
37mm
Voltage
6V 12V 24V
Speed Range
5rpm ~ 3000rpm
Encoder
64CPR Encoder Option
Noise Level
Less Than 40dB
Power
20W
Weight
0.3kg
Production Capacity
20000/Month
Lead Time
15 Days
Product Features
High Power version with 5A stall current
Integrated 64CPR encoder for precise control
Available with back shaft or standard configuration
Optional metal brush or carbon brush for durability
Model Voltage (VDC) No Load Speed (rpm) No Load Current (mA) Stall Torque (kg.cm) Gear Ratio
37D306-EN12V17602503.96.25:1
37D3010-EN12V11002505.510:1
37D3019-EN12V585250918.75:1
37D3030-EN12V3652501530:1
37D3050-EN12V2202502150:1
37D3070-EN12V1572503170:1
37D30100-EN12V10725045102:1
37D30131-EN12V8325055131.25:1
37D30168-EN12V6525070168.75:1
37D30270-EN12V4025070270:1
37D30506-EN12V2125070506.25:1
37D30810-EN12V1325070810:1
Detailed Photos
Motor Photo 1

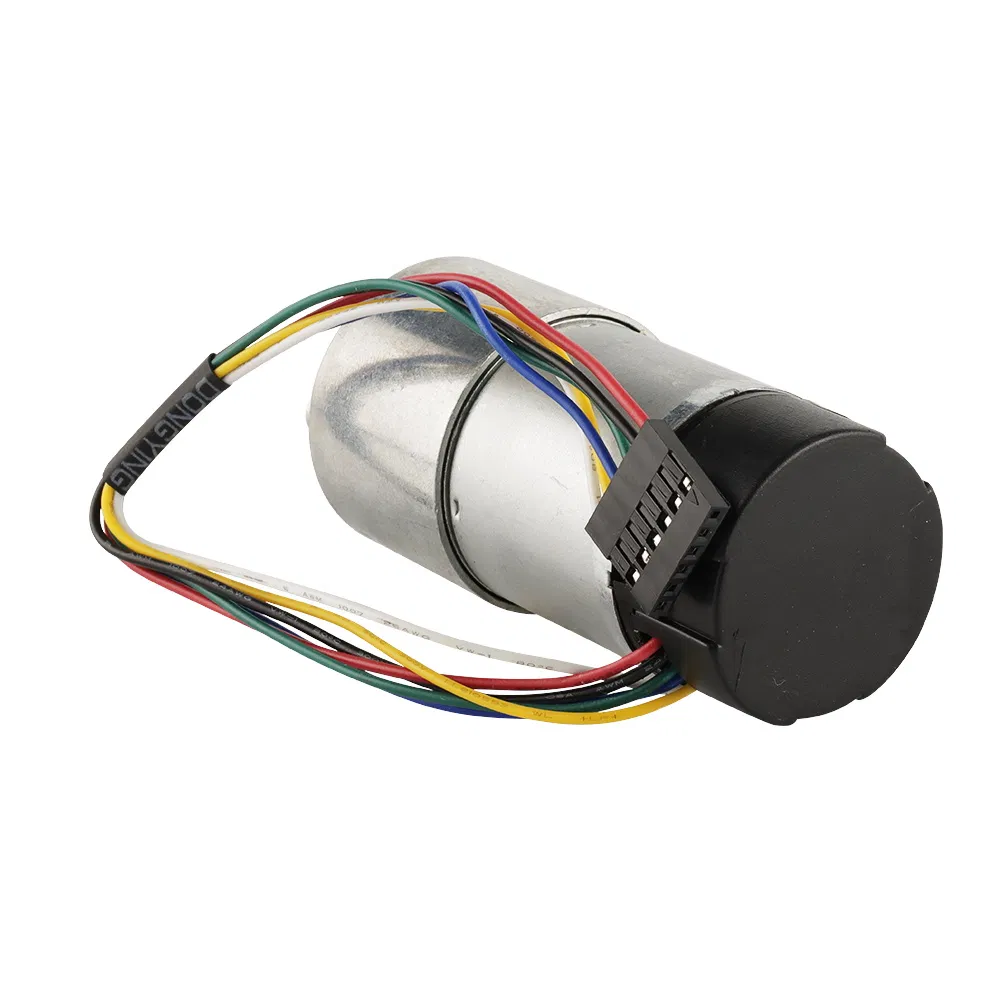

Motor Photo 2

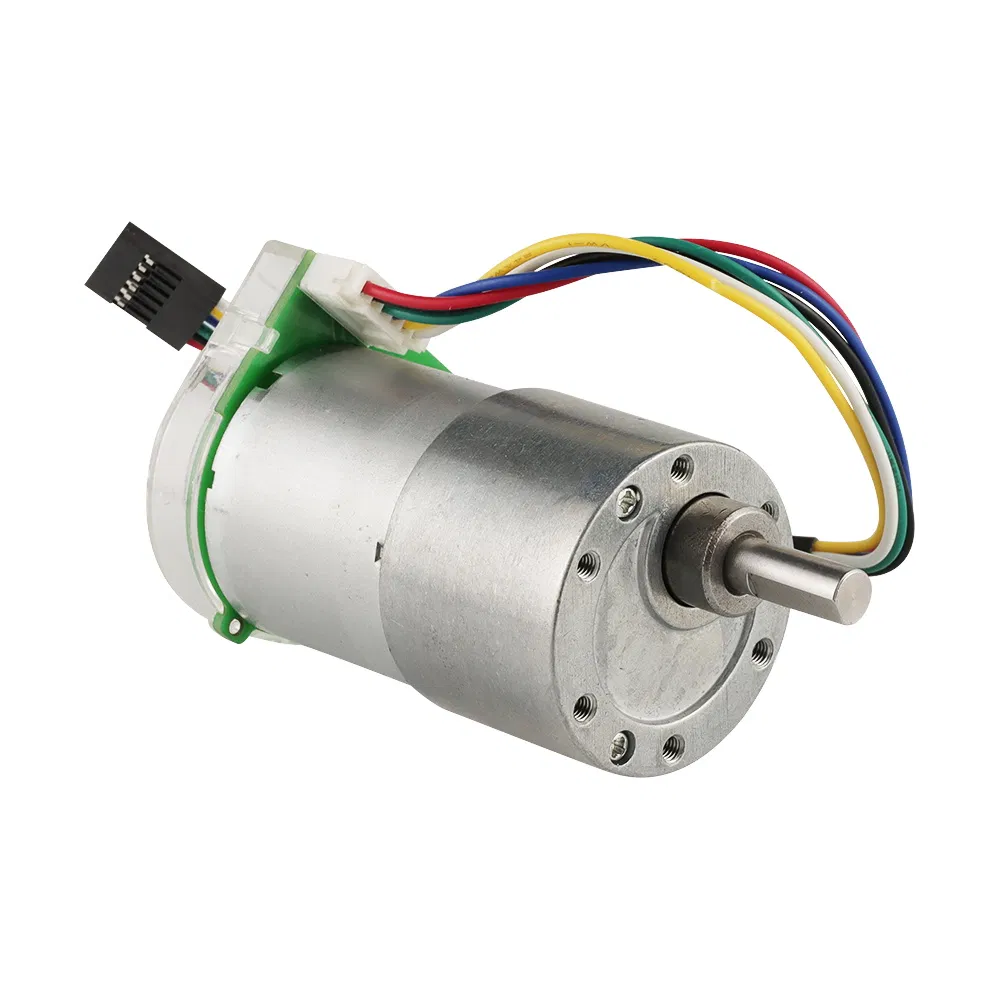

Motor Photo 3

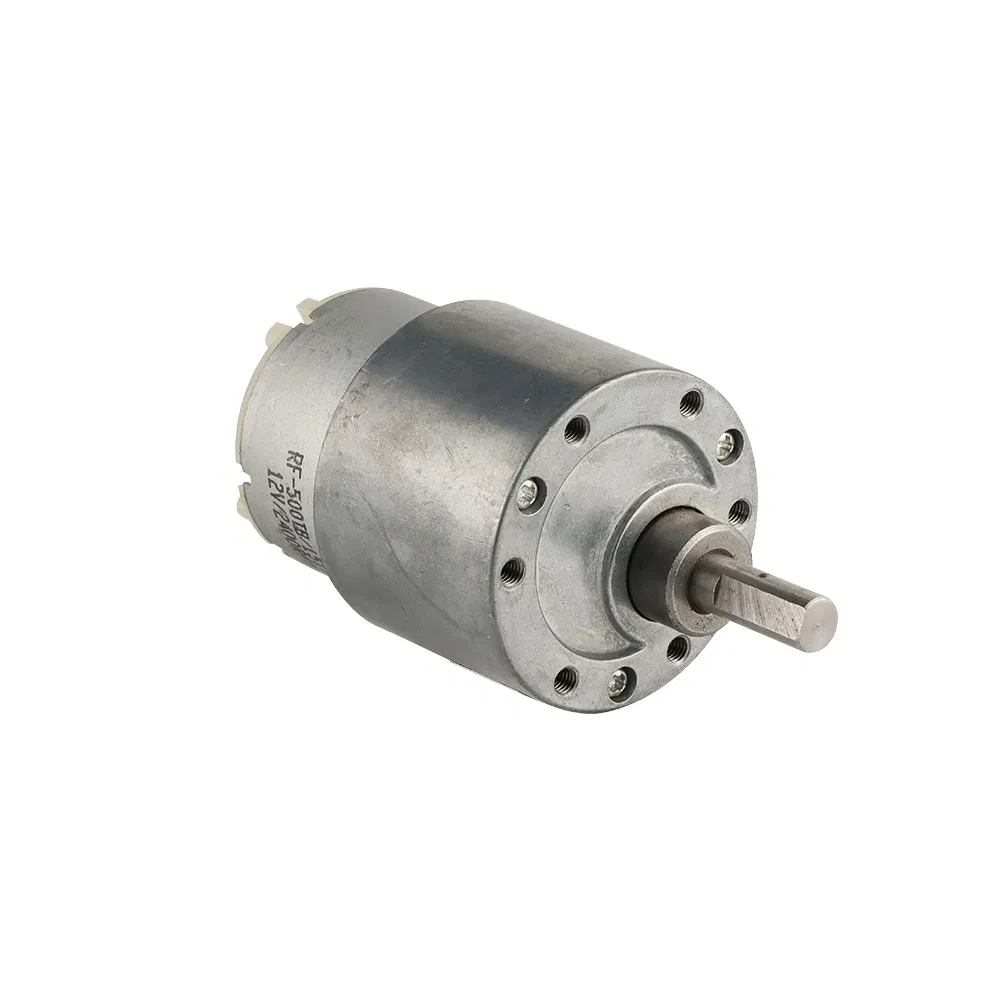

Motor Photo 4
Motor Photo 5
Motor Photo 6

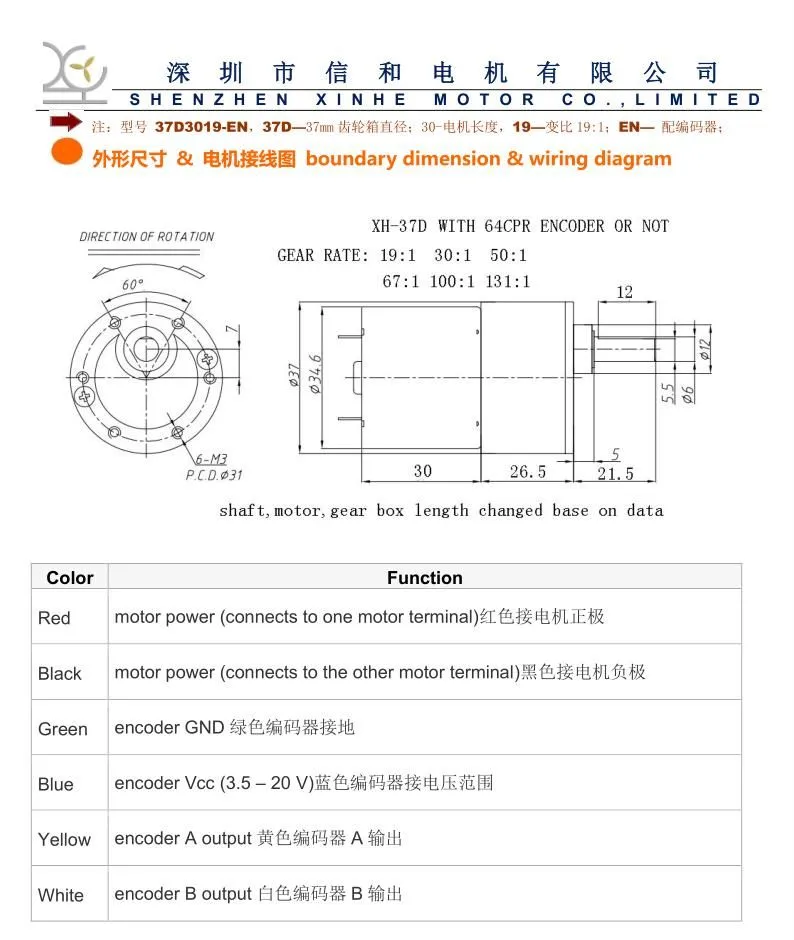

Technical Drawings & Dimensions

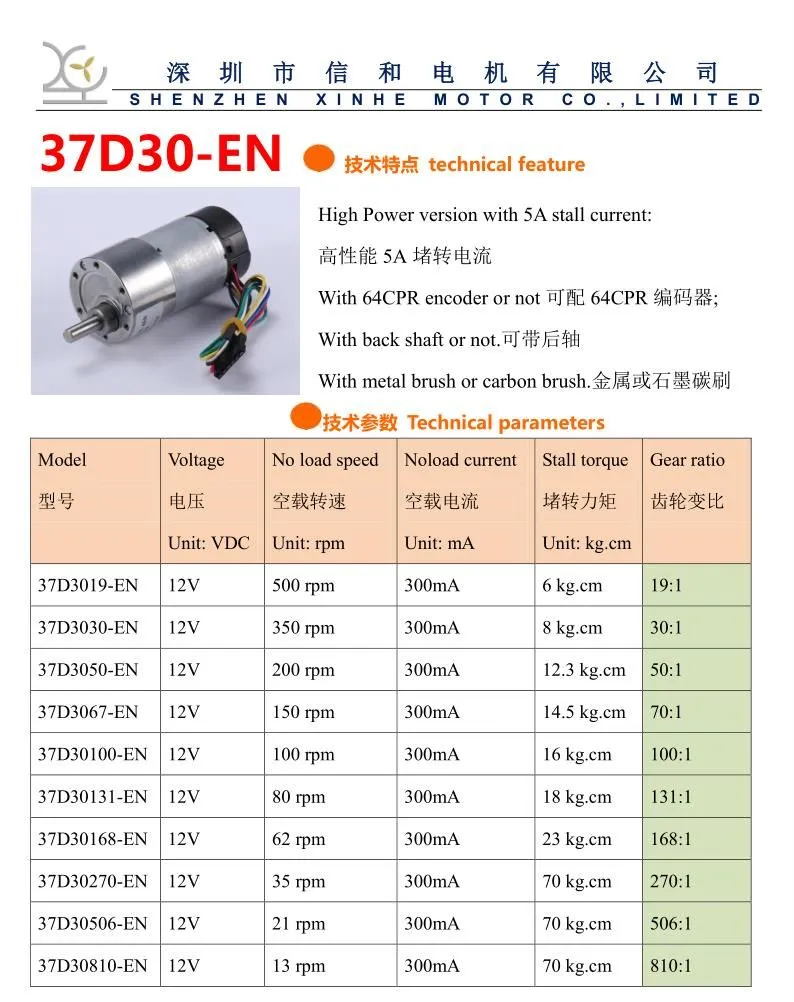

Product Parameters 1
Product Parameters 2
Quality Certifications
Certifications
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Gross Weight
0.200kg
Transport Package
Cartons
Shipping Info
Installation & Production

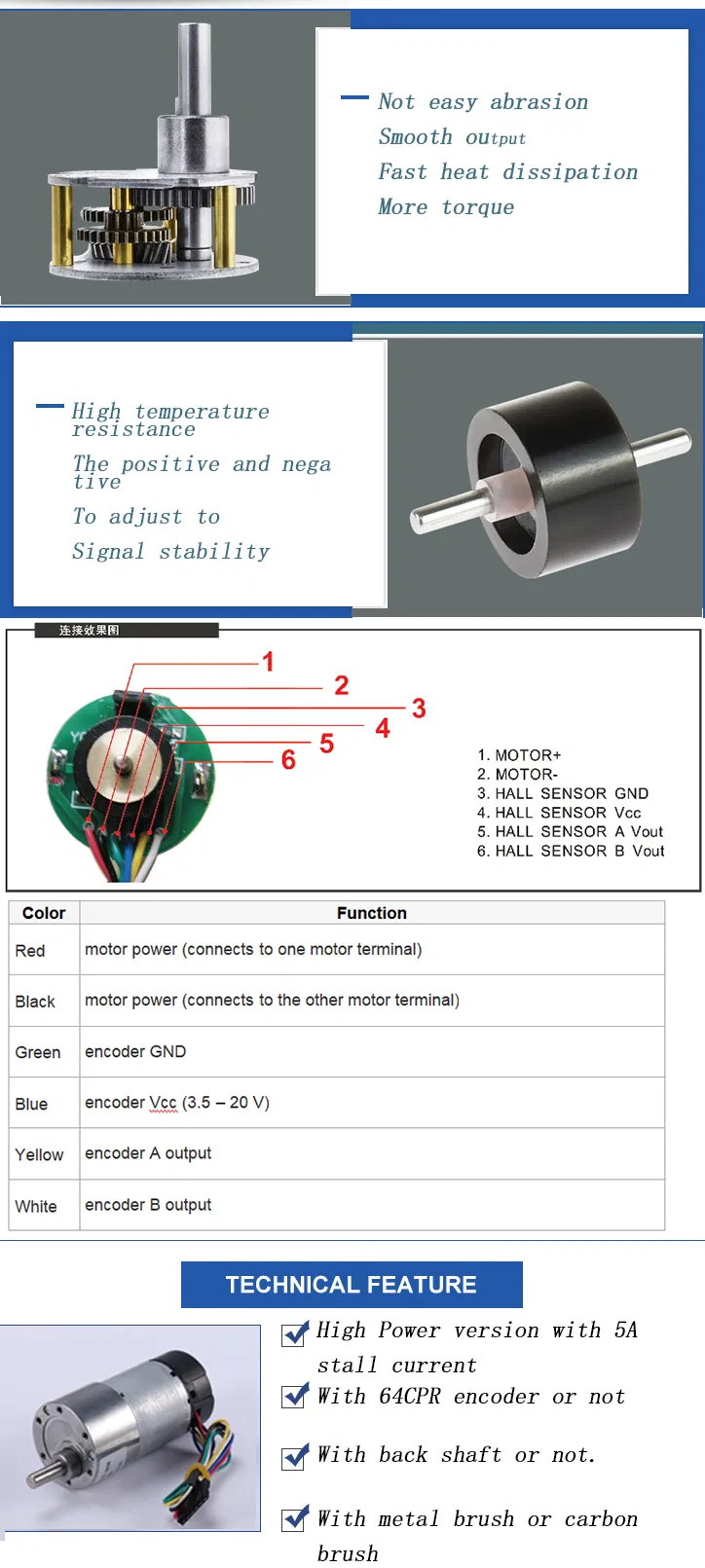

Installation
Factory Profile
Frequently Asked Questions
Q1: What is the noise level of the 37D series motor?
The motor operates at a low noise level of less than 40dB, making it suitable for quiet environments.
Q2: Can I get this motor with an integrated encoder?
Yes, we provide a 64CPR encoder option for applications requiring precise position and speed feedback.
Q3: What voltages are supported for this gear motor?
The 37D motor is available in 6V, 12V, and 24V DC versions.
Q4: What is the stall current for the high power version?
The high power version of this motor features a stall current of up to 5A.
Q5: What is the standard lead time for an order?
The typical production lead time is approximately 15 days after payment confirmation.
Q6: Are these motors RoHS and CE certified?
Yes, our motors have passed both RoHS and CE certifications to ensure quality and compliance.
