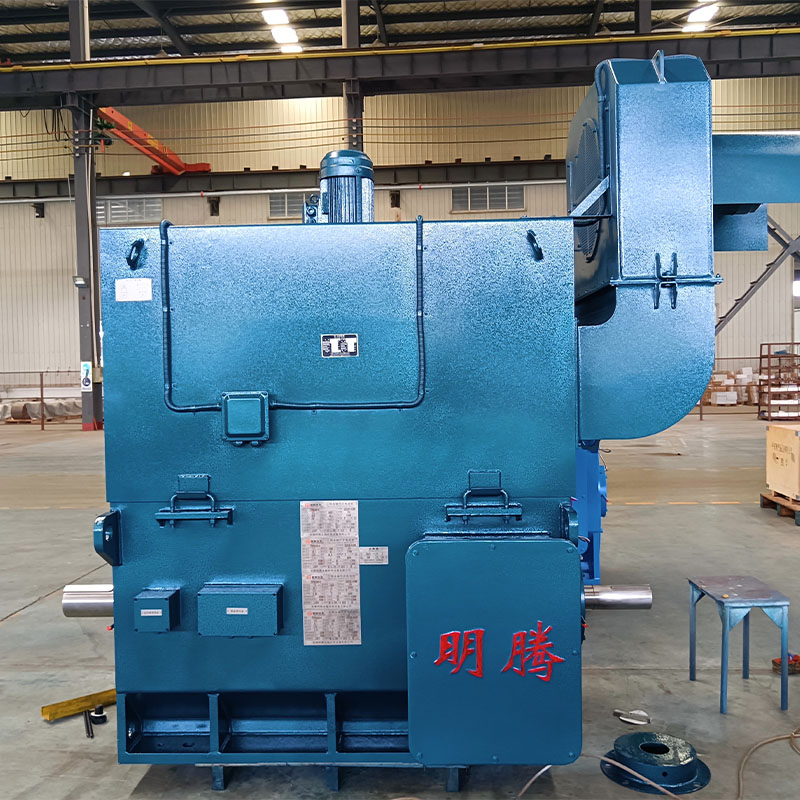

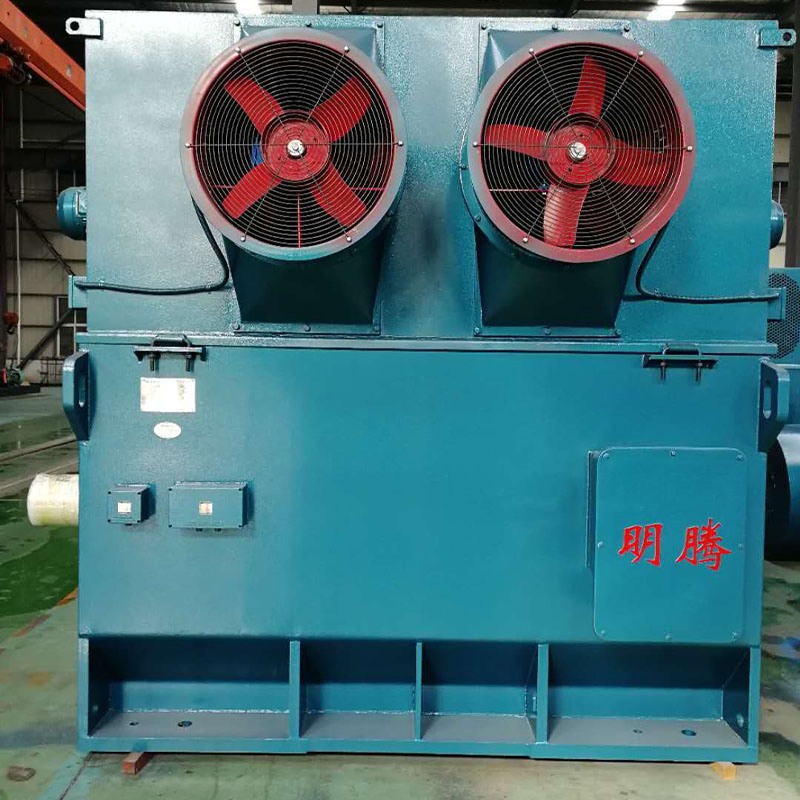

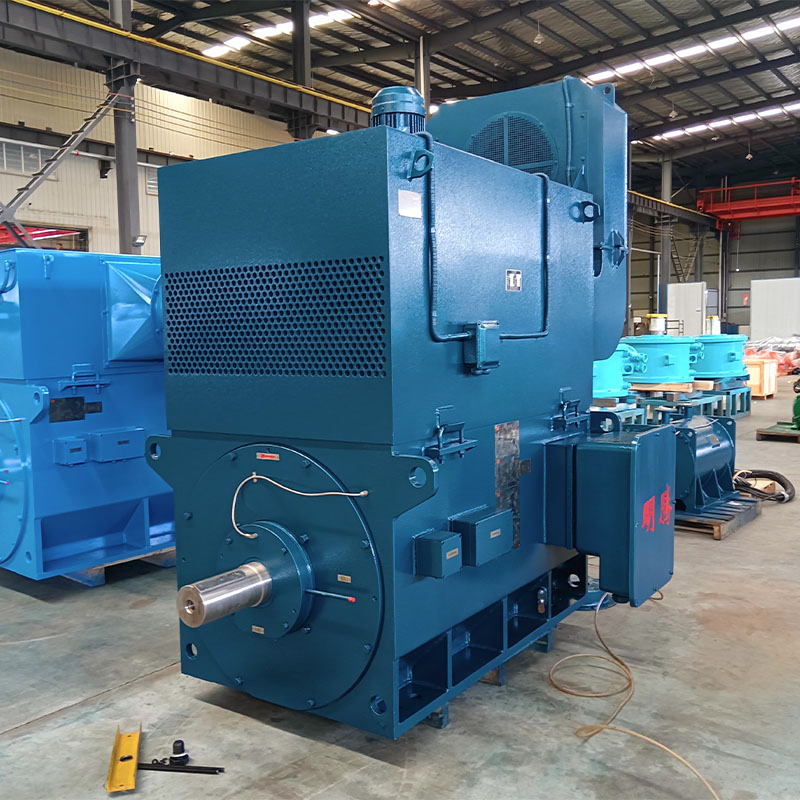

High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
1 / 5
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control
High Voltage Direct Drive Pmsm Motor for Precision Motion Control

High Voltage Direct Drive Pmsm Motor for Precision Motion Control

Customization: Available
Application: Industrial
Speed: 500-1500rpm, Customized
Send Inquiry

Product Description

Basic Specifications

Number of Stator
Three-Phase
Function
Driving, Control
Casing Protection
Closed Type
Number of Poles
4,6,8,10,12
Starting Mode
Self-Starting / VFD
Certification
ISO9001, CCC
Power Range
185-5000kw
Rated Voltage
6000V, 10000V
Speed Range
500-1500rpm
Insulation Class
H
Protection Level
IP55 or Higher
HS Code
85015300

Product Description

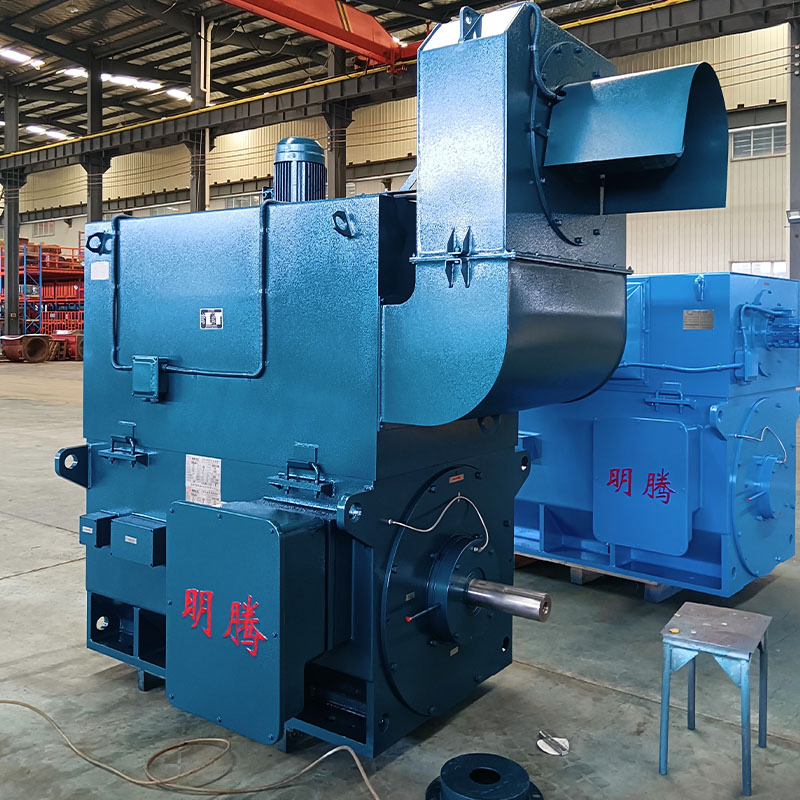

High Voltage Direct Drive Pmsm Motor

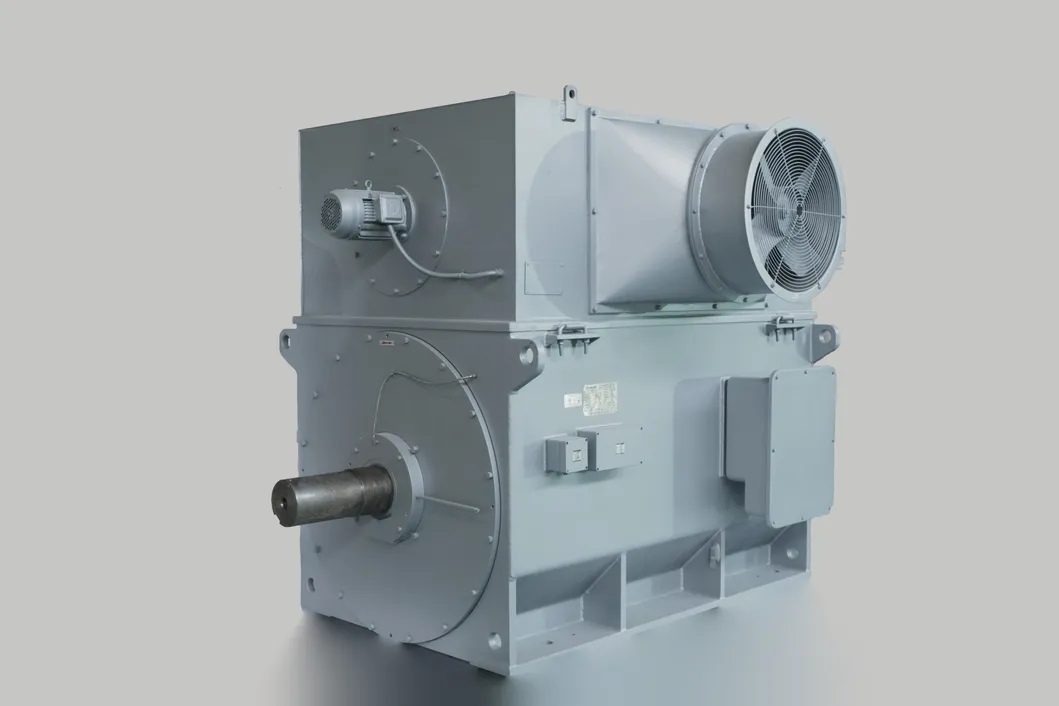

Precision Motion Control Motor

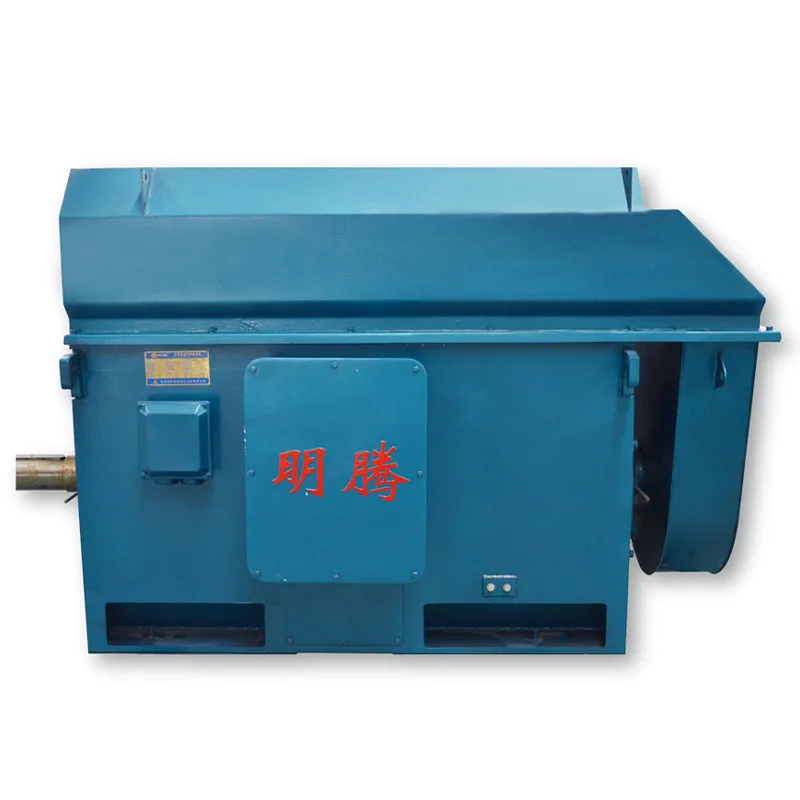

Motor Components

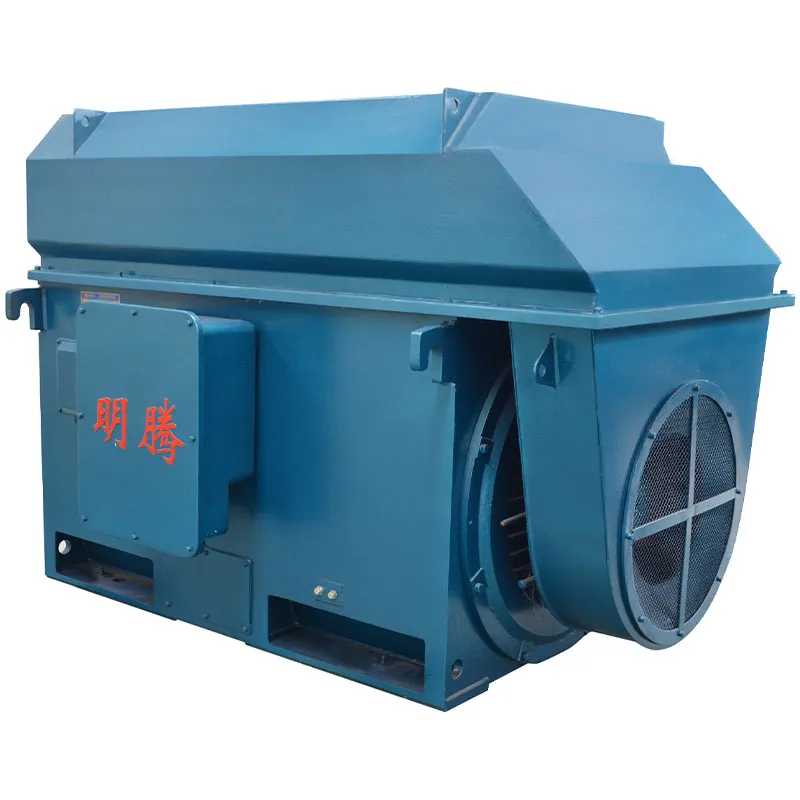

Motor Detail
Rated Voltage6000V, 10000V
Power Range185-5000kW
Speed500-1500rpm
Protection GradeIP55
Working DutyS1 (Continuous)
Customized ServiceAvailable
  • IE5 energy efficiency, self-starting performance, compatible with VFD.
  • Widely used in fans, pumps, compressors, and belt machines.
  • Applicable in electric power, petroleum, metallurgy, and textile industries.
  • Ideal replacement for traditional asynchronous (induction) motors.
  • Flexible design for various voltages, cooling methods, and speeds.

Main Product & Manufacturing

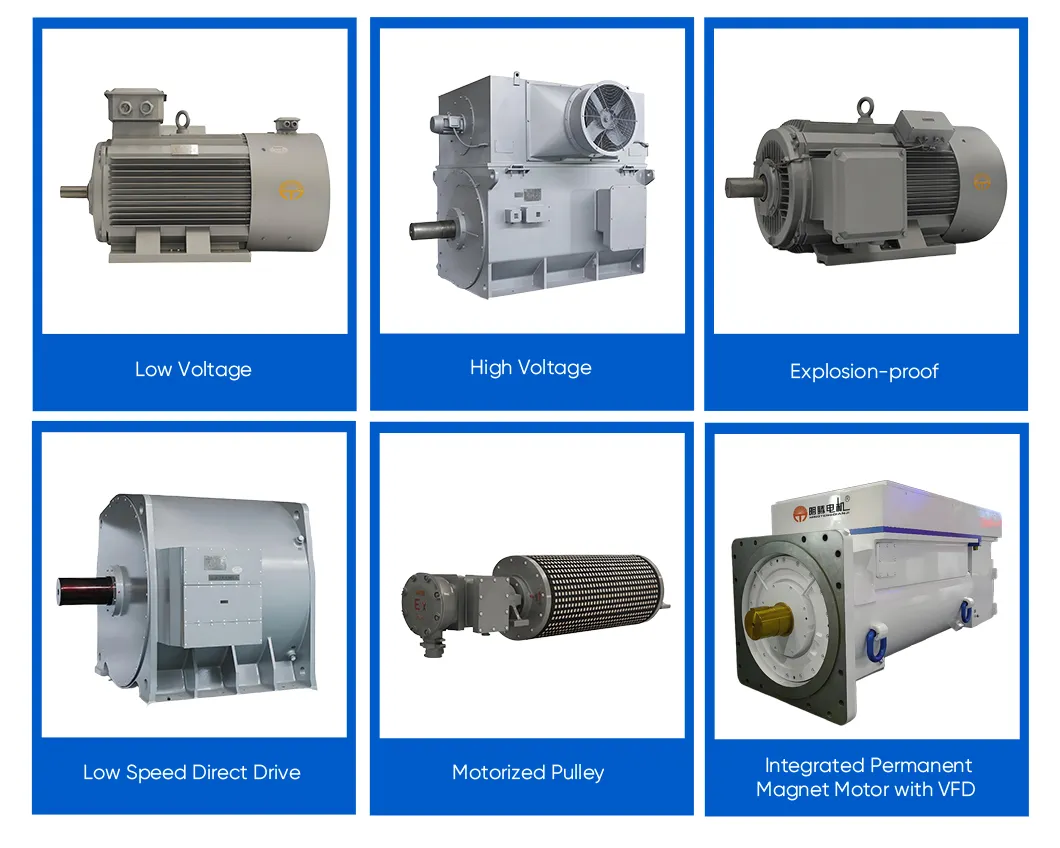

Main Product Line

Our permanent magnet motors are designed for low-carbon and green industrial operations. With nearly 2000 models developed since 2007, we provide customized solutions including low voltage, high voltage, direct drive, explosion-proof, and integrated permanent magnet motors with VFD. These products support sustainable development across steel, cement, coal, and petroleum sectors.

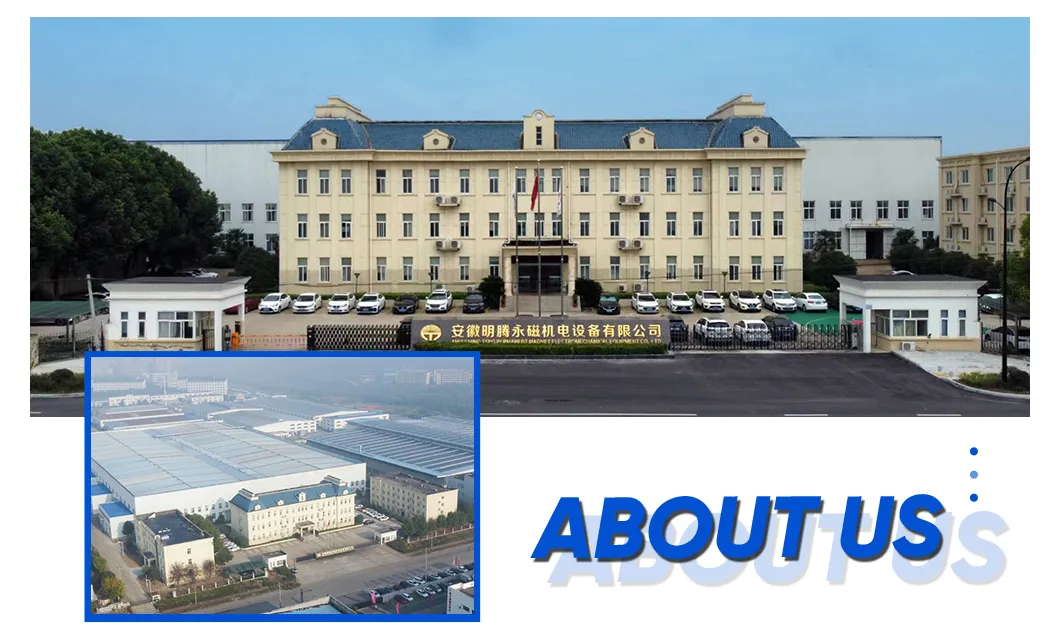

Facility Overview

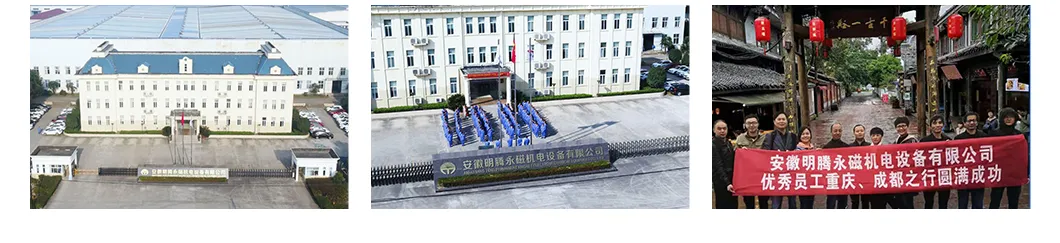

Production Capacity

Company Advantages

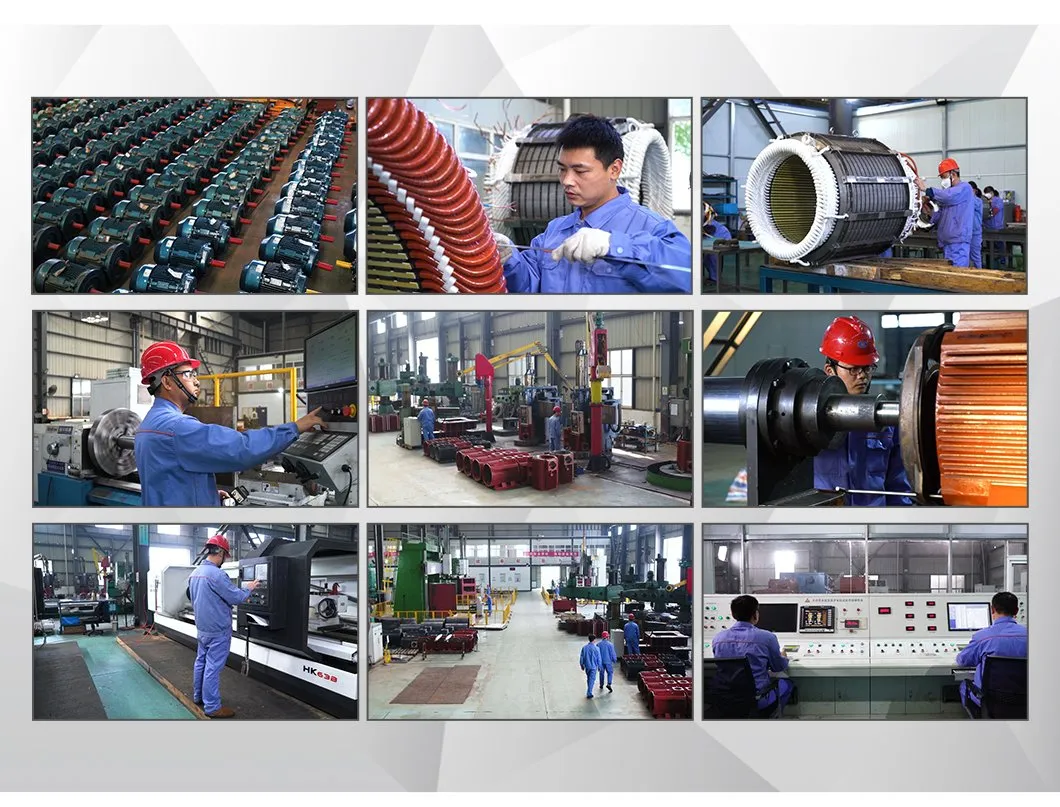

Production Line
Technical Strength

With over 110 national patents and 18 years of R&D accumulation, our technology center specializes in ultra-efficient motor innovation. We maintain a mature production system with over 200 sets of equipment, ensuring high-quality manufacturing for motors up to 8000kW.

Certificates & Packaging

Exhibition
Certificate
Global Shipping
Wooden Box Packaging

Frequently Asked Questions

1. What is the difference between PMSM and Induction Motors?
PMSM uses permanent magnets for the magnetic field, ensuring the rotor speed stays synchronized with the magnetic field speed. Unlike induction motors, PMSM offers higher efficiency (95-98%), a higher power factor, and a wider speed regulation range, making it superior for precision control.
2. What are the main advantages of using Permanent Magnet Motors?
They provide a high power factor, eliminating the need for compensators. They also feature high starting torque (over 3 times) and high overload capacity. Additionally, the operating current is typically 15% lower than asynchronous motors due to the lack of excitation current requirements.
3. In which industries are these motors typically applied?
These motors are widely used in mining, steel, electric power, and cement industries. Common applications include fans, pumps, belt conveyors, ball mills, crushers, and oil extractors.
4. Can the motors be customized for specific requirements?
Yes, we offer full customization for different voltages, cooling methods, speeds, and mounting configurations (B3, B35, V1, V3, etc.) to meet specific working conditions.
5. What is the energy efficiency rating of these motors?
Our motors reach IE5 energy efficiency levels, providing significant energy-saving effects compared to traditional industrial motors.
6. What is the standard production cycle for an order?
The standard production cycle is approximately 40-50 days. For highly customized specifications, it may extend to 60 days depending on the project complexity.
