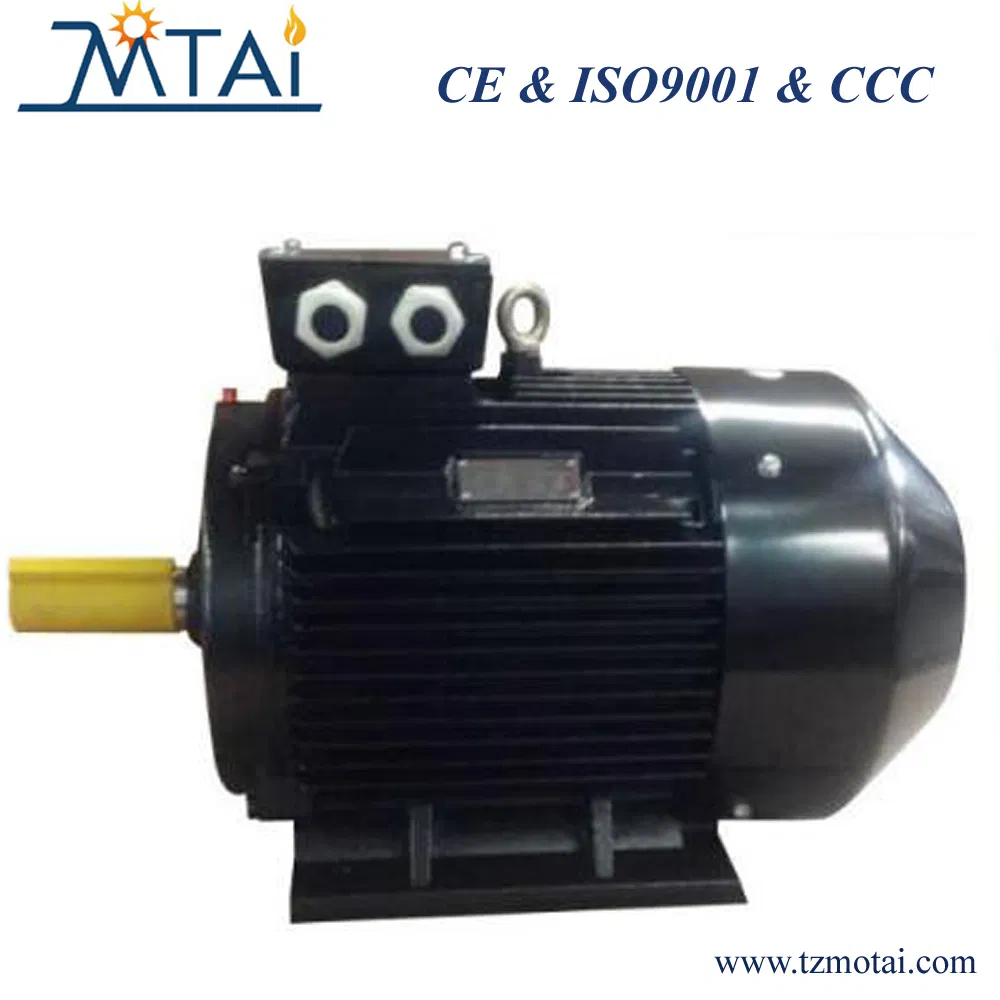

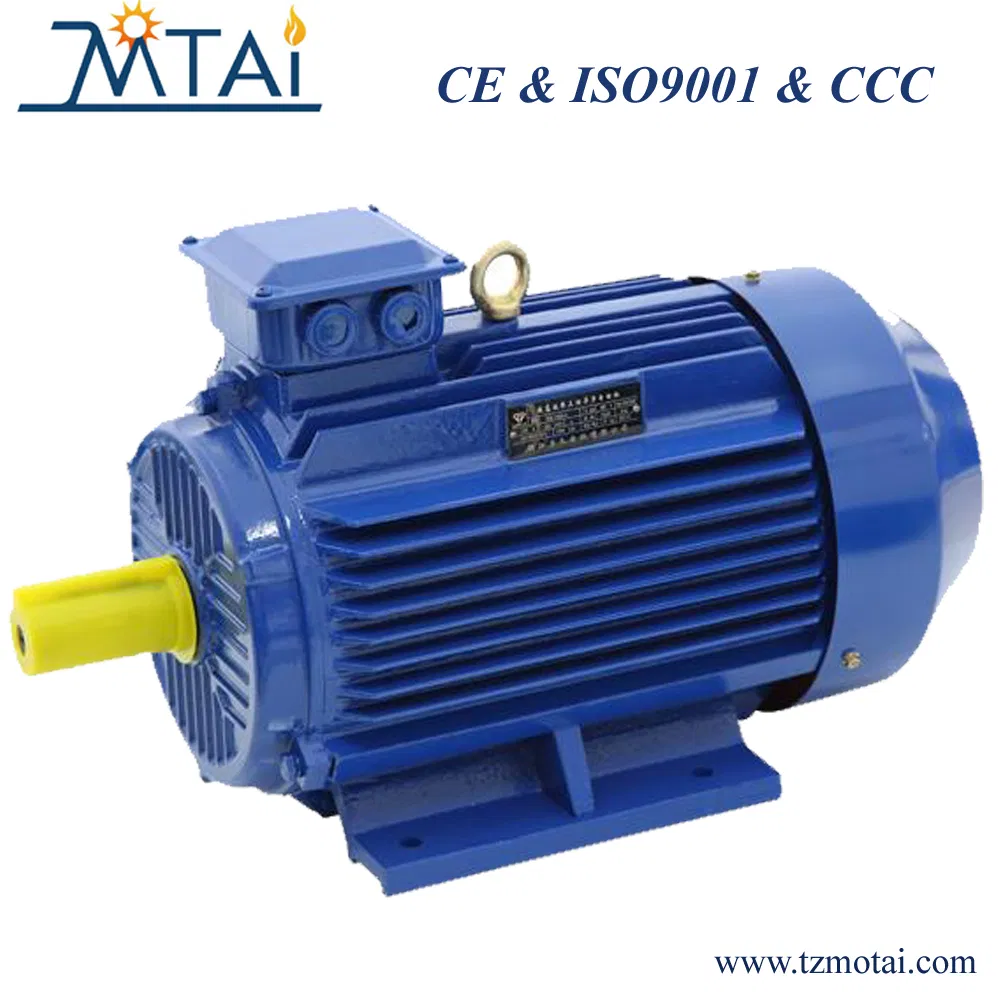

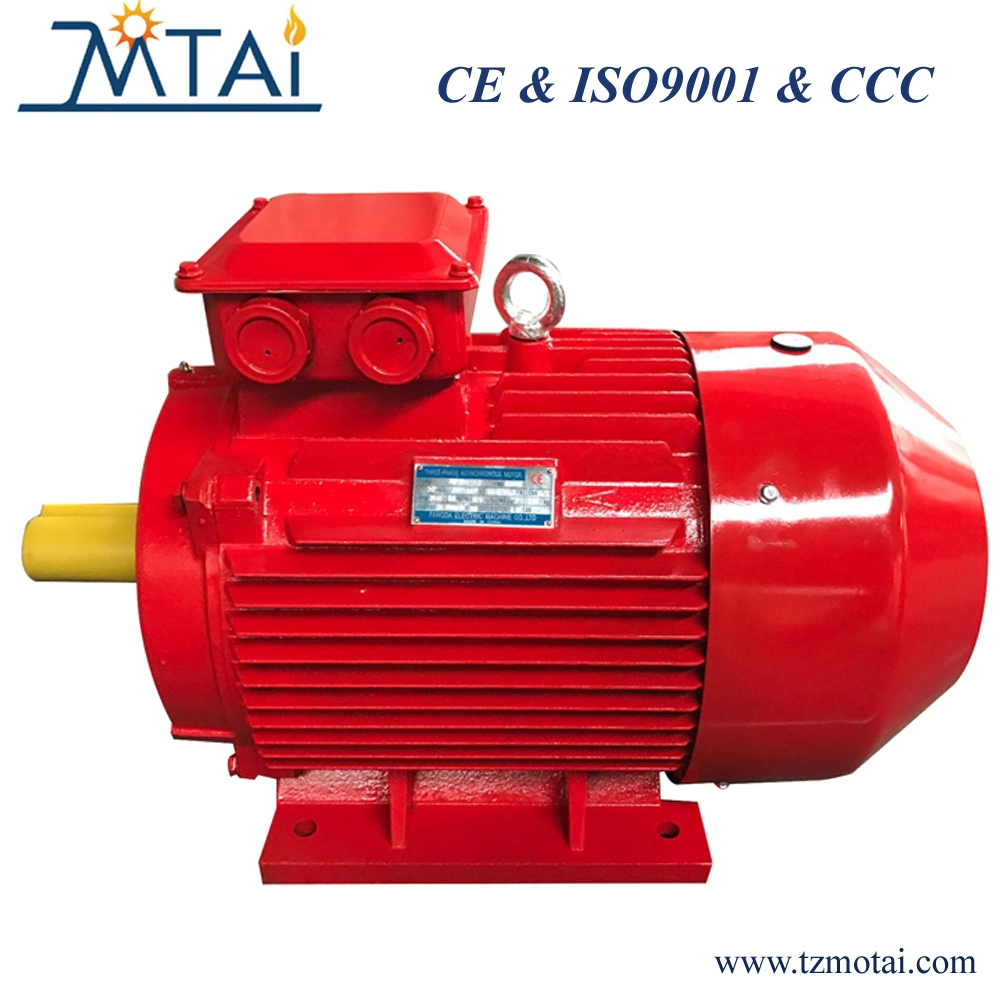

IE3 Series Premium Efficiency Asynchronous Motors provide premium efficiency and are helping to reduce CO2 levels each year. For improved efficiency, these motors result in less energy cost and less impact on the environment.
General purpose machinery including cutting machines, pumps, fans, conveyors, agricultural duty tools, and food processing equipment.
| IEC/EN Standards |
|---|
| IEC/EN 60034-1 / IEC 60072 |
| IEC/EN 60034-2-1 / 60034-5 |
| IEC/EN 60034-30 / 60034-6 |
| IEC 60034-8 / 60034-12 |
| IEC/EN 60034-7 / 60034-9 |
| IEC 60034-14 |
| Operating Conditions |
|---|
| Ambient Temp: -15ºC ≤ 0 ≤ 40ºC |
| Altitude: Not exceeding 1000m |
| Rated Voltage: 380V (220V-760V available) |
| Duty: S1 (Continuous) |
| Connection: Star (<3kW), Delta (≥4kW) |
