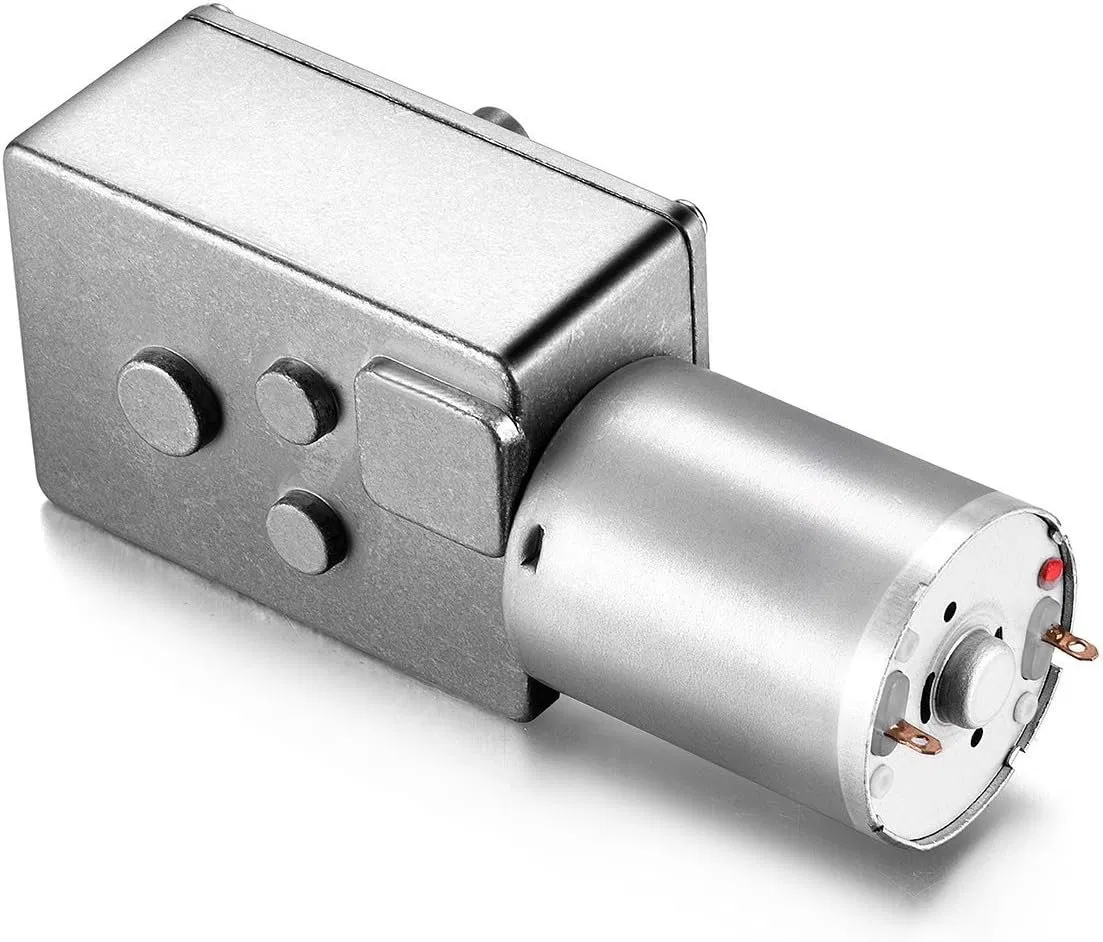

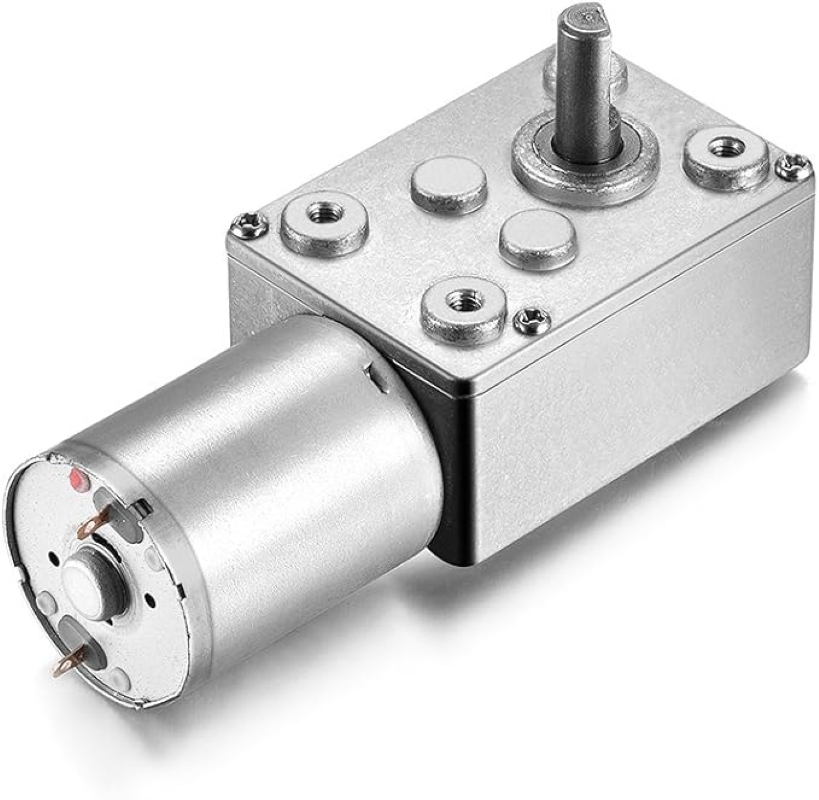

Jgy370 High Torque DC 6V 12V 24V Turbo Worm Gear Motor 46mm Self-Locking Micro Gear Motor for Electric Curtain and Window Opener

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
4632WG370
Excitation Mode
Excited
Function
Control, Driving
Number of Poles
10
Type
Brushed DC Gear Motor
Rotation Speed
10-90rpm
Rated Power
2W
Rated Voltage
4-26V DC
Torque
0.2n.M
Specification
80*32*26mm
📦 Packaging & Delivery
Package Size
10.00cm * 15.00cm * 20.00cm
Gross Weight
0.300kg

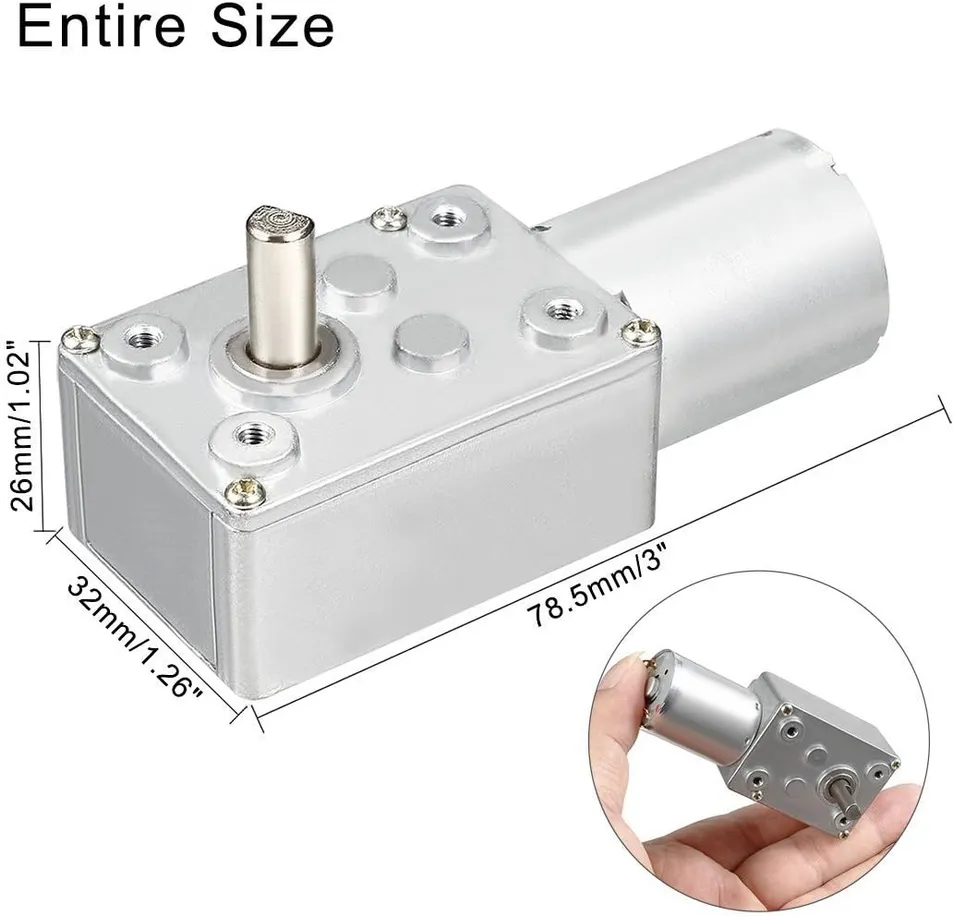

DC Worm Gear Motor
High Torque Motor

💡 We can customize various shafts, speed, torque, wire, and leads according to your specific requirements. This high-torque turbo worm gear motor is designed for precision applications like electric curtains and window openers.

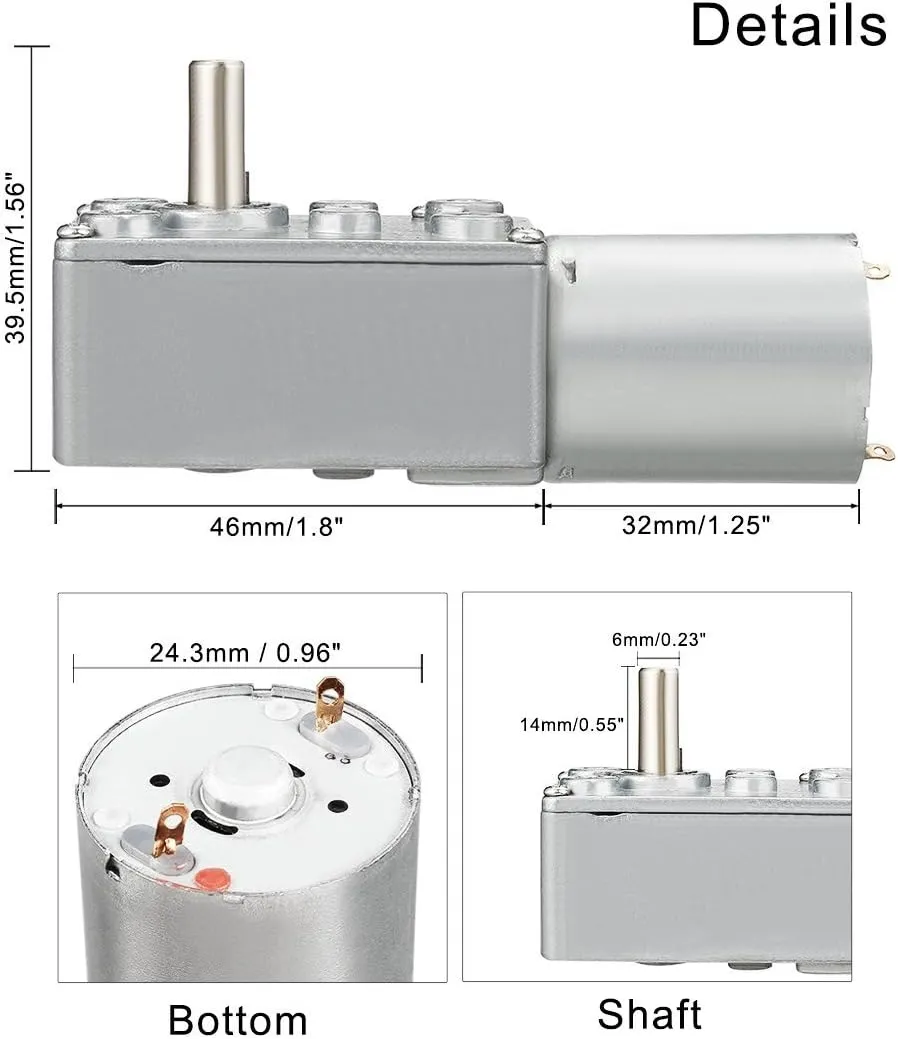

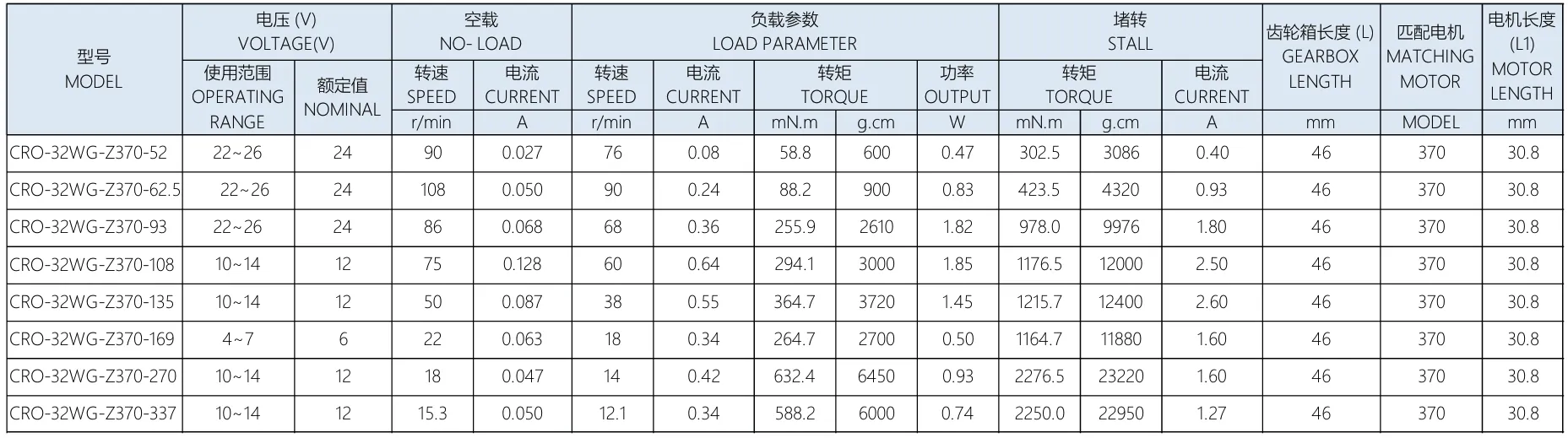

Worm Gear Dimensions
🔍 Product Overview

What is a Worm Gear Box?

A worm gearbox is a mechanical system using shafts, worm gears, bearings, and toothed wheels to produce movement. It can alter input rotational motion by 90 degrees to the output, making it essential for specific mechanical drive systems.

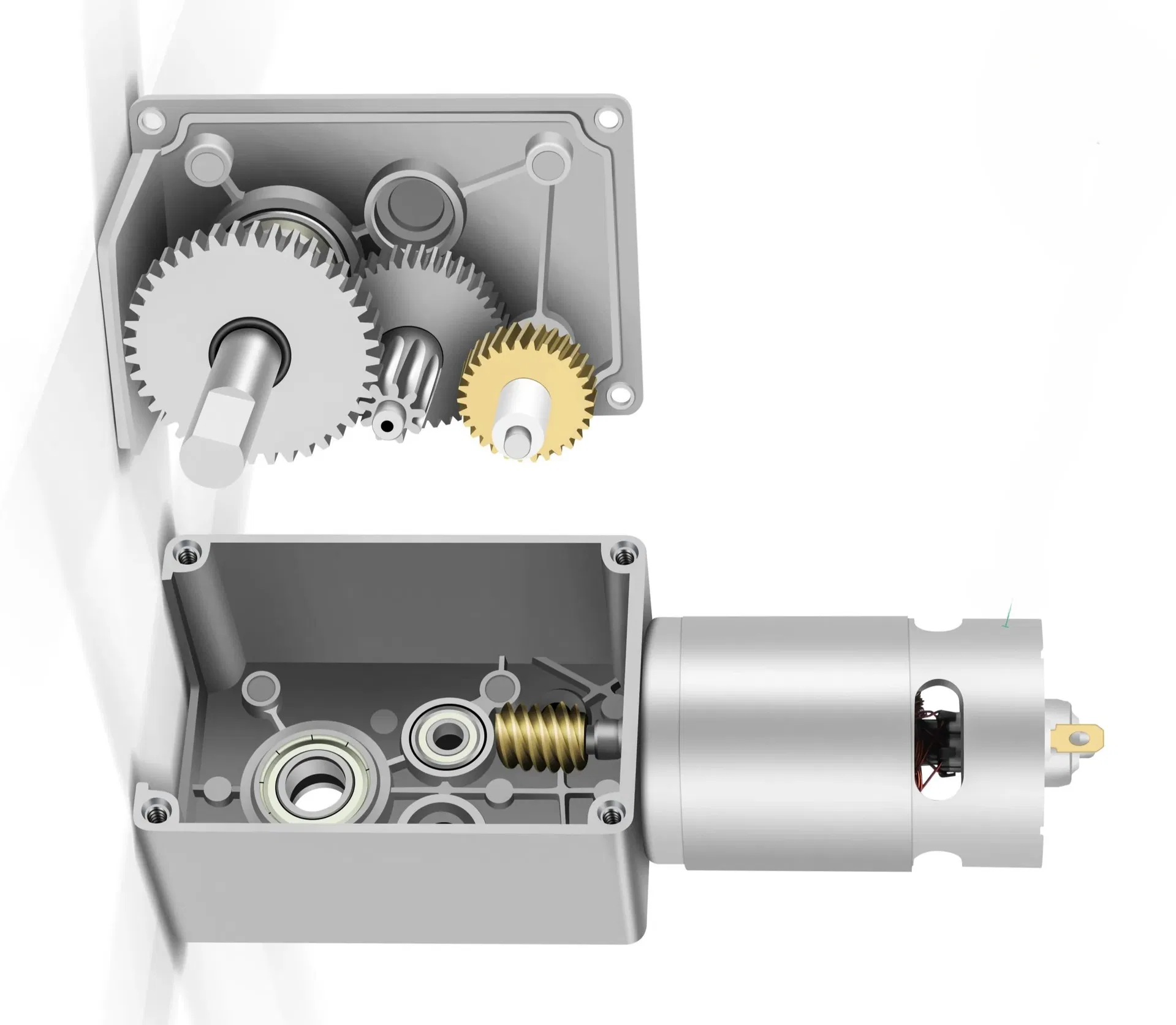

Worm Gear Mechanics

Advantages of Worm Gear Box:

  • Compact Size: Ability to alter drive direction by 90 degrees makes it ideal for limited spaces requiring high torque.
  • Increased Torque: High torque outputs achieved through specialized worm gear design.
  • Low Noise: One of the quietest gearbox designs available, perfect for noise-sensitive environments.

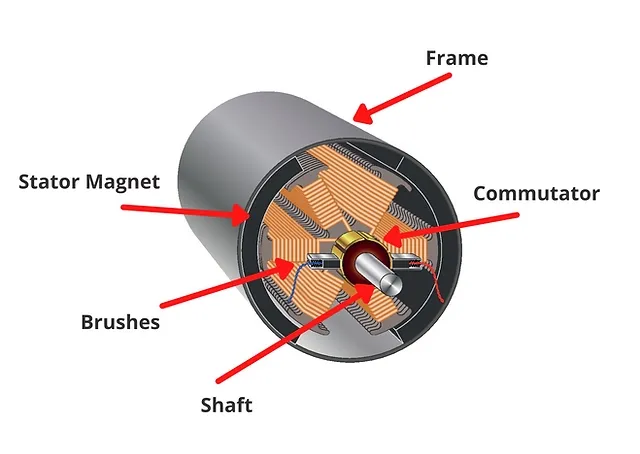

Brushed DC Motor

Brushed DC Motor

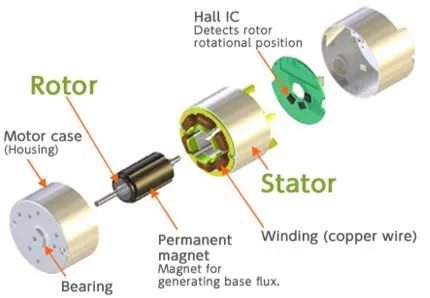

BLDC Motor

BLDC Motor

🛠️ Technical Details
Shell Material

Shell Material: Aluminum with high strength and corrosion resistance.

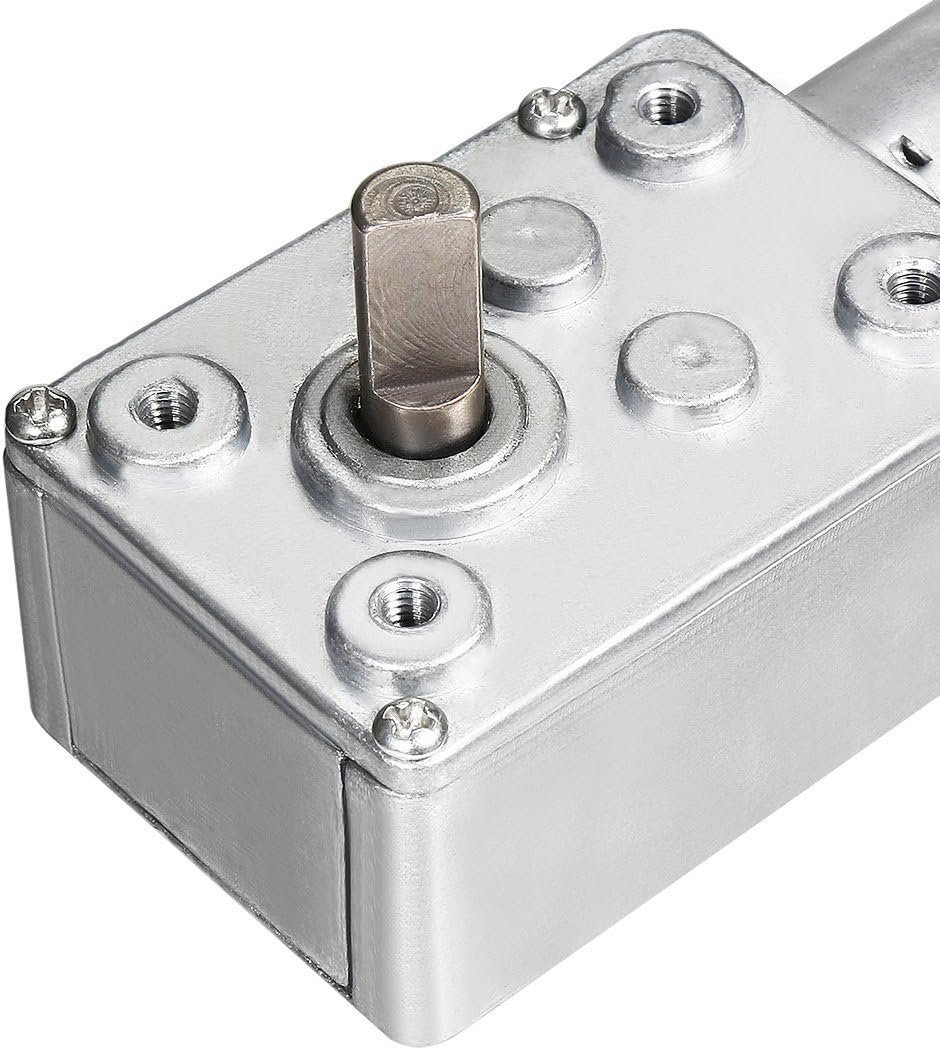

Output Shaft

D-shape Shaft: Increases friction for smoother rotation and secure linking.

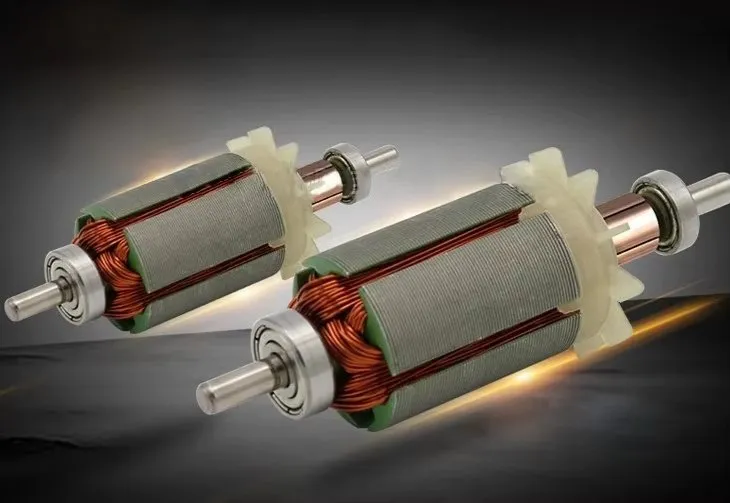

Copper Coils

Pure Cu Coils: Automatic winding for stable performance and durable torque.

Metal Gears

Metal Gears: High strength, impact resistant, and wear-resistant.

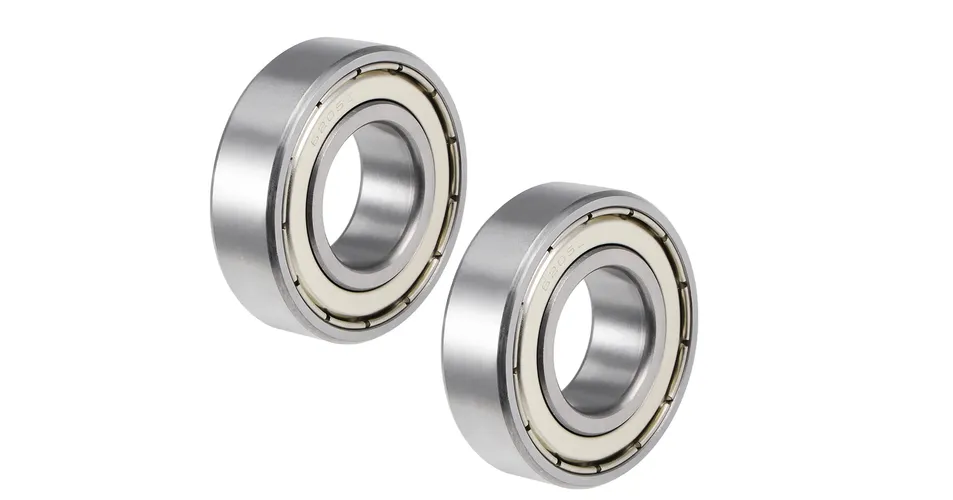

Ball Bearing

Ball Bearing: Low noise and extended service life.

Magnetic Arc

Magnetic Arc: High efficiency and low dynamic loss.

📸 Product Gallery
Dimension Detail
Side View
Back View
Angle View
Gear Detail
Product Showcase
Product Summary
Main ProductsSynchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
CertificationsCCC, VDE, CB, RoHS and ISO9001-2015
OEMAccepted
Core PhilosophyCustomer First, Honesty and Win-Win Cooperation
Frequently Asked Questions
What is the primary benefit of a worm gear motor?
The primary benefits include a compact design that can alter drive direction by 90 degrees, high torque output, and extremely quiet operation compared to other gearbox types.
Can these motors be customized?
Yes, we offer customization for shafts, speed, torque, wiring, and leads to meet your specific application requirements.
Are the gears inside the motor made of metal?
Yes, the motor uses high-strength metal gears which provide excellent impact resistance, reduced noise, and a long service life.
What are the common applications for this gear motor?
This motor is ideal for electric curtains, window openers, and various mechanical systems requiring high torque in a compact space.
Is the motor suitable for noise-sensitive environments?
Absolutely. Worm gearboxes are designed to be among the quietest mechanical drives, and this model features high-quality ball bearings to further minimize noise.
What materials are used for the motor shell?
The shell is constructed from high-strength aluminum, which offers excellent corrosion resistance and a long lifespan.
