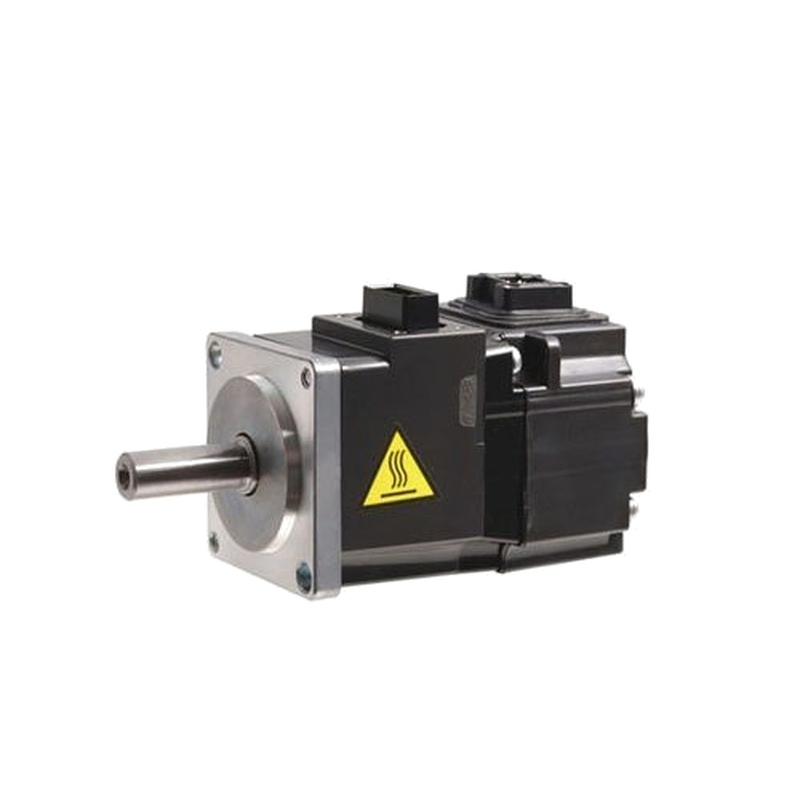

The HG-SR51J Geared Servo Motor is a high-performance motor designed for precision drive systems. It offers exceptional speed, accuracy, and reliability, making it ideal for various industrial applications. This motor integrates a planetary gearbox with a high-efficiency induction motor to provide superior motion control solutions.
| Parameter Name | Parameter Value |
|---|---|
| Model | HG-SR51J |
| Type | Geared Servo Motor |
| Rated Speed (rpm) | 3000 |
| Rated Torque (Nm) | 0.5 |
| Inertia (kg·m²) | 0.003 |
| Motor Type | Induction Motor |
| Gearbox Type | Planetary Gearbox |
| Encoder Resolution | 1024 pulses/rev |
| Supply Voltage | 200-240V AC |
| Insulation Class | F |
Installation: Ensure the motor is installed in a stable, vibration-free environment with proper ventilation, free from dust and moisture.
Wiring: Connect to the control system using secure, insulated connections. Always ensure the motor is properly grounded.
Power Supply: Use a stable 200-240V AC power source to avoid component damage.
