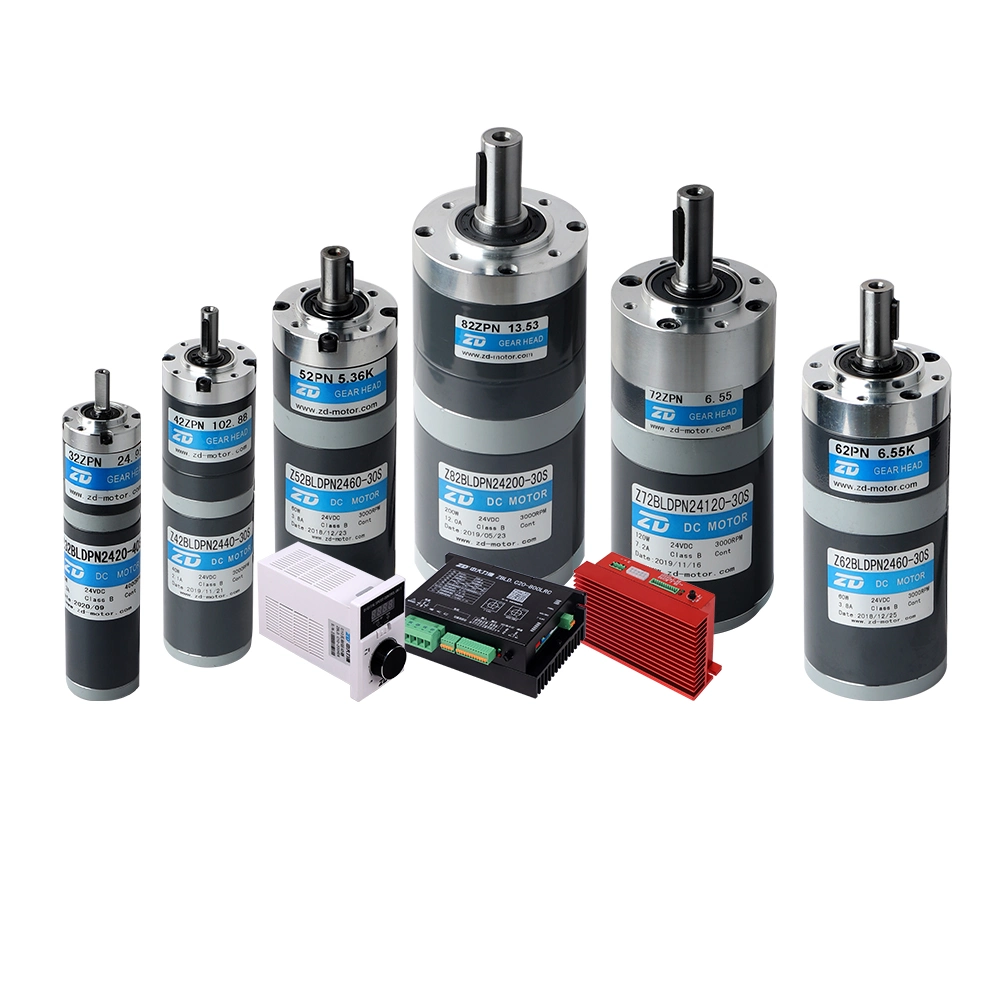

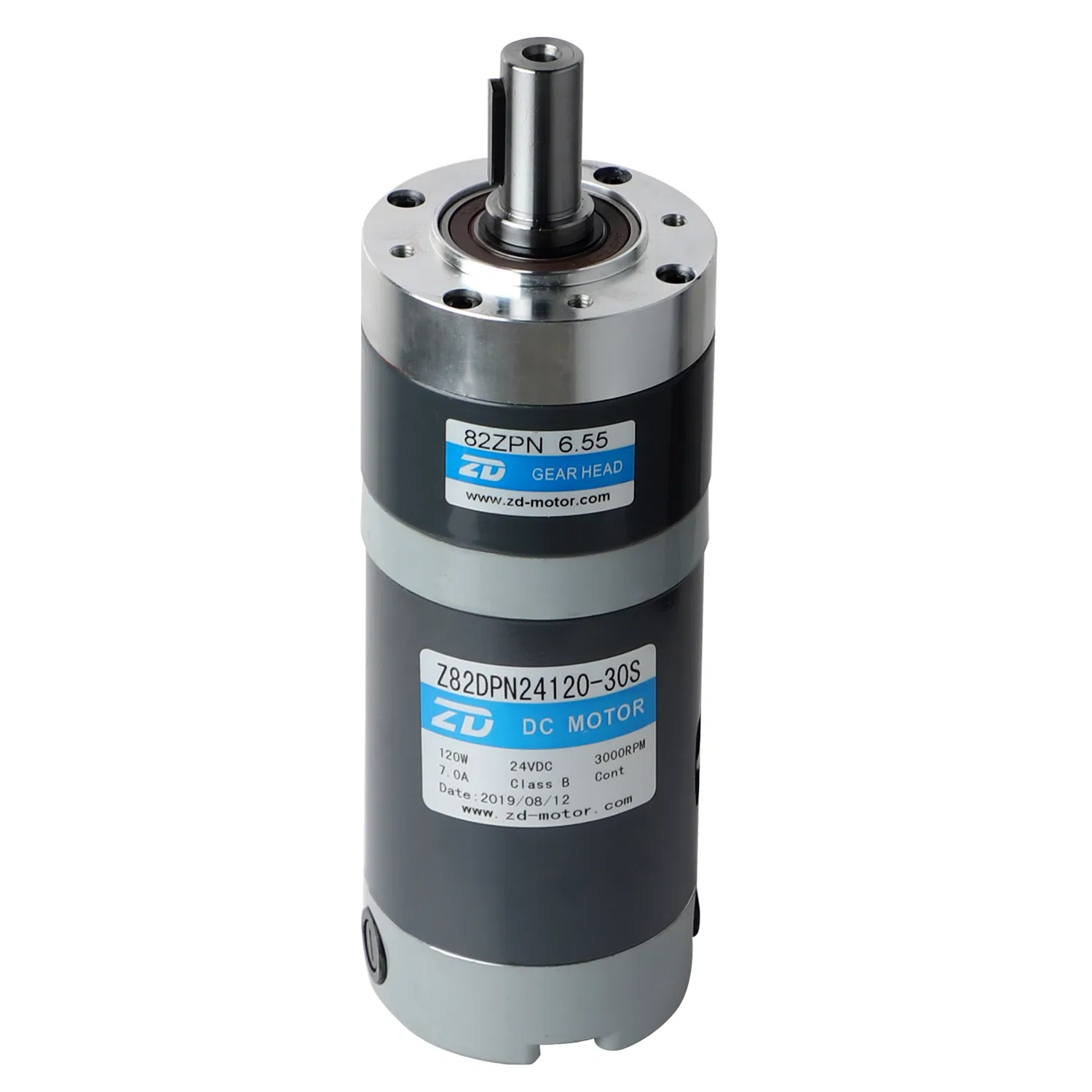

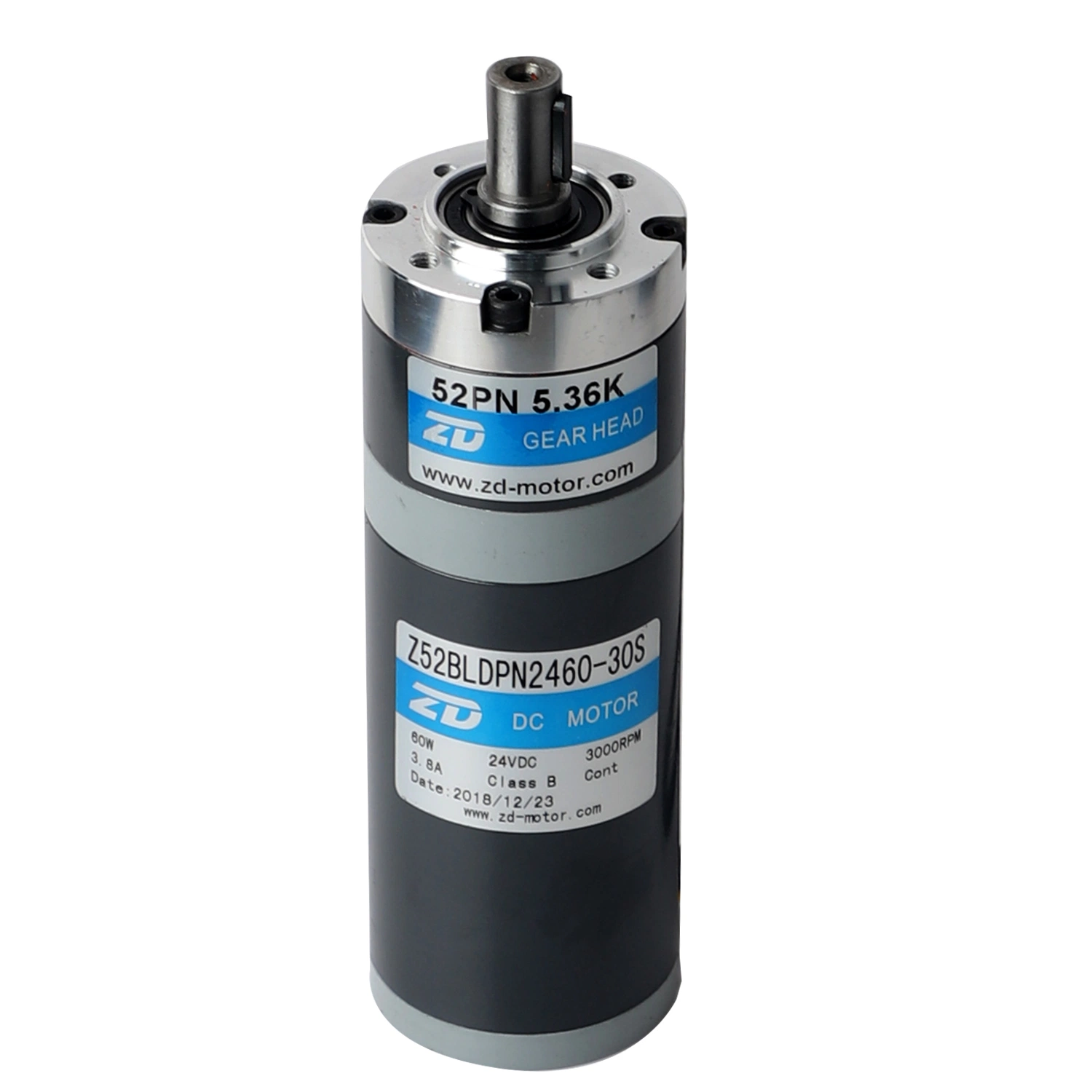

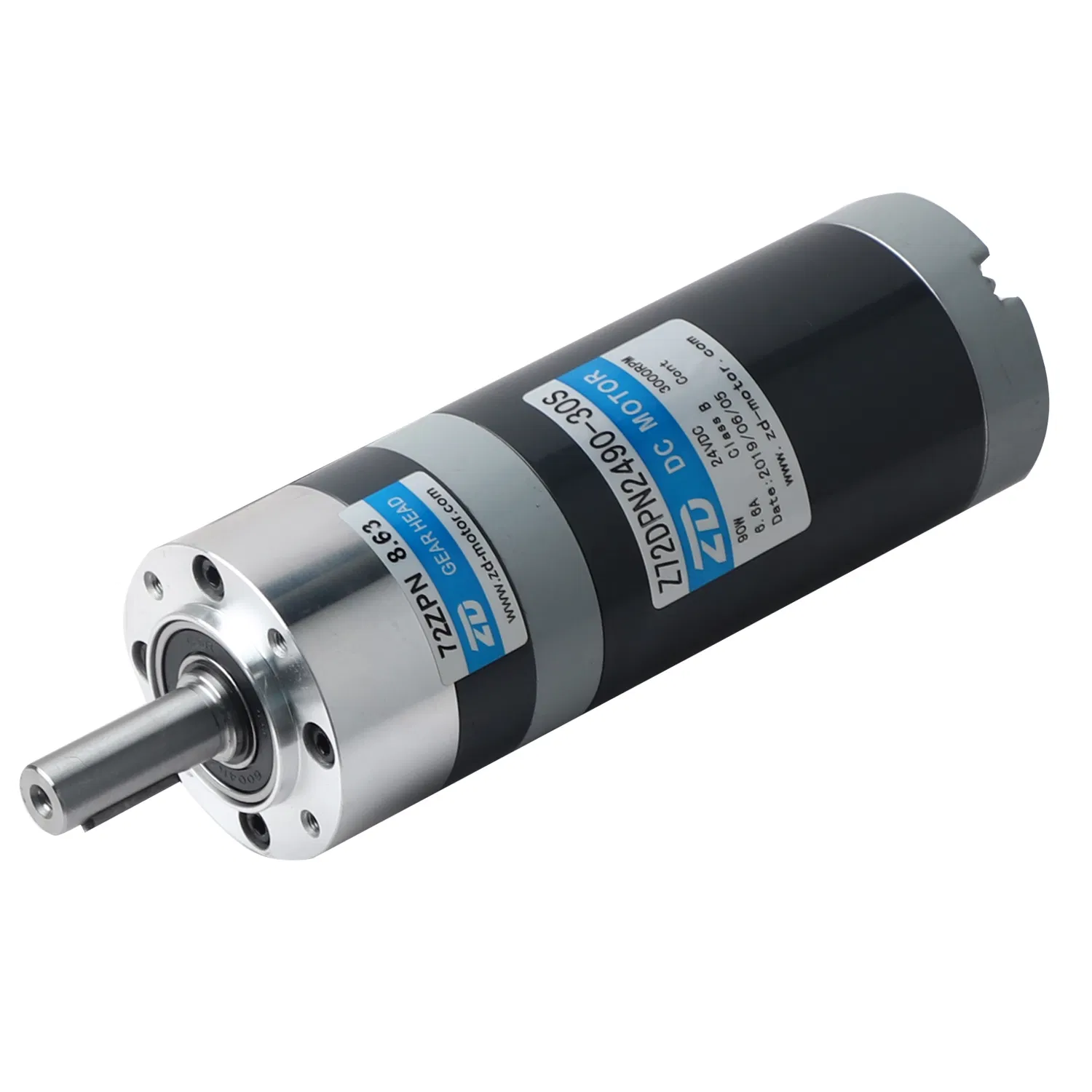

ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
1 / 5
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox

ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox

Customization: Available
Application: Universal, Industrial, Household Appliances, Equipment
Operating Speed: Constant Speed
Send Inquiry

Product Description

Product Overview
Model NO.
Z32BLDPN/Z42BLDPN
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2-6
Structure
Brush/Brushless
Certification
ISO9001, CCC, UL
Power
10W - 300W
Voltage
12V-48V
Speed
3000rpm
Size
32mm to 82mm
Production Capacity
30000PCS/Month
Model Selection & Solutions

A wide range of micro motor production lines are available, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox. Through technical innovation and customization, we provide flexible solutions for various industrial automation situations.

Planetary Gear Motor Selection
1
Expert Model Selection

Professional technical teams choose the right model and transmission solutions based on your specific parameters.

2
Drawing Requests

Full access to product parameters, catalogues, CAD, or 3D drawings is available upon request.

3
Customization

Standard products can be modified or fully customized to meet unique application needs.

Technical Parameters

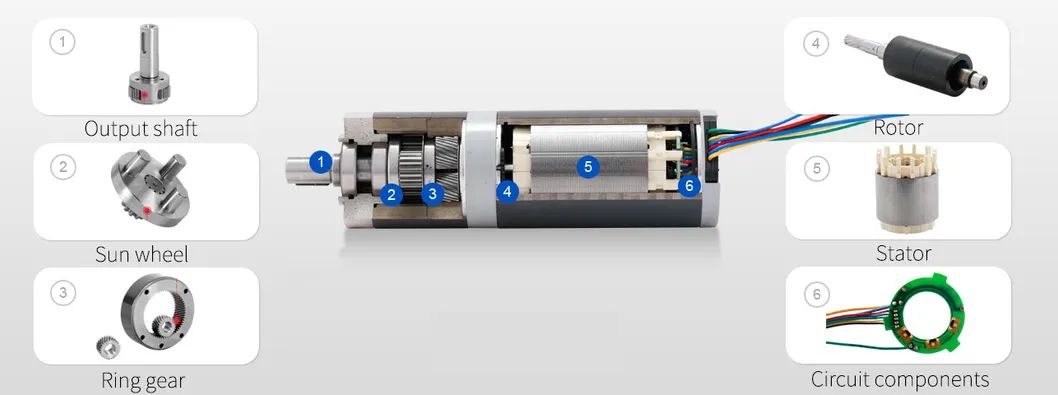

Planetary Gear Motor Specs
Feature Specifications

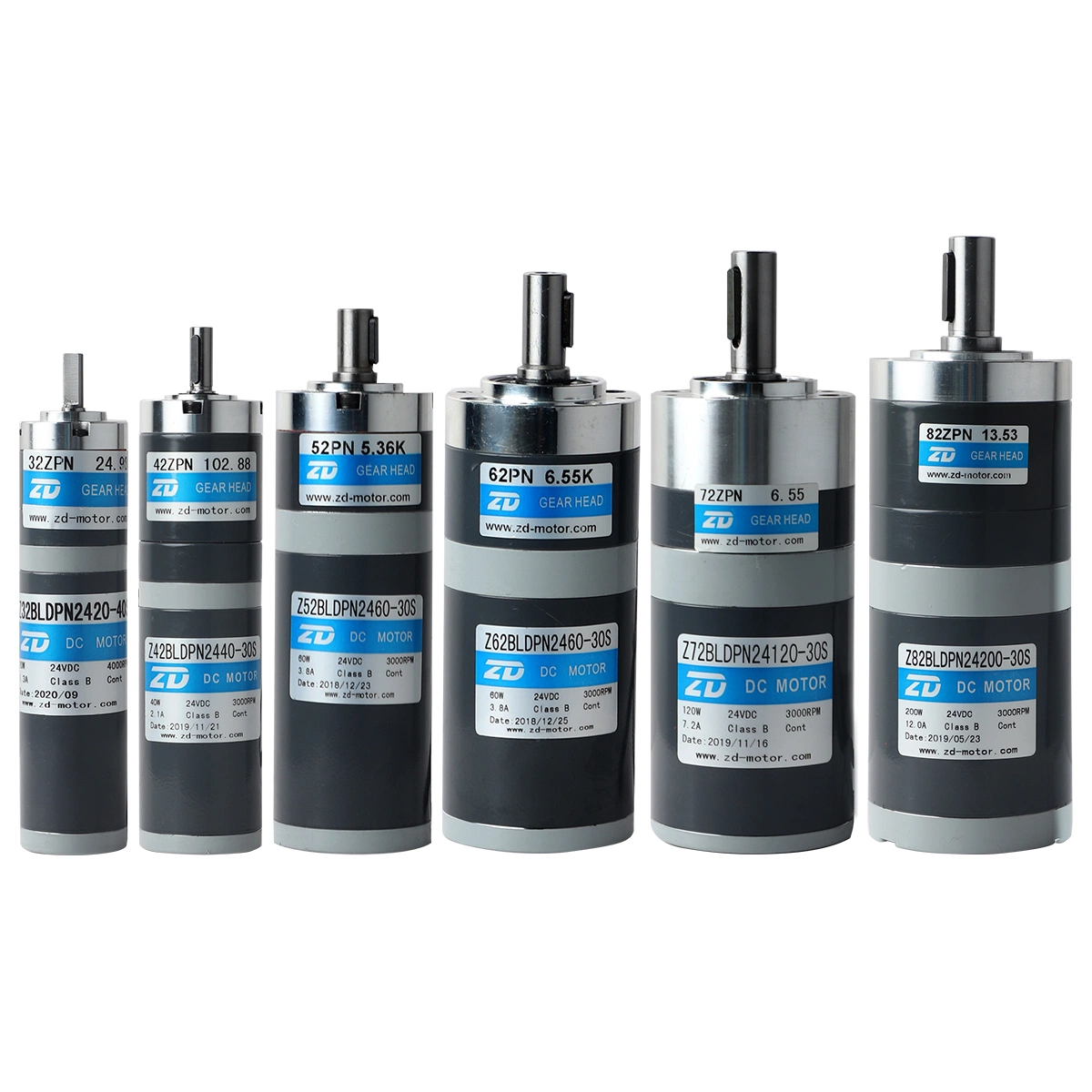

MOTOR FRAME SIZE32 mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105mm / 120mm
MOTOR TYPEBrush or Brushless
OUTPUT POWER10W to 300W (Can Be Customized)
OUTPUT SHAFT8mm / 10mm / 12mm / 15mm (Round, D-Cut, Key-Way)
VOLTAGE TYPE12V, 24V, 48V
ACCESSORIESElectric Brake / Encoder
GEARBOX SIZE32 mm / 42mm / 52mm / 62mm / 72mm / 82mm
GEAR RATIO3.65K - 392.98K
TYPE OF PINIONGN Type / GU Type
Product Line
Types of Planetary Gear Motors

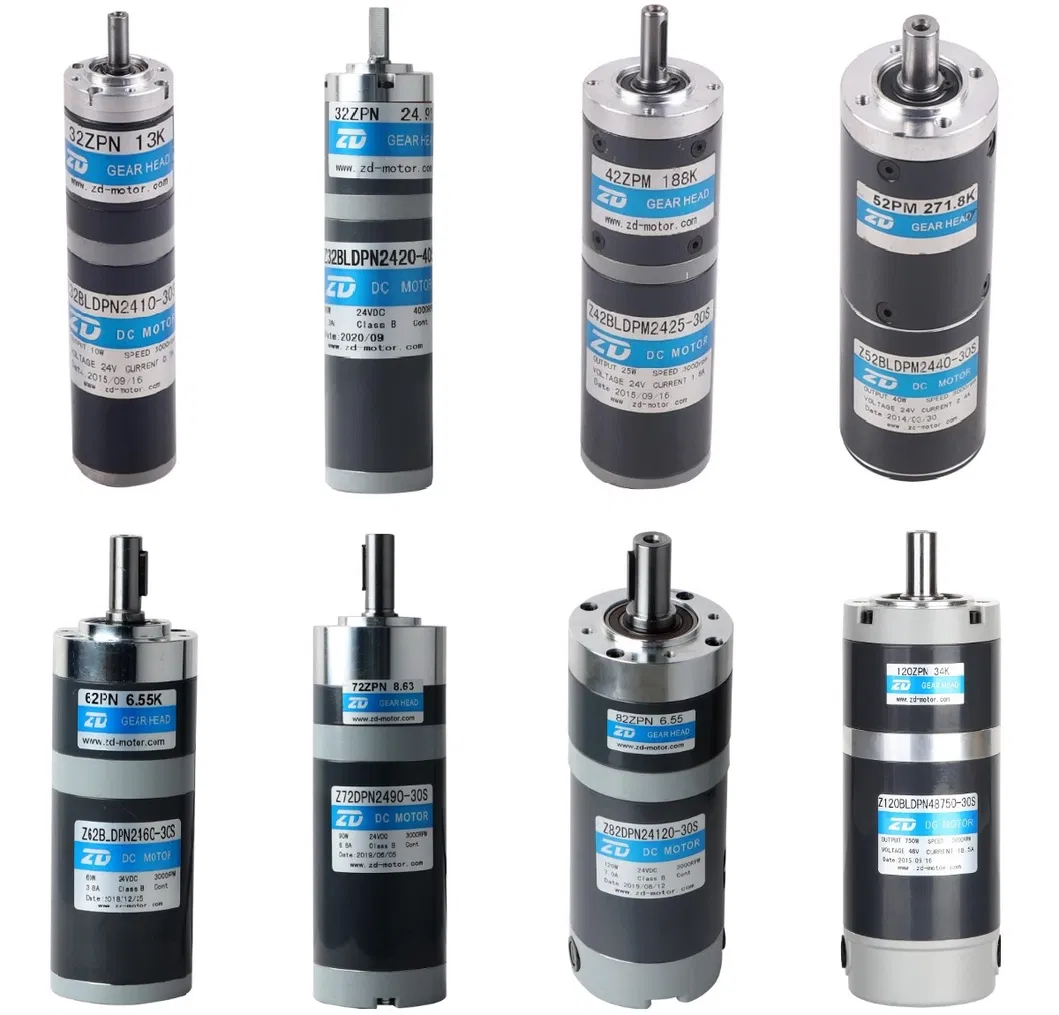

Planetary Gear Motor Types
Related Products & Production

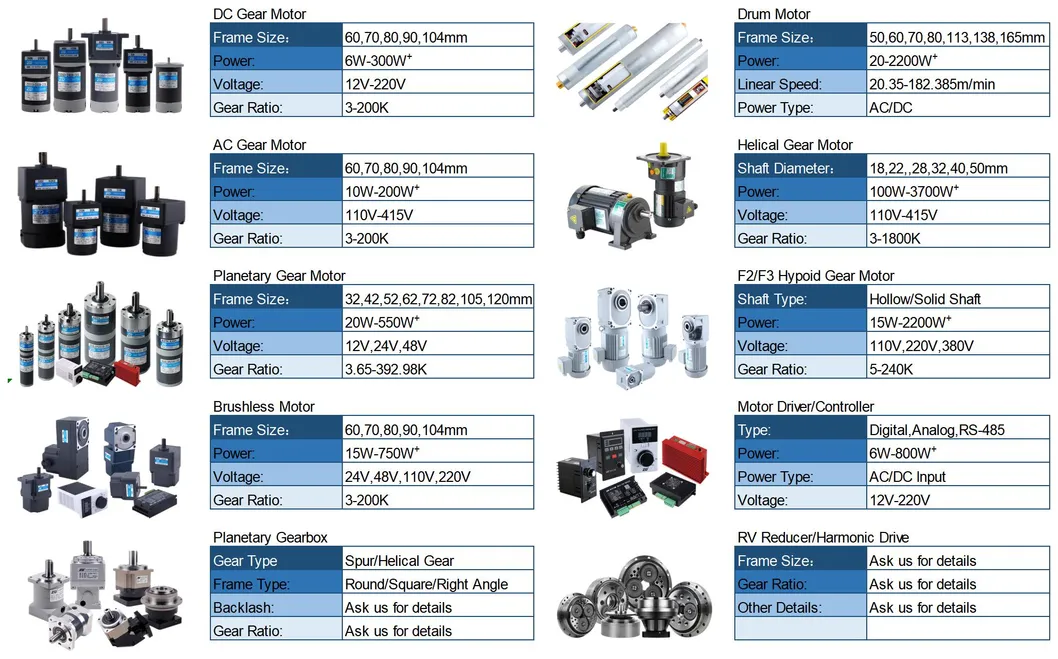

Other Products
Factory Display
Facility 1
Facility 2
Facility 3
Frequently Asked Questions
What frame sizes are available for these planetary gear motors?
We offer a wide range of frame sizes including 32mm, 42mm, 52mm, 62mm, 72mm, 82mm, and up to 120mm to suit various industrial needs.
Can the output shaft be customized?
Yes, the output shaft can be customized in terms of size (8mm to 15mm) and type, including Round Shaft, D-Cut Shaft, and Key-Way Shaft configurations.
What are the standard voltage options for these DC motors?
Our planetary gear motors typically operate on 12V, 24V, or 48V DC power supplies.
What is the gear ratio range available?
The gearbox supports a broad spectrum of gear ratios, ranging from 3.65K to 392.98K, allowing for precise speed and torque control.
Are there options for integrated accessories like brakes or encoders?
Yes, we can provide additional accessories such as electric brakes and encoders to enhance the control and safety of your motor system.
What certifications do your motors hold?
Our products are manufactured under strict quality standards and hold certifications including ISO9001, CCC, UL, CE, and RoHS.
