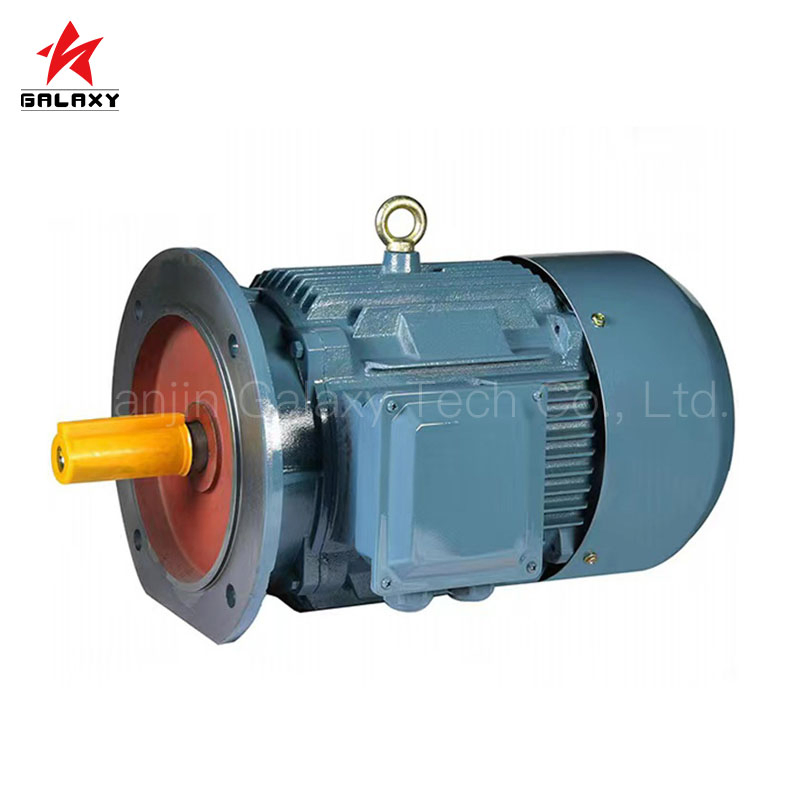

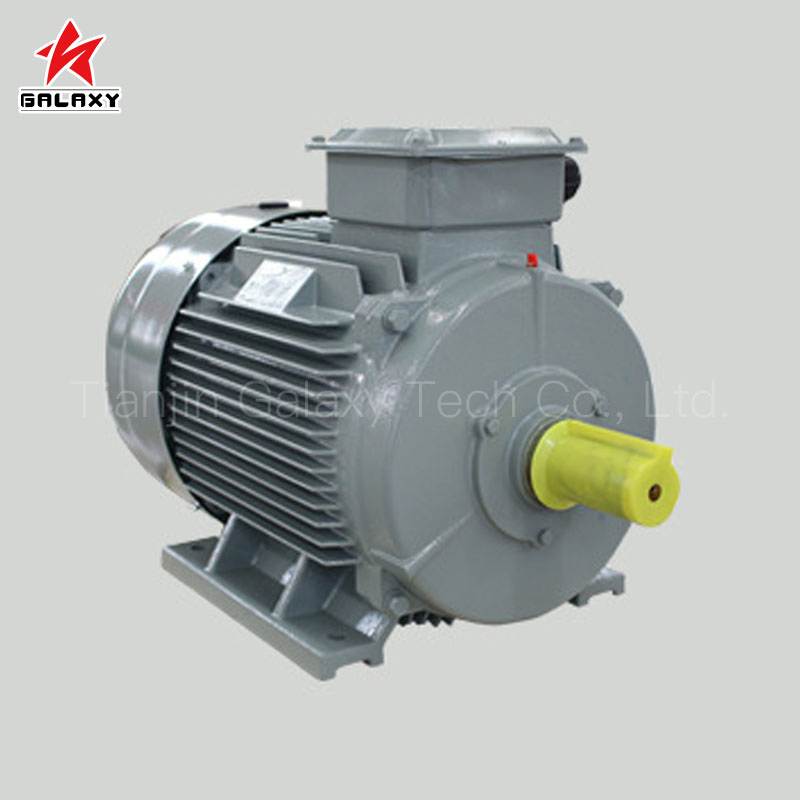

Our permanent magnet motor is a fully enclosed rare-earth permanent magnet synchronous motor featuring high overload capacity, high efficiency, high power factor, smooth operation, simple maintenance, and strong interchangeability. It combines the advantages of both asynchronous and conventional synchronous motors. The cooling methods are IC416/IC411, with a duty type of S1. The installation method complies with IEC and DIN standards, ensuring international compatibility.
- Premium Materials: By using rare-earth materials, the motor offers higher overload capacity, greater efficiency, and more stable operating performance.
- Optimized Design: Three-phase permanent magnet motor features low inertia, a wide operating frequency range, and smooth torque output at low speeds.
- Standard Enclosure: Adopts a standard enclosed structure to maintain stable operation under various extreme working conditions.
- Energy Efficiency: Prevents rotor heating and power loss, achieving higher energy efficiency and lower operating costs (IE5 level).
- Low Maintenance: Maintenance-free operation, widely used in mining, power plants, steel mills, and water treatment.
- Reliable Performance: Sufficient design margin ensures low temperature rise during full-load operation. Ideal for OEM/ODM requirements meeting European IEC standards.
| Base Number | JPM315S30-110 |
| Rated Power | 110kW |
| Rated Rotate Speed | 3000RPM |
| Rated Voltage | 380Vac |
| Rated Current | 187.5A |
| Frequency | 200Hz |
| Poles | 8 |
| Efficiency | 96.8% |
| Wending Method | Y |
| Protection Level | IP55 |
| Rated Torque | 350Nm |
| Installation Method | B3/B5/(B35 needs to be ordered separately) |
| Magnet Type | NdFeB |
| Working Temperature | -15ºC to 40ºC |
| Operating Environment | Below 1000m above sea level |
| Housing Material | Cast Iron |
| Shaft Material | 45 Steel |
| Cooling Method | IC411 |
4
Production & Application

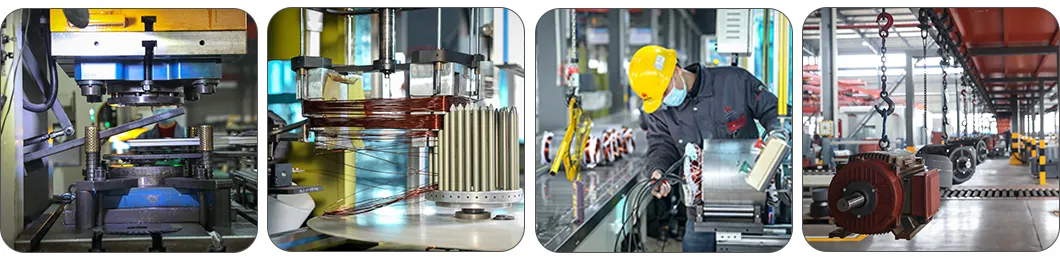

Production Workshop

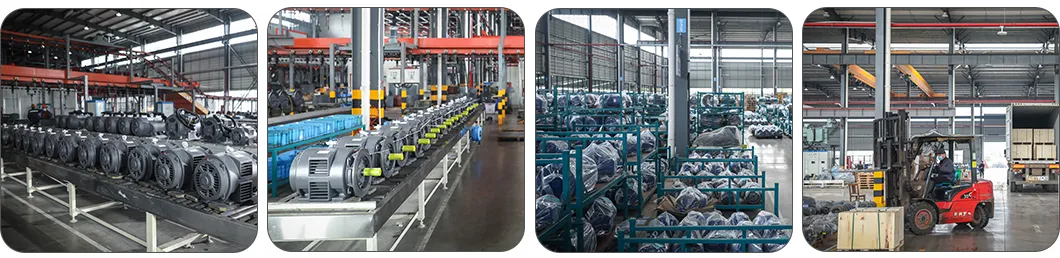

Warehouse Shipping
Application Scenario
5
Performance Characteristics
High Efficiency (IE5 Level)
The permanent magnet synchronous motor offers significantly higher efficiency than the asynchronous motor across all load ranges, maintaining above 90% efficiency from 25% to 120% load.

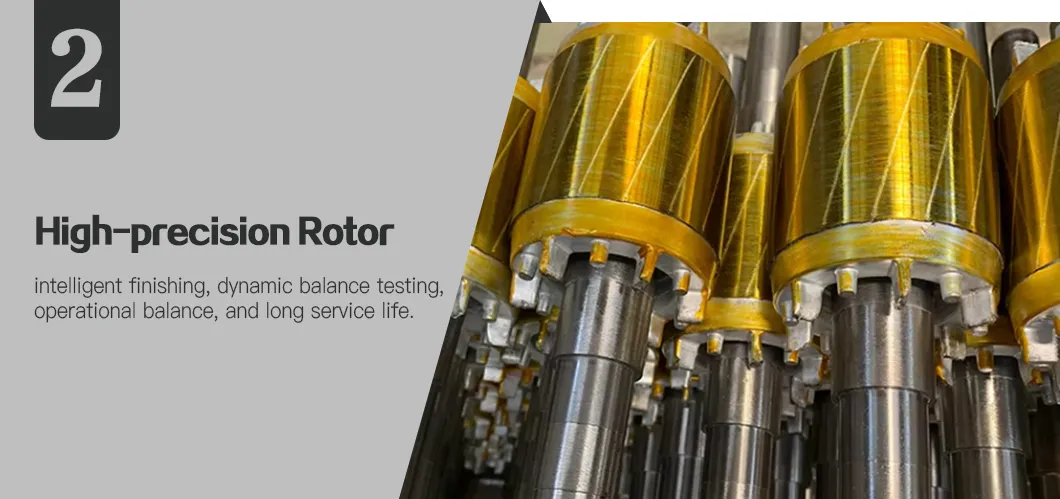

High Power Density
Compact size and high output power are achieved through custom non-standard modeling, allowing for frame sizes lower than conventional motors.

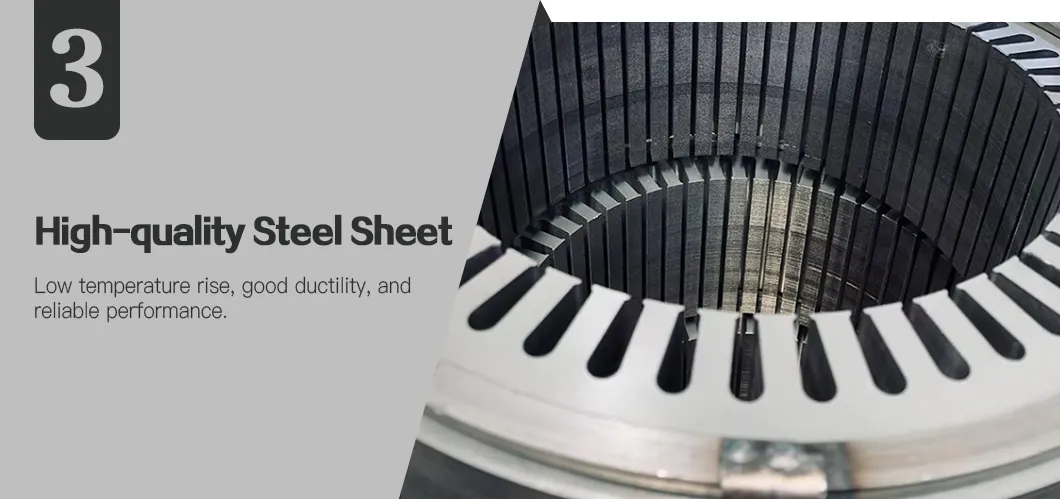

Low Temperature Rise
Sufficient margin ensures reliable operation with minimal heat accumulation under full-load conditions, supported by advanced cooling systems.
Versatility & Compatibility
Highly compatible with compressors, elevators, fans, pumps, belt conveyors, and electric vehicles across petroleum, chemical, and manufacturing industries.

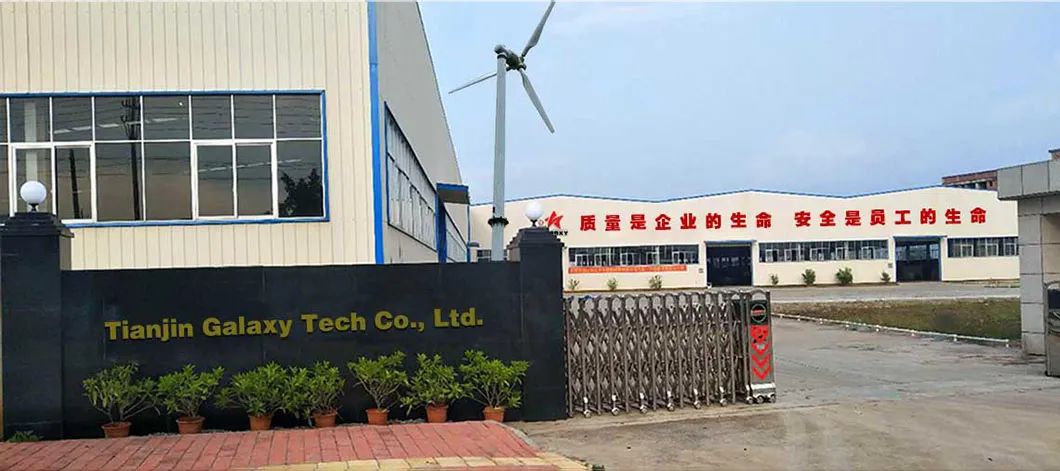

With over a decade of experience in design, R&D, and manufacturing of permanent magnet motors and wind turbine systems, the production facility is equipped with specialized teams providing green energy solutions. The product range includes horizontal and vertical-axis wind turbines, grid-connected systems, and residential energy solutions. These eco-friendly, energy-efficient motors are widely exported to global markets including Europe, America, Southeast Asia, and the Middle East.
Quality Commitment:
1. Rigorous pre-shipment quality inspection.
2. Rapid technical support response during the warranty period.
3. Lifetime free technical consultation.
4. Detailed operational guidance and counseling.
Frequently Asked Questions
Q1: What makes rare-earth permanent magnet motors better than asynchronous motors?
A: Rare-earth motors offer significantly higher efficiency (IE5 level), higher overload capacity, and more stable performance. They also eliminate rotor heating, which reduces overall operating costs.
Q2: Are these motors compatible with international standards?
A: Yes, our motors are designed to comply with European IEC and DIN standards, ensuring seamless integration with global industrial equipment.
Q3: What industries benefit most from this motor technology?
A: They are widely used in mining, petroleum, chemical processing, water treatment, steel mills, and manufacturing for equipment like compressors, fans, and pumps.
Q4: What is the protection rating and cooling method?
A: The standard protection level is IP55, and the cooling methods used are IC411 or IC416, ensuring stable operation even in harsh environments.
Q5: Can the motor operate at variable speeds?
A: Yes, the motor features a wide operating frequency range and maintains smooth, stable torque output even at low speeds without fluctuation.
Q6: What kind of after-sales technical support is provided?
A: We provide comprehensive technical support both during and outside the warranty period, including troubleshooting, usage environment advice, and detailed operational counseling.
