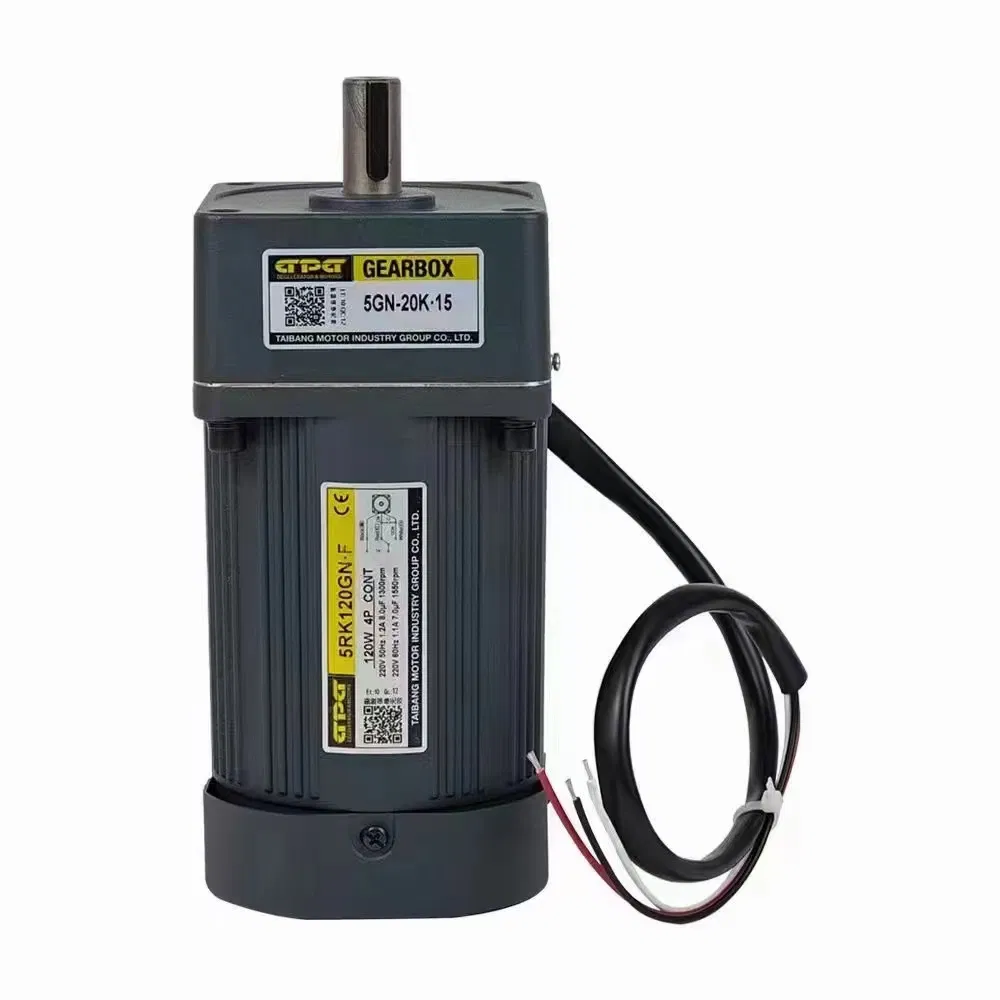

UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler
1 / 4
UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler
UL CE AC Induction Motor Pellet Stove Burner Boiler

UL CE AC Induction Motor Pellet Stove Burner Boiler

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

UL CE Approved Micro AC Induction Motor

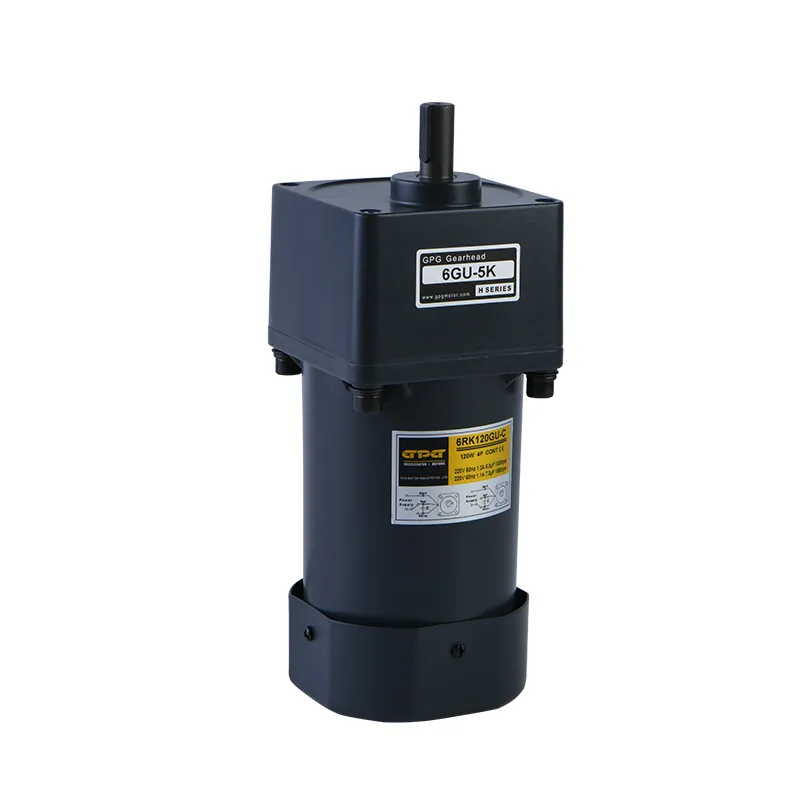

AC Induction Motor

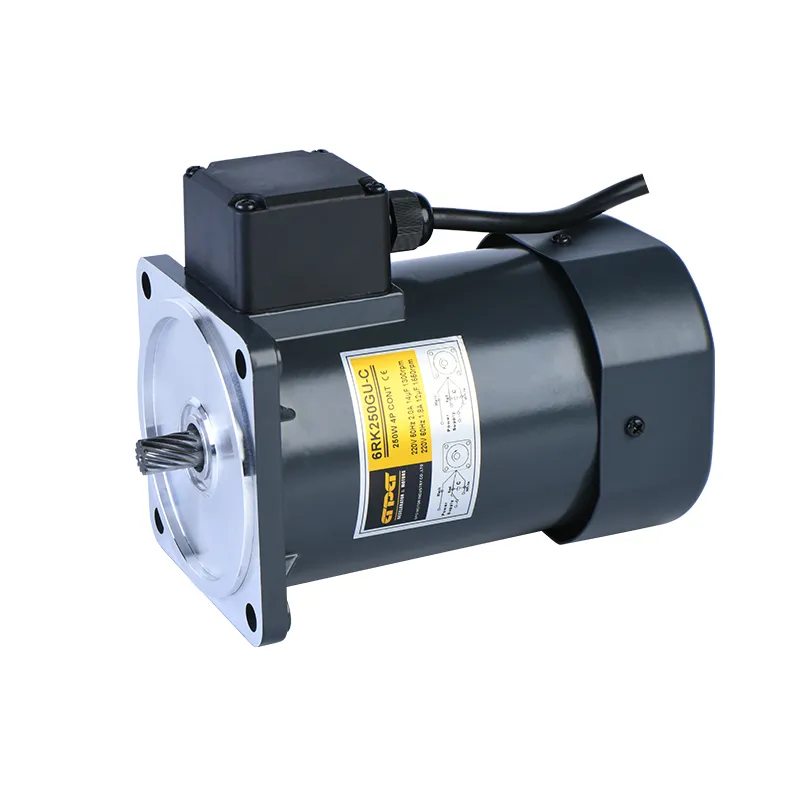

Reduction Motor

Pellet burner single phase AC geared motor 80mm 25w with reduction ratio 180:1. Electric gear motors are used in various applications that require high output torque and low output rotation speed. A gear motor combines an electric motor with a gear reducer box.

Basic Specifications

Model NO.
4ik25gnc
Phase
Single-Phase
Function
Driving
Number of Poles
4
Certification
ISO9001, CCC, CE, UL
Power
4W-250W
Voltage
110V, 220V, 230V, 380V
Frequency
50/60Hz
Package Size
35.0cm * 30.0cm * 25.0cm
Gross Weight
30.0kg

Key Features & Construction

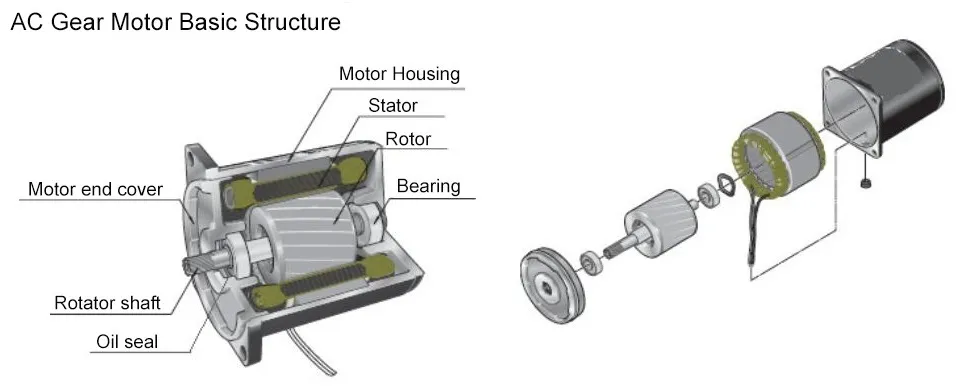

Motor Components
◈End cover and housing made of die-casting Aluminum: high precision, high strength, and light weight.
◈Stator consists of silicon steel sheet core, copper coil, and high-quality insulating material.
◈Rotor consists of laminated silicon steel sheet and aluminum cast conductor.
◈Rotor shaft made of high-performance medium carbon alloy steel with special processing.
◈Bearings and oil seals from well-known brands to ensure smooth running and sealing.
◈High temperature resistant and flame retardant wiring.

Motor & Gear Head Model Instructions

Frame Size Type Motor Series Power Shaft Type Voltage
2:60mm
3:70mm
4:80mm
5:90mm		 I: Induction
R: Reversible
T: Torque		 K Series 6W to 200W A: Round
GN: Gear Shaft		 A: 110V
C: 220V
S: 3-Ph 220V

Gear Head Torque Data (kg.cm)

Output Speed (RPM) 500 300 200 150 100 50 30 20 10
40W Gear Motor 6.7 11 16 21.3 33 65 108 150 150
60W Gear Motor 10 16 24 32 48 93 150 150 150

Connection & Dimensions

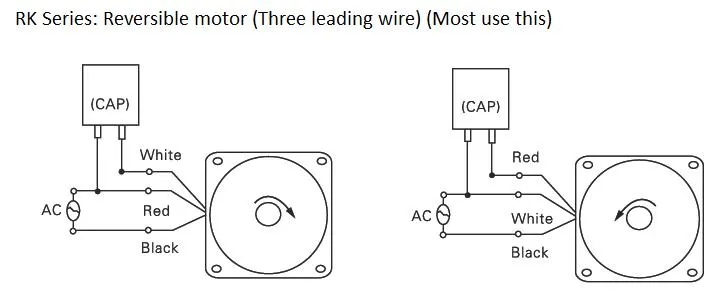

Connection Diagram 1

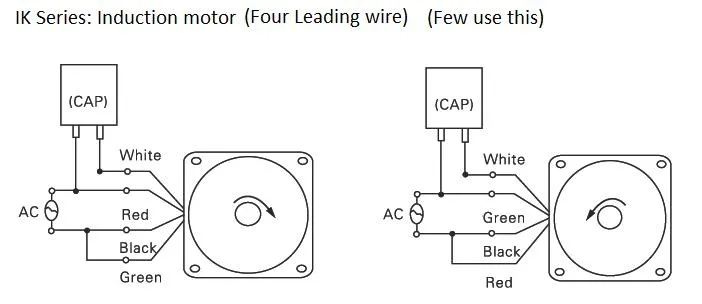

Connection Diagram 2
Dimension Chart
Technical Drawing
Shaft Details

Frequently Asked Questions

What is an AC gear motor?
An AC gear motor is an integrated unit consisting of an AC electric motor and a gear reducer (gearbox). It is designed to deliver high torque while maintaining a low output rotation speed.
What are the typical applications for these motors?
These motors are widely used in industrial automation, including conveyor systems, food processing machinery, packaging equipment, medical apparatus, printing presses, and pellet stove burners.
What materials are used in the construction of the motor?
The housing is made of die-casting aluminum for weight reduction and precision. The internal components include silicon steel sheet stator cores, copper coils, and high-performance alloy steel shafts.
Can the motor direction be reversed?
Yes, reversible motor models are available in this series, allowing for rotation in both clockwise and counter-clockwise directions depending on the wiring configuration.
What certifications do these motors hold?
The motors are manufactured under strict quality standards and carry certifications including ISO9001, CCC, CE, and UL, ensuring compliance with international safety and performance requirements.
How does the actual output speed compare to the synchronous speed?
Under rated torque conditions, the actual output speed is typically about 10-20% less than the synchronous speed due to mechanical load and slip.
