Why Choose Our Electric Motors?

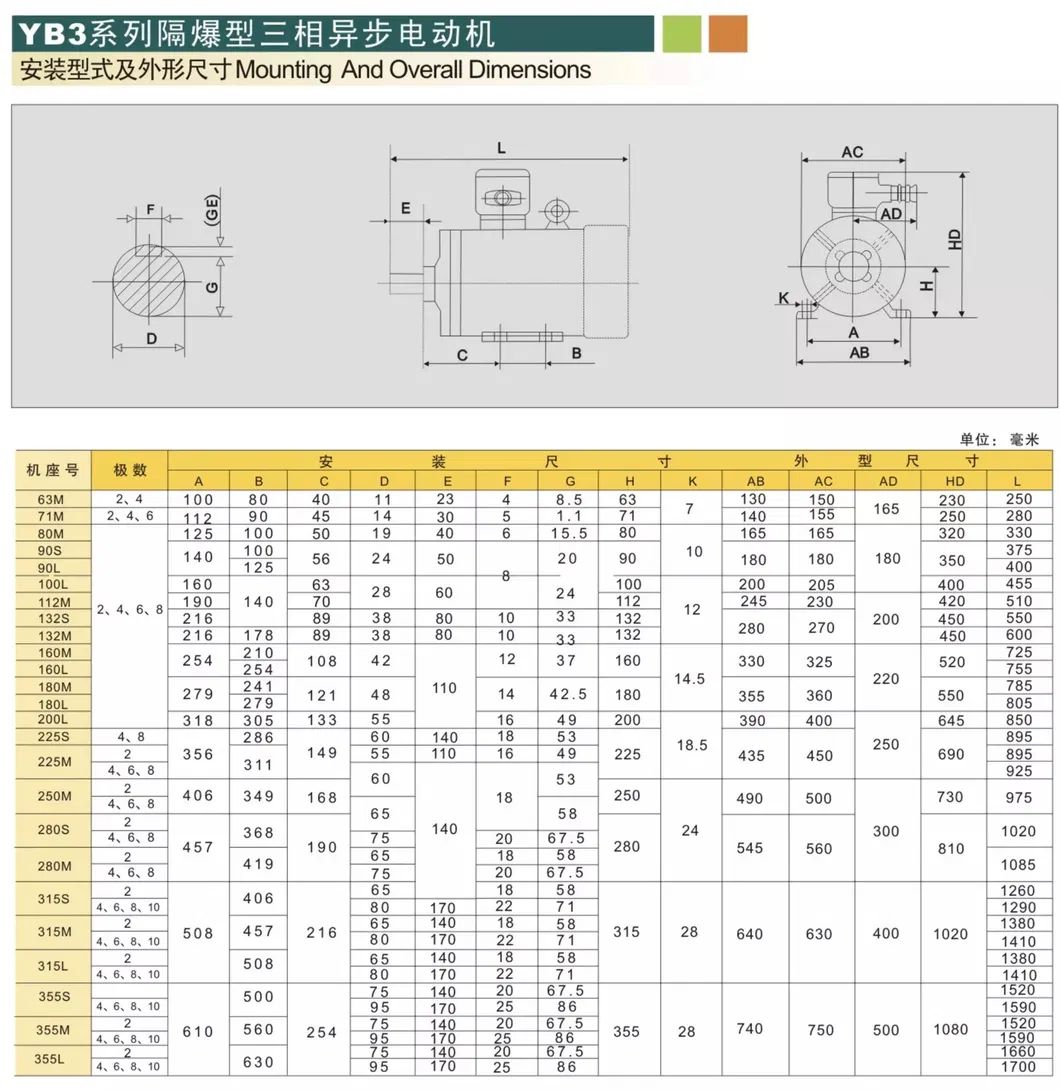

• Frame sizes from 56 to 355, output range from 0.17HP to 430HP.

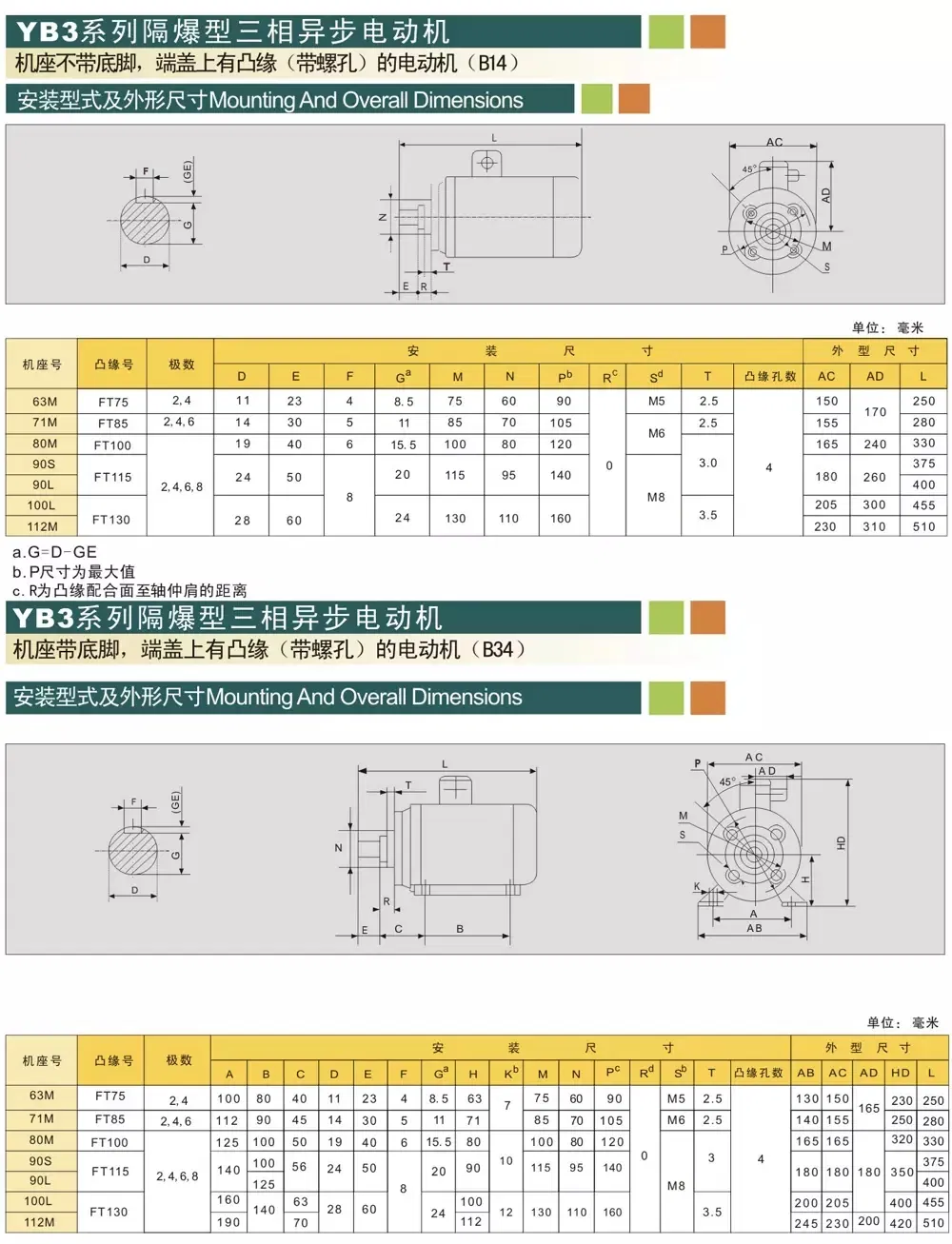

• Mounting types: B3, B35, B5, B14, B34.
• Optional voltages: 110V, 120V, 220V, 240V, 380V, 660V (50Hz or 60Hz).
• Protection types: IP44, IP54, IP55 on request.
• High-strength cast iron frame and superior paint finish.
• 45# steel shaft and stainless steel shaft options.
• Vacuum impregnation for superior insulation (Class F standard, Class H optional).
• Compliant with ISO9001, CE, UL, CCC, GS, GOST, RoHS, and IEC standards.
• High performance with IE1, IE2, and IE3 efficiency ratings.

Manufacturing Process

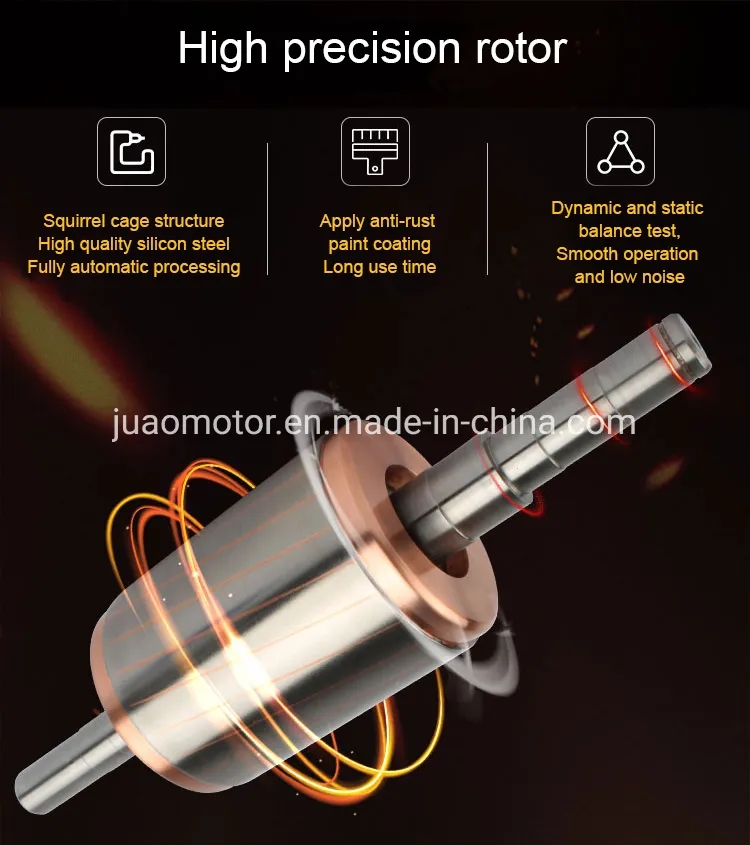

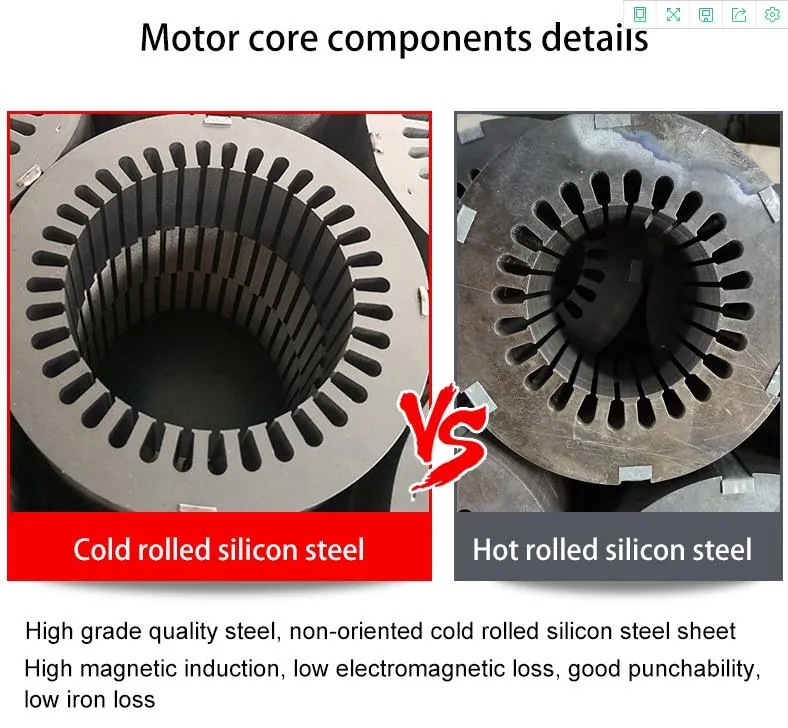

1. Standard silicon steel lamination and stator/rotor die-casting.

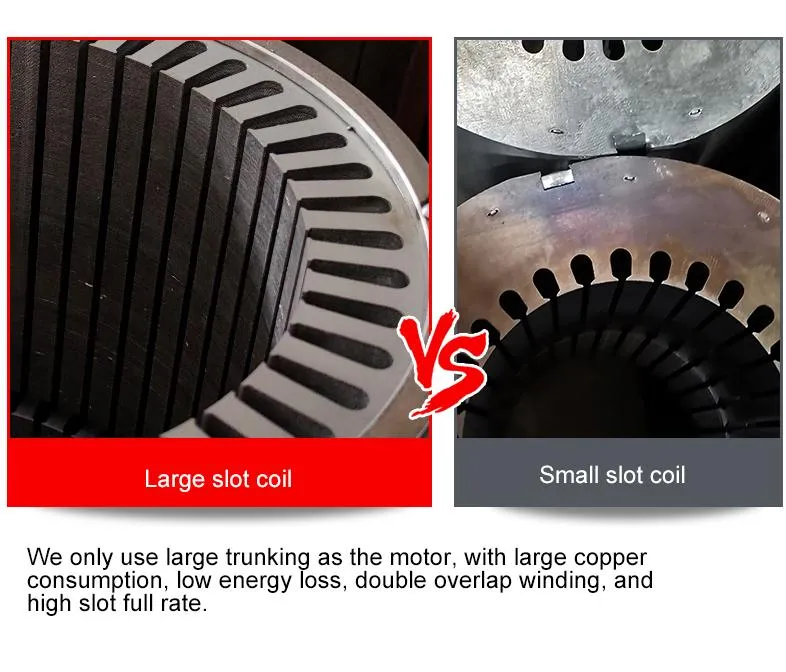

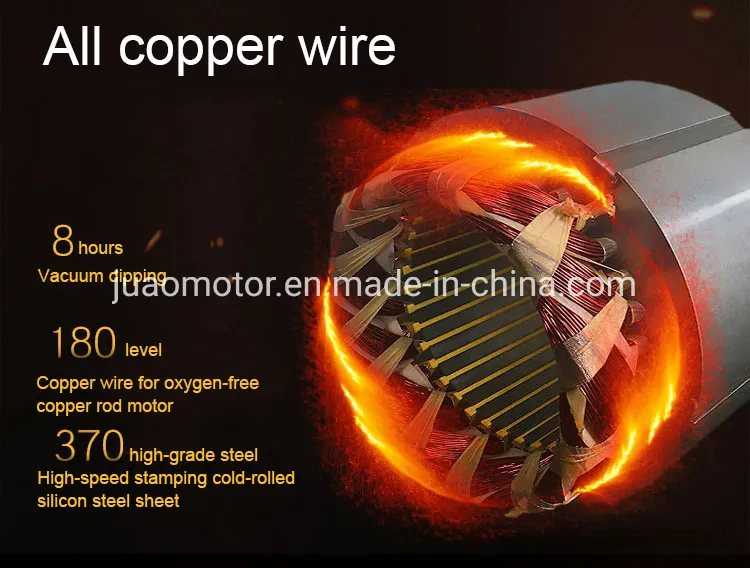

2. 100% copper winding and stator insertion.
3. Vacuum impregnation and specialized drying process.
4. CNC machining for motor shaft, frame, and end shields.
5. Professional inspection at every processing stage.
6. Full assembly line and 100% testing before painting.
7. Final check of output power, load capacity, and nameplate before packing.

Packaging & Standards

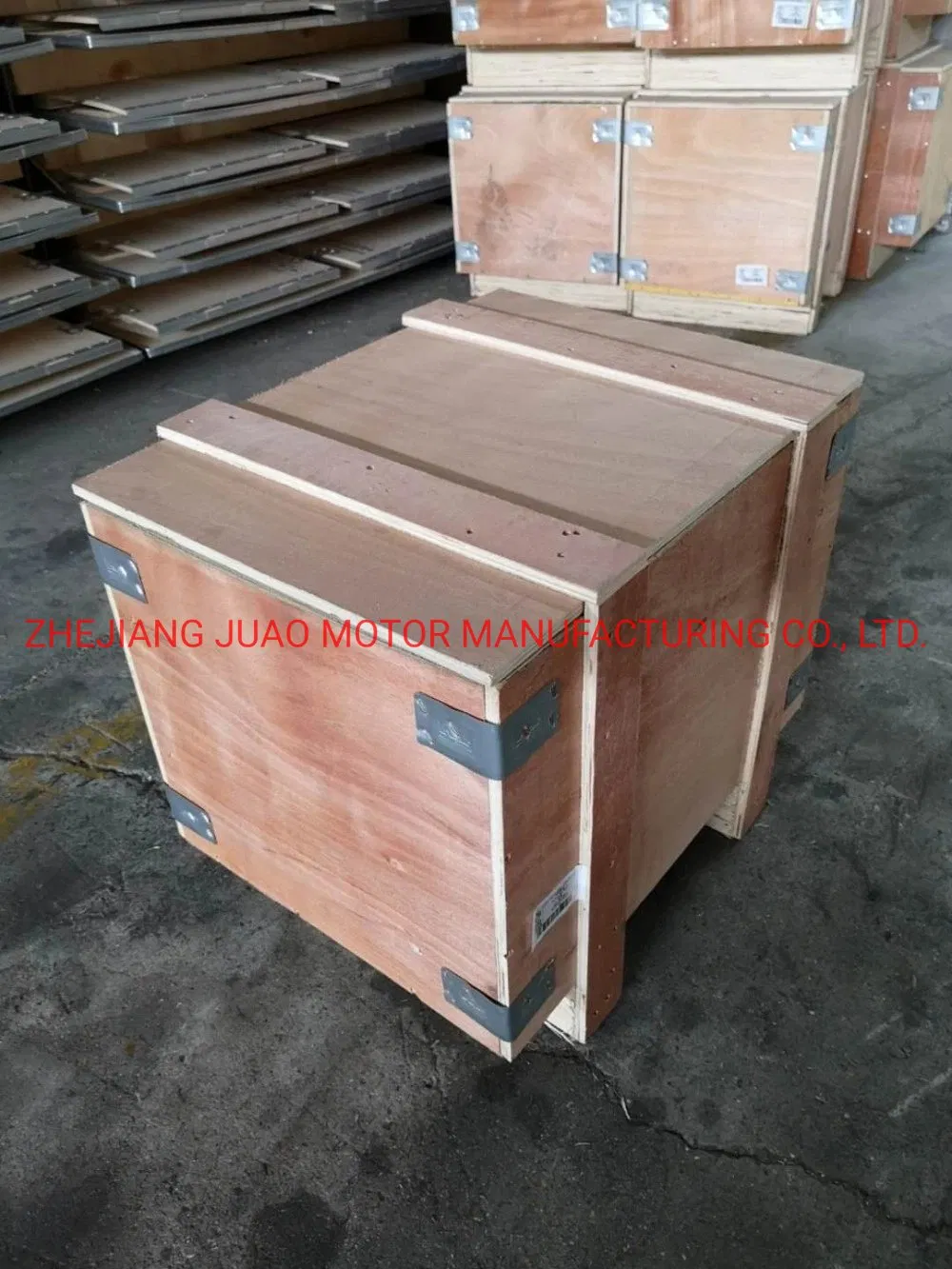

Package: Export fumigation wooden case

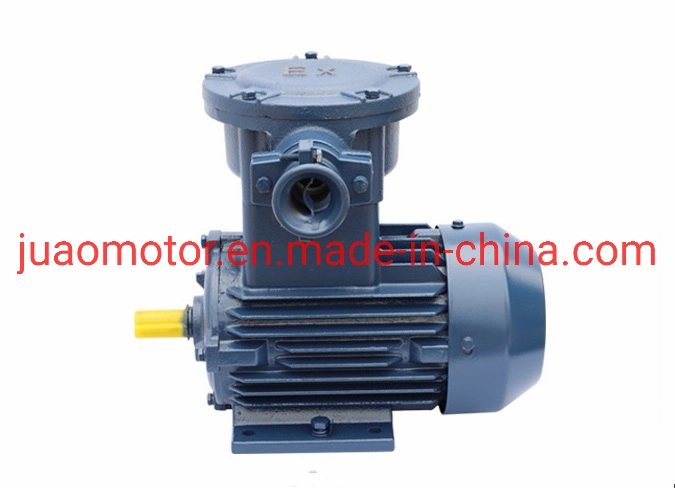

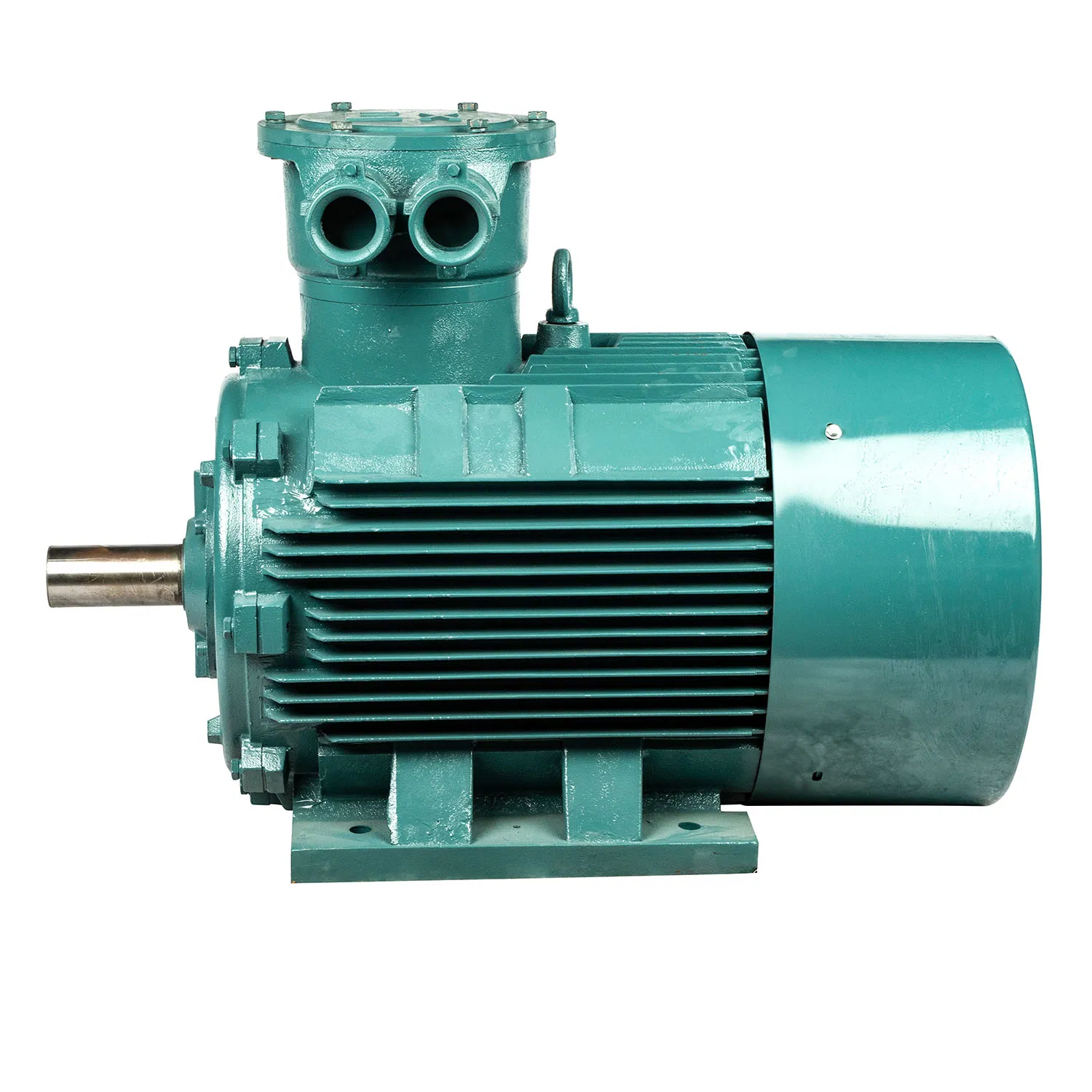

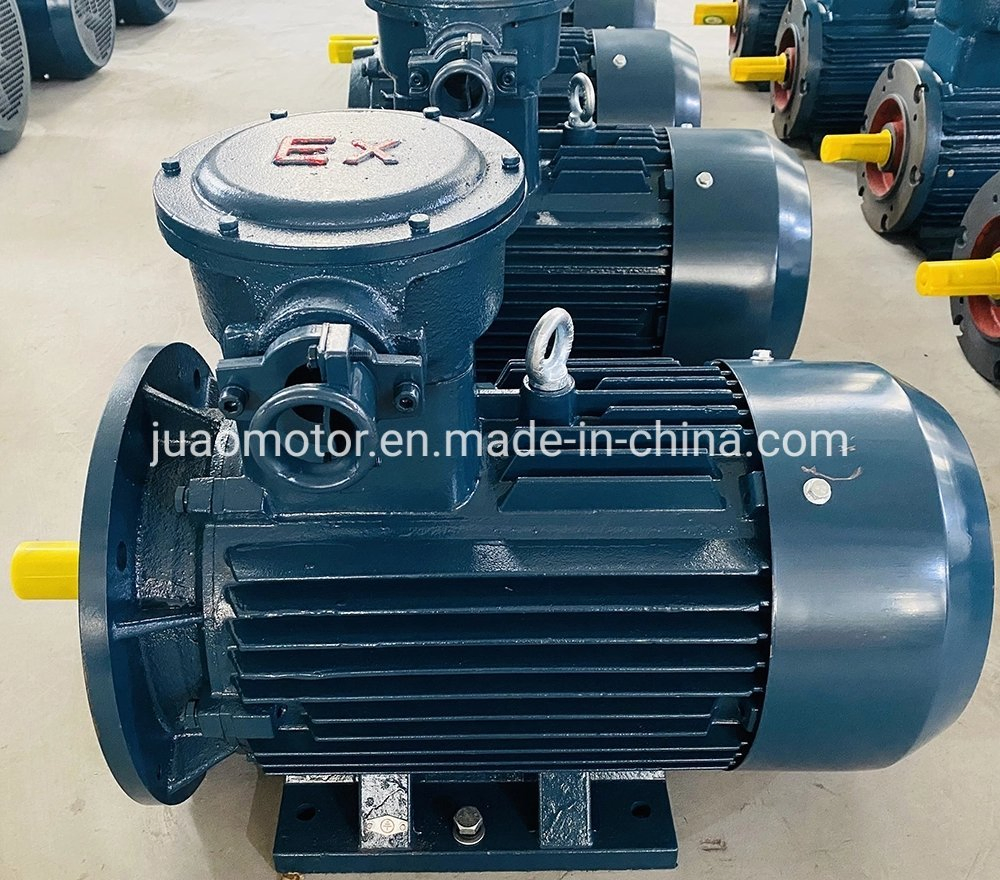

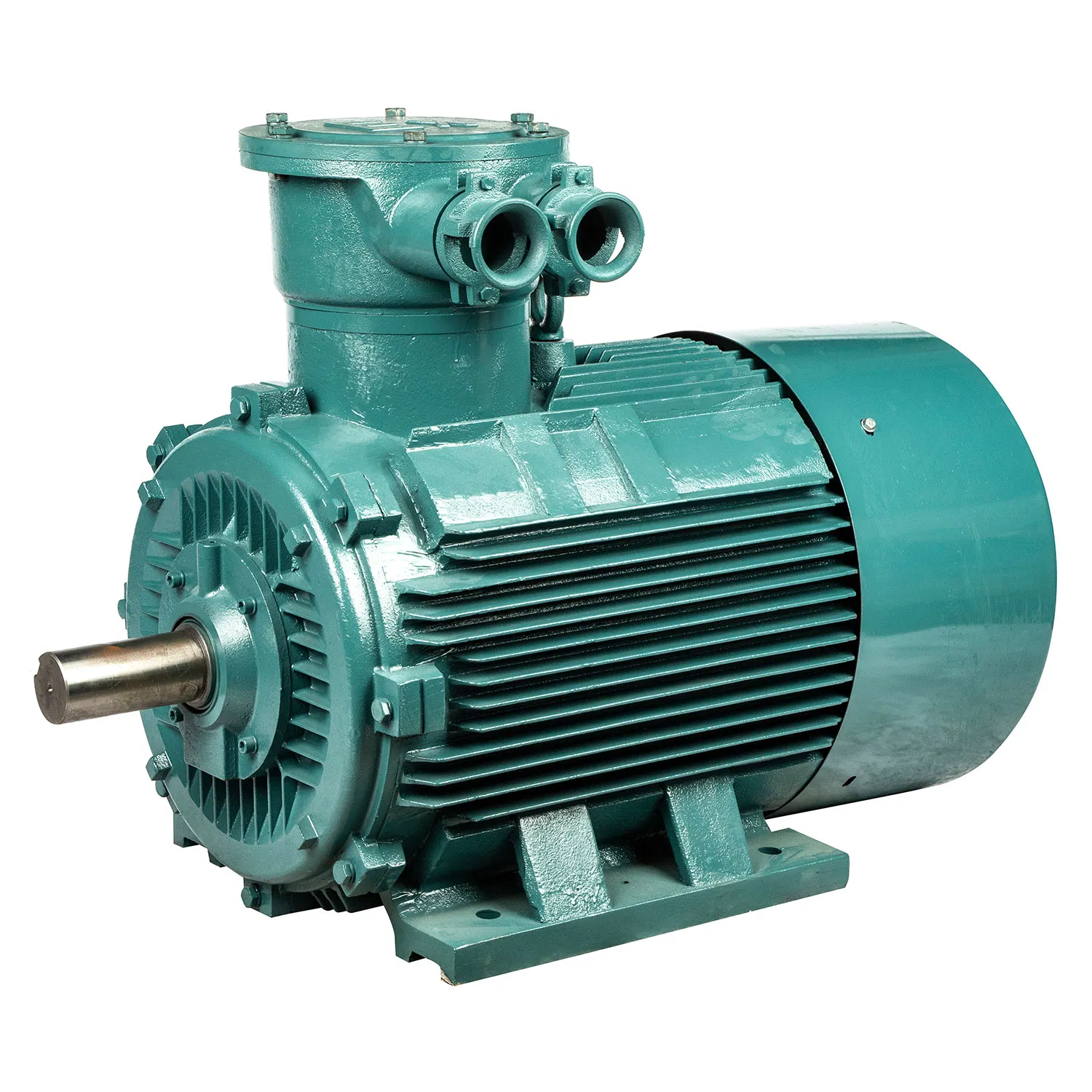

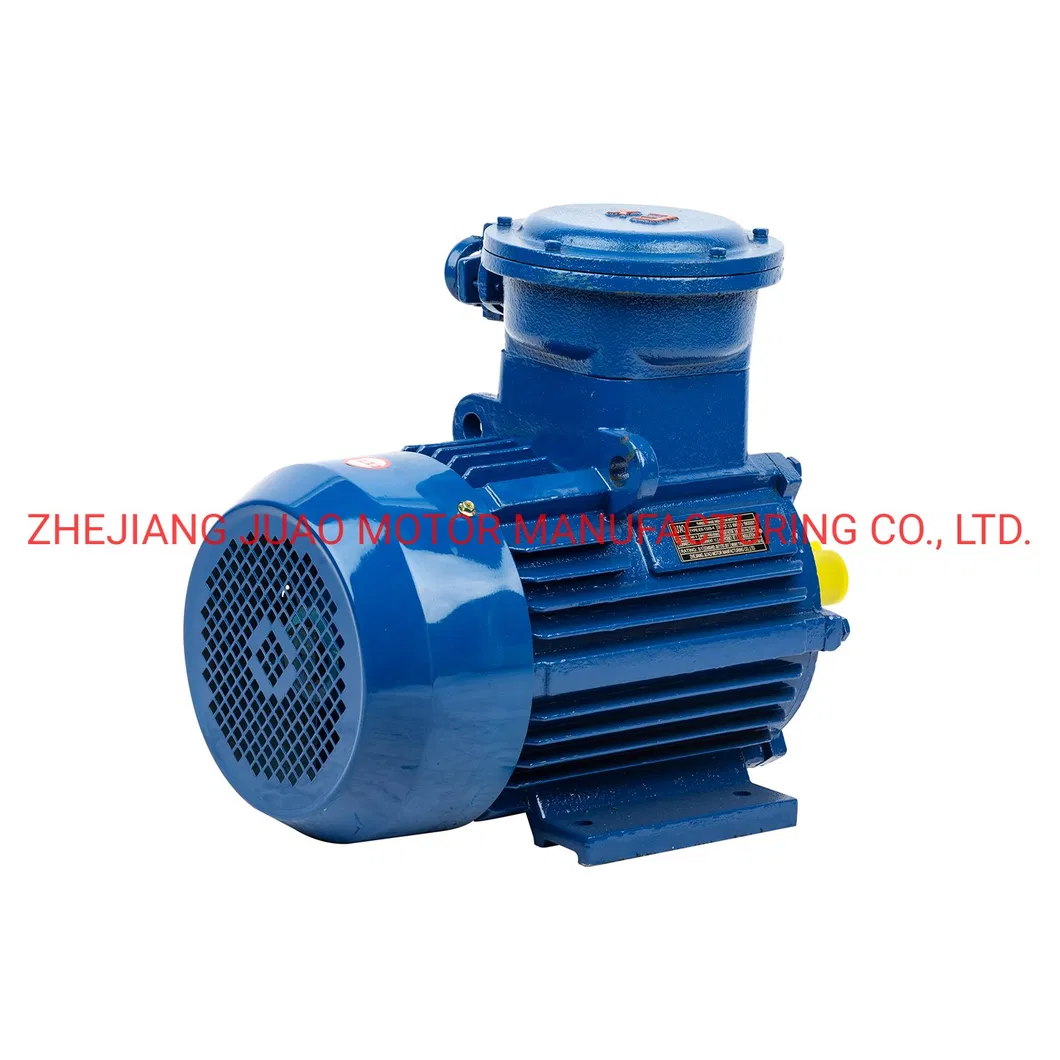

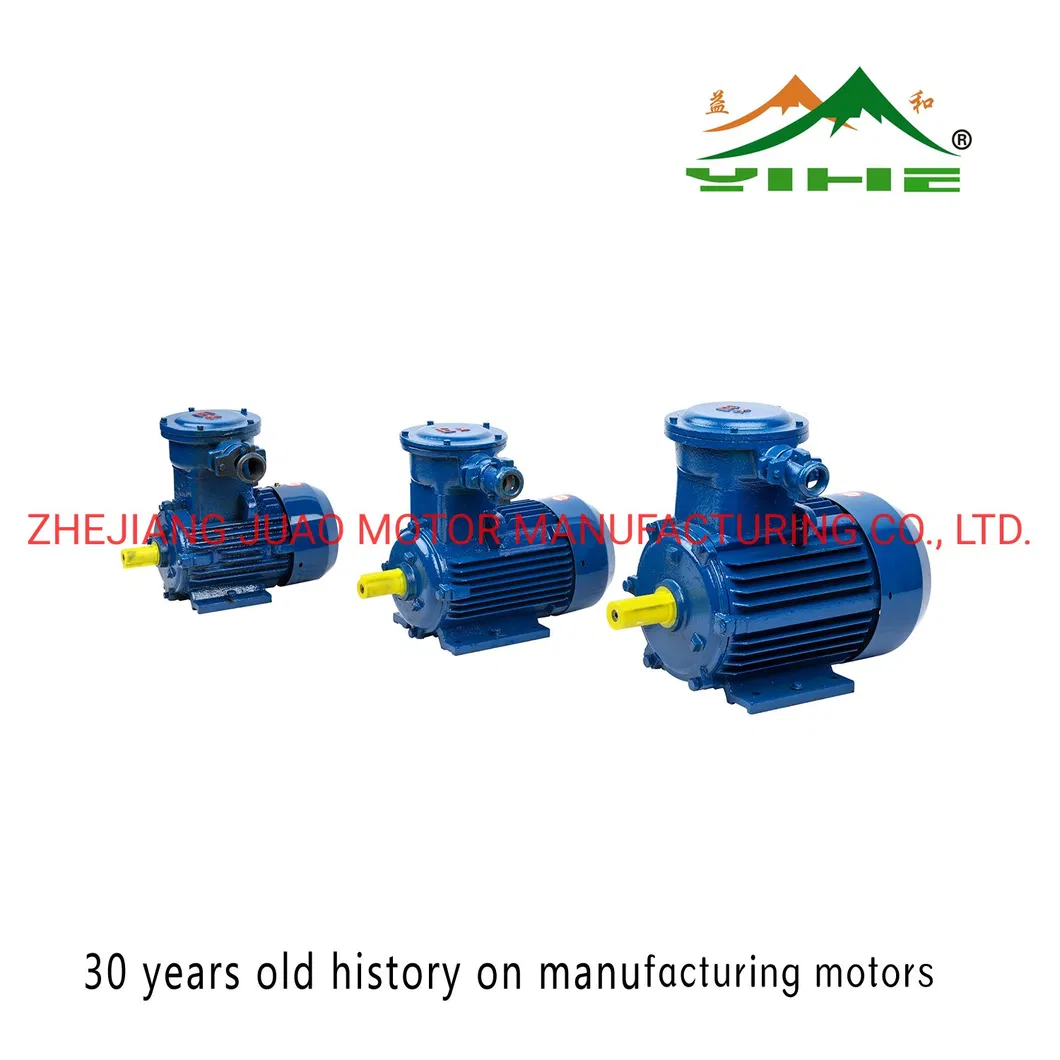

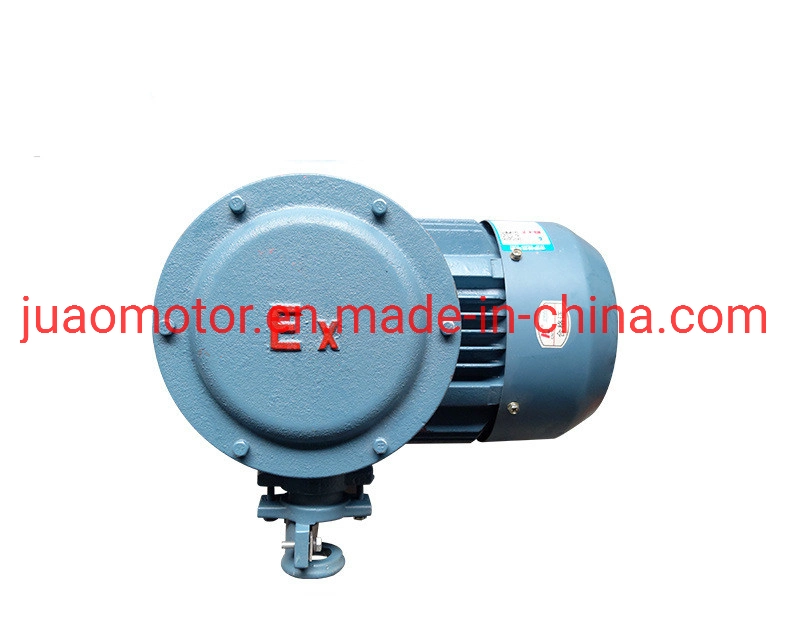

YB2/YB3 ranges of three-phase induction motors are explosion-proof motors designed for safety and efficiency. These motors offer high locked-rotor torque, low noise, and minimal vibration.

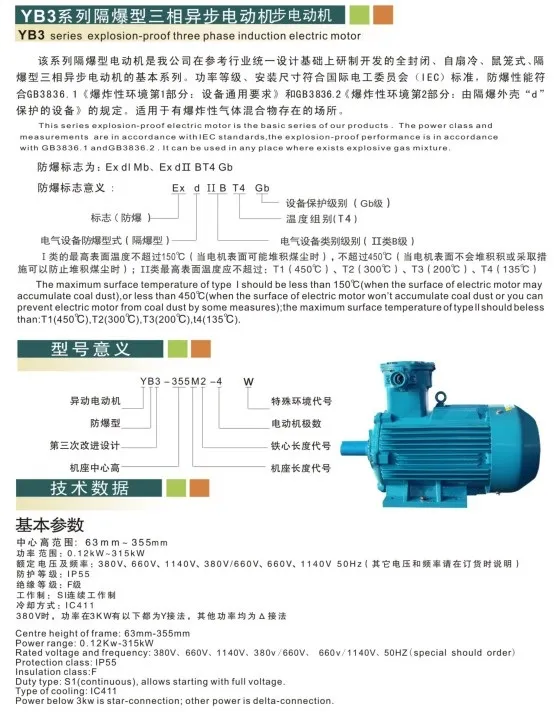

Explosion-Proof Ratings:
- ExdI: Safe for underground coal mines (methane/coal-dust atmospheres).
- ExdIIAT4/BT4/CT4: Safe for industrial plants with explosive gas mixtures of Class IIA, IIB, or IIC.
