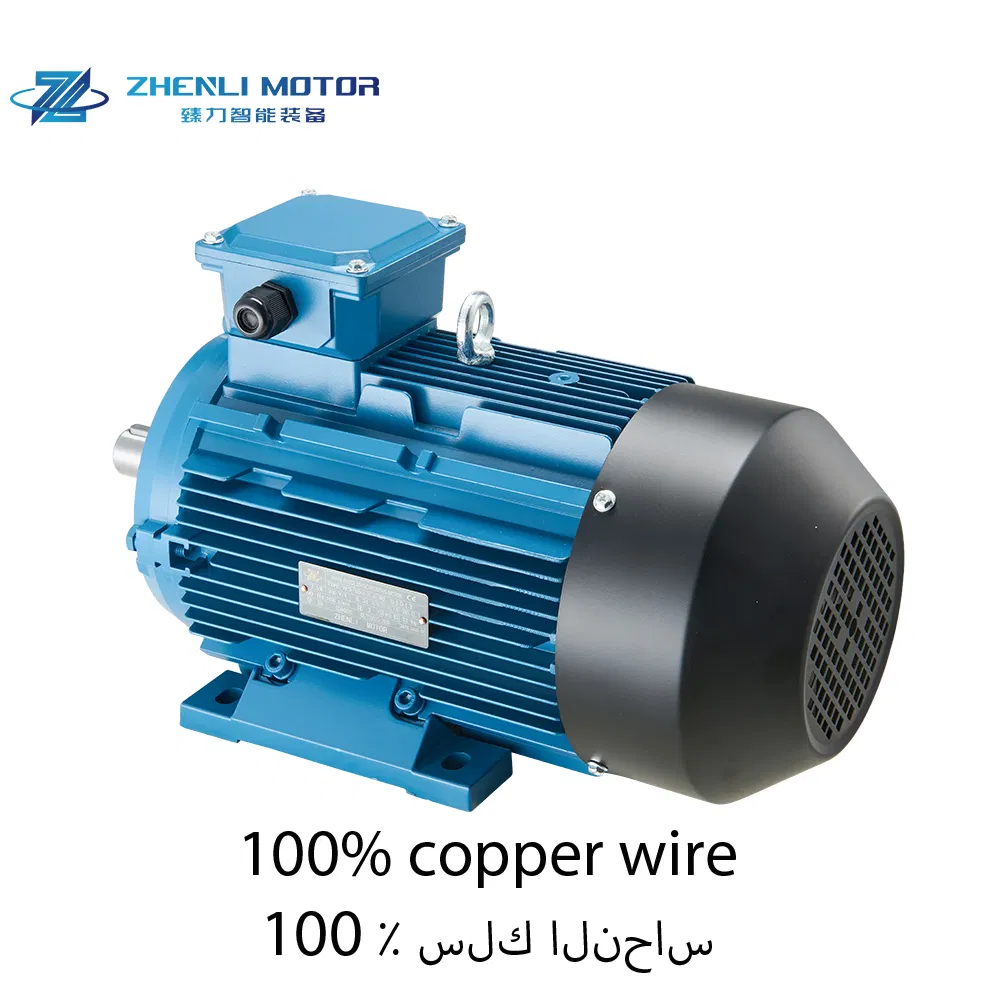

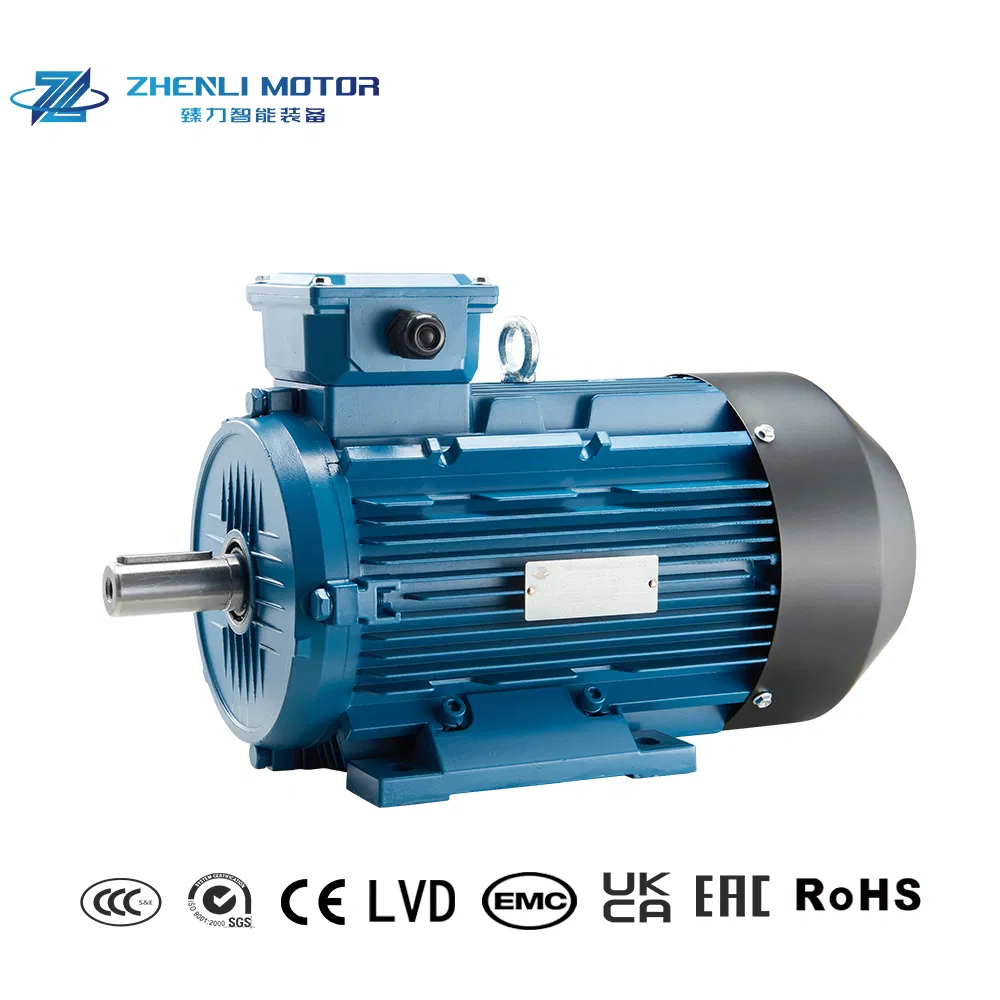

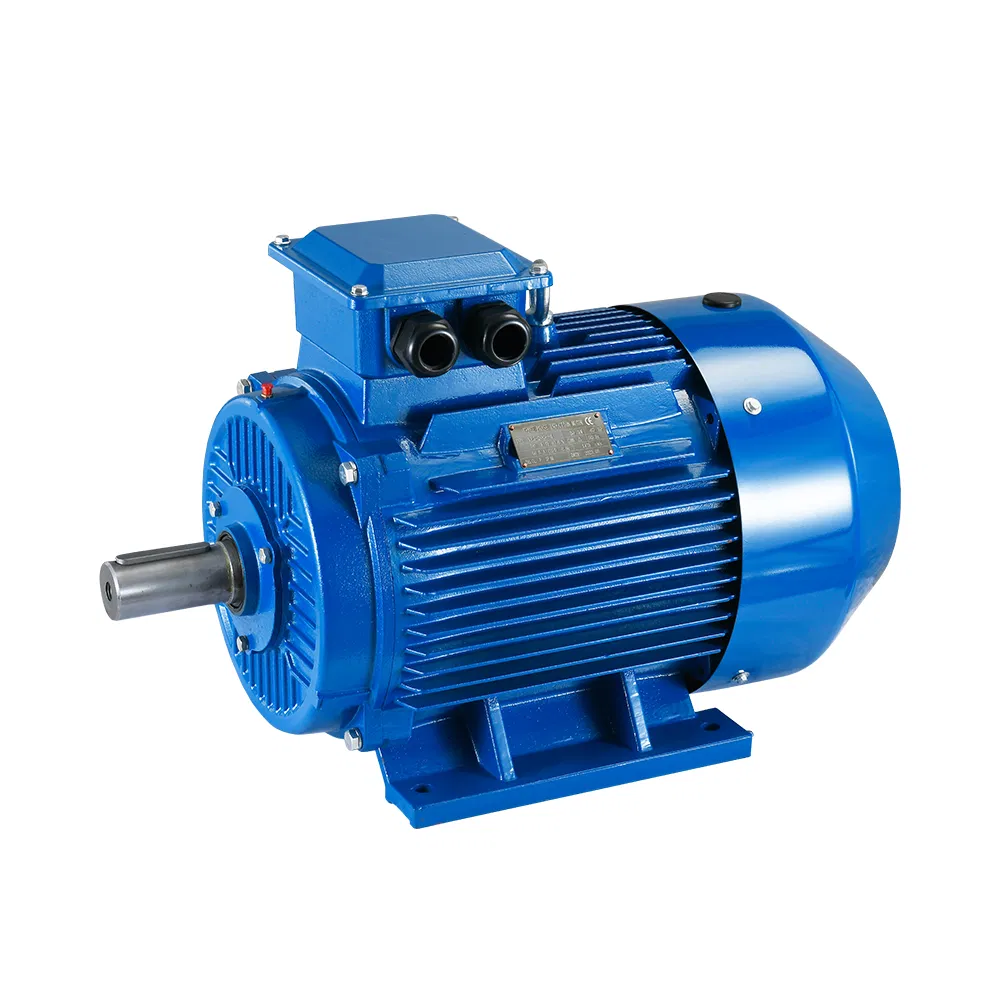

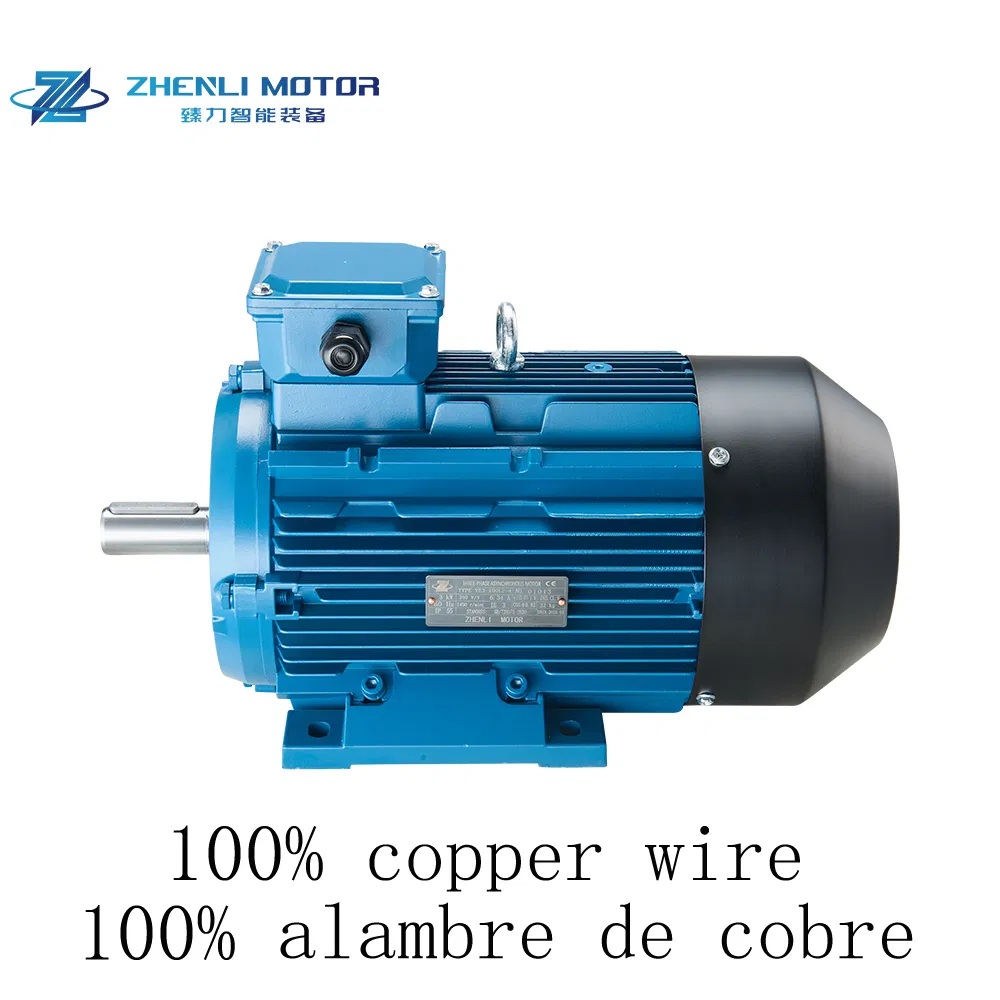

YE3 Series IE3 High Efficiency Three Phase AC Induction Electric Motor
YE3 Series Three Phase AC Induction Electric Motor is designed and manufactured in compliance with IEC standards and the latest IE3 efficiency level requirements. It features high efficiency, energy saving, compact size, and reliable performance, making it ideal for long-term continuous operation (S1 duty).

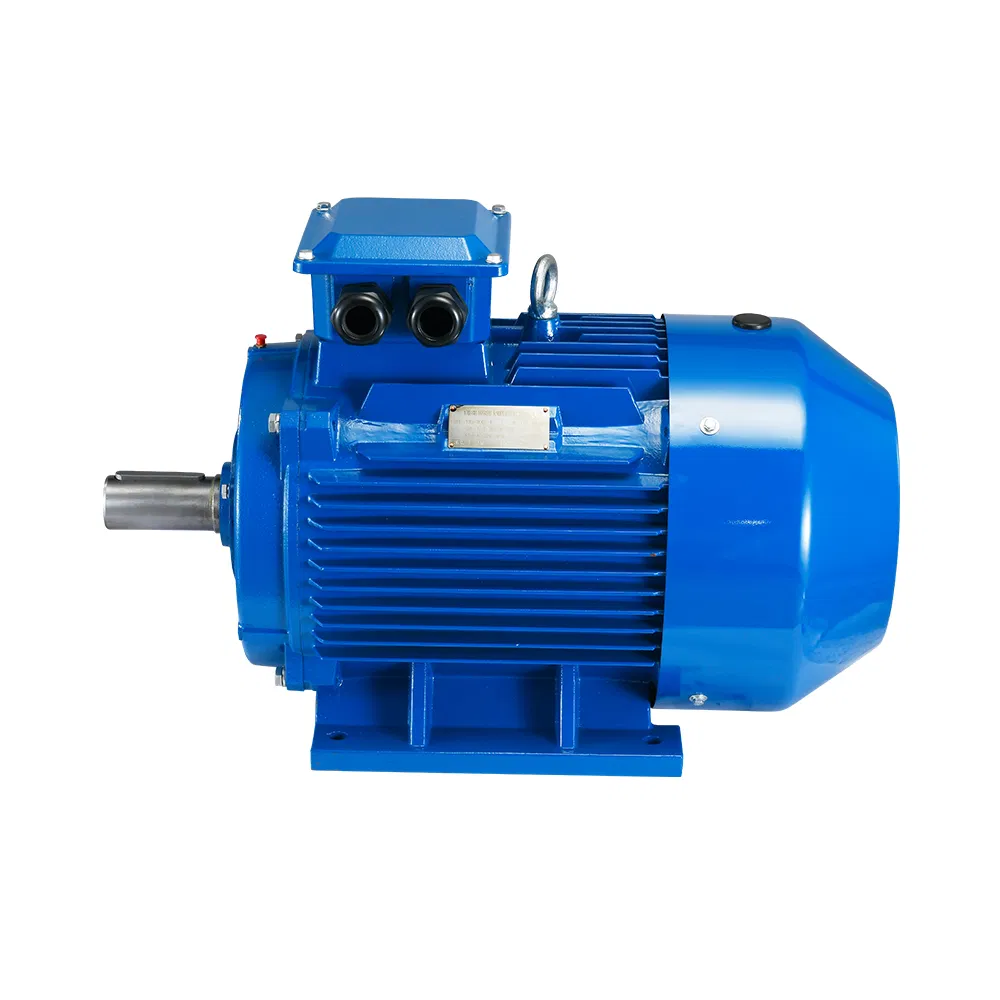

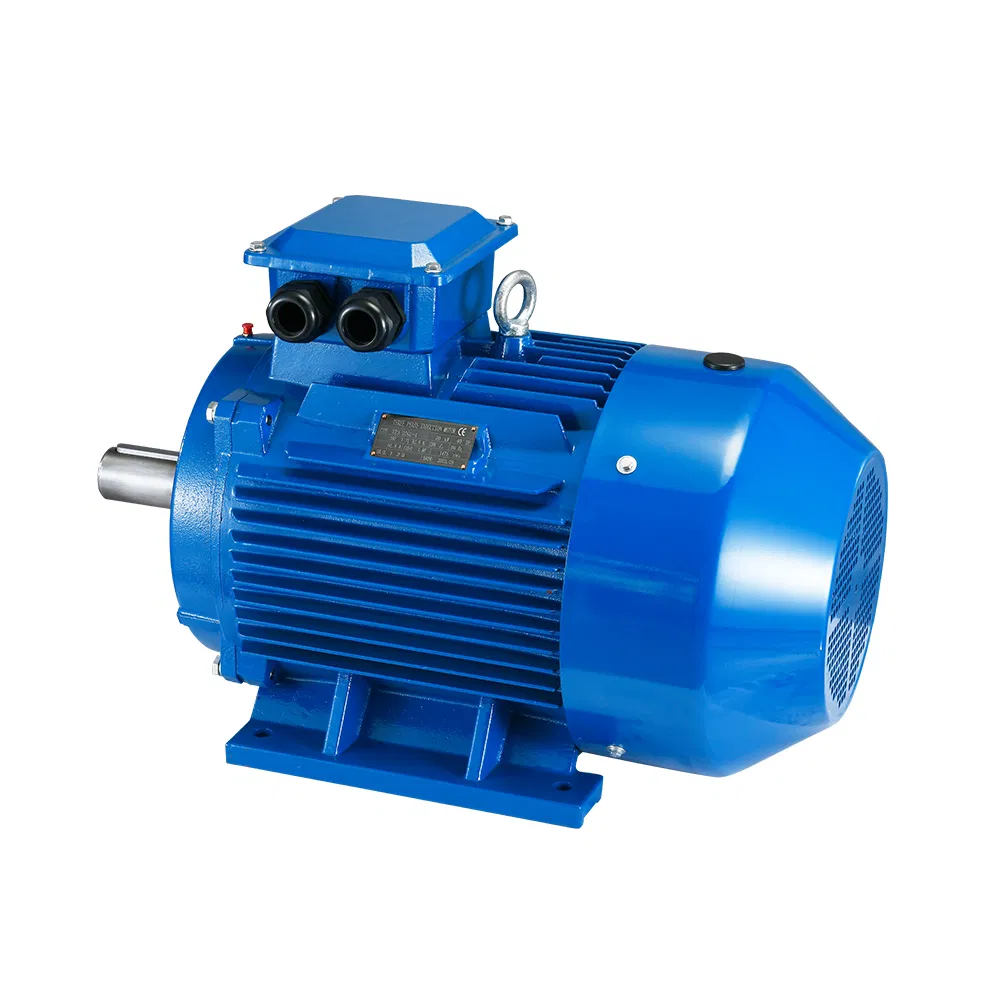

This series offers both aluminum and cast iron housings, ensuring excellent heat dissipation, corrosion resistance, and mechanical strength. YE3 electric motors are widely used in pumps, compressors, fans, conveyors, and general industrial machinery.
With advanced design, precise manufacturing, and strict quality control, the YE3 series provides stable operation, low noise, and long service life under various industrial conditions.
| Operating Conditions | |
|---|---|
| Ambient Temperature | -15°C ≤ 0 ≤ 40°C |
| Altitude | Not exceeding 1000m |
| Rated Frequency | 50Hz, 60Hz |
| Protection Class | IP55 |
| Insulation Class | F, H |
| Cooling Method | IC411 |
| Connection | Star-connection (≤ 3kw), Delta-connection (≥ 4kw) |
| TYPE | KW | HP | RPM | EFF | COS | A |
|---|---|---|---|---|---|---|
| YE3-631-2 | 0.18 | 0.25 | 2730 | 65.9 | 0.80 | 0.52 |
| YE3-632-2 | 0.25 | 0.37 | 2730 | 69.7 | 0.81 | 0.67 |
| YE3-711-2 | 0.37 | 0.5 | 2750 | 73.8 | 0.81 | 0.94 |
| YE3-712-2 | 0.55 | 0.75 | 2750 | 77.8 | 0.82 | 1.31 |
| YE3-801-2 | 0.75 | 1 | 2880 | 80.7 | 0.82 | 1.72 |
| YE3-802-2 | 1.1 | 1.5 | 2880 | 82.7 | 0.83 | 2.43 |
| YE3-90S-2 | 1.5 | 2 | 2895 | 84.2 | 0.84 | 3.22 |
| YE3-90L-2 | 2.2 | 3 | 2895 | 85.9 | 0.85 | 4.58 |
| YE3-100L-2 | 3 | 4 | 2895 | 87.1 | 0.87 | 6.02 |
| YE3-112M-2 | 4 | 5.5 | 2905 | 88.1 | 0.88 | 7.84 |
| YE3-132S1-2 | 5.5 | 7.5 | 2930 | 89.2 | 0.88 | 10.6 |
| YE3-132S2-2 | 7.5 | 10 | 2930 | 90.1 | 0.88 | 14.4 |
| YE3-160M1-2 | 11 | 15 | 2945 | 91.2 | 0.89 | 20.6 |
Strict implementation of the BSEN ISO9001:2015 quality management system. All products have obtained CE, CCC, and SGS certifications. Each electric motor undergoes a full inspection and performance testing before delivery to ensure reliability, safety, and efficiency.

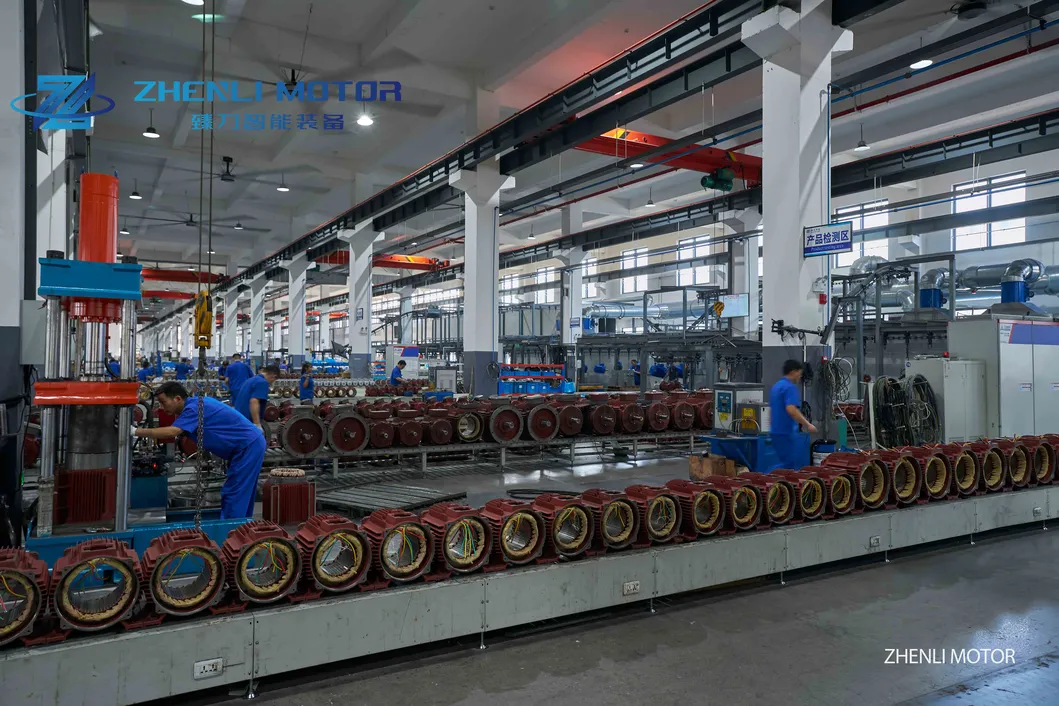

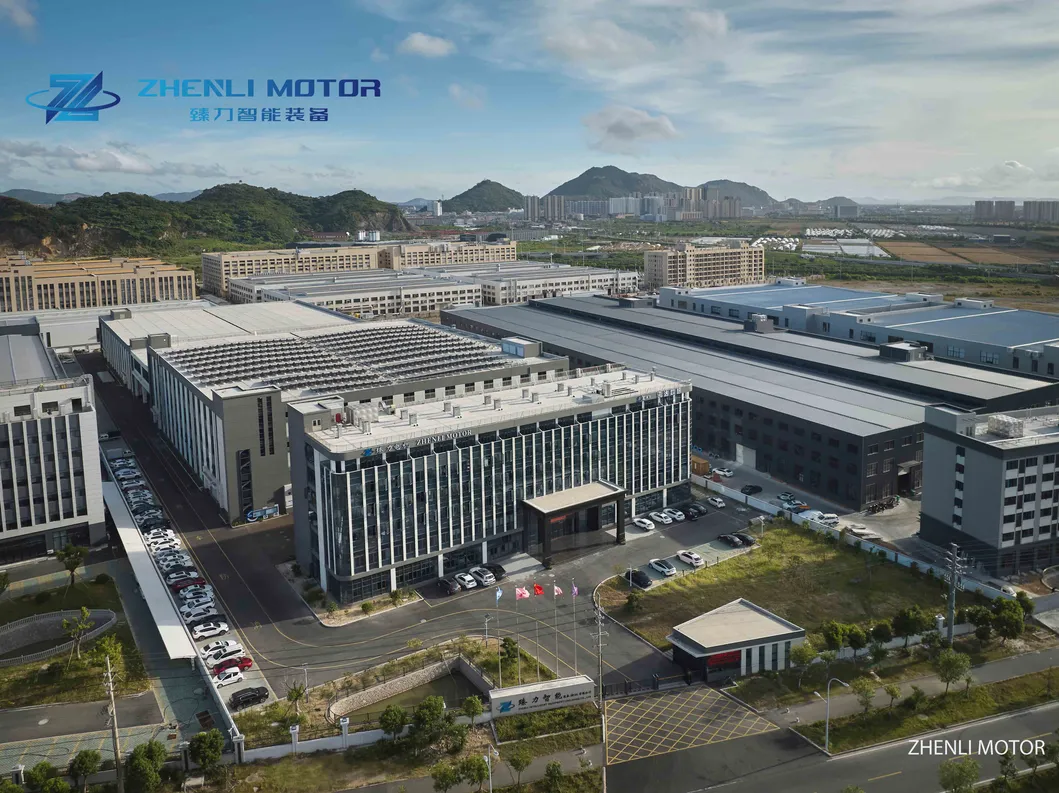

Founded in 2000, our manufacturing facility specializes in developing and producing a full range of electric motors, covering single-phase and three-phase asynchronous motors as well as permanent magnet synchronous motors.
Products are available in cast-iron and aluminum housings and are widely used in pumps, compressors, agricultural machinery, and general industrial equipment. We provide flexible customization including voltage, frequency, mounting, and energy-efficiency levels (IE1-IE5).
