⚙️ Core Features
High Integration: Stable Brushless DC Motor Controller with Hardware Design.
Multiple Control Modes: Speed control, current control, and open-loop control.
Safety Functions: Braking, direction control, and maximum current limit adjustment.
Smart Protection: Intelligent current limiting for fast and accurate protection.
Advanced Functions: Low voltage protection (≤18V), Overheat protection (>150°C), Hall error protection, and adjustable overload protection time (2-15 seconds).
❓ Frequently Asked Questions

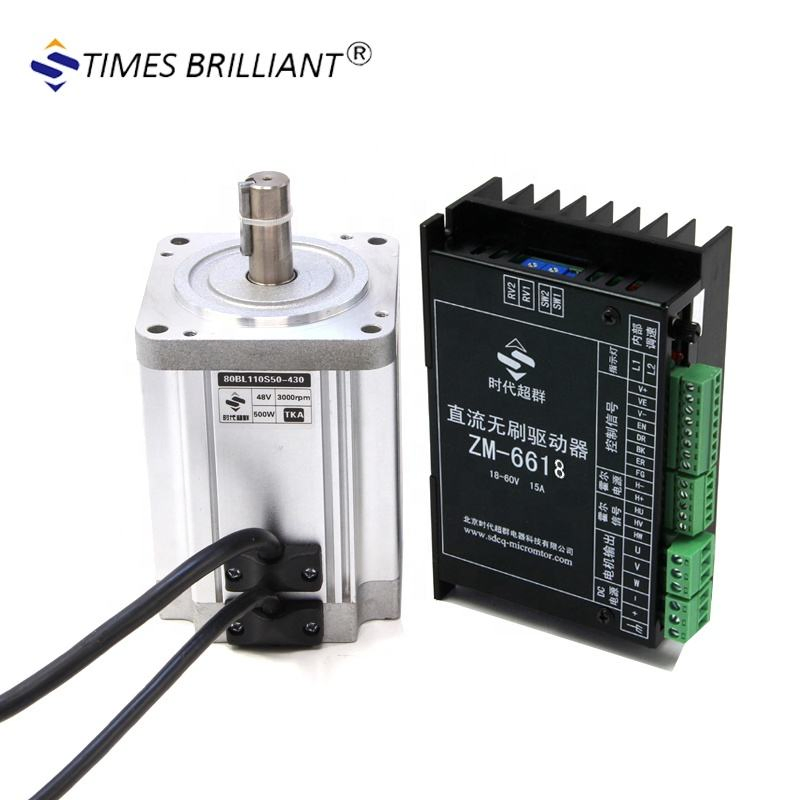

What is the input voltage range for the ZM-6618 controller?
The controller supports a wide DC input range from 12V to 60V, with a rated operating voltage of 48V.
How can I adjust the motor speed?
You can adjust the speed using three methods: the built-in potentiometer, an external 10K potentiometer, or via 0-5V analog voltage and PWM signals.
Does this driver support Hall sensors?
Yes, it is specifically designed for brushless DC motors with 120-degree Hall sensors. It includes dedicated ports for Hall power and signal lines.
What is the maximum current capacity?
The ZM-6618 has a rated output current of 15A and can handle peak currents up to 18A. The current limit is adjustable between 1A and 18A using the RV2 potentiometer.
What protections are built into the device?
The controller includes low-voltage protection, overheat protection (>150°C), stall/shut-down protection with adjustable timing, and Hall sensor error protection.
What is the maximum motor speed supported?
The controller can support brushless DC motors operating at speeds ranging from 0 up to 20,000 RPM.
