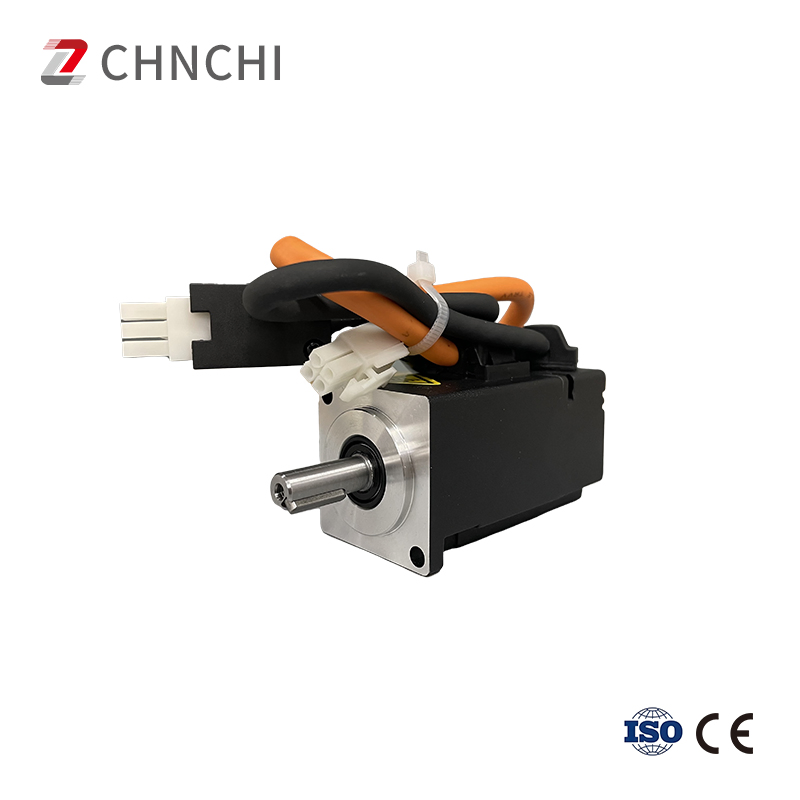

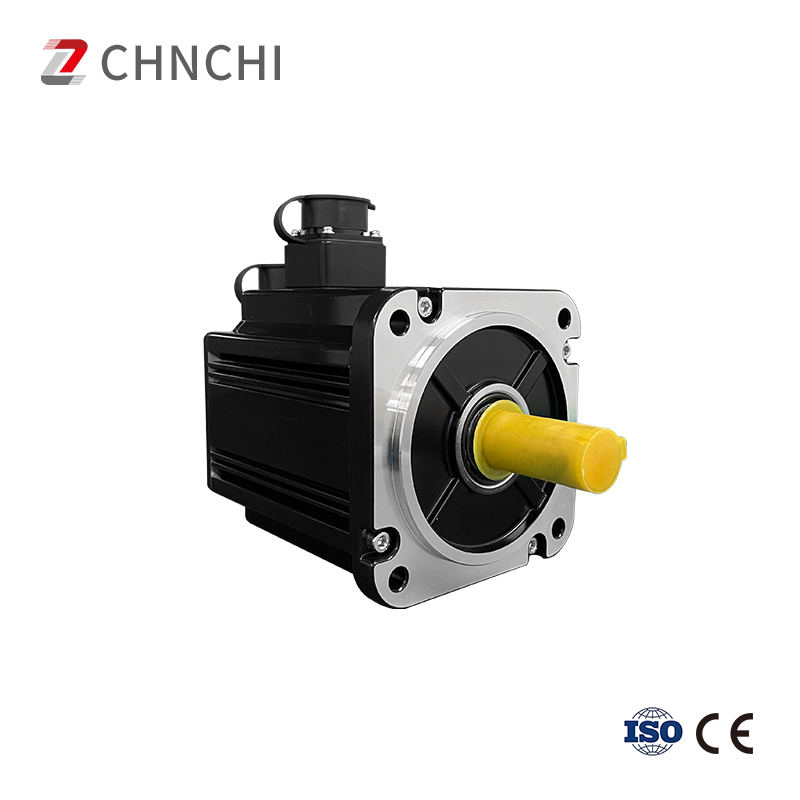

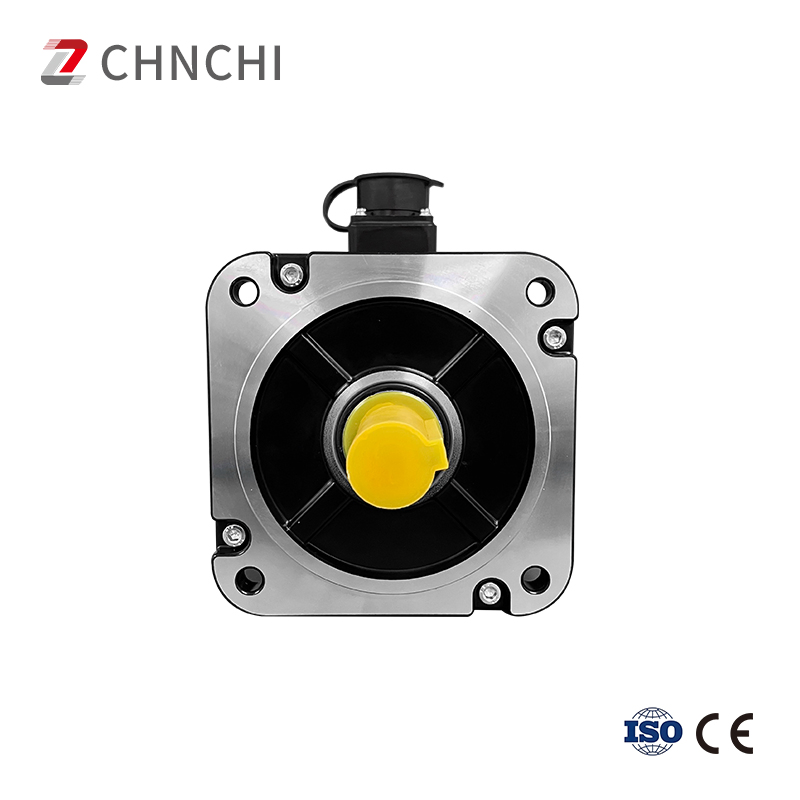

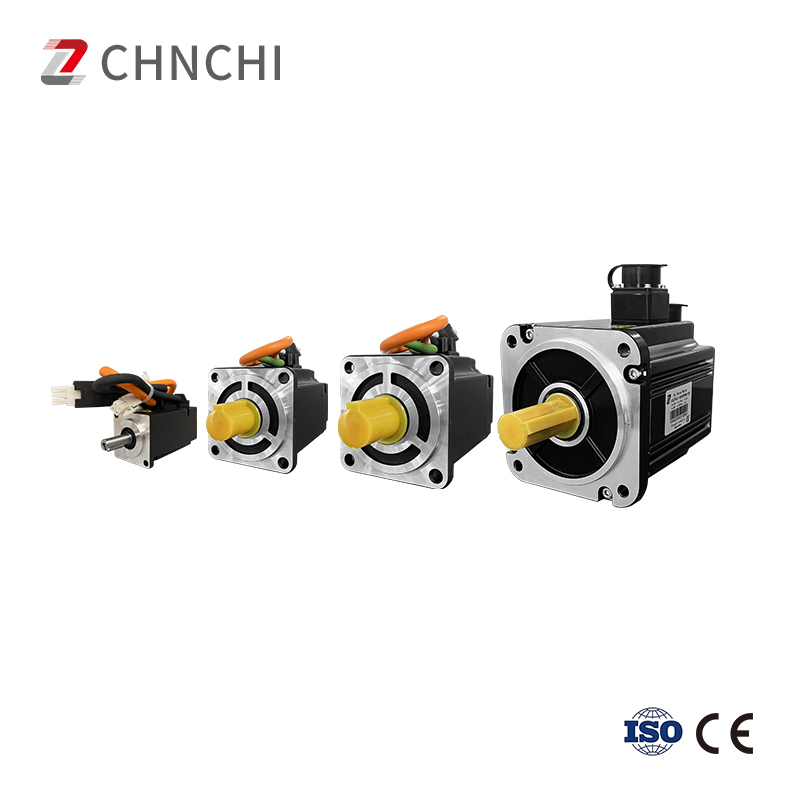

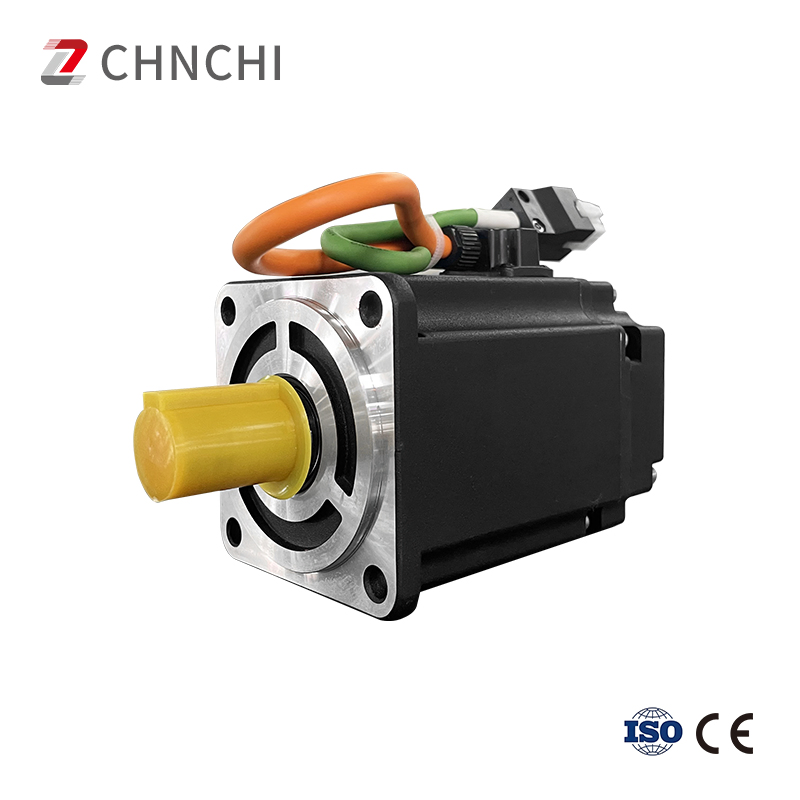

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

1 / 5

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Small Power Segment 100W-3kw Embedded Servo Motor 17/23 Bit Is Optional

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ZE embedded servo motor 100w-3kw

Number of Stator

Three-Phase

Function

Driving

Casing Protection

Protection Type

Number of Poles

10

Starting Mode

Controlled Starting

Certification

ISO9001, CE

Flange

40/60/80/130mm

Rated Speed

1500rpm/2000rpm/3000rpm

Rated Current

1.1A-14A

Voltage

220V/380V

HS Code

8501520000

Product Description

Small size, saving installation space.
The encoder is optional with 17 bits or 23 bits.
Servo motor is optional with brake or without brake.
Strong overload capacity and high operating efficiency.
Small speed fluctuation and smooth operation.
Low temperature rise, low noise, high applicability.
The energy saving is raised to level 1.
The protection level is increased to IP67/IP65.
High precision, realizing precise control of position, speed and torque.
Programmability, enabling specific functions and control logics through programming.

Embedded Servo Motor

Servo Motor Features

Product Parameters

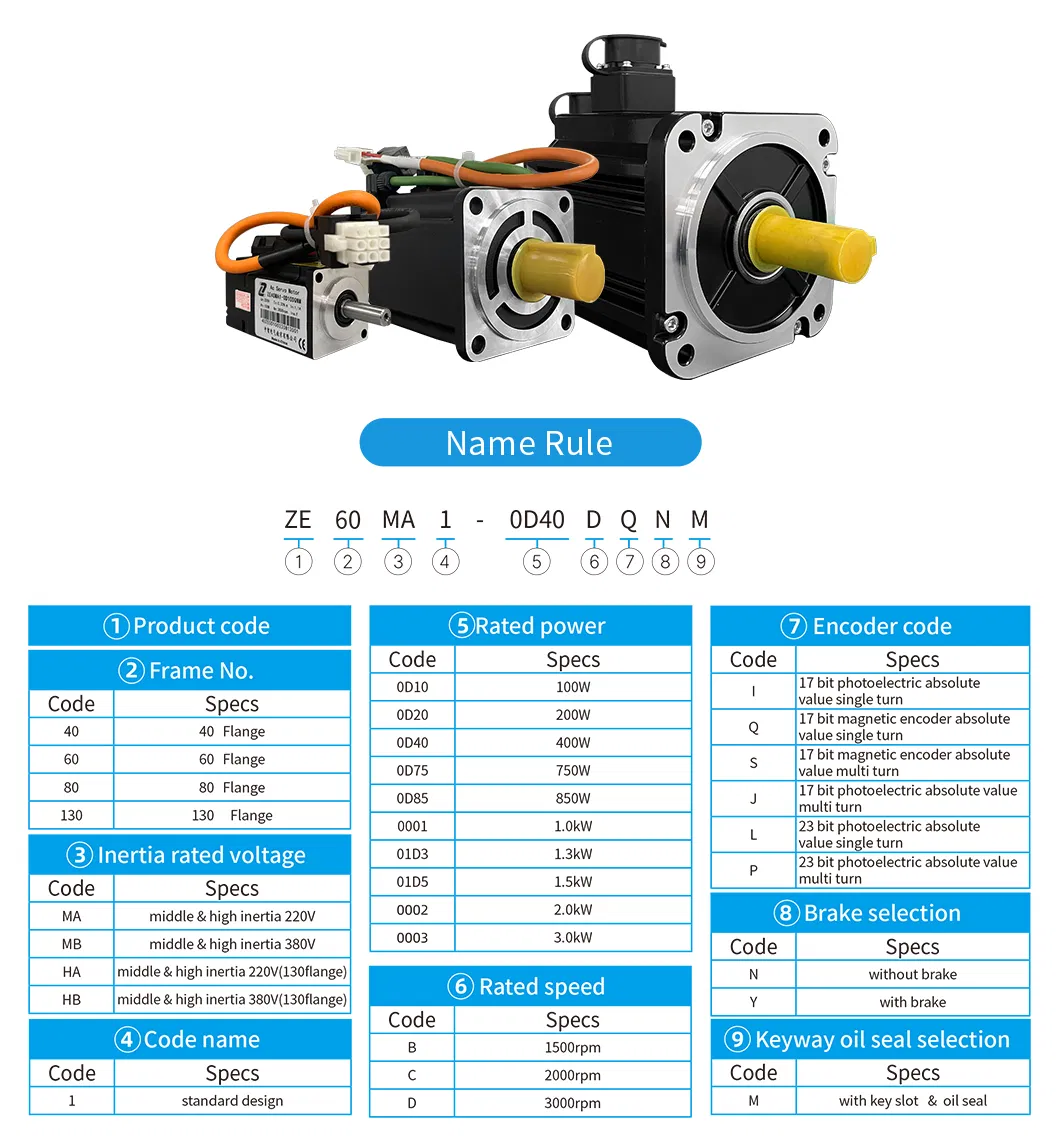

Product Specification

Model type	ZE100w-3kw
Flange size (mm)	40/60/80/130
Rated voltage (V)	AC220/380
Rated power (W)	100-3000
Rated torque (N.m)	0.32-15
Rated speed (r/min)	3000
Max speed (r/min)	6000
Feedback element	17/23 bit
Protection grade	IP65 / IP67(Optional)
Insulation class	F

Product Drawing

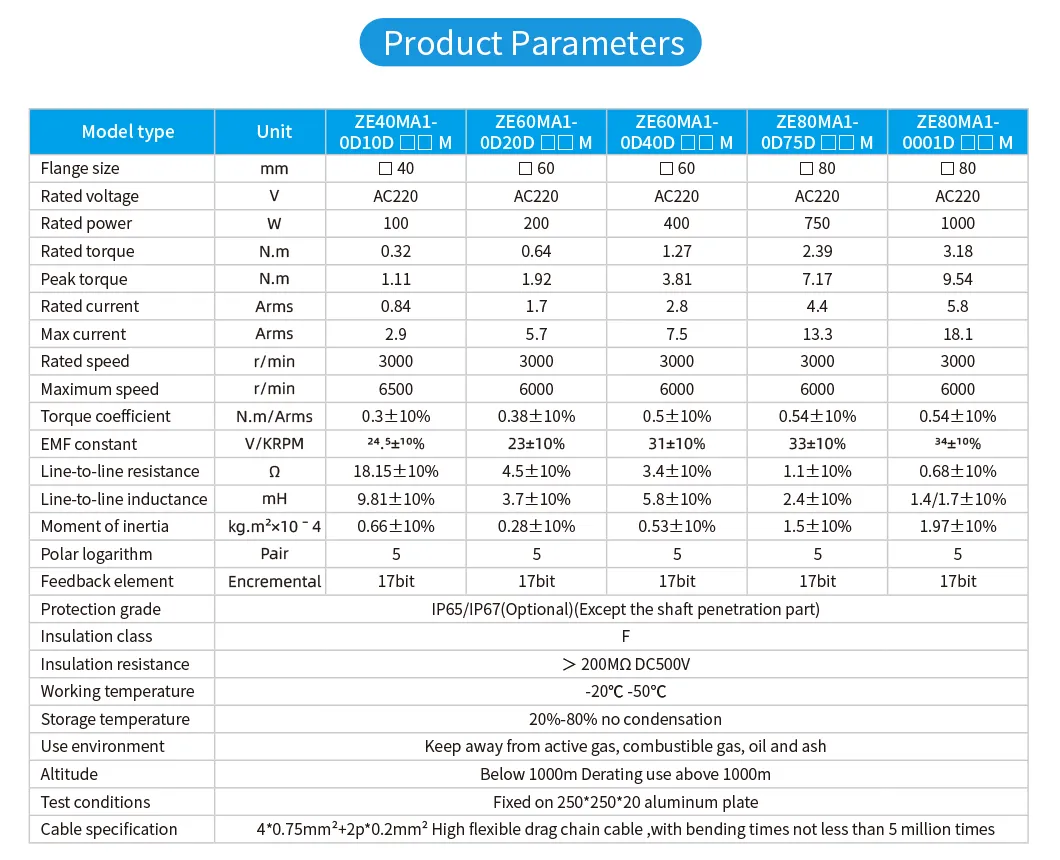

Drawing 1

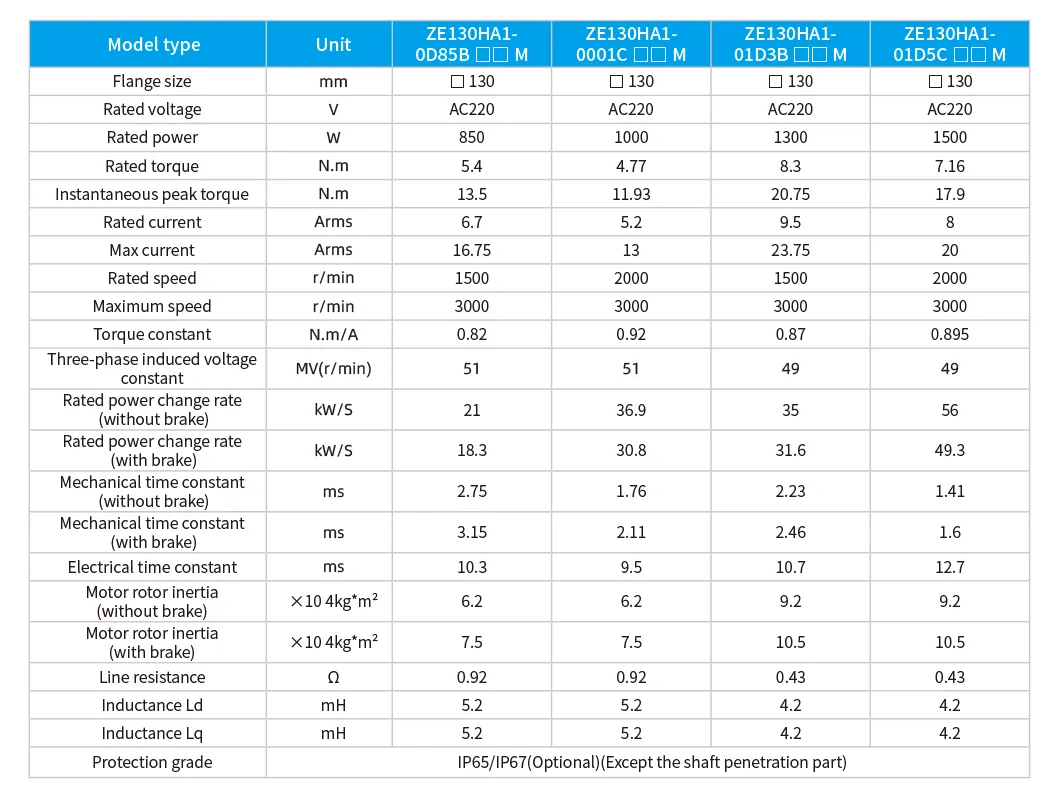

Drawing 2

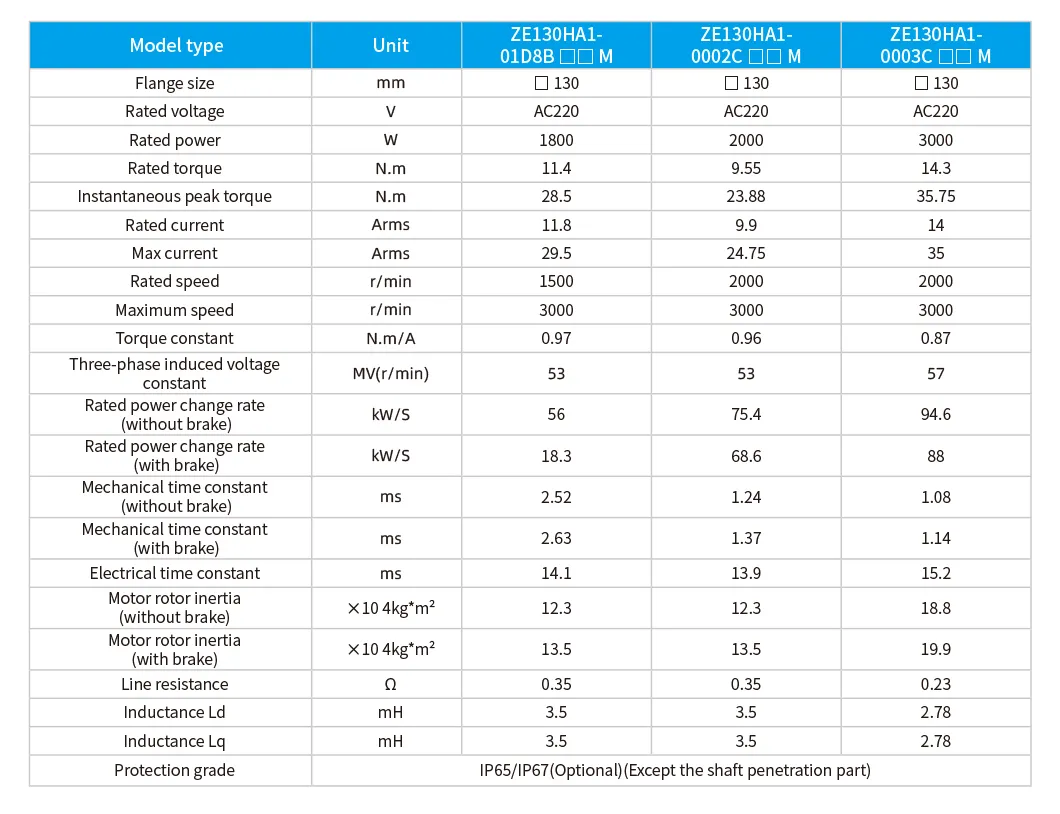

Drawing 3

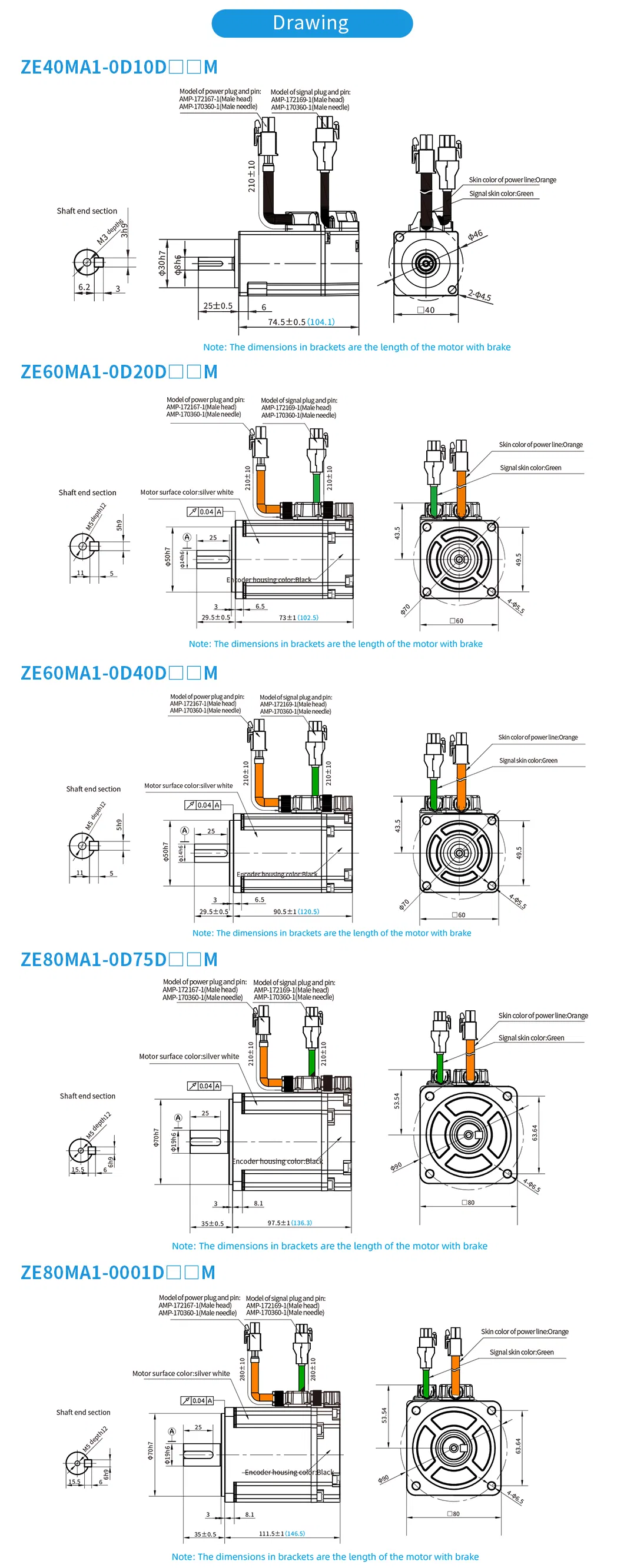

Detailed Technical Drawing

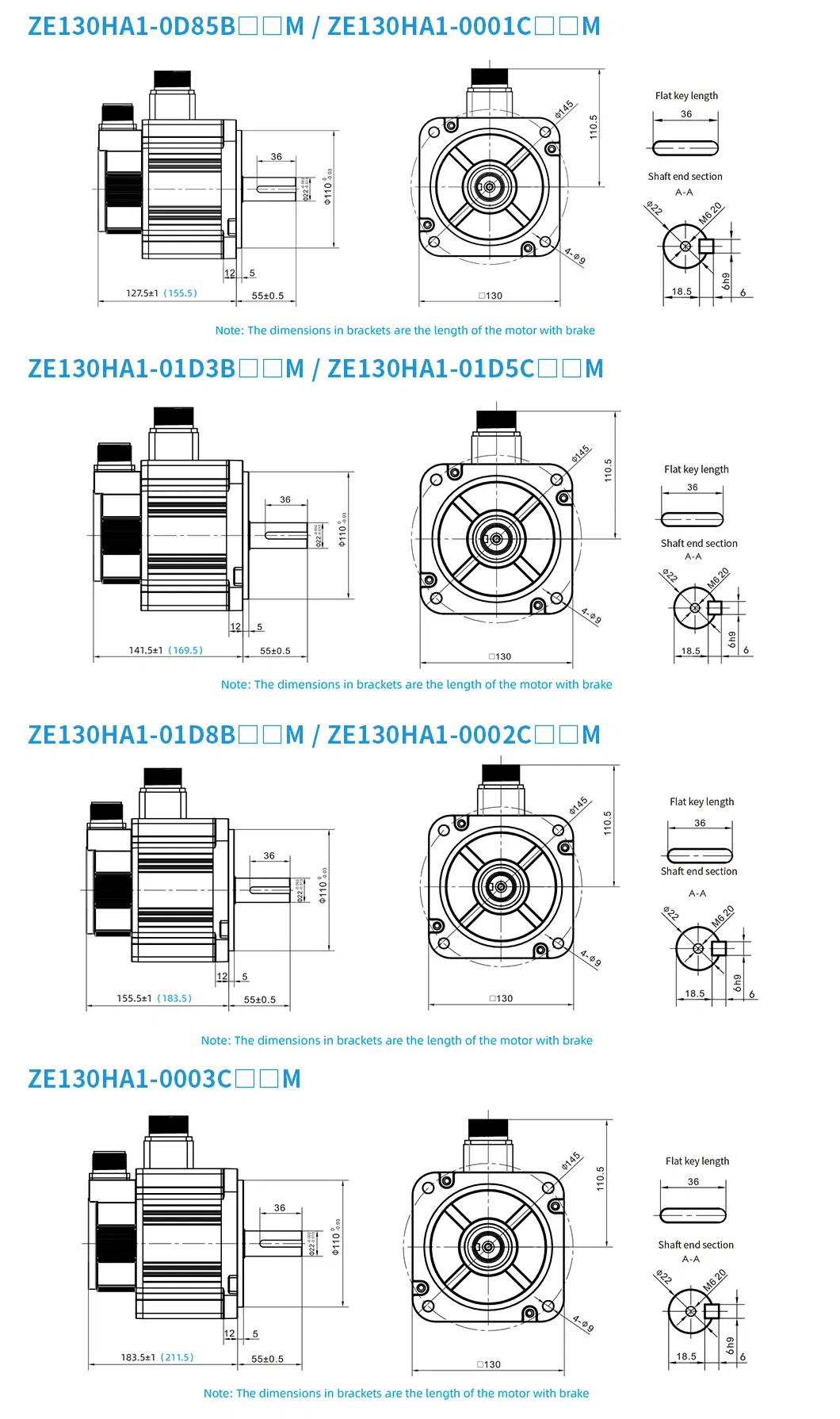

Specifications Table

Detailed Photos

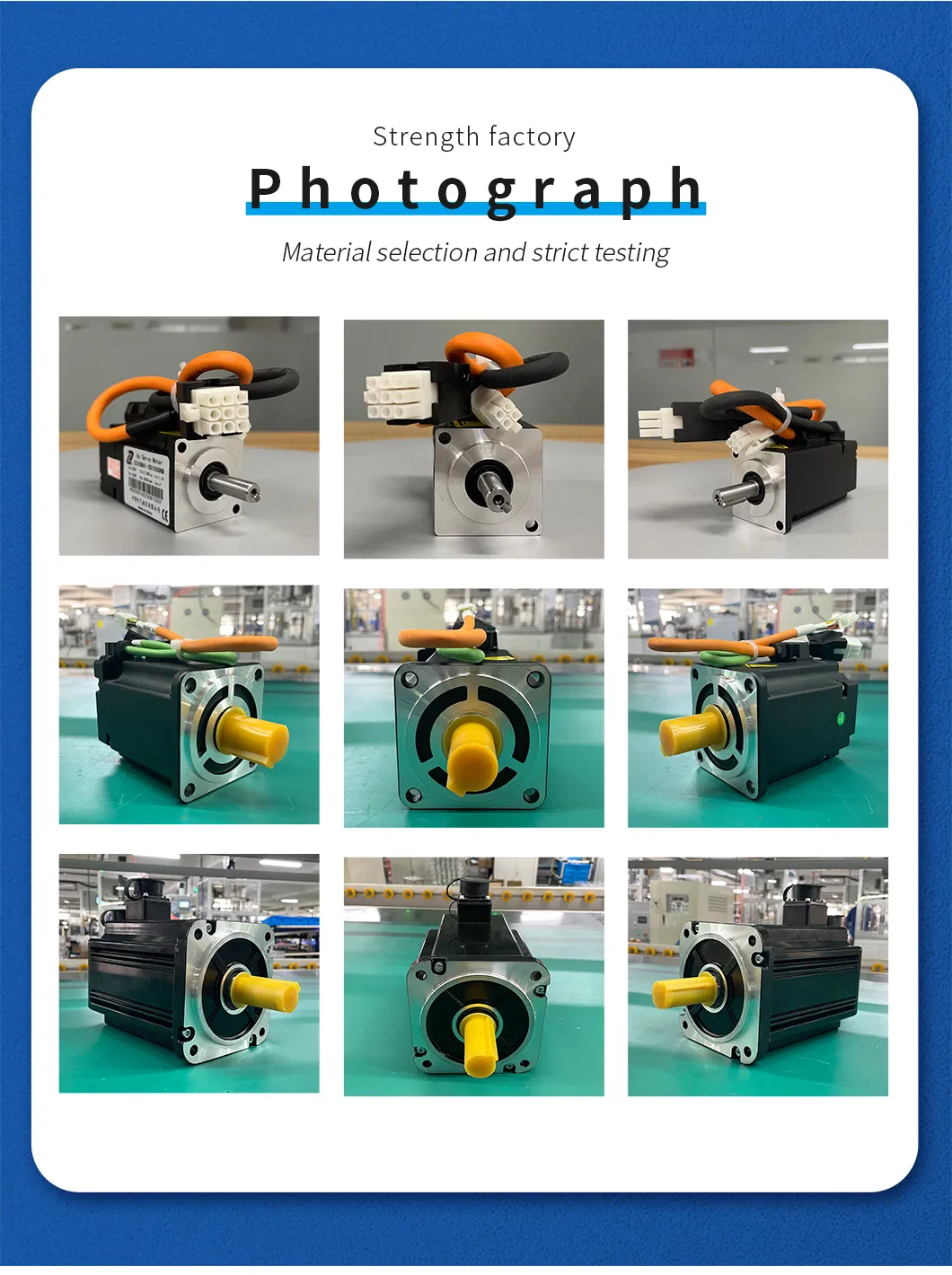

Detailed Motor Photo

Packaging & Shipping

Packaging details

Package Size

13.10cm * 6.10cm * 7.00cm

Gross Weight

2.000kg

Company Overview

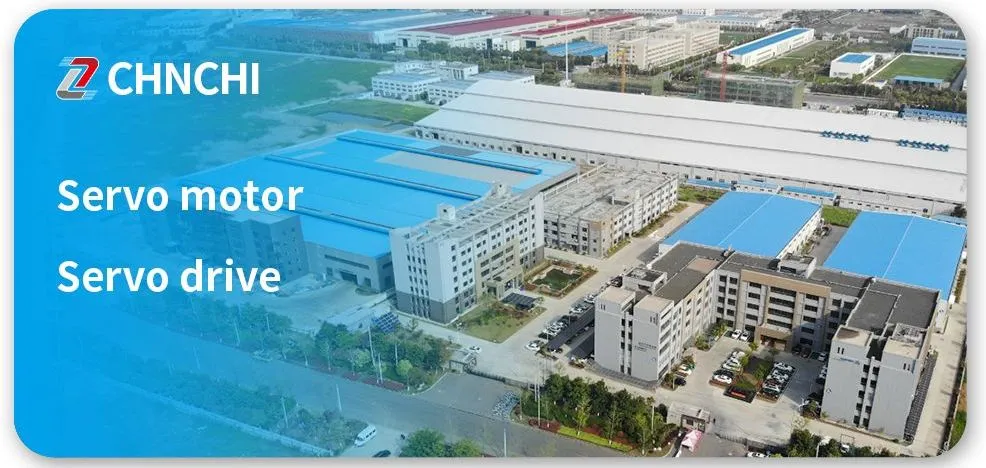

Facility Image

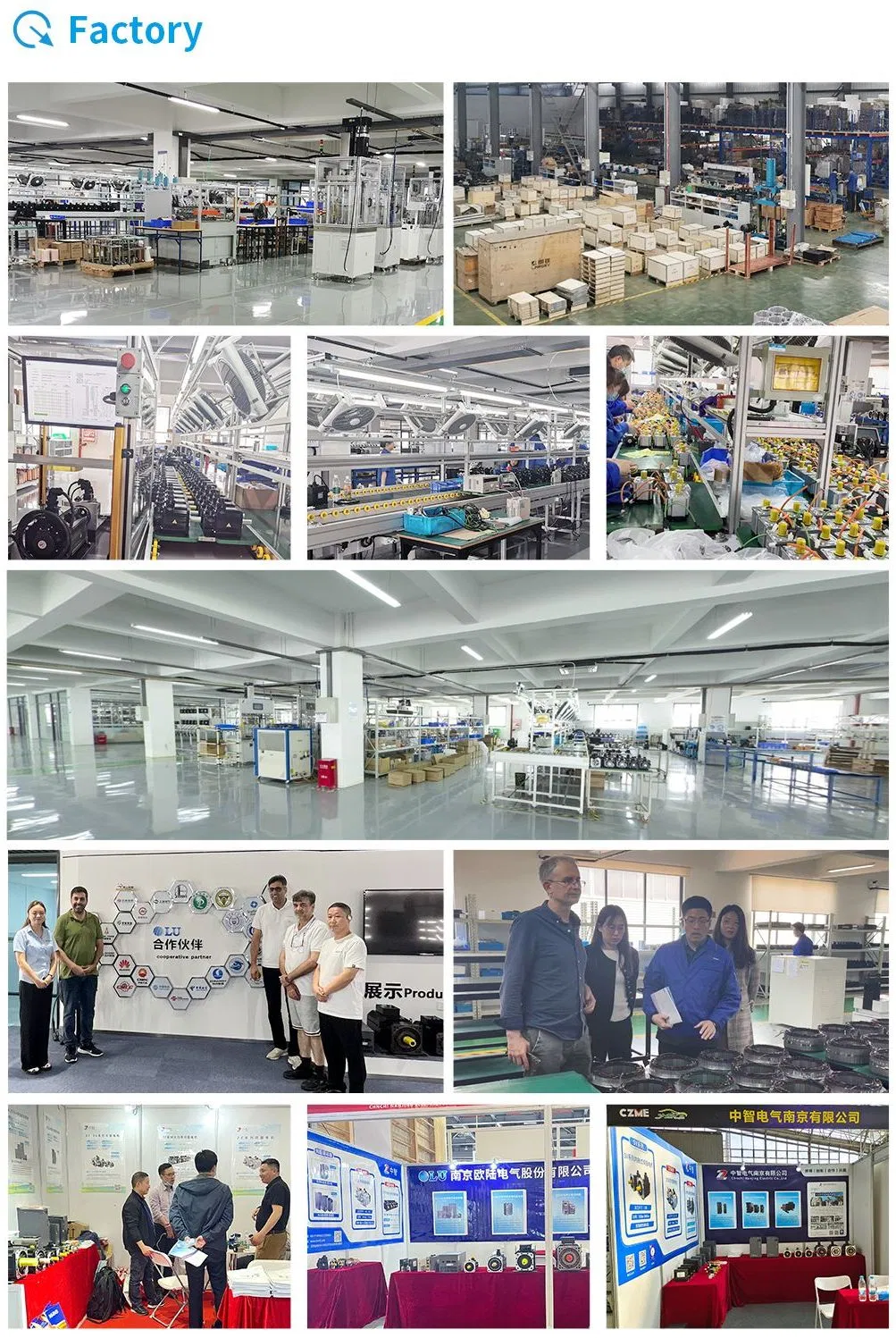

Production Line

Warehouse

Frequently Asked Questions

Q1: What power ranges are available for the ZE embedded servo motor?

A: These motors are available in a power range from 100W up to 3kW to suit various industrial needs.

Q2: What type of encoder options do you provide?

A: You can choose between high-precision 17-bit or 23-bit encoders for precise position and speed control.

Q3: Are these motors suitable for harsh environments?

A: Yes, we offer protection levels of IP65 and optional IP67, making them highly resistant to dust and water.

Q4: Can these motors be equipped with a brake?

A: Yes, the servo motors come with an optional brake feature based on your specific application requirements.

Q5: What certifications do the products hold?

A: Our products are manufactured under ISO9001 standards and carry the CE certification for quality assurance.

Q6: What is the rated speed of these servo motors?

A: The standard rated speed ranges from 1500rpm to 3000rpm, with a maximum speed capability of up to 6000rpm.
