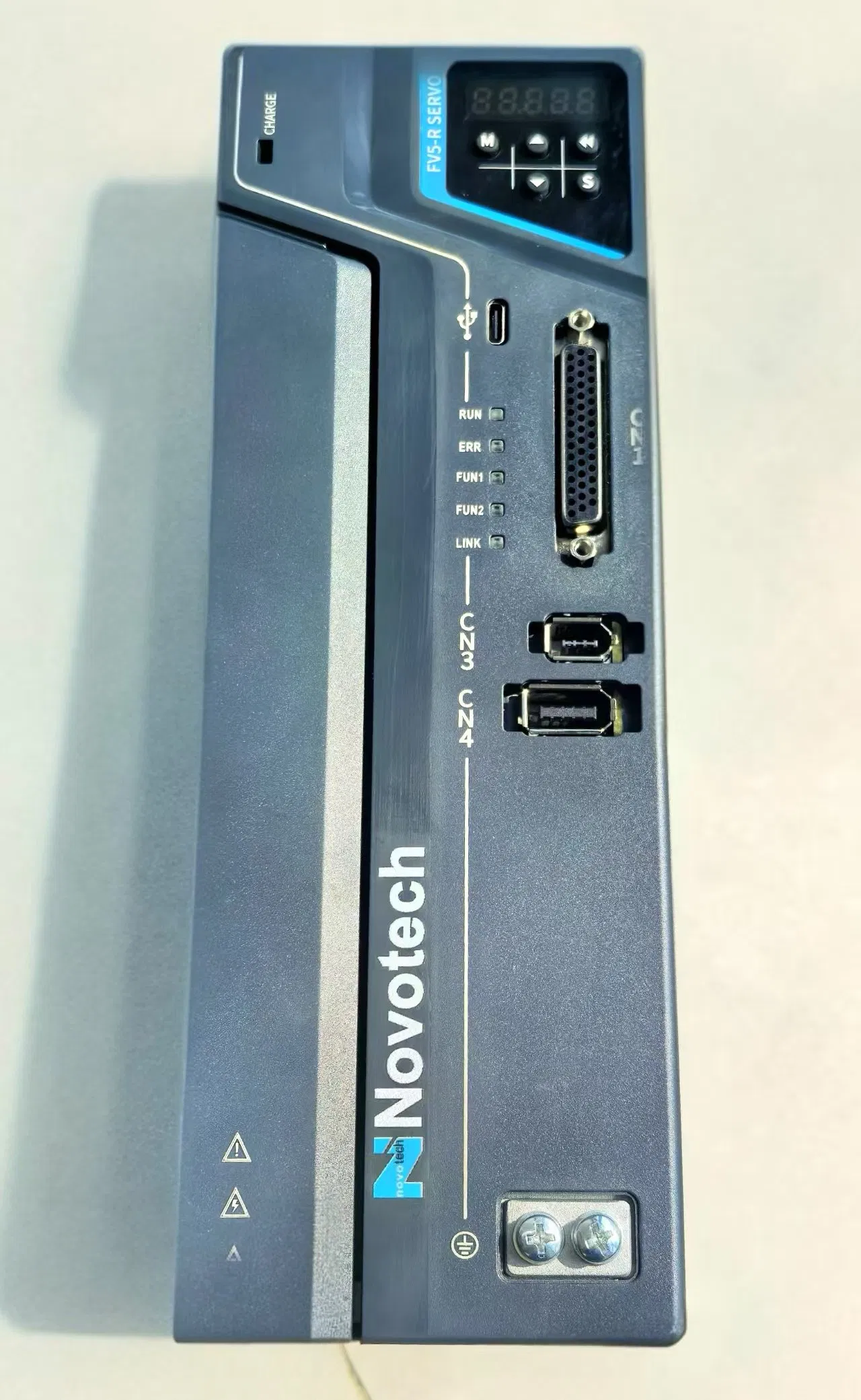

100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
1 / 5
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver
100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver

100W 200W 400W 60mm 220V 17bit AC Servo System Motor with Driver

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HMS60 series
Function
Driving, Control
Casing Protection
Protection Type
Number of Poles
10
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CE, RoHS
System Type
100W/200W/400W 60mm 220V 17bit AC Servo
Warranty
18 Months
Torque Advantage
Big Torque, High Quality, Cost Effective
Protection Grade
IP65

Product Overview

100W - 400W 60mm 220V 17-bit AC Servo System with Driver

This servo range extends from 100W to 100kW, with EtherCAT communication available upon request. The system features a 3x overload capacity, ensuring excellent performance and advanced technology. Each standard kit provides a complete solution including the motor, driver, 3m cables, and connector.

Technical Parameters (200W Model)

Motor ModelHMS60-M00630-F
Motor Frame (mm)60
Rated Power (KW)0.2
Rated Voltage (V)220
Rated Current (A)1.7
Rated Speed (rpm)3000
Rated Torque (N.M)0.64
Peak Speed (rpm)6000
Max Instantaneous Torque (N.M)1.92
Encoder Resolution17 bit
Insulation ClassClass F
Weight (kg)0.88

Dimensions & Technical Drawings

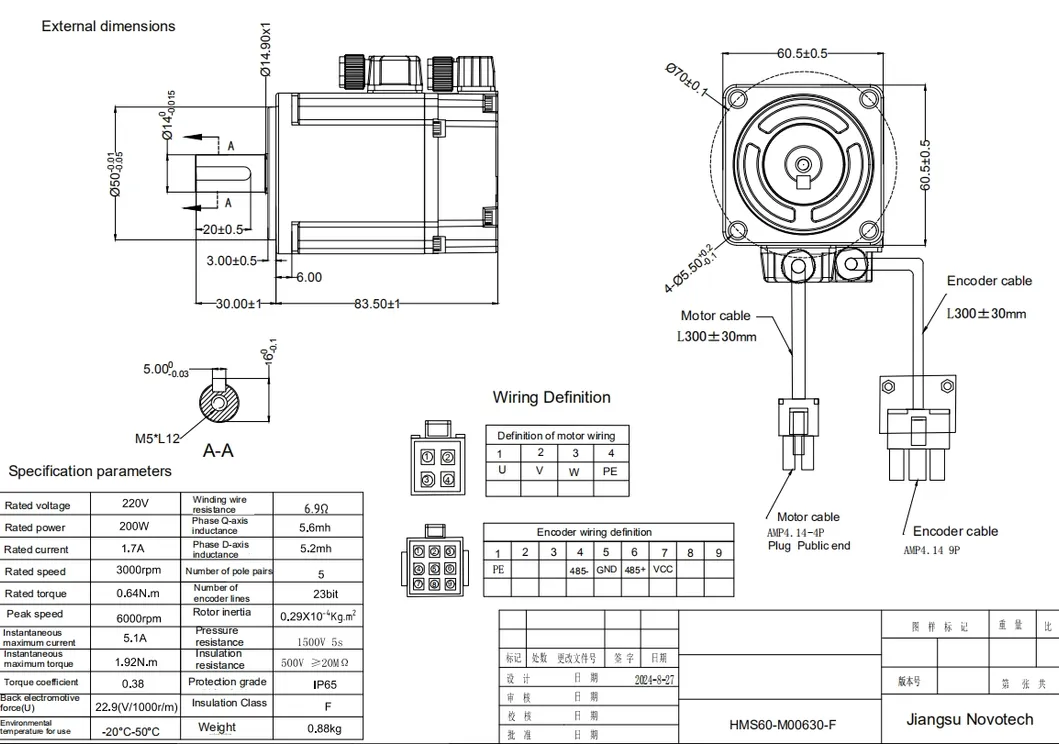

Servo Motor Drawing 1

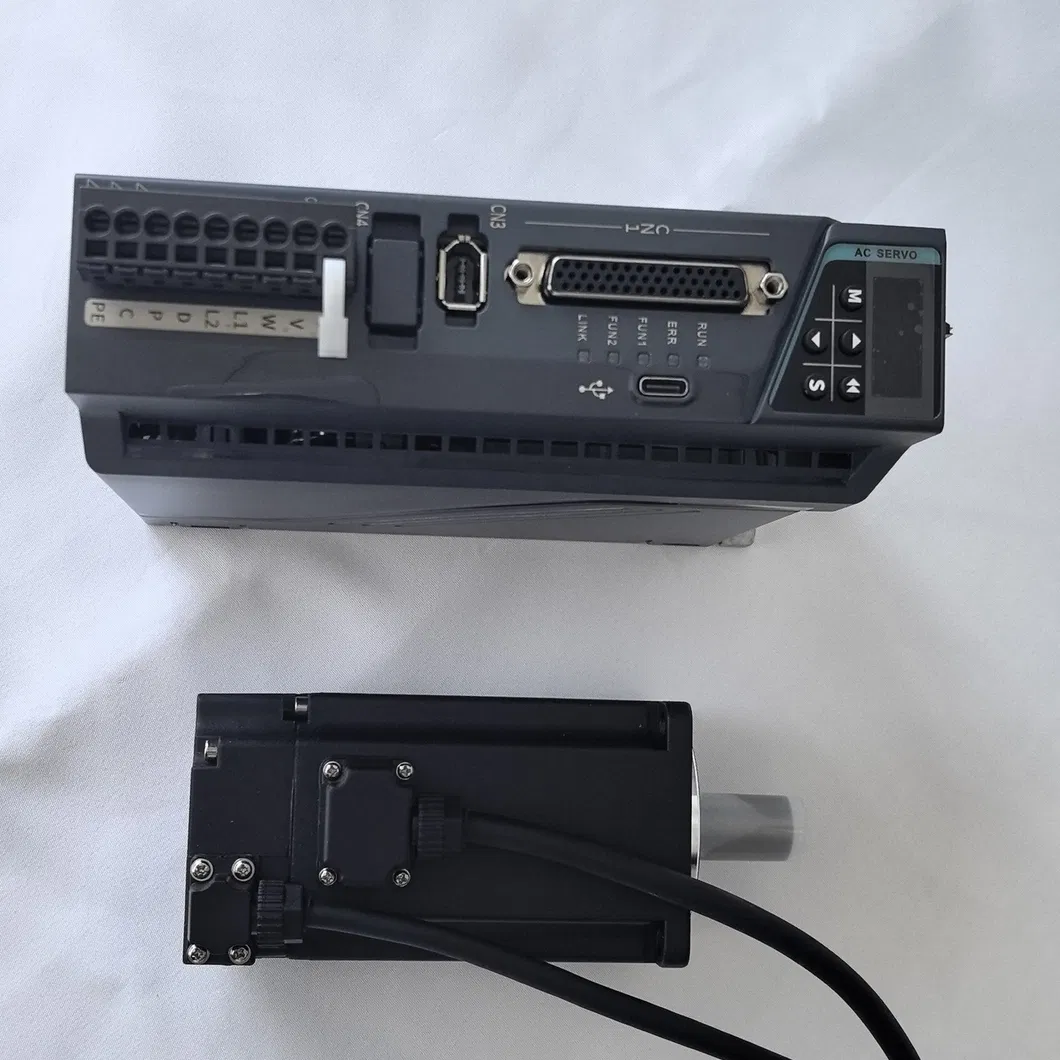

Servo Motor Drawing 2

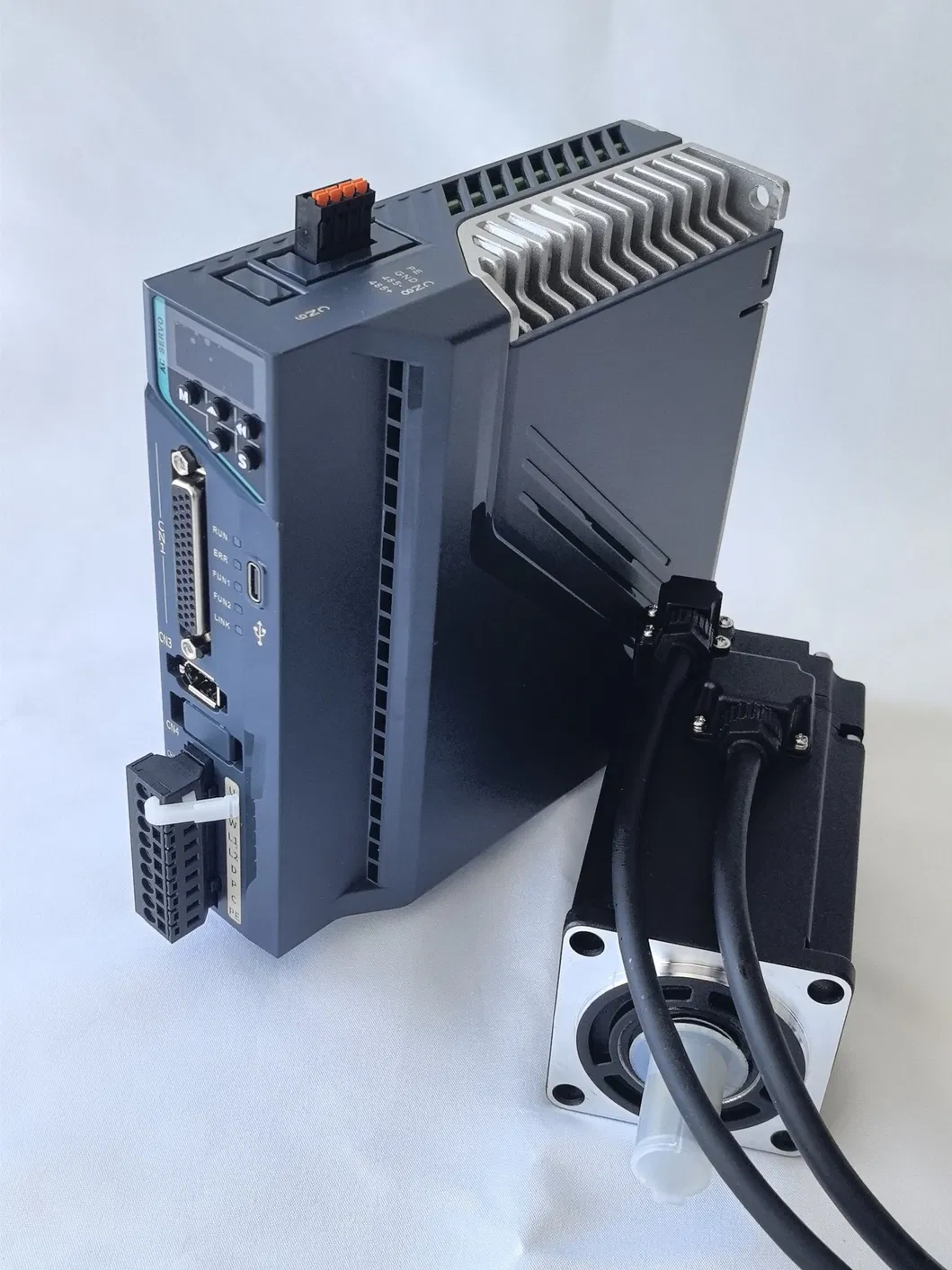

Servo Motor Drawing 3

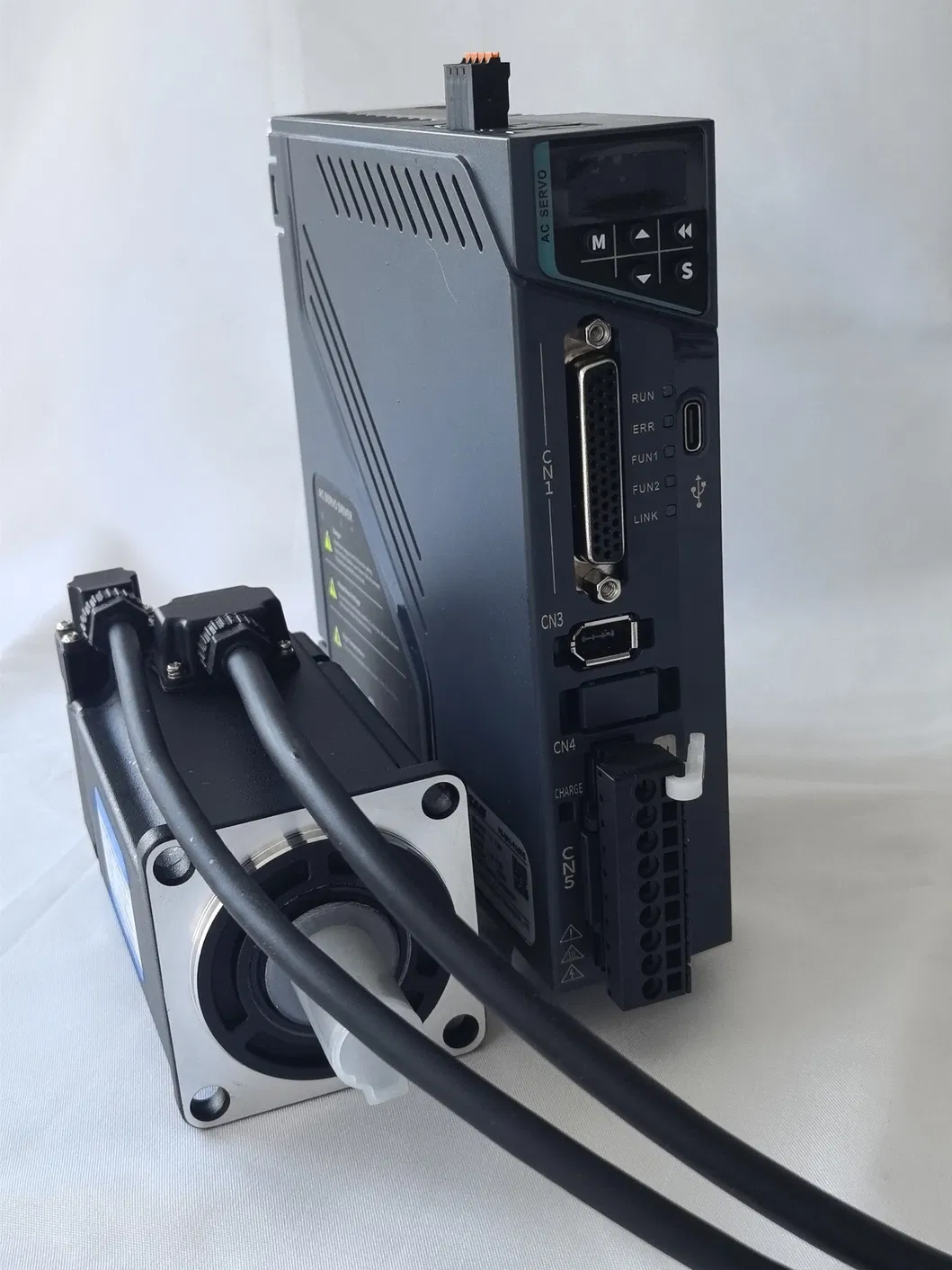

Servo Motor Drawing 4

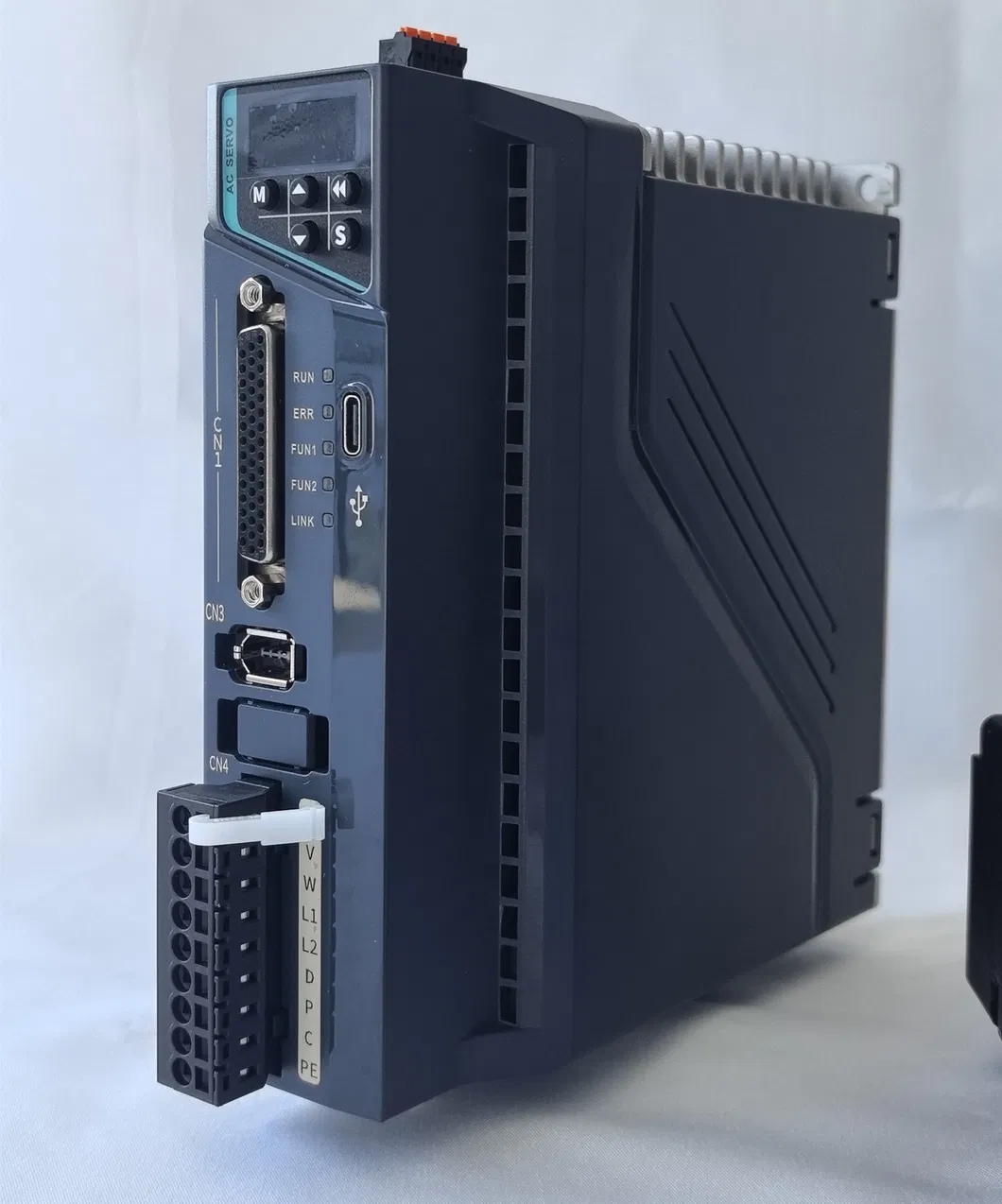

Servo Motor Drawing 5

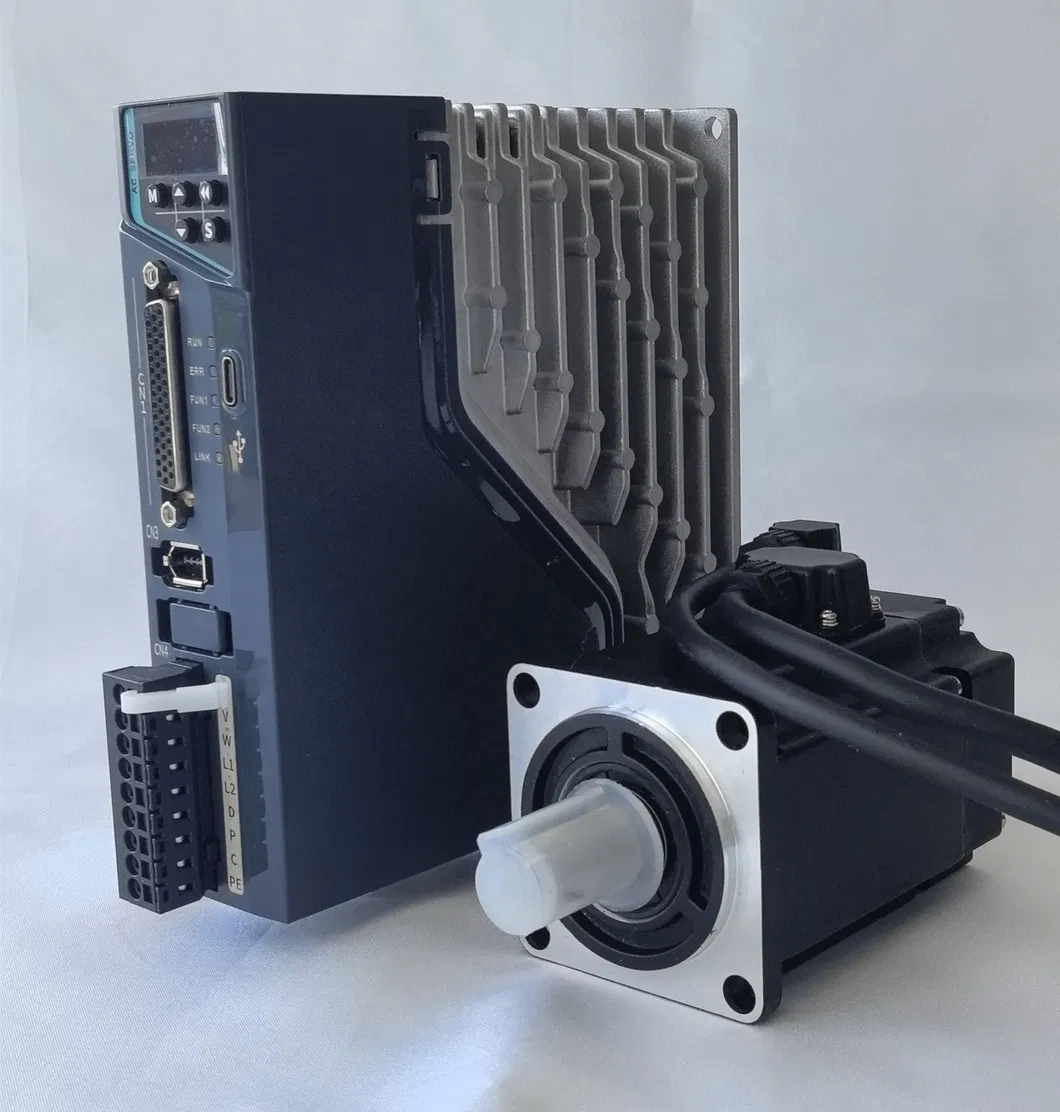

Servo Motor Drawing 6

Key Advantages

  • High Precision & Stable Operation: Equipped with 17-bit encoders for accurate positioning and minimal error, ideal for precision machining and electronics.
  • Powerful & Quick Response: Supports 3 times instantaneous overload. Rapid acceleration allows the motor to reach rated speed quickly, improving overall production efficiency.
  • Energy-efficient: Optimized internal structure and control systems reduce operational energy consumption significantly.
  • High Durability: IP65 protection level makes it dustproof and waterproof, designed for harsh industrial environments with a long service life.
  • Easy Integration: Compact structure and industry-standard installation dimensions ensure easy debugging and short setup cycles.

Application Scenarios

Versatile Power Solution for Modern Industry:

• Industrial Manufacturing
• Energy & Transportation
• Aerospace & Medical Equipment
• Robotics & Automation
• CNC Machine Tools
• Automated Production Lines

Frequently Asked Questions

Q1: What is included in one standard servo kit?
Each kit includes the servo motor, the compatible driver, a 3-meter cable set, and the necessary connectors.
Q2: Can this system handle temporary high-load requirements?
Yes, the HMS60 series is designed to handle up to 3 times its rated torque for instantaneous peak loads.
Q3: What is the benefit of the 17-bit encoder?
A 17-bit encoder provides extremely high resolution for positioning, which translates to smoother operation and higher precision in motion control.
Q4: Is the motor suitable for dusty or wet environments?
With an IP65 protection rating, the motor is well-protected against dust ingress and low-pressure water jets from any direction.
Q5: What is the warranty period for this servo system?
We provide an 18-month warranty from the date of purchase to ensure long-term reliability for your equipment.
Q6: What communication options are available?
Standard pulse/analog control is supported, and EtherCAT communication is available for advanced networked applications.
