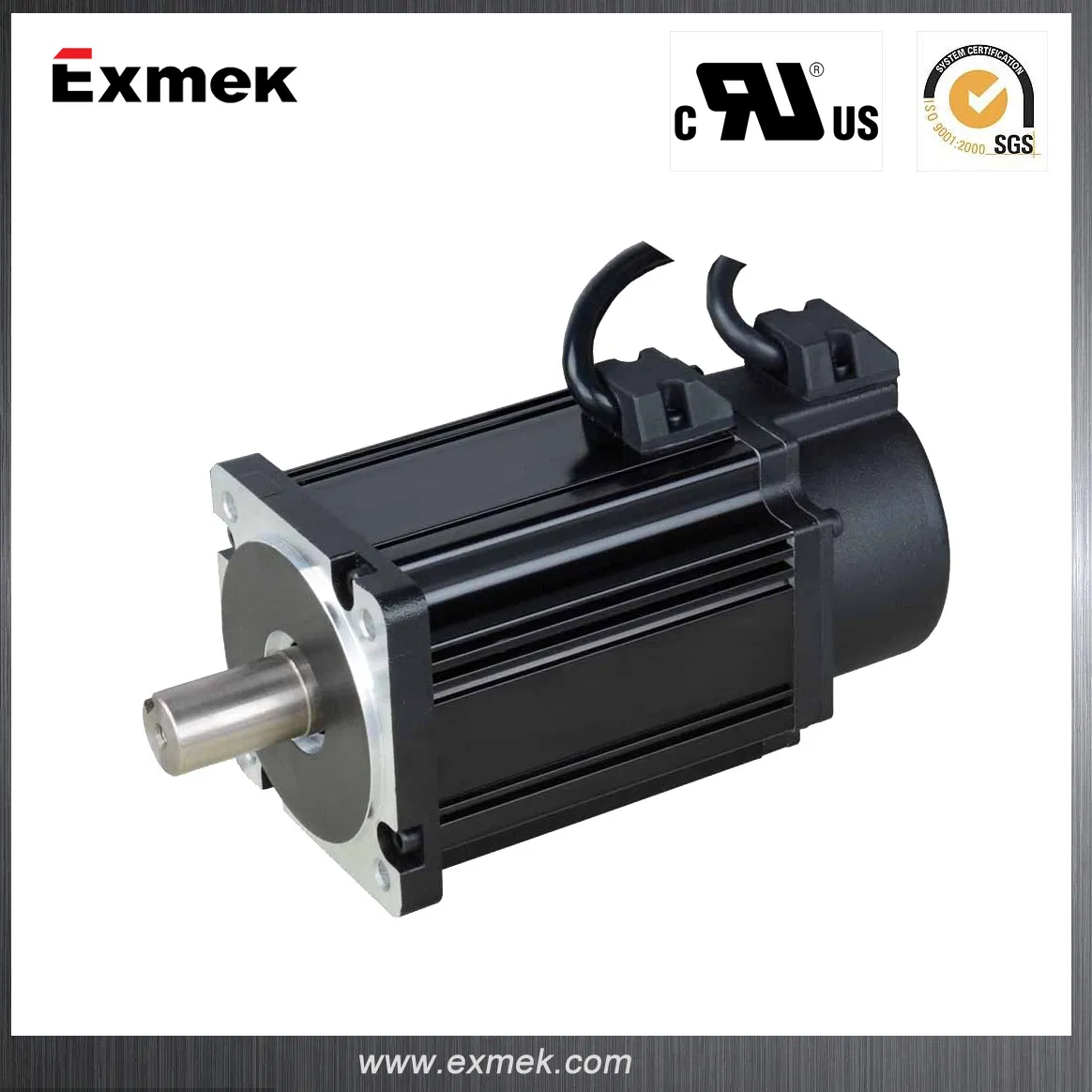

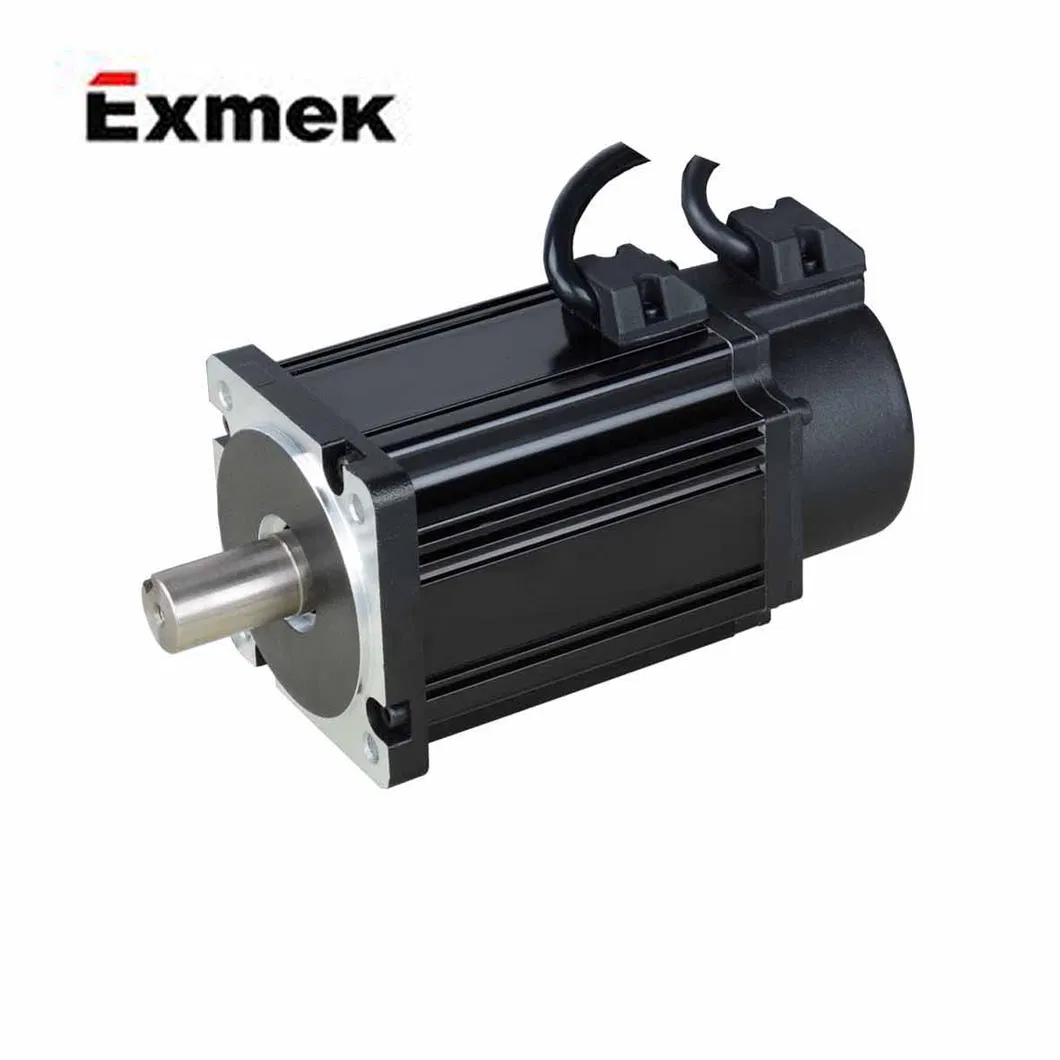

80mm Brushless Servo Motor with 3000rpm 1.31nm (SE080AS100)

Basic Information

Model NO.

SE080AS100

Casing Protection

Closed Type

Number of Poles

8

Certification

ISO9001, CE, RoHS

Transport Package

Carton + Wood Pallet

Origin

China

Production Capacity

400,000 PCS/Year

HS Code

8501310000

General Information

8 poles with three phases
18 slots distribution winding, skew stator design for low cogging
High-grade Insulation class F
Higher resolution encoder options available
Compatibility with higher voltage requirements
IP65 protection class available for harsh environments

Technical Specifications

Parameter	Value (SE080AS100)
Supply Voltage (reference)	48 (VDC)
Rated Continuous Torque	1.31 (Nm)
Rated Speed at Cont. Torque	3000 (rpm)
Rated Continuous Stall Current	16.93 (A)
Rated Continuous Output Power	411 (W)
Motor Constant	0.203 (Nm/√W)
Torque Constant	0.0812 (Nm/A)
Voltage Constant	8.5 (V/krpm)
Terminal Resistance	0.16 (Ω)
Inductance	0.4 (mH)
Rated Peak Current	57.88 (A)
Rated Peak Torque	4.5 (Nm)
Coulomb Friction Torque	0.047 (Nm)
Insulation Class	F
Rotor Inertia	2.66E-03 (Kg.m²)
Motor Weight	2.1 (Kg)
Feedback Device	2500p/rev incremental encoder
Motor Length	132 (mm)

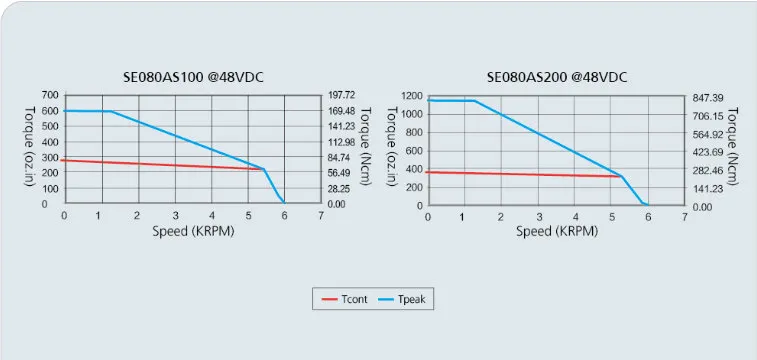

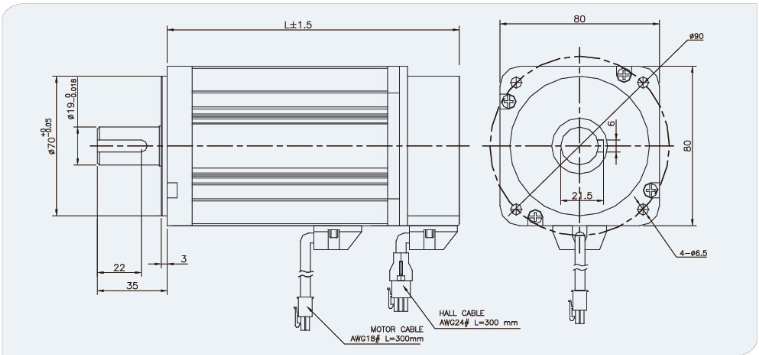

Mechanical Drawings & Performance

Note: Special shaft configurations and other mechanical characteristics are optional to meet specific application needs.

Core Capabilities

Modern Motor Design and Precision Manufacture
Advanced Magnetic Design using Specialized Software
Talented engineering team providing innovative technical solutions
One-stop supplier for complete motion control sub-systems
Rigorous quality control with UL, CE, and RoHS standards

Industry Applications

Our brushless servo motors are widely utilized in various sectors including:

Industrial Automation, Automotive Systems, Semiconductor Equipment, Medical & Chemical Instruments, Swimming Pool Systems, Power Tools, and Office Automation.

Frequently Asked Questions

Q1: What are the main advantages of the 8-pole 3-phase design? A: The 8-pole design combined with an 18-slot distribution winding and skew stator significantly reduces cogging torque, ensuring smoother rotation and higher precision in motion control.

Q2: Can the motor withstand harsh environment conditions? A: Yes, while the standard insulation is Class F, we offer IP65 protection class upgrades to ensure the motor operates reliably in dusty or moist environments.

Q3: What types of feedback devices are supported? A: The standard model comes with a 2500p/rev incremental encoder, but higher resolution encoders are available as an option for applications requiring extreme positioning accuracy.

Q4: Are the mechanical dimensions like the shaft customizable? A: Absolutely. We offer optional special shafts and other mechanical characteristic adjustments to fit your specific OEM requirements.

Q5: What certifications does this servo motor carry? A: Our production processes and products are certified under ISO 9001, ISO 14000, CE, and RoHS, ensuring international quality and environmental compliance.
