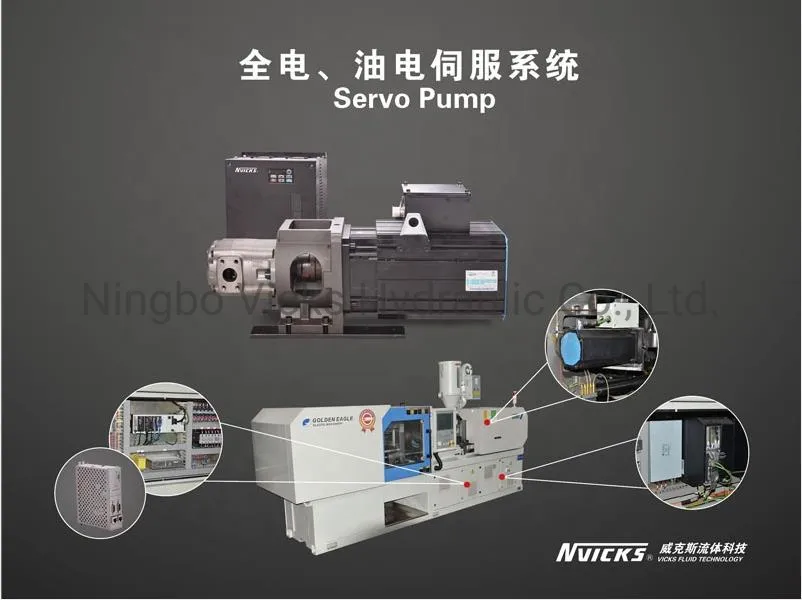

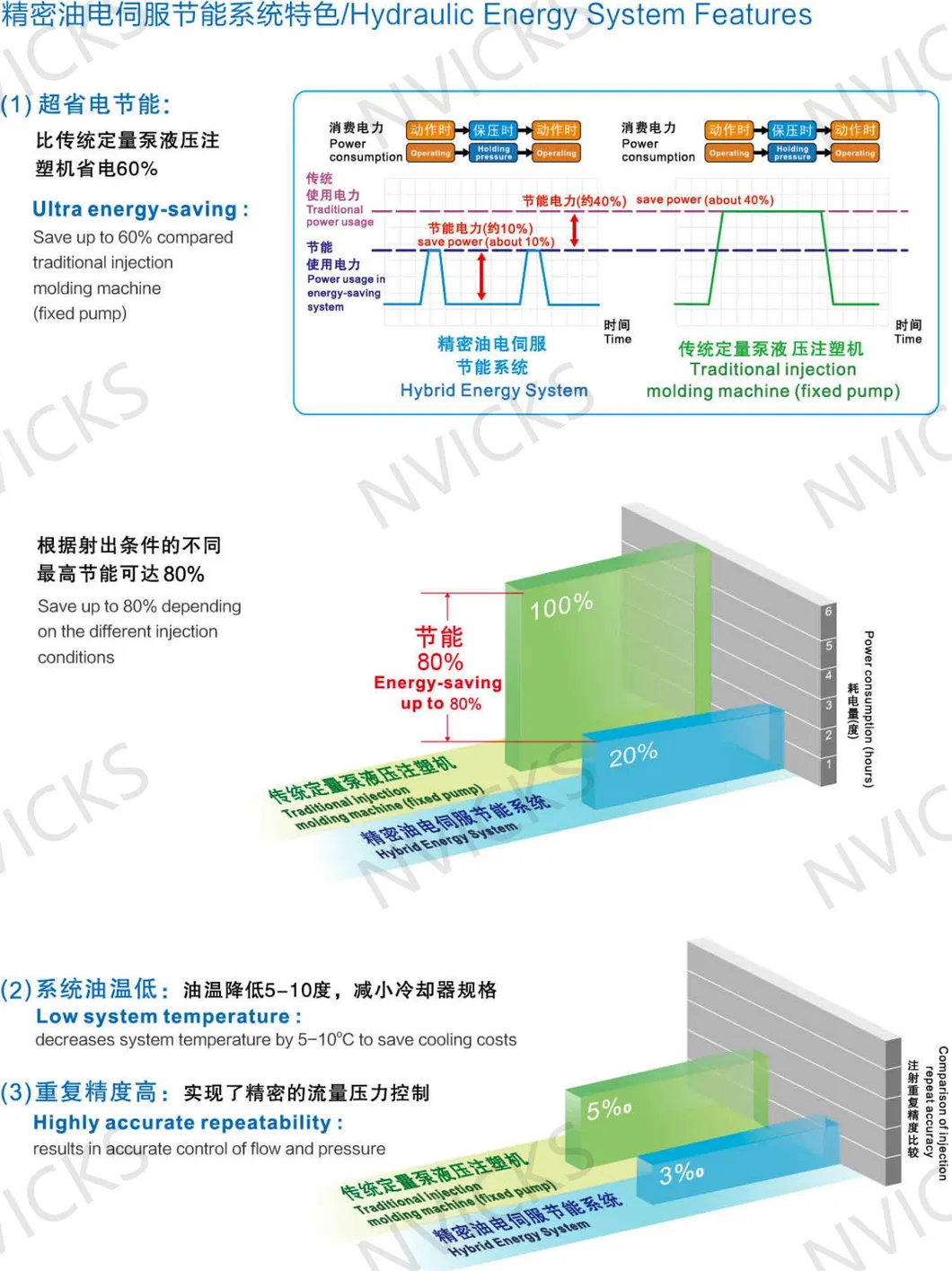

Using a traditional hydraulic system accounts for more than 75% of the total power consumption in injection processes. Our advanced servo control system optimizes pressure and flow requirements during mold closing, injection, and holding phases, eliminating energy waste caused by relief or proportional valve adjustments.

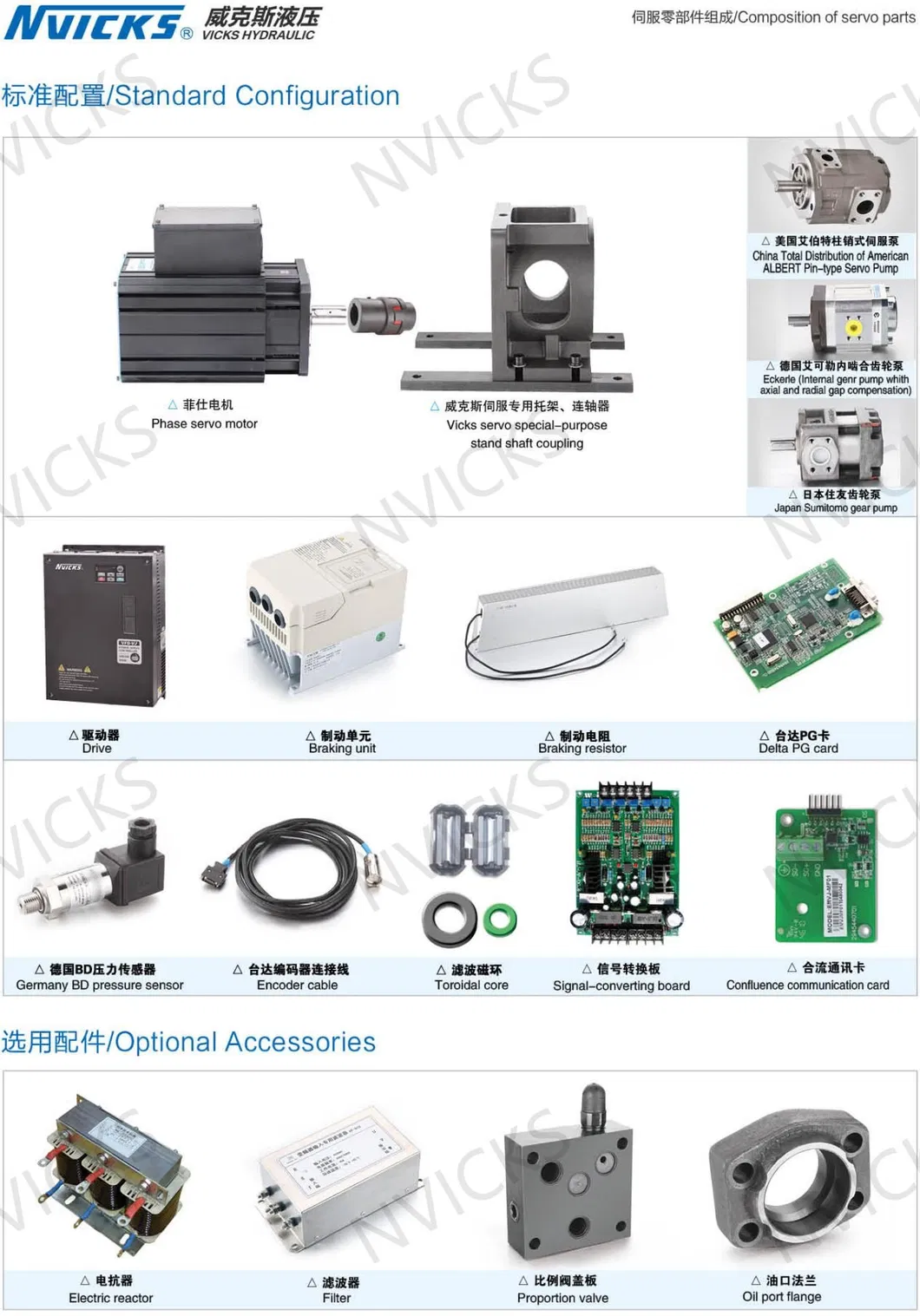

| Pump displacement (mL/r) | Pressure (Mpa) | Max Speed (r/min) | Pump Model | Servo Driver | Servo Motor | Coupling | Pressure Sensor | Valve | Board |
|---|---|---|---|---|---|---|---|---|---|
| 32 | 14 | 2000 | QT42-31.5 | 11KW | 10KW | BTJ-01 | Italy GEFRAN | 03 size | 0-1A to 0-10V |
| 40 | 14 | 2000 | QT42-40 | 15KW | 14KW | BTJ-01 | Italy GEFRAN | 03 size | 0-1A to 0-10V |
| 50 | 14 | 2000 | QT52-50 | 18.5KW | 17.6KW | BTJ-02 | Italy GEFRAN | 03 size | 0-1A to 0-10V |
| 63 | 14 | 2000 | QT52-63 | 22KW | 20KW | BTJ-02 | Italy GEFRAN | 03 size | 0-1A to 0-10V |
| 80 | 14 | 2000 | QT62-80 | 30KW | 28.7KW | BTJ-06 | Italy GEFRAN | 06 size | 0-1A to 0-10V |
| 100 | 14 | 2000 | QT62-100 | 37KW | 29KW | BTJ-06 | Italy GEFRAN | 06 size | 0-1A to 0-10V |
| 125 | 14 | 2000 | QT62-125 | 45KW | 39.4KW | BTJ-07 | Italy GEFRAN | 06 size | 0-1A to 0-10V |
Over 15 years of experience in pump design and manufacturing ensures reliability. All products undergo a 100% test phase with unique tracking codes before shipment.
Utilization of high-precision CNC machinery imported from Germany and Japan to reach the highest standards of product accuracy.
Technical teams possess over 20 years of experience, with lead engineers bringing 40+ years of expertise in hydraulic design.
A 1-year warranty period is provided. Technical support is available at any time to provide solutions for any operational issues.
