The main products include induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV big gear motors, Planetary gear motors, and Worm gear motors. These are widely used in various fields such as manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office apparatus, and entertainment. They are the preferred matched products for automatic machines.

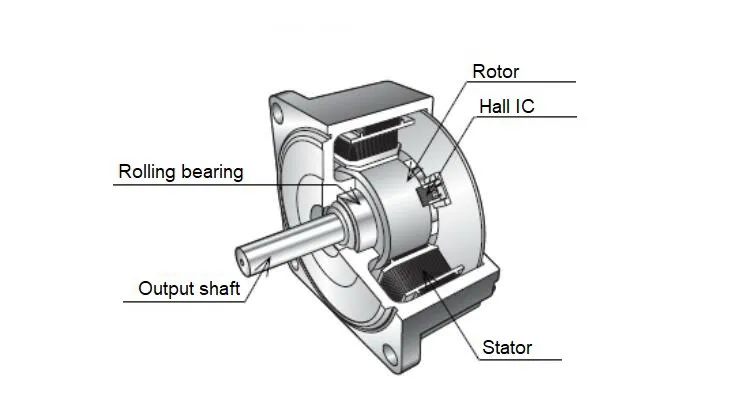

Brushless DC motors are composed of a motor and a driver, representing a typical product of mechanical and electrical integration. Highly regarded for their small volume, low noise, high efficiency, wide range of speed control, and steady working state, they are extensively used in transmission equipment, textile machinery, and medical devices.

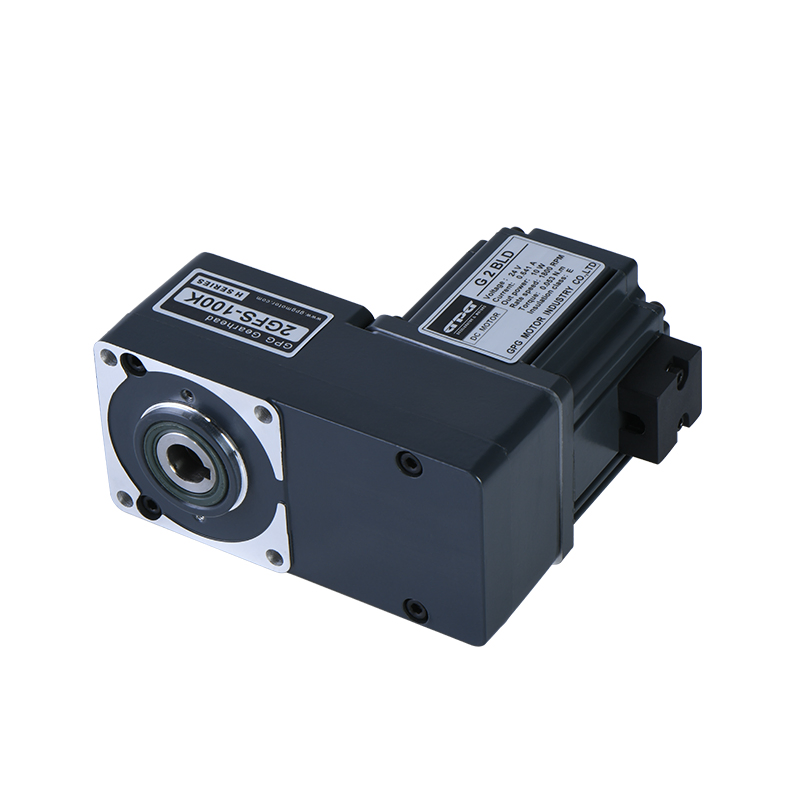

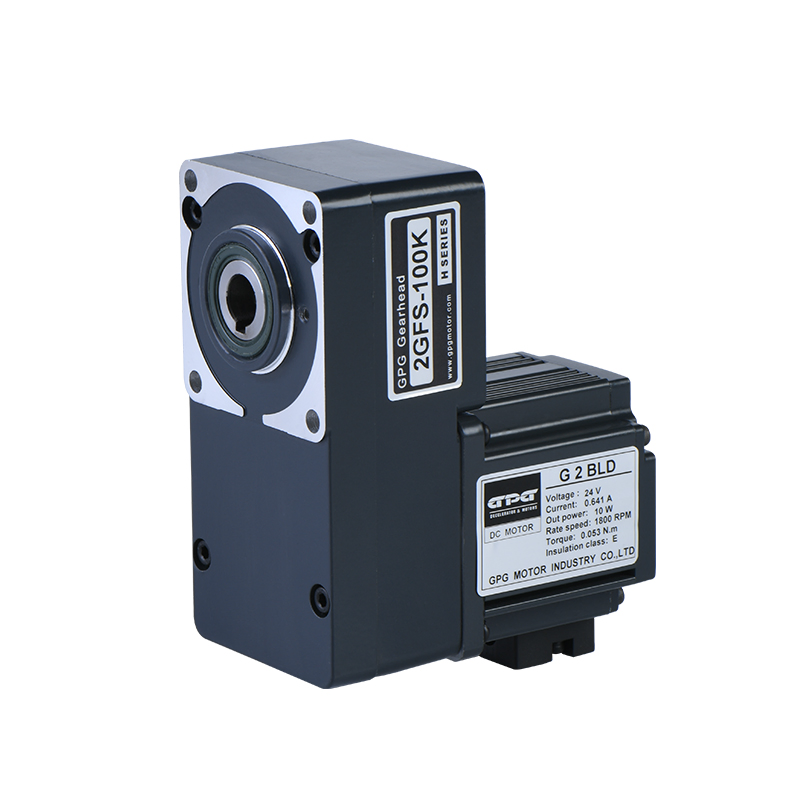

Model: G2BLD15-24GN-18S
| Factory Code | Frame Size | Motor Type | Output Power | Voltage | Shaft Type | Motor Speed |
| GPG | 60mm, 70mm, 80mm, 90mm, 100mm, ø45, ø60 | BLD: Brushless with Square Gearhead BLDP: Brushless with Planetary Gearhead |
10W - 400W | DC24V - DC220V | GN: General Bevel GU: Reinforced Bevel A1: Milling Keyway |
1500RPM - 3000RPM |
| Model | Voltage | Rated Power | No-load | Load Parameter | Life (Hrs) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current(A) | Speed | Torque(N.m) | Current(A) | |||||
| G2BLD15-24A(GN) | 24V | 15W | 2200RPM | Max 0.3 | 1800RPM | 0.05 | 1.1 | >5000 | 0.45 |
| G2BLD25-24A(GN) | 24V | 25W | 3300RPM | Max 0.4 | 3000RPM | 0.08 | 1.3 | 0.65 | |
Gearhead Model Instruction: 2GN-100K
| Dimension | Gear Type | Reduction Ratio | Bearing Type |
| 2: 60mm / 3: 70mm / 4: 80mm / 5: 90mm / 6: 104mm | GN: General Bevel Gear / GU: Reinforced Bevel Gear | 1:100 | Ball Bearing |

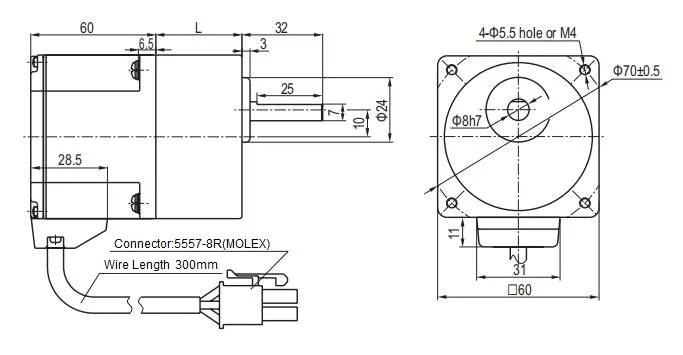

| Motor Type | Gearhead Type | Gear Ratio | L Dimension |
| G2BLD15 Series | 2GN( )K | 1:3 ~ 1:20 | 32mm |
| G2BLD15 Series | 2GN( )K | 1:25 ~ 1:180 | 40mm |
